Model Image
Manufacturer

Sony

Model Number

VPLHW10

Description

Home Theater Sxrd Projector

Interactive Exploded View

Parts List

Part Number Description

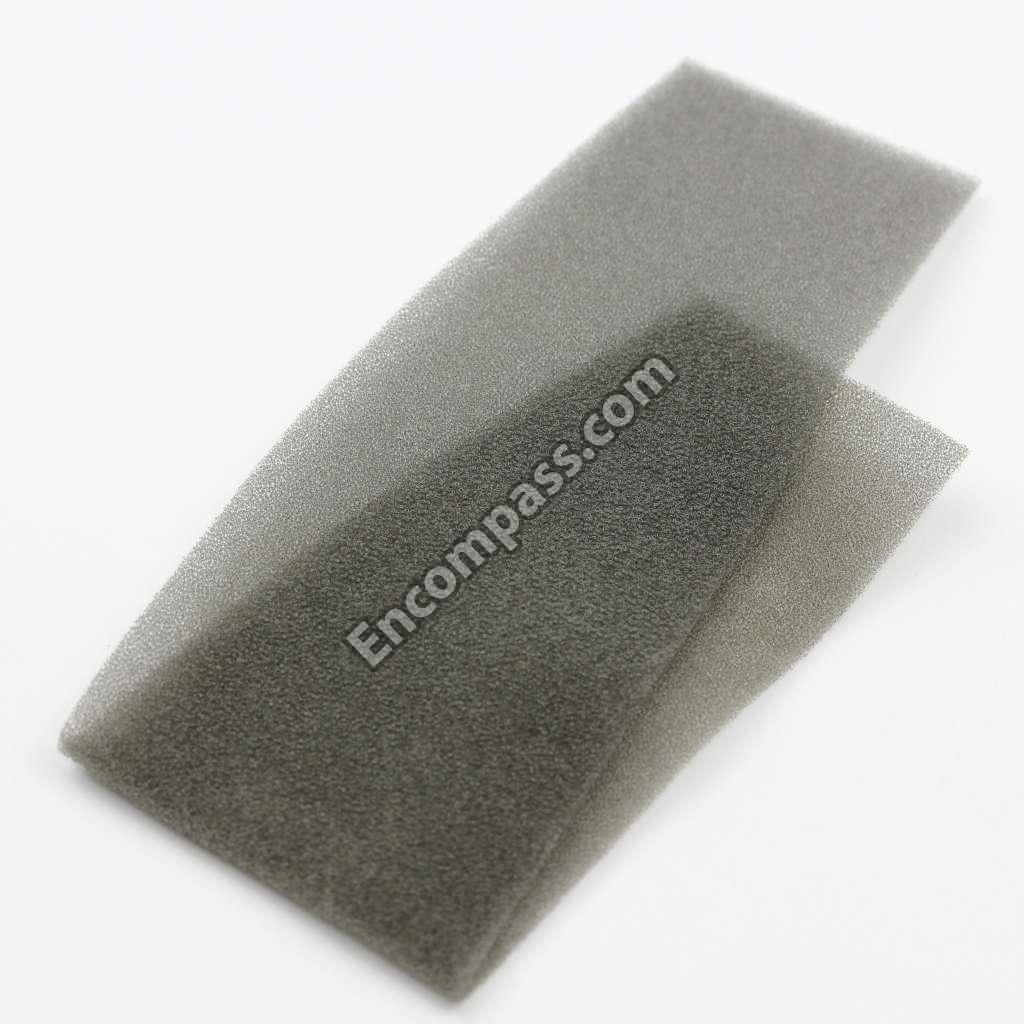

3-875-777-01 3-875-777-01 AIR FILTER

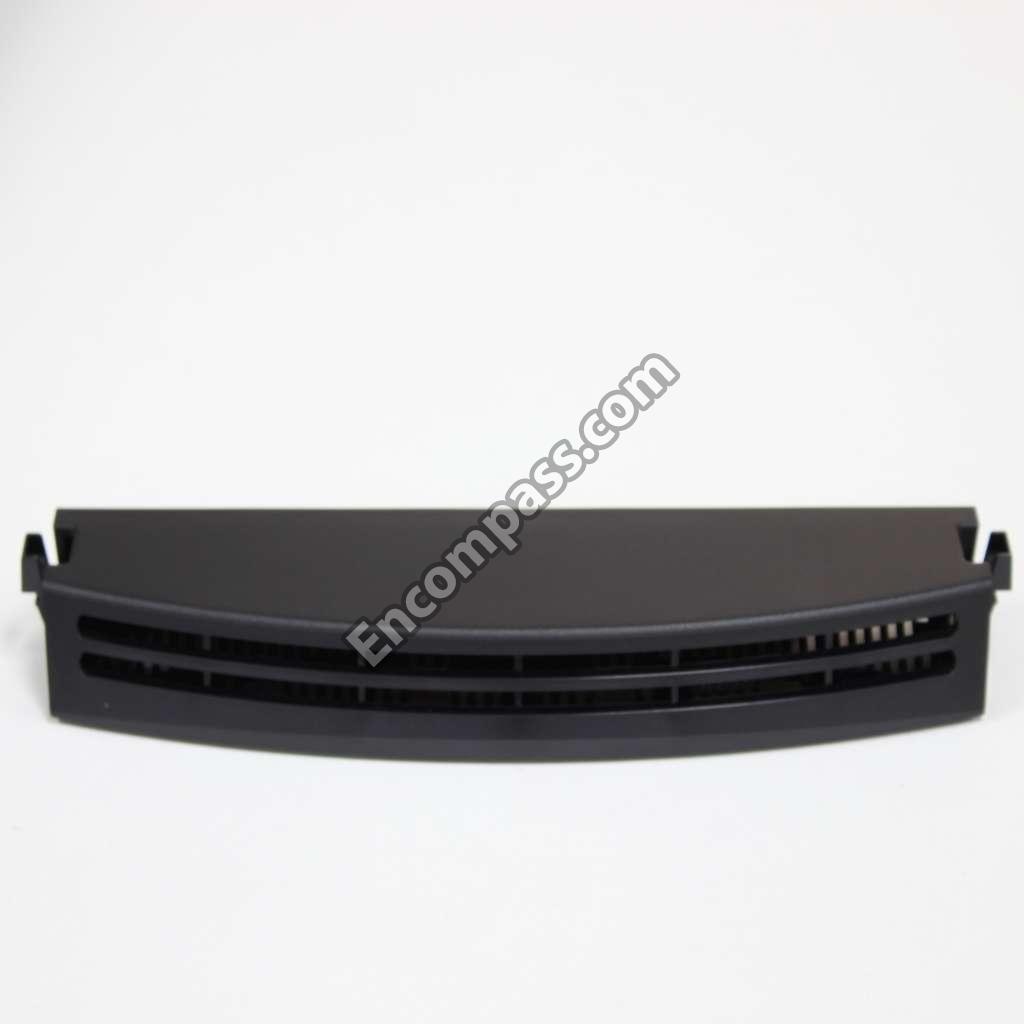

X-2318-161-3 X-2318-161-3 AIR FILTER COVER ASSEMBLY
X-2318-158-2 X-2318-158-2 ASSY BOTTOM COVER
X-2318-160-1 X-2318-160-1 ASSY FRONT COVER
X-2318-159-4 X-2318-159-4 ASSY, TOP COVER
3-875-740-01 3-875-740-01 CAP, LENS
1-787-634-11 1-787-634-11 D.C. FAN
3-876-649-15 3-876-649-15 I/M VPLHW10
A-1563-847-C A-1563-847-C MOUNTED CIRCUIT BOARD QA
A-1549-541-B A-1549-541-B OPTICAL UNIT ASSY (SVC) TRS
1-831-498-11 1-831-498-11 POWER SUPPLY CORD SET (2P)
LMPH201 LMPH201 REPLACEMENT LAMP
