Model Image
Manufacturer

Sony

Model Number

VPLHW30AES

Description

Home Theater 3d Projector Bundle

Interactive Exploded View

Parts List

Part Number Description
1-458-628-41 1-458-628-41 3D GLASSES
1-534-827-14 1-534-827-14 AC POWER CORD (US)
1-489-928-12 1-489-928-12 ADAPTOR (AC-UD10) AC
X-2318-160-1 X-2318-160-1 ASSY FRONT COVER
X-2582-063-2 X-2582-063-2 ASSY, TOP COVER
3-875-740-01 3-875-740-01 CAP, LENS
X-2582-062-1 X-2582-062-1 COVER ASSY, BOTTOM
3-875-739-02 3-875-739-02 COVER LAMP
4-290-338-14 4-290-338-14 I/M VPL-HW30ES/HW30AES
A-1834-101-A A-1834-101-A MOUNTED CIRCUIT BOARD, C

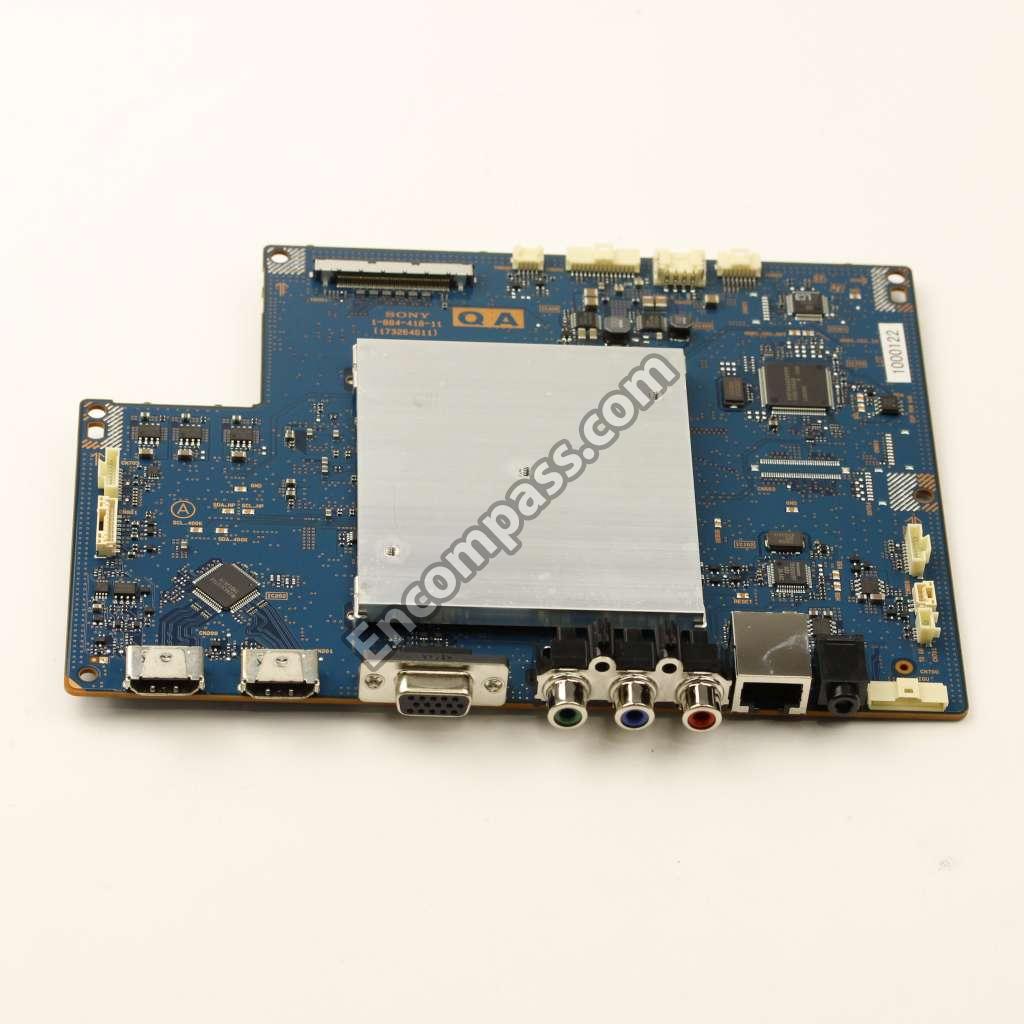

A-1909-706-A A-1909-706-A MOUNTED CIRCUIT BOARD, QA
1-489-899-11 1-489-899-11 REMOTE CONTROL RMPJ20
