Model Image
Manufacturer

Sony

Model Number

VPLHW40ES

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-833-005-31 1-833-005-31 AC POWER-SUPPLY CORD (FOR CN)
X-2149-020-1 X-2149-020-1 ADJUSTOR ASSY
X-2318-161-3 X-2318-161-3 ASSY, FILTER COVER (FOR BLACK MODEL: U/CN)
X-2318-160-3 X-2318-160-3 ASSY, FRONT COVER (FOR BLACK MODEL: U/CN)
X-2549-314-4 X-2549-314-4 ASSY, TOP COVER (FOR BLACK MODEL: U/CN)
1-482-025-11 1-482-025-11 BEADS, FERRITE (CASE)
2-188-288-21 2-188-288-21 BUTTON (P) (FOR BLACK MODEL: U/CN)
2-188-288-31 2-188-288-31 BUTTON (P) (FOR WHITE MODEL: SY)
3-875-740-01 3-875-740-01 CAP, LENS
4-534-760-01 4-534-760-01 CD-ROM OPERATING INSTRUCTIONS (ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH, RUSSIAN)
1-482-017-11 1-482-017-11 CLAMP, FERRITE
1-500-082-11 1-500-082-11 CLAMP, SLEEVE FERRITE
4-415-016-01 4-415-016-01 CONNECTOR (W), SHEET (FOR WHITE MODEL: SY)

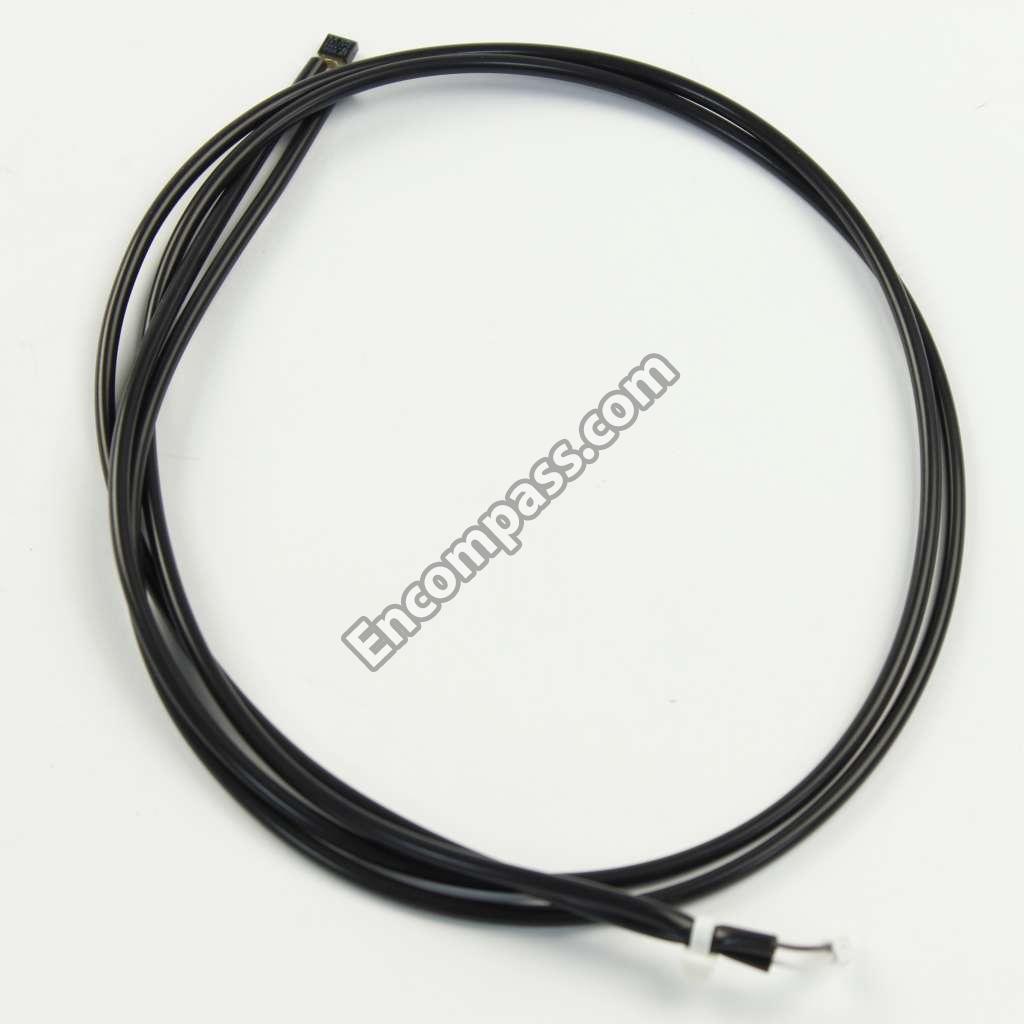

1-910-049-96 1-910-049-96 CONNECTOR ASSY, FUSE
4-289-965-01 4-289-965-01 CONNECTOR, SHEET (FOR BLACK MODEL: U/CN)
1-534-827-15 1-534-827-15 CORD, POWER (FOR U)
X-2583-533-2 X-2583-533-2 COVER ASSY (W), FILTER (FOR WHITE MODEL: SY)
X-2585-650-2 X-2585-650-2 COVER ASSY (W2), BOTTOM (FOR WHITE MODEL: SY)
X-2585-963-2 X-2585-963-2 COVER ASSY (W2), FRONT (FOR WHITE MODEL: SY)
X-2585-651-4 X-2585-651-4 COVER ASSY (W2), TOP (FOR WHITE MODEL: SY)
X-2585-415-2 X-2585-415-2 COVER ASSY, BOTTOM (FOR BLACK MODEL: U/CN)
9-885-120-26 9-885-120-26 COVER, BATTERY (FOR RM-PJ25)
3-875-739-03 3-875-739-03 COVER, LAMP (FOR BLACK MODEL: U/CN)
3-875-739-12 3-875-739-12 COVER, LAMP (FOR WHITE MODEL: SY)
2-887-853-21 2-887-853-21 CUSHION (LAMP FAN)
4-112-208-01 4-112-208-01 CUSHION (LF), SHADING
1-787-065-12 1-787-065-12 D.C. FAN (SIROCCO)
1-787-634-11 1-787-634-11 D.C.FAN
2-059-414-21 2-059-414-21 DAMPER, FAN
1-855-126-12 1-855-126-12 DC FAN
1-482-042-11 1-482-042-11 FERRITE CORE
3-875-777-01 3-875-777-01 FILTER
2-695-514-01 2-695-514-01 FOOT, REAR
1-910-402-16 1-910-402-16 HARNESS QA-EM-6P
1-821-584-11 1-821-584-11 INLET, AC (WITH NOISE FILTER)
1-835-819-12 1-835-819-12 LEAD WIRE WITH CONNECTOR(LVDS)
A-1834-101-A A-1834-101-A MOUNTED CIRCUIT BOARD, C(SVC)
A-1888-537-B A-1888-537-B MOUNTED CIRCUIT BOARD, EM
A-1844-022-A A-1844-022-A MOUNTED CIRCUIT BOARD, GA(SVC)
A-1844-023-A A-1844-023-A MOUNTED CIRCUIT BOARD, GB(SVC)
A-1512-871-A A-1512-871-A MOUNTED CIRCUIT BOARD, HA
A-1834-307-A A-1834-307-A MOUNTED CIRCUIT BOARD, HB
A-1820-760-A A-1820-760-A MOUNTED CIRCUIT BOARD, NF
A-2040-407-A A-2040-407-A MOUNTED CIRCUIT BOARD, QA(SVC)
A-1512-876-A A-1512-876-A MOUNTED CIRCUIT BOARD, QB
A-1512-878-A A-1512-878-A MOUNTED CIRCUIT BOARD, TL
A-1512-879-A A-1512-879-A MOUNTED CIRCUIT BOARD, U
A-1512-880-A A-1512-880-A MOUNTED CIRCUIT BOARD, V
4-303-605-00 4-303-605-00 NUT
A-2040-408-A A-2040-408-A OPTICAL UNIT ASSY (SVC)

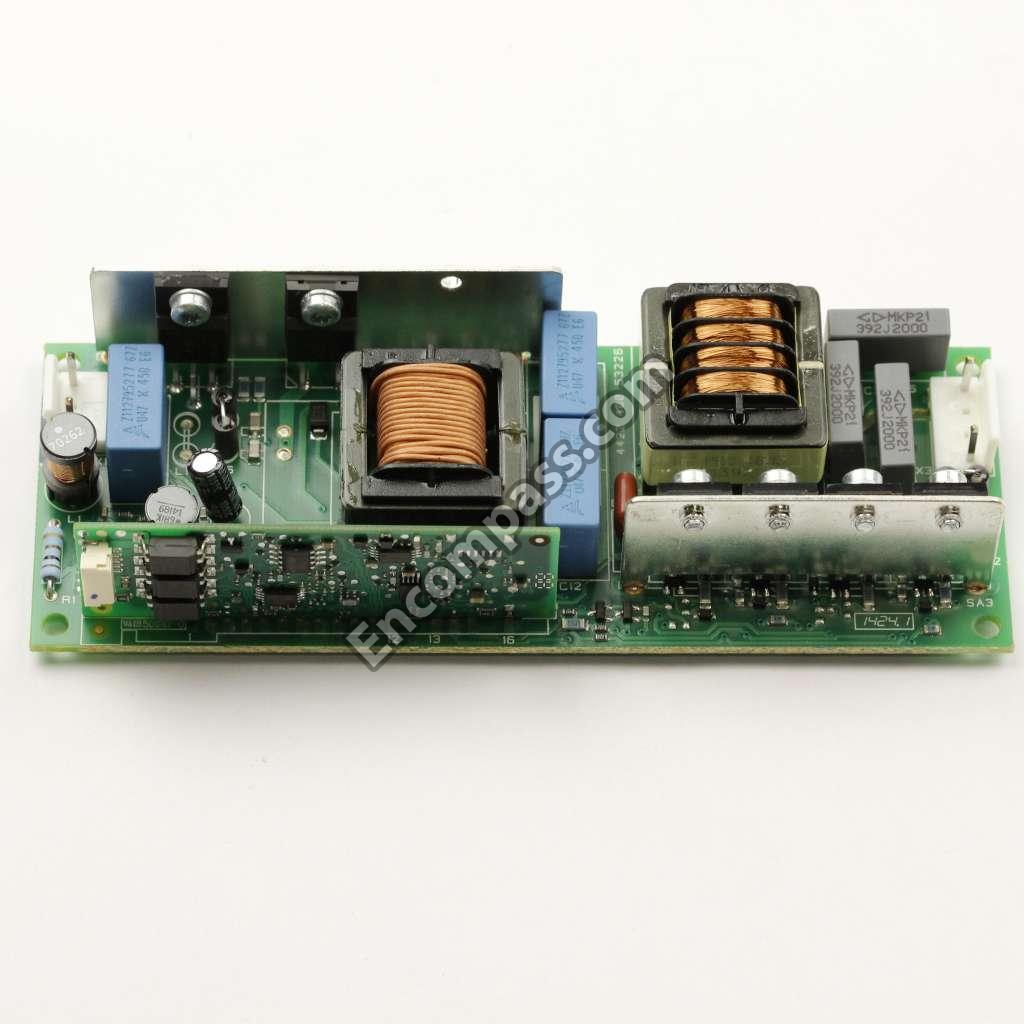

1-474-352-11 1-474-352-11 POWER UNIT
1-492-861-12 1-492-861-12 REMOTE COMMANDER (RM-PJ25)
3-531-576-01 3-531-576-01 RIVET
4-029-432-12 4-029-432-12 SCREW (3X12), (+) BVWHTP
7-685-648-79 7-685-648-79 SCREW 3X12 TYPE2 IT-3
7-682-948-09 7-682-948-09 SCREW 3X8
7-685-646-79 7-685-646-79 SCREW 3X8 TYPE2 IT-3
7-682-961-01 7-682-961-01 SCREW 4X8
2-580-614-01 2-580-614-01 SCREW, M3X8
2-580-593-01 2-580-593-01 SCREW, M3X8
2-580-603-01 2-580-603-01 SCREW, M4X16
2-580-606-01 2-580-606-01 SCREW, M5X8
2-580-626-01 2-580-626-01 SCREW, SP 4-4O UNC
2-666-551-11 2-666-551-11 SCREW,TAPPING,P2
