Model Image
Manufacturer

Sony

Model Number

VPLPX41

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
4-074-474-02 4-074-474-02 +BSW M3X8
4-082-749-01 4-082-749-01 ADJUSTER, RB-MIRROR
4-092-357-01 4-092-357-01 ADJUSTOR (1738)
4-092-312-01 4-092-312-01 APERTURE, PS CON
X-4041-117-3 X-4041-117-3 BASE ASSY
A-1103-598-A A-1103-598-A BOARD, C COMPLETE PC
A-1102-449-A A-1102-449-A BOARD, Q COMPLETE PC
3-899-249-12 3-899-249-12 BOLT, HEXAGON SOCKET
4-092-397-03 4-092-397-03 BRACKET (92)
4-092-408-02 4-092-408-02 BRACKET (BS)
4-092-374-03 4-092-374-03 BRACKET (G)
4-092-380-02 4-092-380-02 BRACKET (GB)
4-092-289-02 4-092-289-02 BUSHING, HANDLE
2-590-121-01 2-590-121-01 BUTTON, KEY
1-100-739-11 1-100-739-11 CAPACITOR, DOUBLE LAYER 10F
1-456-173-11 1-456-173-11 COIL, CHOKE
1-456-173-21 1-456-173-21 COIL, CHOKE 250UH
1-900-271-48 1-900-271-48 CONNECTOR ASSY, SH 4P
4-092-400-01 4-092-400-01 COVER (F), UNIT
4-092-309-02 4-092-309-02 CROSS RECESSED SCREW, +K M2X6.8
4-092-326-01 4-092-326-01 CUSHION (LED)
4-092-331-01 4-092-331-01 CUSHION (SO)
1-787-033-11 1-787-033-11 D.C. FAN (SIROCCO)
4-092-291-03 4-092-291-03 DICFROIC MIRROR, B-REFRECT
4-092-290-02 4-092-290-02 DICHROIC MIRROR, G-REFRECT
4-092-389-02 4-092-389-02 DOOR, LAMP
4-092-378-02 4-092-378-02 DUCT (BT)
2-590-117-01 2-590-117-01 EMBLEM (PX41)
1-763-951-11 1-763-951-11 FAN, D.C.
1-763-422-12 1-763-422-12 FAN, DC
4-074-405-01 4-074-405-01 FASTENER (RB)

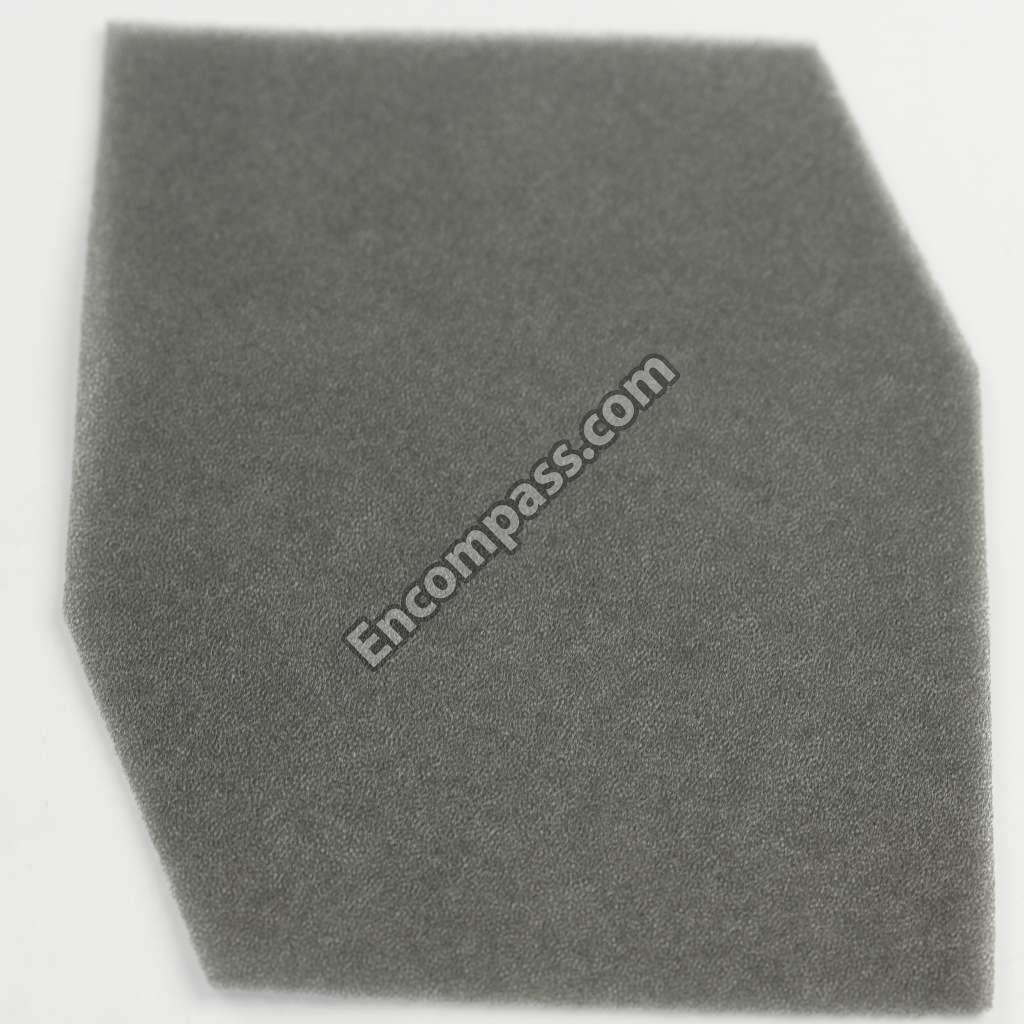

4-092-323-01 4-092-323-01 FILTER (40)
4-092-386-02 4-092-386-02 FILTER (RE)
4-092-296-02 4-092-296-02 FILTER, UV-CUT
4-092-414-01 4-092-414-01 FLY EYE, LENS-1
4-092-415-02 4-092-415-02 FLY EYE, LENS-2
4-092-681-01 4-092-681-01 GUIDE, RIB
4-092-352-01 4-092-352-01 GUIDE, RING
4-092-387-01 4-092-387-01 HANDLE
X-4041-118-4 X-4041-118-4 HOOD ASSY
4-092-406-03 4-092-406-03 HOUSE, LAMP
6-805-471-01 6-805-471-01 IC MBM29LV160BE-90TN-812IP100
6-805-472-02 6-805-472-02 IC MX29LV800BTTC-70G-812PW101
6-600-108-01 6-600-108-01 IC RPM7140
A-1604-225-A A-1604-225-A IN-POLARIZER (B) ASSY
A-1113-782-A A-1113-782-A IN-POLARIZER (B) ASSY
A-1604-224-A A-1604-224-A IN-POLARIZER (G) ASSY
A-1604-223-A A-1604-223-A IN-POLARIZER (R) ASSY
LMPP260 LMPP260 LAMP, REPLACEMENT
4-092-294-01 4-092-294-01 MIRROR, B-CHANNEL
4-092-292-01 4-092-292-01 MIRROR, R-CHANNEL-1
4-092-293-01 4-092-293-01 MIRROR, R-CHANNEL-2
A-1401-531-B A-1401-531-B MOUNTED C.BOARD, F
A-1300-751-A A-1300-751-A MOUNTED C.BOARD, GA COMPL
4-092-354-02 4-092-354-02 OFFSET PLATE (L), LENS
4-092-355-02 4-092-355-02 OFFSET PLATE (R), LENS
A-1113-779-A A-1113-779-A OPT UNIT ASSY
A-1604-230-A A-1604-230-A OUT-POLARIZER (G) ARB ASSY
A-1604-227-A A-1604-227-A OUT-POLARIZER (G) ASB ASSY
A-1113-784-A A-1113-784-A OUT-POLARIZER (R) ARB ASS
A-1113-783-A A-1113-783-A OUT-POLARIZER (R) ASB ASS
A-1604-226-B A-1604-226-B OUT-POLARIZER (R) ASB ASSY
2-590-987-04 2-590-987-04 PACK, CD-ROM
4-092-402-12 4-092-402-12 PANEL, CONNECTOR
4-092-396-04 4-092-396-04 PANEL, SIDE
4-092-308-02 4-092-308-02 PLATE (L), LENS
4-092-321-02 4-092-321-02 PLATE (LMP)
4-092-315-02 4-092-315-02 PLATE (R), LENS
4-092-980-01 4-092-980-01 PLATE, SHADE (TOP)
1-518-854-12 1-518-854-12 POWER SUPPLY BLOCK
4-092-295-01 4-092-295-01 PRE-FILTER, UV CUT
A-1113-781-A A-1113-781-A PRISM BLOCK ASSY
A-1604-221-A A-1604-221-A PROJECTION LENS ASSY
A-1604-222-A A-1604-222-A PS ASSY
2-592-760-01 2-592-760-01 QUICK REFERENCE MANUAL
1-217-786-31 1-217-786-31 RES, CEMENT (FUSE) 22
4-092-310-01 4-092-310-01 RETAINER, POLAIZER
4-084-424-02 4-084-424-02 SCREW (+PSW M3X90), SPECIAL
4-092-405-01 4-092-405-01 SHEET (BS)
4-092-325-02 4-092-325-02 SHEET (SO)
4-093-253-01 4-093-253-01 SHIELD FINGER (92)
9-872-746-01 9-872-746-01 SM
4-092-316-01 4-092-316-01 SPACER
4-092-322-01 4-092-322-01 SPACER (F)
A-1603-717-A A-1603-717-A SPEAKER ASSY (L)
A-1603-908-A A-1603-908-A SPEAKER ASSY (R)
1-576-689-11 1-576-689-11 THERMOSTAT
