Model Image
Manufacturer

Sony

Model Number

VPLVW1100ES

Description

Home Theatre 4k Es Projector

Interactive Exploded View

Parts List

Part Number Description
1-458-628-41 1-458-628-41 3D EYEWEAR
1-843-685-11 1-843-685-11 AC INLET (WITH NOISE FILTER)
4-293-330-01 4-293-330-01 AC INLET COVER
1-833-005-12 1-833-005-12 AC POWER-SUPPLY CORD (CN)
1-489-928-72 1-489-928-72 ADAPTOR (AC-UD10), AC (CN)
1-489-928-12 1-489-928-12 ADAPTOR (AC-UD10), AC (J,U,SY)
X-2582-910-1 X-2582-910-1 ASSY, ADJUSTOR
X-2583-927-3 X-2583-927-3 ASSY, COVER REAR
X-2582-382-1 X-2582-382-1 ASSY, FILTER
4-420-936-01 4-420-936-01 BO, SHEET
4-293-342-01 4-293-342-01 BUTTON (ARROW)
3-064-084-01 3-064-084-01 CLAMP (FCR-60), FLAT
2-345-120-01 2-345-120-01 CLAMP, WIRE PRESS
1-910-401-66 1-910-401-66 CONNECTOR ASSY, 330 12P
1-910-401-67 1-910-401-67 CONNECTOR ASSY, 330 14P
1-910-401-65 1-910-401-65 CONNECTOR ASSY, 330 15P
1-910-401-89 1-910-401-89 CONNECTOR ASSY, 330 6P
1-910-401-68 1-910-401-68 CONNECTOR ASSY, 330 9P
1-910-401-73 1-910-401-73 CONNECTOR ASSY, 330B 6P
1-910-401-70 1-910-401-70 CONNECTOR ASSY, 939 4P
1-910-401-72 1-910-401-72 CONNECTOR ASSY, 939 5P
1-910-401-80 1-910-401-80 CONNECTOR ASSY, FASTON
1-910-401-88 1-910-401-88 CONNECTOR ASSY, FUSE
1-910-401-87 1-910-401-87 CONNECTOR ASSY, GH 5P
1-910-401-75 1-910-401-75 CONNECTOR ASSY, GH 6P
1-910-401-76 1-910-401-76 CONNECTOR ASSY, GH 7P
1-910-401-74 1-910-401-74 CONNECTOR ASSY, GH 9P
1-910-401-85 1-910-401-85 CONNECTOR ASSY, LAMP VH
1-910-401-71 1-910-401-71 CONNECTOR ASSY, PA 6P
1-910-401-79 1-910-401-79 CONNECTOR ASSY, PA 7P
1-910-401-78 1-910-401-78 CONNECTOR ASSY, PH 7P
1-910-401-84 1-910-401-84 CONNECTOR ASSY, PH 8P
1-910-401-82 1-910-401-82 CONNECTOR ASSY, VH 3P
1-910-401-77 1-910-401-77 CONNECTOR ASSY, VH 4P
1-910-401-83 1-910-401-83 CONNECTOR ASSY, VH 5P
1-910-401-81 1-910-401-81 CONNECTOR ASSY, VL 3P
1-910-401-69 1-910-401-69 CONNECTOR ASSY,939 3P
1-839-106-12 1-839-106-12 CORD SET, POWER-SUPPLY (U)
1-782-476-62 1-782-476-62 CORD, POWER (CN)

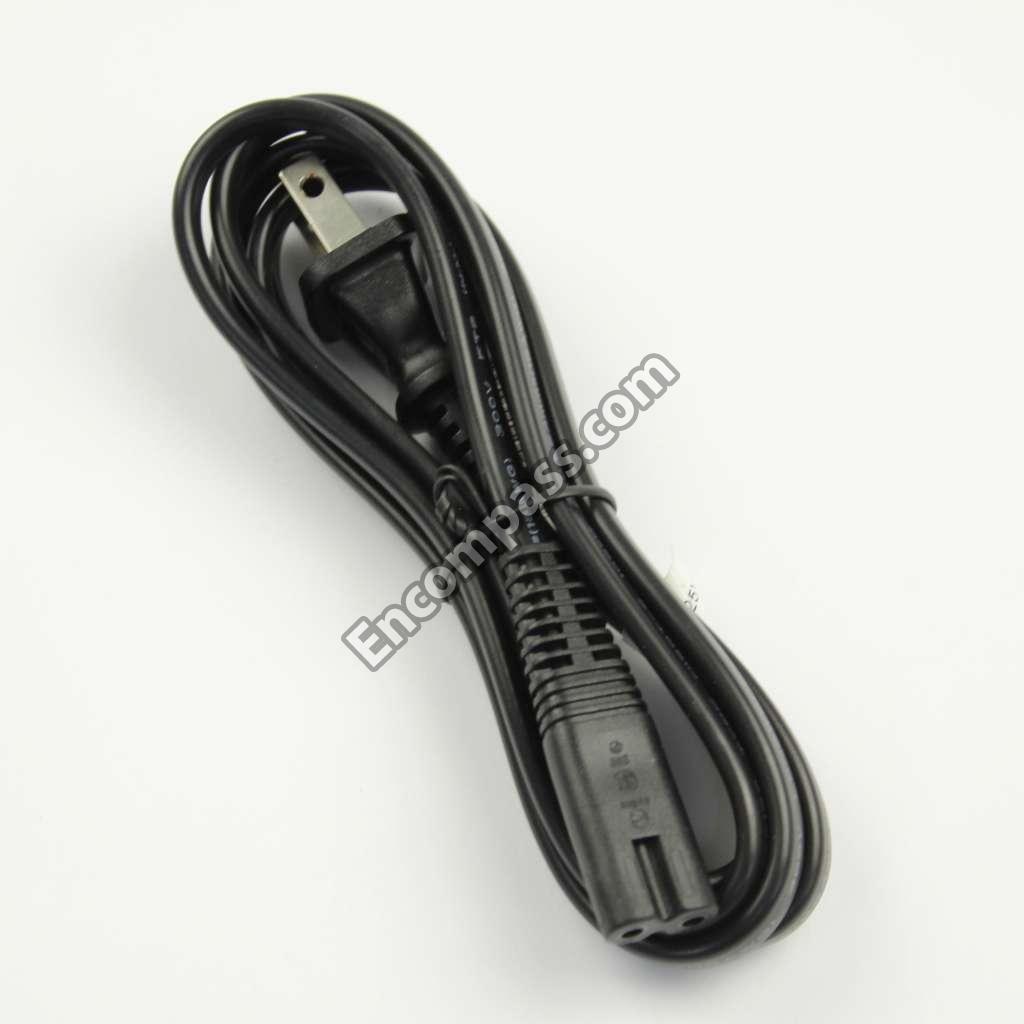

1-534-827-15 1-534-827-15 CORD, POWER (U)
4-293-355-01 4-293-355-01 COVER, BALLAST
9-885-120-26 9-885-120-26 COVER, BATTERY (FOR RM-PJ22)
4-293-319-05 4-293-319-05 COVER, BOTTOM
4-293-020-02 4-293-020-02 COVER, Q PWB
4-422-487-01 4-422-487-01 CUSHIN, FANFAN
2-655-780-11 2-655-780-11 CUSHION, FAN
4-419-509-01 4-419-509-01 CUSHION, REARCOVER
4-419-508-01 4-419-508-01 CUSHION, TOPCOVER
2-059-414-21 2-059-414-21 DAMPER, FAN

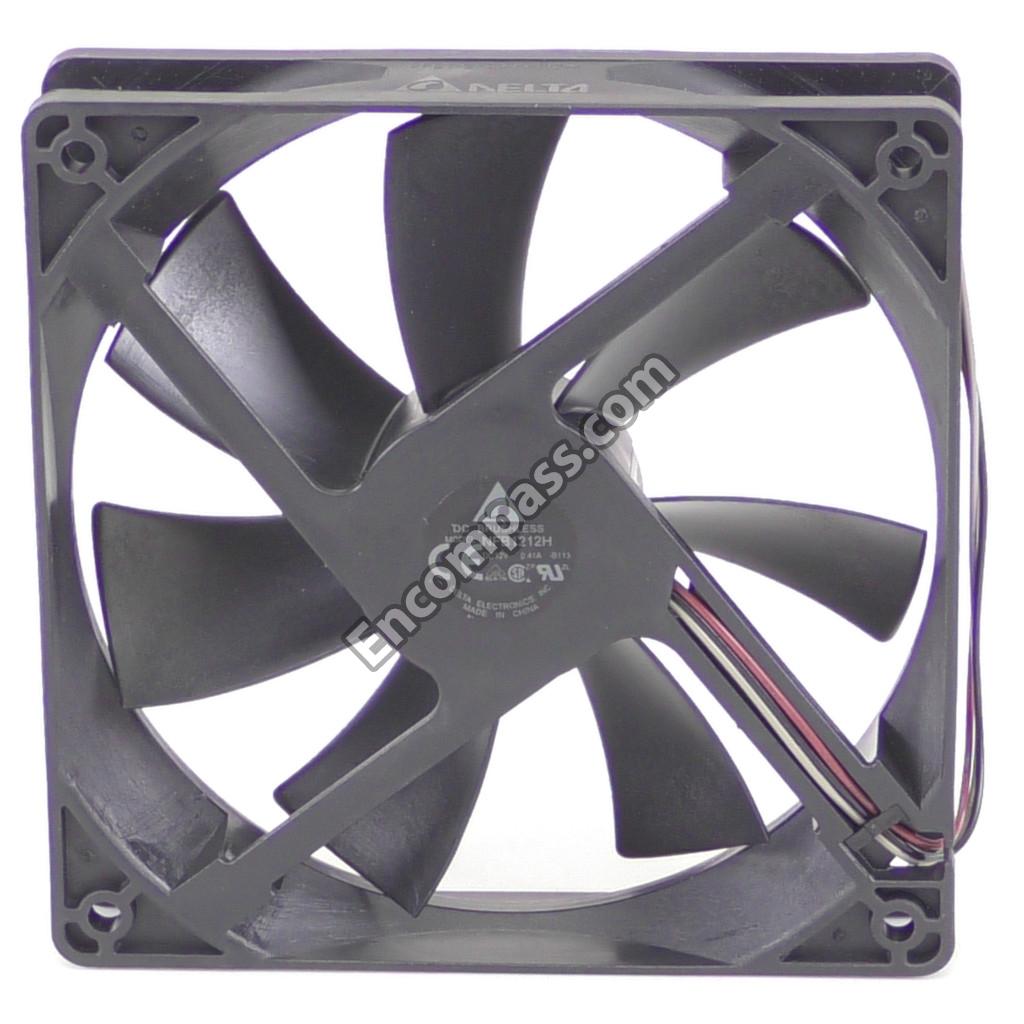

1-855-126-21 1-855-126-21 DC FAN
1-855-163-11 1-855-163-11 DC FAN -120
4-293-370-01 4-293-370-01 DOOR, LAMP
4-293-537-01 4-293-537-01 DUCT, LAMP
4-293-545-02 4-293-545-02 FAN HOLDER, LAMP
4-293-369-01 4-293-369-01 FAN HOUSE (L), FAN
4-293-361-01 4-293-361-01 FAN HOUSE (L), LAMP
4-293-368-01 4-293-368-01 FAN HOUSE (U), FAN
4-293-360-01 4-293-360-01 FAN HOUSE (U), LAMP
1-482-042-11 1-482-042-11 FERRITE CORE
1-839-892-11 1-839-892-11 FFC WITH CONNECTOR
1-839-891-11 1-839-891-11 FFC WITH CONNECTOR
1-839-890-11 1-839-890-11 FFC WITH CONNECTOR
4-293-346-01 4-293-346-01 FIN
4-400-359-01 4-400-359-01 FOOT, REAR
X-2583-163-3 X-2583-163-3 FRONT COVER ASSY
4-410-819-01 4-410-819-01 GASKET (G1)
4-410-820-01 4-410-820-01 GASKET (G2)
4-421-200-02 4-421-200-02 GASKET Q
4-293-335-01 4-293-335-01 HA BUTTON
2-990-241-02 2-990-241-02 HOLDER (A), PLUG
2-990-242-01 2-990-242-01 HOLDER (B), PLUG (J,CN)
3-170-078-01 3-170-078-01 HOLDER (B), PLUG (U,SY)
4-293-557-01 4-293-557-01 HOLDER (G), FAN
4-293-558-01 4-293-558-01 HOLDER (GR), FAN
4-293-561-01 4-293-561-01 HOLDER (PS), FAN
4-293-556-01 4-293-556-01 HOLDER (R), FAN
4-293-356-01 4-293-356-01 HOLDER, BALLAST
4-293-347-02 4-293-347-02 HOLDER, PWB C
4-293-333-01 4-293-333-01 LENS NR
A-1897-042-A A-1897-042-A MOUNTED CIRCUIT BOARD, CA
A-1897-043-A A-1897-043-A MOUNTED CIRCUIT BOARD, CB
A-1900-965-A A-1900-965-A MOUNTED CIRCUIT BOARD, EM
A-1852-417-A A-1852-417-A MOUNTED CIRCUIT BOARD, F
A-1852-415-A A-1852-415-A MOUNTED CIRCUIT BOARD, GA
A-1852-416-A A-1852-416-A MOUNTED CIRCUIT BOARD, GB
A-1900-962-A A-1900-962-A MOUNTED CIRCUIT BOARD, HA
A-1900-963-A A-1900-963-A MOUNTED CIRCUIT BOARD, HB
A-1982-973-A A-1982-973-A MOUNTED CIRCUIT BOARD, M
A-1900-966-A A-1900-966-A MOUNTED CIRCUIT BOARD, NF
A-1900-967-A A-1900-967-A MOUNTED CIRCUIT BOARD, NR
A-1980-972-A A-1980-972-A MOUNTED CIRCUIT BOARD, QA
A-1925-864-A A-1925-864-A MOUNTED CIRCUIT BOARD, QB
A-1852-409-A A-1852-409-A MOUNTED CIRCUIT BOARD, TL
A-1900-964-A A-1900-964-A MOUNTED CIRCUIT BOARD, U
A-1871-266-C A-1871-266-C OPTICAL UNIT ASSY
4-486-359-01 4-486-359-01 PACK, CD-ROM MANUAL, INSTRUCTION (JAPANESE, ENGLISH, FRENCH, SPANISH, GERMAN, ITALIAN, RUSSIAN)
A-1936-663-A A-1936-663-A POWER UNIT ASSY
1-836-411-21 1-836-411-21 POWER-SUPPLY CORD SET (J)
1-839-054-11 1-839-054-11 POWER-SUPPLY CORD SET (J)
1-490-070-11 1-490-070-11 REMOTE COMMANDER (RM-PJ22)
4-419-511-01 4-419-511-01 RUBBER SHEET (LF)
3-252-830-01 3-252-830-01 SCREW (B3), (+) PWH TAPPING
3-178-213-21 3-178-213-21 SCREW 3X10
7-685-648-79 7-685-648-79 SCREW 3X12 TYPE2 IT-3 (SILVER)
7-682-948-09 7-682-948-09 SCREW 3X8 (SILVER)
2-580-602-01 2-580-602-01 SCREW, M4X12
2-580-606-01 2-580-606-01 SCREW, M5X8
2-580-626-01 2-580-626-01 SCREW, SP 4-4O UNC
4-409-992-01 4-409-992-01 SHEET GA
4-409-993-01 4-409-993-01 SHEET GB
4-421-865-01 4-421-865-01 SHEET SH
4-422-237-01 4-422-237-01 SHEET TP
4-293-021-02 4-293-021-02 SHEET, CONNECTOR
4-409-611-01 4-409-611-01 SHEET, Q
1-490-174-15 1-490-174-15 SHUTTER UNIT
4-293-338-02 4-293-338-02 SPACER
X-2583-162-1 X-2583-162-1 TOP COVER (LAMP) ASSY
X-2583-161-3 X-2583-161-3 TOP COVER ASSY
