Model Number

WMF8

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

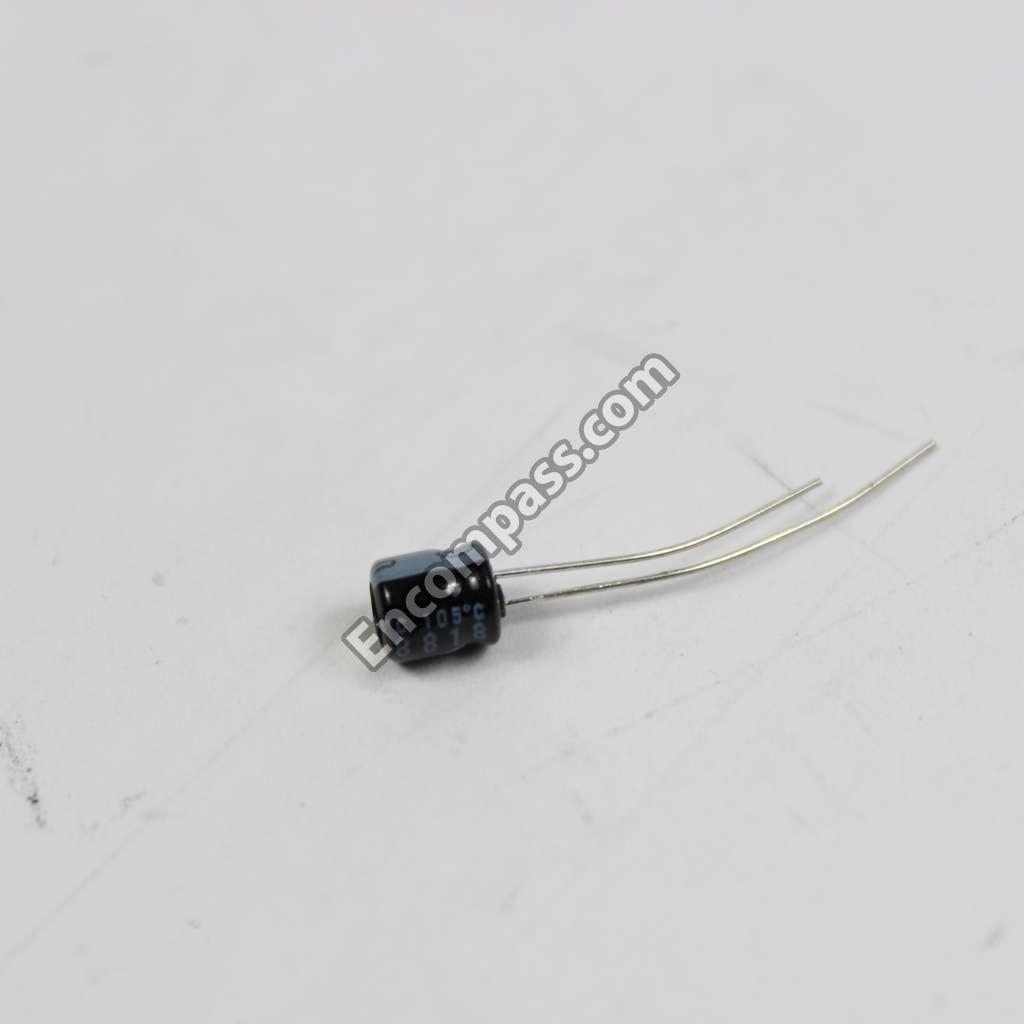

1-126-163-11 1-126-163-11 16V 4.7UF, ELECT. CAP.
1-162-199-31 1-162-199-31 50V 10PF, CERAMIC CAP.
3-319-040-01 3-319-040-01 BAND,MOTOR
X-3319-008-2 X-3319-008-2 BLUE CABINET (B) ASSY
X-3319-009-2 X-3319-009-2 BLUE LID,CASSETTE
3-319-043-01 3-319-043-01 BRACKET,CABINET (B)
3-319-024-01 3-319-024-01 BRACKET,MD
3-319-042-01 3-319-042-01 BRACKET,PCB
3-309-411-11 3-309-411-11 BUTTON A
3-319-014-01 3-319-014-01 BUTTON,FF
3-319-016-01 3-319-016-01 BUTTON,STOP
1-162-292-31 1-162-292-31 CAP CERAMIC 680PF 50V
3-306-836-02 3-306-836-02 CAP,REEL T
3-319-035-01 3-319-035-01 CARTON
3-319-007-01 3-319-007-01 CASE,SHIELD
X-3319-005-1 X-3319-005-1 CHASSIS ASSY,MECHANICAL
X-3318-213-1 X-3318-213-1 CHASSIS,HEAD
X-3319-009-3 X-3319-009-3 CND GOLD LID ASSY,CASSETT
1-404-546-11 1-404-546-11 COIL FM DETECTOR
3-319-037-01 3-319-037-01 CUSHION
3-319-018-01 3-319-018-01 DRUM,DIAL
X-3313-509-1 X-3313-509-1 FLYWHEEL ASSY
X-3319-008-3 X-3319-008-3 GOLD CABINET B
1-500-126-11 1-500-126-11 HEAD,(PP227-3602F)
1-404-126-31 1-404-126-31 IFT SMALL TYPE
3-319-002-01 3-319-002-01 KNOB,TUNING
8-759-801-16 8-759-801-16 LA1270,IC
8-759-801-12 8-759-801-12 LA5523,IC
3-319-028-01 3-319-028-01 LEVER,SWITCH
1-410-517-11 1-410-517-11 MICRO INDUCTOR
1-410-509-11 1-410-509-11 MICRO INDUCTOR (SMALL Y
1-410-080-11 1-410-080-11 MICRO INDUCTOR 1MF
3-319-041-01 3-319-041-01 PAPER,SHIELD
3-319-039-01 3-319-039-01 PLATE,BLIND
3-319-001-01 3-319-001-01 POINTER
1-216-304-11 1-216-304-11 RES CHIP 3.3 1/10W
3-319-038-01 3-319-038-01 RETAINER
3-318-203-11 3-318-203-11 SCREW 1.7 TAPPING PREC
3-319-005-01 3-319-005-01 SHAFT,TUNING
X-3319-009-7 X-3319-009-7 SILVER LID ASSY,CASSETTE
3-318-334-01 3-318-334-01 SPRING,COMPRESSION
3-318-238-01 3-318-238-01 SPRING,TENSION
3-319-009-01 3-319-009-01 TERMINAL BD A,BATTERY
1-806-718-00 1-806-718-00 THERMISTOR
1-806-881-11 1-806-881-11 THERMISTOR + (180H)
X-3319-009-4 X-3319-009-4 USA GOLD LID ASSY,CASSETT
3-308-472-31 3-308-472-31 WASHER C 0.125
3-319-004-01 3-319-004-01 WINDOW,DIAL
