Manufacturer
Sony
Model Number
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
ANT BOARD, COMPLETE |
|
|
CABLE FOR AUTOMOBILE (USB C) |
|
|
CABLE, FLEXIBLE FLAT (14 CORE) |
|
|
CABLE, FLEXIBLE FLAT (60 CORE) |
|
|
CONNECTION CABLE, AUTOMOBILE |
|
|

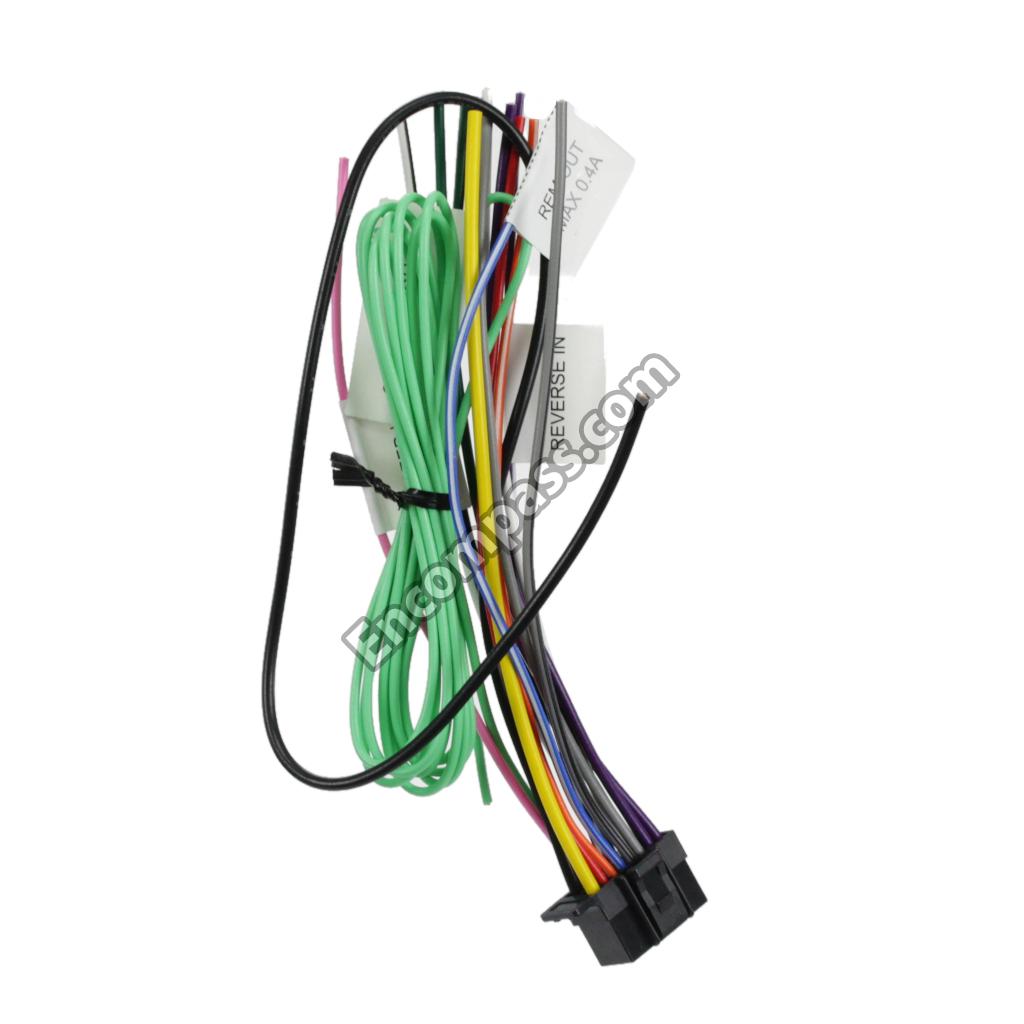

CORD WITH CONNECTOR (12PIN) |
|
|
DISPLAY BOARD, COMPLETE (COATING APPLIED) |
|
|
DISPLAY BOARD, COMPLETE (COATING APPLIED) |
|
|
GASKET (CHASSIS MIDDLE) (6.5 X 4.0 MM)(50 PCS. 1 SET) |
|
|
GASKET (UPPER) (10 PCS. 1 SET) |
|
|
GASKET (USB) (10 PCS. 1 SET) |
|
|
GPS BOARD, COMPLETE (COATING APPLIED) |
|
|
HARNESS, COAXIAL (MHF-I) |
|
|
LIQUID CRYSTAL DISPLAY |
|
|
MAIN BOARD, COMPLETE (COATING APPLIED) |
|
|
MAIN BOARD, COMPLETE (E) |
|
|
MINI FUSE (BLADE TYPE) (10 A/32 V) |
|
|
PANEL ASSY (SV) |
|
|
SCREW (+B 2.6X5), SERRATION (SILVER) |
|
|
SCREW (T) (2.0 X 4.0 MM) (BLACK) |
|
|
SCREW (T) (2.0 X 4.0 MM) (SILVER) |
|
|
SCREW +P 2.6X8 TYPE2 NON-SLIT (BLACK) |
|
|
SCREW +PTT 2.6X10 (S) (SILVER) |
|
|
SCREW +PTT 2.6X4 (S) (SILVER) |
|
|
SCREW +PTT 2.6X5 (S) (BLACK) |
|
|
SCREW +PTT 2.6X6 (S) (BLACK) |
|
|
SCREW +PTT 2.6X8 (S) (SILVER) |
|
|
SCREW +Z S1.7X4 (BLACK) |
|
|
SHEET HEAT TRANSFER (SOM) |
|
|
SHEET HEAT TRANSFER (USB) |
|
|
SHEET HEAT TRANSFER (USB-A) |
|
|
SHEET HEAT TRANSFER (WIFI) |
|
|
SOM BOARD, COMPLETE (COATING APPLIED) |
