Model Image
Manufacturer

Sony

Model Number

XBR48A9S

Description

No description available

Interactive Exploded View

Parts List

Part Number Description

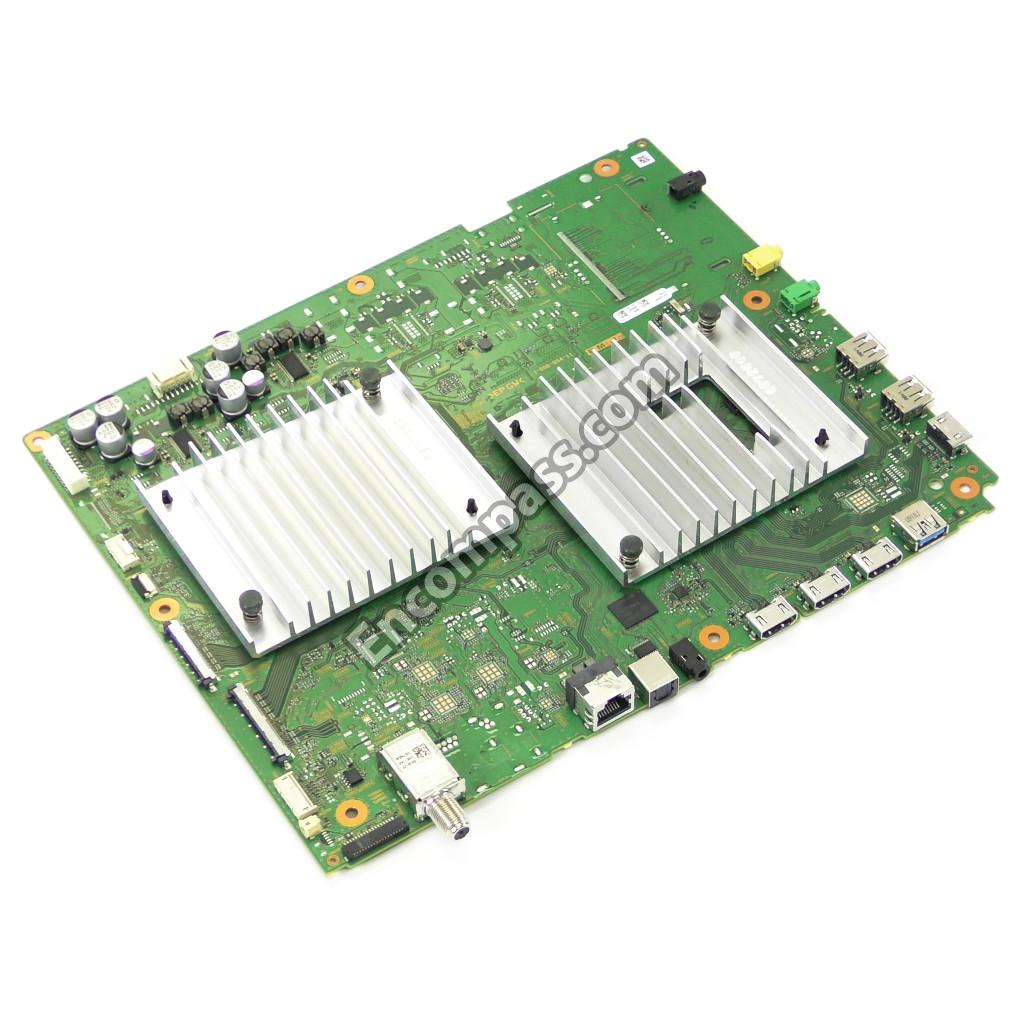

A-5014-202-A A-5014-202-A (MAIN CBA) BM3J20_UCMX_NDL COMPL (UCM)
1-006-403-12 1-006-403-12 (POWER CBA) G93F- STATIC CONVERTER(TV) (UCM)
1-004-496-11 1-004-496-11 1 KEY SWITCH UNIT (UCM)
4-745-608-01 4-745-608-01 AC COVER (AT) (UCM)
4-595-704-11 4-595-704-11 BAG,SCREW ASSY (FRE) (UCM)
4-724-146-12 4-724-146-12 BRACKET UNDER(BM2A (UCM)
5-015-523-11 5-015-523-11 BRACKET, SIDE (M DRN) (UCM)
5-018-175-01 5-018-175-01 BRACKET, VESA (M DRN) (UCM)
4-262-708-04 4-262-708-04 CLAMPER, CABLE (UCM)

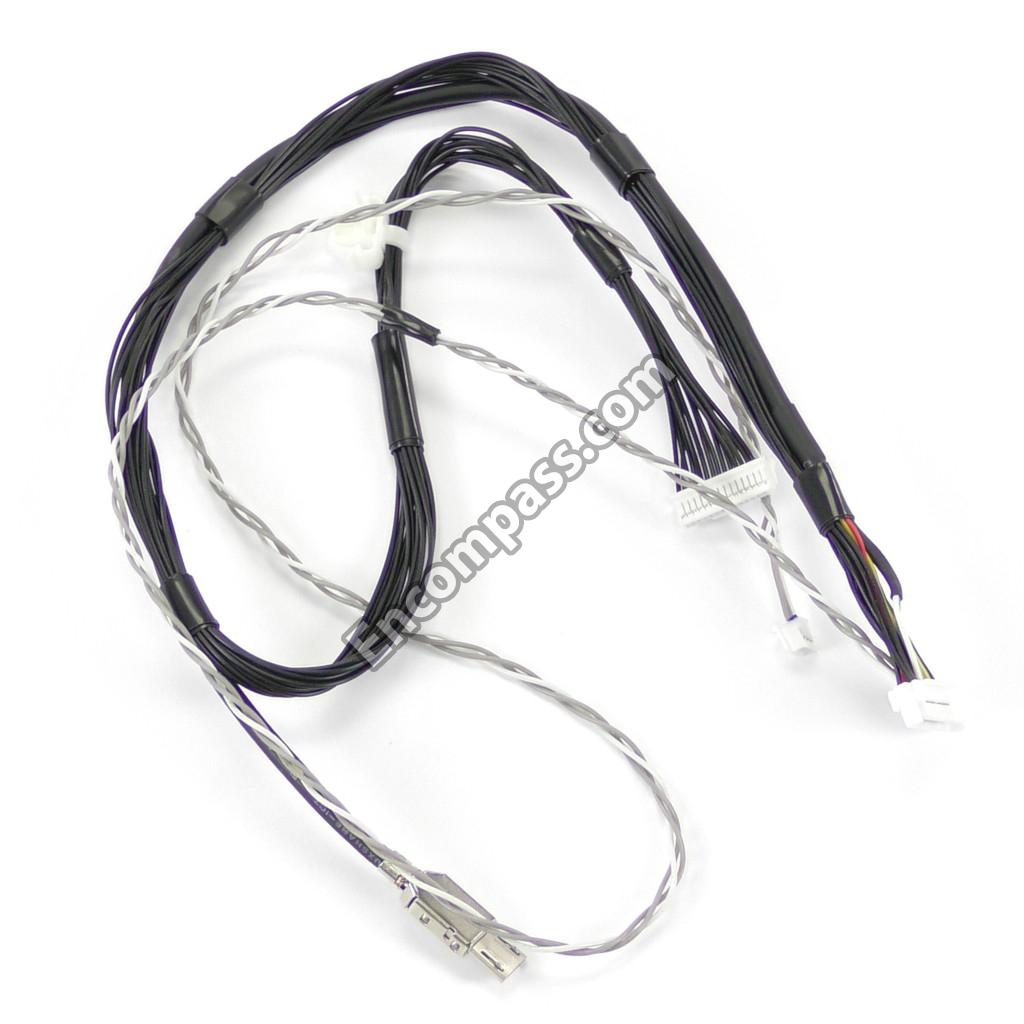

1-007-227-11 1-007-227-11 CONNECTOR ASSY 20P (UCM)

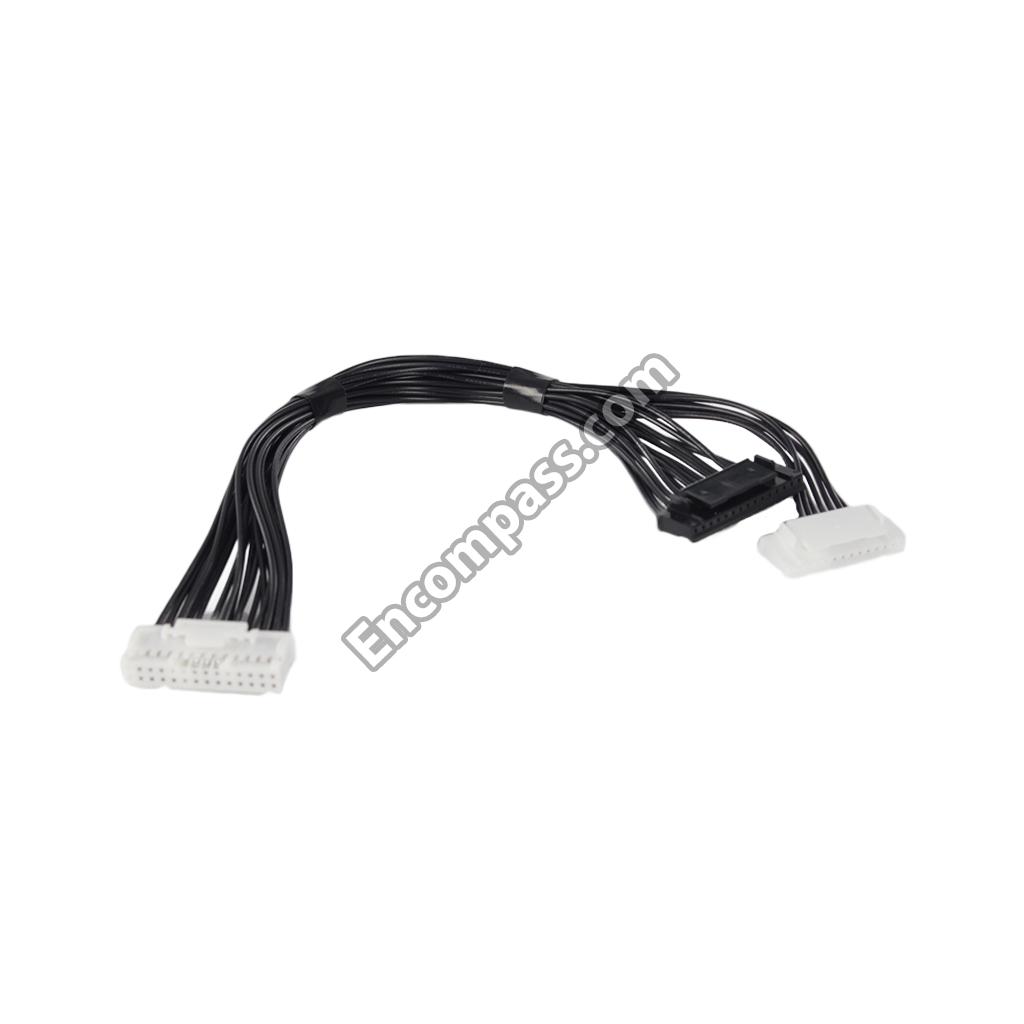

1-972-658-11 1-972-658-11 CONNECTOR ASSY 28P (UCM)
1-007-226-11 1-007-226-11 CONNECTOR ASSY 3P (UCM)
1-007-455-11 1-007-455-11 CONNECTOR ASSY 6P (UCM)
5-015-443-01 5-015-443-01 COVER, AC TML (M DRN) (UCM)
5-011-533-01 5-011-533-01 COVER, BTM(CRY) (UCM)

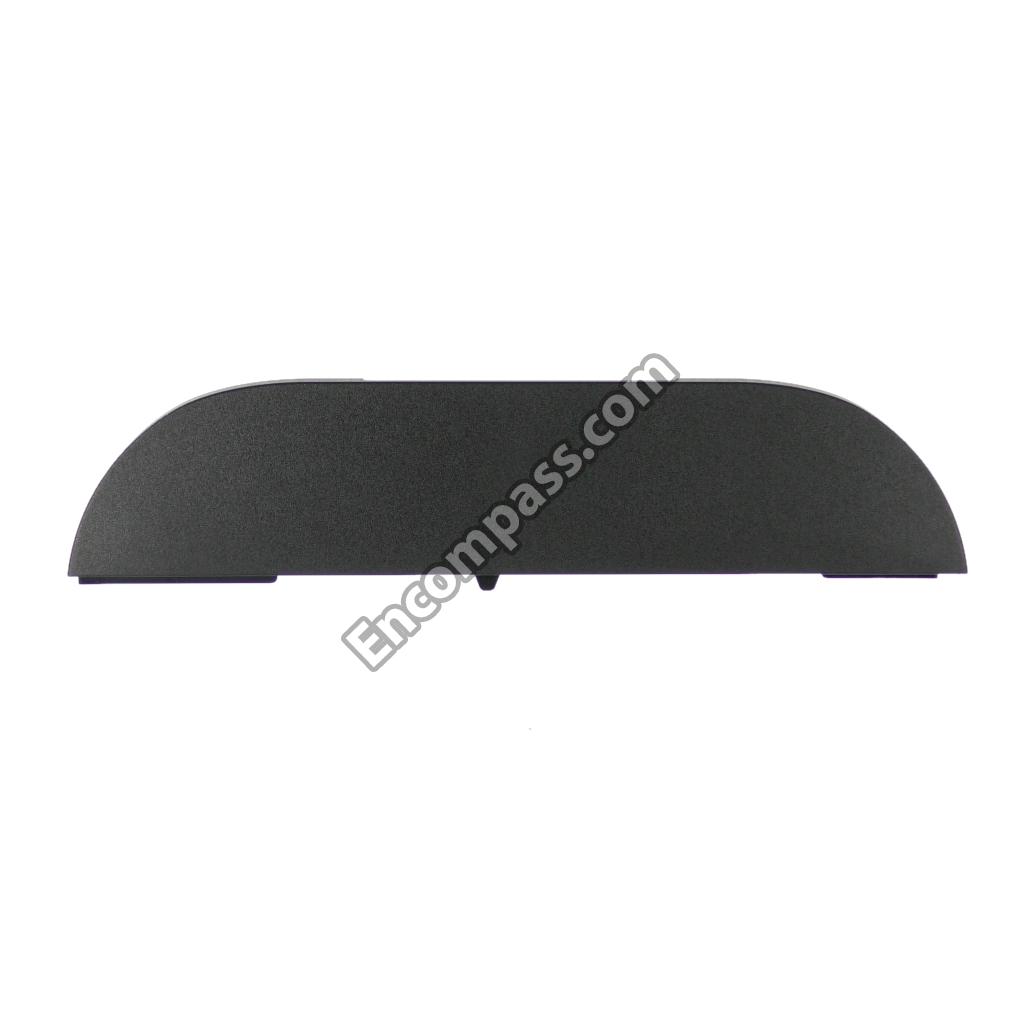

5-015-572-01 5-015-572-01 COVER, STAND (M DRN) (UCM)
5-015-444-01 5-015-444-01 COVER, UNDER TML (M DRN) (UCM)
1-007-456-11 1-007-456-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-007-457-11 1-007-457-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-007-458-11 1-007-458-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-007-459-11 1-007-459-11 FLEXIBLE FLAT CABLE 51P (UCM)
5-015-403-01 5-015-403-01 GUIDE, SC (M DRN) (UCM)

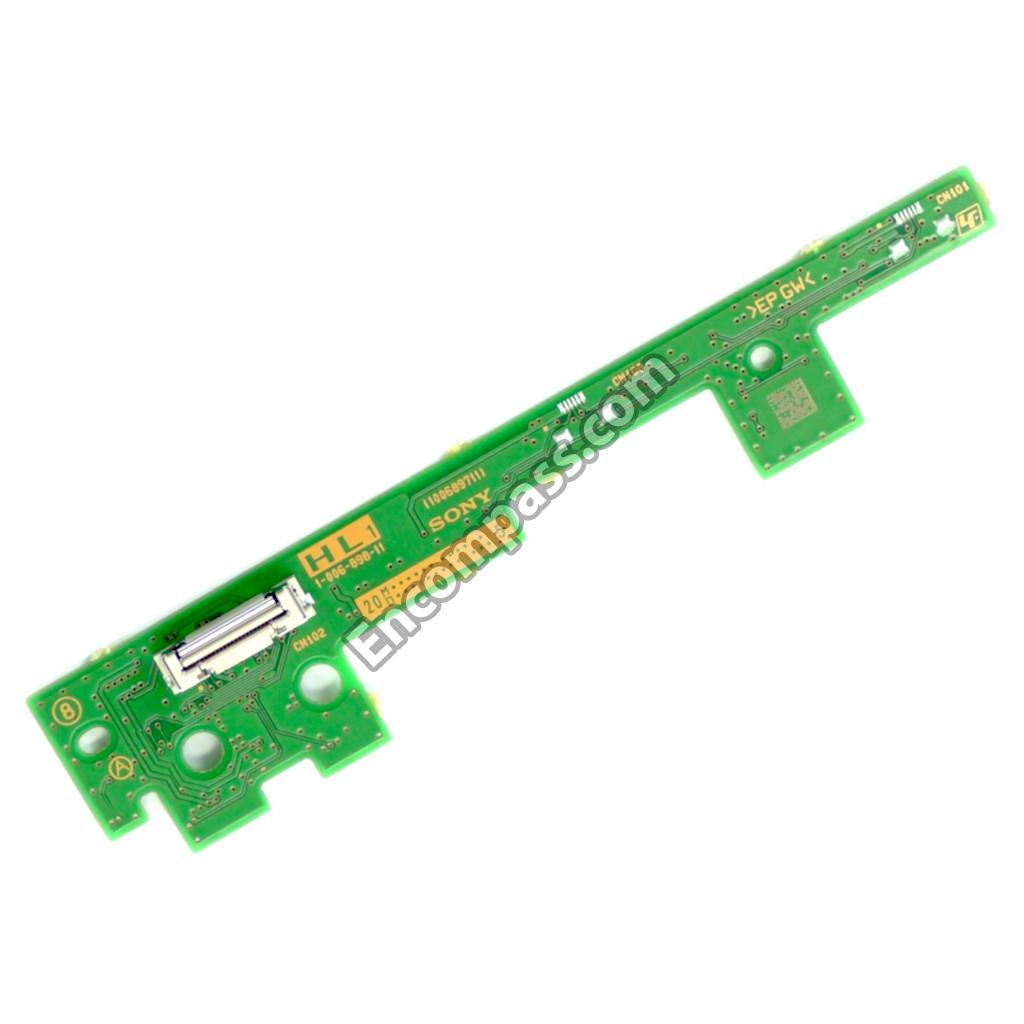

A-5015-242-A A-5015-242-A HL1_4K_WW MOUNT (UCM)
5-012-017-01 5-012-017-01 HOLDER, SIDE SW (CRY) (UCM)
4-599-952-01 4-599-952-01 JOINT, SCREW (PUC) (UCM)
5-014-965-01 5-014-965-01 LABEL, SIDE TERMINAL (LMN) (UCM)
5-012-160-01 5-012-160-01 LABEL, UNDER TERMINAL (BM3J) (UCM)
5-009-264-11 5-009-264-11 LIGHT, GUIDE ILM(BNN) (UCM)
5-009-265-11 5-009-265-11 LIGHT, GUIDE OPT(BNN) (UCM)
5-015-573-11 5-015-573-11 NECK, STAND (M DRN) (UCM)
1-008-811-11 1-008-811-11 OLED PANEL(L48ENA1) (UCM)
1-849-274-11 1-849-274-11 POWER-SUPPLY CORD (WITH CONN.) (UCM)
1-839-696-22 1-839-696-22 POWER-SUPPLY CORD (WITH CONN.) (UCM)
5-015-439-01 5-015-439-01 REAR COVER (M DRN) A (UCM)
5-014-798-11 5-014-798-11 REFERENCE GUIDE (UCM)

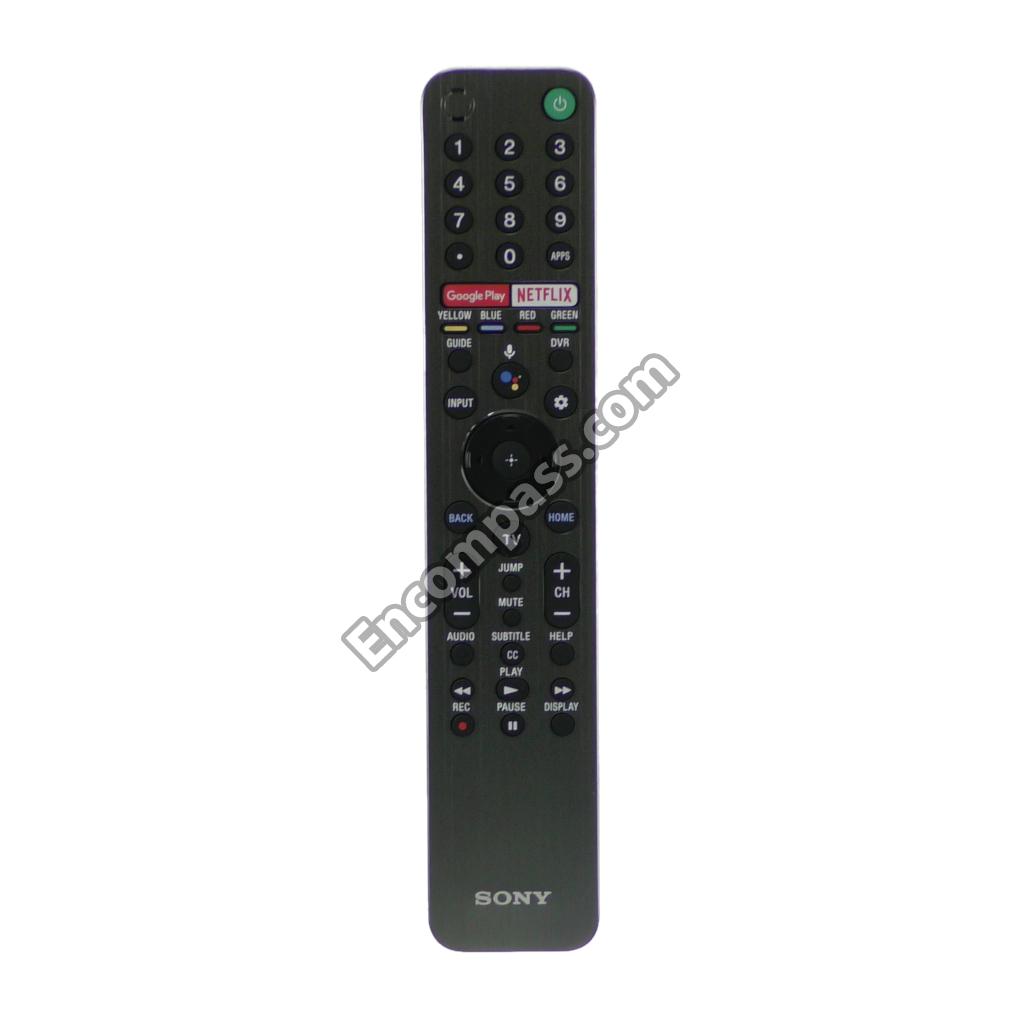

1-493-546-23 1-493-546-23 REMOTE COMMANDER (RMF-TX600U) (UCM)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM)
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12 (UCM)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-017-247-11 5-017-247-11 SETUP GUIDE (UCM)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UCM)
5-015-816-01 5-015-816-01 SHT, INSULATION (DRN M) (UCM)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (UCM)
1-005-555-31 1-005-555-31 SP-BOX ASSY, FY20 D40-WF (UCM)
4-745-114-01 4-745-114-01 STAND, BASE (L PAN) A (UCM)
1-005-419-11 1-005-419-11 WLAN/BT MODULE(11AC) DHUR-SY63 (UCM)
