Model Image
Manufacturer

Sony

Model Number

XBR49X707D

Description

Bravia 49-inch Class 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description
4-299-531-01 4-299-531-01 AC COVER (CO1)
4-535-586-02 4-535-586-02 BADGE, XBR LOGO(H3.7) (CO1)
4-570-854-02 4-570-854-02 BAG, SCREW (L SWN) (CO1)
4-447-722-32 4-447-722-32 BAG,PROTECTION PEHD(1500X1200) (CO1)
4-579-724-21 4-579-724-21 BRACKET, SIDE (JDE) (CO1)
4-570-851-01 4-570-851-01 BRACKET, SP L (L SWN) A (CO1)
4-570-852-01 4-570-852-01 BRACKET, SP R (L SWN) A (CO1)
4-569-955-01 4-569-955-01 BRACKET, STAND (L SWN) (CO1)
4-546-441-11 4-546-441-11 BRACKET, TOP FL (MOLD) (CO1)
4-299-527-03 4-299-527-03 BRAKET, VESA (CO1)
1-754-950-11 1-754-950-11 BT ANTENNA (CO1)
4-589-802-01 4-589-802-01 CARTON INDIVISUAL (M JDE) (CO1)
4-588-915-01 4-588-915-01 CASE, BOTTOM (LL) (CO1)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (CO1)
A-2094-461-A A-2094-461-A COMPL SVC BFM_CO_CI (MAIN CBA) (CO1)
4-586-973-01 4-586-973-01 CONDUCTIVE TAPE (52.42H04G001) (PANEL PART) (CO1)
1-910-805-73 1-910-805-73 CONNECTOR ASSY 30P (CO1)

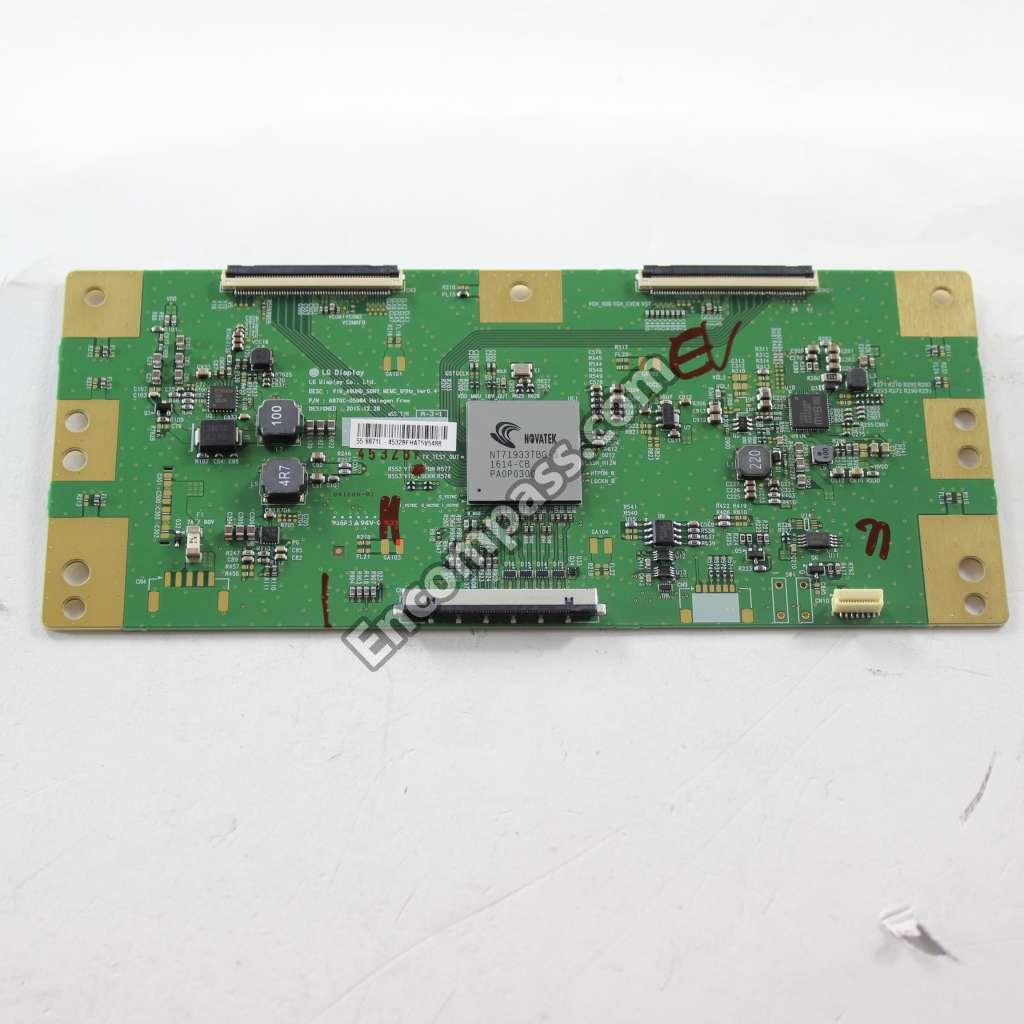

1-897-032-11 1-897-032-11 CONTROL MT BOARD (6871L-4670B) (PANEL PART) (CO1)

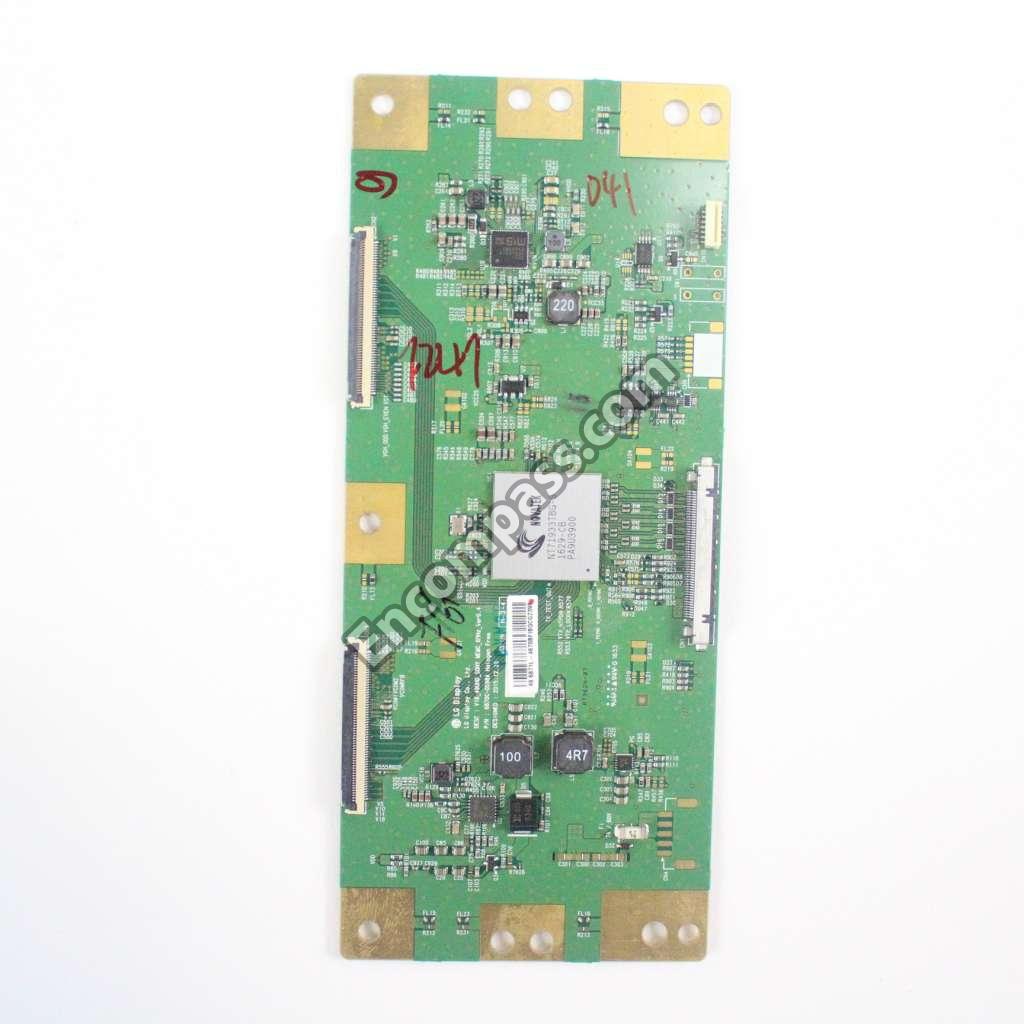

1-897-033-11 1-897-033-11 CONTROL MT BOARD (6871L-4670B) (PANEL PART) (CO1)
4-591-833-01 4-591-833-01 COVER, REAR (M JDE) A (CO1)
4-585-531-11 4-585-531-11 CUSHION, LOWER (M JDE) (CO1)
4-585-536-11 4-585-536-11 CUSHION, SIDE (M JDE) (CO1)
4-585-524-11 4-585-524-11 CUSHION, UPPER (M JDE) (CO1)
4-686-929-01 4-686-929-01 DOUBLE SIDE TAPE (PANEL PART) (CO1)
1-849-470-11 1-849-470-11 FLEXIBLE FLAT CABLE 51P (CO1)
1-849-467-11 1-849-467-11 FLEXIBLE FLAT CABLE 51P (CO1)
1-474-633-21 1-474-633-21 GL6(CH)-STATIC CONVERTER(TV) (POWER CBA) (CO1)

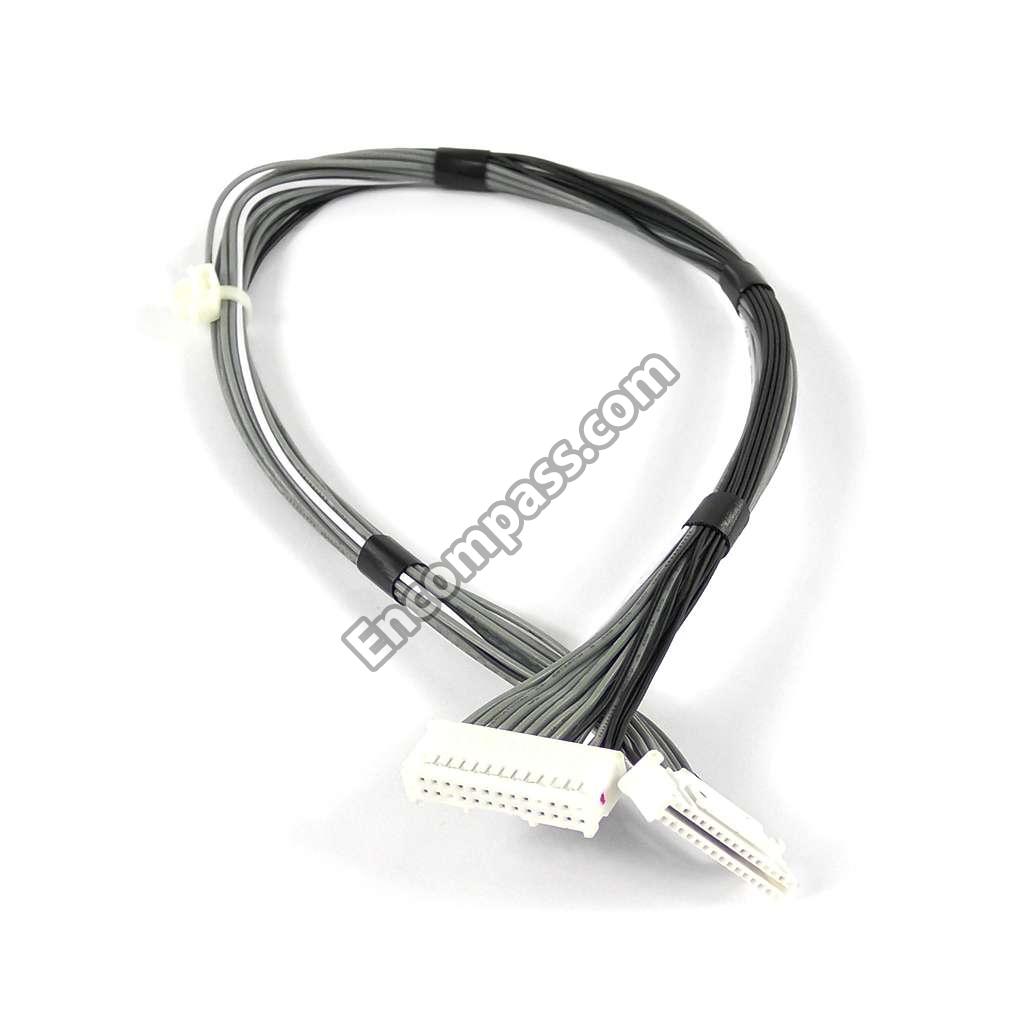

1-910-805-72 1-910-805-72 HARNESS ASSY (CO1)
4-582-345-01 4-582-345-01 HOLDER SIDE SW(JDE) (CO1)
4-585-155-01 4-585-155-01 LABEL, REAR TERMINAL (PDT) (CO1)
4-581-504-51 4-581-504-51 LABEL, SIDE TERMINAL(PDT) (CO1)
1-812-229-12 1-812-229-12 LCD PANEL(Y49DB) (CO1)
1-812-229-11 1-812-229-11 LCD PANEL(Y49DB) (CO1)
4-690-050-01 4-690-050-01 MYLAR TAPE (F) (52.4GG11G001) (PANEL PART) (CO1)
4-690-051-01 4-690-051-01 MYLAR TAPE (G) (52.4GG12G001) (PANEL PART) (CO1)

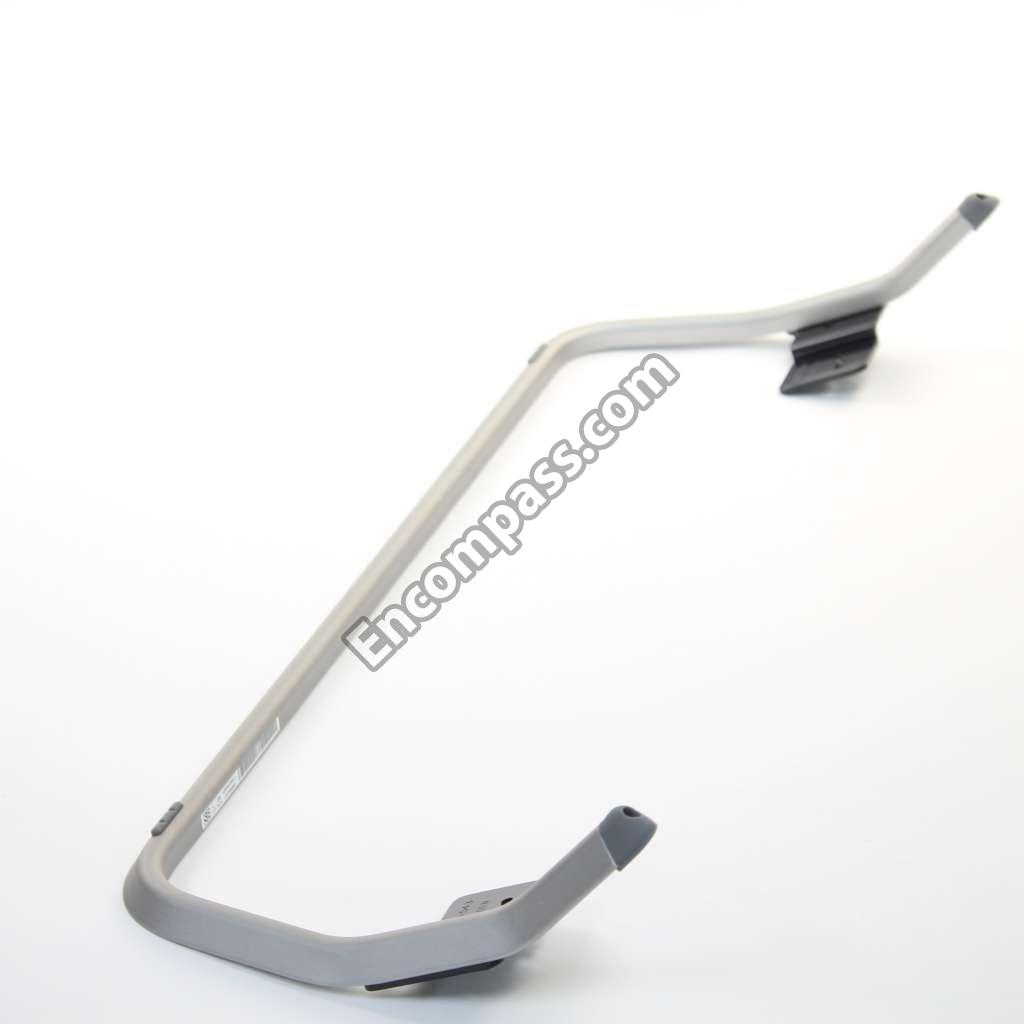

4-589-099-01 4-589-099-01 NECK ASSY, STAND, (L JDE) (CO1)
4-686-926-01 4-686-926-01 PL BEZEL (75.4GG14G001) (BLACK) (PANEL PART) (CO1)
4-686-927-01 4-686-927-01 PL BEZEL (75.4GG15G001) (GOLD) (PANEL PART) (CO1)
4-686-928-01 4-686-928-01 PL BEZEL (75.4GG16G001) (SILVER) (PANEL PART) (CO1)
4-579-717-01 4-579-717-01 PLATE, MAIN S(PDT) (CO1)
4-586-739-01 4-586-739-01 PLATE, MAIN S(PDT) (CO1)
4-686-931-01 4-686-931-01 POLARIZER F/CF (6308L-6870A) (PANEL PART) (CO1)
4-686-932-01 4-686-932-01 POLARIZER R/TFT (6308L-6871A) (PANEL PART) (CO1)
1-839-696-13 1-839-696-13 POWER-SUPPLY CORD (WITH CONN.) (CO1)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (CO1)
1-848-803-11 1-848-803-11 RCA CONVERSION CABLE (CO1)
4-584-997-31 4-584-997-31 REFERENCE GUIDE (CO1)
1-493-160-11 1-493-160-11 REMOTE COMMANDER (RMT-TX200B) (CO1)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (CO1)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (CO1)
4-159-298-01 4-159-298-01 SCREW, (+PSW)(M4X10) (CO1)
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3 (CO1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (CO1)
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12 (CO1)
2-580-593-01 2-580-593-01 SCREW, +PSW M3X8 (CO1)
4-584-993-11 4-584-993-11 SETUP GUIDE (CO1)
4-565-059-11 4-565-059-11 SHEET, INSLATION (HRN L) (CO1)

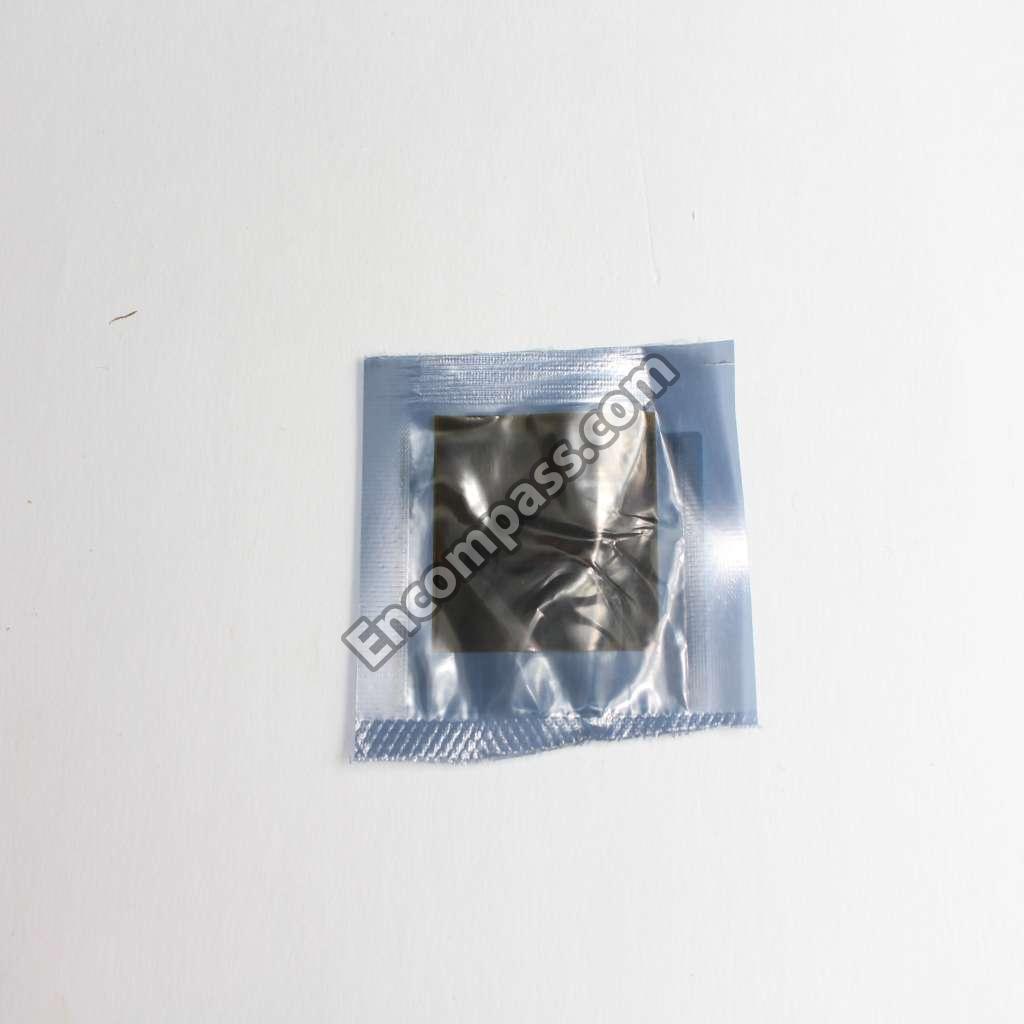

4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (CO1)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (CO1)
A-2093-196-A A-2093-196-A SMART CORE (LL) M2 S-PRO (CO1)
A-2126-354-A A-2126-354-A SMART CORE (LL) M2 S-PRO PONR (CO1)
1-897-040-11 1-897-040-11 SOURCE DRIVER IC MT BOARD (0INTL-0073A) (PANEL PART) (CO1)
1-858-963-51 1-858-963-51 SPEAKER BOX ASSY (CO1)
1-858-963-61 1-858-963-61 SPEAKER BOX ASSY (CO1)
4-585-539-01 4-585-539-01 STAND, SHAFT (L JDE) A (CO1)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (CO1)
1-474-647-11 1-474-647-11 SWITCH UNIT (3M-P) (CO1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT (CO1)
8-594-307-00 8-594-307-00 UNIVERSAL SIL-TU SUT-DB243ZP (CO1)
1-849-274-11 1-849-274-11 USA PIG (CO1)

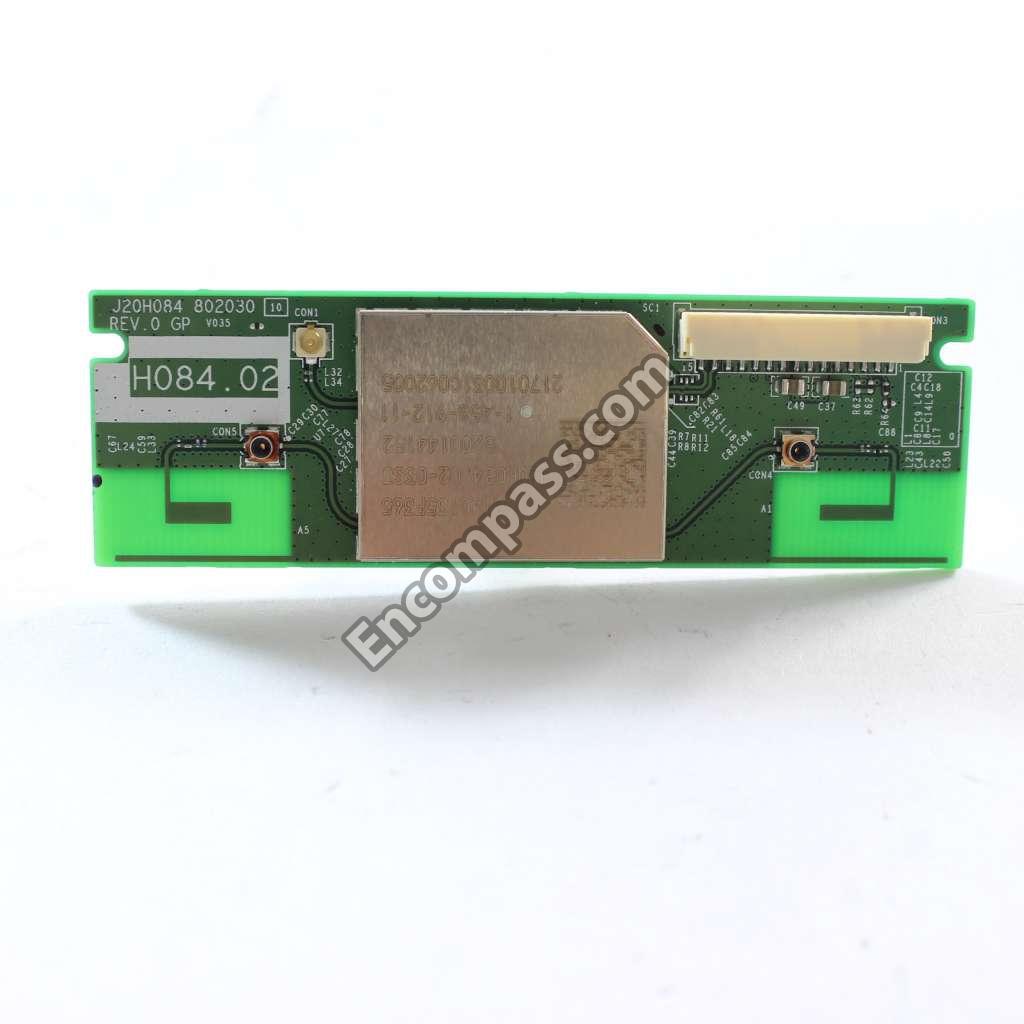

1-458-912-11 1-458-912-11 WLAN/BT MODULE(11AC) (CO1)
