Model Image
Manufacturer

Sony

Model Number

XBR49X800D

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
1-493-180-11 1-493-180-11 AC ADAPTOR (160W) (UC2)
7-600-040-44 7-600-040-44 ADHESIVE (SV380C) 333CC GRY (UC2)
4-535-586-02 4-535-586-02 BADGE, XBR LOGO(H3.7) (UC2)
4-462-871-01 4-462-871-01 BAG, SCREW A (CCT) (UC2)
4-447-722-32 4-447-722-32 BAG,PROTECTION PEHD(1500X1200) (UC2)
4-585-683-01 4-585-683-01 BAG,SCREW (M6L16)(2)(PDT_ML) (UC2)
4-689-168-01 4-689-168-01 BEZEL(D) (760.01Q04.0001) (BLACK) (PANEL PART) (UC2)
4-689-164-01 4-689-164-01 BEZEL(D) (760.01Q0F.0001) (SILVER) (PANEL PART) (UC2)
4-689-166-01 4-689-166-01 BEZEL(L) (760.01Q02.0001) (BLACK) (PANEL PART) (UC2)
4-689-162-01 4-689-162-01 BEZEL(L) (760.01Q0G.0001) (SILVER) (PANEL PART) (UC2)
4-689-167-01 4-689-167-01 BEZEL(R) (760.01Q03.0001) (BLACK) (PANEL PART) (UC2)
4-689-163-01 4-689-163-01 BEZEL(R) (760.01Q0E.0001) (SILVER) (PANEL PART) (UC2)
4-689-165-01 4-689-165-01 BEZEL(U) (760.01Q01.0001) (BLACK) (PANEL PART) (UC2)
4-689-161-01 4-689-161-01 BEZEL(U) (760.01Q0D.0001) (SILVER) (PANEL PART) (UC2)
4-580-890-01 4-580-890-01 BRACKET, DC JACK (PDT) (UC2)
4-579-710-11 4-579-710-11 BRACKET, SIDE (PDT) (UC2)
4-579-653-01 4-579-653-01 BRACKET, STD(ML_PDT) (UC2)
4-297-468-02 4-297-468-02 BRACKET, VESA (UC2)
4-486-590-02 4-486-590-02 BRACKET, VESA(MIA) (UC2)
1-754-975-11 1-754-975-11 BT ANTENNA (UC2)
4-589-807-01 4-589-807-01 CARTON INDIVIDUAL (ML_PDT) (UC2)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UC2)
A-2094-463-A A-2094-463-A COMPL SVC BFM_UC_I_S (MAIN CBA) (UC2)
1-910-110-97 1-910-110-97 CONNECTOR ASSY 30P (UC2)
1-910-110-96 1-910-110-96 CONNECTOR ASSY 4P (UC2)
1-897-069-11 1-897-069-11 CONVERTER MT BOARD (019.20007.0081) (PANEL PART) (UC2)
1-846-090-32 1-846-090-32 CORD SET, POWER-SUPPLY (UC2)
4-580-233-11 4-580-233-11 CUSHION, LOWER (ML PDT) (UC2)
4-580-235-11 4-580-235-11 CUSHION, SIDE(ML PDT) (UC2)
4-580-231-11 4-580-231-11 CUSHION, UPPER (ML_PDT) (UC2)
1-849-521-11 1-849-521-11 FFC (49) (UC2)
1-849-392-11 1-849-392-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-910-110-95 1-910-110-95 HARNESS ASSY (MAIN) (UC2)
4-579-994-01 4-579-994-01 HOLDER SIDE SW(PDT) (UC2)
A-2092-887-B A-2092-887-B HSC4-S MOUNT (UC2)
1-849-161-11 1-849-161-11 IR BLASTER CABLE (UC2)
4-585-154-01 4-585-154-01 LABEL, REAR TERMINAL (UC2)
4-581-504-01 4-581-504-01 LABEL, SIDE TERMINAL(PDT) (UC2)
1-895-966-13 1-895-966-13 MOUNTED PWB E-T-CON (49) (6871L-4352B) (PANEL PART) (UC2)
4-586-739-01 4-586-739-01 PLATE, MAIN S(PDT) (UC2)
4-689-222-01 4-689-222-01 POLARIZER F/CF (6308L-7251A) (PANEL PART) (UC2)
4-689-215-01 4-689-215-01 POLARIZER R/TFT (6308L-7062A) (PANEL PART) (UC2)
4-579-924-01 4-579-924-01 PULLEY, SP(PDT) (UC2)
4-589-696-11 4-589-696-11 REAR COVER (ML_PDT) A (UC2)
4-593-417-11 4-593-417-11 REFERENCE GUIDE (UC2)
1-493-127-21 1-493-127-21 REMOTE COMMANDER (RMF-TX200U) (UC2)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (UC2)
7-682-246-09 7-682-246-09 SCREW +K 3X5 (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2)
4-159-298-01 4-159-298-01 SCREW, +PSW M4X10 (UC2)
2-580-607-01 2-580-607-01 SCREW, +PSW M5X12 (UC2)
2-580-611-01 2-580-611-01 SCREW, +PSW M6X16 (UC2)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (UC2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (UC2)
A-2103-113-A A-2103-113-A SMART CORE (S) M2 S-PRO (UC2)

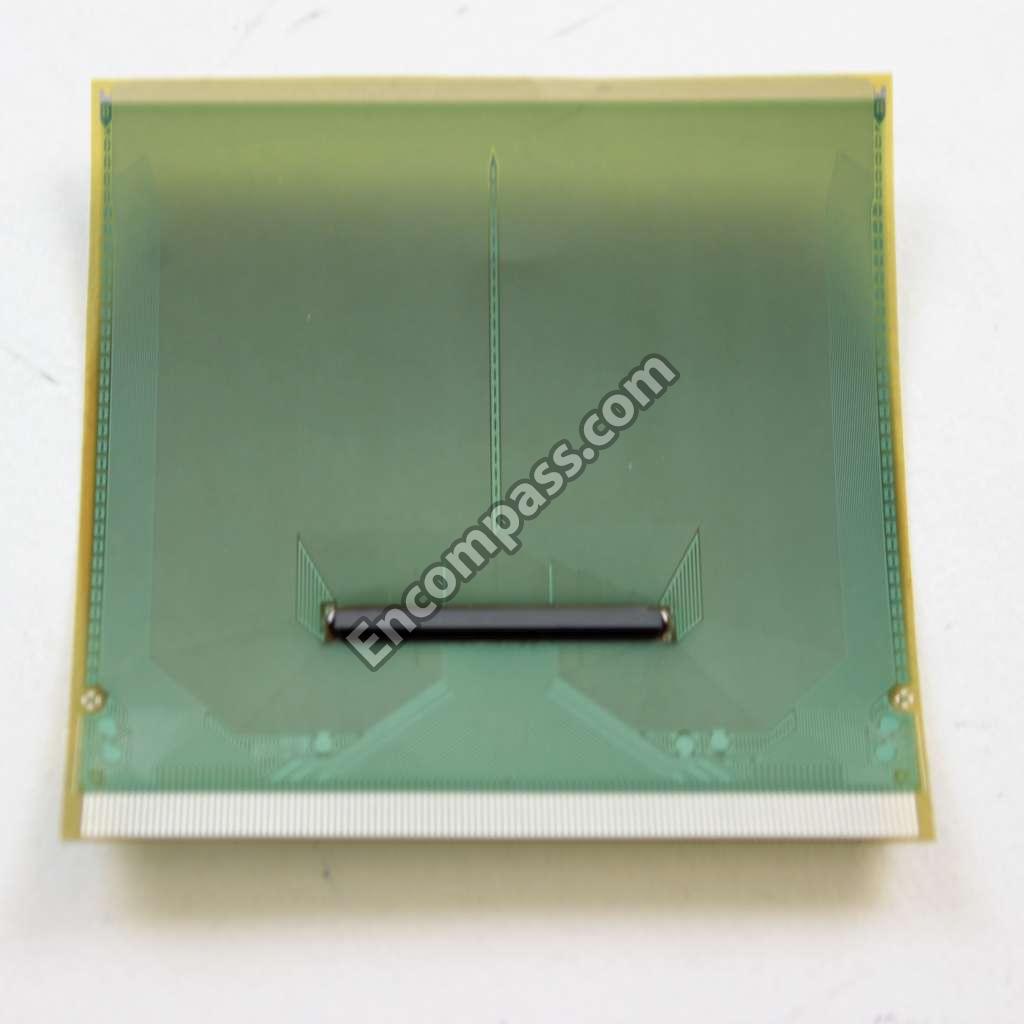

1-897-066-11 1-897-066-11 SOURCE DRIVER IC MT BOARD (0IHXL-0031A) (PANEL PART) (UC2)
1-859-139-11 1-859-139-11 SP-BOX ASSY, W25(S)-EA (UC2)
1-859-139-21 1-859-139-21 SP-BOX ASSY, W25(S)-EB (UC2)

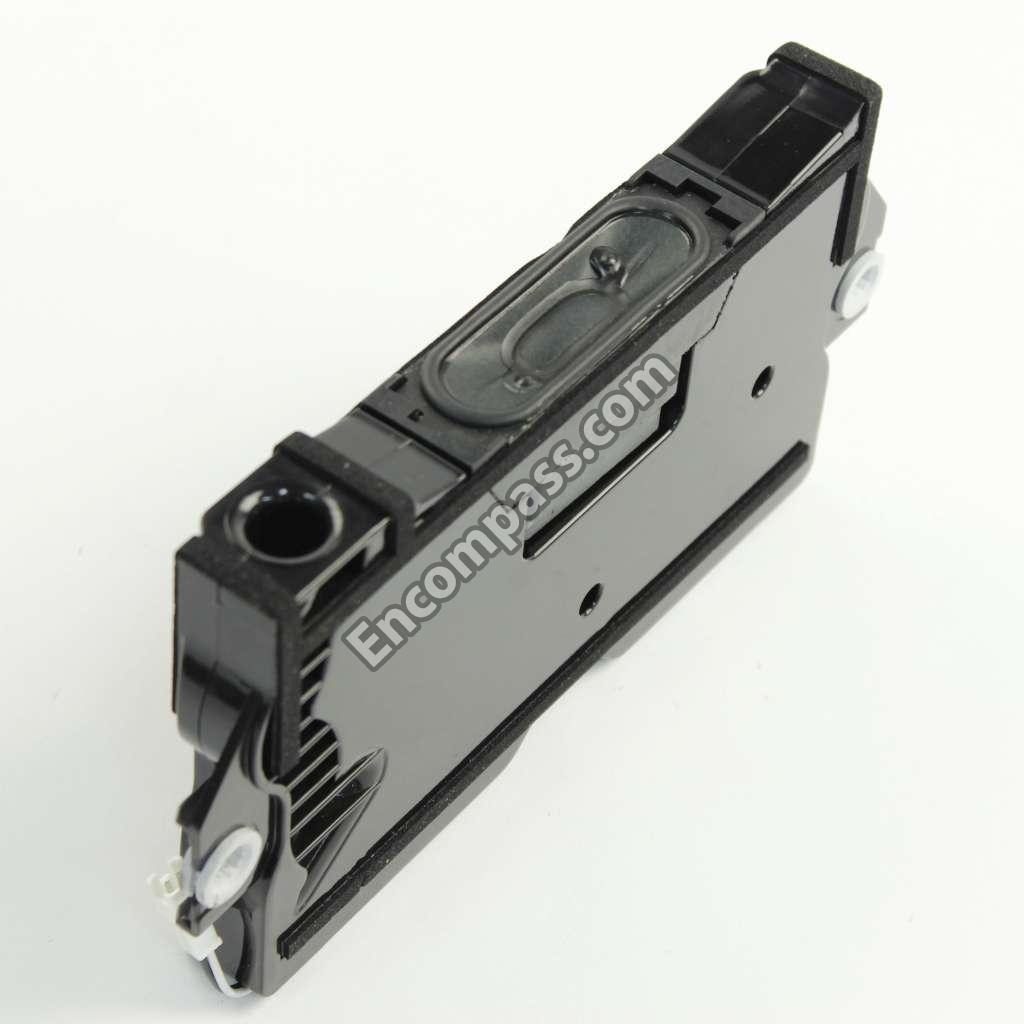

1-859-141-11 1-859-141-11 SP-BOX ASSY, W25(S)-KA (UC2)
1-859-141-21 1-859-141-21 SP-BOX ASSY, W25(S)-KB (UC2)
4-581-195-01 4-581-195-01 STAND (ML PDT) A (UC2)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (UC2)
1-474-647-11 1-474-647-11 SWITCH UNIT (3M-P) (UC2)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (UC2)
4-689-206-01 4-689-206-01 TAPE, BOTTOM (740.01Q0L.0001) (PANEL PART) (UC2)
4-689-204-01 4-689-204-01 TAPE, TOP (740.01Q0K.0001) (PANEL PART) (UC2)
8-594-302-00 8-594-302-00 UNIVERSAL SIL-TU SUT-RA243ZP (UC2)
1-458-912-11 1-458-912-11 WLAN/BT MODULE(11AC) (UC2)
