Model Image
Manufacturer

Sony

Model Number

XBR49X800E

Description

49-inch 4k Hdr Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description
A-2165-789-A A-2165-789-A (MAIN CBA) COMPL SVC BFX_MX_I (LA1)
A-2165-797-A A-2165-797-A (MAIN CBA) COMPL SVC BFX_UC_I_S (UC2)

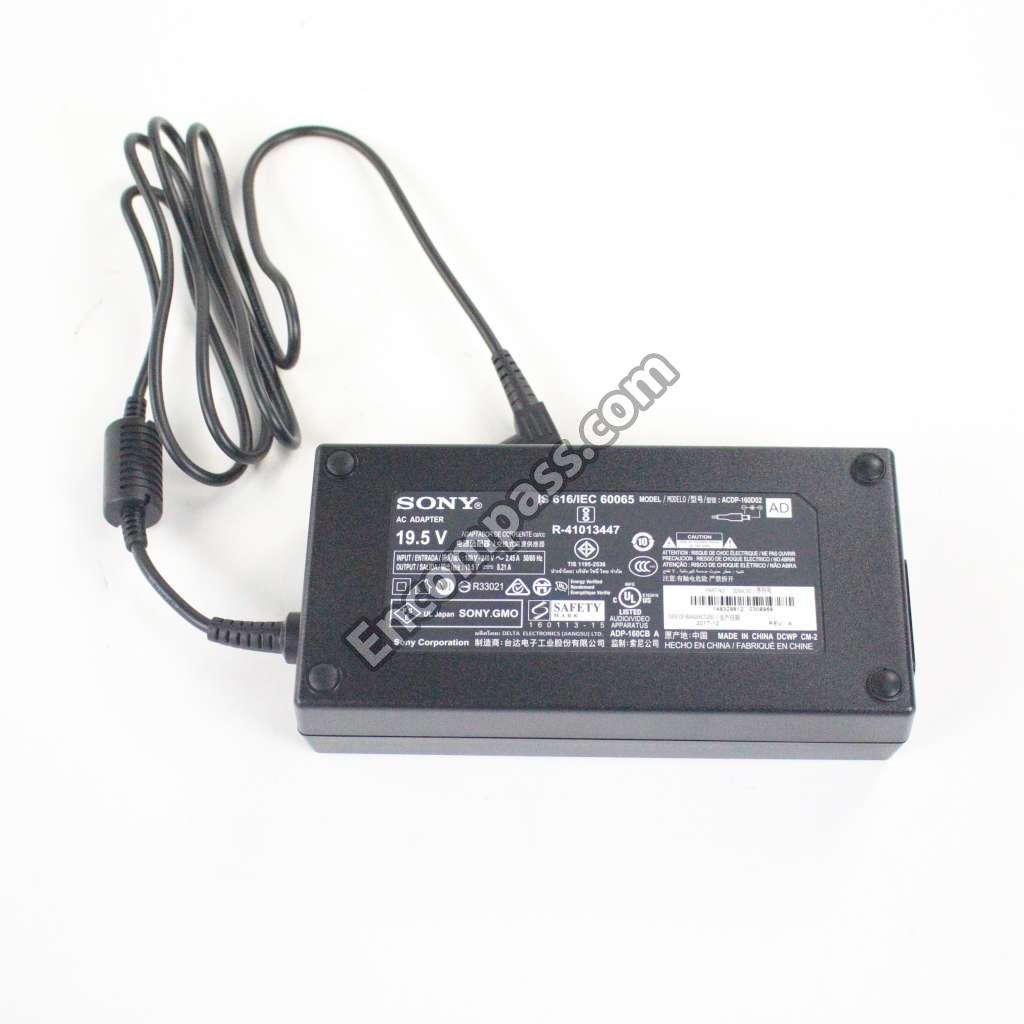

1-493-298-12 1-493-298-12 AC ADAPTOR (160W) (UC2,LA1)
4-595-663-01 4-595-663-01 BEZEL BT (M FRE) (BLACK) (PANEL PART) (UC2,LA1)
4-595-663-11 4-595-663-11 BEZEL BT (M FRE) (SILVER) (PANEL PART) (UC2,LA1)
4-595-662-01 4-595-662-01 BEZEL L (M FRE) (BLACK) (PANEL PART) (UC2,LA1)
4-595-662-11 4-595-662-11 BEZEL L (M FRE) (SILVER) (PANEL PART) (UC2,LA1)
4-595-661-01 4-595-661-01 BEZEL R (M FRE) (BLACK) (PANEL PART) (UC2,LA1)
4-595-661-11 4-595-661-11 BEZEL R (M FRE) (SILVER) (PANEL PART) (UC2,LA1)
4-595-660-01 4-595-660-01 BEZEL TP (M FRE) (BLACK) (PANEL PART) (UC2,LA1)
4-595-660-11 4-595-660-11 BEZEL TP (M FRE) (SILVER) (PANEL PART) (UC2,LA1)
4-595-951-01 4-595-951-01 BRACKET UNDER (FRE) (UC2)

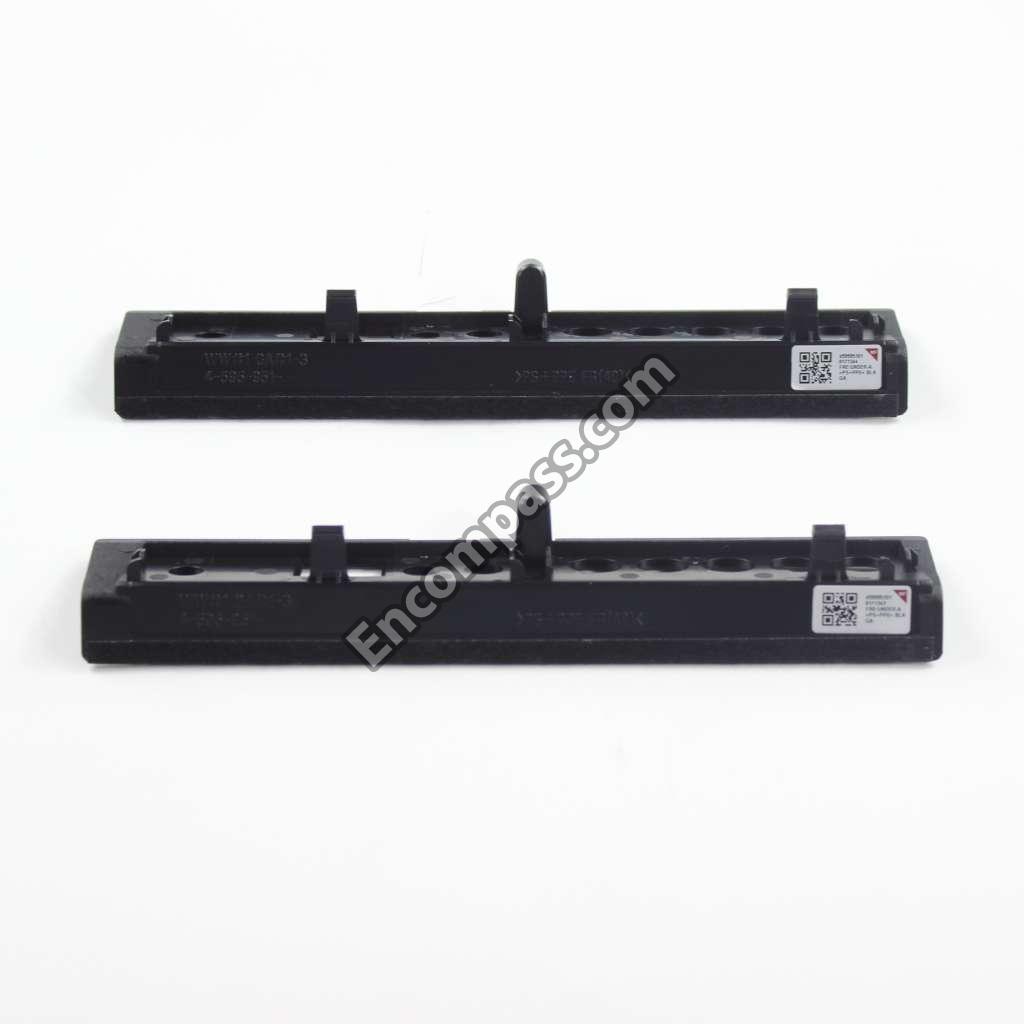

4-690-594-21 4-690-594-21 BRACKET, SIDE (FRE) (UC2,LA1)
1-910-805-85 1-910-805-85 CONNECTOR ASSY 15P (PANEL PART) (UC2,LA1)
1-910-805-86 1-910-805-86 CONNECTOR ASSY 30P (UC2,LA1)
4-598-985-01 4-598-985-01 CORNER, TAPE BZ BT L (PANEL PART) (UC2,LA1)
4-598-986-01 4-598-986-01 CORNER, TAPE BZ BT R (PANEL PART) (UC2,LA1)
4-692-608-01 4-692-608-01 CUSHION, HS (PANEL PART) (UC2,LA1)
4-686-917-02 4-686-917-02 DIFFUSER SHEET (M) (PANEL PART) (UC2,LA1)

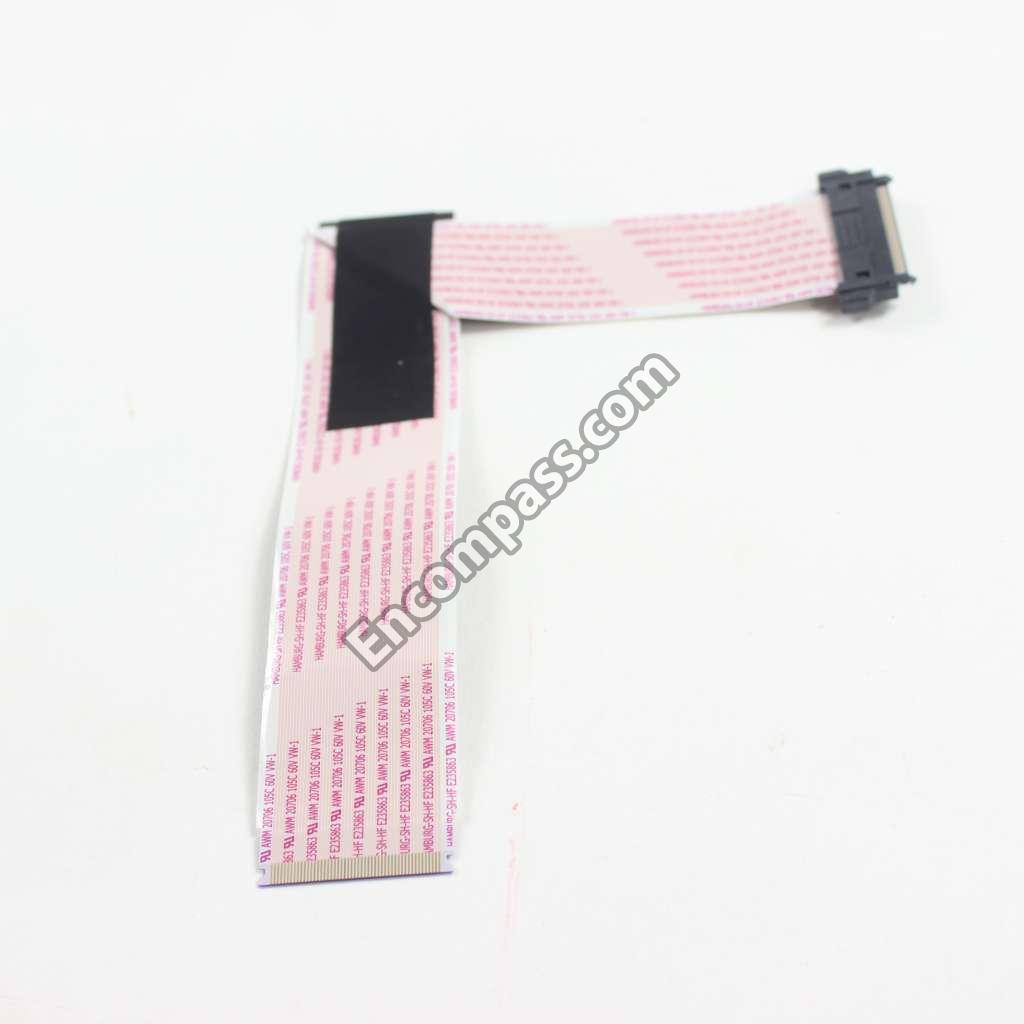

1-912-017-11 1-912-017-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
1-912-020-11 1-912-020-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
1-849-850-21 1-849-850-21 FLEXIBLE FLAT CABLE 60P (PANEL PART) (UC2,LA1)
4-684-187-01 4-684-187-01 FLEXIBLE FLAT CABLE 60P (PANEL PART) (UC2,LA1)
1-910-805-84 1-910-805-84 HARNESS ASSY (UC2,LA1)
A-2180-821-A A-2180-821-A HEAT SPREADER (SERVICE) 49 (UC2,LA1)
A-2194-173-A A-2194-173-A HSC3 S M PONR MOUNT
4-595-953-21 4-595-953-21 LABEL, UNDER TERMINAL (FRE) (LA1)
4-595-953-11 4-595-953-11 LABEL, UNDER TERMINAL (FRE) (UC2)

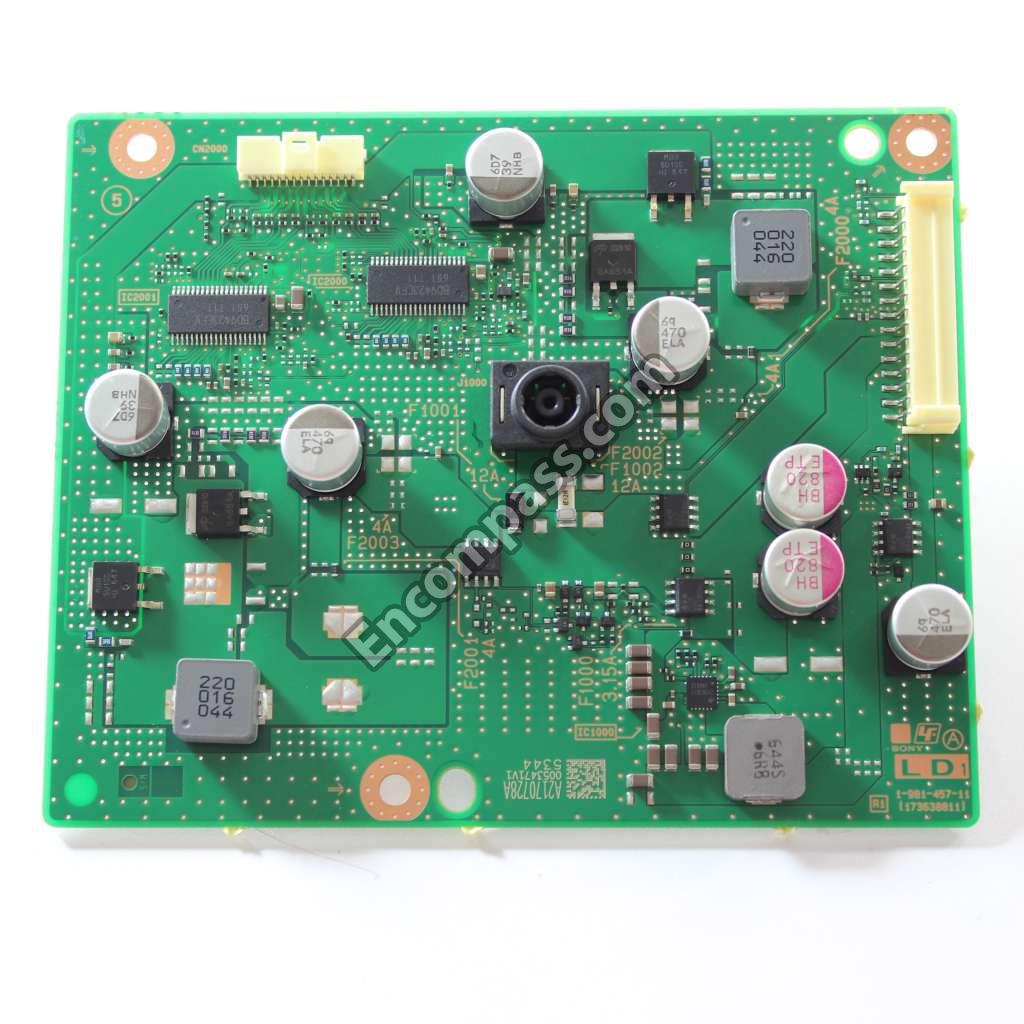

A-2170-728-A A-2170-728-A LD1_2DRV_49 MOUNT SPRO LD1 BOARD_KF 49 (UC2,LA1)
4-596-360-01 4-596-360-01 LGP STOPPER L (PANEL PART) (UC2,LA1)
4-596-361-01 4-596-361-01 LGP STOPPER R (PANEL PART) (UC2,LA1)
4-686-915-01 4-686-915-01 LIGHT GUIDE PLATE (M FRE) (PANEL PART) (UC2,LA1)
1-812-325-11 1-812-325-11 LIQUID CRYSTAL ELEMENT(L490EQY (PANEL PART) (UC2,LA1)
4-595-688-02 4-595-688-02 MIDDLE CHASSIS BT (M F) A (PANEL PART) (UC2,LA1)
4-595-687-01 4-595-687-01 MIDDLE CHASSIS L (M F) A (PANEL PART) (UC2,LA1)
4-595-686-01 4-595-686-01 MIDDLE CHASSIS R (M F) A (PANEL PART) (UC2,LA1)
4-595-685-01 4-595-685-01 MIDDLE CHASSIS TP (M F) A (PANEL PART) (UC2,LA1)
1-897-119-11 1-897-119-11 MOUNTED PWB E-T-CON (49) (PANEL PART) (6871L-4922A) (UC2,LA1)
A-2180-808-A A-2180-808-A P-MOD (YM7S490HNG0101)(SERVICE (LA1)
A-2180-807-A A-2180-807-A P-MOD (YM7S490HNG0101)(SERVICE) (UC2)
4-696-866-01 4-696-866-01 POLARIZER F/CF (PANEL PART) (6308R-0097A) (UC2,LA1)
4-696-867-01 4-696-867-01 POLARIZER R/TFT (PANEL PART) (6308R-0098A) (UC2,LA1)
1-838-955-42 1-838-955-42 POWER CORD ( GOES WITH AC ADAPTOR )
4-686-916-01 4-686-916-01 PRISM ON PRISM SHEET (M FRE) (PANEL PART) (UC2,LA1)
4-691-561-01 4-691-561-01 REAR COVER (M FRE AL) A (UC2,LA1)
4-684-575-31 4-684-575-31 REFERENCE GUIDE (LA1)
4-686-919-02 4-686-919-02 REFLECTIVE POLARIZER (M) (PANEL PART) (UC2,LA1)
4-686-918-02 4-686-918-02 REFLECTIVE SHEET (M) (PANEL PART) (UC2,LA1)
4-684-572-11 4-684-572-11 REFRENCE GUIDE (UC2)
1-493-318-11 1-493-318-11 REMOTE COMMANDER(RMF-TX300U) (UC2,LA1)

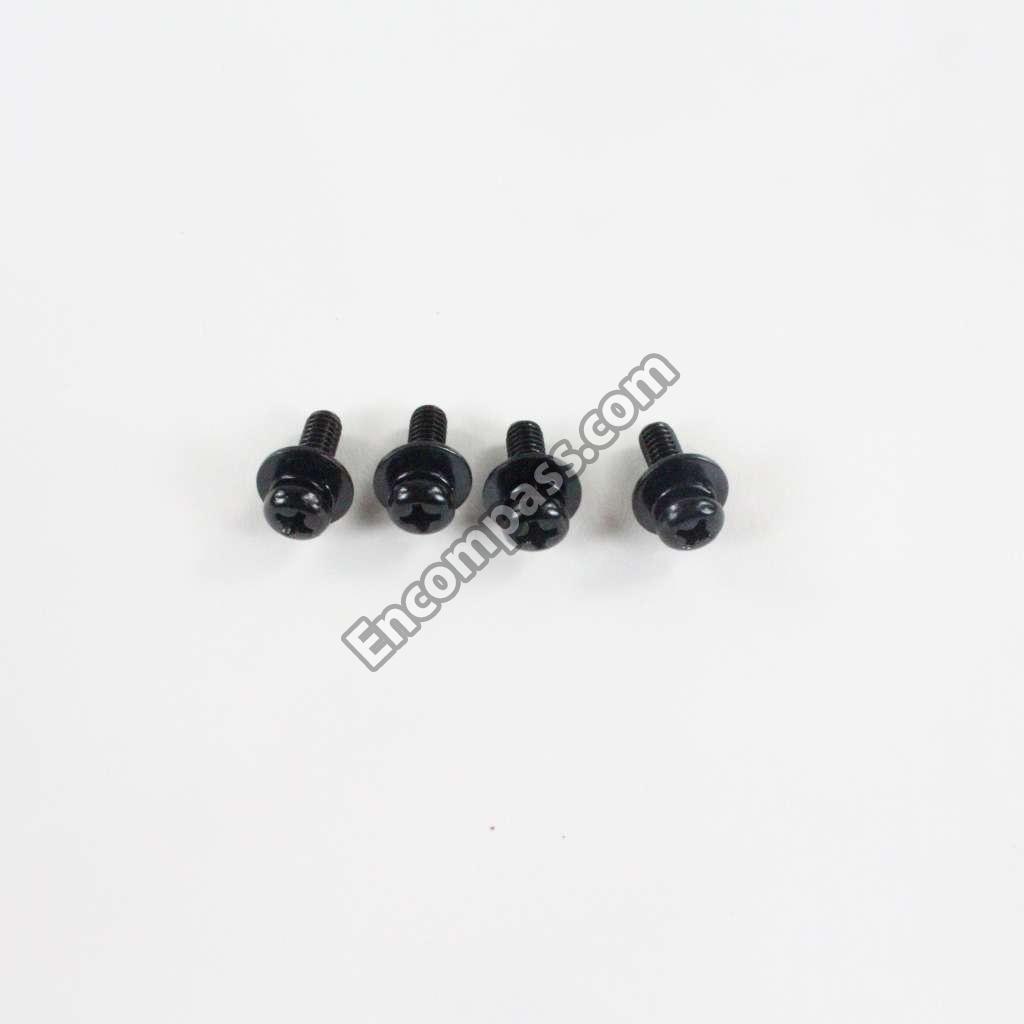

4-588-089-02 4-588-089-02 SCREWS FOR STAND ASSY.
4-595-669-01 4-595-669-01 SHEET SHADING (M) (PANEL PART) (UC2,LA1)
4-457-451-11 4-457-451-11 SHEET, THERMAL (BAF) (PANEL PART) (UC2,LA1)
4-567-100-01 4-567-100-01 SHEET, THERMAL T-CON (3L CRN) (PANEL PART) (UC2,LA1)
4-549-186-01 4-549-186-01 SHEET, THERMAL(BM) (PANEL PART) (UC2,LA1)
1-897-155-11 1-897-155-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (0ISWL-0379A) (UC2,LA1)

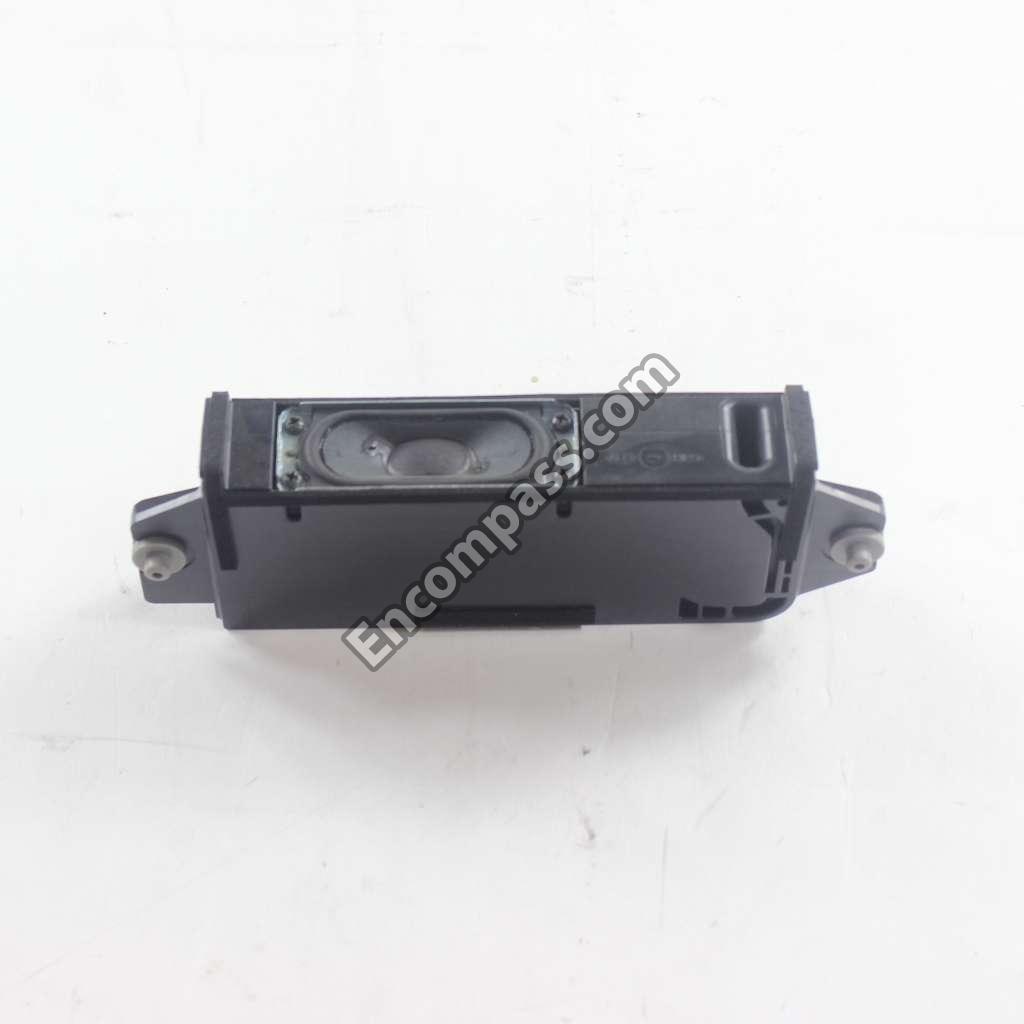

1-858-963-71 1-858-963-71 SPEAKER BOX ASSY (UC2,LA1)
1-858-963-81 1-858-963-81 SPEAKER BOX ASSY (UC2,LA1)
4-595-697-01 4-595-697-01 STAND BASE (M FRE) A, N (LA1)
4-595-697-42 4-595-697-42 STAND BASE (M FRE) A, N (UC2)
1-474-676-12 1-474-676-12 SWITCH UNIT (3M-P-B3) (UC2,LA1)
4-689-320-01 4-689-320-01 TAPE, OPT HOOK (PANEL PART) (UC2,LA1)
8-594-302-70 8-594-302-70 UNIVERSAL SIL-TU SUT-RA243ZP (UC2,LA1)
