Model Image
Manufacturer

Sony

Model Number

XBR49X807G

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
A-5000-989-A A-5000-989-A (MAIN CBA) COMPL_SN_SVC_BCX2_4K_CO (CO1)
4-744-639-02 4-744-639-02 BEZEL (M NCS) A (CO1) (PANEL PART)
1-910-805-85 1-910-805-85 CONNECTOR ASSY 15P (CO1) (PANEL PART)
4-692-608-21 4-692-608-21 CUSHION, HS (CO1) (PANEL PART)
4-746-367-01 4-746-367-01 DIFFUSER SHEET (M) (CO1) (PANEL PART)
4-746-367-21 4-746-367-21 DIFFUSER SHEET (M) (CO1) (PANEL PART)
1-849-850-21 1-849-850-21 FLEXIBLE FLAT CABLE 60P (CO1) (PANEL PART)
1-849-851-21 1-849-851-21 FLEXIBLE FLAT CABLE 60P (CO1) (PANEL PART)
4-736-043-01 4-736-043-01 GASKET, TCON CH (CO1) (PANEL PART)
A-5000-501-A A-5000-501-A HEAT SPREADER (SERVICE)49SN/SG (CO1) (PANEL PART)
4-596-360-01 4-596-360-01 LGP STOPPER L (CO1) (PANEL PART)
4-596-361-01 4-596-361-01 LGP STOPPER R (CO1) (PANEL PART)
4-746-366-01 4-746-366-01 LIGHT GUIDE PLATE (M) (CO1) (PANEL PART)
1-001-516-11 1-001-516-11 LIQUID CRYSTAL ELEMENT(L490EQY (CO1) (PANEL PART)
4-595-688-21 4-595-688-21 MIDDLE CHASSIS BT (M F) A (CO1) (PANEL PART)
4-595-687-03 4-595-687-03 MIDDLE CHASSIS L (M F) A (CO1) (PANEL PART)
4-595-686-03 4-595-686-03 MIDDLE CHASSIS R (M F) A (CO1) (PANEL PART)
4-595-685-04 4-595-685-04 MIDDLE CHASSIS TP (M F) A (CO1) (PANEL PART)

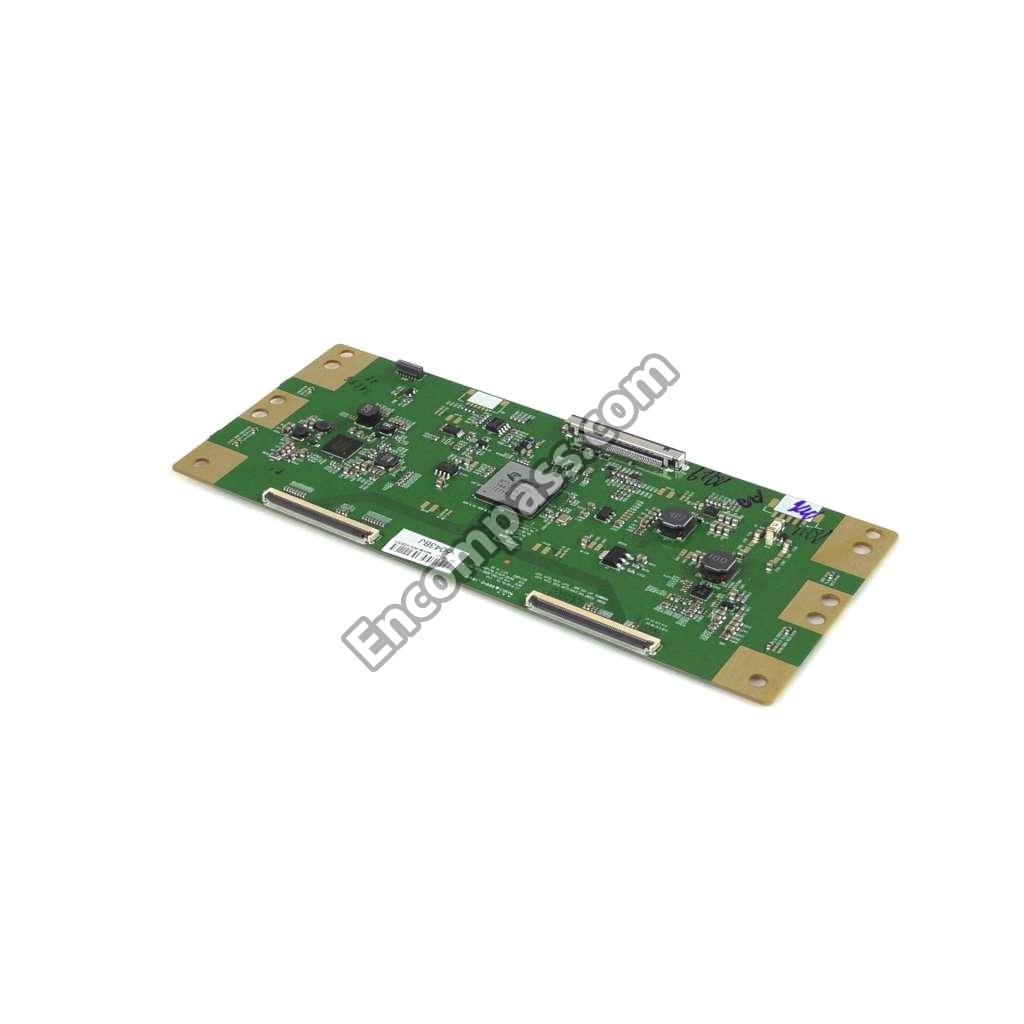

1-001-517-11 1-001-517-11 MOUNTED PWB E-T-CON (49) (CO1) (PANEL PART)
1-897-342-11 1-897-342-11 MOUNTED PWB LS BAR (49) (CO1) (PANEL PART)
4-596-444-11 4-596-444-11 PANEL REAR COVER (M) (CO1) (PANEL PART) (BM10)
4-596-444-01 4-596-444-01 PANEL REAR COVER (M) (CO1) (PANEL PART) (BM11)
5-009-625-01 5-009-625-01 POLARIZER F/CF (6308L-8886A) (CO1) (PANEL PART)
5-009-626-01 5-009-626-01 POLARIZER R/TFT (6308L-8887A) (CO1) (PANEL PART)
5-002-580-01 5-002-580-01 PRISM H SHEET (M) (CO1) (PANEL PART)
4-748-440-31 4-748-440-31 REFERENCE GUIDE (CO1)
4-746-368-01 4-746-368-01 REFLECTIVE POLARIZER (M) (CO1) (PANEL PART)
4-746-368-11 4-746-368-11 REFLECTIVE POLARIZER (M) (CO1) (PANEL PART)
4-746-369-01 4-746-369-01 REFLECTIVE SHEET (M) (CO1) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (CO1) (PANEL PART)
4-595-770-01 4-595-770-01 SCREW, STEP M3X2.1 (CO1) (PANEL PART)
5-001-759-01 5-001-759-01 SHEET SHADING (M) FOLDED (CO1) (PANEL PART)
4-457-451-11 4-457-451-11 SHEET, THERMAL (BAF) (CO1) (PANEL PART)
4-733-008-01 4-733-008-01 SHEET, THERMAL (BCH TCON) (CO1) (PANEL PART)
4-728-619-01 4-728-619-01 SHEET, THERMAL (CCB) (CO1) (PANEL PART)
4-699-975-01 4-699-975-01 SHEET,THERMAL(5567H) (CO1) (PANEL PART)
1-897-333-11 1-897-333-11 SOURCE DRIVER IC MT BOARD (0ISWL-0379B) (CO1) (PANEL PART)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (CO1) (PANEL PART)
4-689-320-01 4-689-320-01 TAPE, OPT HOOK (CO1) (PANEL PART)
4-684-187-01 4-684-187-01 TAPE, SEALING BC (CO1) (PANEL PART)
