Manufacturer
Sony
Model Number
XBR55A9G
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

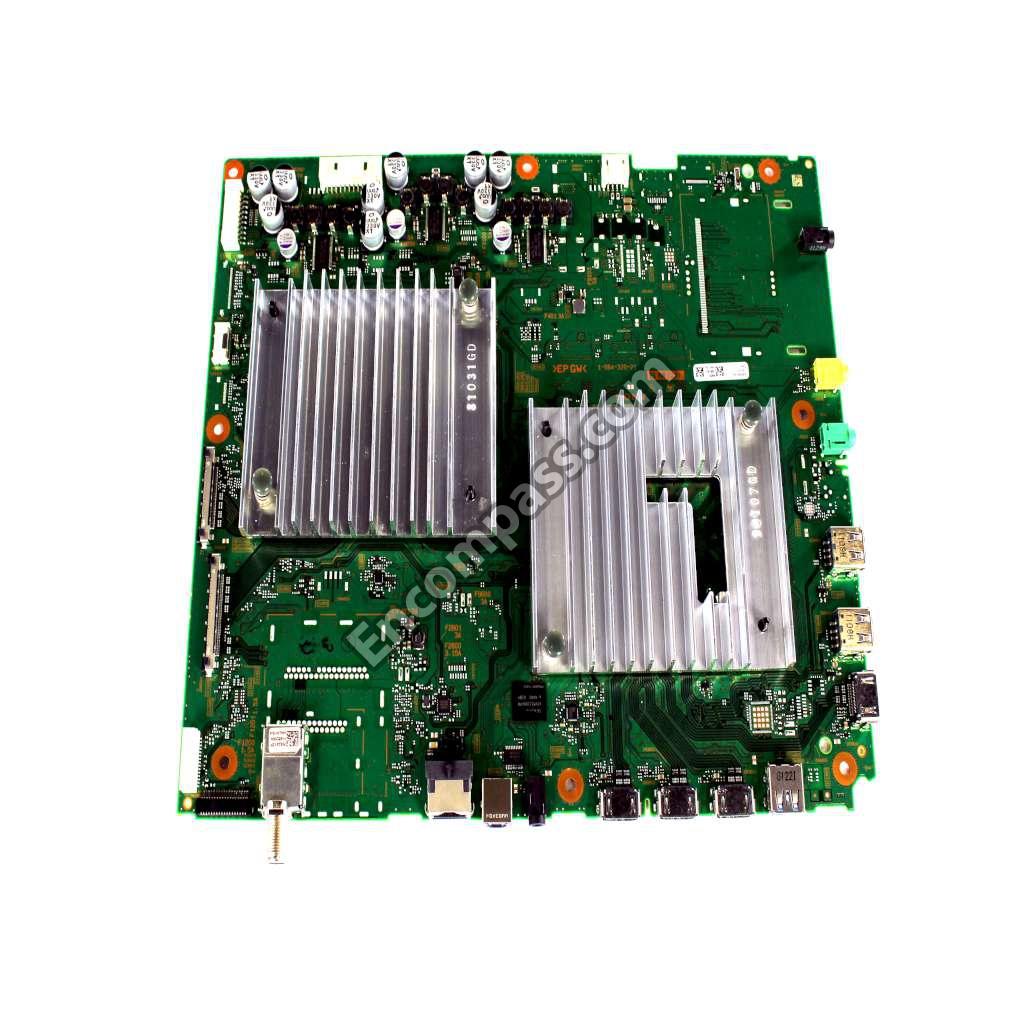

(MAIN CBA) COMPL SVC BM3J19_UC_SP (UC2) |
|
|

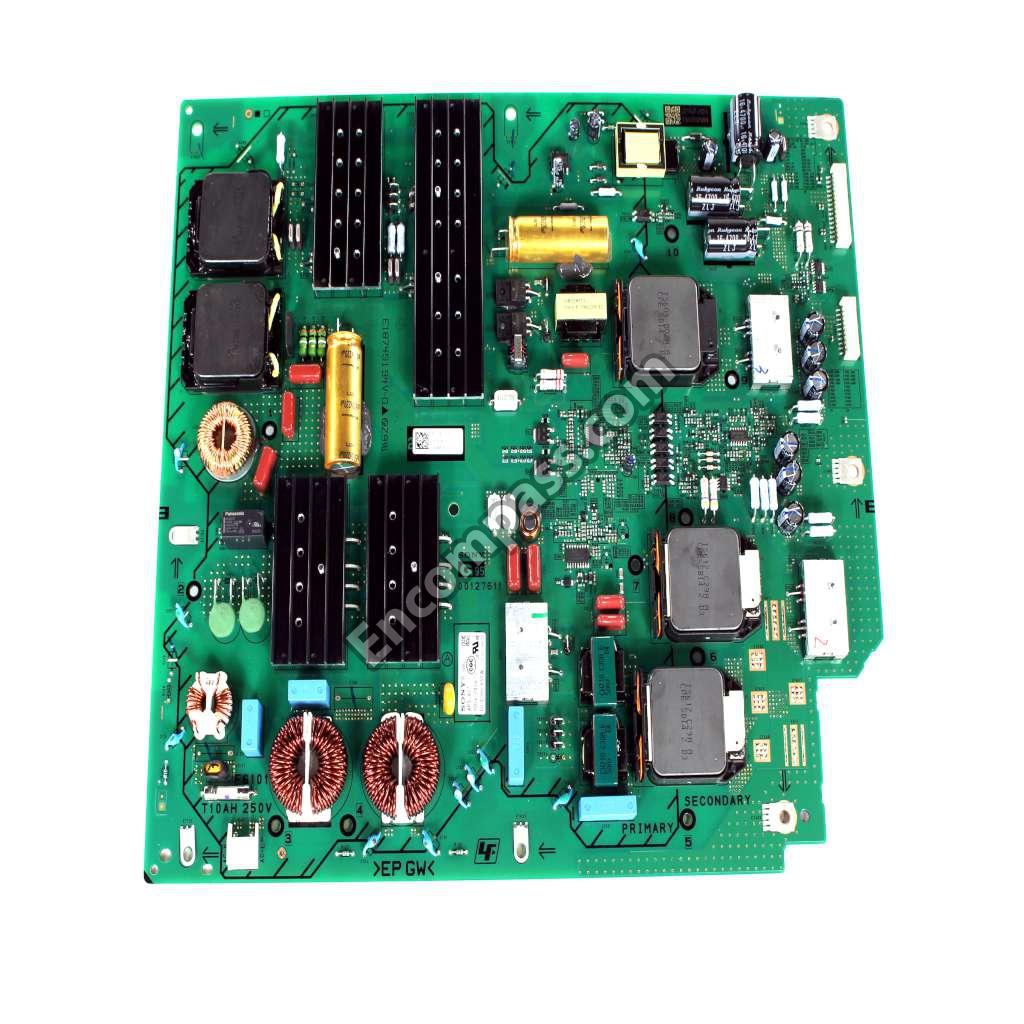

(POWER CBA) G95B(CH)-STATIC CONVERTER(TV) (UC2) |
|
|
ASSY,FALL LOCK,BELT LL (M4X12) (UC2) |
|
|
BRACKET, CNT SP (OCD) (UC2) |
|
|
CONNECTOR ASSY 12P(SP) (UC2) |
|
|
CONNECTOR ASSY 20P(PWRT) (UC2) |
|
|
CONNECTOR ASSY 30P(PWRB) (UC2) |
|
|
CONNECTOR ASSY 4P (UC2) |
|
|
CONNECTOT ASSY 30P (MAIN) (UC2) |
|
|
COVER, AC (L PAN) (UC2) |
|
|
COVER, SIDE TML (L PAN) (UC2) |
|
|
COVER, STAND H (L PAN) (UC2) |
|
|
COVER, STAND V (L PAN) (UC2) |
|
|
COVER, UNDER TML (L PAN) (UC2) |
|
|
FLEXIBLE FLAT CABLE 20P (UC2) |
|
|
FLEXIBLE FLAT CABLE 41P (UC2) |
|
|
FLEXIBLE FLAT CABLE 51P (UC2) |
|
|
HS9 MOUNT (UC2) |
|
|
NECK, STAND (L PAN) A (UC2) |
|
|
OLED PANEL(L55AMA1) (UC2) |
|
|
PUSHTERMINAL (UC2) |
|
|
REAR COVER (L PAN) A (UC2) |
|
|
REFERENCE GUIDE (UC2) |
|
|
REMOTE CONTROL |
|
|
SETUP GUIDE (UC2) |
|
|
SHT, INSULATION (PAN L) (UC2) |
|
|
SLIDE CLAMP(MINI) (UC2) |
|
|
SLIDER (PAN) (UC2) |
|
|
SPEAKER BOX ASSY(D30-SWF) (UC2) |
|
|
STAND, BASE (L PAN) A (UC2) |
|
|
SWITCH UNIT (3M-P-B5) (UC2) |
