Model Image
Manufacturer

Sony

Model Number

XBR55X800G

Description

55-inch Class 4k Hdr Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description
A-5000-996-A A-5000-996-A (MAIN CBA) COMPL_SN_SVC_BCX_4K_UC (UC2)
4-728-017-04 4-728-017-04 BACK LIGHT COVER (L BCH) A (UC2,LA1) (PANEL PART)
4-744-637-01 4-744-637-01 BEZEL (L NCS) A (LA1)
5-004-515-01 5-004-515-01 BEZEL (L NCS) A (UC2,LA1) (PANEL PART) (BM10)

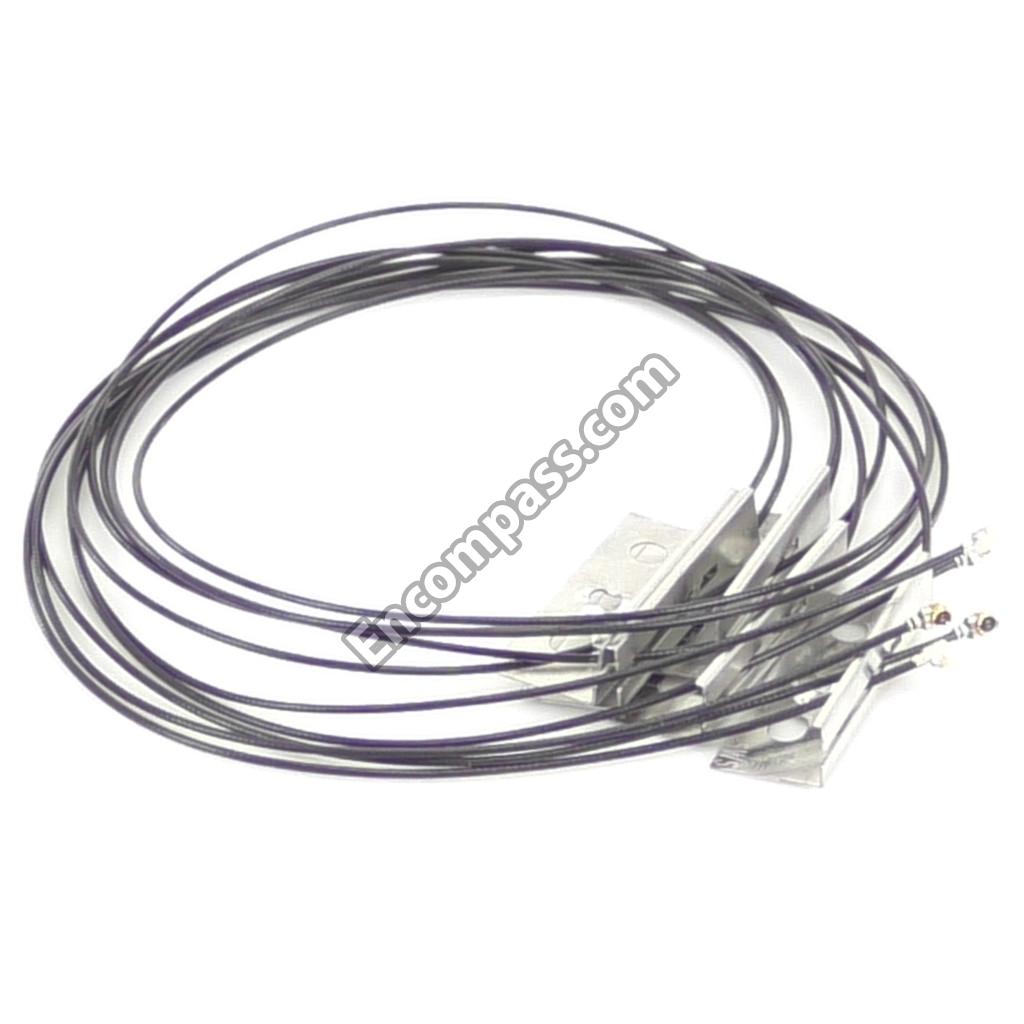

1-522-074-11 1-522-074-11 BT ANTENNA 640MM WNS (UC2)
A-5000-994-A A-5000-994-A COMPL_SN_SVC_BCX_4K_MX (LA1)
1-910-806-28 1-910-806-28 CONNECTOR ASSY 5P (UC2,LA1) (PANEL PART)
4-746-345-01 4-746-345-01 DIFFUSER PLATE (L) (UC2,LA1) (PANEL PART)
1-912-613-11 1-912-613-11 FLEXIBLE FLAT CABLE 68P (UC2,LA1) (PANEL PART)
1-912-612-11 1-912-612-11 FLEXIBLE FLAT CABLE 68P (UC2,LA1) (PANEL PART)
4-596-579-01 4-596-579-01 GASKET (4X5 (7)), SOFT (UC2,LA1) (PANEL PART)
4-567-217-11 4-567-217-11 GASKET, TCON CN (CRN) (UC2,LA1) (PANEL PART)
1-001-504-11 1-001-504-11 LIQUID CRYSTAL ELEMENT(B550QUB (UC2,LA1) (PANEL PART)
4-746-346-01 4-746-346-01 MICROLENS ON PRISM (L) (UC2,LA1) (PANEL PART)
4-728-015-01 4-728-015-01 MIDDLE CHASSIS BT (L BCH) A (UC2,LA1) (PANEL PART)
4-728-011-01 4-728-011-01 MIDDLE CHASSIS L (L BCH) A (UC2,LA1) (PANEL PART)
4-728-013-01 4-728-013-01 MIDDLE CHASSIS R (L BCH) A (UC2,LA1) (PANEL PART)
4-728-009-01 4-728-009-01 MIDDLE CHASSIS TP (L BCH) A (UC2,LA1) (PANEL PART)
1-001-505-11 1-001-505-11 MOUNTED PWB E-T-CON (55) (UC2,LA1) (PANEL PART)
1-897-344-11 1-897-344-11 MOUNTED PWB LS BAR (NCS L) (UC2,LA1) (PANEL PART)
A-5000-498-A A-5000-498-A P-MOD (YM9S055CNO01)(SERVICE) (LA1)
5-009-623-01 5-009-623-01 POLARIZER F/CF (38-1003941) (UC2,LA1) (PANEL PART)
5-009-624-01 5-009-624-01 POLARIZER R/TFT (38-1003942) (UC2,LA1) (PANEL PART)
5-002-568-21 5-002-568-21 REAR COVER (L NCS) A (LA1)
5-002-568-01 5-002-568-01 REAR COVER (L NCS) A (UC2)
4-748-441-31 4-748-441-31 REFERENCE GUIDE (LA1)
4-748-553-11 4-748-553-11 REFERENCE GUIDE (UC2)
4-746-347-03 4-746-347-03 REFLECTIVE SHEET (L) (UC2,LA1) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2,LA1) (PANEL PART)
4-748-556-11 4-748-556-11 SETUP GUIDE (UC2)
4-457-451-11 4-457-451-11 SHEET, THERMAL (BAF) (UC2,LA1) (PANEL PART)
4-733-008-01 4-733-008-01 SHEET, THERMAL (BCH TCON) (UC2,LA1) (PANEL PART)
4-699-975-01 4-699-975-01 SHEET,THERMAL(5567H) (UC2,LA1) (PANEL PART)
1-897-331-11 1-897-331-11 SOURCE DRIVER IC MT BOARD (47-7011654) (UC2,LA1) (PANEL PART)

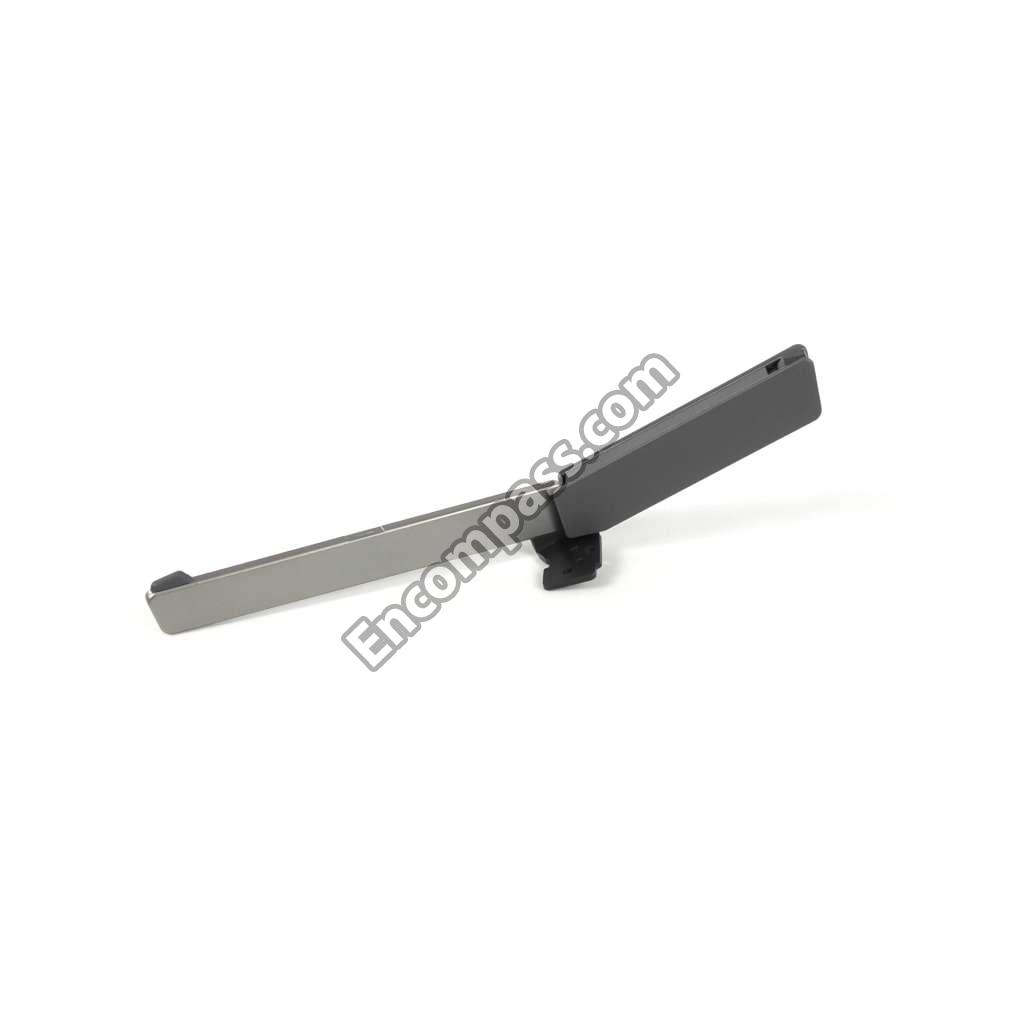

4-745-694-11 4-745-694-11 STAND L (2L NCS) A (LA1)
4-745-694-01 4-745-694-01 STAND L (2L NCS) A (UC2)

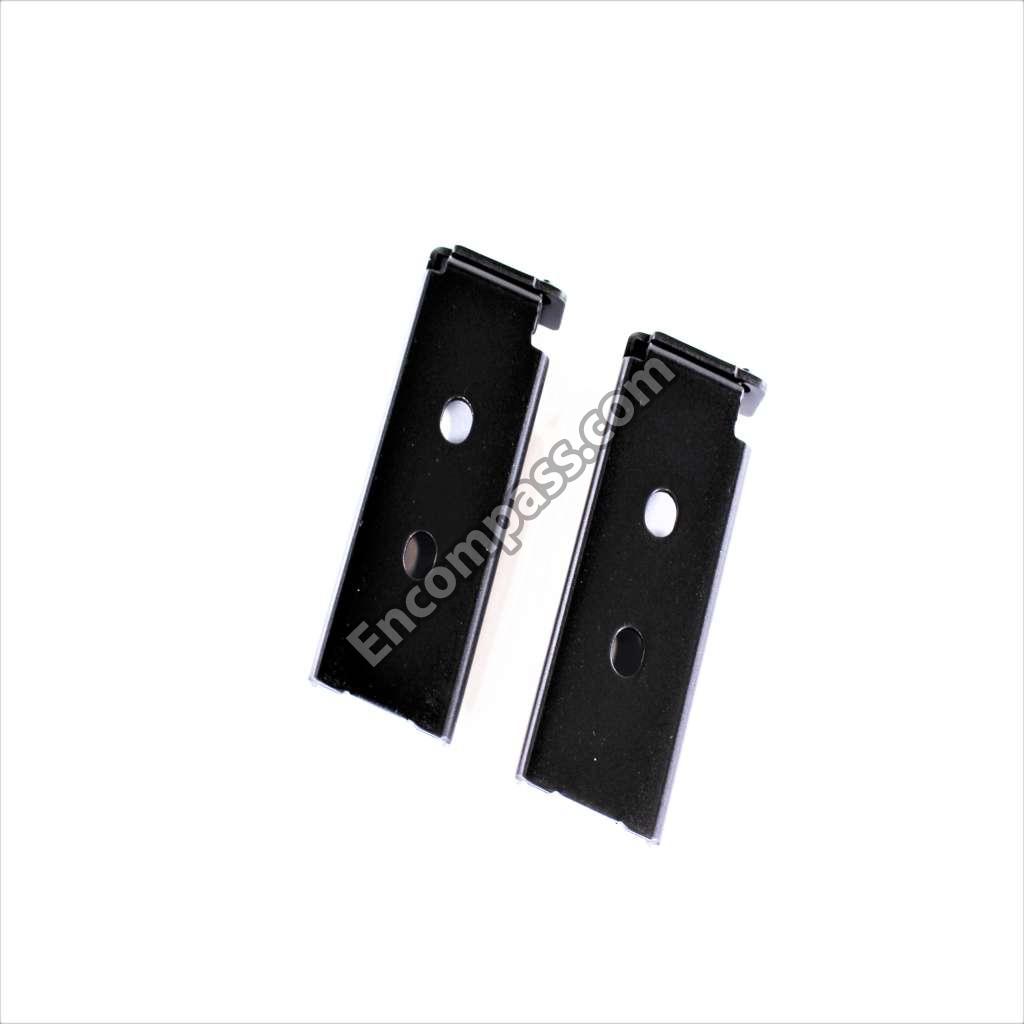

4-684-469-02 4-684-469-02 STAND NECK (UC2,LA1)

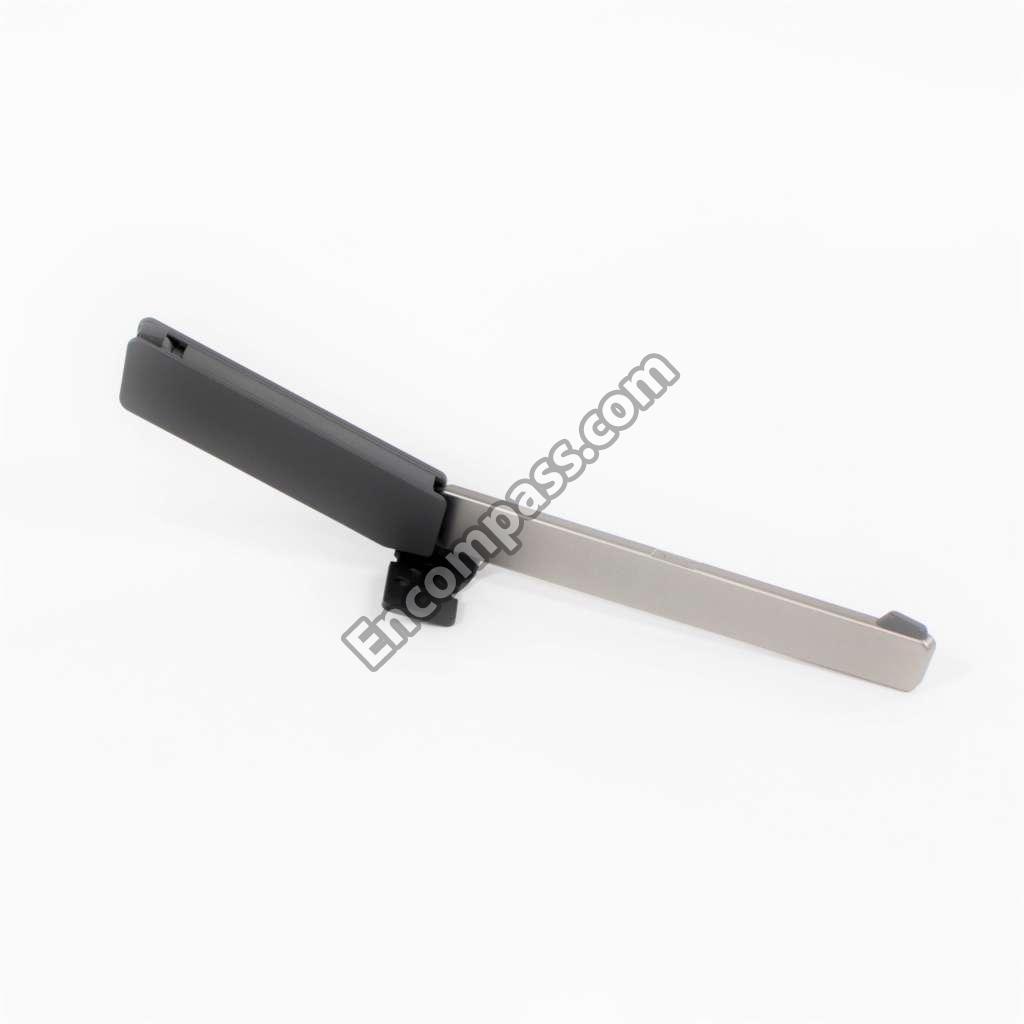

4-745-693-11 4-745-693-11 STAND R (2L NCS) A (LA1)

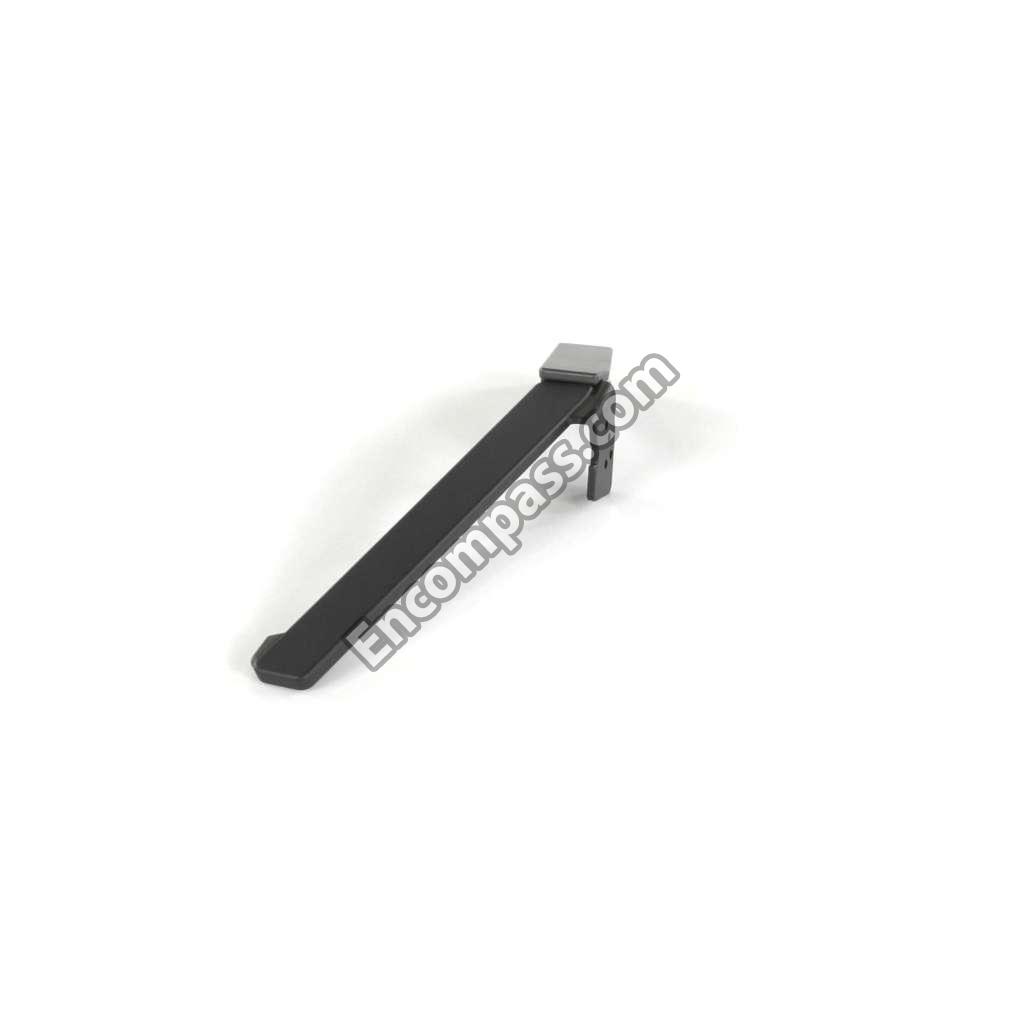

4-745-693-01 4-745-693-01 STAND R (2L NCS) A (UC2)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UC2,LA1) (PANEL PART)
5-004-834-01 5-004-834-01 TAPE, ADHESIVE 810A (UC2,LA1) (PANEL PART)
4-737-202-01 4-737-202-01 TAPE, SEALING BC (L BCH) (UC2,LA1) (PANEL PART)
