Model Image
Manufacturer

Sony

Model Number

XBR55X805E

Description

55-inch 4k Tv

Interactive Exploded View

Parts List

Part Number Description
A-2165-901-A A-2165-901-A (MAIN CBA) COMPL SVC BFX_LA (LA8)
A-2165-793-A A-2165-793-A (MAIN CBA) COMPL SVC BFX_LAAR_GINGA (AR4)
4-698-738-01 4-698-738-01 AL BEZEL(B) (PANEL PART) (760.02504.0001) (AR4,LA8)
4-698-746-01 4-698-746-01 AL BEZEL(B) (PANEL PART) (760.0250G.0001) (AR4,LA8)
4-698-739-01 4-698-739-01 AL BEZEL(L) (PANEL PART) (760.02502.0001) (AR4,LA8)
4-698-747-01 4-698-747-01 AL BEZEL(L) (PANEL PART) (760.0250H.0001) (AR4,LA8)
4-698-737-01 4-698-737-01 AL BEZEL(R) (PANEL PART) (760.02503.0001) (AR4,LA8)
4-698-745-01 4-698-745-01 AL BEZEL(R) (PANEL PART) (760.0250F.0001) (AR4,LA8)
4-698-740-01 4-698-740-01 AL BEZEL(T) (PANEL PART) (760.02501.0001) (AR4,LA8)
4-698-748-01 4-698-748-01 AL BEZEL(T) (PANEL PART) (760.0250I.0001) (AR4,LA8)
4-595-704-01 4-595-704-01 BAG, SCREW ASSY (FRE) (LA8)
4-690-594-11 4-690-594-11 BRACKET, SIDE (FRE) (LA8)

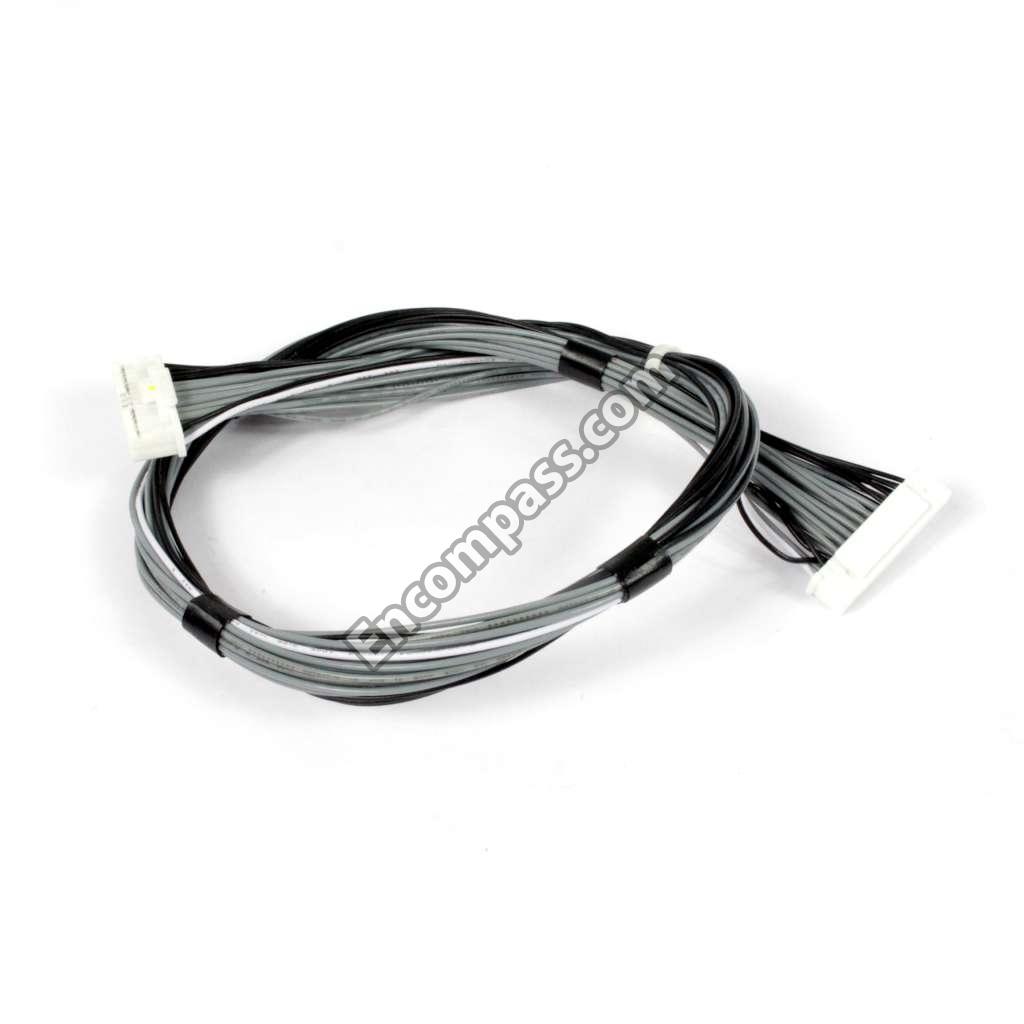

1-910-805-88 1-910-805-88 CONNECTOR ASSY 30P (LA8)
1-912-248-11 1-912-248-11 FFC (PANEL PART) (750.02602.0001) (AR4,LA8)
1-912-019-11 1-912-019-11 FLEXIBLE FLAT CABLE 51P (LA8)
4-698-743-01 4-698-743-01 GASKET, TCON (PANEL PART) (734.0250G.0001) (AR4,LA8)

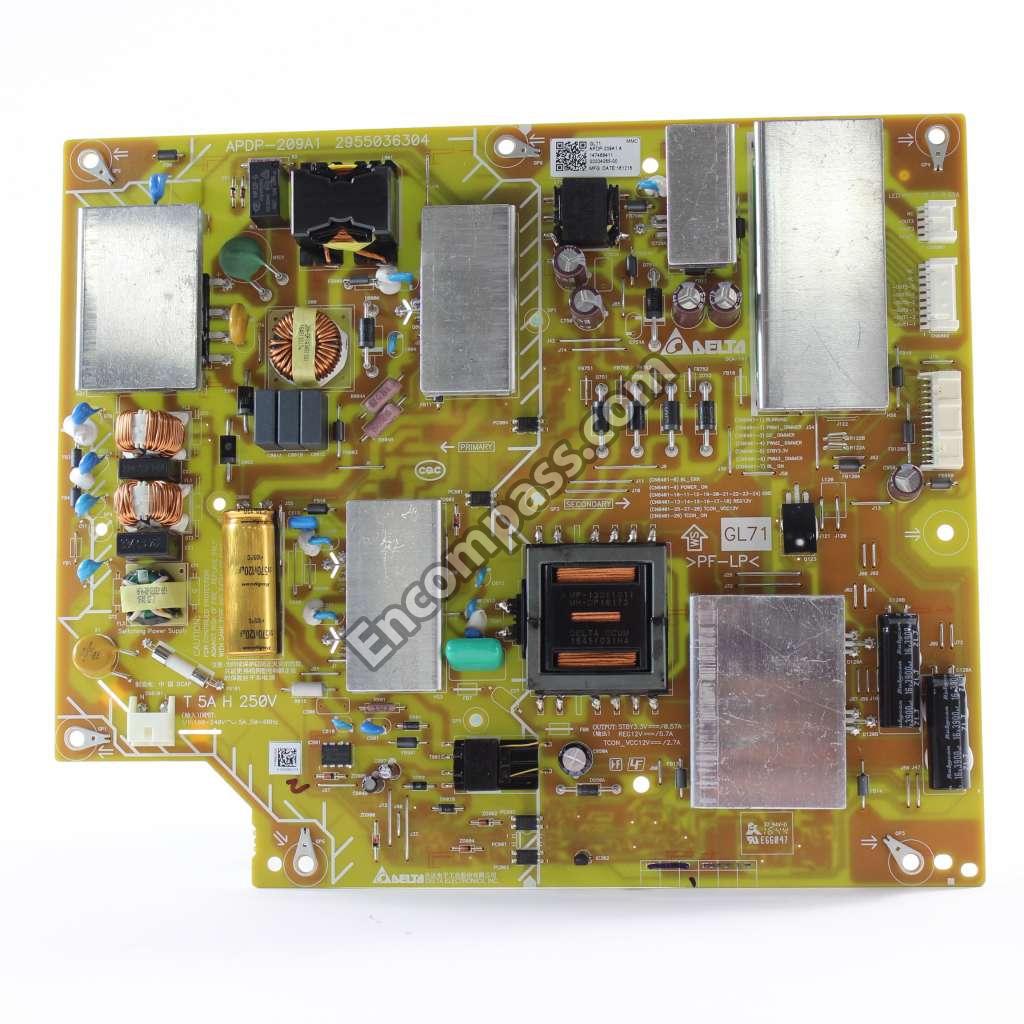

1-474-684-11 1-474-684-11 GL71-STATIC CONVERTER(TV) (LA8)
1-910-805-87 1-910-805-87 HARNESS ASSY (LA8)
4-595-953-91 4-595-953-91 LABEL, UNDER TERMINAL (FRE) (LA8)
1-812-311-21 1-812-311-21 LCD PANEL(W55QWSES) (LA8)
1-812-305-11 1-812-305-11 LIQUID CRYSTAL ELEMENT(L55SKA) (PANEL PART) (AR4,LA8)

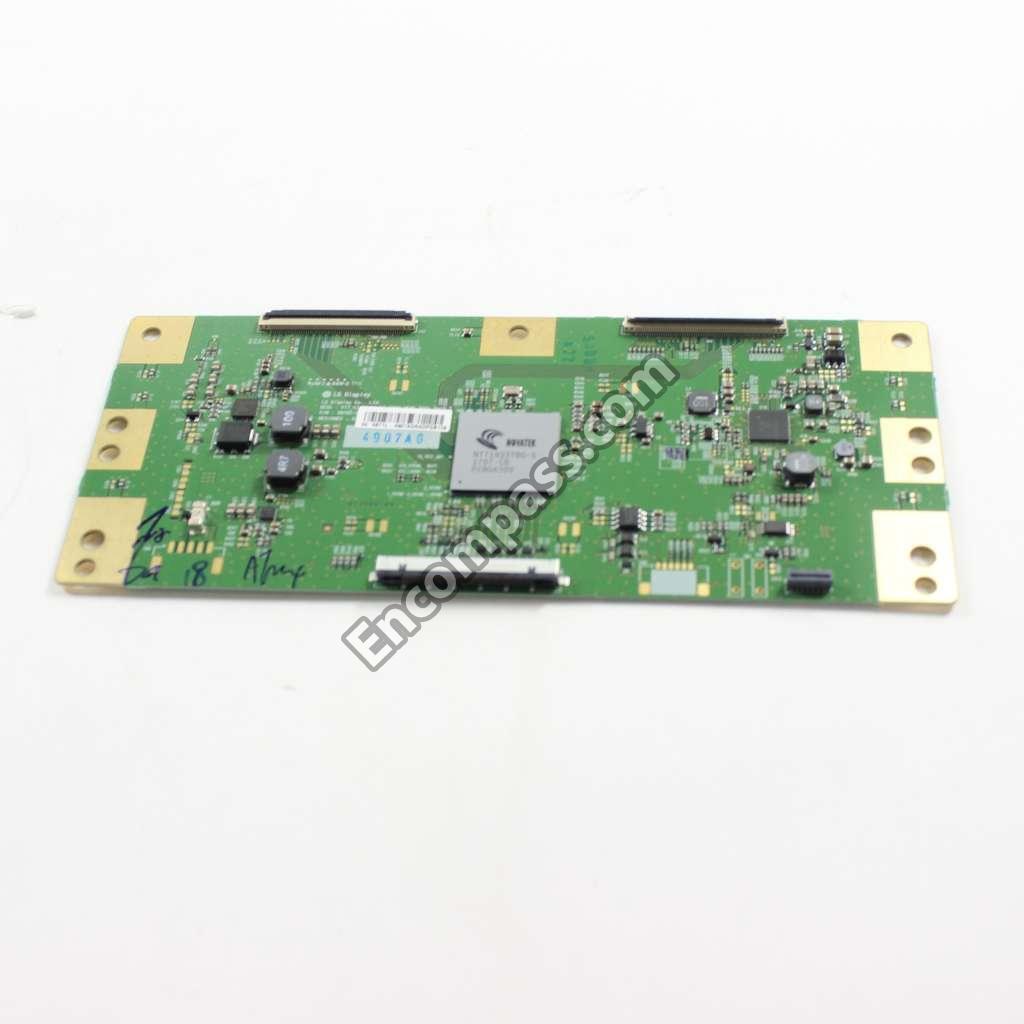

1-897-060-12 1-897-060-12 MOUNTED PWB E-T-CON (55) (PANEL PART) (AR4,LA8)
4-698-787-01 4-698-787-01 POLARIZER F/CF (PANEL PART) (6308R-0079A / 6308L-7413A) (AR4,LA8)
4-698-788-01 4-698-788-01 POLARIZER R/TFT (PANEL PART) (6308R-0080A / 6308L-7642A) (AR4,LA8)
1-849-987-11 1-849-987-11 POWER-SUPPLY CORD (WITH CONN.) (AR4)
1-849-275-11 1-849-275-11 POWER-SUPPLY CORD (WITH CONN.) (LA8)
4-690-181-21 4-690-181-21 REAR COVER (L FRE AL) A (LA8)
1-493-319-11 1-493-319-11 REMOTE COMMANDER(RMF-TX300B) (LA8)
4-698-735-01 4-698-735-01 SCREW,M3*3 (PANEL PART) (086.000DQ.0644) (AR4,LA8)
1-897-175-11 1-897-175-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (0IHYL-0423A) (AR4,LA8)
1-858-963-72 1-858-963-72 SPEAKER BOX ASSY (AR4)
1-858-963-82 1-858-963-82 SPEAKER BOX ASSY (AR4)
4-595-696-01 4-595-696-01 STAND BASE (L FRE) A, N (LA8)
4-684-469-01 4-684-469-01 STAND NECK ASSY (FRE) (LA8)
4-698-734-01 4-698-734-01 TAPE, OC BOTTOM (PANEL PART) (740.02508.0001) (AR4,LA8)
4-698-744-01 4-698-744-01 TAPE, OC TOP (PANEL PART) (740.0250E.0001) (AR4,LA8)
4-698-742-01 4-698-742-01 THERMAL SHEET (PANEL PART) (734.0250E.0001) (AR4,LA8)
4-698-736-01 4-698-736-01 THERMAL SHEET(L), TCON (PANEL PART) (734.0250C.0001) (AR4,LA8)
4-698-741-01 4-698-741-01 THERMAL SHEET(S), TCON (PANEL PART) (734.0250F.0001) (AR4,LA8)
