Model Image
Manufacturer

Sony

Model Number

XBR55X810C

Description

55-inch 4k Led Hdtv

Interactive Exploded View

Parts List

Part Number Description
4-299-531-01 4-299-531-01 AC COVER
A-2080-041-A A-2080-041-A ACCESSORY UC2 XFLL
7-600-040-44 7-600-040-44 ADHESIVE (SV380C) 333CC GRY
4-535-586-01 4-535-586-01 BADGE, XBR LOGO(H3.7)

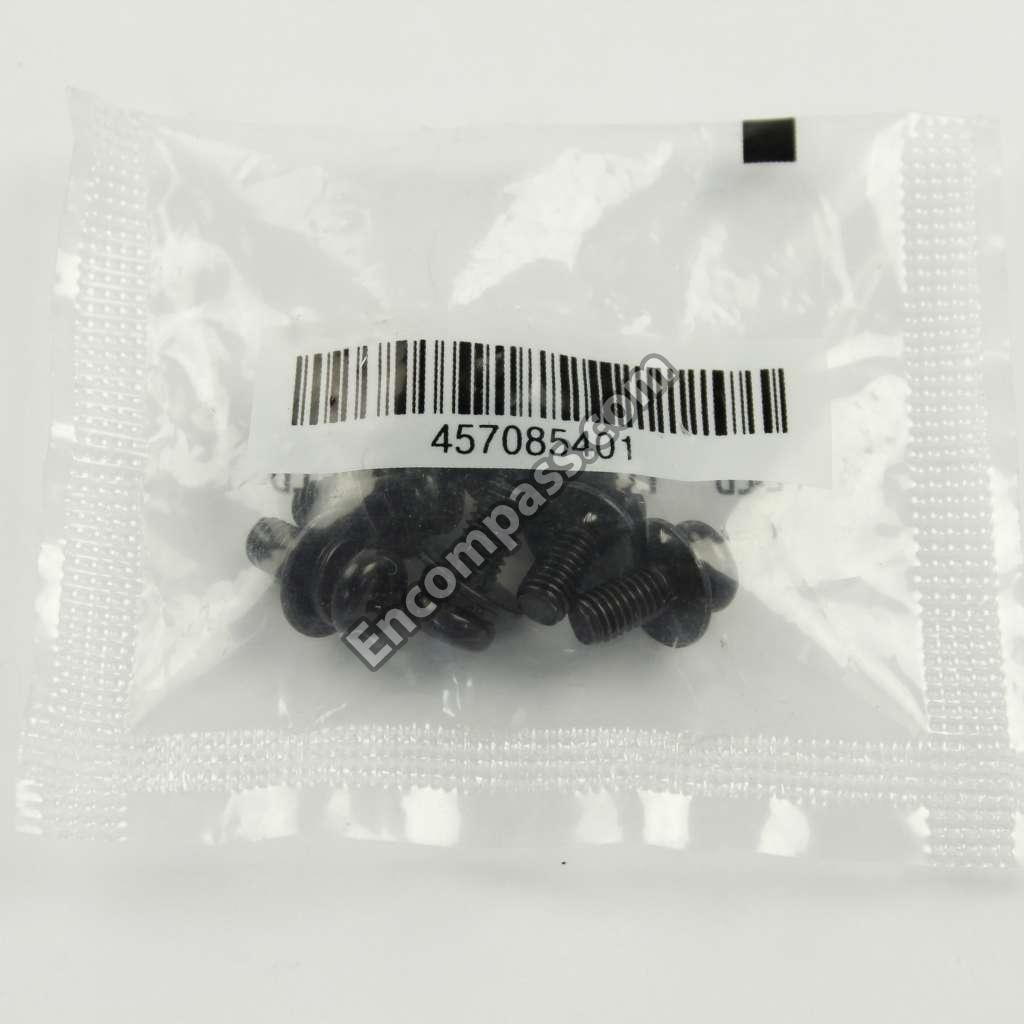

4-570-854-01 4-570-854-01 BAG, SCREW (L SWN)
4-447-722-32 4-447-722-32 BAG,PROTECTION PEHD(1500X1200)
4-546-444-31 4-546-444-31 BRACKET, SIDE F (MOLD)
4-570-851-01 4-570-851-01 BRACKET, SP L (L SWN) A
4-570-852-01 4-570-852-01 BRACKET, SP R (L SWN) A
4-299-527-02 4-299-527-02 BRACKET, VESA
4-564-318-02 4-564-318-02 BRACKET, WIFI
1-754-950-11 1-754-950-11 BT ANTENNA
4-567-752-01 4-567-752-01 CASE, BOTTOM (LL)
4-262-708-03 4-262-708-03 CLAMPER, CABLE

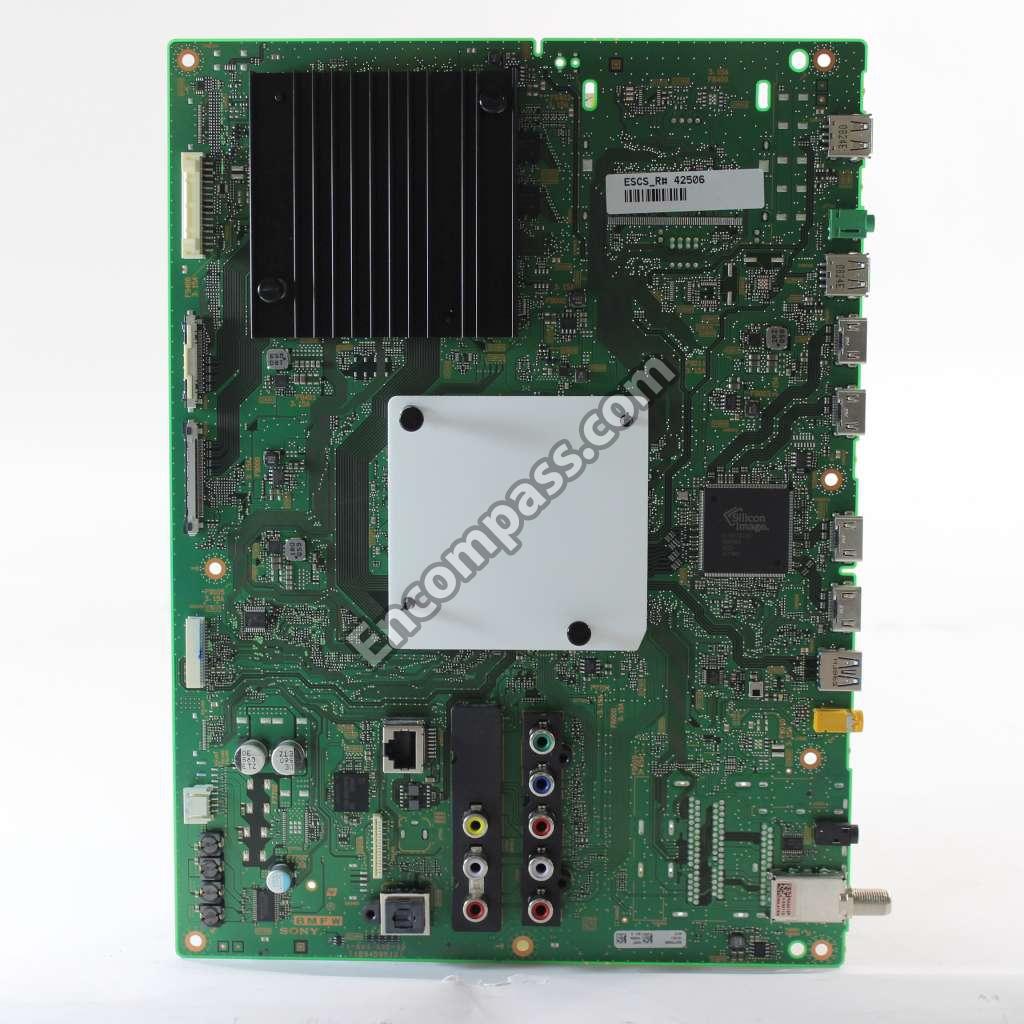

T-2017-001-0 T-2017-001-0 COMPLE SVC (XF) BMFW (Main CBA) (UC2)
1-910-110-69 1-910-110-69 CONNECTOR ASSY 28P
1-895-911-11 1-895-911-11 CONTROL MT BOARD (LJ94-34697C/E)
4-569-944-11 4-569-944-11 COVER, REAR (L SWN) A
4-564-317-01 4-564-317-01 COVER, TOP

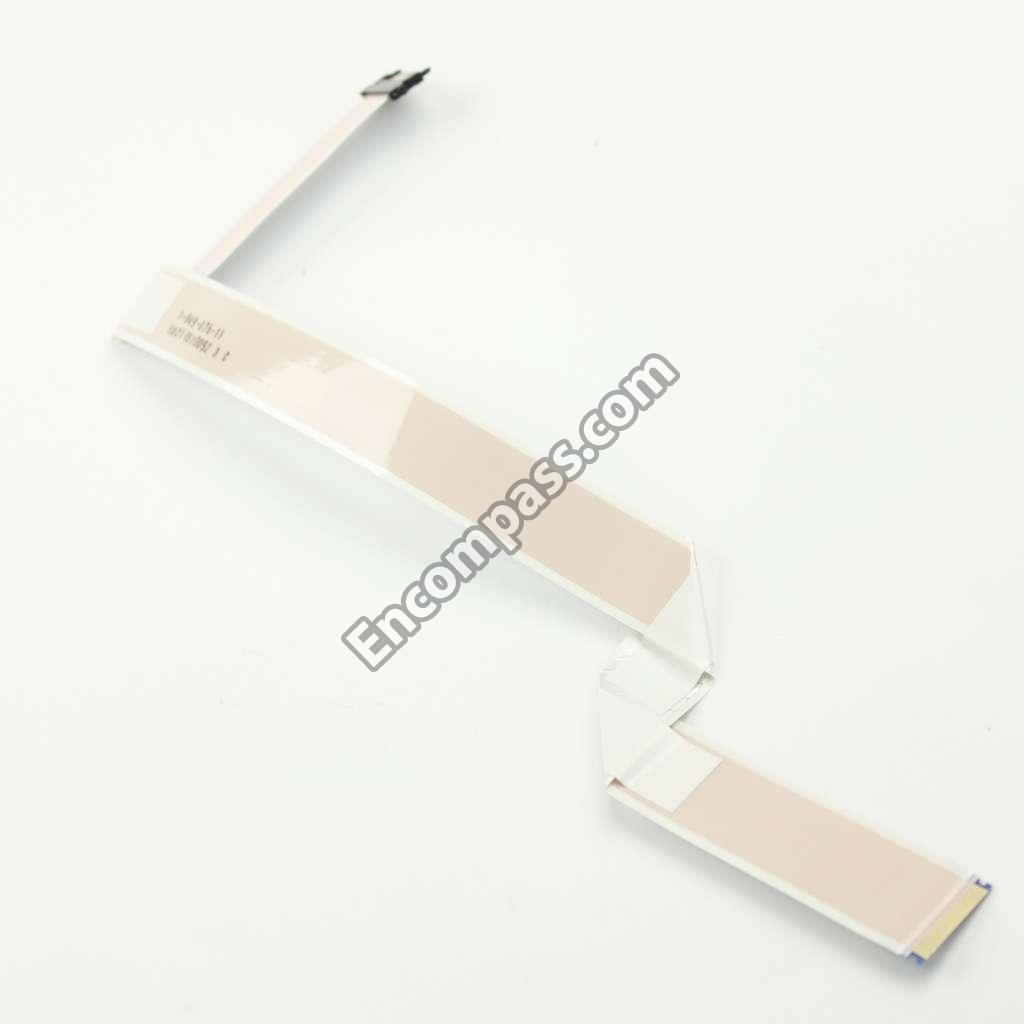

1-849-076-11 1-849-076-11 FLEXIBLE FLAT CABLE 41P
1-849-075-11 1-849-075-11 FLEXIBLE FLAT CABLE 51P

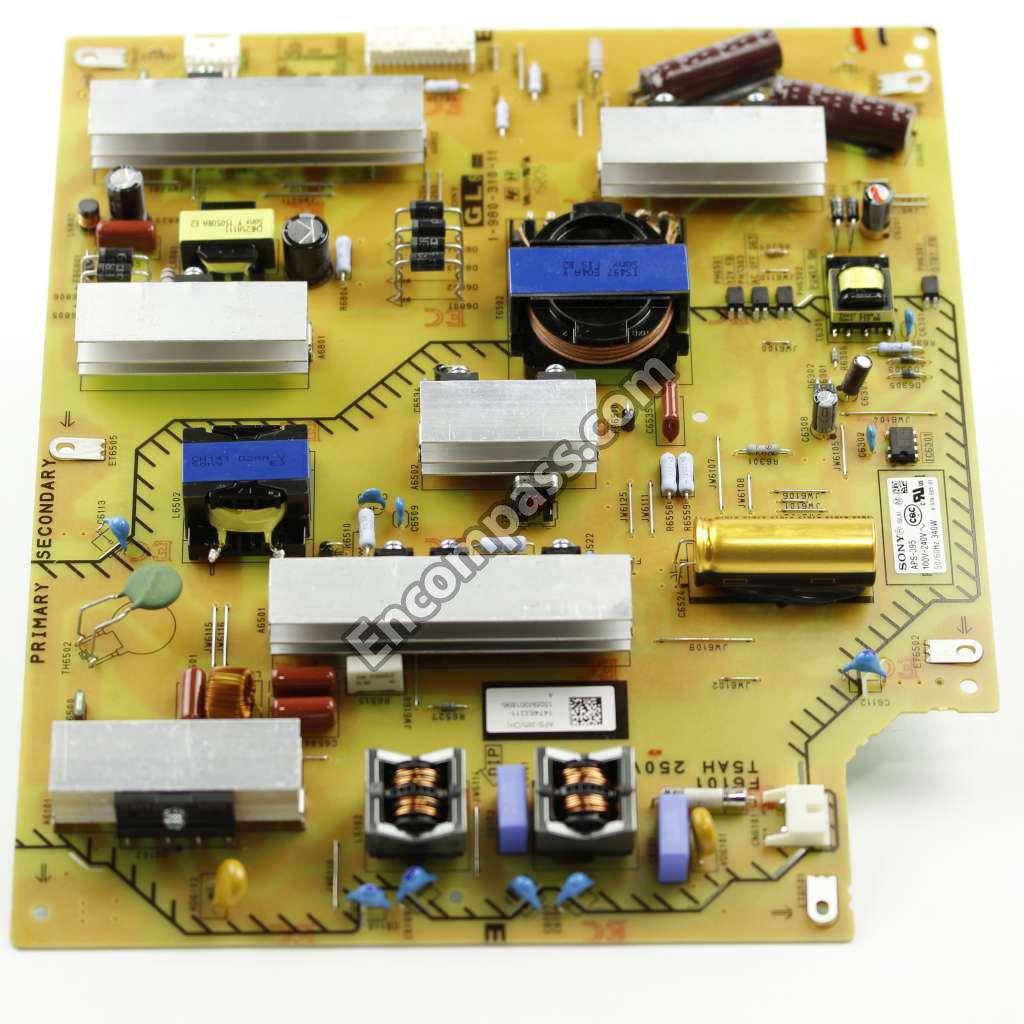

1-474-633-11 1-474-633-11 GL6(CH)-STATIC CONVERTER(TV) (Power CBA)
1-910-110-68 1-910-110-68 HARNESS ASSY(MAIN)
4-547-207-01 4-547-207-01 HEAT SINK(SC)
A-2066-086-A A-2066-086-A HSC3_L MOUNT
1-845-283-21 1-845-283-21 IR BLASTER
4-563-764-01 4-563-764-01 LABEL, REAR TERMINAL
4-563-755-01 4-563-755-01 LABEL, SIDE TERMINAL (W)
4-564-313-01 4-564-313-01 LIGHT, GUIDE
A-2080-039-A A-2080-039-A PACKING COMMON 55 UC2 XFLL
4-564-312-01 4-564-312-01 PANEL, ORNAMENT
4-586-976-01 4-586-976-01 PL BEZEL (76.42H01G001)
1-839-696-13 1-839-696-13 POWER-SUPPLY CORD (WITH CONN.) !
4-576-185-11 4-576-185-11 REFERENCE GUIDE
1-492-978-21 1-492-978-21 REMOTE COMMANDER (RMT-TX100U)
2-990-421-41 2-990-421-41 SCREW (+PSW) (M3X6)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
4-452-935-11 4-452-935-11 SCREW , +PWH M3X6
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12
2-580-593-01 2-580-593-01 SCREW, +PSW M3X8
4-159-298-01 4-159-298-01 SCREW, +PSW M4X10
2-580-607-01 2-580-607-01 SCREW, +PSW M5X12 STAND TO TV (NEED-4)
4-565-059-11 4-565-059-11 SHEET, INSULATION(HRN L)
4-549-528-11 4-549-528-11 SHEET, THERMAL (SC)
2-650-770-21 2-650-770-21 SLIDE, CLAMP
1-858-963-11 1-858-963-11 SPEAKER BOX ASSY
1-858-963-21 1-858-963-21 SPEAKER BOX ASSY

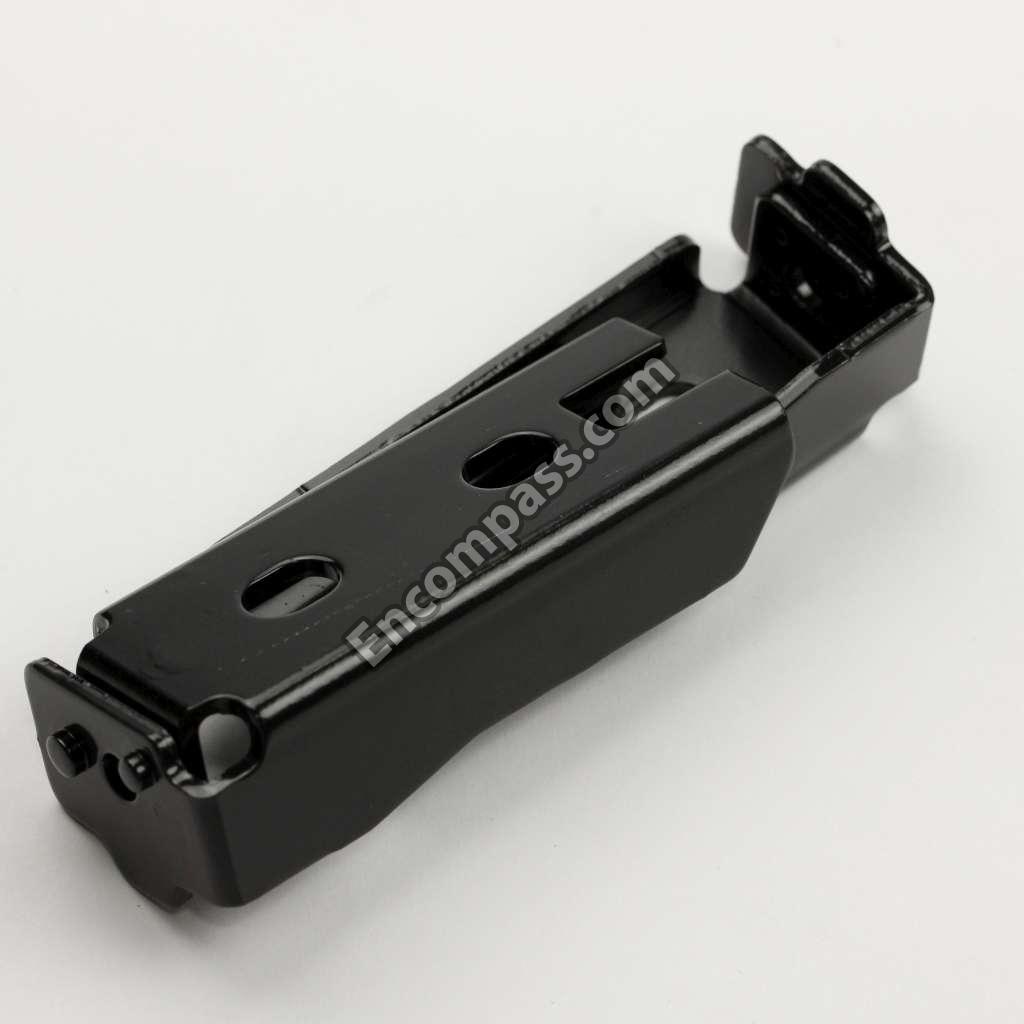

4-564-539-01 4-564-539-01 STAND NECK ASSY (LAK) (NEED-2)

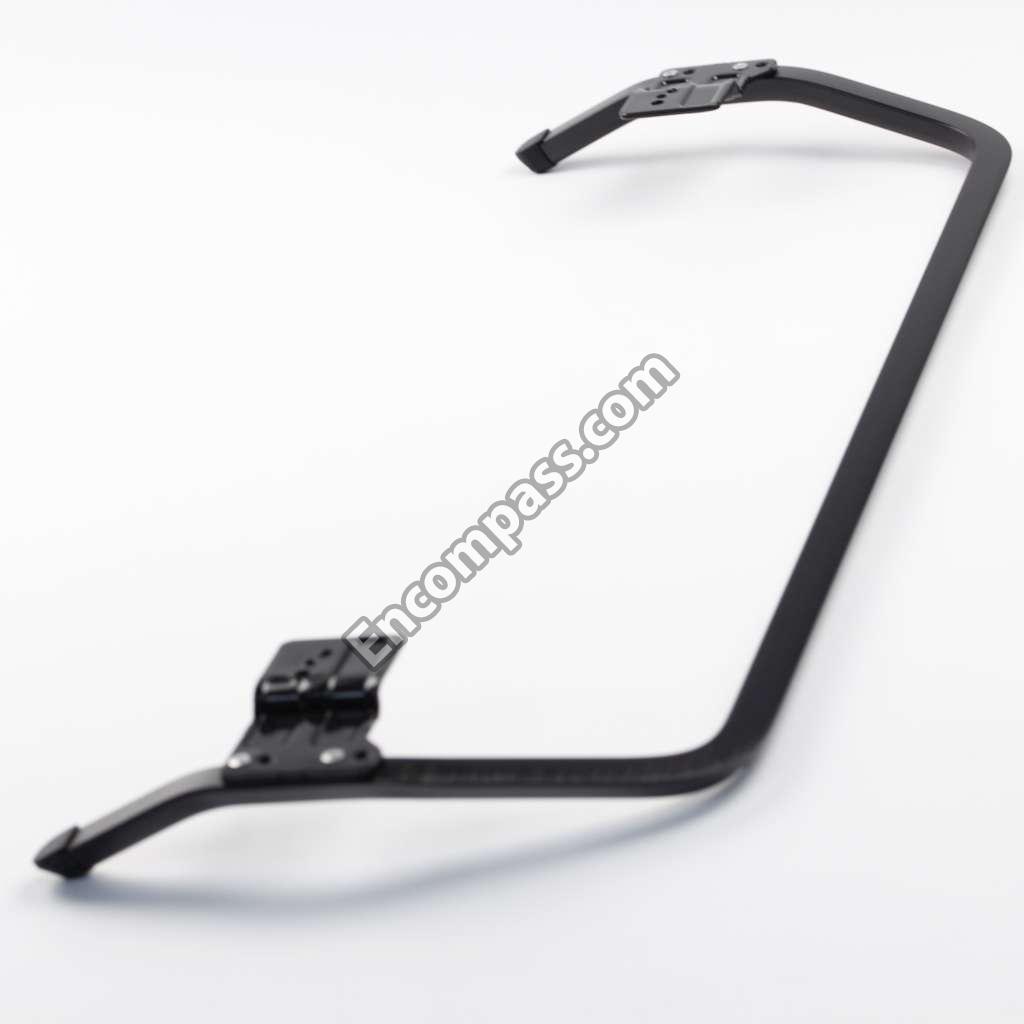

4-569-957-01 4-569-957-01 STAND, SHAFT (L SWN) A
3-674-673-22 3-674-673-22 STOPPER (A)
1-798-510-31 1-798-510-31 SWITCH UNIT (SM-G-WW)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT
7-632-452-24 7-632-452-24 TAPE (NO.303) 18MMX35M YEL
3-876-036-71 3-876-036-71 UNI-LABEL, BLANK
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC)
