Model Image
Manufacturer

Sony

Model Number

XBR55X850D

Description

55 Inch 4k Ultra Hd Smart Tv

Interactive Exploded View

Parts List

Part Number Description
1-493-002-13 1-493-002-13 AC ADAPTOR (160W) (UC2)
4-535-586-12 4-535-586-12 BADGE, XBR LOGO(H3.7) (LA1)
4-535-586-02 4-535-586-02 BADGE, XBR LOGO(H3.7) (UC2)

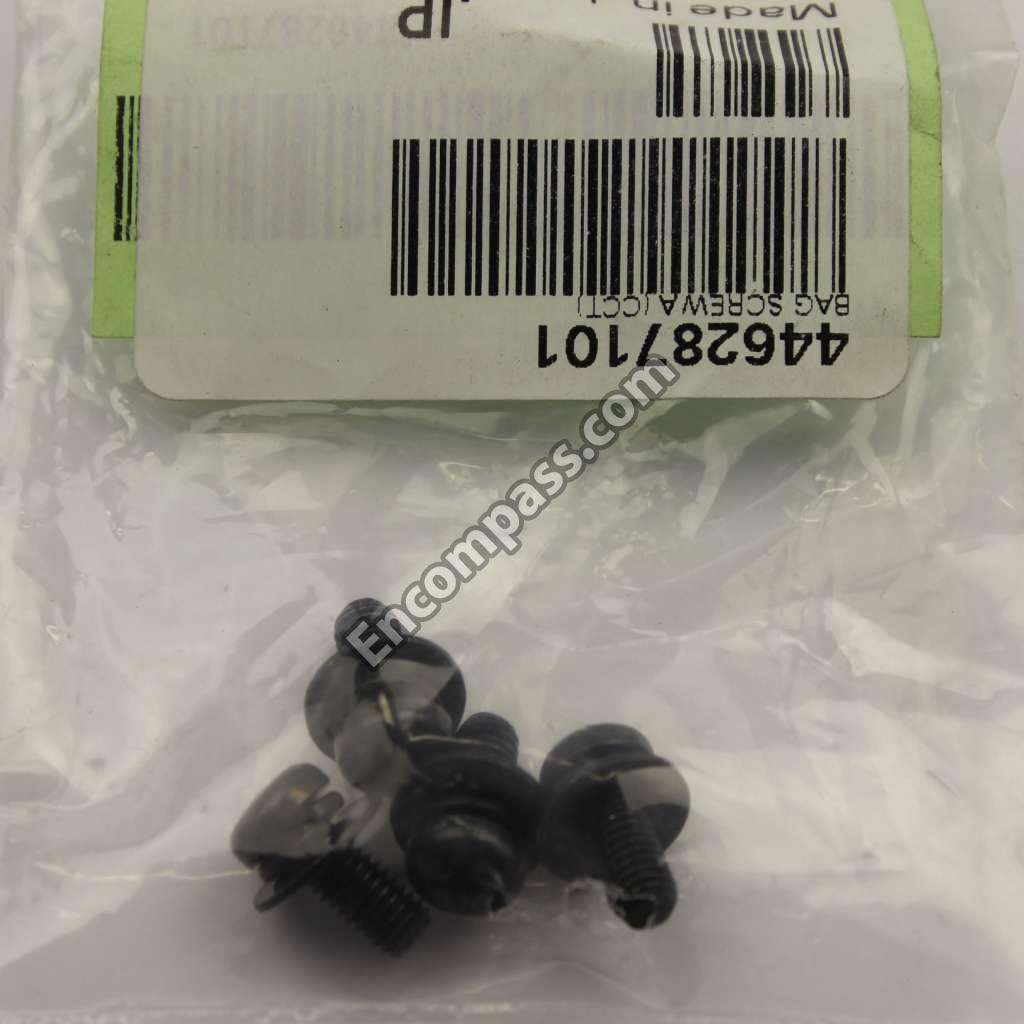

4-462-871-01 4-462-871-01 BAG, SCREW A (CCT) (UC2)
4-409-919-33 4-409-919-33 BAG,PROTECTION PEHD (1720X1050) (UC2,LA1)
4-585-682-01 4-585-682-01 BAG,SCREW (M6L16)(4)(PDT_L) (UC2,LA1)
4-689-180-01 4-689-180-01 BEZEL(D) (760.01N1L.0002) (BLACK) (PANEL PART) (LA1,UC2)
4-689-184-01 4-689-184-01 BEZEL(D) (760.01N1P.0002) (SILVER) (PANEL PART) (LA1,UC2)
4-689-178-01 4-689-178-01 BEZEL(L) (760.01N1J.0002) (BLACK) (PANEL PART) (LA1,UC2)
4-689-182-01 4-689-182-01 BEZEL(L) (760.01N1N.0002) (SILVER) (PANEL PART) (LA1,UC2)
4-689-179-01 4-689-179-01 BEZEL(R) (760.01N1K.0002) (BLACK) (PANEL PART) (LA1,UC2)
4-689-183-01 4-689-183-01 BEZEL(R) (760.01N1O.0002) (SILVER) (PANEL PART) (LA1,UC2)
4-689-177-01 4-689-177-01 BEZEL(U) (760.01N1I.0001) (BLACK) (PANEL PART) (LA1,UC2)
4-689-181-01 4-689-181-01 BEZEL(U) (760.01N1M.0001) (SILVER) (PANEL PART) (LA1,UC2)
4-580-890-01 4-580-890-01 BRACKET, DC JACK (PDT) (UC2,LA1)
4-580-885-11 4-580-885-11 BRACKET, SIDE (PDT M1) (LA)
4-580-885-01 4-580-885-01 BRACKET, SIDE (PDT M1) (UC)
4-579-927-01 4-579-927-01 BRACKET, VESA(L_PDT) (UC2,LA1)
4-486-590-02 4-486-590-02 BRACKET, VESA(MIA) (UC2)
1-754-960-11 1-754-960-11 BT ANTENNA (UC2,LA1)
1-754-957-11 1-754-957-11 BT ANTENNA (UC2,LA1)
4-580-236-61 4-580-236-61 CARTON INDIVI BLANK (L PDT) (UC2,LA1)
4-584-303-01 4-584-303-01 CARTON, INDIVIDUAL (L PDT) (LA1)
4-593-292-01 4-593-292-01 CARTON, INDIVIDUAL (L PDT) (LA1)
4-584-301-01 4-584-301-01 CARTON, INDIVIDUAL (L PDT) (UC2)
4-580-146-01 4-580-146-01 CASE, BTM (S) (UC2,LA1)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UC2,LA1)
A-2094-435-A A-2094-435-A COMPL SVC BMFW2 (MAIN CBA)_MX_C (LA)
A-2094-434-A A-2094-434-A COMPL SVC BMFW2 (MAIN CBA)_UC_S (UC)
1-910-110-92 1-910-110-92 CONNECTOR ASSY 30P (UC2,LA1)
1-897-070-11 1-897-070-11 CONVERTER MT BOARD (019.20007.0091) (PANEL PART) (LA1,UC2)
1-846-090-32 1-846-090-32 CORD SET, POWER-SUPPLY (LA1)
4-580-151-01 4-580-151-01 COVER, TOP (UC2,LA1)
4-539-189-01 4-539-189-01 CUSHION 825D (UC2,LA1)
4-580-246-11 4-580-246-11 CUSHION, LOWER L(L PDT) (UC2)
4-580-248-11 4-580-248-11 CUSHION, LOWER R(L PDT) (UC2)
4-580-250-11 4-580-250-11 CUSHION, SIDE(L PDT) (UC2)
4-580-242-11 4-580-242-11 CUSHION, UPPER L(L_PDT) (UC2)
4-580-244-11 4-580-244-11 CUSHION, UPPER R(L_PDT) (UC2)
1-849-277-11 1-849-277-11 FLEXIBLE FLAT CABLE 41P (UC2,LA1)
1-849-280-11 1-849-280-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
4-580-150-01 4-580-150-01 GUIDE, LIGHT (UC2,LA1)

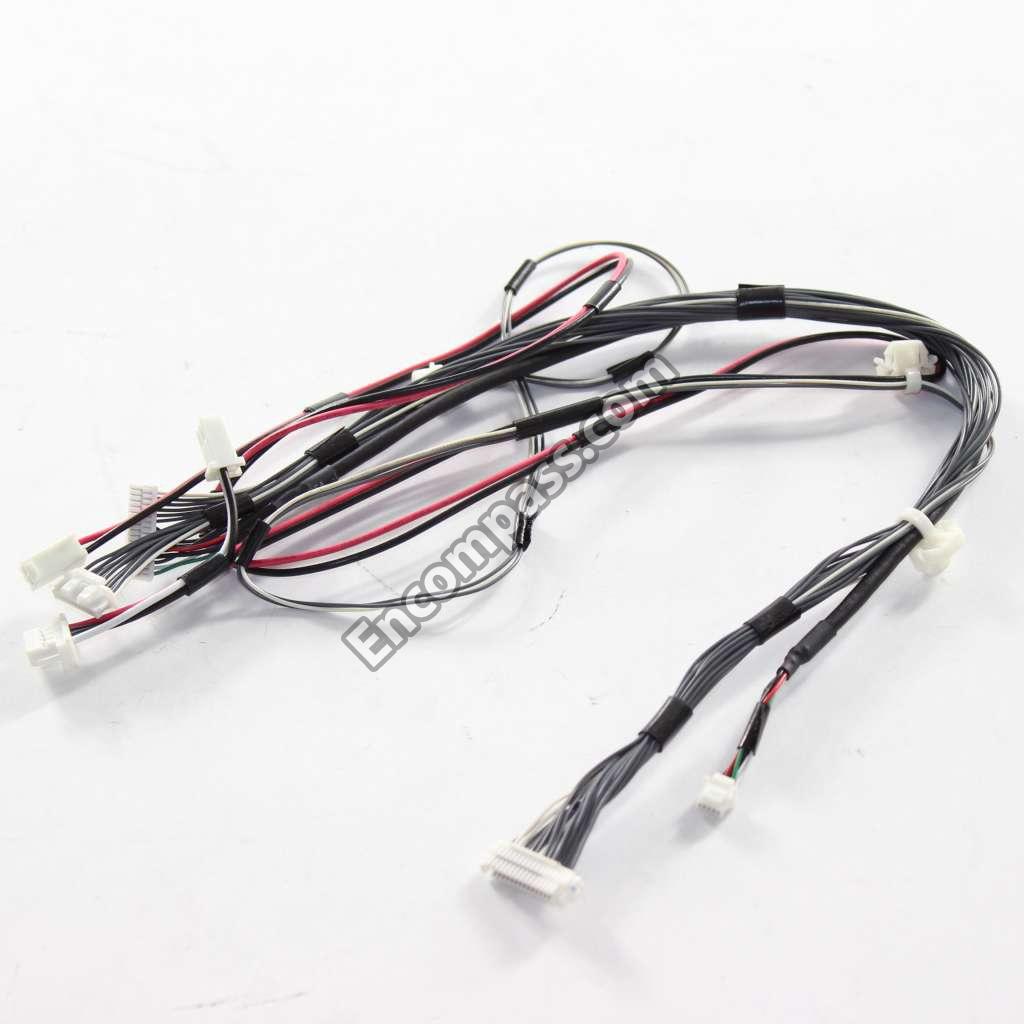

1-910-110-91 1-910-110-91 HARNESS ASSY (MAIN) (UC2,LA1)
4-580-869-01 4-580-869-01 HOLDER SIDE SW(PDT M1) (UC2,LA1)
A-2092-887-B A-2092-887-B HSC4-S MOUNT (UC2,LA1)
1-845-283-21 1-845-283-21 IR BLASTER (UC2,LA1)
4-583-593-01 4-583-593-01 LABEL, REAR TERMINAL (PDT M1) (LA)
4-583-592-01 4-583-592-01 LABEL, REAR TERMINAL (PDT M1) (UC)
4-583-384-11 4-583-384-11 LABEL, SIDE TERMINAL (PDT M1) (LA)
4-583-384-01 4-583-384-01 LABEL, SIDE TERMINAL (PDT M1) (UC)
1-895-900-21 1-895-900-21 MOUNTED PWB E-T-CON (55) (6871L-4374A) (PANEL PART) (LA1,UC2)
4-580-149-01 4-580-149-01 PANEL, ORNAMENT (UC2,LA1)
4-592-071-11 4-592-071-11 PLATE, FRONT MINI(2L PDT) (LA1)
4-580-238-13 4-580-238-13 PLATE, FRONT(L PDT) (LA1)
4-580-238-11 4-580-238-11 PLATE, FRONT(L PDT) (UC2)
4-586-738-01 4-586-738-01 PLATE, MAIN(PDT M1) (LA1)
4-580-886-01 4-580-886-01 PLATE, MAIN(PDT M1) (UC2)
4-689-219-01 4-689-219-01 POLARIZER F/CF (6308L-7216A) (PANEL PART) (LA1,UC2)
4-689-214-01 4-689-214-01 POLARIZER R/TFT (6308L-7056A) (PANEL PART) (LA1,UC2)
4-534-964-01 4-534-964-01 PULLEY, STAND (HWI) (UC2,LA1)
4-580-876-11 4-580-876-11 REAR COVER (M1_L_PDT) A (UC2)
4-584-426-11 4-584-426-11 REAR COVER (M1_L_PDT) A (UC2,LA1)
4-584-805-31 4-584-805-31 REFERENCE GUIDE (LA)
4-584-805-32 4-584-805-32 REFERENCE GUIDE (LA1)
4-584-788-11 4-584-788-11 REFERENCE GUIDE (UC)
1-493-127-21 1-493-127-21 REMOTE COMMANDER (RMF-TX200U) (UC2,LA1)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (UC2,LA1)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2,LA1)
4-159-298-01 4-159-298-01 SCREW, (+PSW)(M4X10) (UC2,LA1)
2-580-644-11 2-580-644-11 SCREW, +KTP2 3X8 (UC2,LA1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2,LA1)
2-580-607-01 2-580-607-01 SCREW, +PSW M5X12 (UC2,LA1)
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16 (UC2,LA1)
2-580-611-01 2-580-611-01 SCREW, +PSW M6X16 (UC2,LA1)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2,LA1)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (LA1)
4-549-186-01 4-549-186-01 SHEET, THERMAL(BM) (UC2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (UC2,LA1)
1-897-064-11 1-897-064-11 SOURCE DRIVER IC MT BOARD (0ILUL-0421A) (PANEL PART) (LA1,UC2)
1-859-138-11 1-859-138-11 SP-BOX ASSY, W25(L)-E (UC2,LA1)
4-689-197-01 4-689-197-01 SPINE FRAME(L) (760.01N0X.0002) (PANEL PART) (LA1,UC2)
4-689-198-01 4-689-198-01 SPINE FRAME(R) (760.01N0Y.0002) (PANEL PART) (LA1,UC2)
4-579-486-01 4-579-486-01 STAND (L PDT) A (UC2,LA1)
4-579-499-01 4-579-499-01 STAND NECK (L PDT) A (UC2,LA1)
4-579-484-01 4-579-484-01 STAND REAR COVER (L PDT) A (UC2,LA1)
3-674-673-22 3-674-673-22 STOPPER (A) (UC2,LA1)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (LA1)
1-798-510-31 1-798-510-31 SWITCH UNIT (SM-A-WW) (UC2,LA1)
1-798-511-21 1-798-511-21 SWITCH UNIT (SM-G-WW) (LA1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT (UC2,LA1)
4-689-205-01 4-689-205-01 TAPE, BOTTOM (740.01P0B.0001) (PANEL PART) (LA1,UC2)
7-600-007-70 7-600-007-70 TAPE, PP (#1100,CLEAR) 72X55M (UC2,LA1)
4-689-202-01 4-689-202-01 TAPE, TOP (740.01N0E.0001) (PANEL PART) (LA1,UC2)
4-580-240-11 4-580-240-11 TRAY (L_PDT) (UC2)
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC)
