Model Image
Manufacturer

Sony

Model Number

XBR55X950G

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
A-2229-110-A A-2229-110-A (MAIN CBA) COMPL SVC BM3J19_MX_SB (LA1)

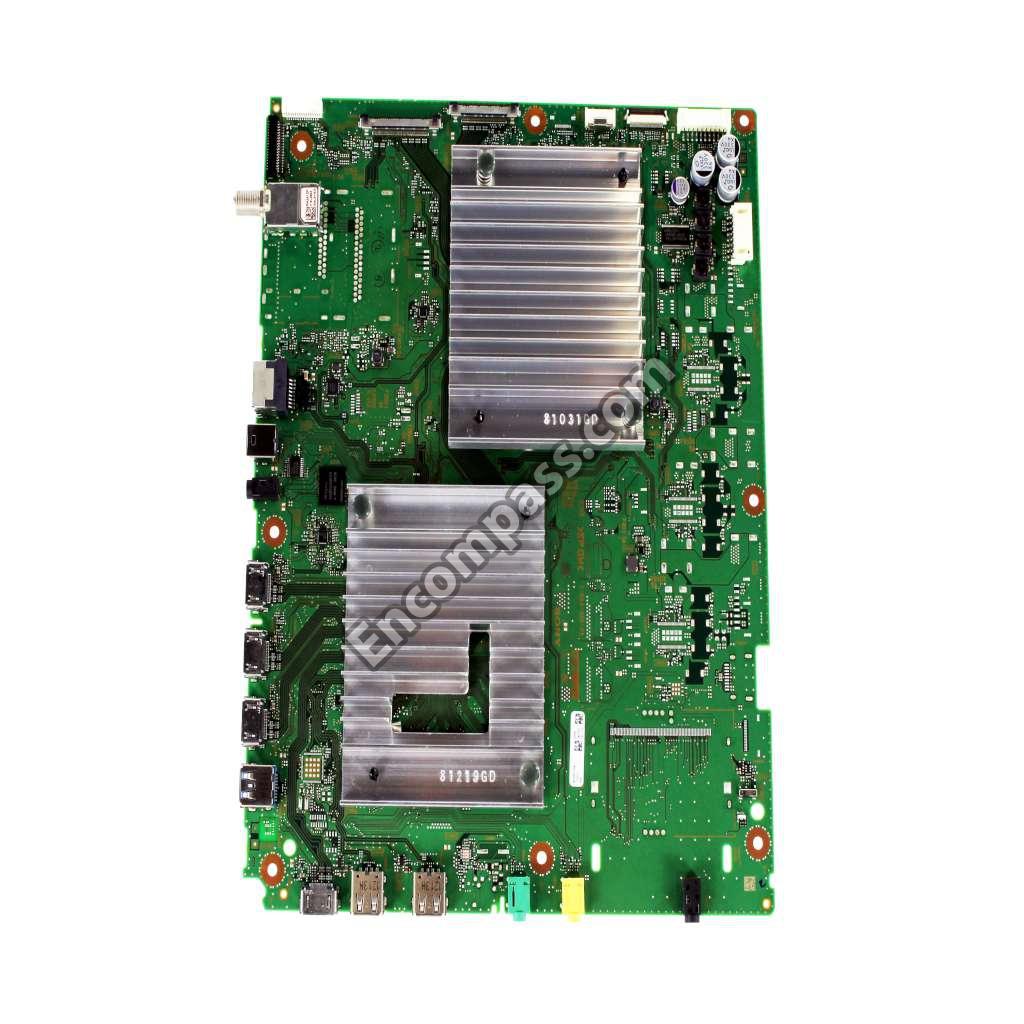

A-2229-109-A A-2229-109-A (MAIN CBA) COMPL SVC BM3J19_UC_SB (UC2)
A-2228-838-A A-2228-838-A 19LD45 COMPL (UC2) (PANEL PART)
4-743-242-01 4-743-242-01 BEZEL B ASSY (L BGO) (UC2) (PANEL PART)
4-743-240-01 4-743-240-01 BEZEL L ASSY (L BGO) (UC2) (PANEL PART)
4-743-241-01 4-743-241-01 BEZEL R ASSY (L BGO) (UC2) (PANEL PART)
4-725-592-01 4-725-592-01 BEZEL T ASSY (L CCB) (UC2) (PANEL PART)
4-724-145-71 4-724-145-71 BRACKET, SIDE (BM2A) (UC2,LA1)
4-743-521-01 4-743-521-01 BRACKET, WIFI(BGO) (UC2,LA1)
4-723-861-21 4-723-861-21 COVER SP L (L CCB) (UC2,LA1)
4-723-862-21 4-723-862-21 COVER SP R (L CCB) (UC2,LA1)
4-742-370-01 4-742-370-01 COVER, BTM (BGO) (UC2,LA1)
4-742-371-01 4-742-371-01 COVER, TOP (BGO) (UC2,LA1)

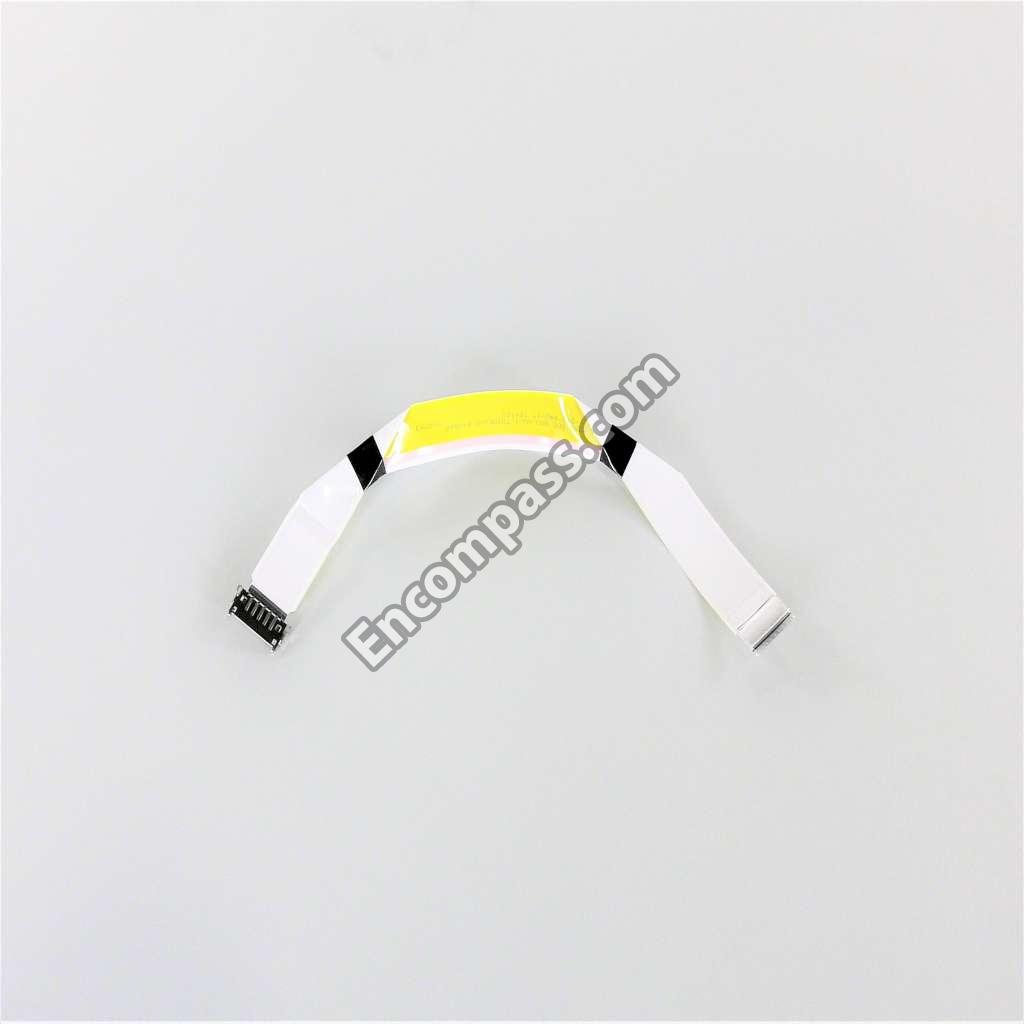

1-912-642-11 1-912-642-11 FFC 41P 51P (TTK-I) SB55 (UC2,LA1)
1-001-061-11 1-001-061-11 FFC(49/55) (UC2) (PANEL PART)
4-745-335-01 4-745-335-01 FLAT CLAMP(FFC) (UC2,LA1)
1-912-899-11 1-912-899-11 FLEXIBLE FLAT CABLE 20P (UC2,LA1)
1-972-631-11 1-972-631-11 FLEXIBLE FLAT CABLE 30P (UC2,LA1)

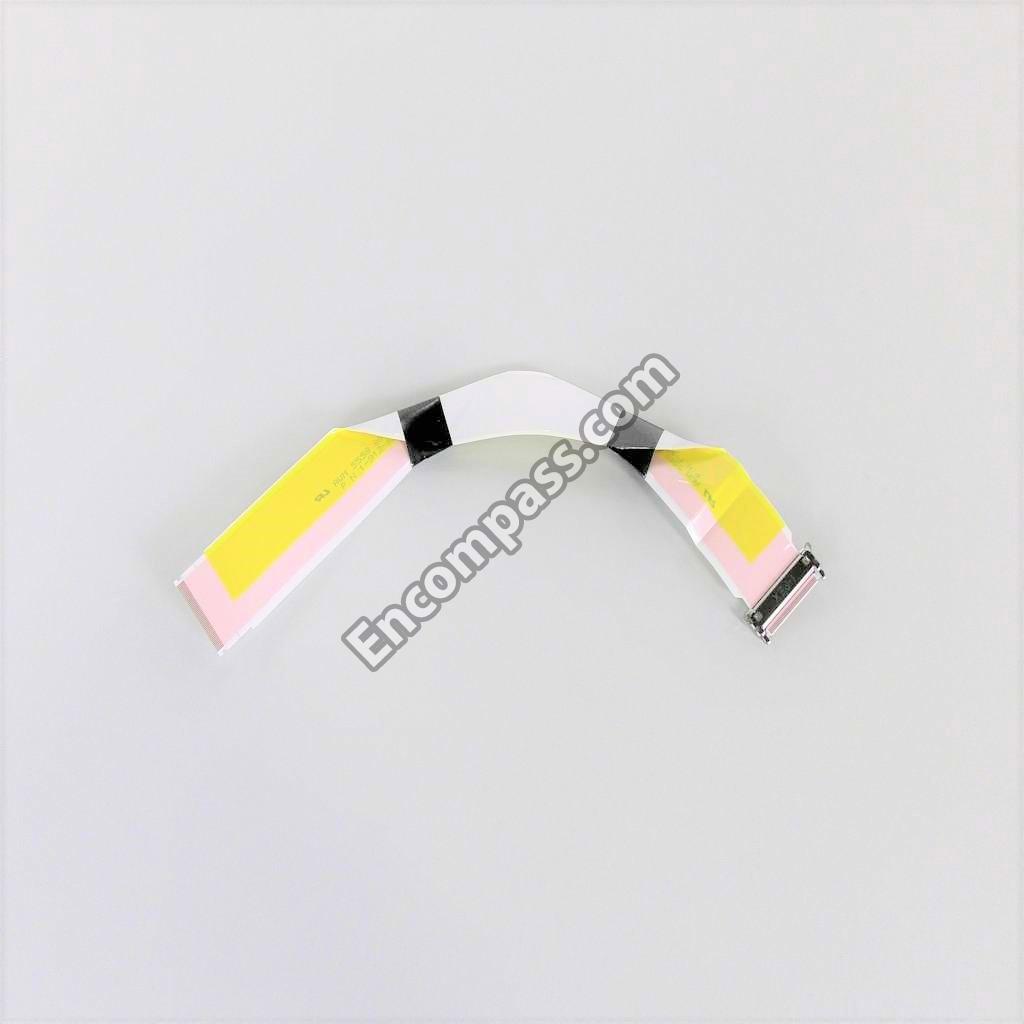

1-912-638-11 1-912-638-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
4-599-527-01 4-599-527-01 GASKET (4.3X4 (12)), HARD (UC2) (PANEL PART)
4-567-217-01 4-567-217-01 GASKET, TCON CN (CRN) (UC2) (PANEL PART)
1-972-607-11 1-972-607-11 HARNESS ASSY (MAIN) (UC2,LA1)
1-972-608-11 1-972-608-11 HARNESS ASSY (PWR) (UC2,LA1)
4-743-712-01 4-743-712-01 HOLDER, PIEZO L (L BGO) (UC2,LA1)
4-743-713-01 4-743-713-01 HOLDER, PIEZO R (L BGO) (UC2,LA1)

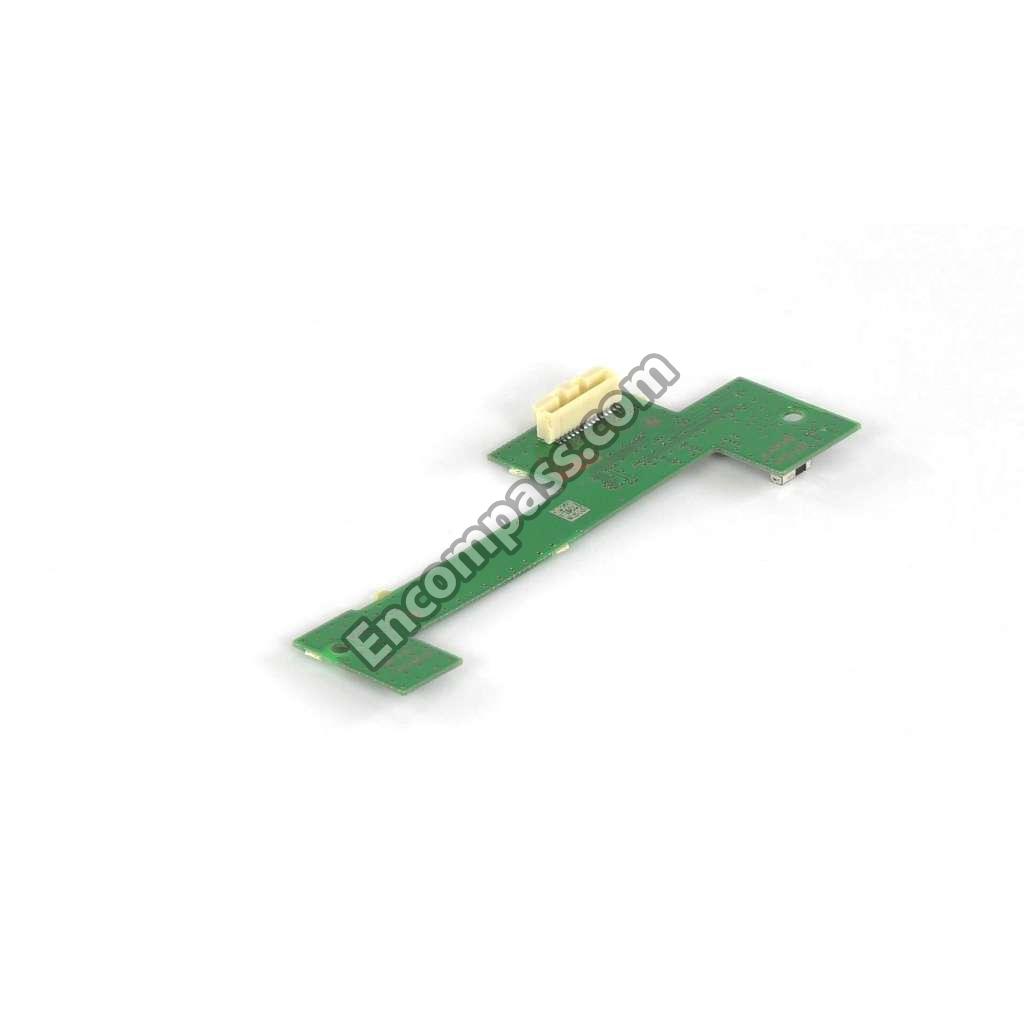

A-2229-207-A A-2229-207-A HS8_SB MOUNT (UC2,LA1)
4-746-846-11 4-746-846-11 LABEL, SIDE TERMINAL (BGO) (LA1)
4-746-846-01 4-746-846-01 LABEL, SIDE TERMINAL (BGO) (UC2)
4-746-596-11 4-746-596-11 LABEL, UNDER TERMINAL (BGO) (LA1)
4-746-596-01 4-746-596-01 LABEL, UNDER TERMINAL (BGO) (UC2)
4-742-372-01 4-742-372-01 LIGHT, GUIDE ILM (BGO) (UC2,LA1)
1-001-062-11 1-001-062-11 LIQUID CRYSTAL ELEMENT(S55FF5) (UC2) (PANEL PART)
1-001-063-11 1-001-063-11 MOUNTED PWB E-T-CON(55) (UC2) (PANEL PART)
4-743-517-01 4-743-517-01 OP, INNER (BGO) (UC2,LA1)
A-2228-978-A A-2228-978-A P-MOD (YD9S055DND01) (UC2,LA1)
4-698-430-01 4-698-430-01 POLARIZER F/CF(55) (LJ01-11258A) (UC2) (PANEL PART)
5-006-978-01 5-006-978-01 POLARIZER R/TFT (LJ01-11785A) (UC2) (PANEL PART)
4-743-266-01 4-743-266-01 REAR COVER (L BGO) A (UC2,LA1)
4-748-206-31 4-748-206-31 REFERENCE GUIDE (LA1)
4-748-447-11 4-748-447-11 REFERENCE GUIDE (UC2)
1-493-552-11 1-493-552-11 REMOTE COMMANDER (RMF-TX500U) (LA1)

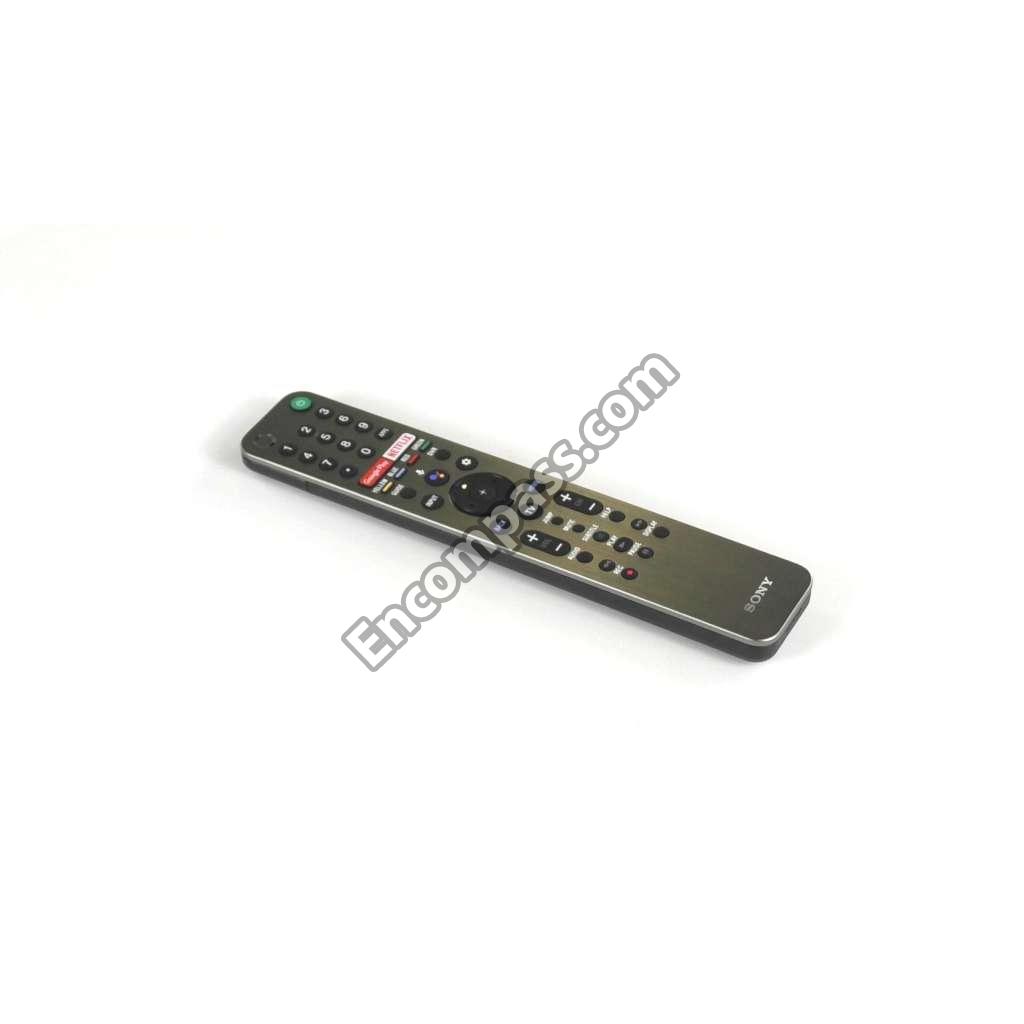

1-493-546-11 1-493-546-11 REMOTE COMMANDER (RMF-TX600U) (UC2)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UC2) (PANEL PART)
4-748-450-11 4-748-450-11 SETUP GUIDE (UC2,LA1)
4-728-619-01 4-728-619-01 SHEET, THERMAL (CCB) (UC2) (PANEL PART)
4-744-647-01 4-744-647-01 SHEET, THERMAL(BGO B) (UC2,LA1)
4-746-985-01 4-746-985-01 SHEET, THERMAL(BGO G S) (UC2,LA1)
4-725-864-01 4-725-864-01 SHIELD, LD (L CCB) (UC2) (PANEL PART)
1-003-609-11 1-003-609-11 SOURCE DRIVER IC MT BOARD (LJ13-03845A) (UC2) (PANEL PART)
1-859-310-11 1-859-310-11 SP ASSY, PZ22-15-A (UC2,LA1)
1-859-310-21 1-859-310-21 SP ASSY, PZ22-15-B (UC2,LA1)
4-743-537-01 4-743-537-01 STAND, L (L BGO) A (UC2,LA1)
4-743-538-01 4-743-538-01 STAND, R (L BGO) A (UC2,LA1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (UC2) (PANEL PART)
4-733-071-01 4-733-071-01 TAPE OCELL (CCB) (UC2) (PANEL PART)
4-733-460-01 4-733-460-01 TAPE, SHADING CELL B (CCB) (UC2) (PANEL PART)
4-599-526-01 4-599-526-01 TAPE, SHADING CELL T (SBT) (UC2) (PANEL PART)

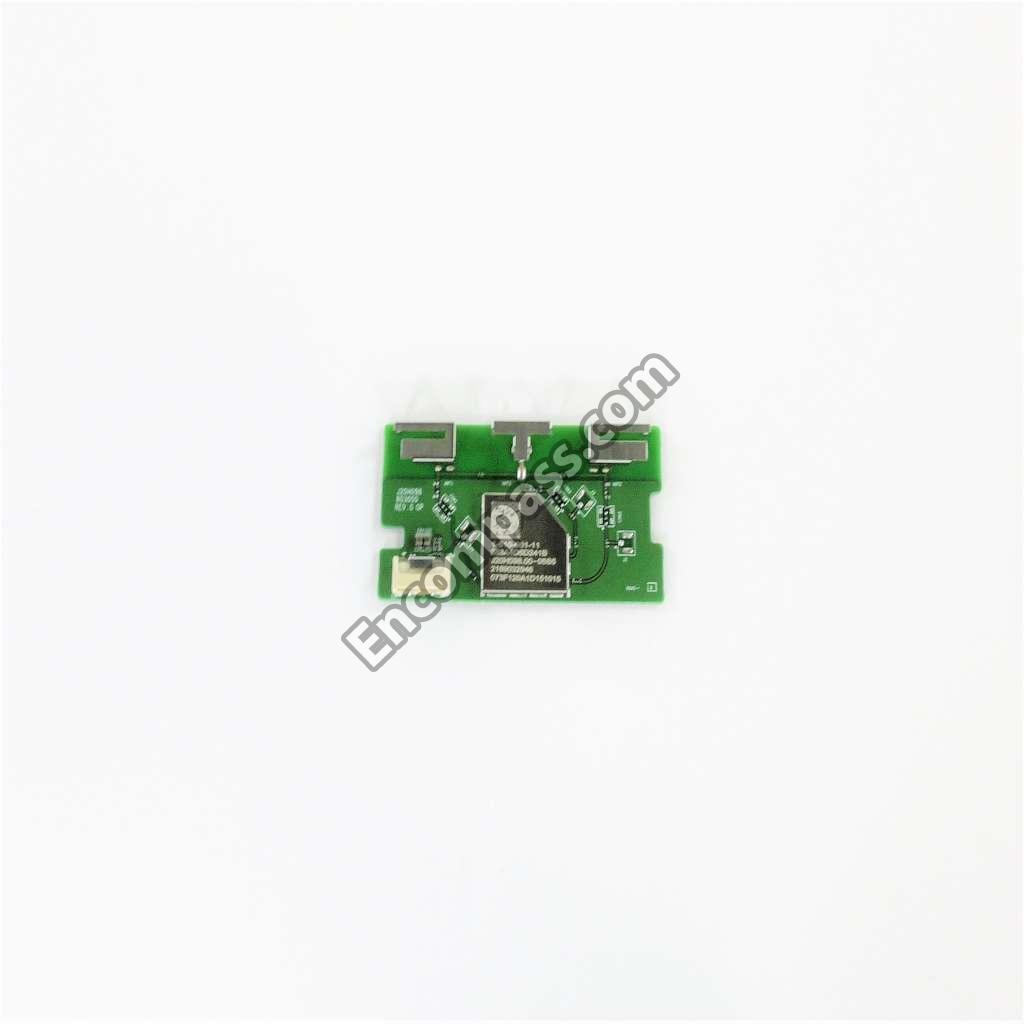

1-510-061-11 1-510-061-11 WLAN/BT MODULE(11AC) (UC2,LA1)
