Model Image
Manufacturer

Sony

Model Number

XBR55X957G

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
A-2229-111-A A-2229-111-A (MAIN CBA) COMPL SVC BM3J19_CO_SB (CO1)

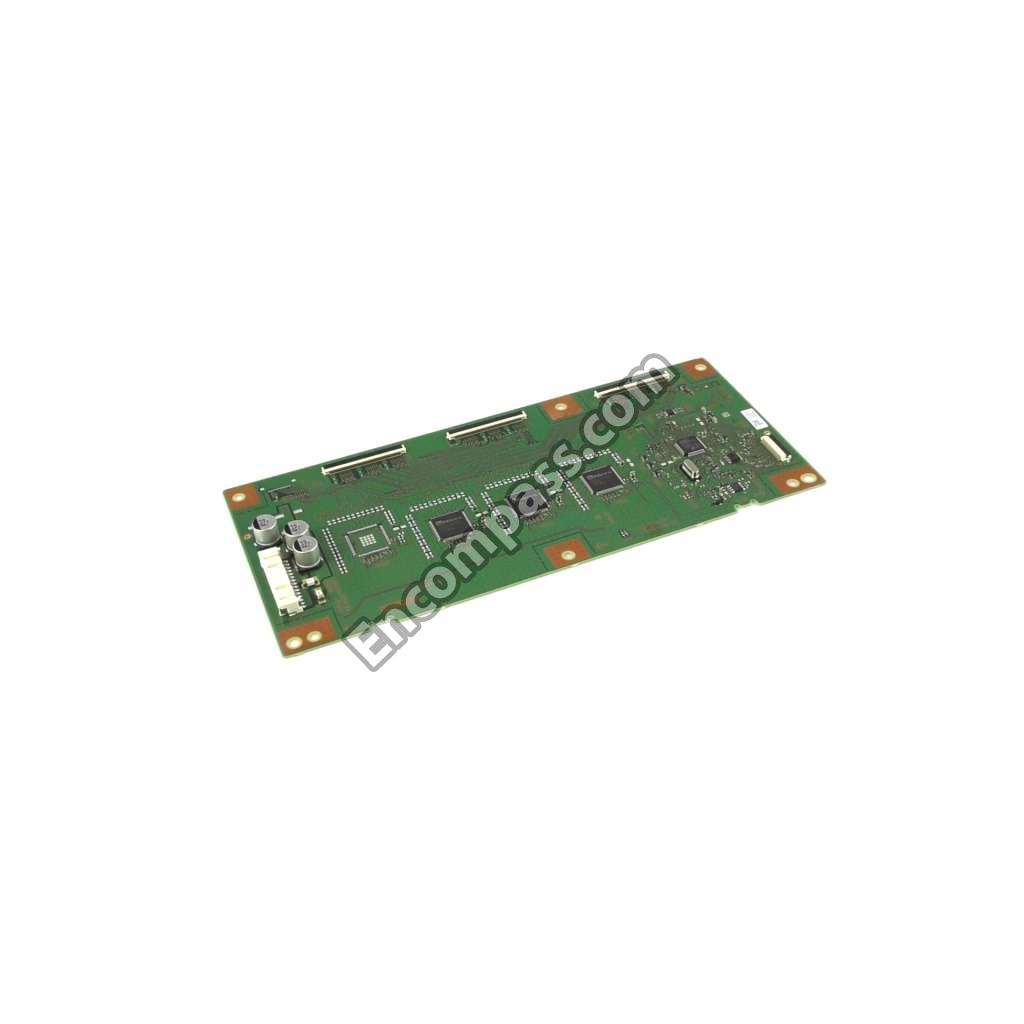

A-2228-838-A A-2228-838-A 19LD45 COMPL (CO1) (PANEL PART)
4-743-242-01 4-743-242-01 BEZEL B ASSY (L BGO) (CO1) (PANEL PART)
4-743-240-01 4-743-240-01 BEZEL L ASSY (L BGO) (CO1) (PANEL PART)
4-743-241-01 4-743-241-01 BEZEL R ASSY (L BGO) (CO1) (PANEL PART)
4-725-592-01 4-725-592-01 BEZEL T ASSY (L CCB) (CO1) (PANEL PART)
4-724-145-03 4-724-145-03 BRACKET, SIDE (BM2A) (CO1)
4-723-861-21 4-723-861-21 COVER SP L (L CCB) (CO1)
4-723-862-21 4-723-862-21 COVER SP R (L CCB) (CO1)
1-001-061-11 1-001-061-11 FFC(49/55) (CO1) (PANEL PART)
4-599-527-01 4-599-527-01 GASKET (4.3X4 (12)), HARD (CO1) (PANEL PART)
4-567-217-01 4-567-217-01 GASKET, TCON CN (CRN) (CO1) (PANEL PART)
4-746-596-21 4-746-596-21 LABEL, UNDER TERMINAL (BGO) (CO1)
1-001-062-11 1-001-062-11 LIQUID CRYSTAL ELEMENT(S55FF5) (CO1) (PANEL PART)
1-001-063-11 1-001-063-11 MOUNTED PWB E-T-CON(55) (CO1) (PANEL PART)
4-698-430-01 4-698-430-01 POLARIZER F/CF(55) (LJ01-11258A) (CO1) (PANEL PART)
5-006-978-01 5-006-978-01 POLARIZER R/TFT (LJ01-11785A) (CO1) (PANEL PART)
4-748-639-31 4-748-639-31 REFERENCE GUIDE (CO1)
1-493-553-11 1-493-553-11 REMOTE COMMANDER (RMF-TX500B) (CO1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (CO1) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (CO1) (PANEL PART)
4-728-619-01 4-728-619-01 SHEET, THERMAL (CCB) (CO1) (PANEL PART)
4-725-864-01 4-725-864-01 SHIELD, LD (L CCB) (CO1) (PANEL PART)
1-003-609-11 1-003-609-11 SOURCE DRIVER IC MT BOARD (LJ13-03845A) (CO1) (PANEL PART)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK (CO1) (PANEL PART)
4-733-071-01 4-733-071-01 TAPE OCELL (CCB) (CO1) (PANEL PART)
4-733-460-01 4-733-460-01 TAPE, SHADING CELL B (CCB) (CO1) (PANEL PART)
4-599-526-01 4-599-526-01 TAPE, SHADING CELL T (SBT) (CO1) (PANEL PART)
