Manufacturer
Sony
Model Number
XBR65X80CH
Description
65-inch Class Hd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

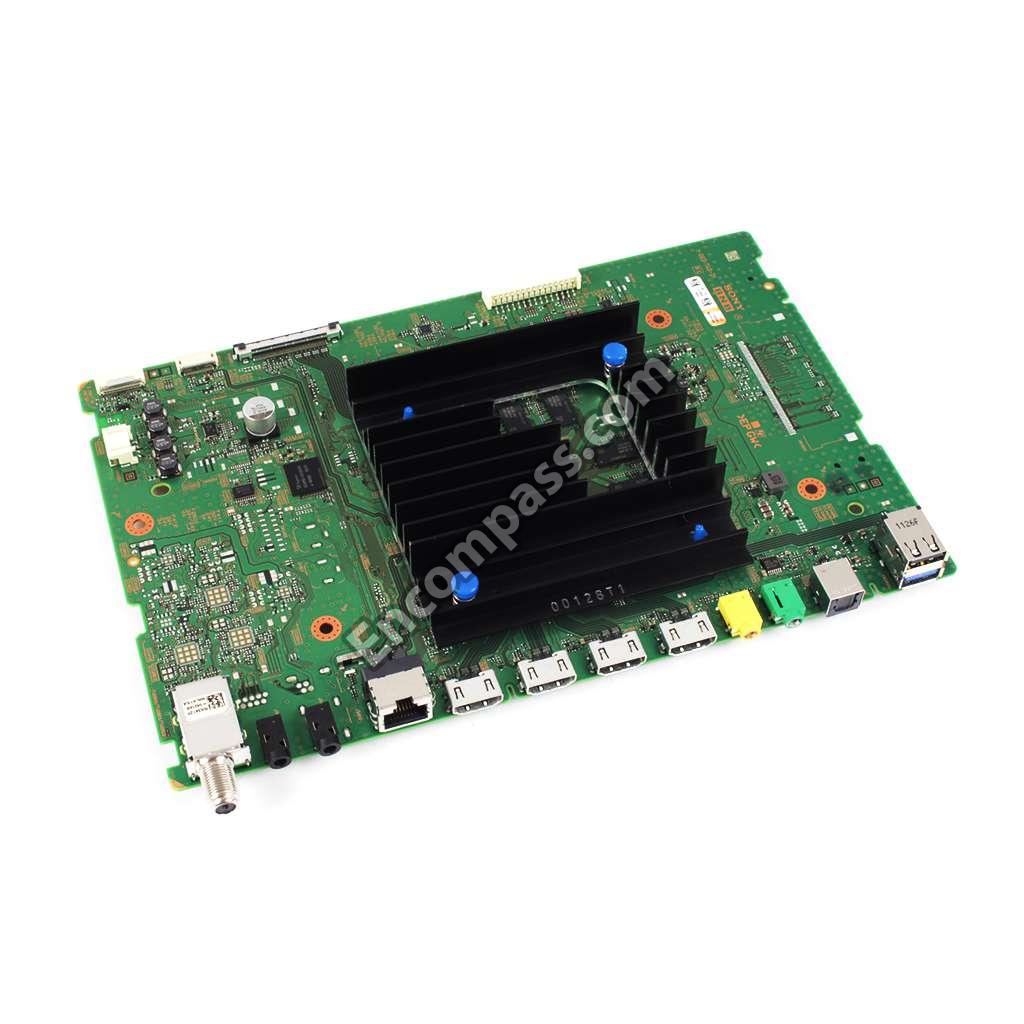

(MAIN CBA) COMPL_SVC_BNB_UCM (LA1) |
|
|
+PSW M6*16 W14 (LA1) |
|
|
BRACKET SIDE (BNN) A (LA1) |
|
|
BRACKET, WIFI(BNN) (LA1) |
|
|
C7L AC POWER CODE SETS (US) (LA1) |
|
|
CONNECTOR ASSY 30P (LA1) |
|
|
CONNECTOR ASSY 4P (SP) (LA1) |
|
|
COVER, BTM(BNN) (LA1) |
|
|
COVER, TOP(BNN) (LA1) |
|
|
FLEXIBLE FLAT CABLE 20P (LA1) |
|
|
FLEXIBLE FLAT CABLE 25P (LA1) |
|
|
FLEXIBLE FLAT CABLE 51P (LA1) |
|
|
GASKET, B PLATE (PCH) (LA1) |
|
|
GL02P-(POWER CBA) STATIC CONVERTER (TV) (LA1) |
|
|
HT1_4K_EV MOUNT (LA1) |
|
|
LABEL, SIDE TERMINAL (BNN) (LA1) |
|
|
LIQUID CRYSTAL ELEMENT(B650QUB (LA1) |
|
|
P-MOD (YSAS065CNO01)(SERVICE) (LA1) |
|
|
REAR COVER (2L BNN) A (LA1) |
|
|
REFERENCE GUIDE (LA1) |
|
|
SETUP GUIDE (LA1) |
|
|
SHEET, INSULATION(BNN 2L) (LA1) |
|
|

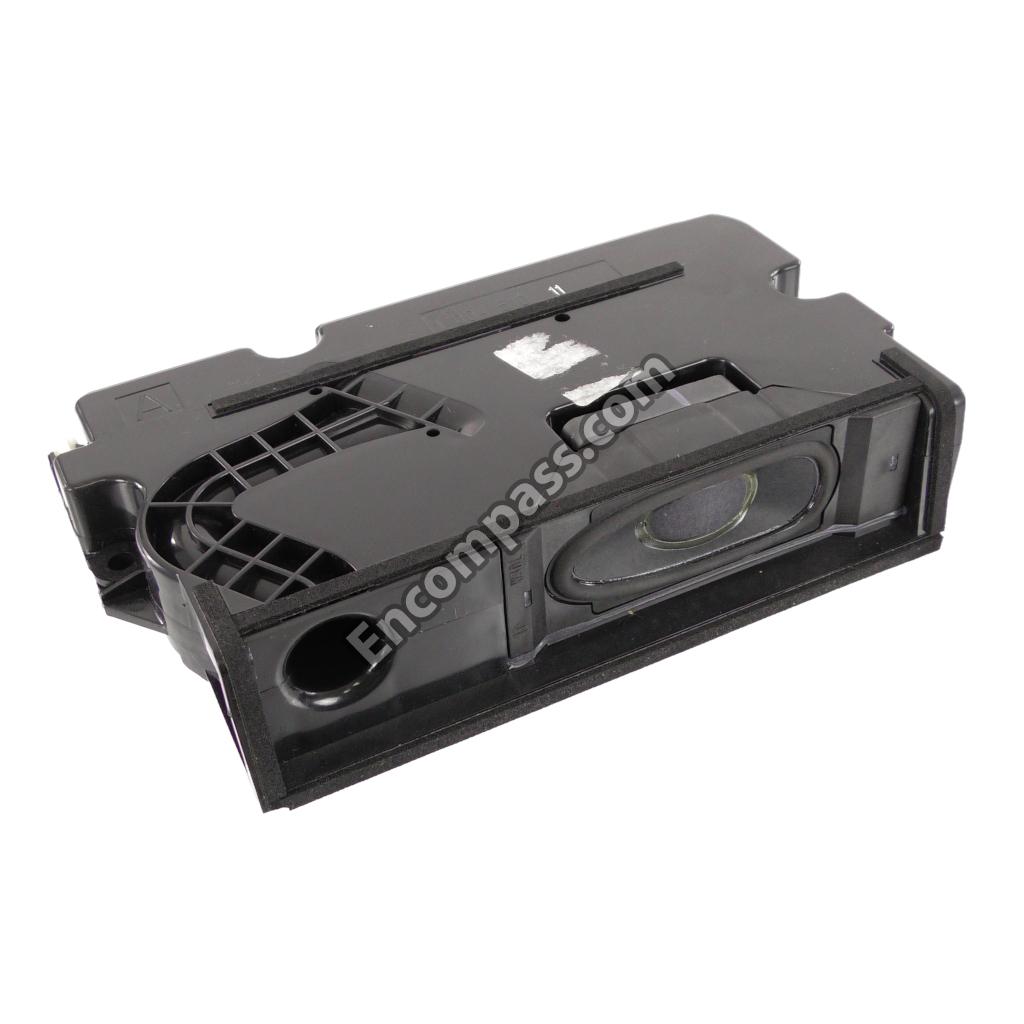

SP-BOX ASSY,FY20 W30L-EA (LA1) |
|
|

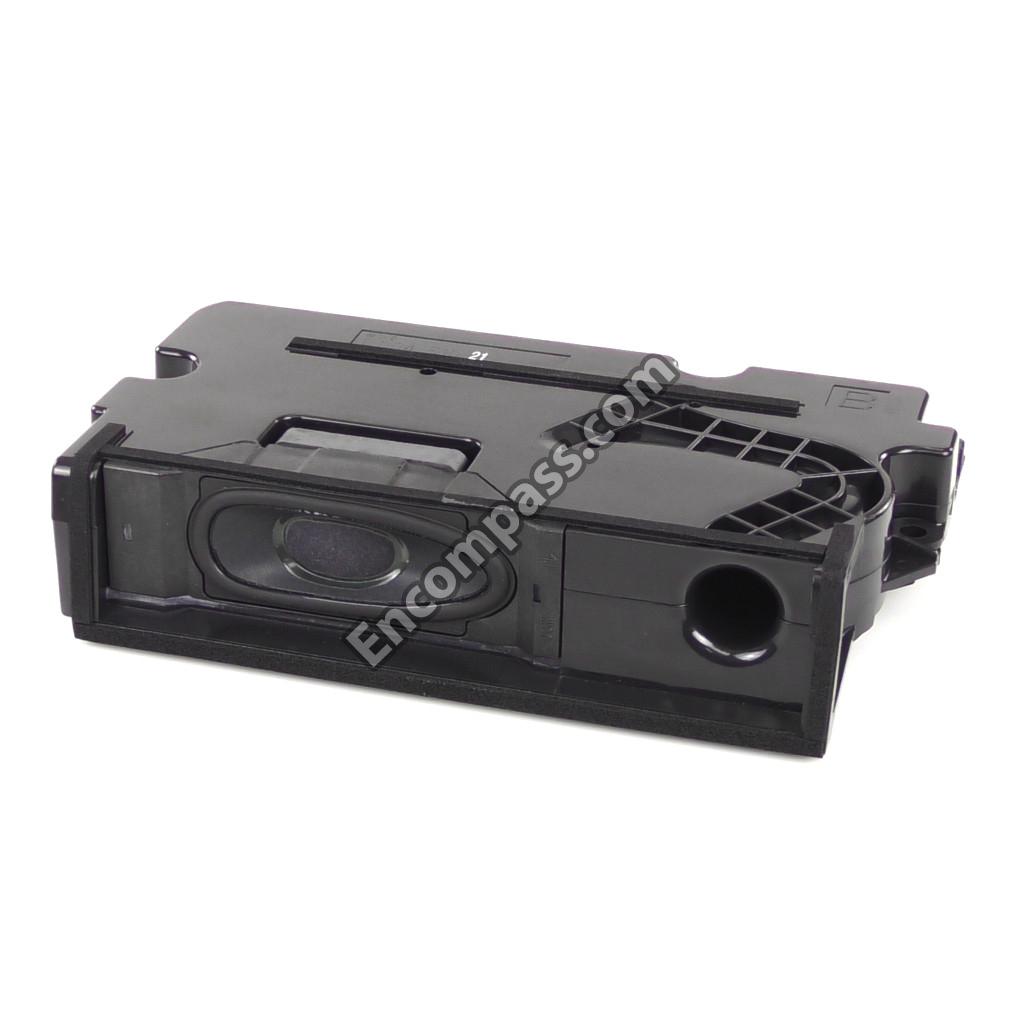

SP-BOX ASSY,FY20 W30L-EB (LA1) |
|
|
STAND NECK (L BNN) A (LA1) |
|
|

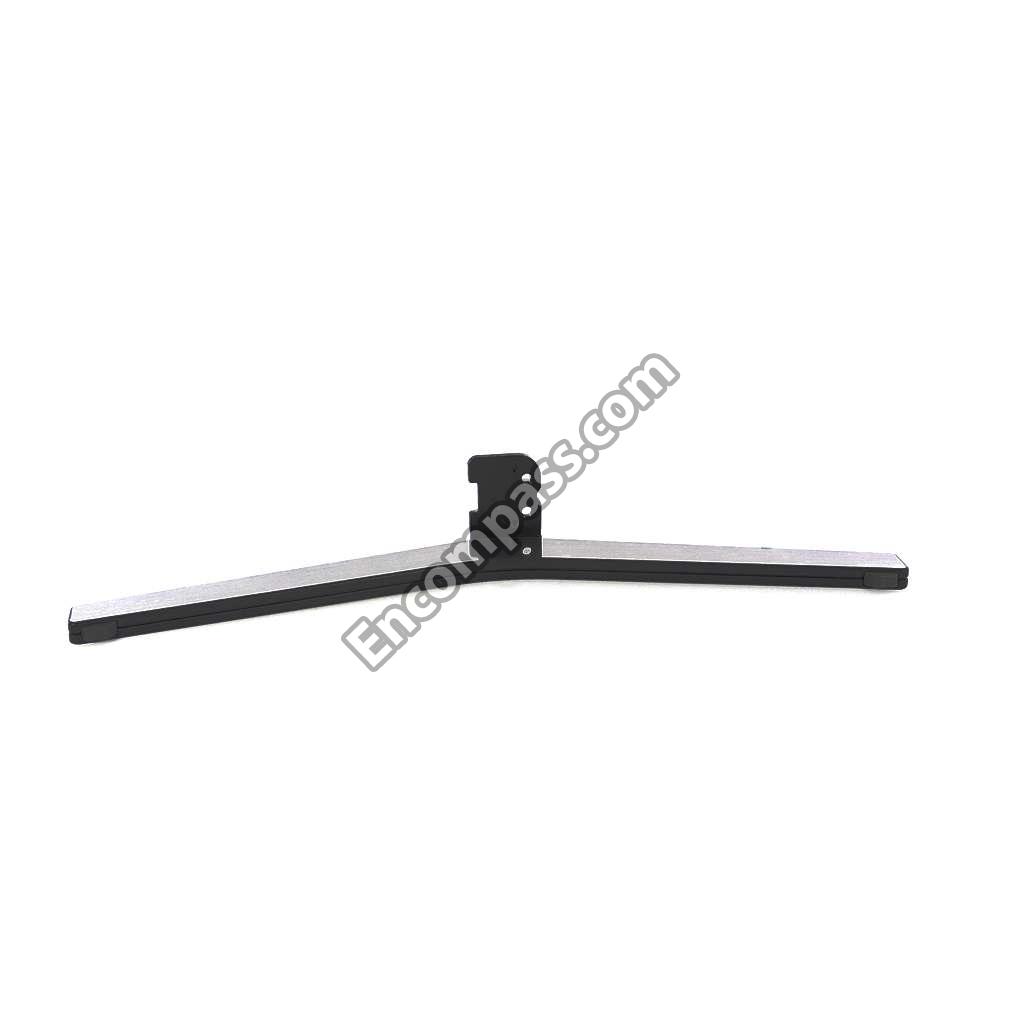

STAND, L (2L BNN) A (LA1) |
|
|

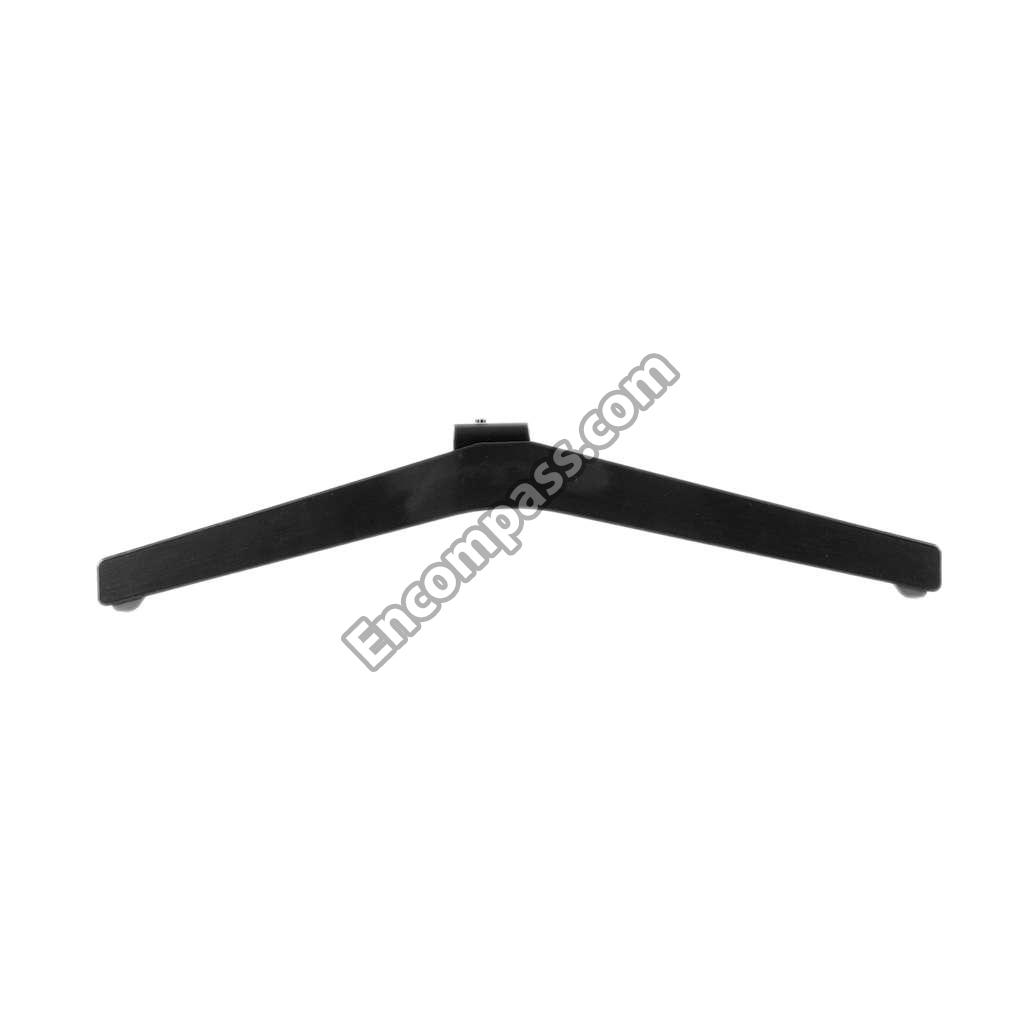

STAND, R (2L BNN) A (LA1) |
|
|
USER GUIDE 55/65/75 LA1 NB (LA1) |
|
|
WLAN/BT MODULE(11AC) (LA1) |
