Model Image
Manufacturer

Sony

Model Number

XBR65X855D

Description

65-inch Class Hd Tv

Interactive Exploded View

Parts List

Part Number Description

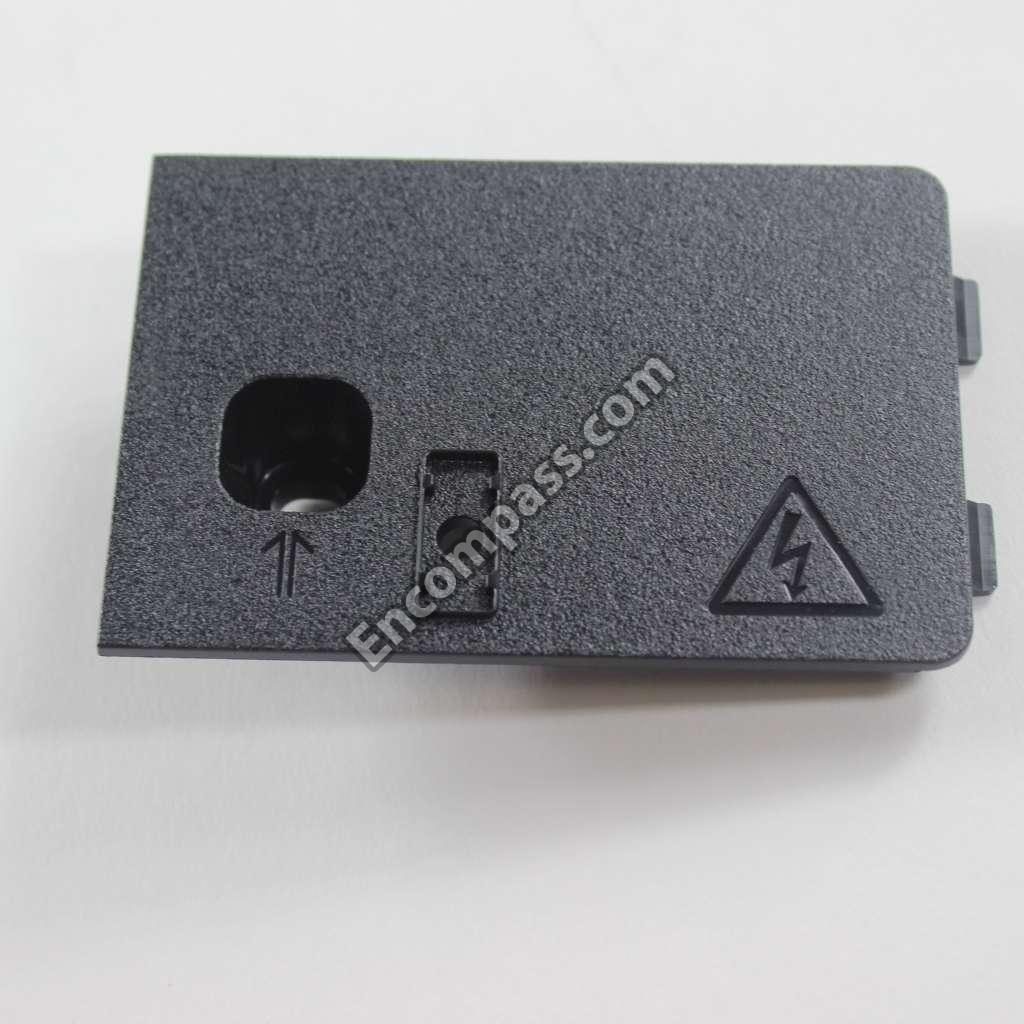

4-579-996-01 4-579-996-01 AC COVER(PDT 2L) (LA8)
1-785-504-21 1-785-504-21 ADAPTOR, CONVERSION (LA8)
4-535-586-02 4-535-586-02 BADGE, XBR LOGO(H3.7) (LA8,AR4)
4-488-073-01 4-488-073-01 BAG PE (MMB) (LA8)
4-462-871-01 4-462-871-01 BAG, SCREW A (CCT) (AR4)
4-409-919-33 4-409-919-33 BAG,PROTECTION PEHD (1720X1050) (LA8,AR4)
4-585-682-01 4-585-682-01 BAG,SCREW (M6L16)(4)(PDT_L) (LA8)
4-689-192-01 4-689-192-01 BEZEL(D) (760.01P1B.0002) (BLACK) (PANEL PART) (LA8,AR4,BR6)
4-689-196-01 4-689-196-01 BEZEL(D) (760.01P1C.0002) (SILVER) (PANEL PART) (LA8,AR4,BR6)
4-689-190-01 4-689-190-01 BEZEL(L) (760.01P14.0002) (BLACK) (PANEL PART) (LA8,AR4,BR6)
4-689-194-01 4-689-194-01 BEZEL(L) (760.01P18.0002) (SILVER) (PANEL PART) (LA8,AR4,BR6)
4-689-191-01 4-689-191-01 BEZEL(R) (760.01P15.0002) (BLACK) (PANEL PART) (LA8,AR4,BR6)
4-689-195-01 4-689-195-01 BEZEL(R) (760.01P19.0002) (SILVER) (PANEL PART) (LA8,AR4,BR6)
4-689-189-01 4-689-189-01 BEZEL(U) (760.01P13.0001) (BLACK) (PANEL PART) (LA8,AR4,BR6)
4-689-193-01 4-689-193-01 BEZEL(U) (760.01P17.0001) (SILVER) (PANEL PART) (LA8,AR4,BR6)
A-2094-354-A A-2094-354-A BMFW2_LA_C COMPL (MAIN CBA) (AR4)
4-580-885-31 4-580-885-31 BRACKET, SIDE (PDT M1) (LA8)
4-486-590-02 4-486-590-02 BRACKET, VESA(MIA) (LA8,AR4)
4-547-397-03 4-547-397-03 BRACKET, WIFI (AR4)
1-754-949-11 1-754-949-11 BT ANTENNA (AR4)
1-754-948-11 1-754-948-11 BT ANTENNA (AR4)
4-580-237-61 4-580-237-61 CARTON INDIVI BLANK (2L PDT) (AR4)
4-584-302-01 4-584-302-01 CARTON, INDIVIDUAL (2L PDT) (LA8,AR4)

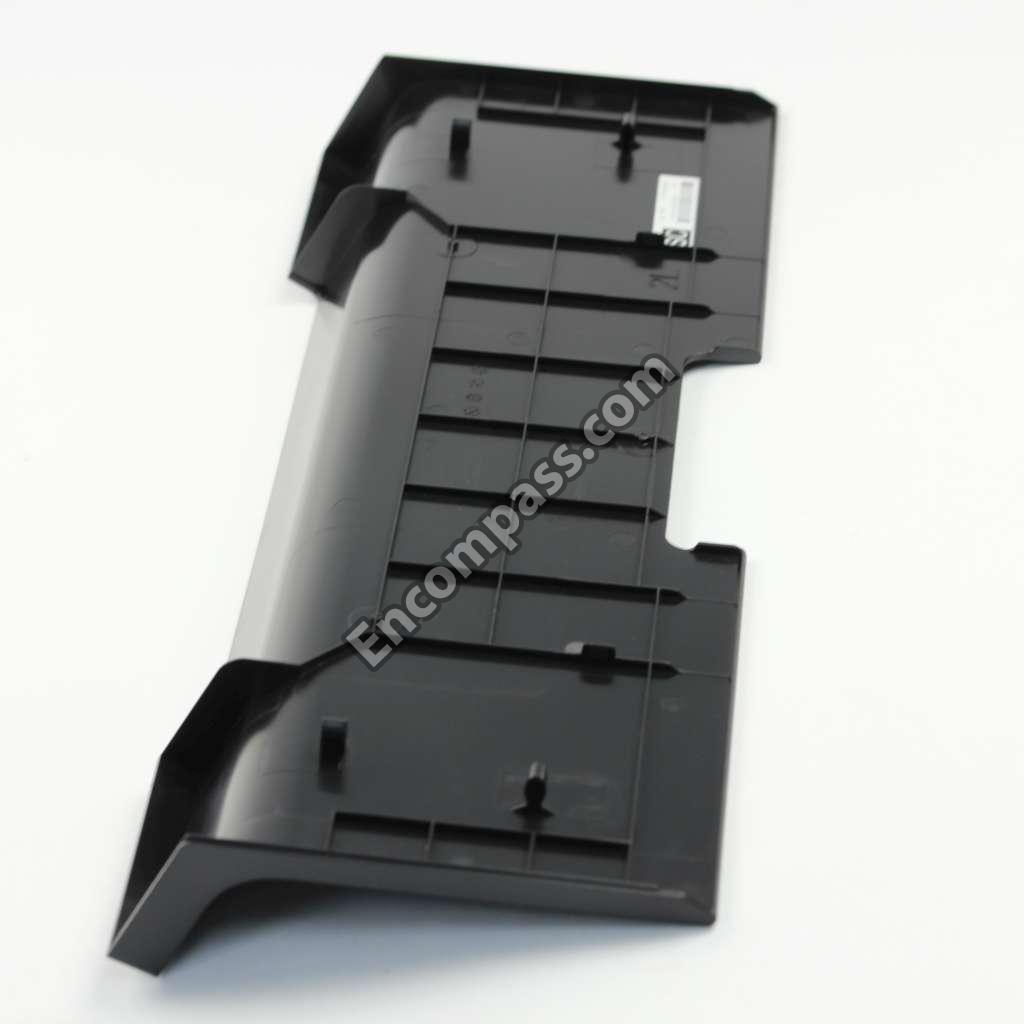

4-580-146-01 4-580-146-01 CASE, BTM (S) (LA8)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (AR4)
A-2124-425-A A-2124-425-A COMPL SVC BMFW2 (Main CBA)_AR_C (AR4)

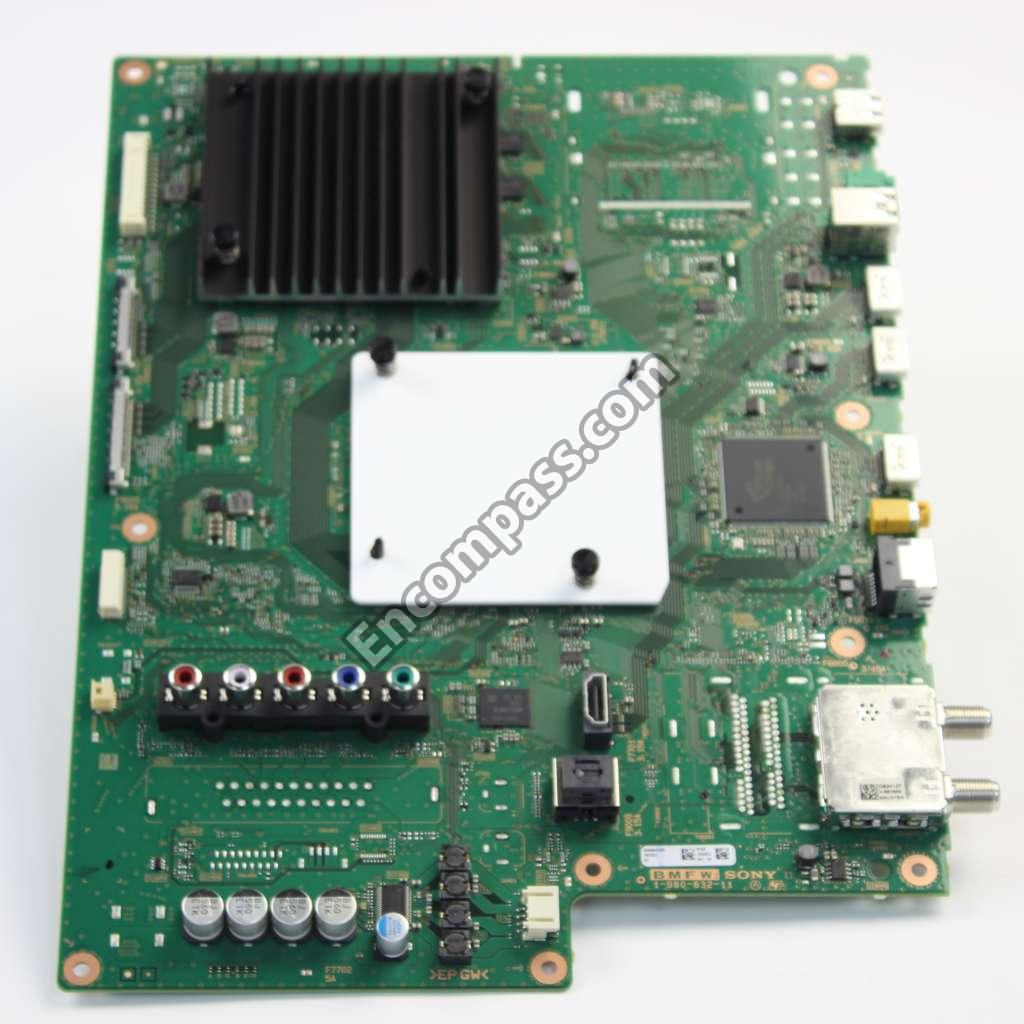

A-2094-433-A A-2094-433-A COMPL SVC BMFW2_LA_C (MAIN CBA) (LA8)
1-910-110-94 1-910-110-94 CONNECTOR ASSY 28P (LA8)
4-580-151-01 4-580-151-01 COVER, TOP (LA8)
4-588-110-01 4-588-110-01 CUSHION (PDT AC) (AR4)
4-539-189-01 4-539-189-01 CUSHION 825D (LA8,AR4)
4-580-252-11 4-580-252-11 CUSHION, HOLDER(2L PDT) (LA8,AR4)
4-580-247-12 4-580-247-12 CUSHION, LOWER L(2L PDT) (AR4)
4-580-247-11 4-580-247-11 CUSHION, LOWER L(2L PDT) (LA8)
4-580-249-11 4-580-249-11 CUSHION, LOWER R(2L PDT) (LA8,AR4)
4-580-251-11 4-580-251-11 CUSHION, SIDE(2L PDT) (LA8,AR4)
4-580-243-11 4-580-243-11 CUSHION, UPPER L(2L PDT) (LA8,AR4)
4-580-245-11 4-580-245-11 CUSHION, UPPER R(2L PDT) (LA8,AR4)
1-844-187-11 1-844-187-11 ETHERNET CONNECTOR (AR4)
1-849-291-11 1-849-291-11 FFC (65) (AR4)
1-842-546-21 1-842-546-21 FFC/FPC CONNECTOR (NON ZIF)51P (AR4)
1-849-278-11 1-849-278-11 FLEXIBLE FLAT CABLE 41P (LA8)
1-849-279-11 1-849-279-11 FLEXIBLE FLAT CABLE 51P (LA8)
4-689-201-01 4-689-201-01 GASKET (747.01P0S.0001) (PANEL PART) (LA8,AR4,BR6)
1-474-642-11 1-474-642-11 GL1(CH)-STATIC CONVERTER(TV) (POWER CBA) (LA8,AR4)
4-580-150-01 4-580-150-01 GUIDE, LIGHT (LA8)
1-910-110-93 1-910-110-93 HARNESS ASSY (MAIN) (LA8)
1-842-566-12 1-842-566-12 HEADER ASSEMBLY FOR PWB 4P (AR4)
4-563-516-01 4-563-516-01 HEAT SINK(MUFF CP) (AR4)
4-580-869-01 4-580-869-01 HOLDER SIDE SW(PDT M1) (LA8)
A-2092-887-B A-2092-887-B HSC4-S MOUNT (LA8,AR4)
6-722-714-01 6-722-714-01 IC THGBMFG7C2LBAIL (AR4)
4-583-593-01 4-583-593-01 LABEL, REAR TERMINAL (PDT M1) (LA)
4-583-384-31 4-583-384-31 LABEL, SIDE TERMINAL (PDT M1) (LA8)
1-812-194-22 1-812-194-22 LCD PANEL(W65QWMEB) (AR4)

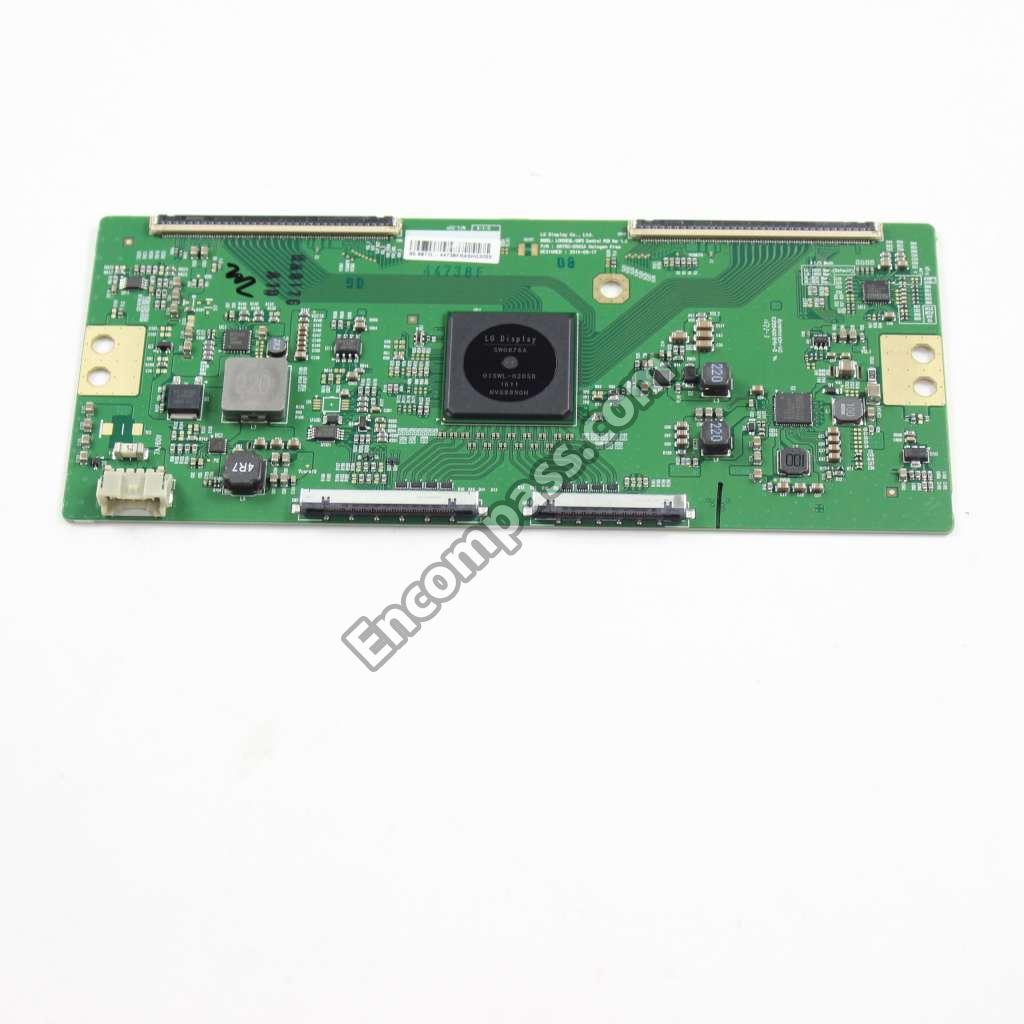

1-895-901-31 1-895-901-31 MOUNTED PWB E-T-CON (65) (6871L-4473B) (PANEL PART) (LA8,AR4,BR6)
1-895-901-21 1-895-901-21 MOUNTED PWB E-T-CON (65) (AR4)
4-580-149-01 4-580-149-01 PANEL, ORNAMENT (LA8)
4-592-071-11 4-592-071-11 PLATE, FRONT MINI(2L PDT) (AR4)
4-580-239-12 4-580-239-12 PLATE, FRONT(2L PDT) (AR4)
4-580-239-11 4-580-239-11 PLATE, FRONT(2L PDT) (LA8)
4-580-886-01 4-580-886-01 PLATE, MAIN(PDT M1) (LA8,AR4)
4-689-218-01 4-689-218-01 POLARIZER F/CF (6308L-7215A) (PANEL PART) (LA8,AR4,BR6)
4-689-216-01 4-689-216-01 POLARIZER R/TFT (6308L-7063A) (PANEL PART) (LA8,AR4,BR6)
1-839-695-21 1-839-695-21 POWER SUPPLY CORD (WITH CONN.) (LA8)
1-848-821-21 1-848-821-21 POWER-SUPPLY CORD (WITH CONN) (AR4)
1-846-001-22 1-846-001-22 POWER-SUPPLY CORD (WITH CONN) (LA8)
1-839-692-21 1-839-692-21 POWER-SUPPLY CORD (WITH CONN.) (AR4)
4-534-964-01 4-534-964-01 PULLEY, STAND (HWI) (AR4)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (AR4)
1-848-803-11 1-848-803-11 RCA3P CONVERSION CABLE (LA8)
4-580-877-11 4-580-877-11 REAR COVER (M1_2L_PDT) A (AR4)
4-584-432-11 4-584-432-11 REAR COVER (M1_2L_PDT) A (LA8)
4-584-959-31 4-584-959-31 REFERENCE GUIDE (LA8)
4-584-960-31 4-584-960-31 REFERENCE GUIDE, (AR4)
1-493-128-11 1-493-128-11 REMOTE COMMANDER (RMF-TX200B) (LA8,AR4)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (LA8)
4-159-298-01 4-159-298-01 SCREW, (+PSW)(M4X10) (LA8,AR4)
2-580-644-11 2-580-644-11 SCREW, +KTP2 3X8 (LA8,AR4)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (LA8,AR4)
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12 (LA8,AR4)
2-580-607-01 2-580-607-01 SCREW, +PSW M5X12 (LA8,AR4)
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16 (LA8,AR4)
2-580-611-01 2-580-611-01 SCREW, +PSW M6X16 (LA8,AR4)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (LA8,AR4)
4-580-889-01 4-580-889-01 SHEET, INUSLATION (PDT 2L) (LA8)
4-590-730-01 4-590-730-01 SHEET, IR NOISE, (AR4)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (LA8,AR4)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (LA8,AR4)
1-897-064-11 1-897-064-11 SOURCE DRIVER IC MT BOARD (0ILUL-0421A) (PANEL PART) (LA8,AR4,BR6)
1-859-138-11 1-859-138-11 SP-BOX ASSY, W25(L)-E (LA8)
4-587-424-01 4-587-424-01 SPACER(17)+C (AR4)
4-689-199-01 4-689-199-01 SPINE FRAME(L) (760.01P0O.0002) (PANEL PART) (LA8,AR4,BR6)
4-689-200-01 4-689-200-01 SPINE FRAME(R) (760.01P0P.0002) (PANEL PART) (LA8,AR4,BR6)

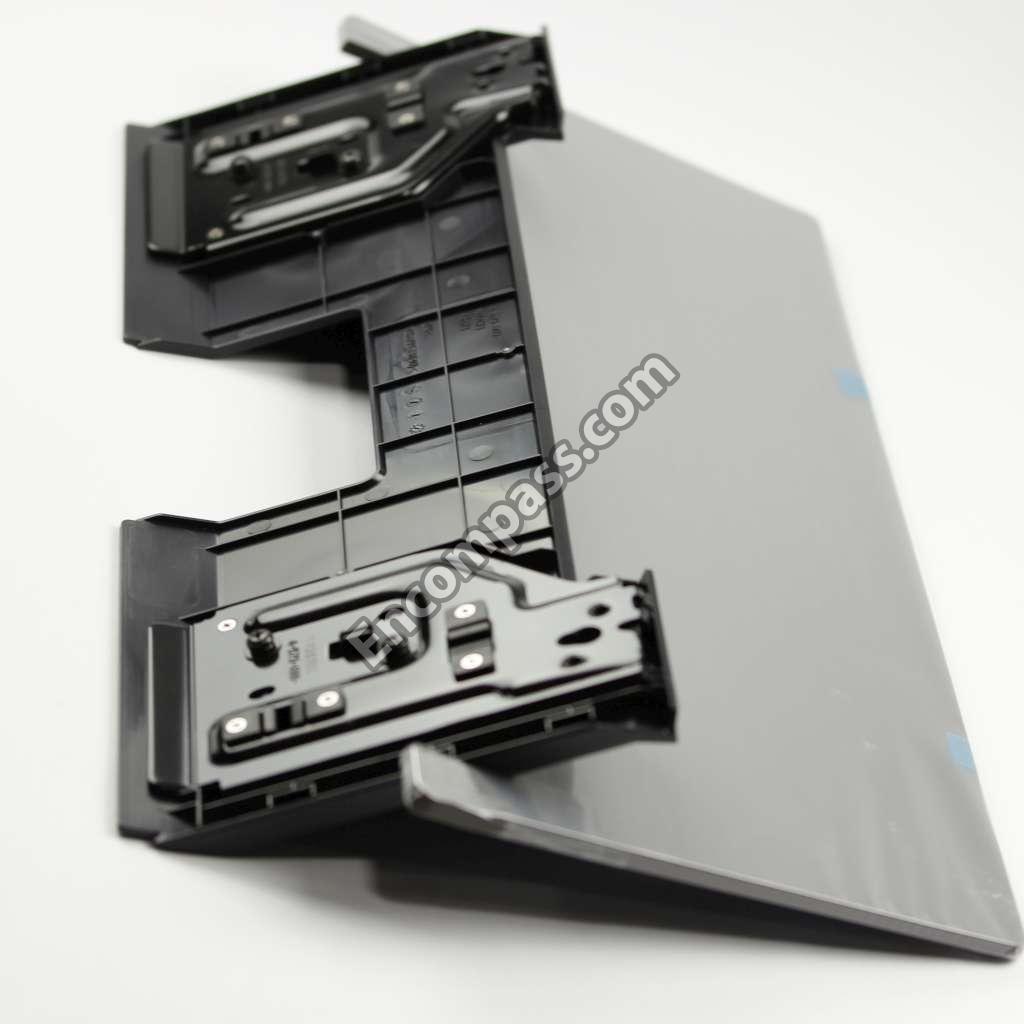

4-579-508-01 4-579-508-01 STAND (2L PDT) A (LA8)
4-579-499-11 4-579-499-11 STAND NECK (L PDT) A (AR4)
4-579-499-01 4-579-499-01 STAND NECK (L PDT) A (LA8)
4-579-506-01 4-579-506-01 STAND REAR COVER (2L PDT) A (LA8)
3-674-673-22 3-674-673-22 STOPPER (A) (LA8,AR4)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (AR4)
1-798-510-31 1-798-510-31 SWITCH UNIT (SM-A-WW) (LA8)
1-798-511-21 1-798-511-21 SWITCH UNIT (SM-G-WW) (LA8,AR4)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT (LA8,AR4)
4-689-205-01 4-689-205-01 TAPE, BOTTOM (740.01P0B.0001) (PANEL PART) (LA8,AR4,BR6)
4-689-203-01 4-689-203-01 TAPE, TOP (740.01P0A.0001) (PANEL PART) (LA8,AR4,BR6)
4-580-241-11 4-580-241-11 TRAY (2L PDT) (LA8,AR4)
1-843-576-11 1-843-576-11 USB CONNECTOR (AR4)
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC) (AR4)
