Repair Jig

Model Number

XBR65X900A

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
XBR65X900A 65" 2013 SONY TV JIG XBR65X900A
1-839-679-12 1-839-679-12 AC CORD POWER - HARD WIRED
4-462-871-01 4-462-871-01 BAG SCREW A (CCT)
AM4PTB2D AM4PTB2D BATTERY "AAA"
1-492-062-11 1-492-062-11 BLUETOOTH MODULE(SMART CORE
4-455-891-01 4-455-891-01 BRACKET MODULE (CCT)
4-454-677-01 4-454-677-01 BRACKET NECK (CCT)
4-460-567-31 4-460-567-31 BRACKET SIDE (MOLD CCT)
4-454-662-01 4-454-662-01 BRACKET UNDER (CCT)
4-439-633-21 4-439-633-21 BRACKET UNDER (MOLD)
4-439-633-22 4-439-633-22 BRACKET UNDER (MOLD)
4-439-633-71 4-439-633-71 BRACKET UNDER (MOLD)
4-454-663-01 4-454-663-01 BRACKETSP (CCT)
4-454-659-01 4-454-659-01 BRACKETTW (CCT)
4-461-479-01 4-461-479-01 CARTON INDIVIDUAL (CCT 65)
4-454-668-01 4-454-668-01 CASE BARE SC (CCT)
4-462-315-01 4-462-315-01 CCT CAP SCREW
4-262-708-03 4-262-708-03 CLAMPER, CABLE
1-910-107-79 1-910-107-79 CONNECTOR ASSY 28P
1-846-714-11 1-846-714-11 CONNECTOR ASSY 3P (FSL)
1-910-107-84 1-910-107-84 CONNECTOR ASSY 4P
1-910-107-74 1-910-107-74 CONNECTOR ASSY 5P
4-454-657-01 4-454-657-01 COVER SP (L) (CCT)
4-454-658-01 4-454-658-01 COVER SP (R) (CCT)
4-454-660-01 4-454-660-01 COVER WOOFER (L) (CCT)
4-454-661-01 4-454-661-01 COVER WOOFER (R) (CCT)
4-454-666-02 4-454-666-02 COVER, UNDER
4-463-081-01 4-463-081-01 COVERMODULE(CCT) A
4-458-170-11 4-458-170-11 CUSHION LOWER (65 CCT)
4-458-169-11 4-458-169-11 CUSHION UPPER (65 CCT)
A-1936-361-A A-1936-361-A CX BOARD, MOUNTED
A-1952-947-A A-1952-947-A CX2 MOUNT SERVICE
1-846-695-11 1-846-695-11 FLEXIBLE FLAT CABLE (41P)
1-910-107-82 1-910-107-82 FLEXIBLE FLAT CABLE 20P
1-846-701-11 1-846-701-11 FLEXIBLE FLAT CABLE 41P (FSM)
1-846-700-12 1-846-700-12 FLEXIBLE FLAT CABLE 51P (FSM)
1-846-688-11 1-846-688-11 FPC-BT(SMART CORE BLOCK)
1-474-516-11 1-474-516-11 G6 BOARD, COMPLETE
1-474-518-11 1-474-518-11 G8 BOARD, COMPLETE
4-457-426-01 4-457-426-01 GASKET(BAF)
1-910-107-81 1-910-107-81 HARNESS ASSY (G-LD)
1-910-107-80 1-910-107-80 HARNESS ASSY (MAIN)
A-1964-135-A A-1964-135-A HIF BOARD, MOUNTED(SMART CORE

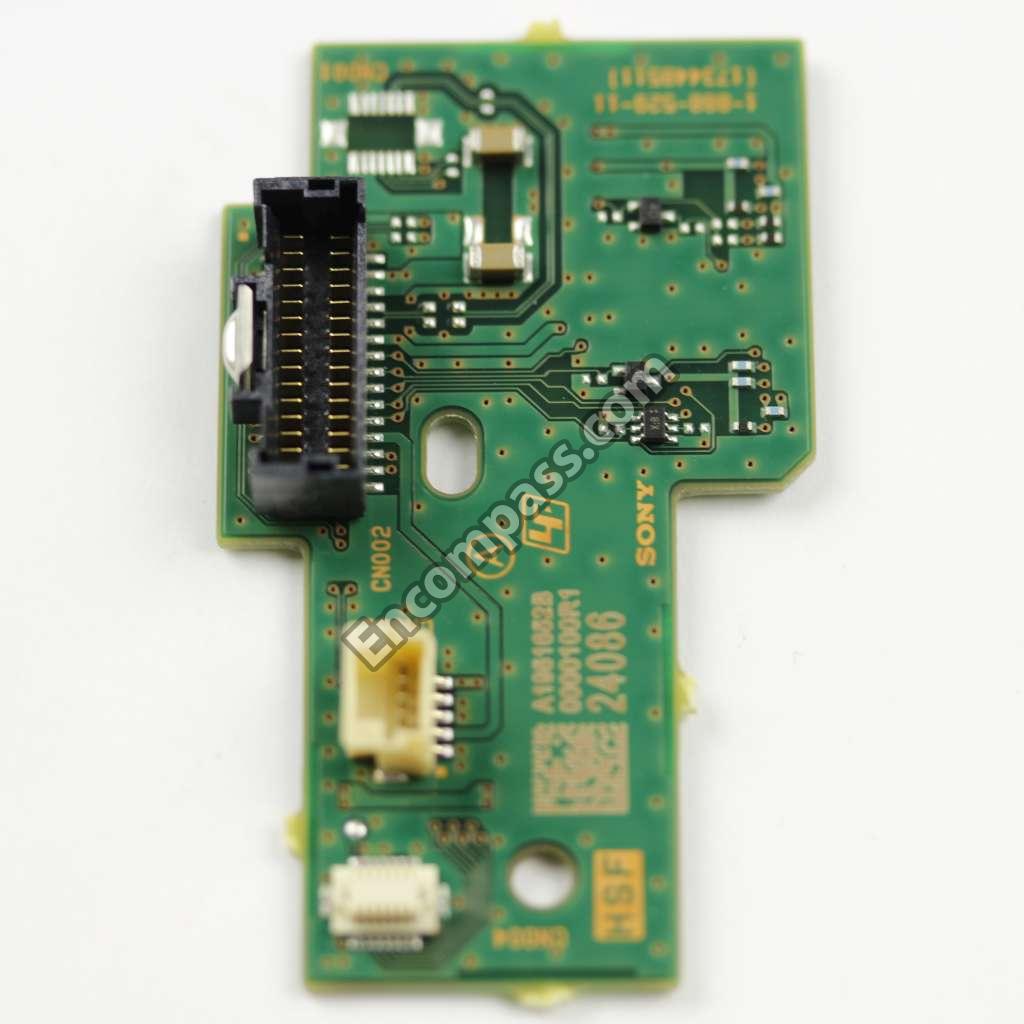

A-1964-265-A A-1964-265-A HSF-LM BOARD, MOUNTED(SMART
A-1936-362-A A-1936-362-A HW BOARD, MOUNTED
4-457-577-01 4-457-577-01 LABEL HDMI
4-462-969-11 4-462-969-11 LABEL INFORMATION
4-457-575-01 4-457-575-01 LABEL SIDE TERMINAL (CCT)
4-457-576-01 4-457-576-01 LABEL UNDER TERMINAL (CCT)
A-1940-434-C A-1940-434-C LCD PANEL 65
1-846-696-11 1-846-696-11 LEAD WIRE WITH CONNECTOR 51P
4-463-080-01 4-463-080-01 LIDSC(CCT) A

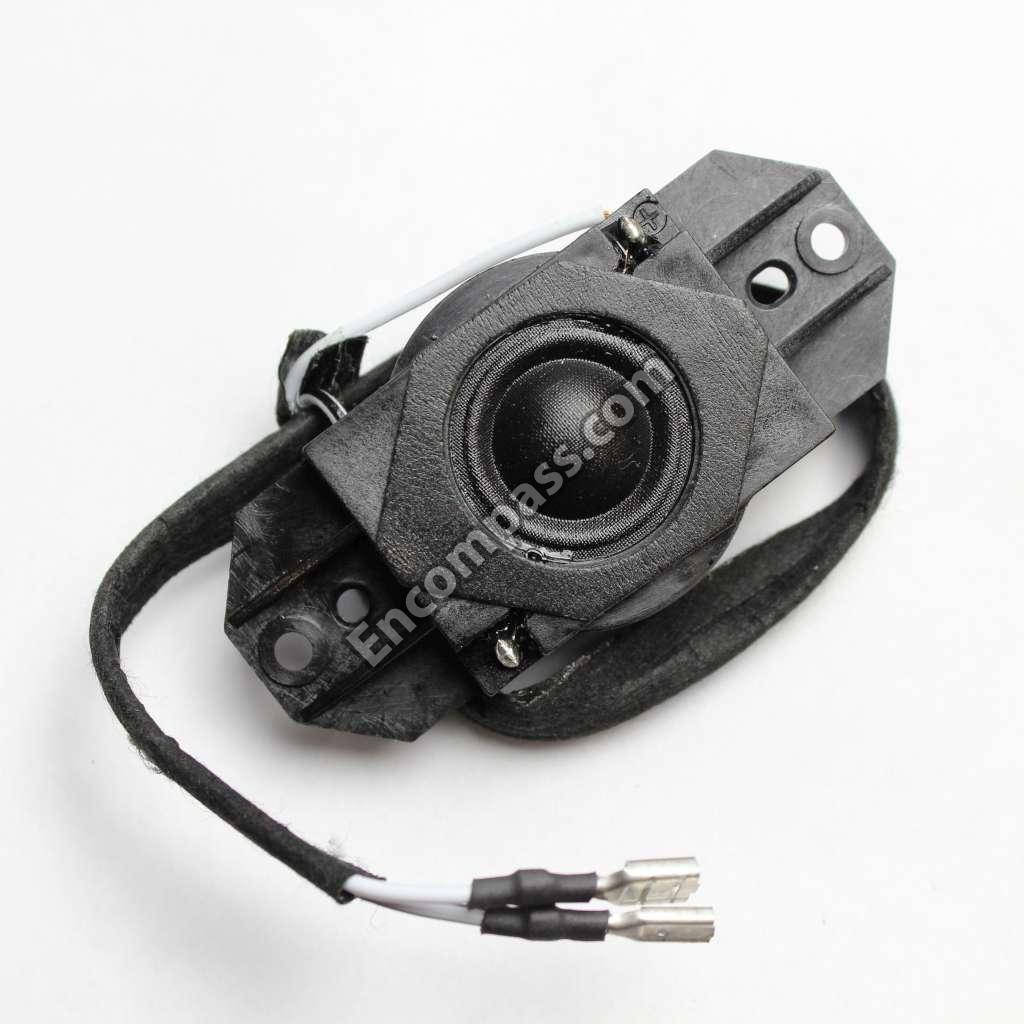

1-858-893-11 1-858-893-11 LOUD SPEAKER (18MM)
1-858-894-11 1-858-894-11 LOUD SPEAKER (80MM)
1-895-387-12 1-895-387-12 MOUNTED PWB (NETWORK)
4-454-664-01 4-454-664-01 ORNAMENTSP (CCT)
4-454-669-01 4-454-669-01 PANEL ORNAMENT SC (CCT) A
X-2588-944-1 X-2588-944-1 PASSIVE 3D GLASSES TDG-500P
1-839-679-12 1-839-679-12 POWER CORD IS HARD WIRED W/CONNECTOR

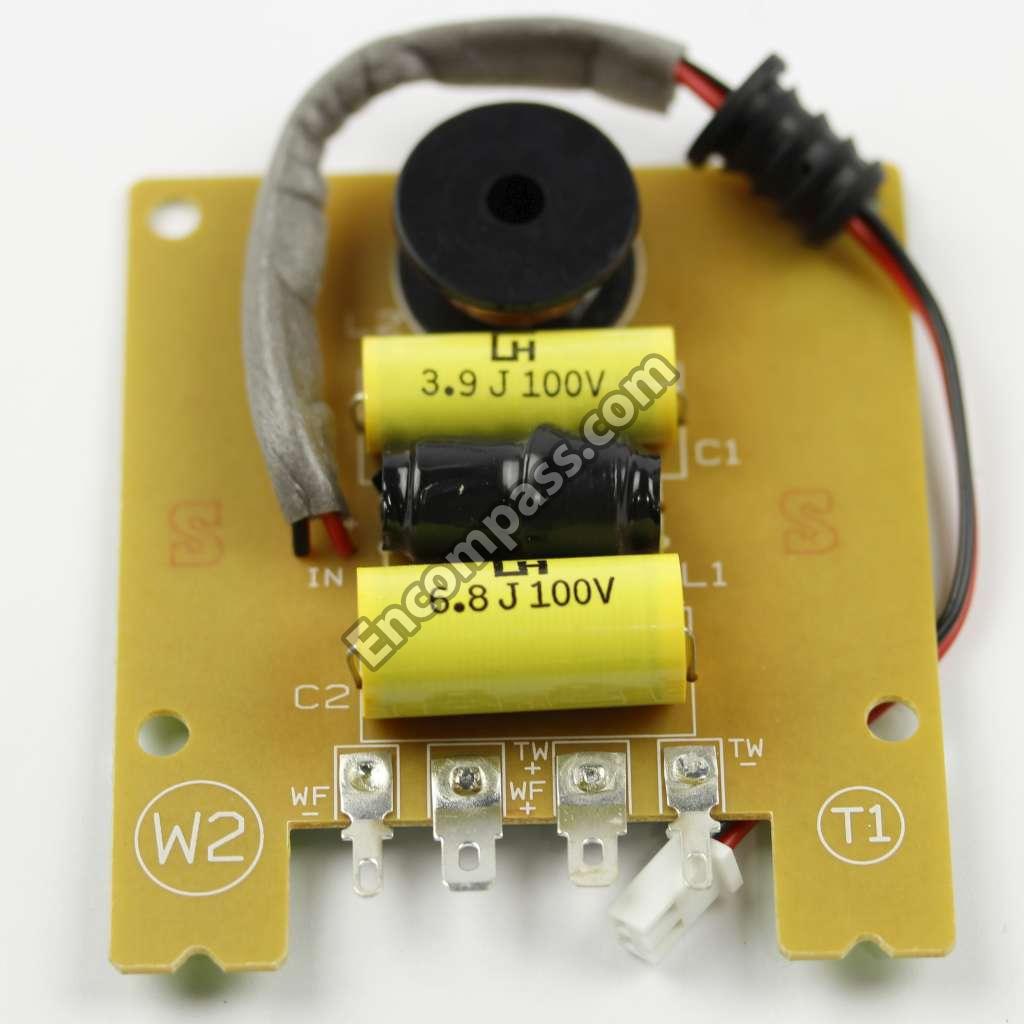

1-895-387-11 1-895-387-11 PWB BOARD (NETWORK), MOUNTED
4-454-655-11 4-454-655-11 REAR COVER
4-457-815-02 4-457-815-02 SCREW +PSW M3X6 STEP
4-256-393-01 4-256-393-01 SCREW +PSW M3X6 W12
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
4-457-517-01 4-457-517-01 SHEET INSULATION (CCT M)
4-457-451-01 4-457-451-01 SHEET THERMAL (BAF)
1-858-895-11 1-858-895-11 SP BOX ASSY
4-457-814-01 4-457-814-01 SPACER(SP-RC) HEX
4-457-814-02 4-457-814-02 SPACER(SP-RC) HEX
4-471-530-01 4-471-530-01 STAND BASE (CIRCLE)
4-462-872-01 4-462-872-01 STAND NECK (NEED 2 PIECES)
2-580-607-01 2-580-607-01 STAND SCREW, +PSW M5X12
4-464-369-11 4-464-369-11 SUPPLEMENT(STAND INSTALLATION)
1-492-349-11 1-492-349-11 SWITCH UNIT
4-465-860-01 4-465-860-01 TAPE_95
4-458-272-51 4-458-272-51 TRAY (65 CCT)
A-1964-267-A A-1964-267-A TS BOARD, MOUNTED
1-492-076-11 1-492-076-11 WLAN, MODULE
