Sony

Model Number

XBR65X900B

Description

65" (64.5" Diag.) X900b Premium 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description

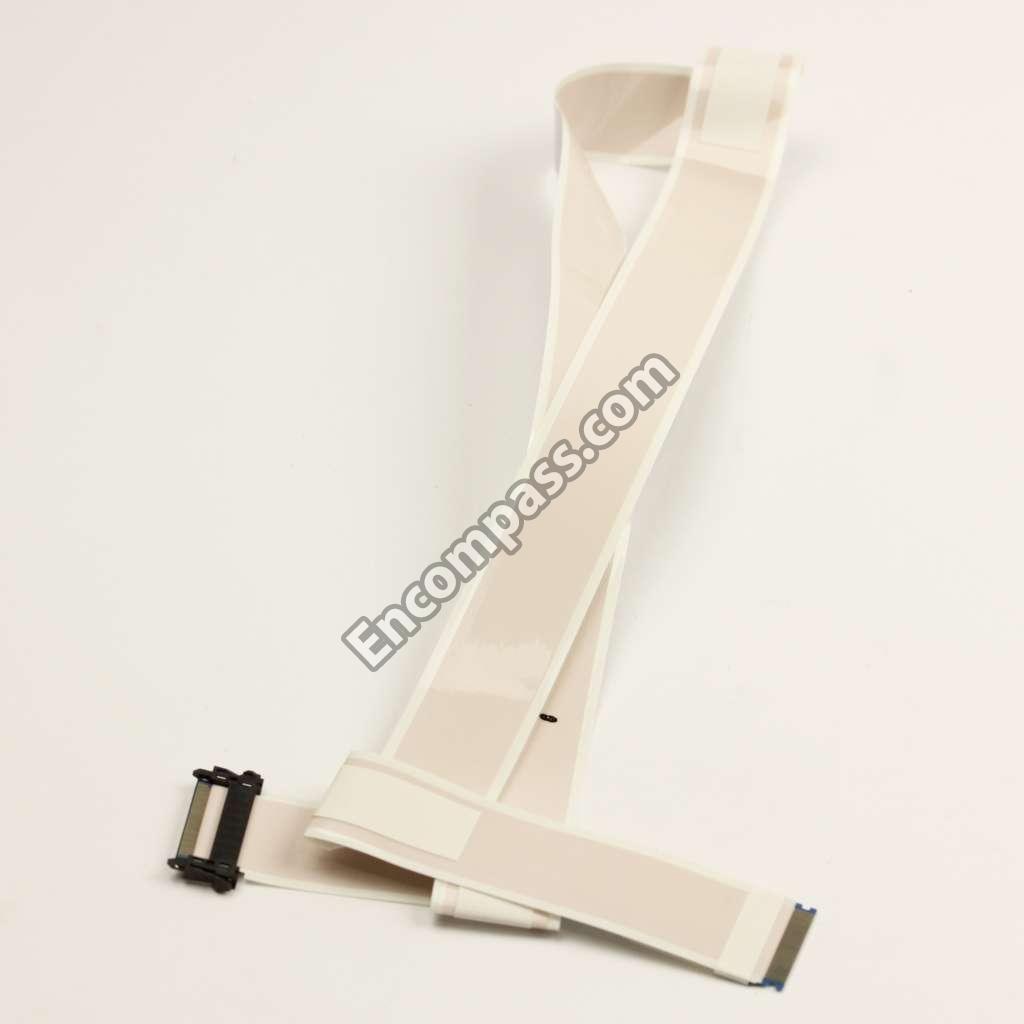

1-848-308-11 1-848-308-11 (LVDS) FLEXIBLE FLAT CABLE 41P
1-848-309-11 1-848-309-11 (LVDS) FLEXIBLE FLAT CABLE 51P
1-458-628-41 1-458-628-41 3D GLASSES (SINGLE KIT)
XBR65X900B 65" 2014 SONY TV JIG XBR65X900B
1-492-687-11 1-492-687-11 AC ADAPTOR
4-480-119-01 4-480-119-01 AC COVER
4-480-412-01 4-480-412-01 BACK COVER (M)
4-463-174-01 4-463-174-01 BADGE, XBR LOGO
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-480-408-11 4-480-408-11 BOTTOM CASE
4-531-743-02 4-531-743-02 BRACKET, RC
4-484-957-02 4-484-957-02 BRACKET, RC (2L CAN)
4-486-586-01 4-486-586-01 BRACKET, SC (LEFT)
4-486-587-01 4-486-587-01 BRACKET, SC (RIGHT)
4-480-396-51 4-480-396-51 BRACKET, SIDE
4-486-527-01 4-486-527-01 BRACKET, STAND C
4-484-098-01 4-484-098-01 BRACKET, VESA (L)
4-484-097-11 4-484-097-11 BRACKET, VESA (M)
1-492-760-12 1-492-760-12 BT MODULE
1-458-794-11 1-458-794-11 CAMERA MODULE
1-458-865-11 1-458-865-11 CARD, WIRELESS LAN
4-460-760-01 4-460-760-01 CASE, BATTERY (FOR 3D GLASSES)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)
1-910-109-21 1-910-109-21 CONNECTOR ASSEMBLY 40P
4-478-075-01 4-478-075-01 COVER UNDER CL
4-488-543-01 4-488-543-01 COVER UNDER CR
4-535-168-01 4-535-168-01 COVER, CAM A
4-478-080-12 4-478-080-12 COVER, TERMINAL REAR
4-478-078-12 4-478-078-12 COVER, TERMINAL SIDE
1-910-109-23 1-910-109-23 FLEXIBLE FLAT CABLE 20P
4-273-074-14 4-273-074-14 FLYER, SAFETY
4-480-411-01 4-480-411-01 FRONT COVER
1-910-109-20 1-910-109-20 HARNESS ASSEMBLY(GB-BK)
1-910-109-22 1-910-109-22 HARNESS ASSEMBLY(GLD-SP)
4-447-962-01 4-447-962-01 HOLDER (HS)
4-487-101-01 4-487-101-01 HOLDER, HS WS
A-1969-163-A A-1969-163-A HSC2 BOARD, MOUNTED
1-845-283-21 1-845-283-21 IR BLASTER
A-2031-746-A A-2031-746-A K1 BOARD, MOUNTED
4-527-285-01 4-527-285-01 LABEL, REAR TERMINAL
4-529-325-01 4-529-325-01 LABEL, SIDE TERMINAL
1-858-976-11 1-858-976-11 LOUDSPEAKER (18MM)
A-2039-709-A A-2039-709-A MAIN BOARD - BAXF BOARD
4-533-561-12 4-533-561-12 MANUAL, INSTRUCTION
1-458-793-11 1-458-793-11 MIC UNIT
4-478-086-11 4-478-086-11 ORNAMENT, MFS
4-478-087-01 4-478-087-01 ORNAMENT, SWF
4-478-088-01 4-478-088-01 ORNAMENT, TW
4-460-761-01 4-460-761-01 PAD, NOSE (FOR 3D GLASSES)
1-848-278-11 1-848-278-11 PORT REPLICATOR
1-474-578-11 1-474-578-11 POWER BOARD - G7B BOARD
1-846-090-32 1-846-090-32 POWER SUPPLY CORD (FOR AC ADAPTOR)
4-478-048-02 4-478-048-02 REAR COVER
1-492-758-12 1-492-758-12 REMOTE COMMANDER (RMF-YD003)
1-492-766-11 1-492-766-11 REMOTE COMMANDER(RM-YD102)
4-256-393-01 4-256-393-01 SCREW +PSW M3X6 W12
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
4-457-815-02 4-457-815-02 SCREW, +PSW M3X6 STEP
2-580-608-01 2-580-608-01 SCREW-STAND TO LCD TV- M5X20
4-487-094-11 4-487-094-11 SHEET, INSULATION (G7)
4-487-105-01 4-487-105-01 SHEET, THERMAL (AYU2, A)
4-457-451-01 4-457-451-01 SHEET, THERMAL (BAF)
2-650-770-31 2-650-770-31 SLIDE, CLAMP
4-256-454-02 4-256-454-02 SPACER (G A)
1-858-974-31 1-858-974-31 SPEAKER BOX MFS (LEFT)
1-858-974-41 1-858-974-41 SPEAKER BOX MFS (RIGHT)
1-858-975-31 1-858-975-31 SPEAKER BOX SWF (LEFT)
1-858-975-41 1-858-975-41 SPEAKER BOX SWF (RIGHT)
4-478-105-11 4-478-105-11 STAND, LEFT
4-478-109-11 4-478-109-11 STAND, RIGHT
3-674-673-22 3-674-673-22 STOPPER (A)
4-534-647-01 4-534-647-01 STOPPER, PSU
4-414-470-01 4-414-470-01 SUPPORT BELT KIT
4-537-437-11 4-537-437-11 SUPPORT, CUSHION (2L CAN)
1-798-510-11 1-798-510-11 SWITCH UNIT
4-480-410-01 4-480-410-01 TOP COVER
3-876-036-71 3-876-036-71 UNI-LABEL, BLANK
1-848-339-11 1-848-339-11 USB CABLE (MINIB TO MICROB)
4-547-377-01 4-547-377-01 WALL MOUNT ATTACHMENT (SET OF M6 LONG & M5 SHORT)
