Model Image
Manufacturer

Sony

Model Number

XBR65X90CH

Description

65-inch Class 4k Hdr Led Tv

Interactive Exploded View

Parts List

Part Number Description
A-5014-266-A A-5014-266-A (MAIN CBA) BM5_UC COMPL (UC2)

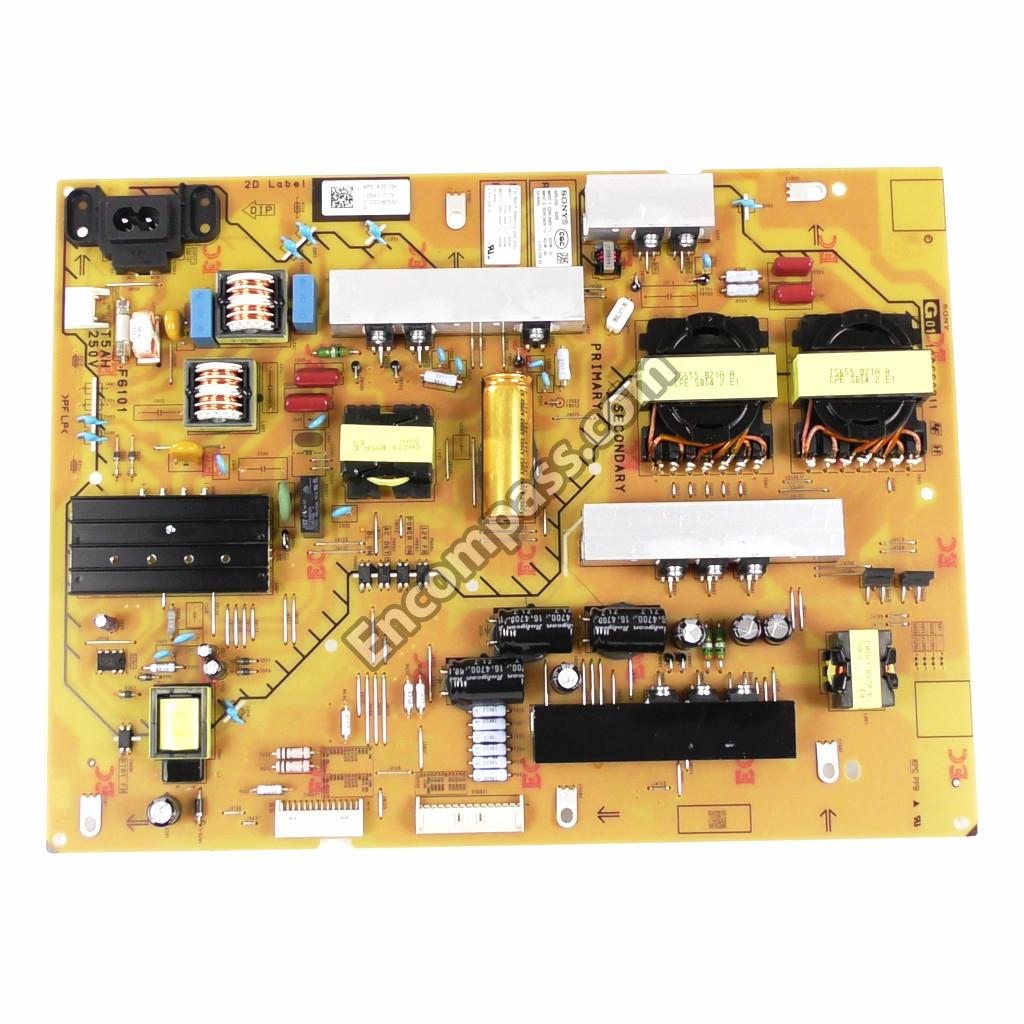

1-006-110-13 1-006-110-13 (POWER CBA) G01-STATIC CONVERTER (TV) (UC2)
A-5022-113-A A-5022-113-A 20LD32A2 COMPL (UC2)
5-009-142-21 5-009-142-21 BEZEL B ASSY (2L APL) (NX BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-142-22 5-009-142-22 BEZEL B ASSY (2L APL) (NX BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-142-61 5-009-142-61 BEZEL B ASSY (2L APL) (NXB BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-138-21 5-009-138-21 BEZEL L ASSY (2L APL) (NX BLACK, LEFT) (UC2) (PANEL PART)
5-009-138-22 5-009-138-22 BEZEL L ASSY (2L APL) (NX BLACK, LEFT) (UC2) (PANEL PART)
5-009-138-61 5-009-138-61 BEZEL L ASSY (2L APL) (NXB BLACK, LEFT) (UC2) (PANEL PART)
5-009-140-21 5-009-140-21 BEZEL R ASSY (2L APL) (NX BLACK, RIGHT) (UC2) (PANEL PART)
5-009-140-22 5-009-140-22 BEZEL R ASSY (2L APL) (NX BLACK, RIGHT) (UC2) (PANEL PART)
5-009-140-61 5-009-140-61 BEZEL R ASSY (2L APL) (NXB BLACK, RIGHT) (UC2) (PANEL PART)
5-009-136-21 5-009-136-21 BEZEL T ASSY (2L APL) (NX BLACK, TOP ) (UC2) (PANEL PART)
5-009-136-22 5-009-136-22 BEZEL T ASSY (2L APL) (NX BLACK, TOP) (UC2) (PANEL PART)
5-009-136-61 5-009-136-61 BEZEL T ASSY (2L APL) (NXB BLACK, TOP) (UC2) (PANEL PART)
5-013-399-11 5-013-399-11 CLAMPER, CABLE (2L APL) A (UC2)

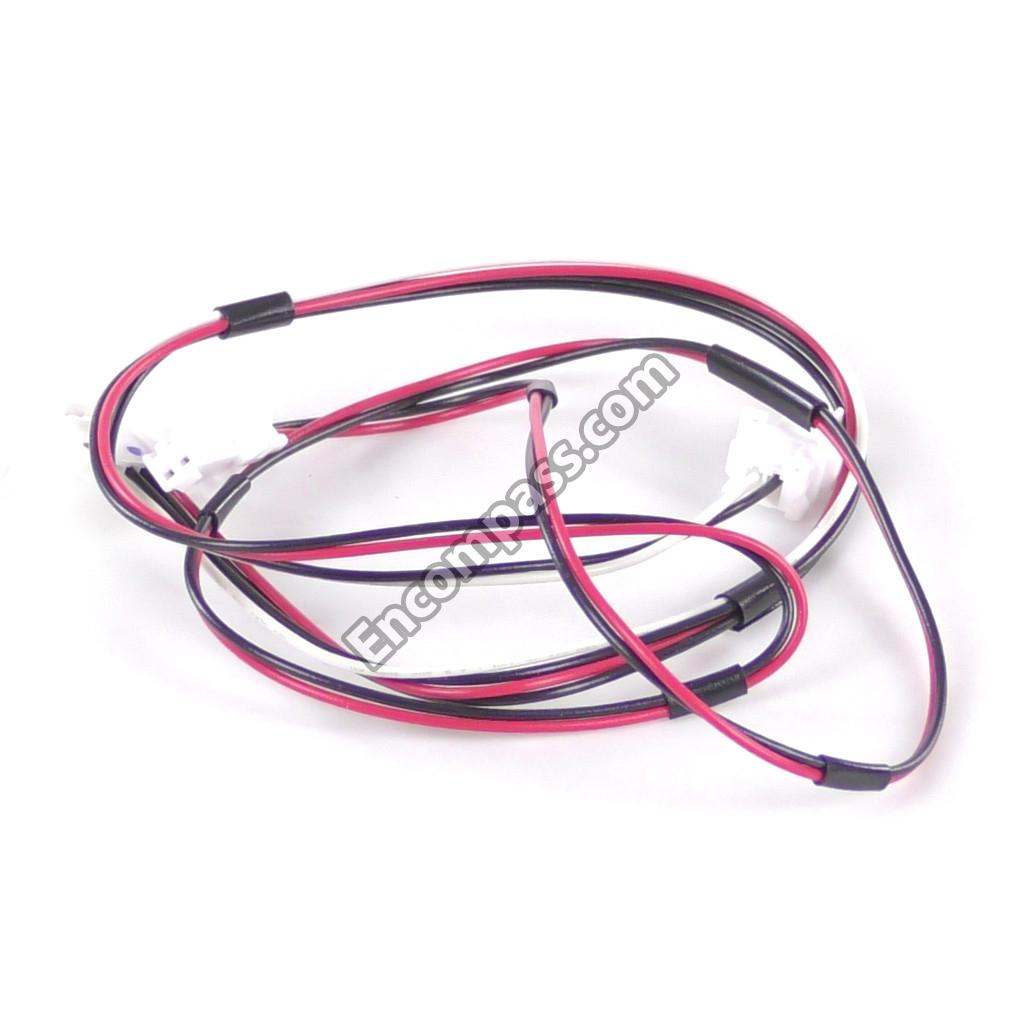

1-007-219-11 1-007-219-11 CONNECTOR ASSY 6P (SP) (UC2)
1-005-549-11 1-005-549-11 FFC (65) (UC2) (PANEL PART)
1-007-185-11 1-007-185-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-011-292-11 1-011-292-11 FLEXIBLE FLAT CABLE 60P (UC2) (PANEL PART)
1-007-112-11 1-007-112-11 FLEXIBLE FLAT CABLE 80P (UC2) (PANEL PART)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UC2) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (UC2) (PANEL PART)
1-010-483-11 1-010-483-11 LIQUID CRYSTAL ELEMENT(A65QVN) (UC2) (PANEL PART)
1-014-973-11 1-014-973-11 LIQUID CRYSTAL ELEMENT(C65D03) (CSOT PART) (UC2) (PANEL PART)
1-007-574-12 1-007-574-12 LIQUID CRYSTAL ELEMENT(S65FF3) (SDC PART) (UC2) (PANEL PART)
1-007-574-11 1-007-574-11 LIQUID CRYSTAL ELEMENT(S65FF3) (UC2) (PANEL PART)
5-009-011-21 5-009-011-21 MID CHASSIS B ASSY (2L APL) (BOTTOM) (UC2) (PANEL PART)
5-009-011-22 5-009-011-22 MID CHASSIS B ASSY (2L APL) (BOTTOM) (UC2) (PANEL PART)
5-009-013-22 5-009-013-22 MID CHASSIS L ASSY (2L APL) (LEFT) (UC2) (PANEL PART)
5-009-015-22 5-009-015-22 MID CHASSIS R ASSY (2L APL) (RIGHT) (UC2) (PANEL PART)
5-009-009-22 5-009-009-22 MID CHASSIS T ASSY (2L APL) (TOP) (UC2) (PANEL PART)
1-014-974-11 1-014-974-11 MOUNTED PWB E-T-CON(65) (CSOT PART) (UC2) (PANEL PART)
1-007-575-12 1-007-575-12 MOUNTED PWB E-T-CON(65) (UC2)
1-010-484-11 1-010-484-11 MOUNTED PWB E-T-CON(65) (UC2) (PANEL PART)
NSI NSI P-MOD (YDAS065DND01) (UC2)
5-021-534-01 5-021-534-01 POLARIZER C/F (LJ01-12302A) (UC2) (PANEL PART)
5-031-200-01 5-031-200-01 POLARIZER F/CF (66.C4U57.395) (UC2) (PANEL PART)
5-044-581-01 5-044-581-01 POLARIZER F/CF (CSOT PART) (UC2) (PANEL PART)
5-044-582-01 5-044-582-01 POLARIZER F/CF (CSOT PART) (UC2) (PANEL PART)
5-044-583-01 5-044-583-01 POLARIZER F/CF (CSOT PART) (UC2) (PANEL PART)
5-021-535-01 5-021-535-01 POLARIZER TFT (LJ01-12303A) (UC2) (PANEL PART)

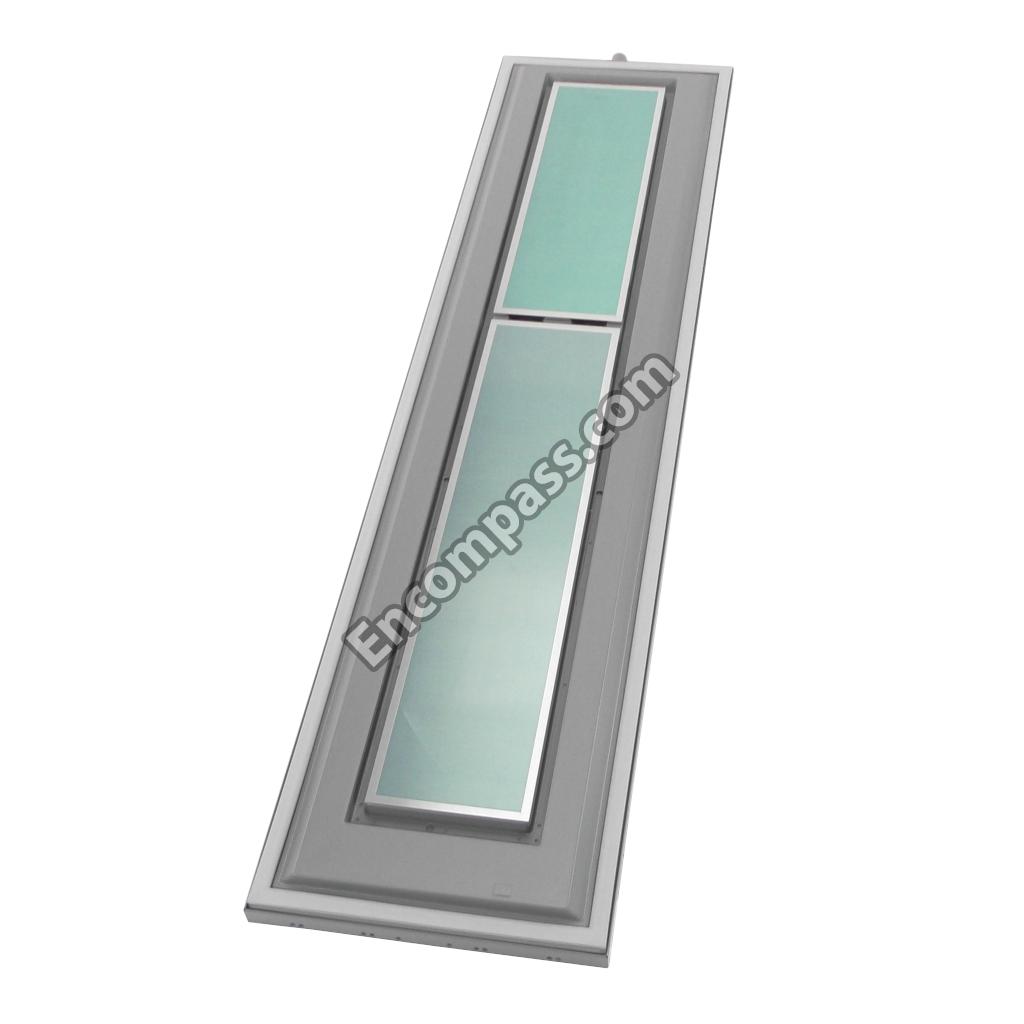

5-018-079-12 5-018-079-12 REAR COVER (2L APL) A (UC2)

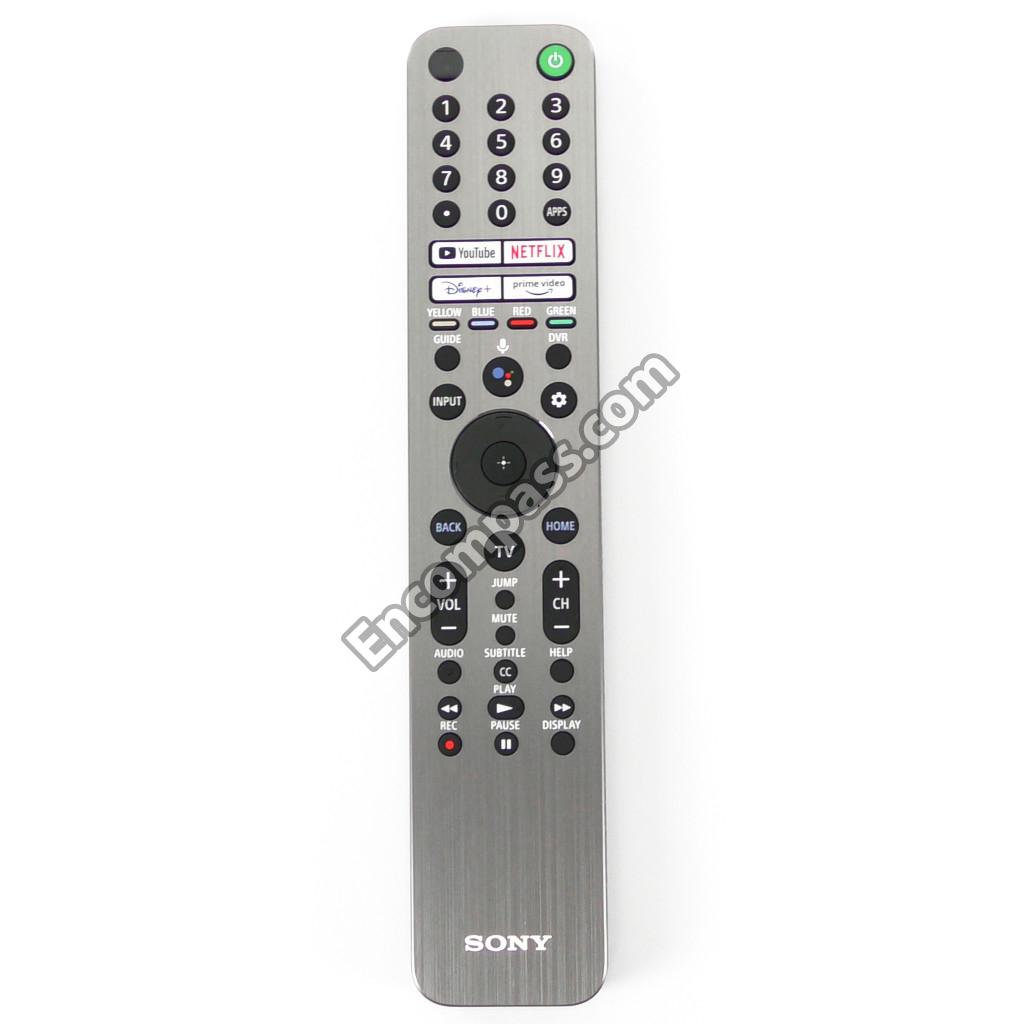

1-009-947-11 1-009-947-11 REMOTE CONTROL RMF-TX621U
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2) (PANEL PART)
4-579-926-01 4-579-926-01 SCREW, M3X3 (BLACK - FOR NX & NXB) (UC2) (PANEL PART)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UC2) (PANEL PART)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL) (UC2) (PANEL PART)
4-699-975-02 4-699-975-02 SHEET,THERMAL(5567H) (UC2) (PANEL PART)
1-012-387-11 1-012-387-11 SOURCE DRIVER IC MT BOARD (46.S0966.386) (UC2) (PANEL PART)
1-013-084-11 1-013-084-11 SOURCE DRIVER IC MT BOARD (CSOT PART) (UC2) (PANEL PART)
1-009-289-11 1-009-289-11 SOURCE DRIVER IC MT BOARD (LJ13-04011A) (UC2) (PANEL PART)
5-012-814-11 5-012-814-11 STAND, L(2L APL) A (UC2)
5-012-815-11 5-012-815-11 STAND, R(2L APL) A (UC2)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UC2)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UC2) (PANEL PART)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UC2) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UC2) (PANEL PART)
5-009-861-02 5-009-861-02 VESA SPACER A (COM)
