Model Image
Manufacturer

Sony

Model Number

XBR65X930C

Description

65-inch 4k Ultra Hd

Interactive Exploded View

Parts List

Part Number Description
1-458-628-41 1-458-628-41 3D EYE WEAR TDG-BT500A (SERVICE) EU
4-480-120-01 4-480-120-01 AC COVER(NAS)
7-600-040-44 7-600-040-44 ADHESIVE (SV380C) 333CC GRY
4-565-392-01 4-565-392-01 ATTACHMENT, WALL MOUNT A (ALB)
4-463-174-01 4-463-174-01 BADGE, XBR LOGO (H6)
4-548-730-01 4-548-730-01 BRACKET STAND OUT(2L ALB)
4-548-722-01 4-548-722-01 BRACKET, SC(2L ALB)
4-546-442-01 4-546-442-01 BRACKET, SIDE FL (MOLD)
4-548-732-01 4-548-732-01 BRACKET, STAND (C)(2L ALB)
4-546-441-01 4-546-441-01 BRACKET, TOP FL (MOLD)
4-546-443-21 4-546-443-21 BRACKET, UNDER FL (MOLD)
4-562-407-01 4-562-407-01 BRACKET, VESA (ALB)
4-484-097-11 4-484-097-11 BRACKET, VESA (M)
4-564-318-02 4-564-318-02 BRACKET, WIFI
1-754-958-11 1-754-958-11 BT ANTENNA

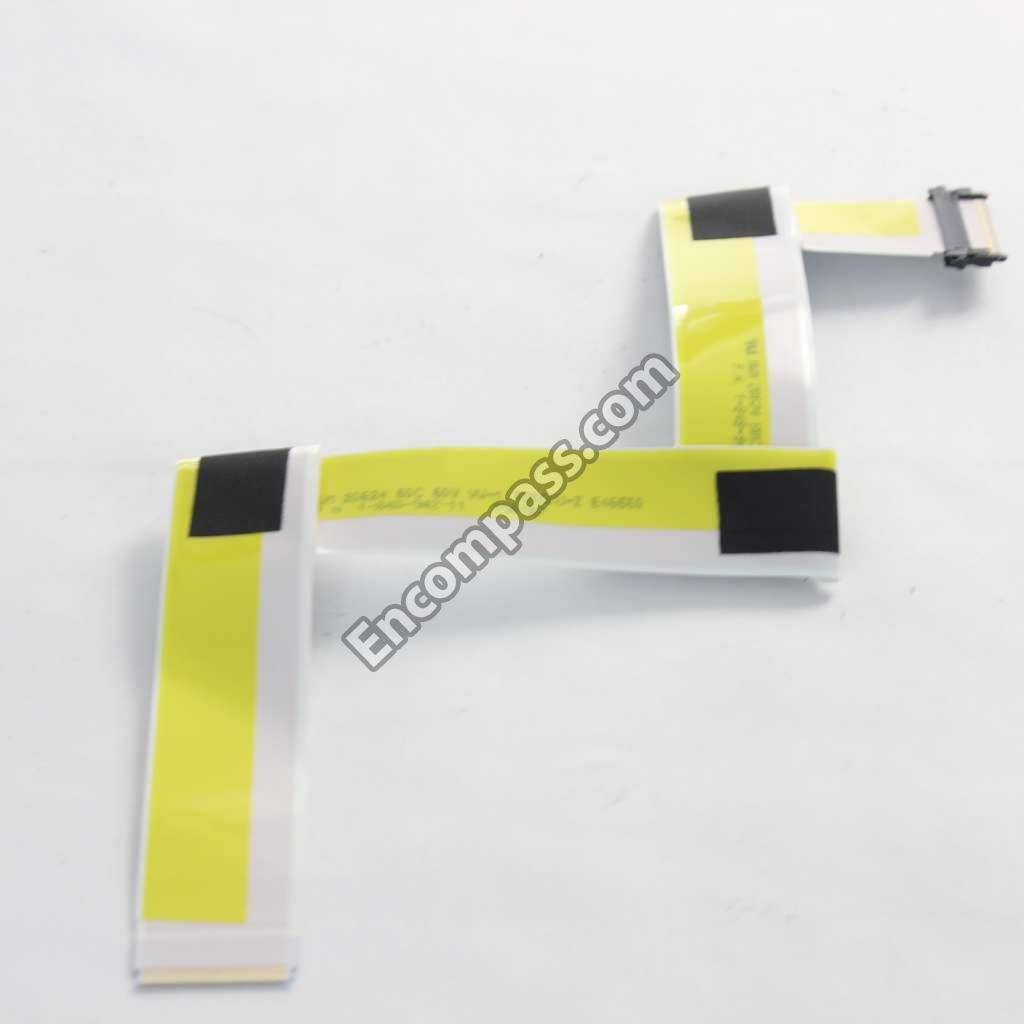

1-848-953-11 1-848-953-11 CABLE, FLEXIBLE FLAT 41P
1-848-942-11 1-848-942-11 CABLE, FLEXIBLE FLAT 51P
4-564-316-01 4-564-316-01 CASE, BOTTOM (L)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)

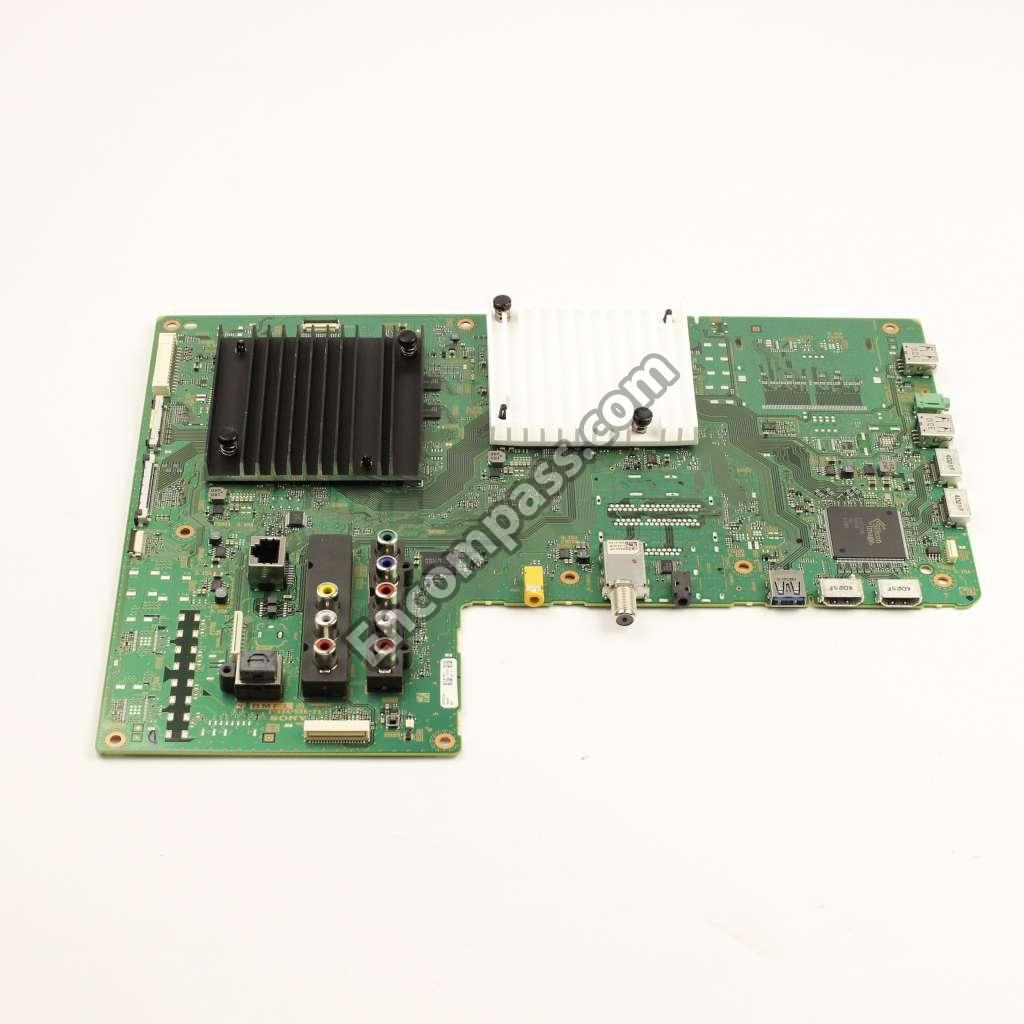

A-2072-536-A A-2072-536-A COMPLE SVC (XS) BMFL (Main CBA) UC2 #
4-548-723-01 4-548-723-01 COVER, TERMINAL (2L ALB)
4-564-317-01 4-564-317-01 COVER, TOP
1-910-110-07 1-910-110-07 FLEXIBLE FLAT CABLE 20P
1-910-110-08 1-910-110-08 FLEXIBLE FLAT CABLE 24P
1-474-619-11 1-474-619-11 G8(CH)-STATIC CONVERTER(TV) (Power CBA)
1-910-110-05 1-910-110-05 HARNESS ASSY
1-910-110-06 1-910-110-06 HARNESS ASSY(MAIN)
4-547-207-01 4-547-207-01 HEAT SINK(SC)
4-477-465-31 4-477-465-31 HI-RES LABEL
4-548-828-01 4-548-828-01 HOLDER, SIDE SW (ALB)
A-2066-086-A A-2066-086-A HSC3_L MOUNT
1-845-283-21 1-845-283-21 IR BLASTER
A-2068-389-A A-2068-389-A KS MOUNT
4-563-764-01 4-563-764-01 LABEL, REAR TERMINAL
4-563-756-01 4-563-756-01 LABEL, SIDE TERMINAL (L)
4-563-760-01 4-563-760-01 LABEL, UNDER TERMINAL

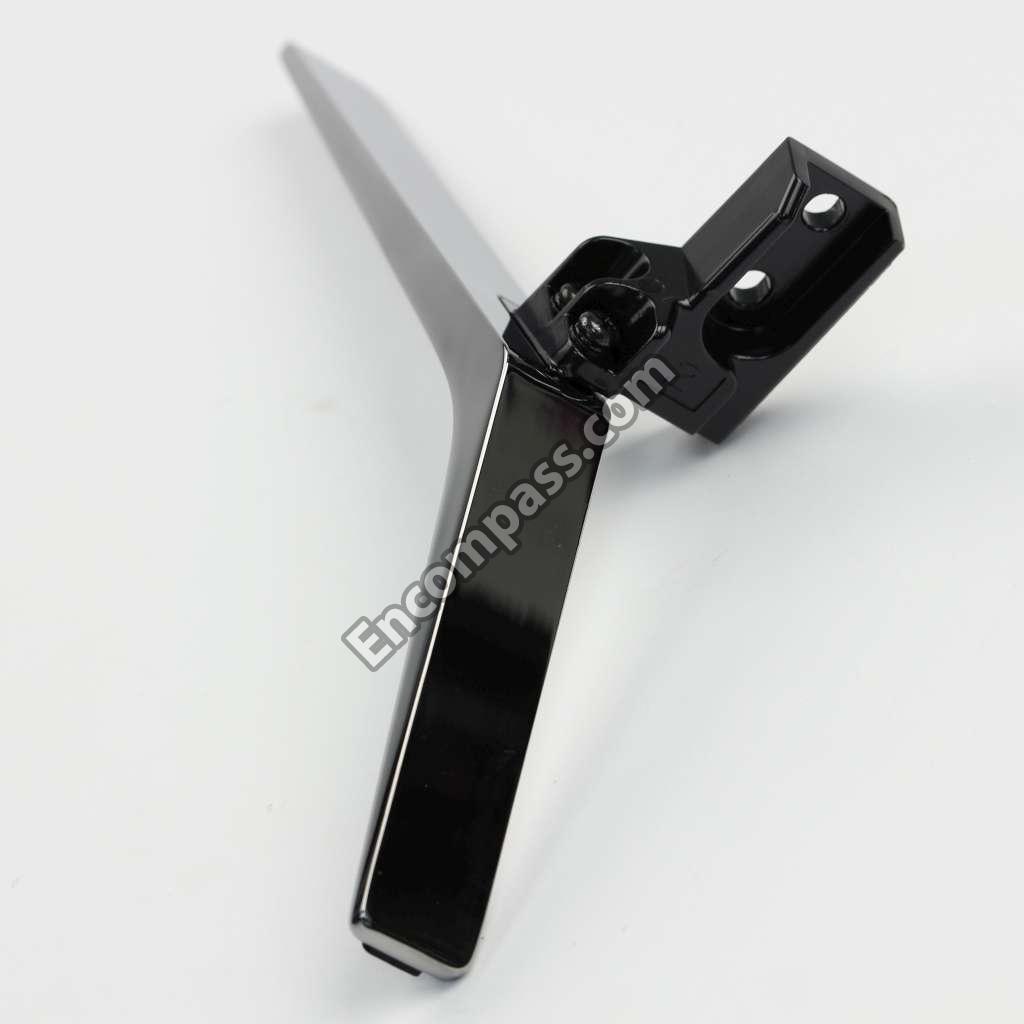

4-562-464-01 4-562-464-01 LEFT STAND LEG
4-564-313-01 4-564-313-01 LIGHT, GUIDE
1-859-104-11 1-859-104-11 LOUDSPEAKER(18MM)
4-548-720-01 4-548-720-01 ORNAMENT, MFS (ALB)
4-548-719-01 4-548-719-01 ORNAMENT, SWF (ALB)
4-548-721-01 4-548-721-01 ORNAMENT, TW (ALB)
4-564-312-01 4-564-312-01 PANEL, ORNAMENT
1-839-696-21 1-839-696-21 POWER-SUPPLY CORD (WITH CONN.)
4-548-701-02 4-548-701-02 REAR COVER (2L ALB) A
4-562-189-12 4-562-189-12 REFERENCE GUIDE
1-492-949-12 1-492-949-12 REMOTE COMMANDER (RMF-TX100U)
1-492-978-21 1-492-978-21 REMOTE COMMANDER (RMT-TX100U)

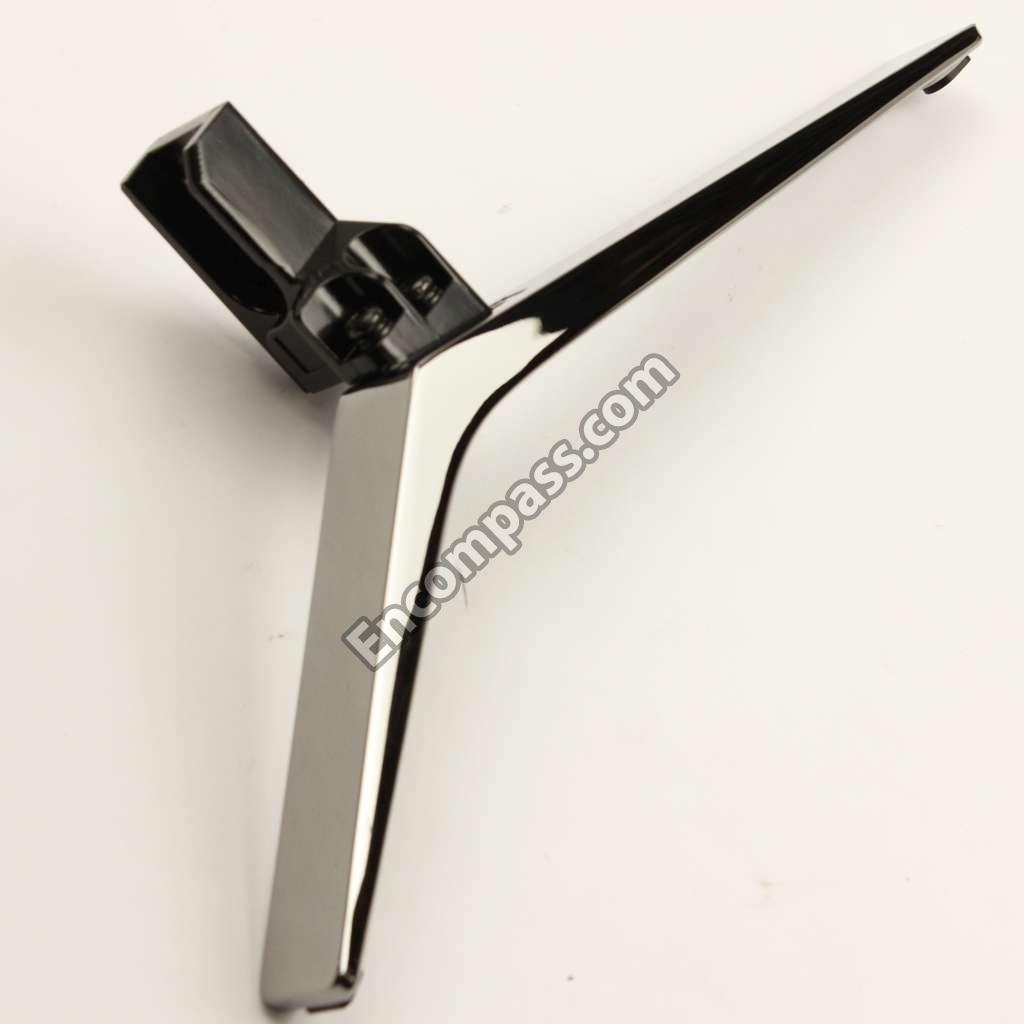

4-562-465-01 4-562-465-01 RIGHT STAND LEG
2-990-421-41 2-990-421-41 SCREW (+PSW) (M3X6)
4-452-935-11 4-452-935-11 SCREW , +PWH M3X6
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
2-580-595-01 2-580-595-01 SCREW, +PSW M3X12
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12
2-580-593-01 2-580-593-01 SCREW, +PSW M3X8
4-159-298-01 4-159-298-01 SCREW, +PSW M4X10
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12
4-549-182-01 4-549-182-01 SHEET, INSULATION(HWK 2L)
4-549-528-11 4-549-528-11 SHEET, THERMAL (SC)
4-549-186-01 4-549-186-01 SHEET, THERMAL(BM)
2-650-770-21 2-650-770-21 SLIDE, CLAMP

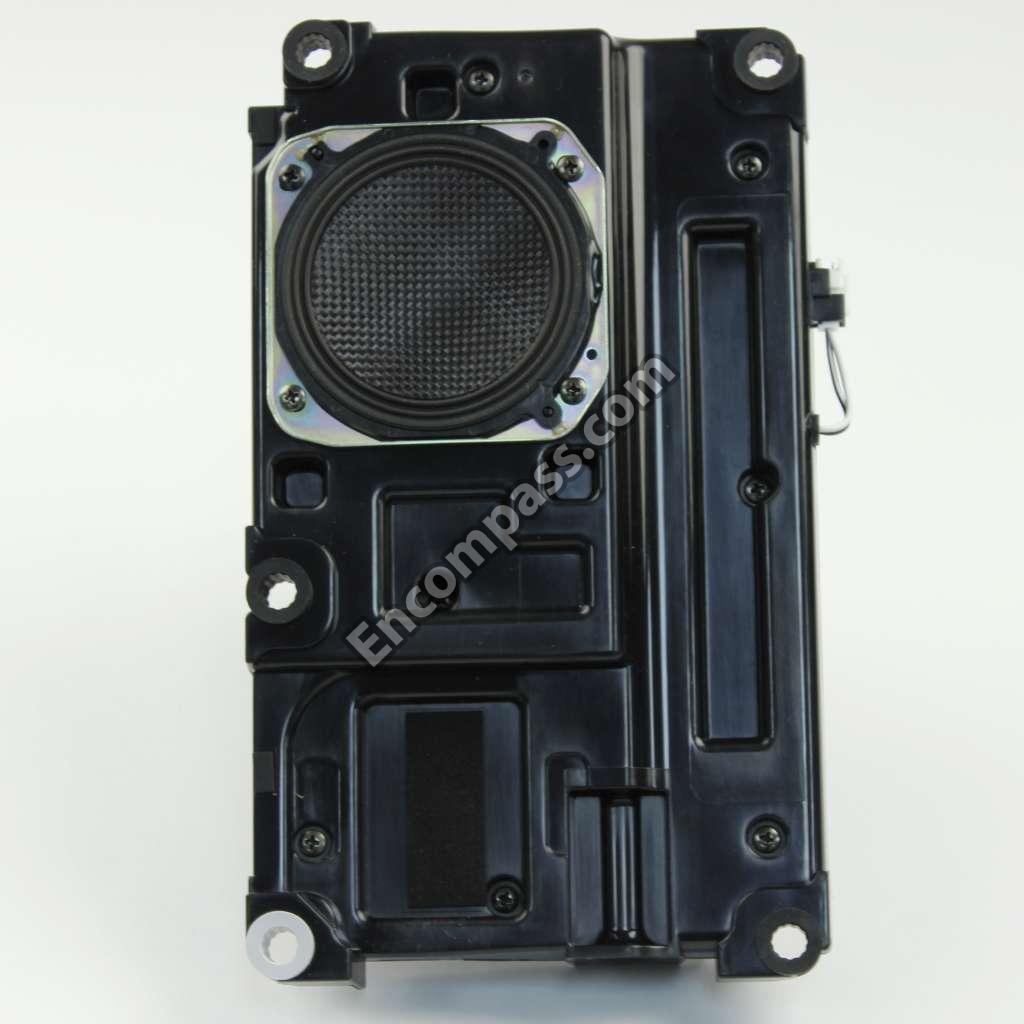

1-859-107-21 1-859-107-21 SP BOX ASSY
1-859-107-11 1-859-107-11 SP BOX ASSY
1-859-106-21 1-859-106-21 SP BOX ASSY
1-859-106-11 1-859-106-11 SP BOX ASSY

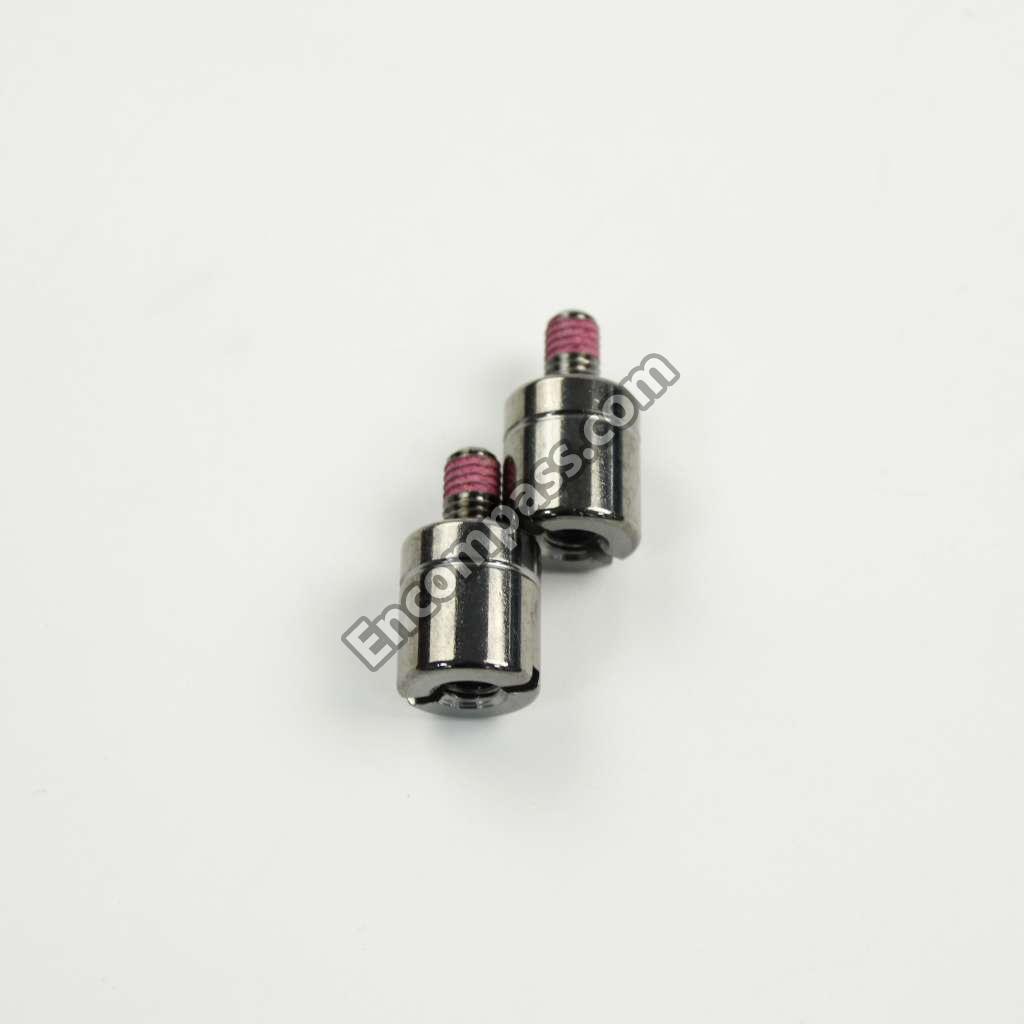

2-580-608-01 2-580-608-01 STAND SCREW (2 PER LEG)
3-674-673-22 3-674-673-22 STOPPER (A)

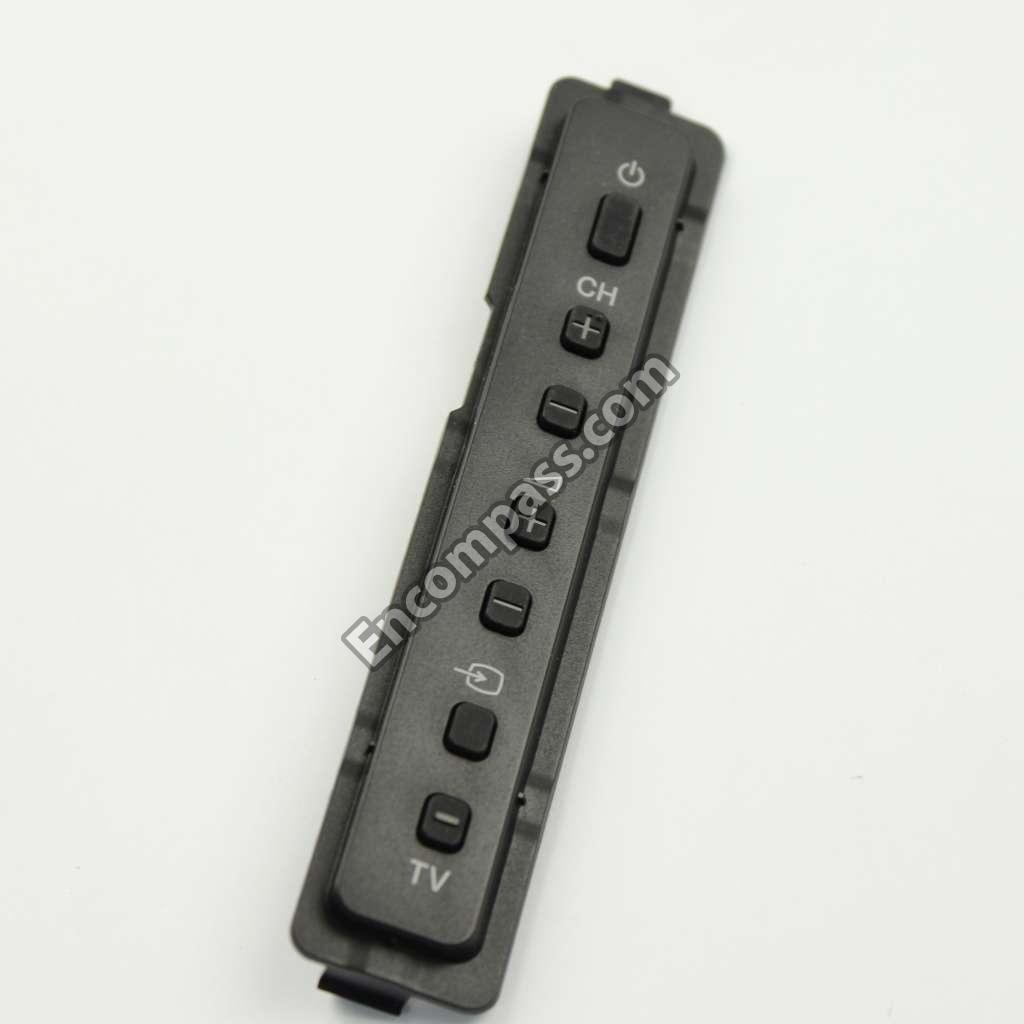

1-493-015-11 1-493-015-11 SWITCH UNIT (VM-WW)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT
4-548-729-01 4-548-729-01 UNDER COVER (CL)(2L ALB)
4-548-728-01 4-548-728-01 UNDER COVER (CR)(2L ALB)
4-548-727-01 4-548-727-01 UNDER COVER(L)(2L ALB)
4-548-726-01 4-548-726-01 UNDER COVER(R)(2L ALB)
3-876-036-71 3-876-036-71 UNI-LABEL, BLANK
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC)
