Model Image
Manufacturer

Sony

Model Number

XBR70X850B

Description

70" (69.5" Diagonal) X850b 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description
1-848-370-11 1-848-370-11 (LVDS) FLEXIBLE FLAT CABLE 41P
1-848-371-11 1-848-371-11 (LVDS) FLEXIBLE FLAT CABLE 51P
4-480-120-01 4-480-120-01 AC COVER
1-458-628-41 1-458-628-41 ACTIVE 3D GLASSES (SINGLE KIT)
4-480-412-01 4-480-412-01 BACK COVER
4-463-174-01 4-463-174-01 BADGE, XBR LOGO
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-474-888-02 4-474-888-02 BOTTOM CASE
4-536-557-01 4-536-557-01 BRACKET RC SIDE
4-480-159-52 4-480-159-52 BRACKET SIDE
4-536-835-01 4-536-835-01 BRACKET, SP LEFT
4-536-836-01 4-536-836-01 BRACKET, SP RIGHT
4-489-267-01 4-489-267-01 BRACKET, TOP

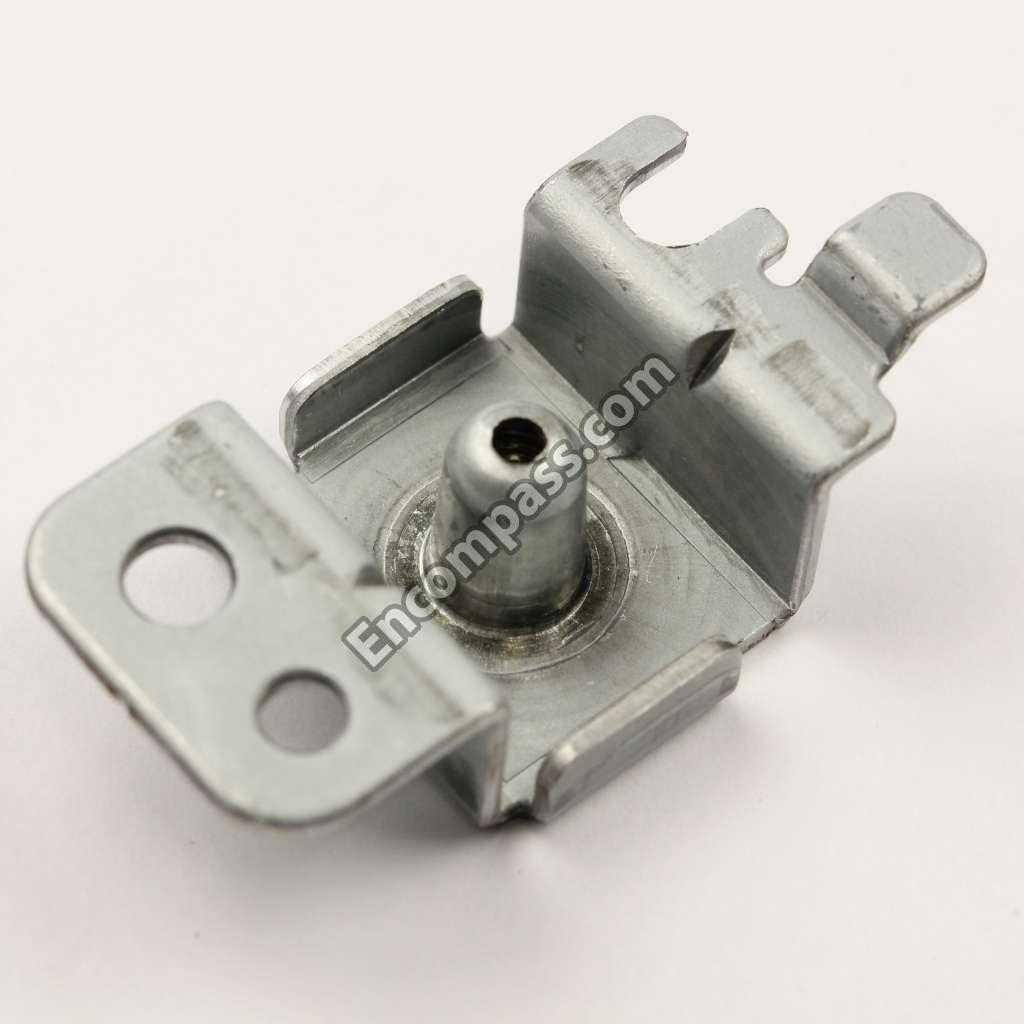

4-486-590-01 4-486-590-01 BRACKET, VESA
1-492-760-12 1-492-760-12 BT MODULE
1-458-820-21 1-458-820-21 CAMERA MODULE
4-536-401-01 4-536-401-01 CARTON INDIVIDUAL (HWI 3L)
4-460-760-01 4-460-760-01 CASE, BATTERY (3D GLASSES)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
1-910-109-43 1-910-109-43 CONNECTOR ASSEMBLY 14P
1-910-109-52 1-910-109-52 CONNECTOR ASSEMBLY 20P
1-910-109-41 1-910-109-41 CONNECTOR ASSEMBLY 28P
4-532-606-01 4-532-606-01 COVER, STAND HOLE
4-532-602-01 4-532-602-01 COVER, UNDER
4-538-934-01 4-538-934-01 CUSHION 1825A
4-535-597-11 4-535-597-11 CUSHION LOWER (3L HWI)
4-540-667-11 4-540-667-11 CUSHION SIDE (3L HWI)
4-535-598-11 4-535-598-11 CUSHION UPPER (3L HWI)
1-910-109-44 1-910-109-44 FLEXIBLE FLAT CABLE 20P
4-480-411-01 4-480-411-01 FRONT COVER
4-452-919-01 4-452-919-01 GASKET (SC)
1-910-109-42 1-910-109-42 HARNESS ASSEMBLY (MAIN)
4-447-962-01 4-447-962-01 HOLDER (HS)
4-487-101-01 4-487-101-01 HOLDER, HS WS
4-535-900-01 4-535-900-01 HOLDER, NECK LEFT
4-535-901-01 4-535-901-01 HOLDER, NECK RIGHT

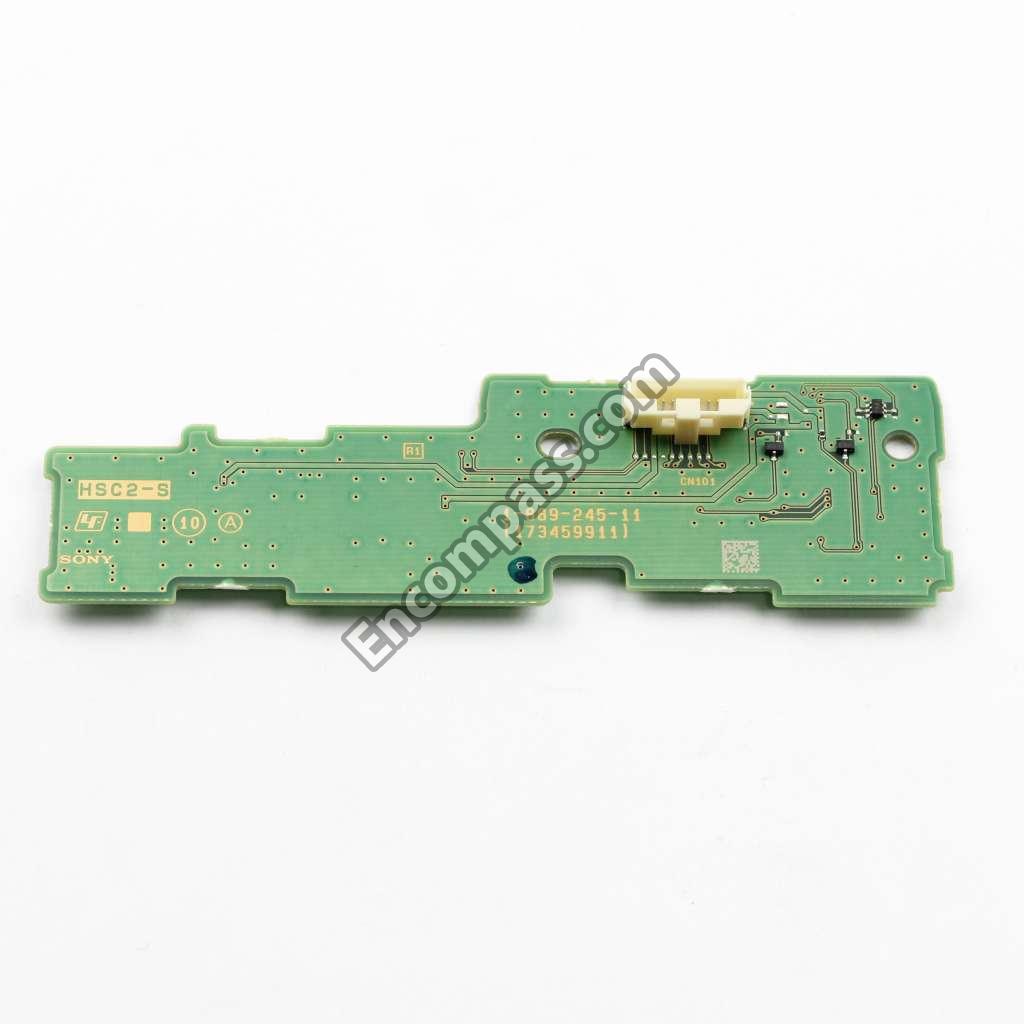

A-2057-722-A A-2057-722-A HSC2, BOARD MOUNTED
1-845-283-21 1-845-283-21 IR BLASTER
A-2033-108-A A-2033-108-A K2 BOARD, COMPLETE
4-527-285-01 4-527-285-01 LABEL, REAR TERMINAL
4-540-325-01 4-540-325-01 LABEL, SIDE TERMINAL
1-895-704-11 1-895-704-11 LD MT BOARD
4-541-011-11 4-541-011-11 LID TOP (3L HWI)
A-2057-841-B A-2057-841-B MAIN BOARD - BAXF BOARD
4-533-569-12 4-533-569-12 MANUAL, INSTRUCTION (FOR 3D GLASSES)
1-458-793-11 1-458-793-11 MIC UNIT
1-895-617-12 1-895-617-12 MOUNTED PWB ETCON(70)
4-460-761-01 4-460-761-01 PAD, NOSE (3D GLASSES)
1-474-578-11 1-474-578-11 POWER BOARD - G7B BOARD
4-535-584-01 4-535-584-01 REAR COVER
4-535-594-01 4-535-594-01 REFLECTOR SP
2-580-639-01 2-580-639-01 SCREW +BVTP2 4X12
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
2-580-607-01 2-580-607-01 SCREW- STAND TO LCD TV- M5X12
4-487-094-11 4-487-094-11 SHEET, INSULATION (G7)
4-487-105-01 4-487-105-01 SHEET, THERMAL (AYU2, A) (FOR BAXF)
4-457-451-01 4-457-451-01 SHEET, THERMAL (BAF) (FOR MAIN PLATE)
2-650-770-31 2-650-770-31 SLIDE, CLAMP
4-256-454-02 4-256-454-02 SPACER (G A)
1-859-007-11 1-859-007-11 SPEAKER BOX LEFT
1-859-007-21 1-859-007-21 SPEAKER BOX RIGHT
4-536-414-01 4-536-414-01 STAND LEFT
4-536-416-01 4-536-416-01 STAND RIGHT
1-492-766-11 1-492-766-11 STANDARD REMOTE COMMANDER D103 (RM-YD102)
3-674-673-22 3-674-673-22 STOPPER (A)
4-443-737-02 4-443-737-02 SUPPORT BELT KIT
1-798-510-11 1-798-510-11 SWITCH UNIT
4-474-892-01 4-474-892-01 TOP COVER
1-492-758-12 1-492-758-12 TOUCHPAD REMOTE COMMANDER (RMF-YD003)
4-535-599-11 4-535-599-11 TRAY (3L HWI)
4-486-061-02 4-486-061-02 USB HOLDER
1-458-865-11 1-458-865-11 WIRELESS LAN CARD
