Model Image
Manufacturer

Sony

Model Number

XBR75A1E

Description

75-inch Class Bravia Oled 4k Hdr Tv

Interactive Exploded View

Parts List

Part Number Description
1-843-998-12 1-843-998-12 AC INLET
1-785-504-21 1-785-504-21 ADAPTOR, CONVERSION LA8
7-600-040-44 7-600-040-44 ADHESIVE (SV380C) 333CC GRY FOR BKA

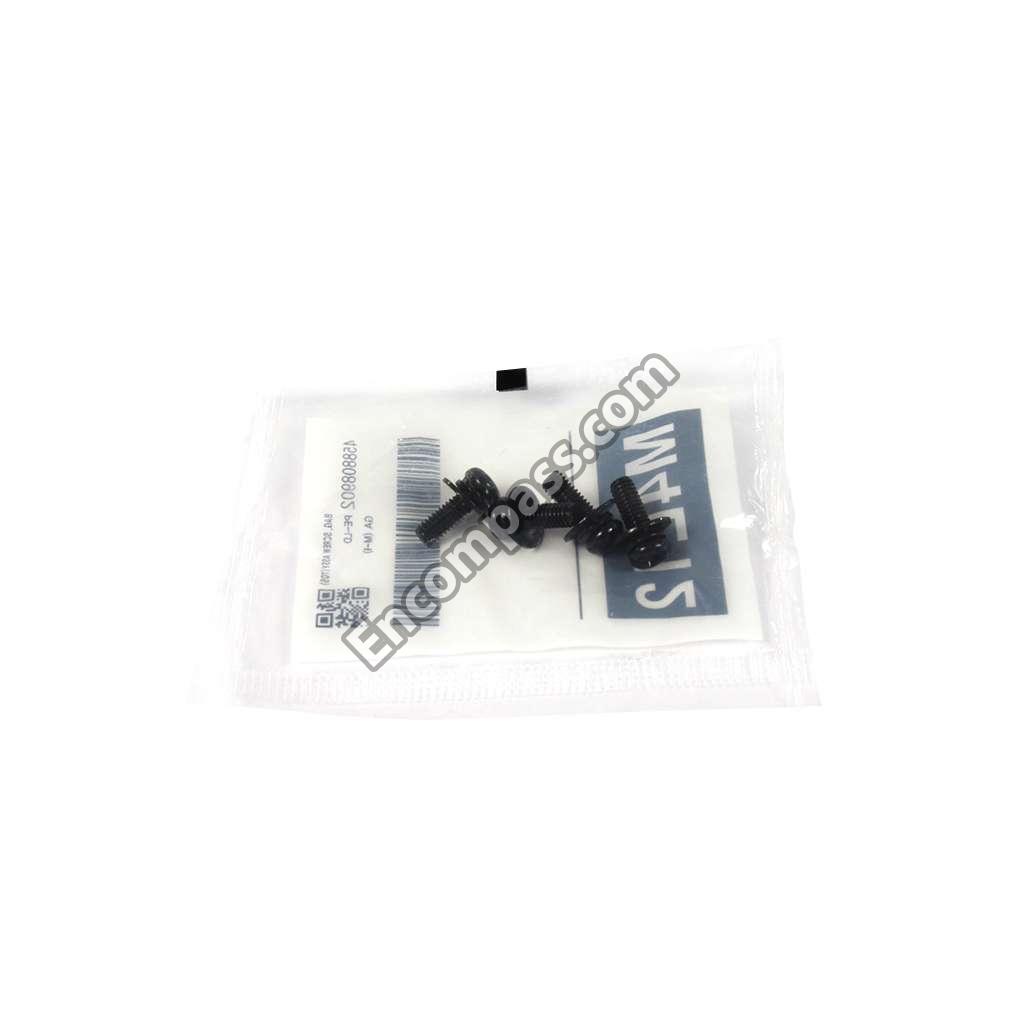

4-588-089-03 4-588-089-03 BAG, SCREW ASSEMBLY (TQS)
4-688-522-31 4-688-522-31 BRACKET, CARD SLOT(HKS) FOR UC2
4-693-189-01 4-693-189-01 BRACKET, SLIDE L (3L HKS)
4-693-190-01 4-693-190-01 BRACKET, SLIDE R (3L HKS)
4-688-523-21 4-688-523-21 BRACKET, UNDER (HKS) FOR UC2

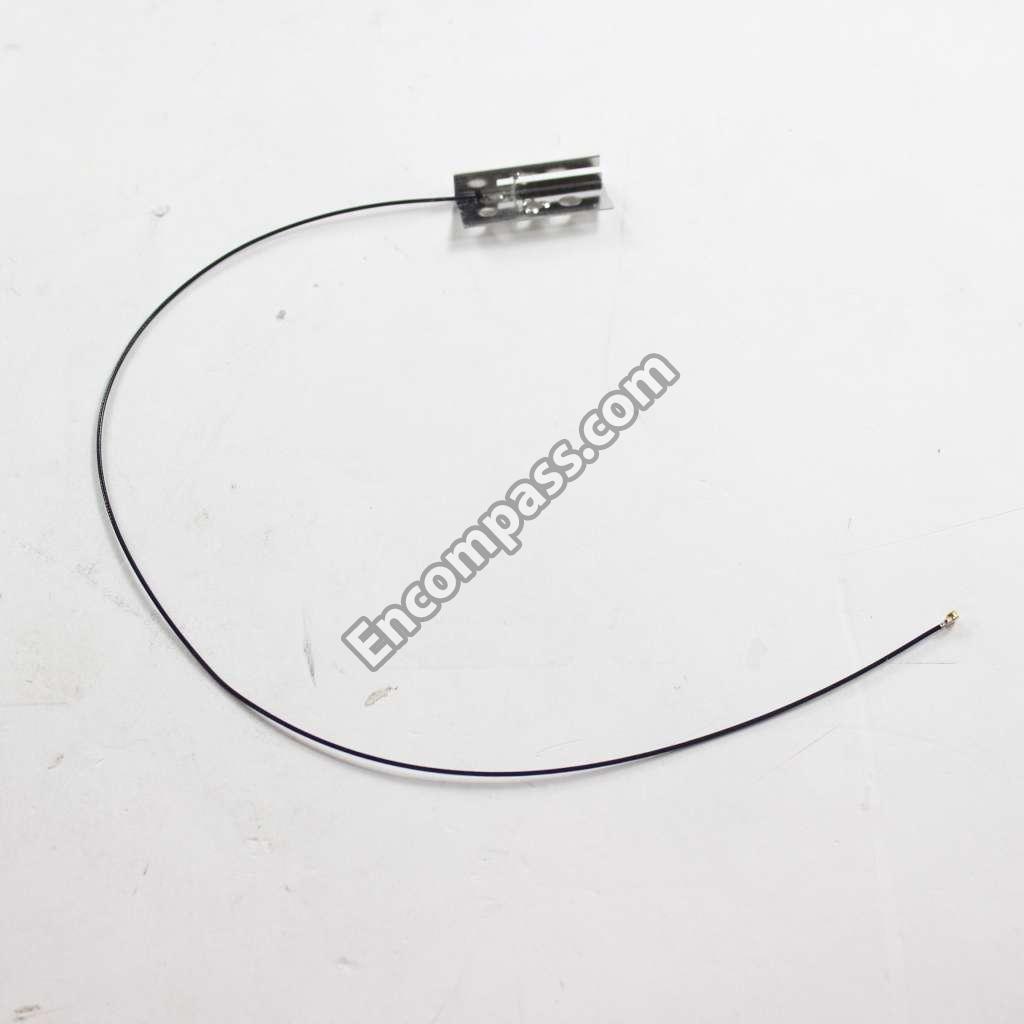

1-522-021-12 1-522-021-12 BT ANTENNA 380MM FXC
4-693-194-01 4-693-194-01 CHASSIS, BOX A (3L HKS)

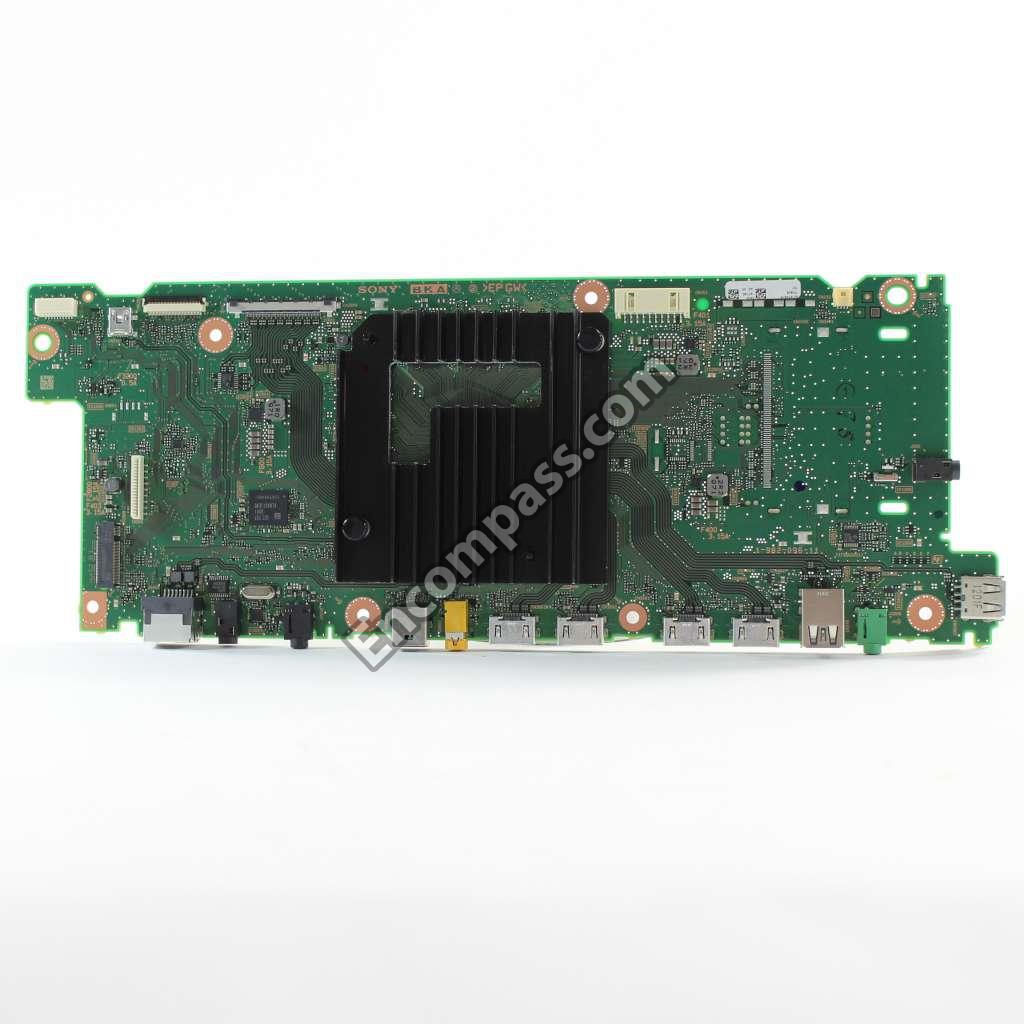

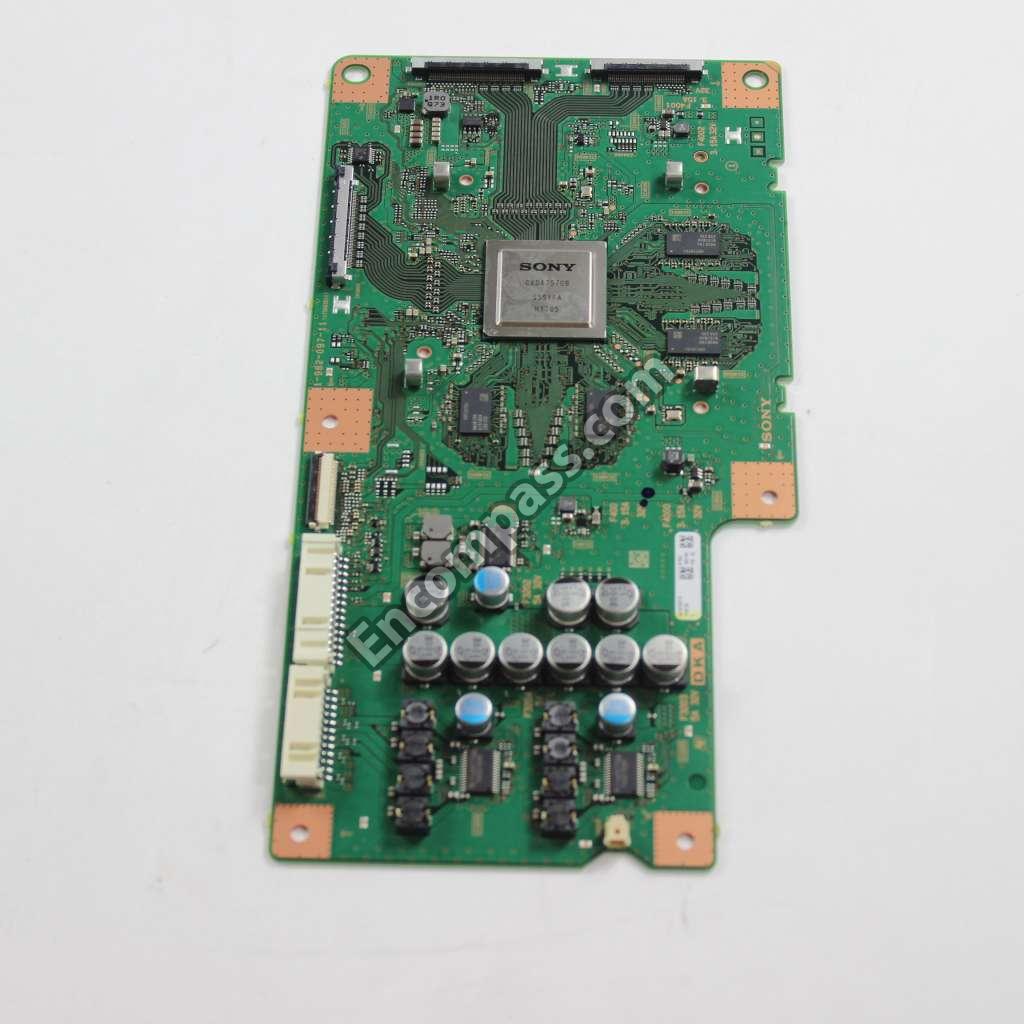

A-2181-897-A A-2181-897-A COMPL SVC BKA_UC FOR UC2

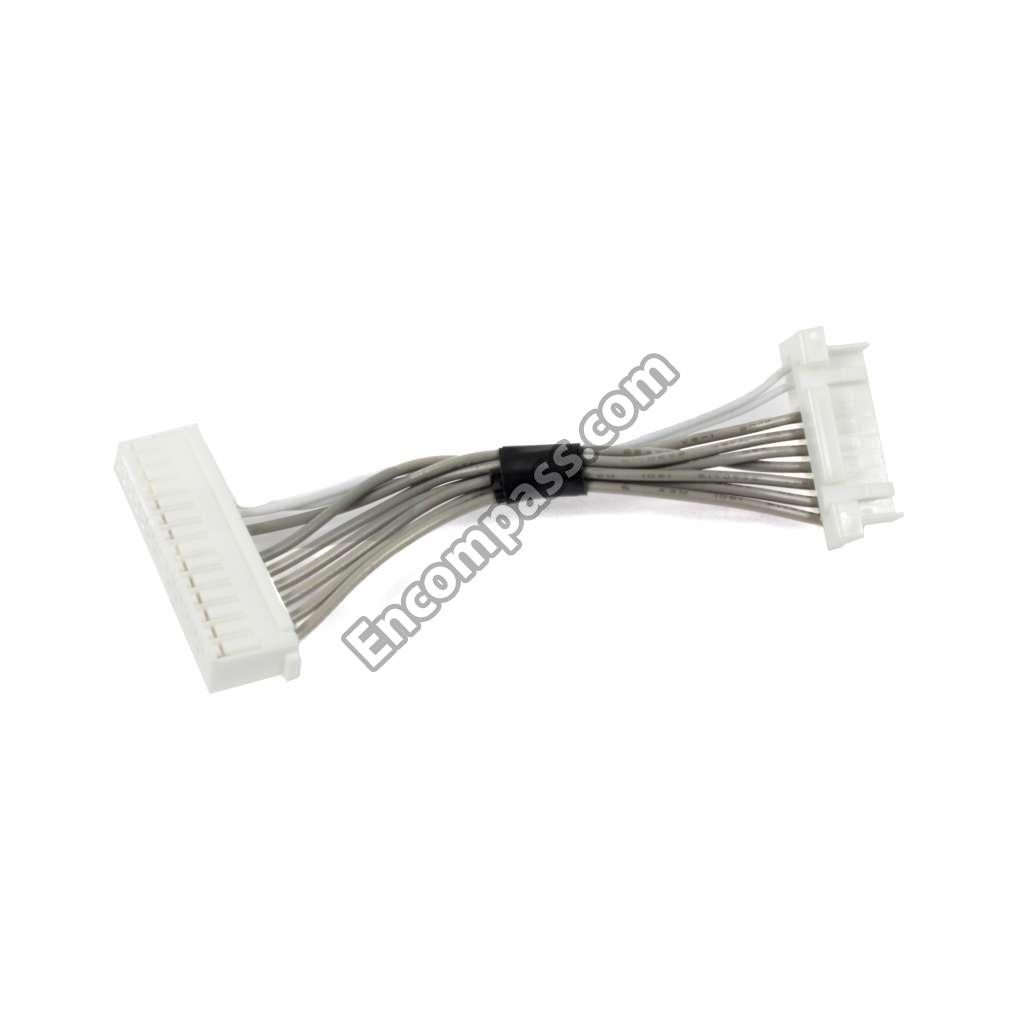

1-910-112-47 1-910-112-47 CONNECTOR ASSEMBLY 14P(PWRB)
1-910-112-51 1-910-112-51 CONNECTOR ASSEMBLY 28P(PWRG)
1-910-112-53 1-910-112-53 CONNECTOR ASSEMBLY 3P
1-910-112-52 1-910-112-52 CONNECTOR ASSEMBLY 40P(PWRT)
4-688-504-12 4-688-504-12 COVER SP A (2L HKS)
4-688-504-02 4-688-504-02 COVER SP A (2L HKS)
4-688-516-01 4-688-516-01 COVER SP CTR A (HKS)
4-693-398-01 4-693-398-01 COVER SUPPORT PLATE(2L HKS)
4-693-187-01 4-693-187-01 COVER, PANEL BTM (3L HKS) A
4-689-301-02 4-689-301-02 COVER, PANEL CTR A (HKS)
4-693-185-01 4-693-185-01 COVER, PANEL TOP (3L HKS) A
4-693-752-01 4-693-752-01 COVER, TERMINAL (HKS)
4-528-026-41 4-528-026-41 CUSHION 1225A 77-INCH
4-575-746-11 4-575-746-11 CUSHION 1525A FOR 55-INCH /65-INCH HINGE, PANEL BC (15X15)
4-575-746-31 4-575-746-31 CUSHION 1525A FOR 55-INCH CONNECTOR ASSEMBLY 40P(PWRT)(1515)
4-575-746-01 4-575-746-01 CUSHION 1525A FOR AC INLET(15X60)
4-694-915-01 4-694-915-01 CUSHION 2F HRS(HKS)
4-568-704-01 4-568-704-01 CUSHION 825B FOR 55-INCH /65-INCH PANEL(ACTUATOR)
4-535-308-21 4-535-308-21 CUSHION 825C FOR 55-INCH PANEL(ACTUATOR)
4-698-010-01 4-698-010-01 CUSHION, COVER PANEL CTR (HKS) 77-INCH
A-2167-837-A A-2167-837-A DKA MOUNT
4-693-842-01 4-693-842-01 FLAT CLAMP (L)
4-693-843-01 4-693-843-01 FLAT CLAMP (S)
1-912-130-11 1-912-130-11 FLEXIBLE FLAT CABLE 41P

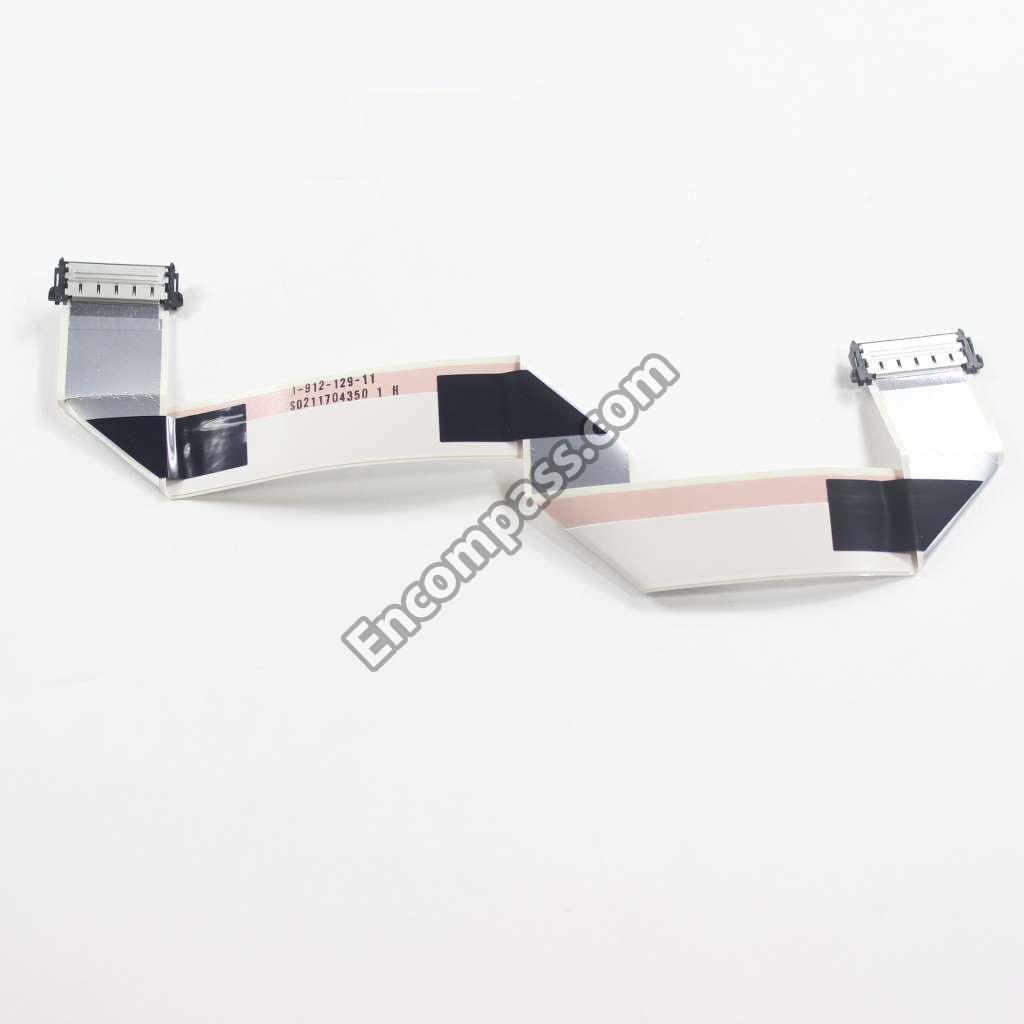

1-912-129-11 1-912-129-11 FLEXIBLE FLAT CABLE 51P
1-912-131-11 1-912-131-11 FLEXIBLE FLAT CABLE 51P/36P
4-688-734-01 4-688-734-01 FRONT SIDE FOOT (HKS)
1-474-697-11 1-474-697-11 G77(CH)-STATIC CONVERTER(TV)
4-693-620-01 4-693-620-01 GASKET COVER SP CTR (HKS) 65-INCH /77-INCH
1-910-112-50 1-910-112-50 HARNESS ASSEMBLY (MAIN)
4-695-601-01 4-695-601-01 HINGE (3L HKS) A
4-549-188-01 4-549-188-01 HOLDER(HS MUF) FOR BKA
4-548-743-01 4-548-743-01 HOLDER, HS WS (MUF) FOR BKA
1-849-161-12 1-849-161-12 IR BLASTER CABLE
4-693-214-21 4-693-214-21 LABEL, TERMINAL UNDER (HKS) FOR UC2
4-693-400-01 4-693-400-01 LEVER, HINGE (HKS)
A-2190-400-A A-2190-400-A OLED PANEL(L77AKA3)(SVC)
4-693-193-01 4-693-193-01 OMT COVER BRACKET,(3L HKS) CB
4-696-300-02 4-696-300-02 PLUG, HOLDER B ASSEMBLY(HKS)
1-836-883-13 1-836-883-13 POWER-SUPPLY CORD
4-693-191-01 4-693-191-01 REAR COVER, A CB(3L HKS)
4-693-661-11 4-693-661-11 REFERENCE GUIDE
1-493-452-12 1-493-452-12 REMOTE COMMANDER (RMF-TX201U)
2-580-602-01 2-580-602-01 SCREW, +PSW M4X12
4-697-561-01 4-697-561-01 SHEET, AC INLET(HKS) 65-INCH
4-694-193-01 4-694-193-01 SHEET, AL PCB L(HKS) FOR PANEL
4-694-194-01 4-694-194-01 SHEET, AL PCB S(HKS) FOR PANEL
4-699-858-01 4-699-858-01 SHEET, AL PCB(3L HKS) 77
4-693-202-11 4-693-202-11 SHEET, INSULATION(3L HKS A)
4-693-201-11 4-693-201-11 SHEET, INSULATION(3L HKS B)
4-691-273-01 4-691-273-01 SHEET, NOISE REDUCTION FOR BKA HEAT SINK
4-696-435-01 4-696-435-01 SHEET, STUD SUPPORT(HKS)
4-697-263-01 4-697-263-01 SHEET, THERMAL (3L HKS G) 77-INCH
4-693-846-01 4-693-846-01 SHEET, THERMAL (HKS G) FOR 55-INCH /65-INCH G76
4-595-404-01 4-595-404-01 SHEET, THERMAL (MUF PUC) FOR PLATE, MAIN S(BKA)
4-549-186-01 4-549-186-01 SHEET, THERMAL(BM) FOR DKA
4-694-197-01 4-694-197-01 SHEET, THERMAL(HKS G B L) FOR 65-INCH /77-INCH SHEET, INSULATION (HKS B)
4-694-196-01 4-694-196-01 SHEET, THERMAL(HKS G B S) FOR 65-INCH SHEET, INSULATION (HKS B)
2-650-770-31 2-650-770-31 SLIDE, CLAMP BLACK
2-650-770-21 2-650-770-21 SLIDE, CLAMP WHITE
1-859-224-11 1-859-224-11 SP-BOX ASSEMBLY
4-697-414-01 4-697-414-01 SPACER, BKT TS(HKS) 55-INCH /65-INCH :EXCEPT BR6
4-693-483-01 4-693-483-01 STAND A (2L HKS)
4-693-203-02 4-693-203-02 STD SUPPORT PLATE A(3L HKS)
1-474-647-11 1-474-647-11 SWITCH UNIT (3M-P)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK
4-589-892-01 4-589-892-01 TAPE (DK020FR-19) 19X80 SHEET 77-INCH
4-695-153-01 4-695-153-01 TAPE, AL 40X15 (HKS) FOR 55-INCH /65-INCH BT-ANT WIRE
4-694-195-01 4-694-195-01 TAPE, COND 50X65(HKS)
4-693-513-02 4-693-513-02 TAPE, CONDUCTIVE PG(3L HKS)
8-594-302-00 8-594-302-00 UNIVERSAL SIL-TU SUT-RA243ZP
4-696-558-02 4-696-558-02 WM SUPPORT PLATE A (3L HKS)
