Model Image
Manufacturer

Sony

Model Number

XBR75X850D

Description

75-inch Class Edge-lit Led Hd Tv

Interactive Exploded View

Parts List

Part Number Description
A-2119-146-A A-2119-146-A (MAIN CBA) COMPL SVC BM1_MX_C_QH (LA1)

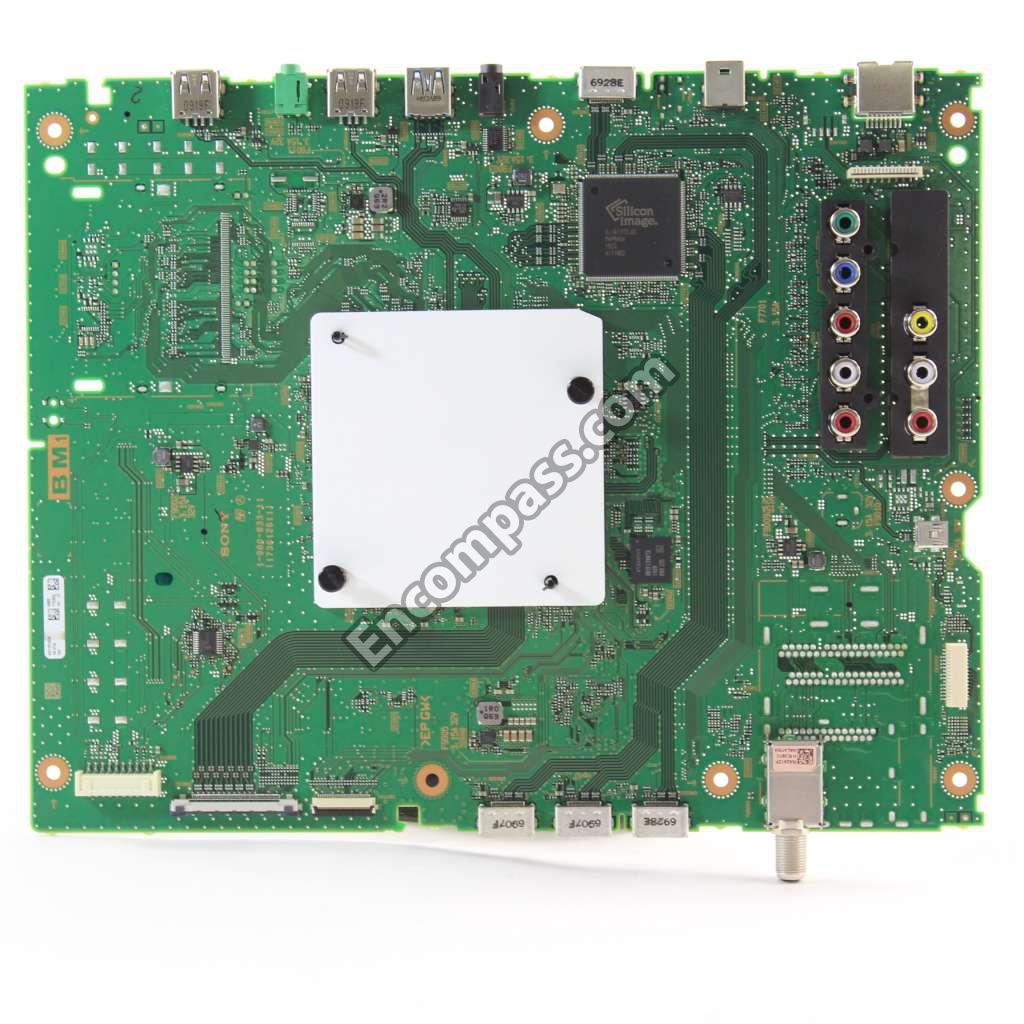

A-2119-145-A A-2119-145-A (MAIN CBA) COMPL SVC BM1_UC_S_QH (UC2)
1-474-643-11 1-474-643-11 (POWER CBA) G1-STATIC CONVERTER(TV) (UC2,LA1)

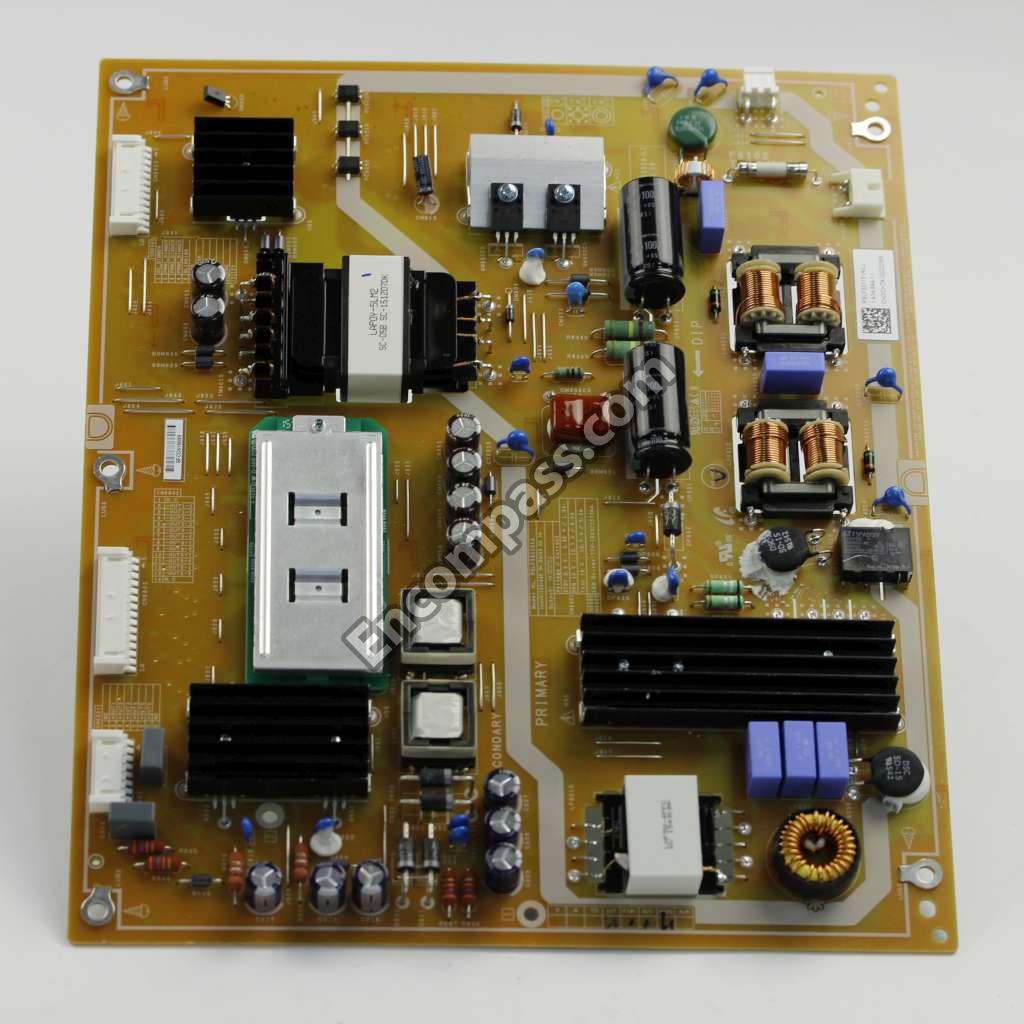

1-474-644-11 1-474-644-11 (POWER CBA) GL2-STATIC CONVERTER(TV) (UC2,LA1)
4-299-531-01 4-299-531-01 AC COVER (UC2,LA1)
4-535-586-02 4-535-586-02 BADGE, XBR LOGO(H3.7) (UC2,LA1)
4-409-920-33 4-409-920-33 BAG, PROTECTION PEHD(1950X1200) (UC2,LA1)
4-462-871-01 4-462-871-01 BAG, SCREW A (CCT) (UC2,LA1)
4-585-682-01 4-585-682-01 BAG,SCREW (M6L16)(4)(PDT_L) (UC2,LA1)
4-579-712-01 4-579-712-01 BRACKET, INSIDE (PDT 3L) (UC2,LA1)
4-579-711-11 4-579-711-11 BRACKET, SIDE (PDT 3L) (UC2,LA1)
4-579-711-01 4-579-711-01 BRACKET, SIDE (PDT 3L) (UC2,LA1)
4-580-722-01 4-580-722-01 BRACKET, STD(3L_PDT) (UC2,LA1)
4-299-527-02 4-299-527-02 BRACKET, VESA (UC2,LA1)
1-754-949-11 1-754-949-11 BT ANTENNA (UC2,LA1)
1-754-948-11 1-754-948-11 BT ANTENNA (UC2,LA1)
4-595-333-01 4-595-333-01 CARD, SNA WARRANTY (TV) (UC2)
4-583-130-11 4-583-130-11 CARTON INDIVI BLANK (3L PDT) (LA1)
4-586-045-01 4-586-045-01 CARTON, INDIVIDUAL (3L PDT) (LA1)
4-586-044-01 4-586-044-01 CARTON, INDIVIDUAL (3L PDT) (UC2)
4-580-147-01 4-580-147-01 CASE, BTM (M) (LA1)
4-599-371-01 4-599-371-01 CHASSIS TOP(B) (PANEL PART) (UC2)
4-599-370-01 4-599-370-01 CHASSIS TOP(L) (PANEL PART) (UC2)
4-599-369-01 4-599-369-01 CHASSIS TOP(R) (PANEL PART) (UC2)
4-599-368-01 4-599-368-01 CHASSIS TOP(U) (PANEL PART) (UC2)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UC2,LA1)
1-910-111-04 1-910-111-04 CONNECTOR ASSY 12P (UC2,LA1)
1-910-111-22 1-910-111-22 CONNECTOR ASSY 20P (UC2,LA1)
1-849-346-11 1-849-346-11 CONNECTOR ASSY, 3P (UC2,LA1)

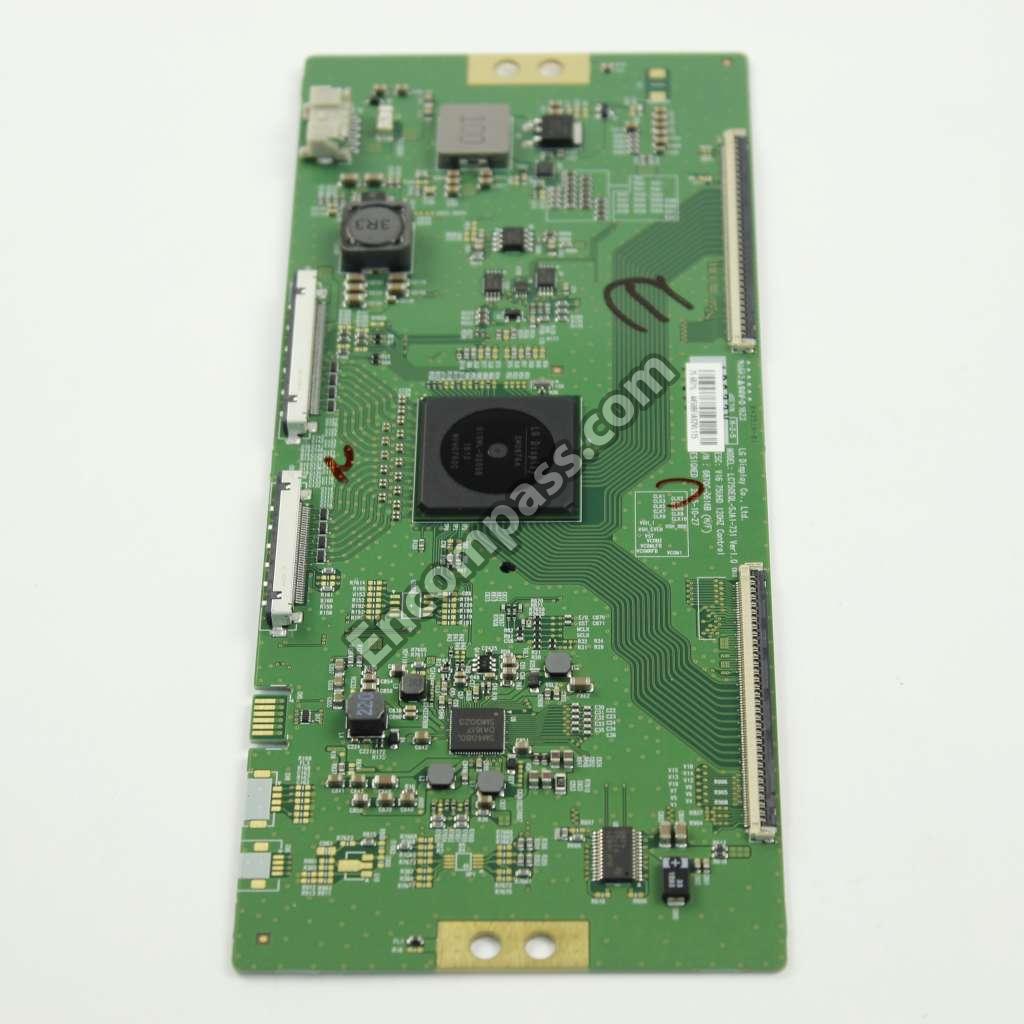

1-897-006-11 1-897-006-11 CONTROL MT BOARD (PANEL PART) (UC2)
4-580-151-11 4-580-151-11 COVER, TOP (LA1)
4-539-189-01 4-539-189-01 CUSHION 825D (UC2,LA1)
4-583-125-12 4-583-125-12 CUSHION, LOWER L (3L PDT) (UC2,LA1)
4-583-126-13 4-583-126-13 CUSHION, LOWER R (3L PDT) (UC2,LA1)
4-590-055-01 4-590-055-01 CUSHION, PORON (LA1)
4-583-127-11 4-583-127-11 CUSHION, SIDE (3L PDT) (UC2,LA1)
4-583-128-11 4-583-128-11 CUSHION, UPPER L (3L PDT) (UC2,LA1)
4-583-129-11 4-583-129-11 CUSHION, UPPER R (3L PDT) (UC2,LA1)

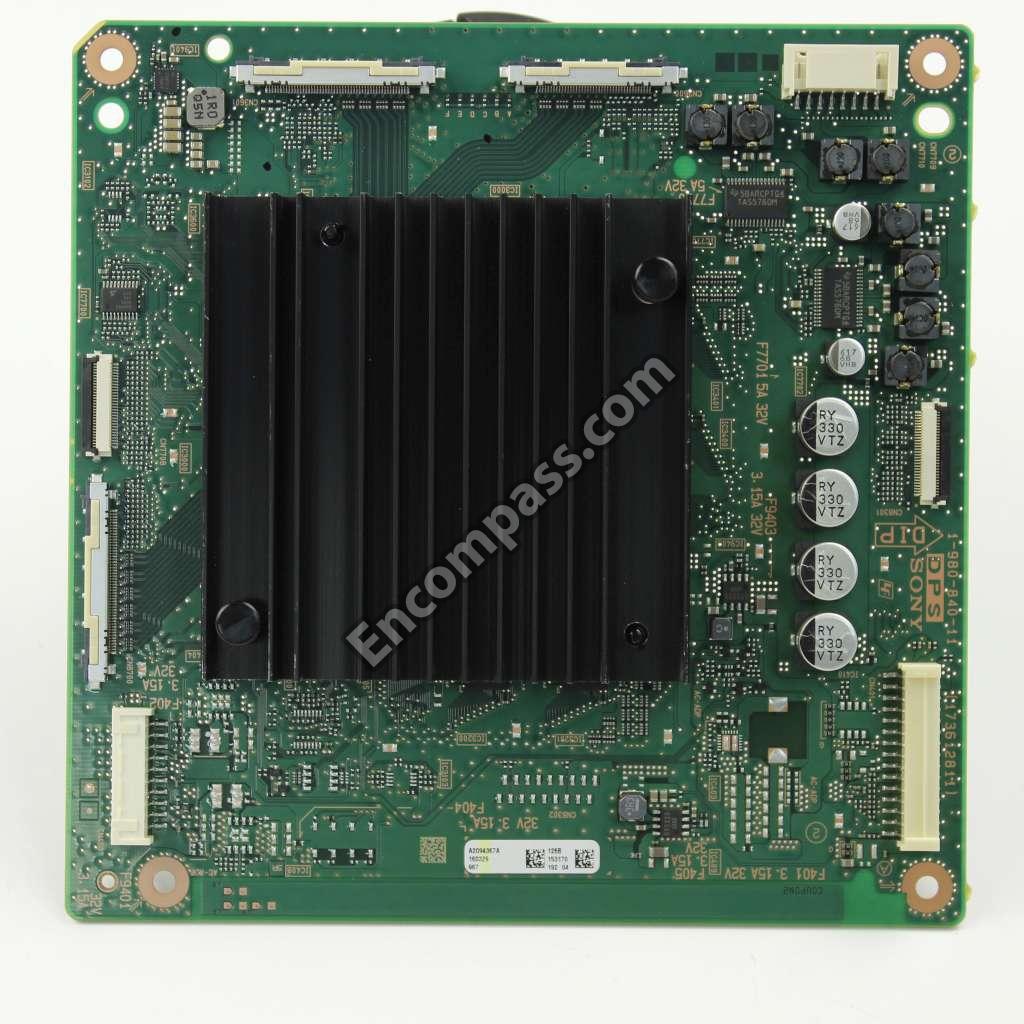

A-2094-367-A A-2094-367-A DPS_G_22_LD COMPL (LA1)
1-910-111-01 1-910-111-01 FLEXIBLE FLAT CABLE 30P(BD) (UC2,LA1)
1-849-343-11 1-849-343-11 FLEXIBLE FLAT CABLE 41P (UC2,LA1)
1-849-344-11 1-849-344-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
1-849-345-11 1-849-345-11 FLEXIBLE FLAT CABLE 51P(BD) (UC2,LA1)

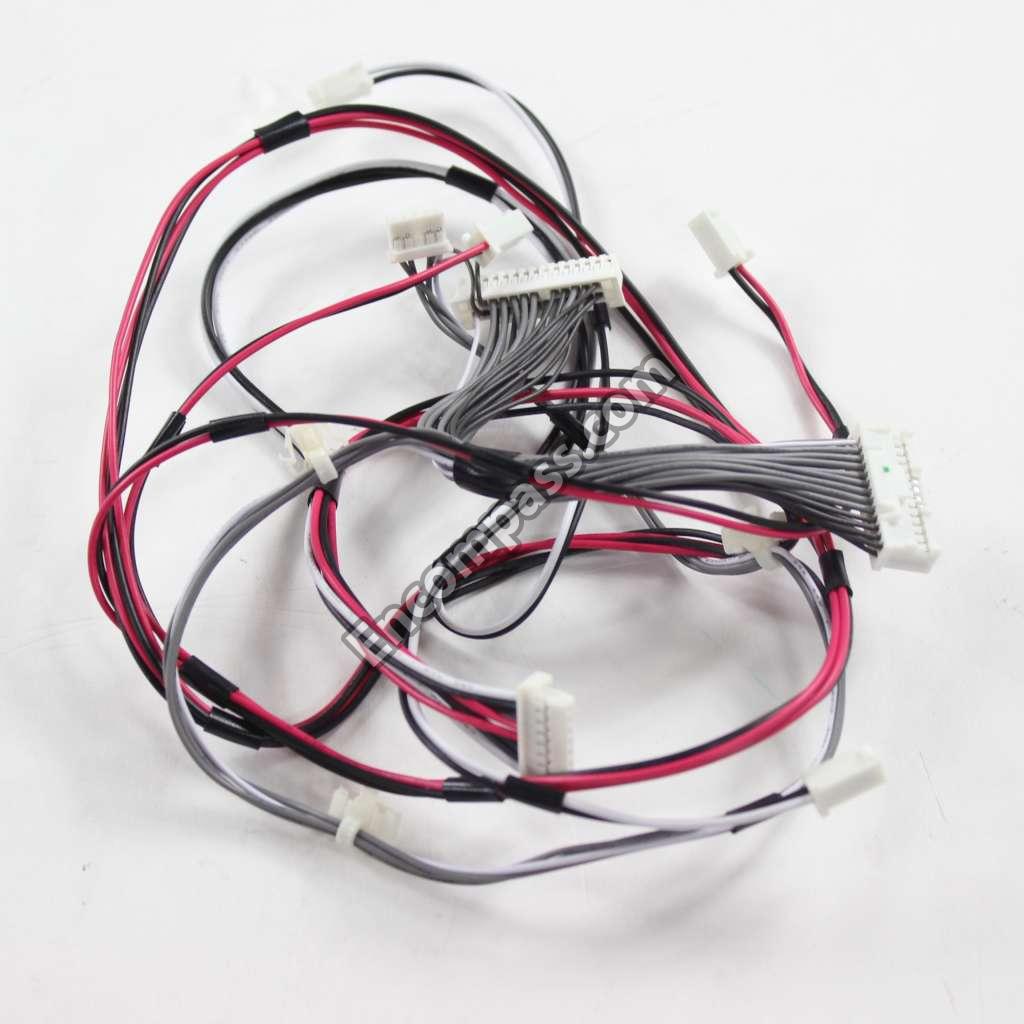

1-910-111-03 1-910-111-03 HARNESS ASSY (GBTS) (UC2,LA1)

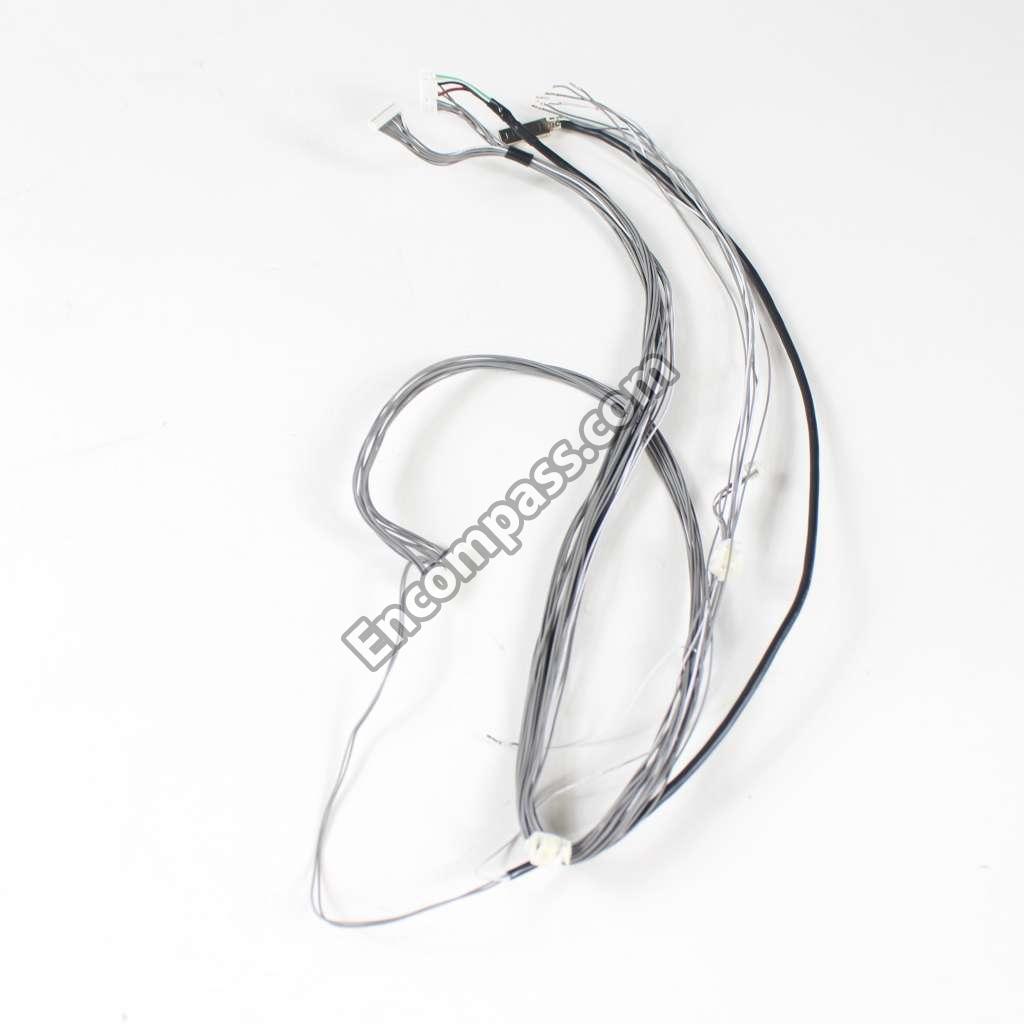

1-910-111-02 1-910-111-02 HARNESS ASSY (MAIN) (UC2,LA1)
4-580-869-01 4-580-869-01 HOLDER SIDE SW(PDT M1) (UC2,LA1)
A-2092-887-B A-2092-887-B HSC4-M MOUNT (LA1)
1-845-283-21 1-845-283-21 IR BLASTER (UC2,LA1)
4-585-153-01 4-585-153-01 LABEL, INSIDE TERMINAL(PDT 3L) (UC2,LA1)
4-584-552-01 4-584-552-01 LABEL, REAR TERMINAL (GNT) (LA1)
4-584-551-01 4-584-551-01 LABEL, REAR TERMINAL (GNT) (UC2)
4-585-151-11 4-585-151-11 LABEL, SIDE TERMINAL (PDT 3L) (UC2,LA1)
4-585-151-01 4-585-151-01 LABEL, SIDE TERMINAL (PDT 3L) (UC2,LA1)
4-591-816-11 4-591-816-11 PILLAR (3L PDT) (UC2,LA1)
4-583-132-11 4-583-132-11 PLATE, FRONT(3L PDT) (UC2,LA1)
4-579-717-01 4-579-717-01 PLATE, MAIN S(PDT) (UC2,LA1)
1-839-696-13 1-839-696-13 POWER-SUPPLY CORD (WITH CONN.) (UC2,LA1)
1-849-274-11 1-849-274-11 POWER-SUPPLY CORD (WITH CONN.) (UC2,LA1)
4-534-964-01 4-534-964-01 PULLEY, STAND (HWI) (UC2,LA1)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UC2,LA1)
1-848-803-11 1-848-803-11 RCA CONVERSION CABLE (LA1)
4-578-906-12 4-578-906-12 REAR COVER (3L_PDT) A (UC2,LA1)
4-578-906-11 4-578-906-11 REAR COVER (3L_PDT) A (UC2,LA1)
4-584-805-31 4-584-805-31 REFERENCE GUIDE (LA1)
4-584-788-11 4-584-788-11 REFERENCE GUIDE (UC2)
1-493-127-21 1-493-127-21 REMOTE COMMANDER (RMF-TX200U) (LA1)
7-685-646-79 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 (UC2,LA1)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2,LA1)
4-159-298-01 4-159-298-01 SCREW, (+PSW)(M4X10) (UC2,LA1)
2-580-644-11 2-580-644-11 SCREW, +KTP2 3X8 (UC2,LA1)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2,LA1)
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12 (UC2,LA1)
2-580-607-01 2-580-607-01 SCREW, +PSW M5X12 (UC2,LA1)
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16 (UC2,LA1)
2-580-611-01 2-580-611-01 SCREW, +PSW M6X16 (UC2,LA1)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2,LA1)
4-583-271-01 4-583-271-01 SHEET, INSULATION(PDT 3L SYS) (UC2,LA1)
4-583-270-01 4-583-270-01 SHEET, INSULATION(PDT 3L) (UC2,LA1)
4-457-451-01 4-457-451-01 SHEET, THERMAL (BAF) (UC2,LA1)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (UC2,LA1)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (UC2,LA1)
A-2093-176-A A-2093-176-A SMART CORE (M) 4K S-PRO (UC2,LA1)
1-897-007-11 1-897-007-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (UC2)
1-859-108-51 1-859-108-51 SP-BOX ASSY(D20-WF LCH CH-ND) (UC2,LA1)
1-859-108-61 1-859-108-61 SP-BOX ASSY(D20-WF RCH CH-ND) (UC2,LA1)
1-859-109-11 1-859-109-11 SP-BOX ASSY(W20-SQ LCH CH-ND) (UC2,LA1)
1-859-109-21 1-859-109-21 SP-BOX ASSY(W20-SQ RCH CH-ND) (UC2,LA1)
4-579-518-01 4-579-518-01 STAND (3L PDT) A (UC2,LA1)
4-579-499-11 4-579-499-11 STAND NECK (L_PDT) A (UC2,LA1)
4-579-516-01 4-579-516-01 STAND REAR COVER (3L PDT) A (UC2,LA1)
3-674-673-22 3-674-673-22 STOPPER (A) (UC2,LA1)
4-180-215-11 4-180-215-11 SUPPLEMENT (TIPPING OVER) (UC2)
1-798-510-31 1-798-510-31 SWITCH UNIT (SM-A-WW) (UC2,LA1)
1-798-511-21 1-798-511-21 SWITCH UNIT (SM-G-WW) (UC2,LA1)
7-600-031-96 7-600-031-96 TAPE (3M 1350FW-1)15MMX66M WHT (UC2,LA1)
4-599-372-01 4-599-372-01 TAPE CELL FIX (PANEL PART) (UC2)
4-585-116-01 4-585-116-01 TAPE FFC (PDT 3L) (UC2,LA1)
4-599-373-01 4-599-373-01 TAPE LIGHT SHADING(L) (PANEL PART) (UC2)
4-599-374-01 4-599-374-01 TAPE LIGHT SHADING(R) (PANEL PART) (UC2)
4-599-375-01 4-599-375-01 THERMAL PAD (PANEL PART) (UC2)
4-583-131-11 4-583-131-11 TRAY (3L PDT) (UC2,LA1)
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC)
