Model Image
Manufacturer

Sony

Model Number

XBR75X855E

Description

75-inch 4k Tv

Interactive Exploded View

Parts List

Part Number Description
4-299-531-01 4-299-531-01 AC COVER (LA8,AR4)
1-785-504-21 1-785-504-21 ADAPTOR, CONVERSION (LA8)
4-698-639-01 4-698-639-01 AL BEZEL (R)(PANEL PART) (PANEL PART) (6M.75S08.FDC) (LA8,AR4)
4-698-638-01 4-698-638-01 AL BEZEL(D) (PANEL PART) (6M.75S08.FDB) (LA8,AR4)
4-698-637-01 4-698-637-01 AL BEZEL(L) (PANEL PART) (6M.75S08.FD8) (LA8,AR4)
4-698-636-01 4-698-636-01 AL BEZEL(U) (PANEL PART) (6M.75S08.FD7) (LA8,AR4)
4-535-586-02 4-535-586-02 BADGE,XBR LOGO (H3.7) (LA8,AR4)
4-581-408-01 4-581-408-01 BAG, SCREW (M5L12)(8)(GNT L) (LA8,AR4)

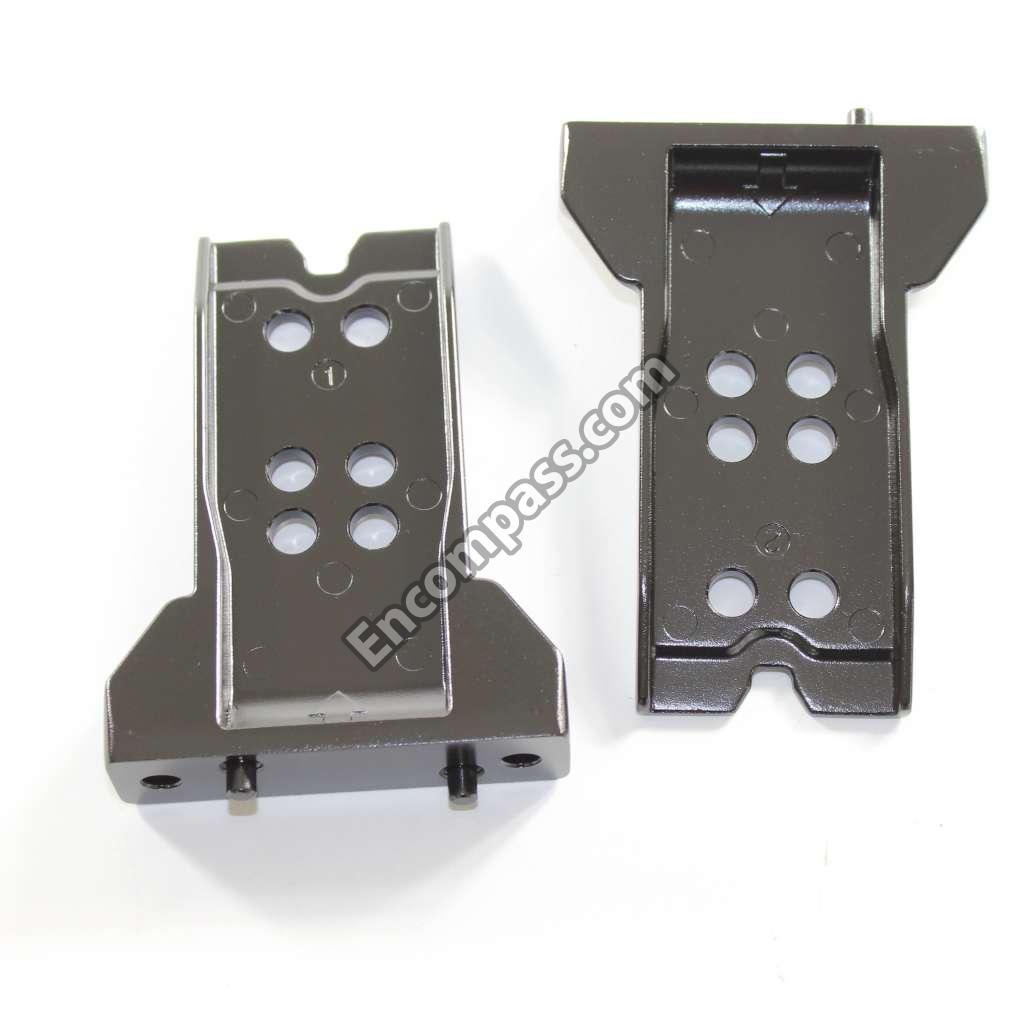

4-686-515-21 4-686-515-21 BRACKET, SIDE (SBT-M) (LA8,AR4)
1-522-012-11 1-522-012-11 BT ANTENNA 890MM FXC (LA8,AR4)
1-522-013-11 1-522-013-11 BT ANTENNA 890MM SAA (LA8,AR4)
4-693-340-01 4-693-340-01 CARTON, INDIVIDUAL (3L HDN) (LA8,AR4)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (LA8,AR4)
A-2170-509-A A-2170-509-A (MAIN CBA) COMPL SVC BMKS_CR1_KH (Y8387752S) (AR4)
A-2170-507-A A-2170-507-A (MAIN CBA) COMPL SVC BMKS_LA8_KH (Y8387708S) (LA8)
1-910-112-43 1-910-112-43 CONNECTOR ASSY 30P (LA8,AR4)
4-695-253-01 4-695-253-01 CUSHION (HDN 3L AC) (LA8,AR4)
4-684-389-11 4-684-389-11 CUSHION, LOWER L(3L_HDN) (LA8,AR4)
4-684-390-11 4-684-390-11 CUSHION, LOWER R(3L_HDN) (LA8,AR4)
4-684-391-11 4-684-391-11 CUSHION, SIDE(3L_HDN) (LA8,AR4)
4-684-387-11 4-684-387-11 CUSHION, UPPER L(3L_HDN) (LA8,AR4)
4-684-388-11 4-684-388-11 CUSHION, UPPER R(3L_HDN) (LA8,AR4)
1-912-202-11 1-912-202-11 FFC (PANEL PART) (69.75S08.F02) (LA8,AR4)

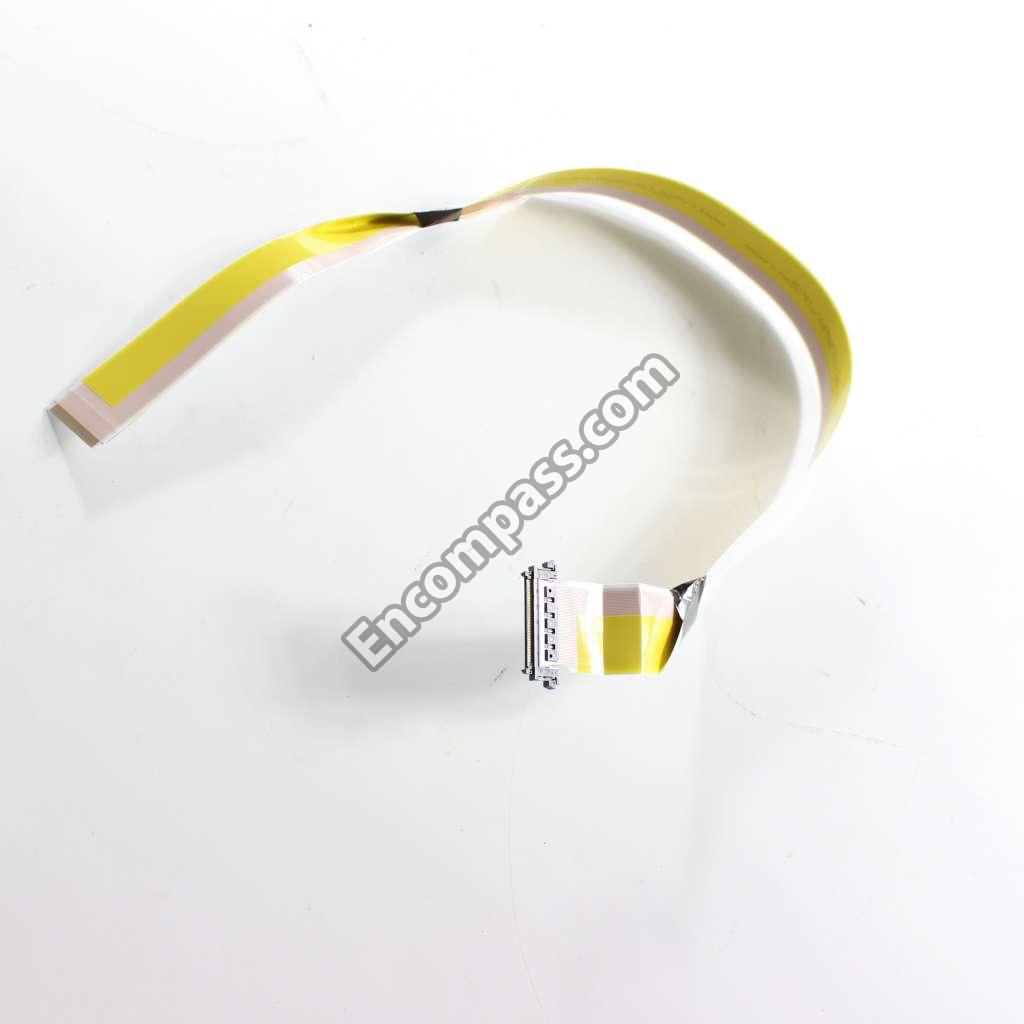

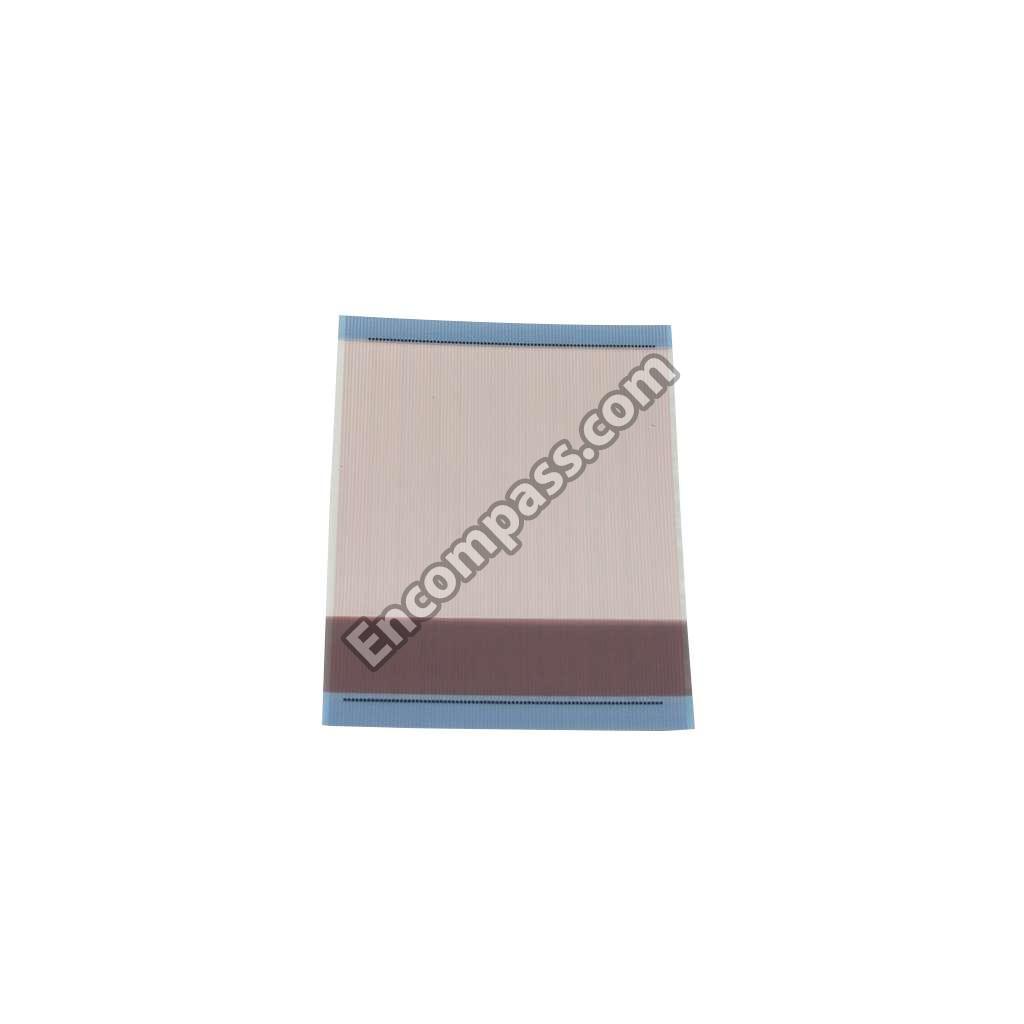

1-849-962-11 1-849-962-11 FLEXIBLE FLAT CABLE 41P (LA8,AR4)

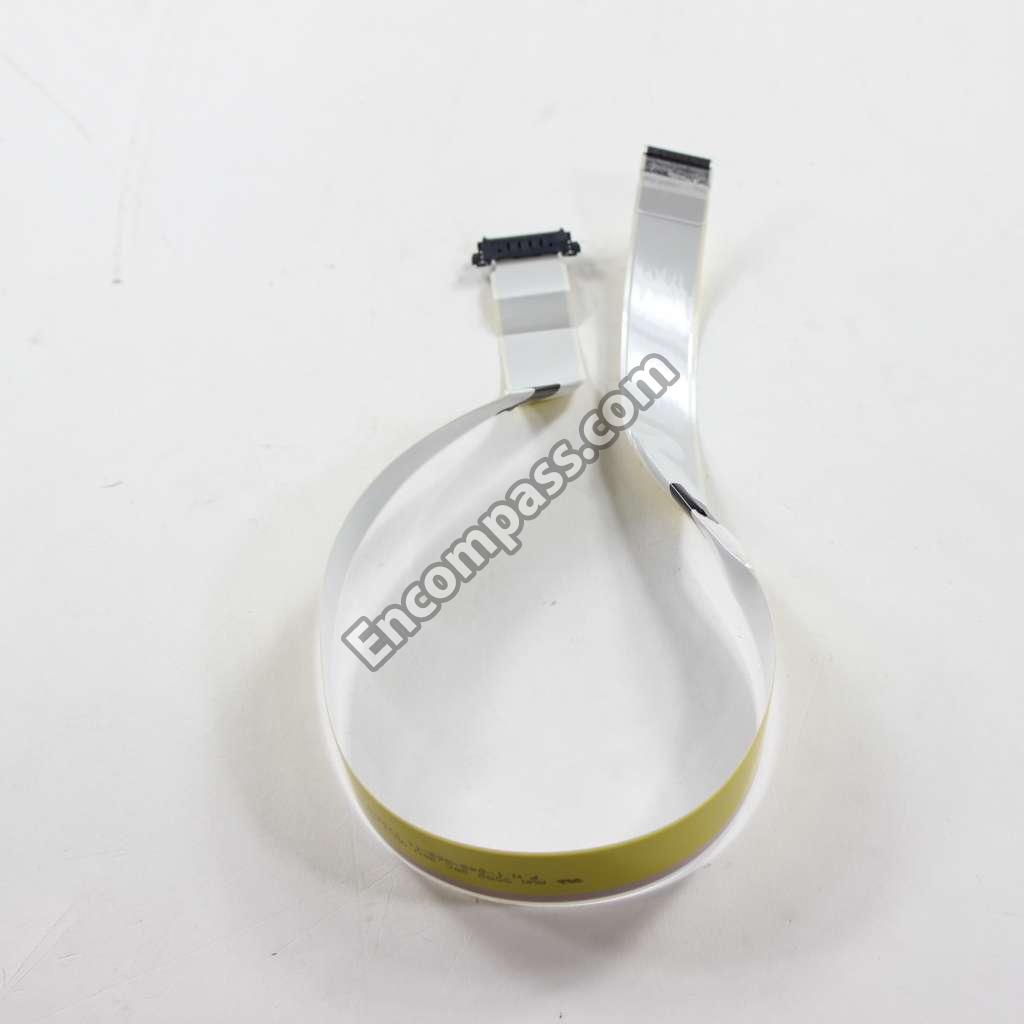

1-849-957-11 1-849-957-11 FLEXIBLE FLAT CABLE 51P (LA8,AR4)

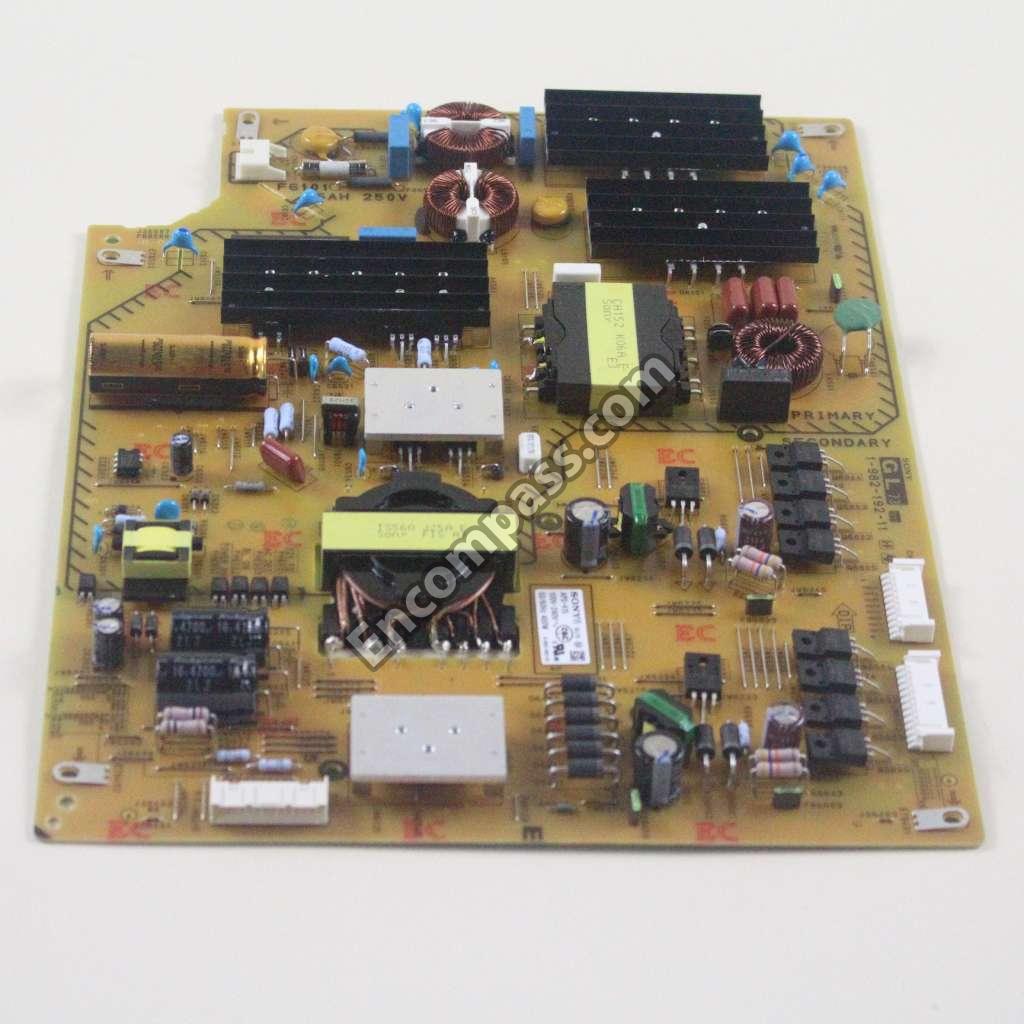

1-474-690-11 1-474-690-11 (POWER CBA)GL73(CH)-STATIC CONVERTER(TV) (LA8,AR4)

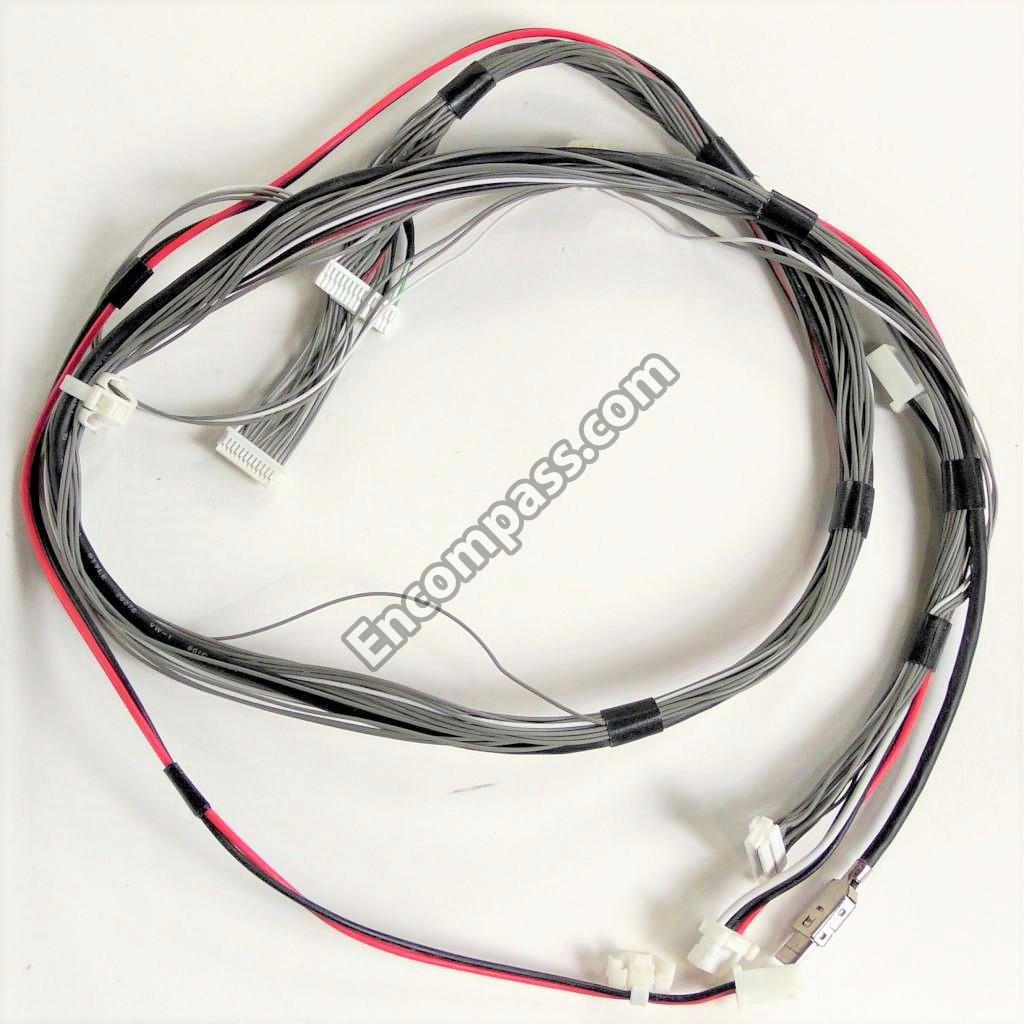

1-910-112-42 1-910-112-42 HARNESS ASSY (MAIN) (LA8,AR4)
4-579-994-01 4-579-994-01 HOLDER SIDE SW(PDT) (LA8,AR4)
4-689-433-01 4-689-433-01 LABEL, REAR TERMINAL (SBT) (LA8,AR4)
4-689-385-21 4-689-385-21 LABEL, SIDE TERMINAL (SBT) (LA8,AR4)
1-812-329-11 1-812-329-11 LCD PANEL(D75QF58B) (LA8,AR4)

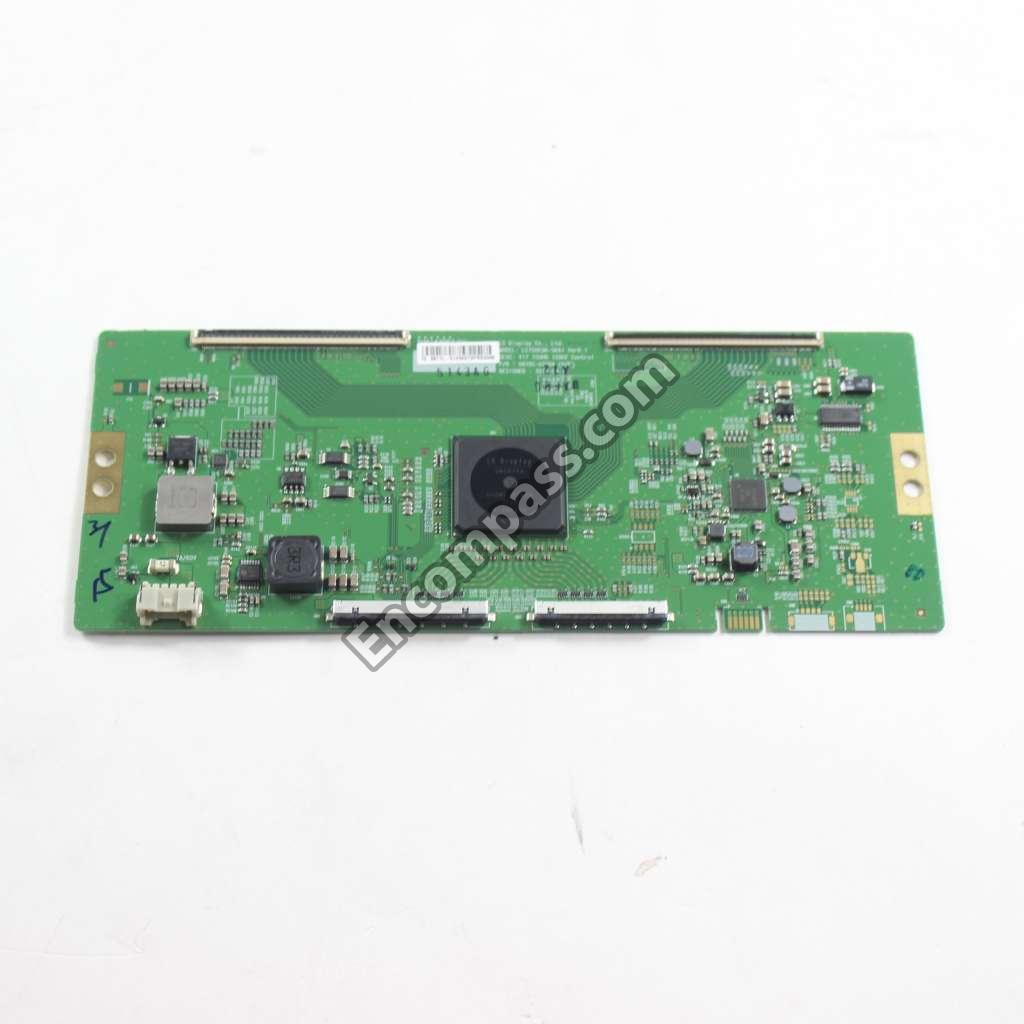

1-897-120-21 1-897-120-21 MOUNTED PWB E-T-CON (75) (PANEL PART) (6871L-5143A) (LA8,AR4)
4-687-431-01 4-687-431-01 NECK, STAND (2L HDN) A (LA8,AR4)
4-684-386-11 4-684-386-11 PLATE, FRONT(3L_HDN) (LA8,AR4)
4-698-644-01 4-698-644-01 POLARIZER F/CF (PANEL PART) (6308R-0090A/6308L-7601A) (LA8,AR4)
4-698-645-01 4-698-645-01 POLARIZER R/TFT (PANEL PART) (6308R-0085A/6308L-7661A) (LA8,AR4)

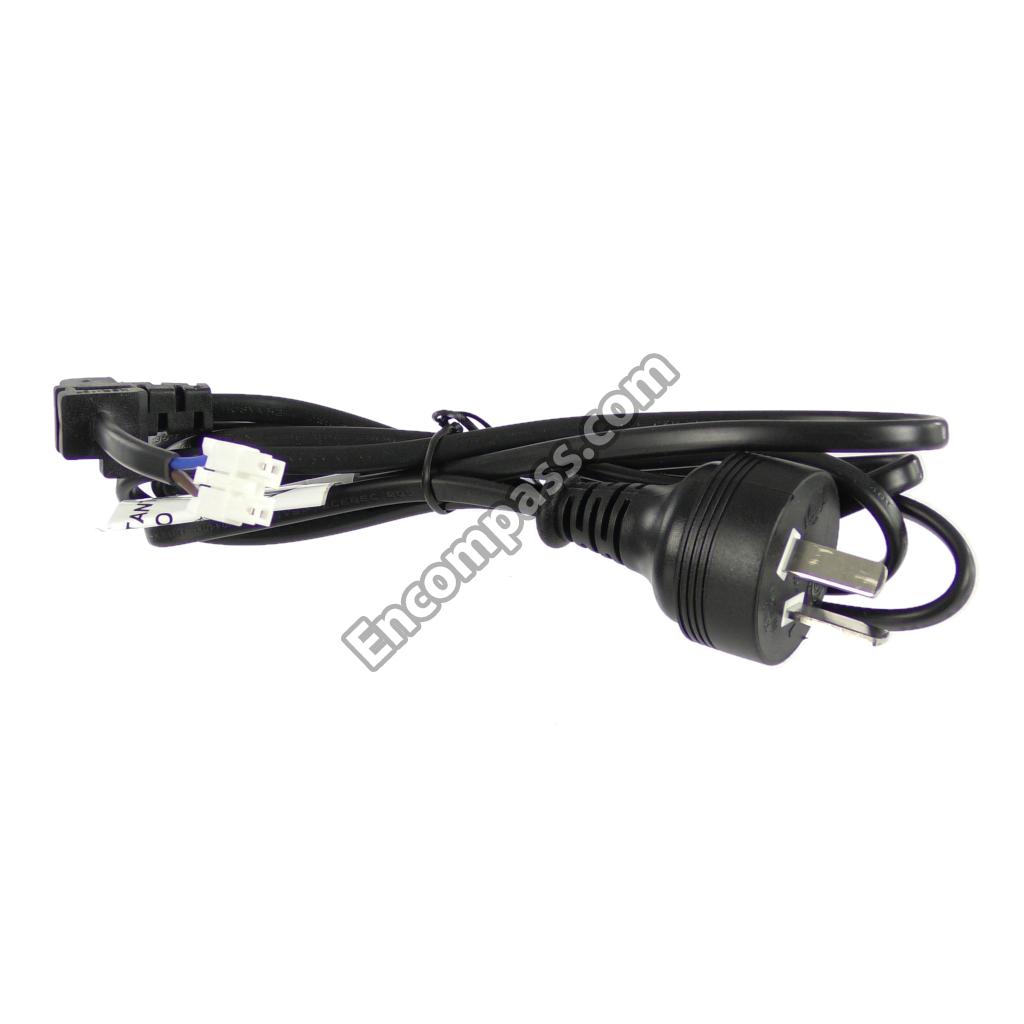

1-849-988-11 1-849-988-11 POWER-SUPPLY CORD (WITH CONN.) (AR4)
1-849-987-11 1-849-987-11 POWER-SUPPLY CORD (WITH CONN.) (AR4)

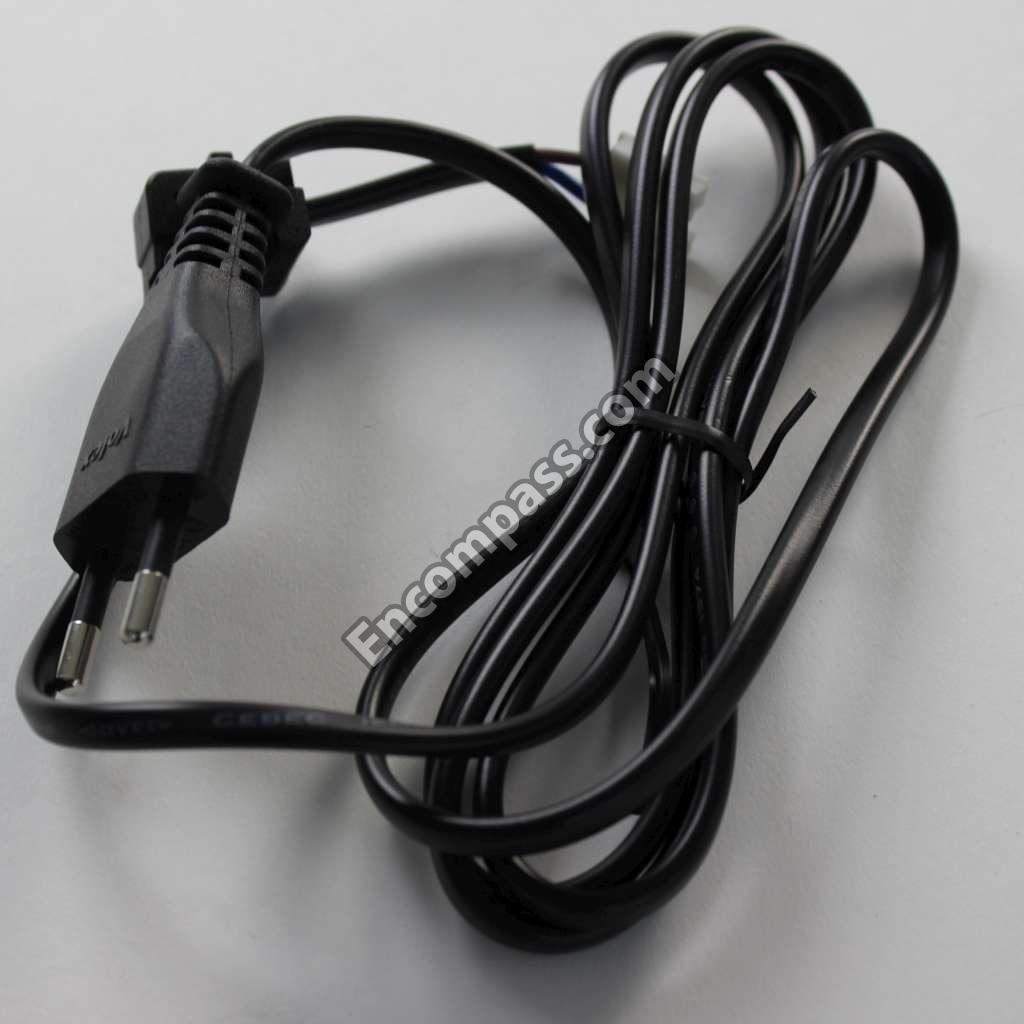

1-839-695-12 1-839-695-12 POWER-SUPPLY CORD (WITH CONN.) (LA8)
4-579-924-01 4-579-924-01 PULLEY, SP(PDT) (LA8,AR4)
4-534-964-01 4-534-964-01 PULLEY, STAND (HWI) (LA8,AR4)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (FOR MAINBOARD) (LA8,AR4)
4-684-367-11 4-684-367-11 REAR COVER (3L_HDN) A (LA8,AR4)
1-493-319-11 1-493-319-11 REMOTE COMMANDER(RMF-TX300B) (LA8,AR4)
4-256-393-11 4-256-393-11 SCREW, +PSW M3X6 W12 (AR4)
4-685-877-01 4-685-877-01 SHEET, INSULATION(HDN 3L) (LA8,AR4)
4-588-223-01 4-588-223-01 SHEET, THERMAL (TPZ BBE) (LA8,AR4)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (LA8,AR4)
4-698-642-01 4-698-642-01 SHIELD SCREW (PANEL PART) (86.00000.07L) (LA8,AR4)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (LA8,AR4)
1-897-162-11 1-897-162-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (0IDHL-0081B) (LA8,AR4)
1-897-163-11 1-897-163-11 SOURCE DRIVER IC MT BOARD (PANEL PART) (0IHYL-0430A) (LA8,AR4)

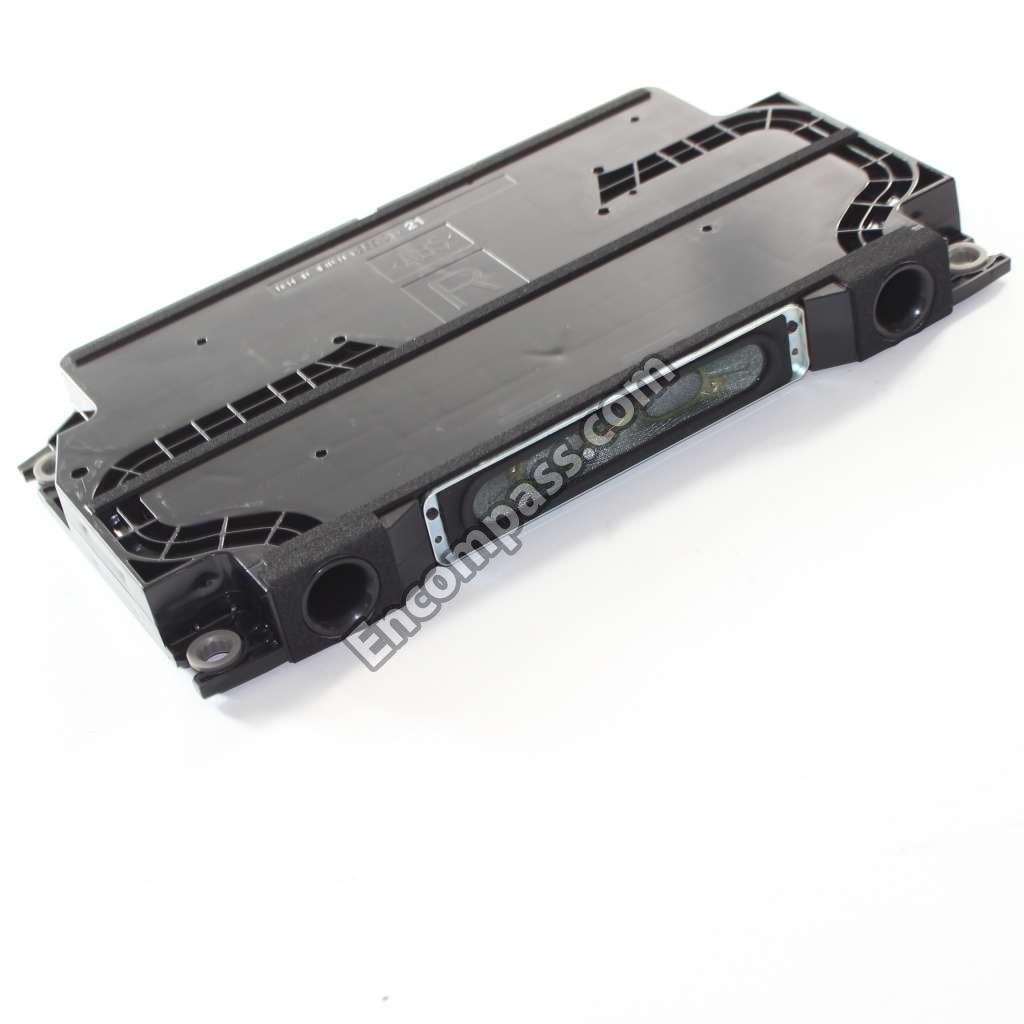

1-859-211-11 1-859-211-11 SP-BOX ASSY, W25XL-L CH-ND (LA8,AR4)
1-859-211-21 1-859-211-21 SP-BOX ASSY, W25XL-R CH-ND (LA8,AR4)
4-587-424-21 4-587-424-21 SPACER(17)+C (LA8,AR4)

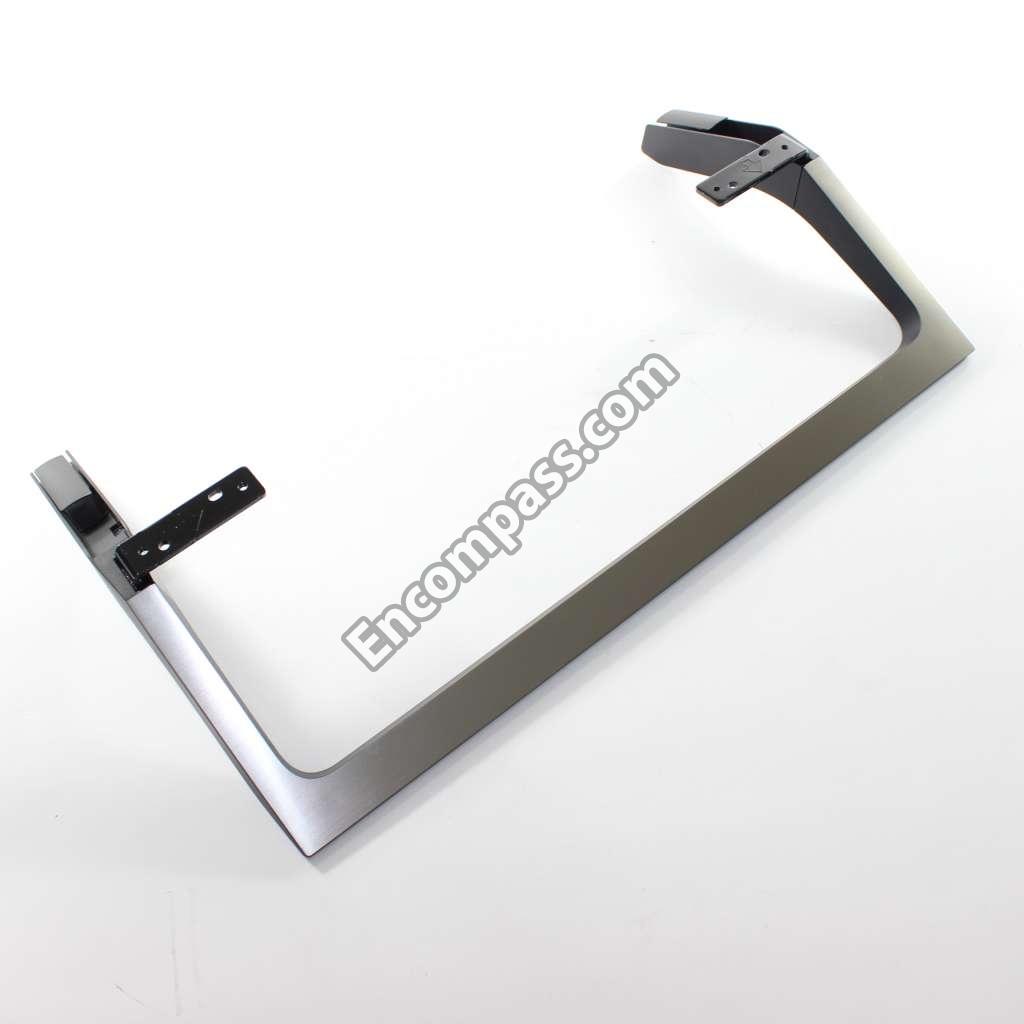

4-687-426-11 4-687-426-11 STAND(3L HDN) A (LA8,AR4)
3-674-673-22 3-674-673-22 STOPPER (A) (LA8,AR4)
1-474-647-11 1-474-647-11 SWITCH UNIT(3M-P) (LA8,AR4)
4-599-372-01 4-599-372-01 TAPE CELL FIX (PANEL PART) (80.65T12.00A) (LA8,AR4)
4-599-374-01 4-599-374-01 TAPE LIGHT SHADING (R) (PANEL PART) (80.75S08.00V) (LA8,AR4)
4-599-373-01 4-599-373-01 TAPE LIGHT SHADING(L) (PANEL PART) (80.75S08.00U) (LA8,AR4)
4-599-375-01 4-599-375-01 THERMAL PAD (PANEL PART) (80.75S08.00F) (LA8,AR4)
4-698-640-01 4-698-640-01 THERMAL PAD (PANEL PART) (80.75S08.00R) (LA8,AR4)
4-684-385-11 4-684-385-11 TRAY (3L_HDN) (LA8,AR4)
8-594-308-30 8-594-308-30 UNIVERSAL SIL-TU SUT-RT243ZP (LA8,AR4)
8-594-308-00 8-594-308-00 UNIVERSAL SIL-TU SUT-RT243ZP (LA8,AR4)
