Model Image
Manufacturer

Sony

Model Number

XBR75X855F

Description

2018 Tv

Interactive Exploded View

Parts List

Part Number Description

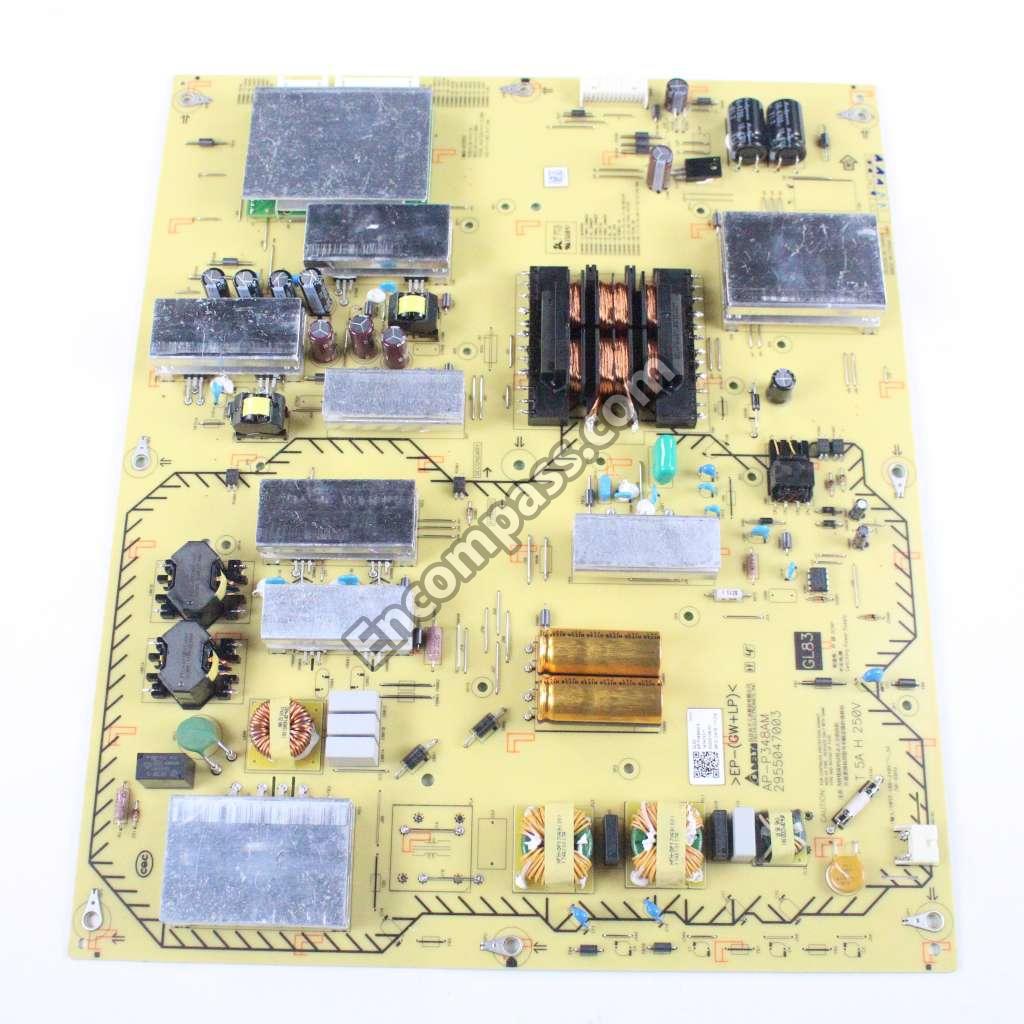

1-474-732-11 1-474-732-11 (POWER CBA) GL83-STATIC CONVERTER (TV) (AR4)
4-535-064-14 4-535-064-14 ASSY,FALL LOCK,BELT LL (AR4)
4-462-871-03 4-462-871-03 BAG, SCREW A (CCT) (STAND SCREWS QTY 4) (UC2)
4-741-627-01 4-741-627-01 BEZEL(D) (760.02G06.0001) BLACK (AR4,LA8) (PANEL PART)
4-741-628-01 4-741-628-01 BEZEL(L) (760.02G04.0001) BLACK (AR4,LA8) (PANEL PART)
4-741-629-01 4-741-629-01 BEZEL(R) (760.02G05.0001) BLACK (AR4,LA8) (PANEL PART)
4-741-630-01 4-741-630-01 BEZEL(U) (760.02G03.0001) BLACK (AR4,LA8) (PANEL PART)
4-726-393-51 4-726-393-51 BRACKET SIDE (HRH) (AR4,LA8)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (AR4)
1-910-806-43 1-910-806-43 CONNECTOR ASSY 30P (AR4)
1-897-316-11 1-897-316-11 CONTROL MT BOARD (6871L-5368B) (AR4,LA8) (PANEL PART)
4-724-440-01 4-724-440-01 COVER, TOP (HRH) (AR4)
4-741-638-01 4-741-638-01 CUSHION (740.02F11.0001) (AR4,LA8) (PANEL PART)
1-912-770-11 1-912-770-11 FFC (750.02G01.0001) BM11 (AR4,LA8) (PANEL PART)
1-912-771-11 1-912-771-11 FFC (750.02G01.0011) BM10 (AR4,LA8) (PANEL PART)
1-912-538-11 1-912-538-11 FLEXIBLE FLAT CABLE 41P (AR4)
1-912-542-11 1-912-542-11 FLEXIBLE FLAT CABLE 51P (AR4)
1-910-806-42 1-910-806-42 HARNESS ASSY (AR4)

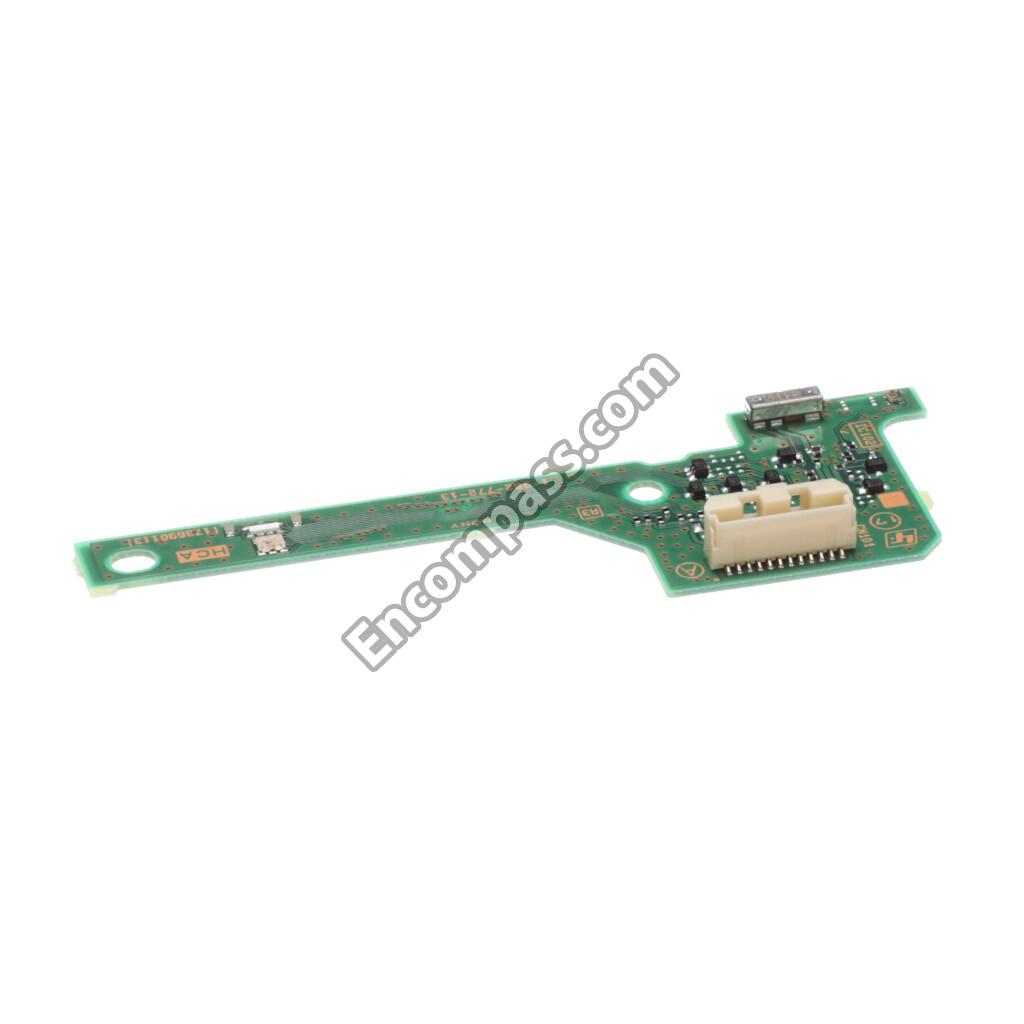

A-2203-140-D A-2203-140-D HCA_M2_PONR MOUNT (AR4)
4-731-366-01 4-731-366-01 LABEL, REAR TERMINAL (HRH) (AR4)
4-731-521-21 4-731-521-21 LABEL, SIDE TERMINAL (HRH) (AR4,LA8)
1-812-417-21 1-812-417-21 LCD PANEL(W75QWMEB) (AR4)
A-2201-064-A A-2201-064-A MAIN BOARD COMPLETE
4-596-101-21 4-596-101-21 PANEL, ORNAMENT (FRE) (AR4)
4-741-610-01 4-741-610-01 POLARIZER F/CF (6308L-8297A) (AR4,LA8) (PANEL PART)
4-726-584-11 4-726-584-11 REAR COVER (3L_HRH) A (AR4,LA8)
4-733-108-31 4-733-108-31 REFERENCE GUIDE (AR4)
4-733-243-31 4-733-243-31 REFERENCE GUIDE (LA8)
1-493-453-11 1-493-453-11 REMOTE COMMANDER (RMF-TX310B) (AR4)
4-731-684-01 4-731-684-01 SHEET, THERMAL(FRC) (AR4)
4-728-682-01 4-728-682-01 SHT, INSULATION (HRH 3L) (AR4)
8-594-308-70 8-594-308-70 SILICON TUNER SUT-RT243ZP(70) (LA8)
4-726-592-01 4-726-592-01 SLIDER L (3L HRH) (AR4)
4-726-593-01 4-726-593-01 SLIDER R (3L HRH) (AR4)
1-897-319-11 1-897-319-11 SOURCE DRIVER IC MT BOARD (0ISWL-0481B) (AR4,LA8) (PANEL PART)

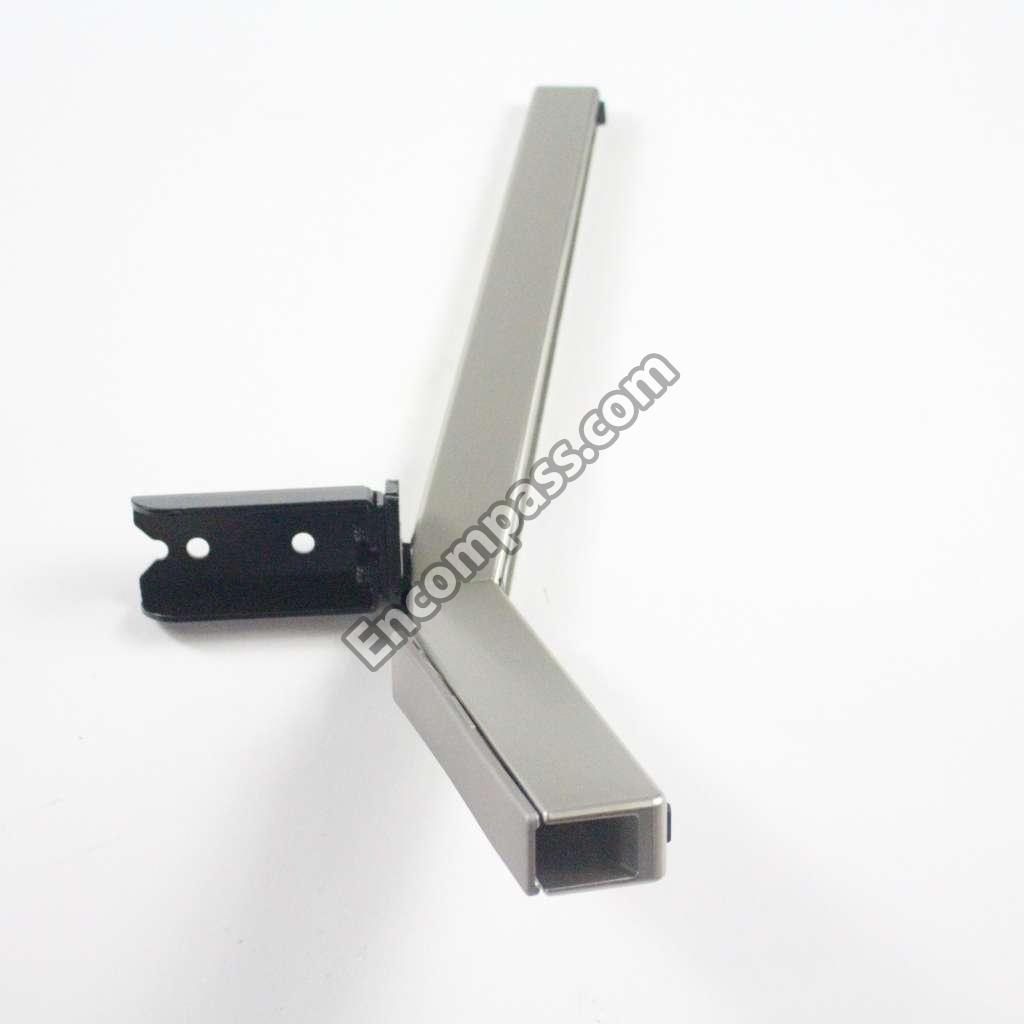

4-727-127-01 4-727-127-01 STAND L (3L HRH) A (AR4)

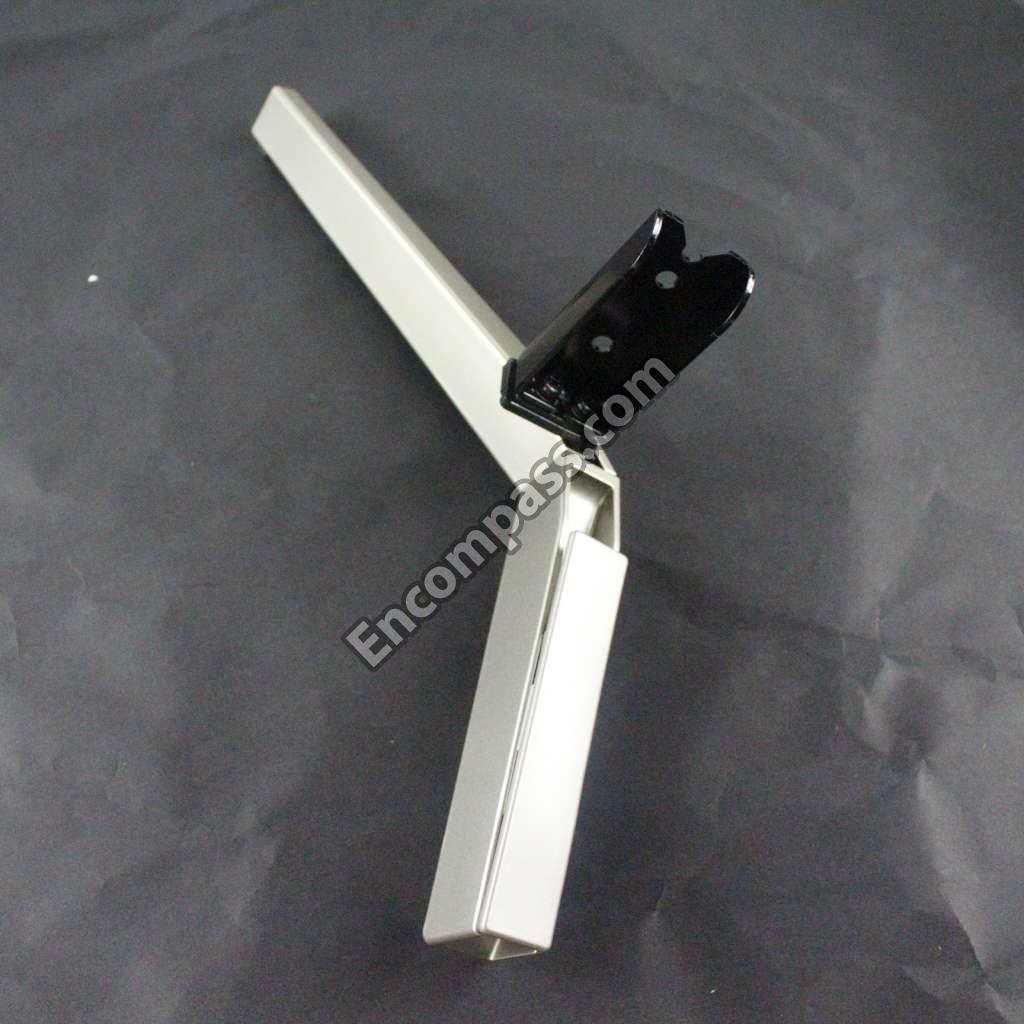

4-727-128-01 4-727-128-01 STAND R (3L HRH) A (AR4)
2-580-607-01 2-580-607-01 STAND SCREW +PSW M5x12 (QTY 1 OF 4 USED) (UC2)
4-741-631-01 4-741-631-01 TAPE (740.01P0P.0001) (AR4,LA8) (PANEL PART)
4-741-636-01 4-741-636-01 TAPE, BOTTOM CORNER(L) (740.02G0S.0001) (AR4,LA8) (PANEL PART)
4-741-637-01 4-741-637-01 TAPE, BOTTOM CORNER(R) (740.02G0T.0001) (AR4,LA8) (PANEL PART)
4-741-635-01 4-741-635-01 TAPE, TOP CORNER (740.02G0O.0001) (AR4,LA8) (PANEL PART)
4-741-647-01 4-741-647-01 THERMAL SHEET, BC(15X15X2) (734.02E0D.0001) (AR4,LA8) (PANEL PART)
4-741-642-01 4-741-642-01 THERMAL SHEET, TCON(10X10X1.8) (734.02E0B.0001) (AR4,LA8) (PANEL PART)
4-741-646-01 4-741-646-01 THERMAL SHEET, TCON(10X10X5.5) (734.02E0G.0001) (AR4,LA8) (PANEL PART)
4-741-643-01 4-741-643-01 THERMAL SHEET, TCON(20X20X1.8) (734.02E0A.0011) (AR4,LA8) (PANEL PART)
4-741-645-01 4-741-645-01 THERMAL SHEET, TCON(34X25X1.8) (734.02F08.0001) (AR4,LA8) (PANEL PART)
4-741-649-01 4-741-649-01 THERMAL SHEET, TCON(41X41X1.8) (734.02E0E.0001) (AR4,LA8) (PANEL PART)

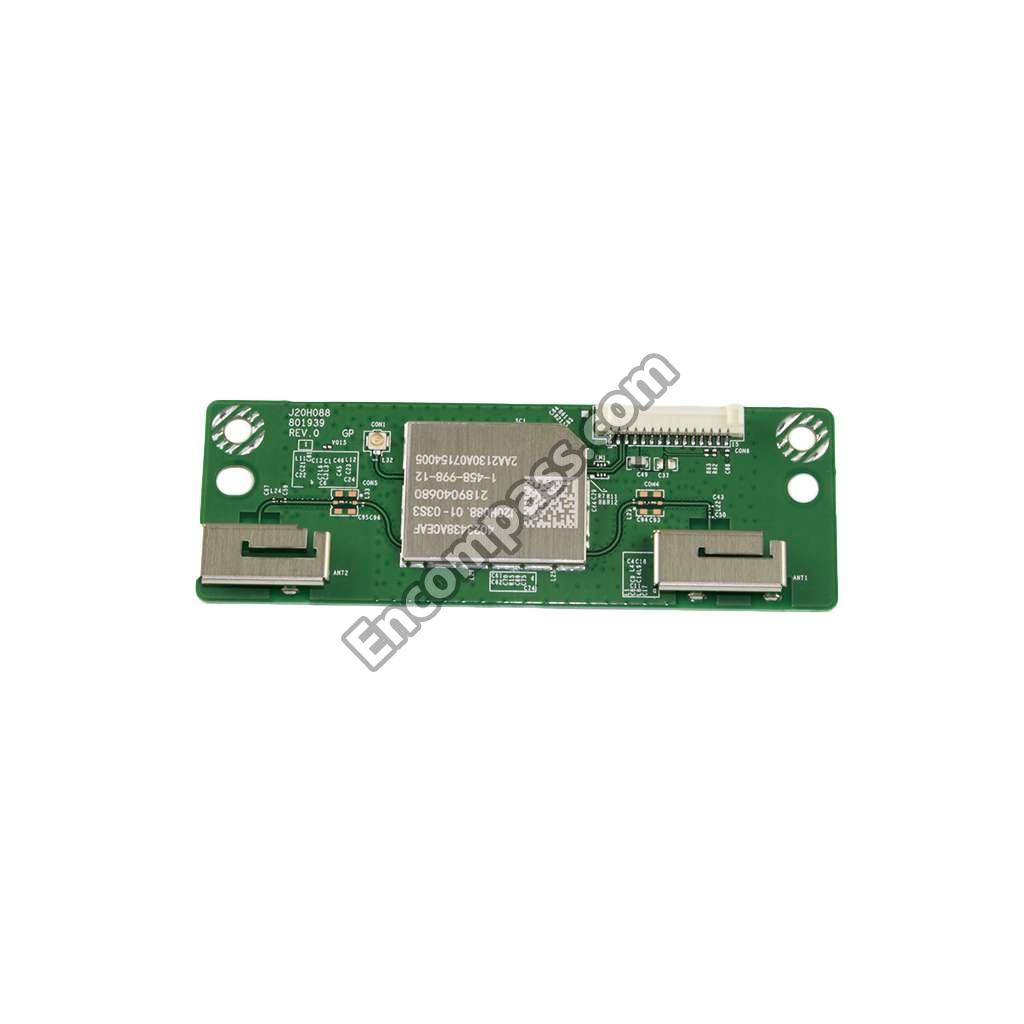

1-458-998-12 1-458-998-12 WLAN/BT MODULE(11AC) (AR4)
4-692-705-01 4-692-705-01 XBR LOGO NO3.5 (PUC) (AR4)
