Model Image
Manufacturer

Sony

Model Number

XBR75X90CH

Description

75-inch Class 4k Hdr Led Tv

Interactive Exploded View

Parts List

Part Number Description

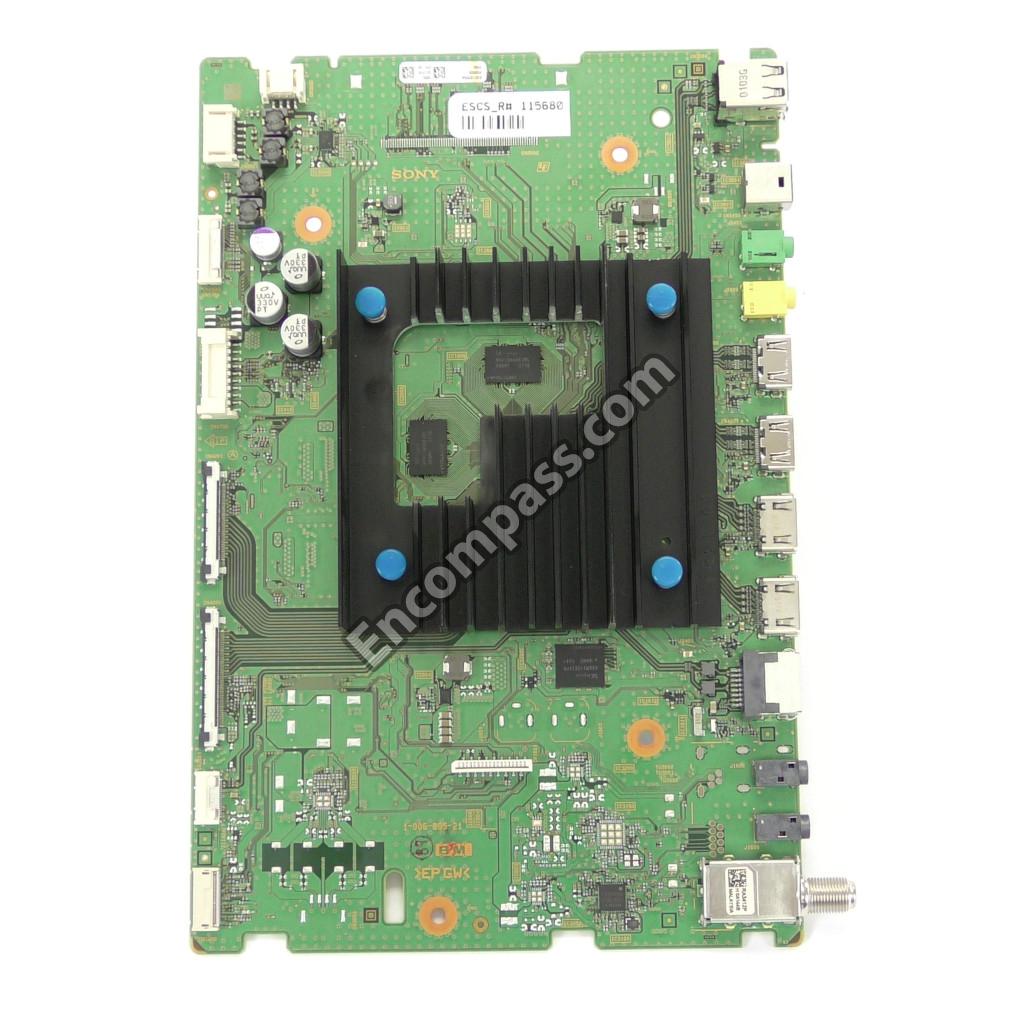

A-5014-266-A A-5014-266-A (MAIN CBA) COMPL SVC BM5_UC (UC2)

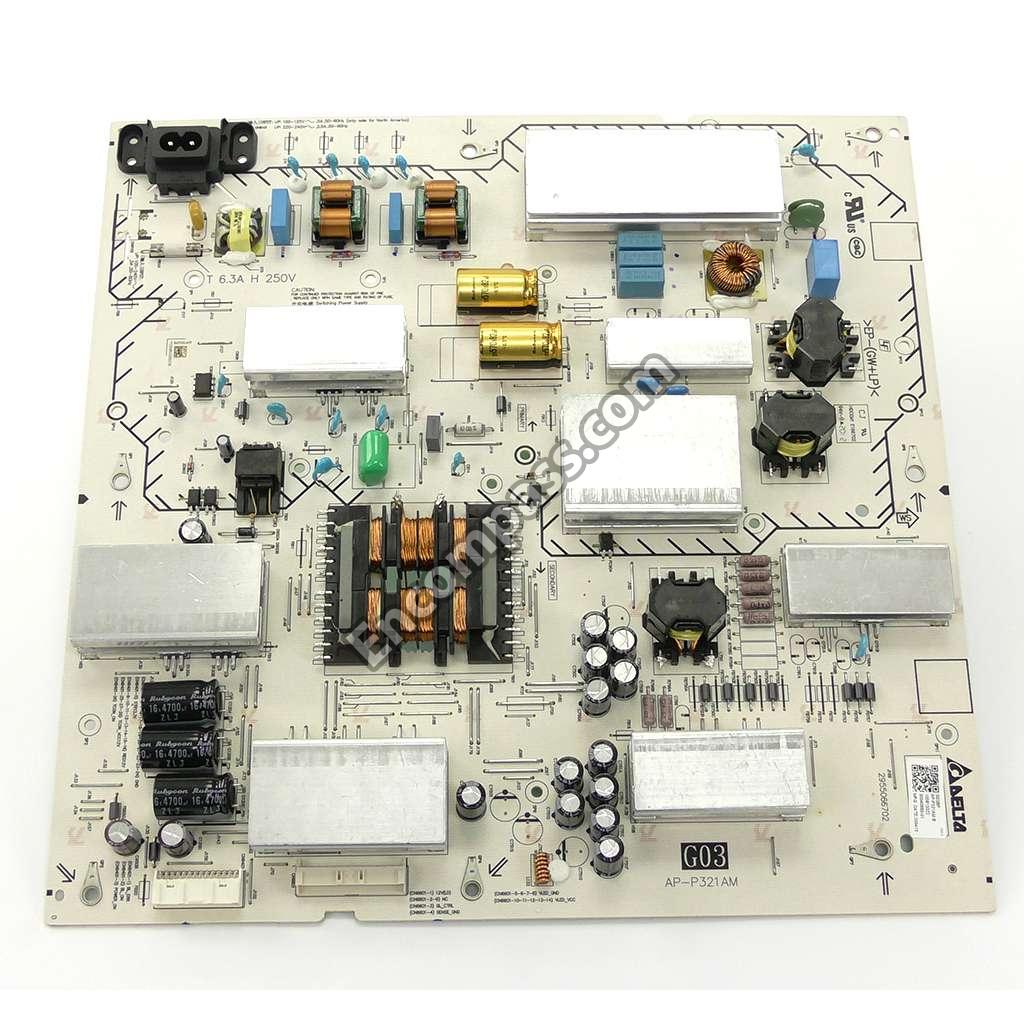

1-006-133-22 1-006-133-22 (POWER CBA) G03BP - STATIC CONVERTER(TV) (UC2)

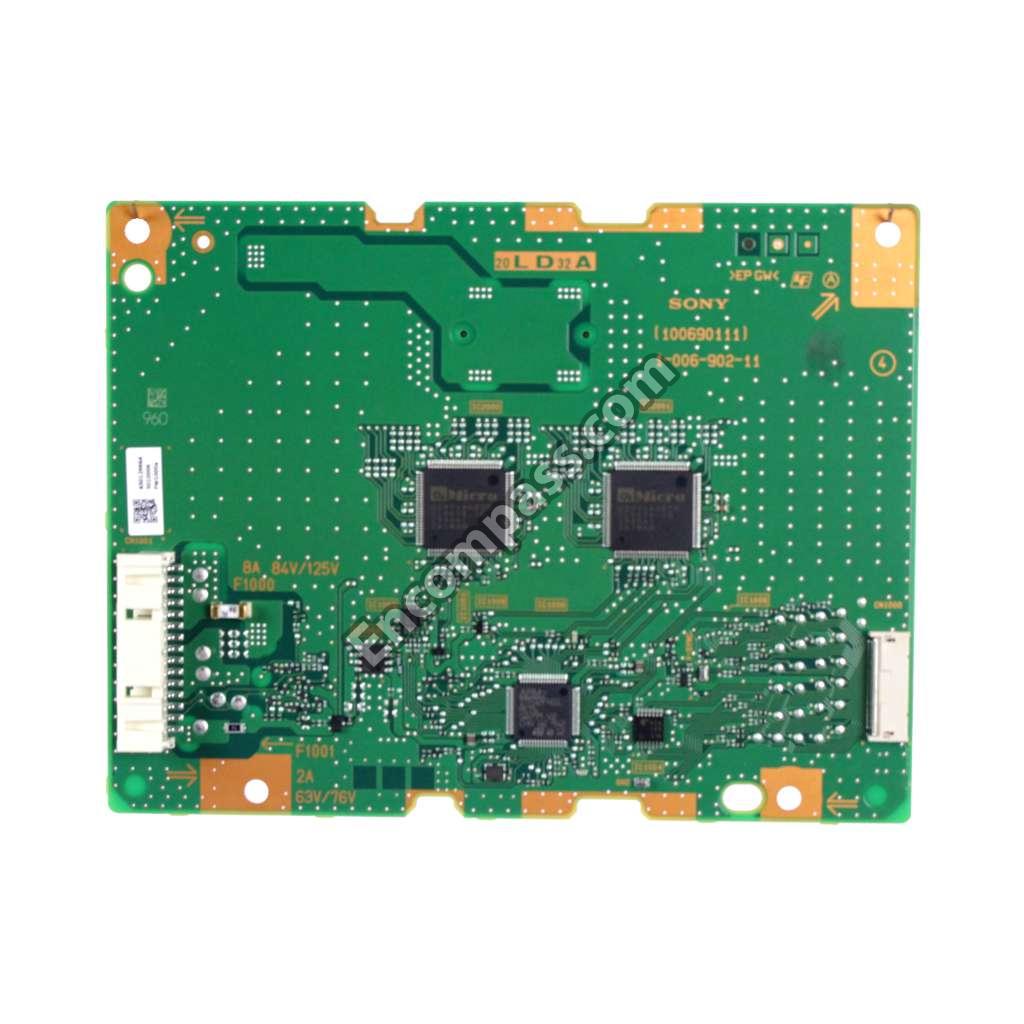

A-5012-966-A A-5012-966-A 20LD32A1 COMPL (UC2)
5-009-150-21 5-009-150-21 BEZEL B ASSY (3L APL) (NX BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-150-61 5-009-150-61 BEZEL B ASSY (3L APL) (NXB BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-146-21 5-009-146-21 BEZEL L ASSY (3L APL) (NX BLACK, LEFT) (UC2) (PANEL PART)
5-009-146-61 5-009-146-61 BEZEL L ASSY (3L APL) (NXB BLACK, LEFT) (UC2) (PANEL PART)
5-009-148-21 5-009-148-21 BEZEL R ASSY (3L APL) (NX BLACK, RIGHT) (UC2) (PANEL PART)
5-009-148-61 5-009-148-61 BEZEL R ASSY (3L APL) (NXB BLACK, RIGHT) (UC2) (PANEL PART)
5-009-144-21 5-009-144-21 BEZEL T ASSY (3L APL) (NX BLACK, TOP ) (UC2) (PANEL PART)
5-009-144-61 5-009-144-61 BEZEL T ASSY (3L APL) (NXB BLACK, TOP ) (UC2) (PANEL PART)
1-005-629-11 1-005-629-11 C7L AC POWER CORD SETS (US)
5-014-603-11 5-014-603-11 CLAMPER, CABLE (3L APL) A (UC2)
1-007-220-11 1-007-220-11 CONNECTOR ASSY 28P (UC2)
1-007-221-11 1-007-221-11 CONNECTOR ASSY 6P (SP) (UC2)
1-009-557-11 1-009-557-11 FFC (75) (UC2) (PANEL PART)
1-005-550-11 1-005-550-11 FFC (75)(UC2) (PANEL PART)

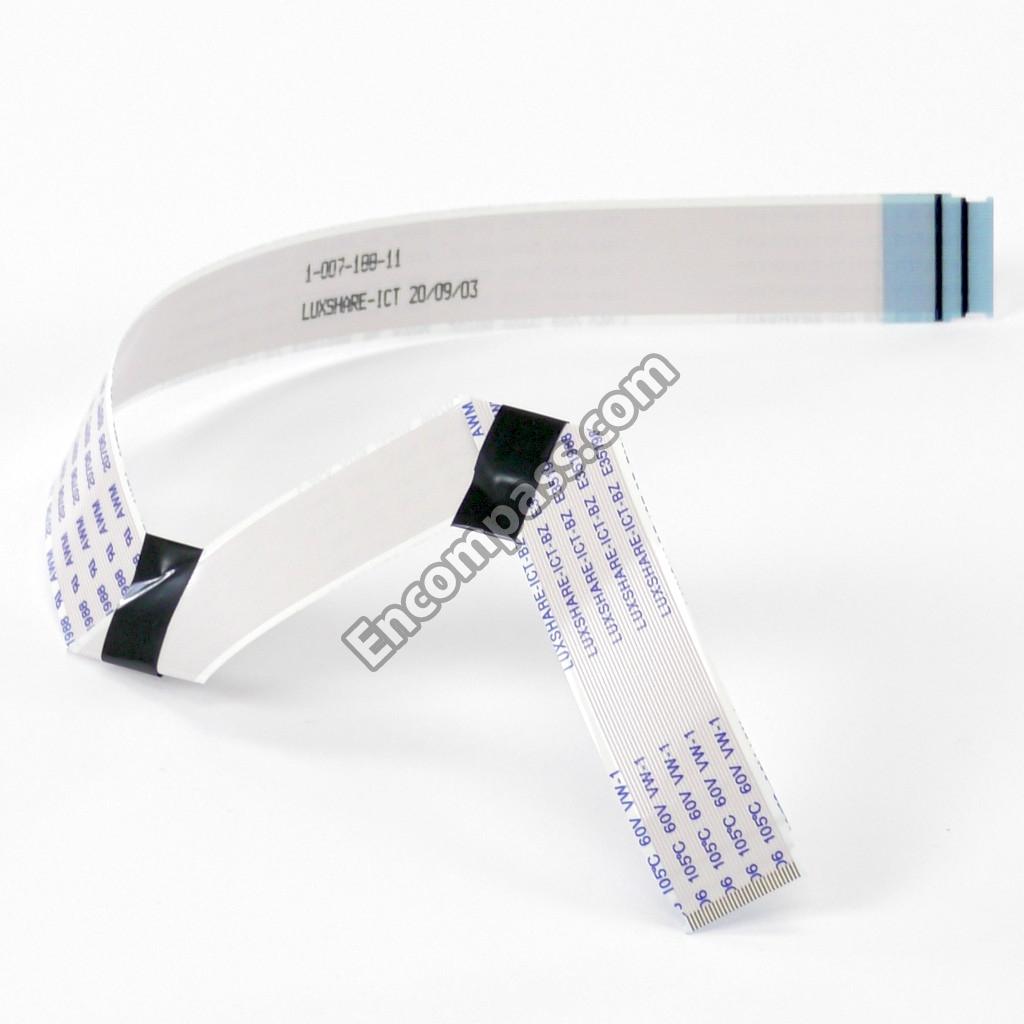

1-007-188-11 1-007-188-11 FLEXIBLE FLAT CABLE 30P (UC2)

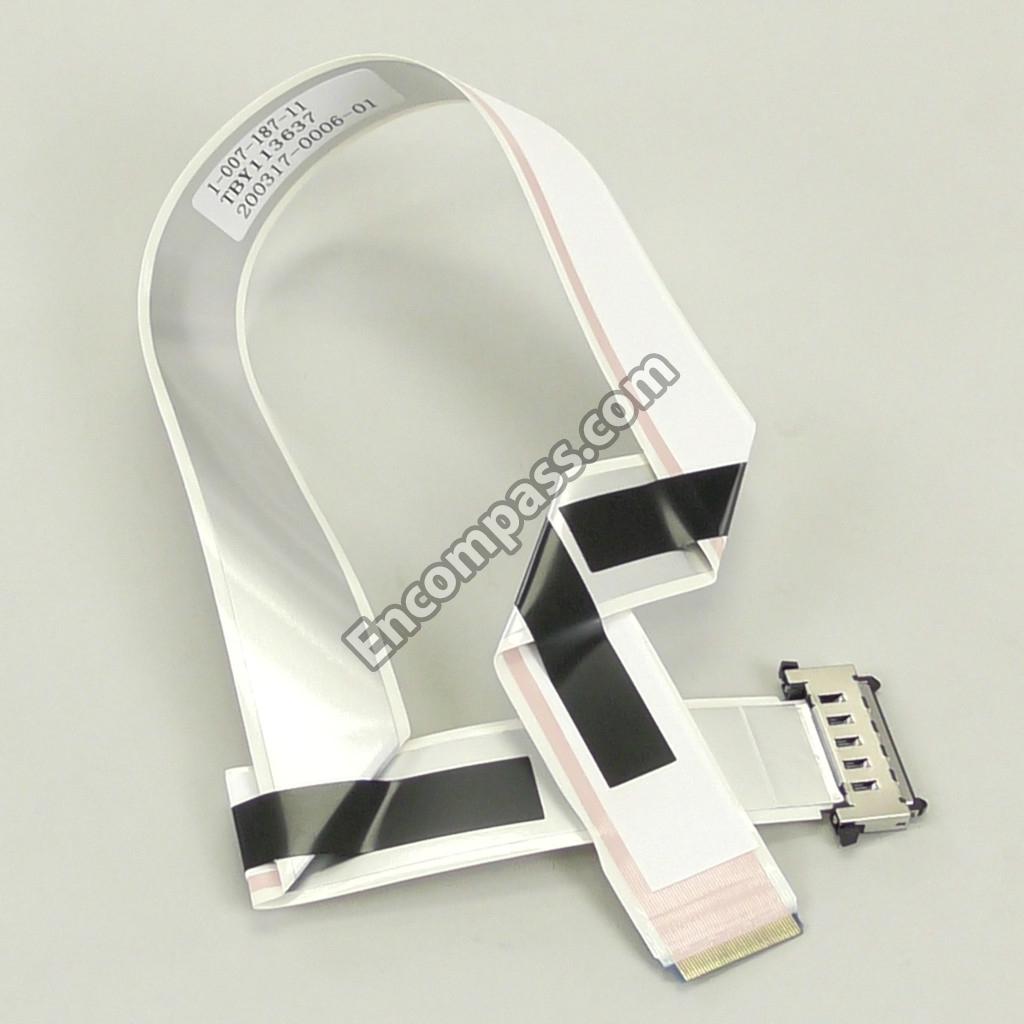

1-007-186-11 1-007-186-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-010-311-11 1-010-311-11 FLEXIBLE FLAT CABLE 51P (UC2)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
A-5015-202-A A-5015-202-A HT1_4K_CT_NX MOUNT (UC2)
5-012-173-01 5-012-173-01 LABEL, SIDE TERMINAL (APL) (UC2)
1-009-555-11 1-009-555-11 LIQUID CRYSTAL ELEMENT(C75D02) (UC2) (PANEL PART)
1-007-576-11 1-007-576-11 LIQUID CRYSTAL ELEMENT(S75FF3) (UC2) (PANEL PART)
5-009-019-22 5-009-019-22 MID CHASSIS B ASSY (3L APL) (BOTTOM) (UC2) (PANEL PART)
5-009-021-22 5-009-021-22 MID CHASSIS L ASSY (3L APL) (LEFT) (UC2) (PANEL PART)
5-009-023-22 5-009-023-22 MID CHASSIS R ASSY (3L APL) (RIGHT) (UC2) (PANEL PART)
5-009-017-21 5-009-017-21 MID CHASSIS T ASSY (3L APL) (TOP) (UC2) (PANEL PART)

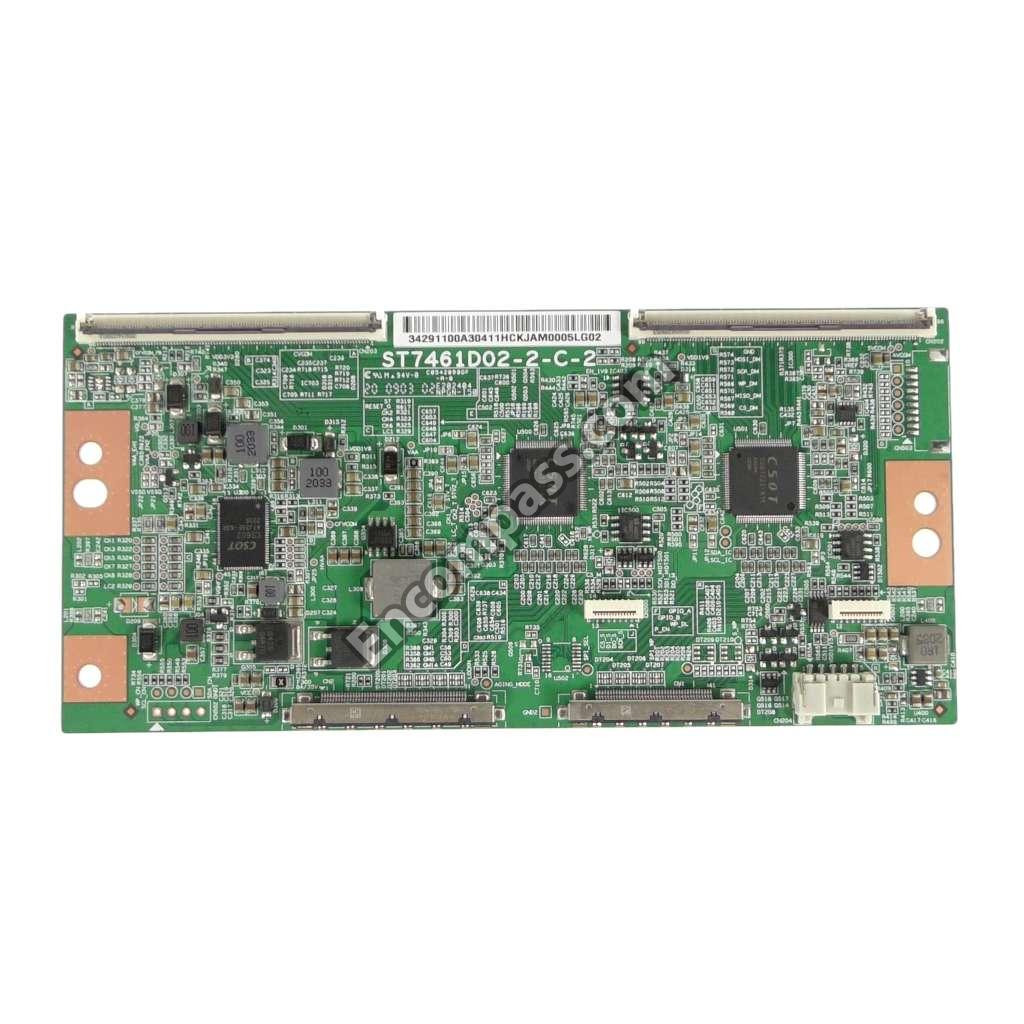

1-007-577-11 1-007-577-11 MOUNTED PWB E-T-CON(75) (UC2)

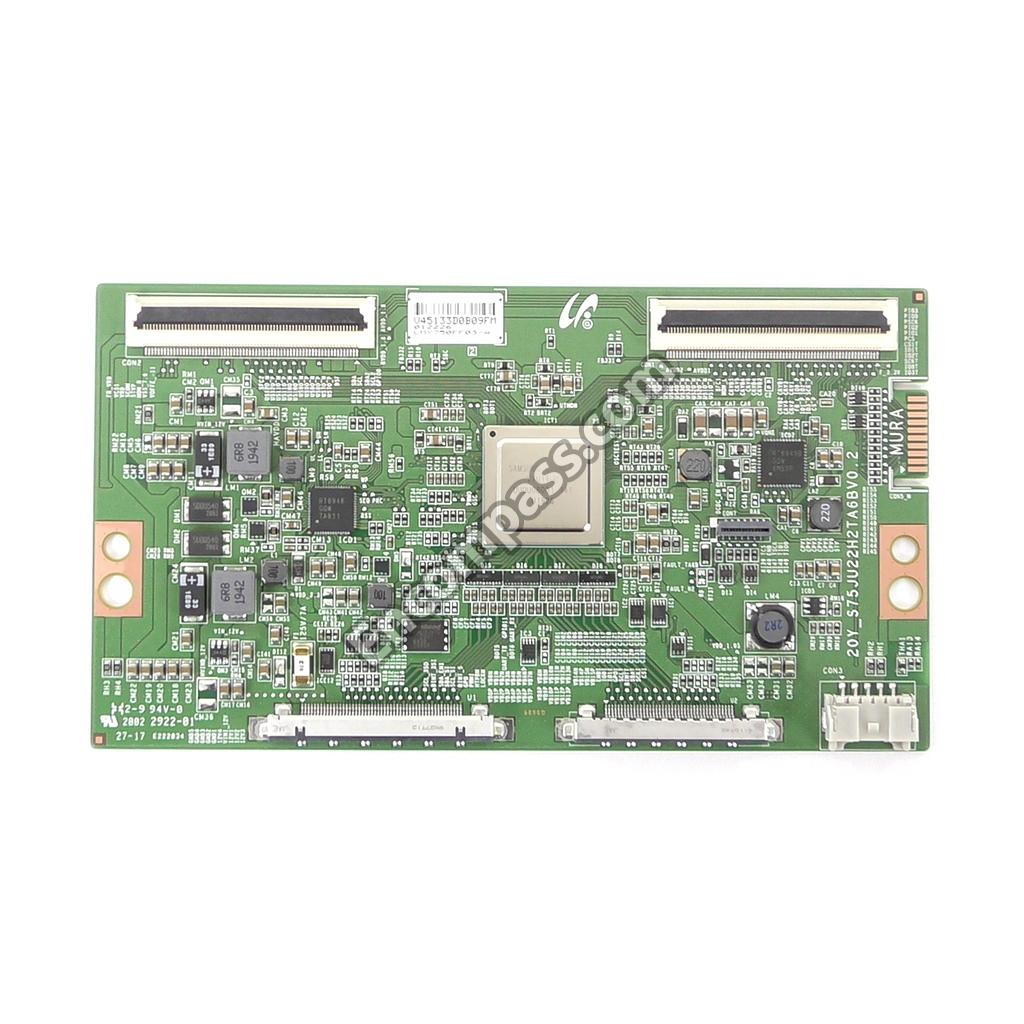

1-009-556-11 1-009-556-11 MOUNTED PWB E-T-CON(75) (UC2) (PANEL PART)
5-028-129-01 5-028-129-01 POLARIZER F/CF (313050Z200000G) (UC2) (PANEL PART)
5-023-559-01 5-023-559-01 POLARIZER F/CF (LJ01-12300A) (DESTINATION) (PANEL PART)
5-018-081-22 5-018-081-22 REAR COVER (3L APL) A (UC2)
5-014-859-11 5-014-859-11 REFERENCE GUIDE (UC2)
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
4-579-926-01 4-579-926-01 SCREW, M3X3 (BLACK-FOR NX_NXB. SAME AS NX 55_65) (UC2) (PANEL PART)
5-014-863-11 5-014-863-11 SETUP GUIDE (UC2)
5-020-359-01 5-020-359-01 SHEET,THERMAL CSOT (APL) (UC2) (PANEL PART)
4-699-975-02 4-699-975-02 SHEET,THERMAL(5567H) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
1-009-291-11 1-009-291-11 SOURCE DRIVER IC MT BOARD (3302100000019Y) (UC2) (PANEL PART)
1-009-290-11 1-009-290-11 SOURCE DRIVER IC MT BOARD (LJ13-04010A) (UC2) (PANEL PART)
5-012-816-11 5-012-816-11 STAND, L (3L APL) A (UC2)
5-012-817-11 5-012-817-11 STAND, R (3L APL) A (UC2)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
NSI NSI TAPE (3M 1350FB-1)15MMX66M BLK (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
