Model Image
Manufacturer

Sony

Model Number

XBR75X940C

Description

75-inch 4k Ultra Hd Lcd Tv

Interactive Exploded View

Parts List

Part Number Description
1-458-628-41 1-458-628-41 3D EYEWEAR TDG-BT500A (SERVICE) EU
4-480-120-01 4-480-120-01 AC COVER(NAS)
7-600-040-44 7-600-040-44 ADHESIVE (SV380C) 333CC GRY
4-565-392-01 4-565-392-01 ATTACHMENT, WALL MOUNT A (ALB)
4-463-174-01 4-463-174-01 BADGE, XBR LOGO (H6)
4-558-451-01 4-558-451-01 BRACKET STAND(3L ALB)
4-546-444-31 4-546-444-31 BRACKET, SIDE F (MOLD)
4-546-441-01 4-546-441-01 BRACKET, TOP FL (MOLD)
4-562-407-01 4-562-407-01 BRACKET, VESA (ALB)
4-484-097-11 4-484-097-11 BRACKET, VESA (M)
4-564-318-01 4-564-318-01 BRACKET, WIFI
1-754-958-11 1-754-958-11 BT ANTENNA
4-564-316-01 4-564-316-01 CASE, BOTTOM (L)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)
A-2072-529-A A-2072-529-A COMPLE SVC (XS) BMFW (Main CBA)UC2 #
1-910-110-14 1-910-110-14 CONNECTOR ASSY 28P
1-846-292-21 1-846-292-21 CONNECTOR ASSY 2P
1-846-291-21 1-846-291-21 CONNECTOR ASSY 2P
1-848-975-11 1-848-975-11 CONNECTOR ASSY, 3P
4-562-929-01 4-562-929-01 COVER, TERMINAL (3L ALB)
4-564-317-01 4-564-317-01 COVER, TOP
1-481-531-11 1-481-531-11 FILTER, CLAMP (FERRITE CORE)
1-910-110-17 1-910-110-17 FLEXIBLE FLAT CABLE 20P
1-910-110-18 1-910-110-18 FLEXIBLE FLAT CABLE 24P
1-848-976-11 1-848-976-11 FLEXIBLE FLAT CABLE 41P

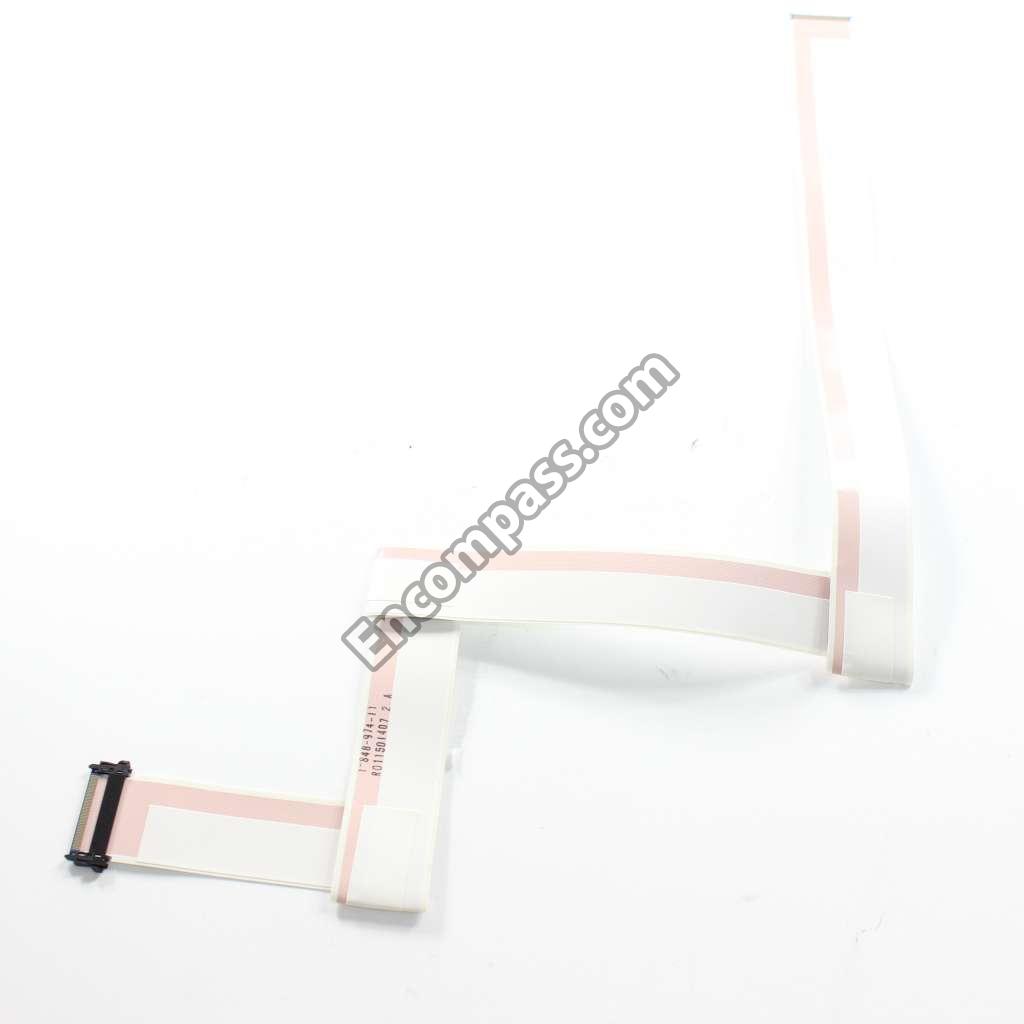

1-848-974-11 1-848-974-11 FLEXIBLE FLAT CABLE 51P
1-474-626-11 1-474-626-11 G5(CH)-STATIC CONVERTER(TV) (Power CBA)

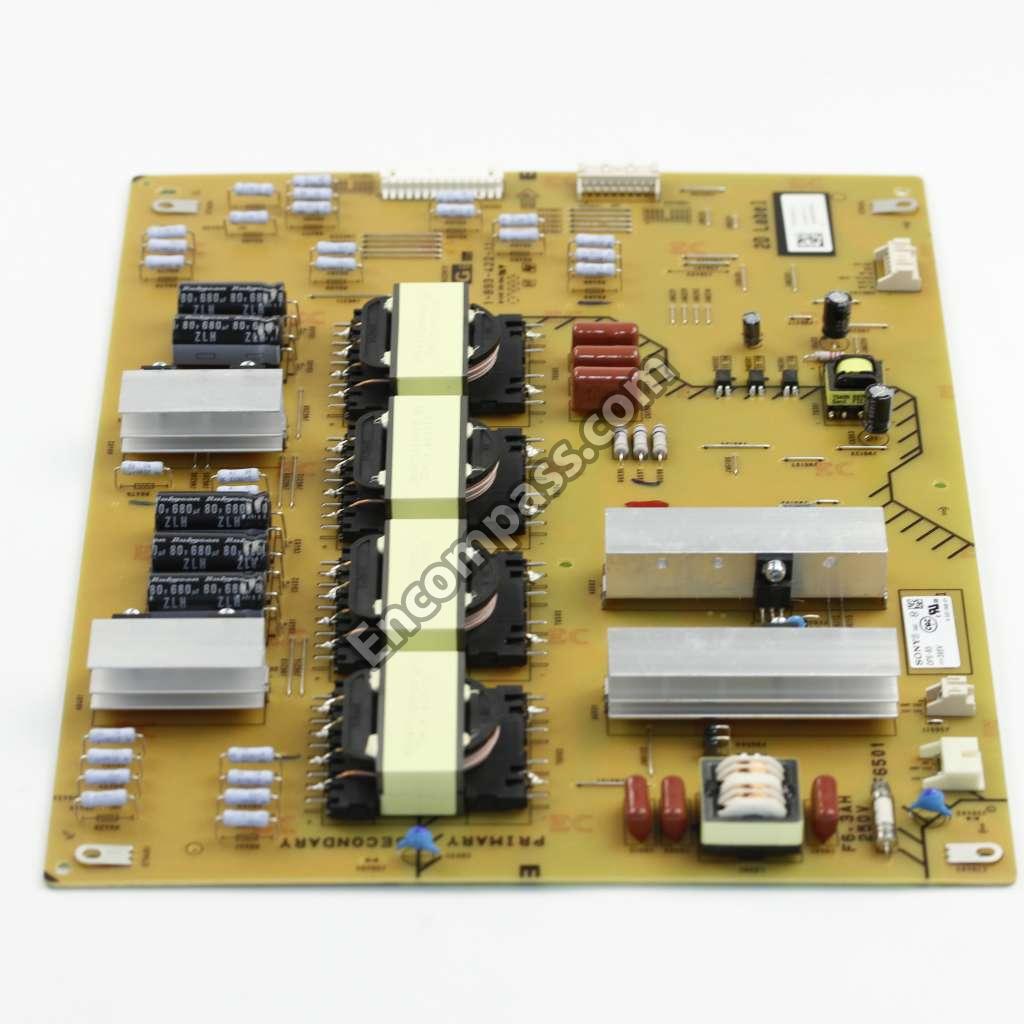

1-474-576-11 1-474-576-11 G6(CH)-STATIC CONVERTER(TV) (Power CBA)

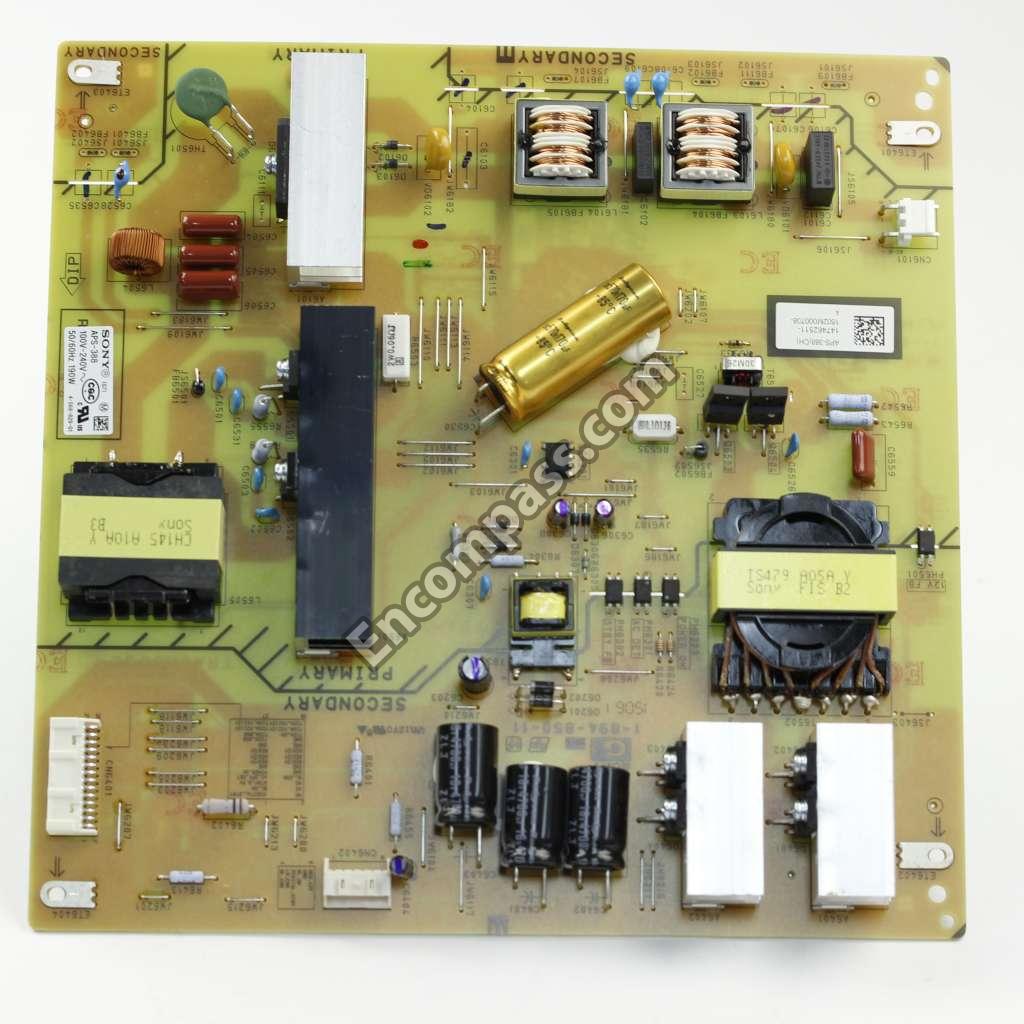

1-474-625-11 1-474-625-11 G7(CH)-STATIC CONVERTER(TV) (Power CBA)
4-566-117-01 4-566-117-01 GASKET (BMF)
1-910-110-16 1-910-110-16 HARNESS ASSY
1-910-110-15 1-910-110-15 HARNESS ASSY(MAIN)
4-547-207-01 4-547-207-01 HEAT SINK(SC)
4-477-465-31 4-477-465-31 HI-RES LABEL
4-548-828-01 4-548-828-01 HOLDER, SIDE SW (ALB)
A-2066-086-A A-2066-086-A HSC3_L MOUNT
1-845-283-21 1-845-283-21 IR BLASTER
A-2068-389-A A-2068-389-A KS MOUNT
4-563-764-01 4-563-764-01 LABEL, REAR TERMINAL
4-563-755-01 4-563-755-01 LABEL, SIDE TERMINAL (W)
4-564-313-01 4-564-313-01 LIGHT, GUIDE
1-859-104-11 1-859-104-11 LOUDSPEAKER(18MM)
4-548-720-01 4-548-720-01 ORNAMENT, MFS (ALB)
4-548-719-01 4-548-719-01 ORNAMENT, SWF (ALB)
4-548-721-01 4-548-721-01 ORNAMENT, TW (ALB)
4-564-312-01 4-564-312-01 PANEL, ORNAMENT
1-839-696-21 1-839-696-21 POWER-SUPPLY CORD (WITH CONN.) !
4-548-706-01 4-548-706-01 REAR COVER (3L ALB) A
4-562-189-12 4-562-189-12 REFERENCE GUIDE
1-492-949-12 1-492-949-12 REMOTE COMMANDER (RMF-TX100U)
1-492-978-21 1-492-978-21 REMOTE COMMANDER (RMT-TX100U)
2-990-421-41 2-990-421-41 SCREW (+PSW) (M3X6)
4-452-935-11 4-452-935-11 SCREW , +PWH M3X6
2-580-639-01 2-580-639-01 SCREW, +BVTP 4X12 TYPE2 IT-3
2-580-595-01 2-580-595-01 SCREW, +PSW M3X12
4-256-393-11 4-256-393-11 SCREW, +PSW M3X6 W12
2-580-593-01 2-580-593-01 SCREW, +PSW M3X8
4-159-298-01 4-159-298-01 SCREW, +PSW M4X10
2-580-608-01 2-580-608-01 SCREW, +PSW M5X16
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12
4-562-864-01 4-562-864-01 SHEET, INSULATION(ALB 3L)
4-549-184-02 4-549-184-02 SHEET, INSULATION(HWK 3L SYS)
4-549-528-11 4-549-528-11 SHEET, THERMAL (SC)
4-549-186-01 4-549-186-01 SHEET, THERMAL(BM)
2-650-770-21 2-650-770-21 SLIDE, CLAMP
1-859-105-21 1-859-105-21 SP BOX ASSY
1-859-105-11 1-859-105-11 SP BOX ASSY
1-859-103-11 1-859-103-11 SP BOX ASSY

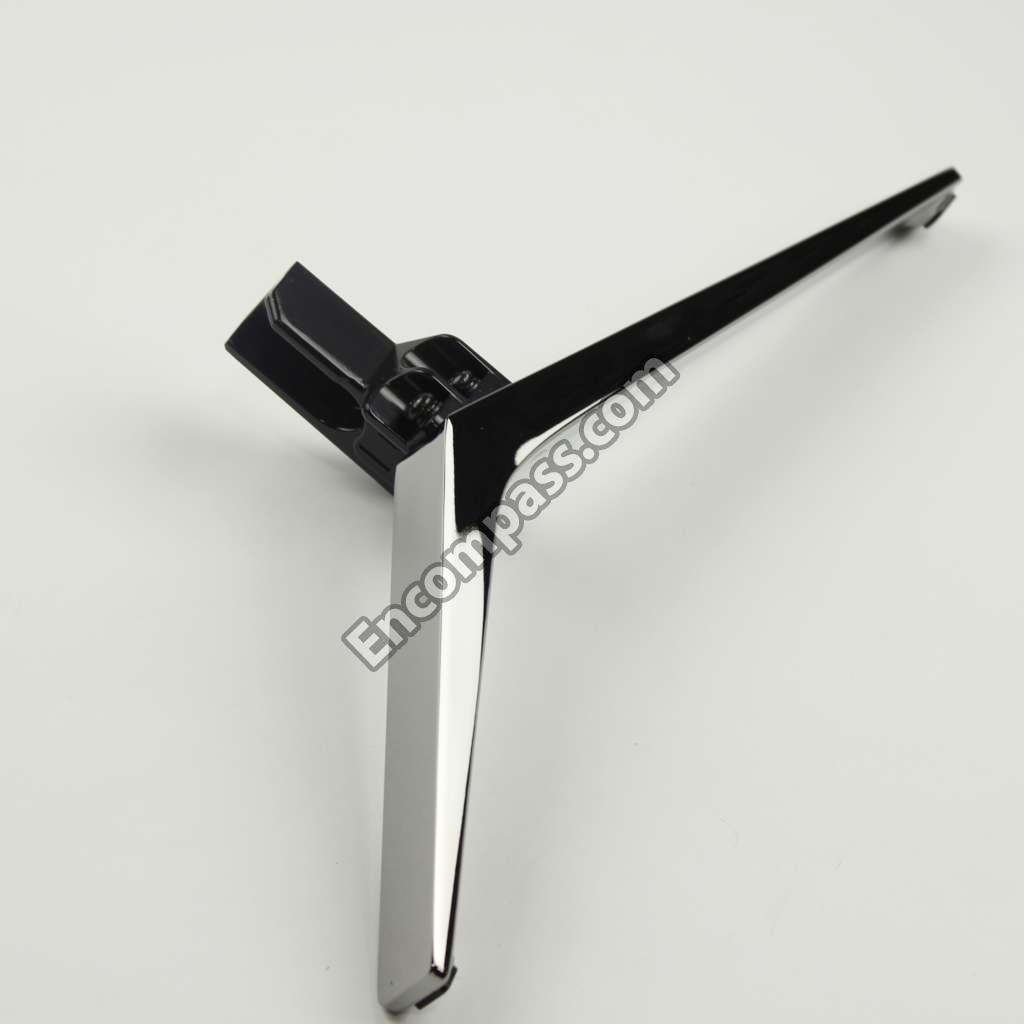

4-562-466-01 4-562-466-01 STAND L (3L ALB) A
4-562-467-01 4-562-467-01 STAND R (3L ALB) A
3-674-673-22 3-674-673-22 STOPPER (A)
1-493-015-11 1-493-015-11 SWITCH UNIT (VM-WW)
7-600-031-96 7-600-031-96 TAPE (3M 1350FB-1)15MMX66M BLK
7-632-452-24 7-632-452-24 TAPE (NO.303) 18MMX35M YEL
4-548-729-11 4-548-729-11 UNDER COVER (CL)(2L ALB)
4-548-728-11 4-548-728-11 UNDER COVER (CR)(2L ALB)
4-558-448-01 4-558-448-01 UNDER COVER(L)(3L ALB)
4-558-447-01 4-558-447-01 UNDER COVER(R)(3L ALB)
3-876-036-71 3-876-036-71 UNI-LABEL, BLANK
4-570-363-01 4-570-363-01 WASHER (G6), INSULATION
1-458-853-11 1-458-853-11 WLAN/BT MODULE(11AC)
