Manufacturer
Sony
Model Number
XBR75X950H
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|

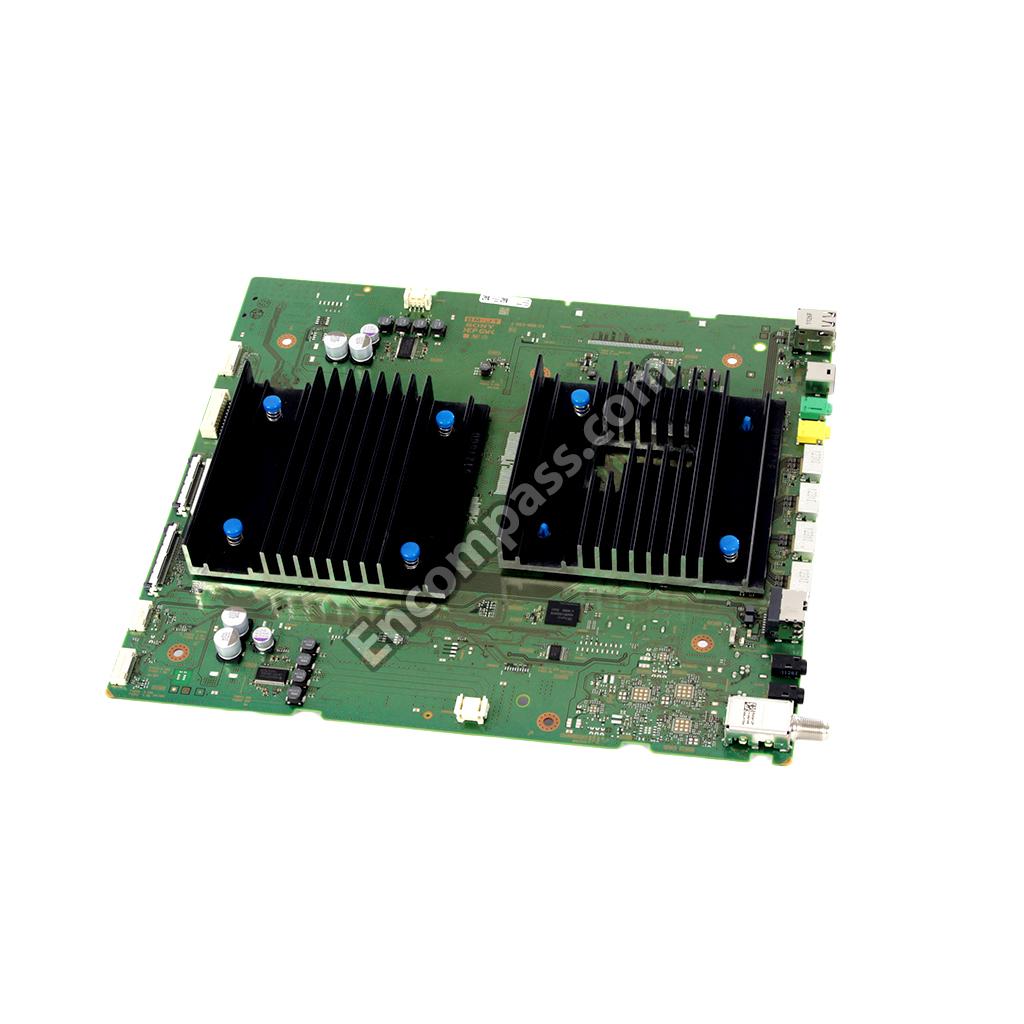

(MAIN CBA) COMPL_SVC_BM3JT_UCM (UCM) |
|
|
BEZEL B ASSY (3L PCH) (UCM) |
|
|
BEZEL T ASSY (3L PCH) (UCM) |
|
|
COMPL 20LD60A1_75 (UCM) |
|
|
CONNECTOR ASSY 15P (UCM) |
|
|
CONNECTOR ASSY 28P (UCM) |
|
|
CONNECTOR ASSY 4P (PZ) (UCM) |
|
|
COVER, TOP(BNN) (UCM) |
|
|
FLEXIBLE FLAT CABLE 20P (UCM) |
|
|
FLEXIBLE FLAT CABLE 25P (UCM) |
|
|
FLEXIBLE FLAT CABLE 30P (UCM) |
|
|
FLEXIBLE FLAT CABLE 41P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|
FPC-MIC(L) (UCM) |
|
|
FPC-MIC(R) (UCM) |
|
|
G03-(POWER CBA) STATIC CONVERTER (TV) (UCM) |
|
|
HT1_4K_MIC_CT MOUNT (UCM) |
|
|
LABEL, SIDE TERMINAL (PCH) (UCM) |
|
|
LIQUID CRYSTAL ELEMENT(I750DK3 (UCM) |
|
|

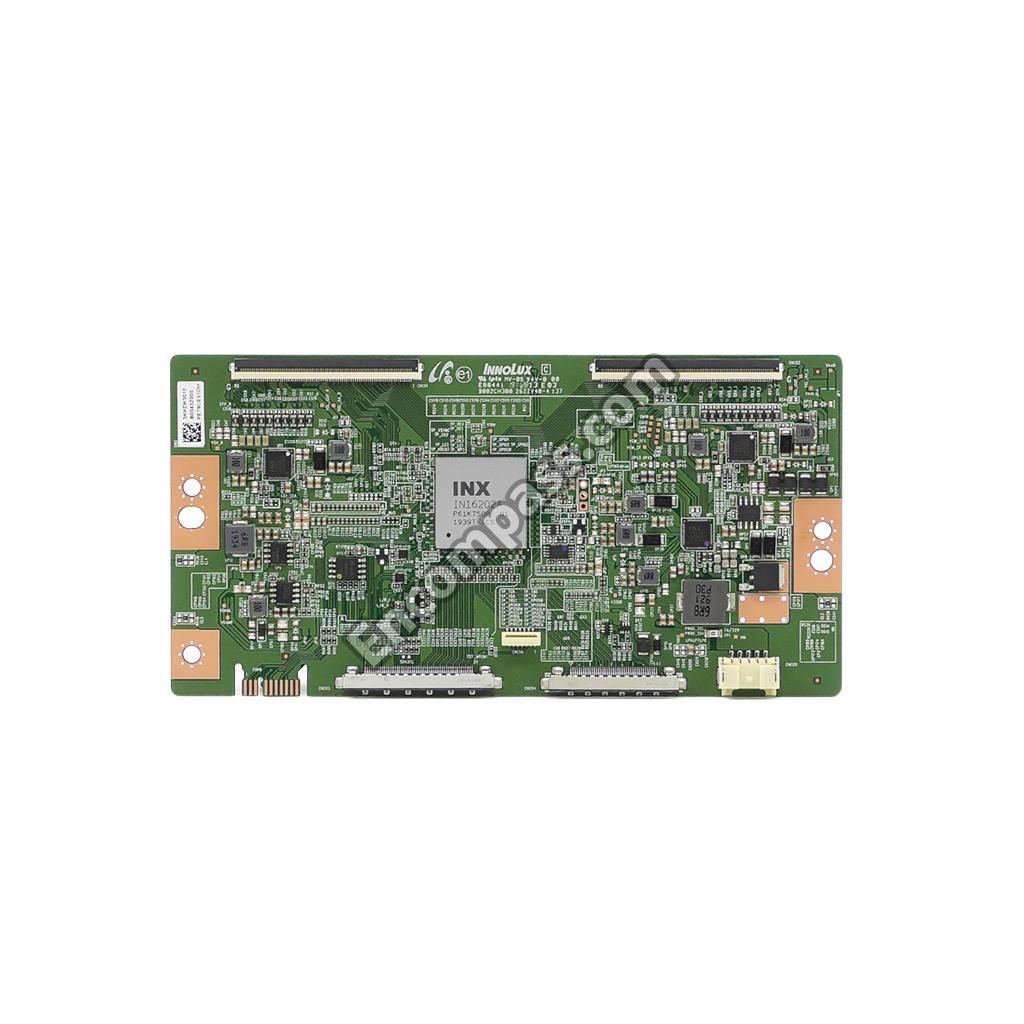

MOUNTED PWB E-T-CON (75) (UCM) |
|
|
MOUNTED PWB LS BAR (3L) (UCM) |
|
|
P-MOD (YDAS075DNN02)(SERVICE) (UCM) |
|
|
REAR COVER (3L PCH) A (UCM) |
|
|
REFERENCE GUIDE (UCM) |
|
|
SETUP GUIDE (UCM) |
|
|
SHEET, THERMAL(PCH A) (UCM) |
|
|
SP ASSY,PZ25-25 (UCM) |
|
|
STAND NECK (3L PCH) A (UCM) |
|
|
STAND, L (3L PCH) A (UCM) |
|
|
STAND, R (3L PCH) A (UCM) |
