Model Image
Manufacturer

Sony

Model Number

XBR77A1E

Description

77-inch Class Bravia Oled 4k Hdr Tv

Interactive Exploded View

Parts List

Part Number Description
A-2181-897-A A-2181-897-A (MAIN CBA) BKA_UC COMPL (UC2)
A-2181-898-A A-2181-898-A (MAIN CBA) COMPL SVC BKA_MX (LA1)
1-474-697-11 1-474-697-11 (POWER CBA) G77(CH)-STATIC CONVERTER(TV) (UC2,LA1)
1-843-998-12 1-843-998-12 AC INLET (LA1,UC2)
4-588-089-02 4-588-089-02 BAG, SCREW ASSY (TQS) (UC2,LA1)
4-693-211-01 4-693-211-01 BOARD, FRONT (3L HKS) (LA1,UC2)
4-694-450-01 4-694-450-01 BOARD, SIDE (3L HKS) (LA1,UC2)
4-688-522-01 4-688-522-01 BRACKET, CARD SLOT(HKS) (LA1)
4-688-522-31 4-688-522-31 BRACKET, CARD SLOT(HKS) (UC2)
4-693-189-01 4-693-189-01 BRACKET, SLIDE L (3L HKS) (UC2,LA1)
4-693-190-01 4-693-190-01 BRACKET, SLIDE R (3L HKS) (UC2,LA1)
4-688-523-01 4-688-523-01 BRACKET, UNDER (HKS) (LA1)
4-688-523-21 4-688-523-21 BRACKET, UNDER (HKS) (UC2)
1-522-021-12 1-522-021-12 BT ANTENNA 380MM FXC (UC2,LA1)
X-259-512-41 X-259-512-41 CARTON ASSY (3L HKS) (LA1,UC2)
4-699-078-01 4-699-078-01 CARTON, INDIVIDUAL (3L HKS) (LA1,UC2)
4-581-672-01 4-581-672-01 CATCH, HOOK (LA1)
3-299-766-01 3-299-766-01 CATCHER (LA1)
4-693-194-01 4-693-194-01 CHASSIS, BOX A (3L HKS) (UC2,LA1)
4-599-900-01 4-599-900-01 CLAMPER CABLE L(PUC) (LA1)
1-910-112-47 1-910-112-47 CONNECTOR ASSY 14P(PWRB) (LA1,UC2)
1-910-112-51 1-910-112-51 CONNECTOR ASSY 28P(PWRG) (UC2,LA1)
1-910-112-53 1-910-112-53 CONNECTOR ASSY 3P (UC2,LA1)
1-910-112-52 1-910-112-52 CONNECTOR ASSY 40P(PWRT) (UC2,LA1)
4-688-504-01 4-688-504-01 COVER SP A (2L HKS) (LA1,UC2)
4-688-504-11 4-688-504-11 COVER SP A (2L HKS) (LA1,UC2)
4-688-504-12 4-688-504-12 COVER SP A (2L HKS) (UC2,LA1)
4-688-504-02 4-688-504-02 COVER SP A (2L HKS) (UC2,LA1)
4-688-516-01 4-688-516-01 COVER SP CTR A (HKS) (LA1,UC2)
4-693-398-01 4-693-398-01 COVER SUPPORT PLATE(2L HKS) (LA1,UC2)
4-693-187-01 4-693-187-01 COVER, PANEL BTM (3L HKS) A (UC2,LA1)
4-689-301-02 4-689-301-02 COVER, PANEL CTR A (HKS) (LA1,UC2)
4-693-185-01 4-693-185-01 COVER, PANEL TOP (3L HKS) A (UC2,LA1)
4-693-752-01 4-693-752-01 COVER, TERMINAL (HKS) (LA1,UC2)
4-528-026-41 4-528-026-41 CUSHION 1225A (LA1,UC2)
4-575-746-01 4-575-746-01 CUSHION 1525A (LA1,UC2)
4-694-915-01 4-694-915-01 CUSHION 2F HRS(HKS) (LA1,UC2)
4-530-981-51 4-530-981-51 CUSHION 525A (LA1,UC2)
4-528-032-51 4-528-032-51 CUSHION 625A (LA1,UC2)
4-698-010-01 4-698-010-01 CUSHION, COVER PANEL CTR (HKS) (UC2,LA1)
4-693-208-01 4-693-208-01 CUSHION, LOWER L (3L HKS) (LA1,UC2)
4-693-209-01 4-693-209-01 CUSHION, LOWER R (3L HKS) (LA1,UC2)
4-693-210-01 4-693-210-01 CUSHION, SIDE (3L HKS) (LA1,UC2)
4-693-206-01 4-693-206-01 CUSHION, UPPER L (3L HKS) (LA1,UC2)
4-693-207-01 4-693-207-01 CUSHION, UPPER R (3L HKS) (LA1,UC2)
A-2167-837-A A-2167-837-A DKA MOUNT (LA1,UC2)
4-693-842-01 4-693-842-01 FLAT CLAMP (L) (LA1,UC2)
4-693-843-01 4-693-843-01 FLAT CLAMP (S) (LA1,UC2)
1-910-112-50 1-910-112-50 FLEXIBLE FLAT CABLE 30P (UC2,LA1)
1-912-130-11 1-912-130-11 FLEXIBLE FLAT CABLE 41P (UC2,LA1)
1-912-129-11 1-912-129-11 FLEXIBLE FLAT CABLE 51P (UC2,LA1)
1-912-131-11 1-912-131-11 FLEXIBLE FLAT CABLE 51P/36P (UC2,LA1)
4-688-734-01 4-688-734-01 FRONT SIDE FOOT (HKS) (LA1,UC2)
4-693-619-01 4-693-619-01 GASKET COVER SP (HKS) (LA1)
4-693-620-01 4-693-620-01 GASKET COVER SP CTR (HKS) (LA1,UC2)
4-695-601-01 4-695-601-01 HINGE (3L HKS) A (UC2,LA1)
1-849-161-11 1-849-161-11 IR BLASTER CABLE (LA1,UC2)
4-693-214-31 4-693-214-31 LABEL, TERMINAL UNDER (HKS) (LA1)
4-693-214-21 4-693-214-21 LABEL, TERMINAL UNDER (HKS) (UC2)
4-693-400-01 4-693-400-01 LEVER, HINGE (HKS) (LA1,UC2)
1-812-358-11 1-812-358-11 OLED PANEL(L77AKA3) (LA1,UC2)
A-2190-400-A A-2190-400-A OLED PANEL(L77AKA3)(SVC) (UC2,LA1)
4-693-193-01 4-693-193-01 OMT COVER BRACKET,(3L HKS) CB (UC2,LA1)
4-699-899-01 4-699-899-01 PANEL, ORNAMENT (3L HKS) A (PANEL PART) (UC2)

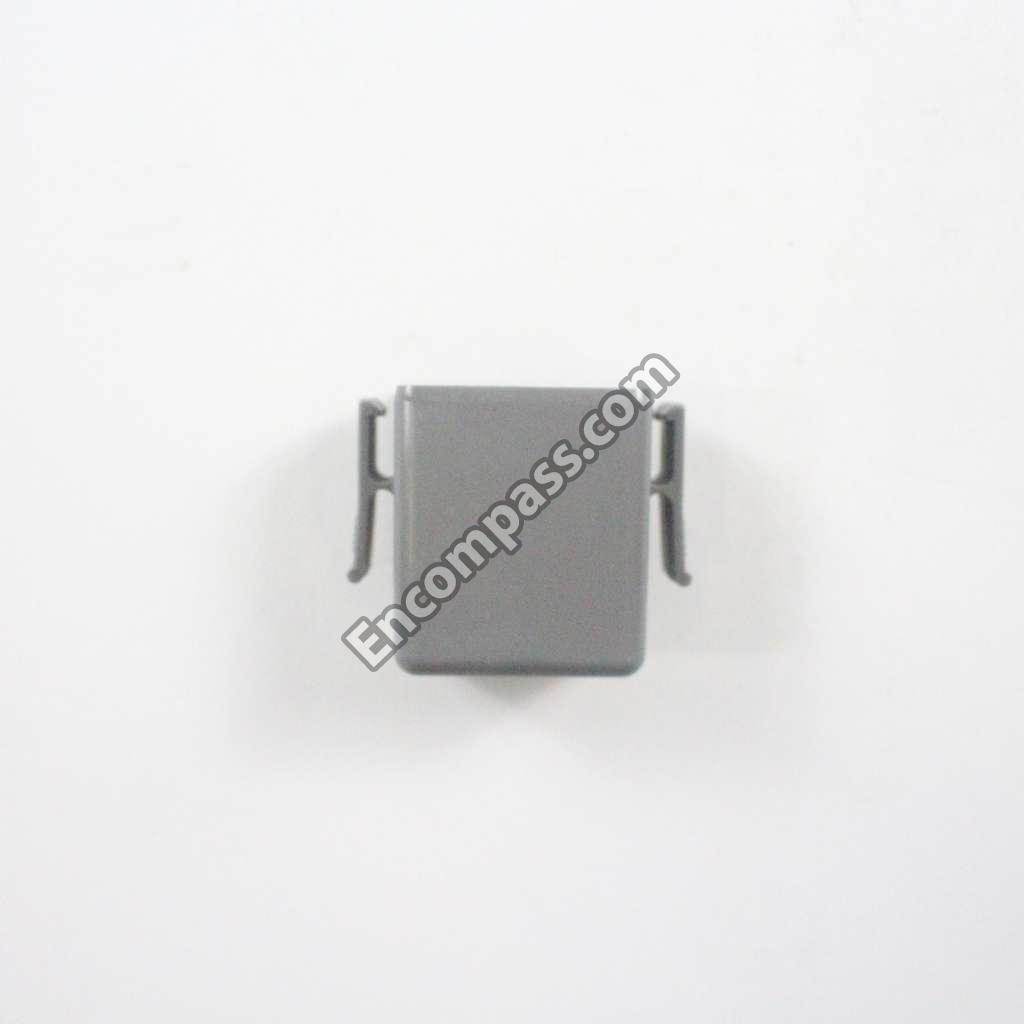

4-696-300-01 4-696-300-01 PLUG, HOLDER B ASSY (HKS) (LA1,UC2)
1-836-883-12 1-836-883-12 POWER-SUPPLY CORD (UC2,LA1)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (LA1,UC2)
4-693-191-01 4-693-191-01 REAR COVER, A CB(3L HKS) (UC2,LA1)
4-693-662-32 4-693-662-32 REFERENCE GUIDE (LA1)
4-693-661-11 4-693-661-11 REFERENCE GUIDE (UC2)
1-493-221-21 1-493-221-21 REMOTE COMMANDER (RMF-TX201U) (UC2,LA1)
4-159-298-31 4-159-298-31 SCREW, +PSW M4X10 (UC2,LA1)
4-694-193-01 4-694-193-01 SHEET, AL PCB L(HKS) (LA1,UC2)
4-694-194-01 4-694-194-01 SHEET, AL PCB S(HKS) (LA1,UC2)
4-699-858-01 4-699-858-01 SHEET, AL PCB(3L HKS) (UC2,LA1)
4-693-202-11 4-693-202-11 SHEET, INSULATION(3L HKS A) (UC2,LA1)
4-693-201-11 4-693-201-11 SHEET, INSULATION(3L HKS B) (UC2,LA1)
4-696-435-01 4-696-435-01 SHEET, STUD SUPPORT(HKS) (LA1,UC2)
4-697-263-01 4-697-263-01 SHEET, THERMAL (3L HKS G) (UC2,LA1)
4-549-186-02 4-549-186-02 SHEET, THERMAL(BM) (LA1,UC2)
4-694-197-01 4-694-197-01 SHEET, THERMAL(HKS G B L) (LA1,UC2)
4-595-404-01 4-595-404-01 SHEET, THERMAL(MUF SBT) (LA1,UC2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (LA1,UC2)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (LA1,UC2)
1-859-224-11 1-859-224-11 SP-BOX ASSY (UC2,LA1)
4-693-483-01 4-693-483-01 STAND A (2L HKS) (LA1,UC2)
4-693-203-01 4-693-203-01 STD SUPPOR PLATE A(3L HKS) (LA1,UC2)
4-693-203-02 4-693-203-02 STD SUPPORT PLATE A(3L HKS) (UC2,LA1)
3-674-673-22 3-674-673-22 STOPPER (A) (LA1,UC2)
1-474-647-11 1-474-647-11 SWITCH UNIT(3M-P) (LA1,UC2)
4-589-892-01 4-589-892-01 TAPE (DK020FR-19) 19X80 SHEET (LA1,UC2)
4-694-195-01 4-694-195-01 TAPE, COND 50X65(HKS) (LA1,UC2)
4-693-513-01 4-693-513-01 TAPE, CONDUCTIVE PG(3L HKS) (UC2,LA1)
4-693-205-01 4-693-205-01 TRAY (3L HKS) (LA1,UC2)
8-594-302-00 8-594-302-00 UNIVERSAL SIL-TU SUT-RA243ZP (LA1,UC2)

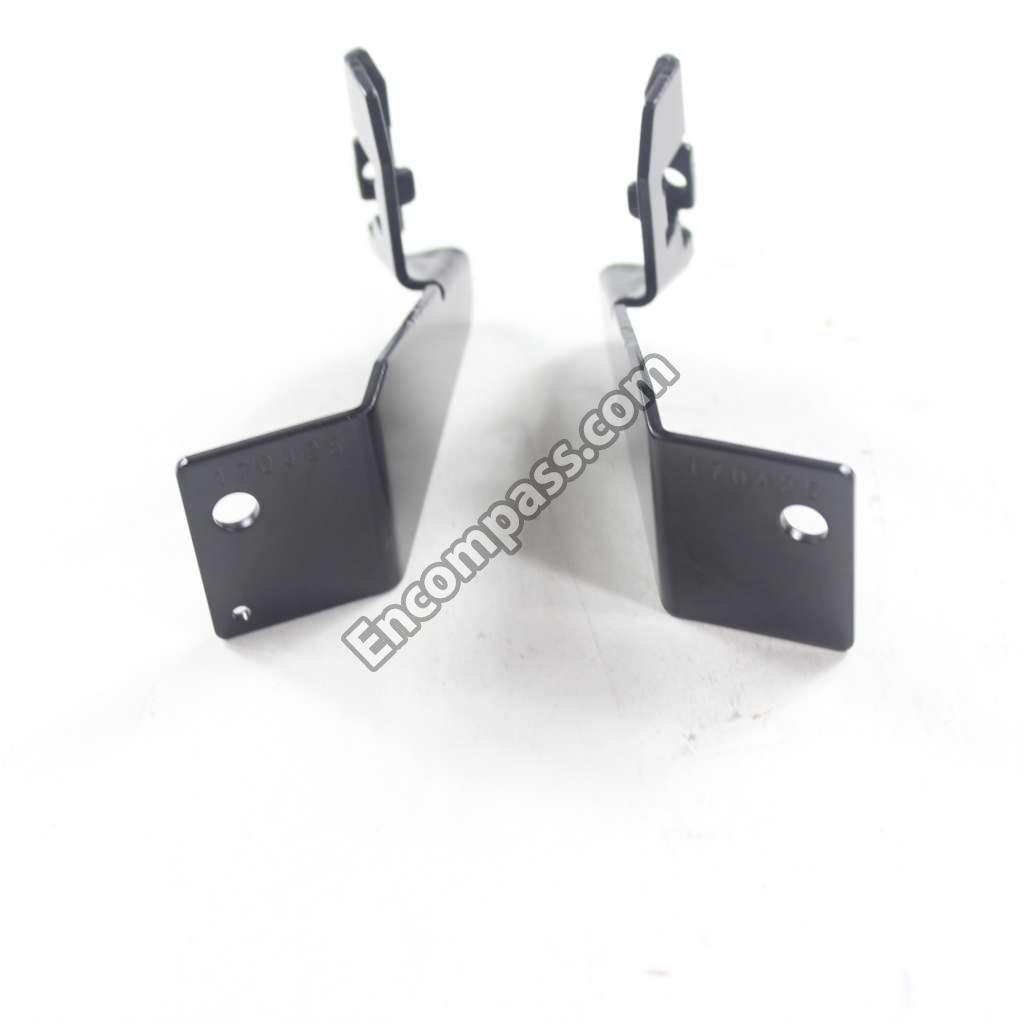

4-696-558-01 4-696-558-01 WM SUPPROT PLATE A (3L HKS) (LA1,UC2)
