Model Image
Manufacturer

Sony

Model Number

XBR79X900B

Description

79-inch X900b Premium 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description
1-848-346-11 1-848-346-11 (LVDS) FLEXIBLE FLAT CABLE 41P
1-848-347-11 1-848-347-11 (LVDS) FLEXIBLE FLAT CABLE 51P
X-2588-944-1 X-2588-944-1 3D GLASSES (SINGLE KIT)
1-492-687-11 1-492-687-11 AC ADAPTOR
4-480-119-01 4-480-119-01 AC COVER
4-547-377-01 4-547-377-01 ATTACHMENT, WALL MOUNT A
4-480-412-01 4-480-412-01 BACK COVER
4-463-174-01 4-463-174-01 BADGE, XBR LOGO
4-488-073-01 4-488-073-01 BAG PE (MMB)
4-534-198-01 4-534-198-01 BAGPROTECTION PEHD(3000X1850)
AM4PTB2D AM4PTB2D BATTERY "AAA"
4-480-408-12 4-480-408-12 BOTTOM CASE
4-476-786-01 4-476-786-01 BRACKET RC LO (55 MRS)
4-531-743-02 4-531-743-02 BRACKET, RC
4-486-586-01 4-486-586-01 BRACKET, SC (LEFT)
4-486-587-01 4-486-587-01 BRACKET, SC (RIGHT)
4-480-396-51 4-480-396-51 BRACKET, SIDE
4-486-527-01 4-486-527-01 BRACKET, STAND C
4-484-098-01 4-484-098-01 BRACKET, VESA (L)
4-484-097-11 4-484-097-11 BRACKET, VESA (M)
1-492-760-12 1-492-760-12 BT MODULE
1-458-794-11 1-458-794-11 CAMERA MODULE
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)
1-910-109-33 1-910-109-33 CONNECTOR ASSEMBLY 20P
1-910-109-30 1-910-109-30 CONNECTOR ASSEMBLY 28P (G3-K1-BAXF-TCON)
1-846-714-11 1-846-714-11 CONNECTOR ASSEMBLY 3P
4-478-075-01 4-478-075-01 COVER UNDER CL (LEFT)
4-488-543-01 4-488-543-01 COVER UNDER CR (RIGHT)
4-535-168-01 4-535-168-01 COVER, CAM A
4-478-080-12 4-478-080-12 COVER, TERMINAL REAR
4-478-078-12 4-478-078-12 COVER, TERMINAL SIDE
4-534-193-11 4-534-193-11 CUSHION LOWER (3L CAN)
4-534-192-11 4-534-192-11 CUSHION UPPER (3L CAN)
1-910-109-34 1-910-109-34 FLEXIBLE FLAT CABLE 20P
4-480-411-02 4-480-411-02 FRONT COVER

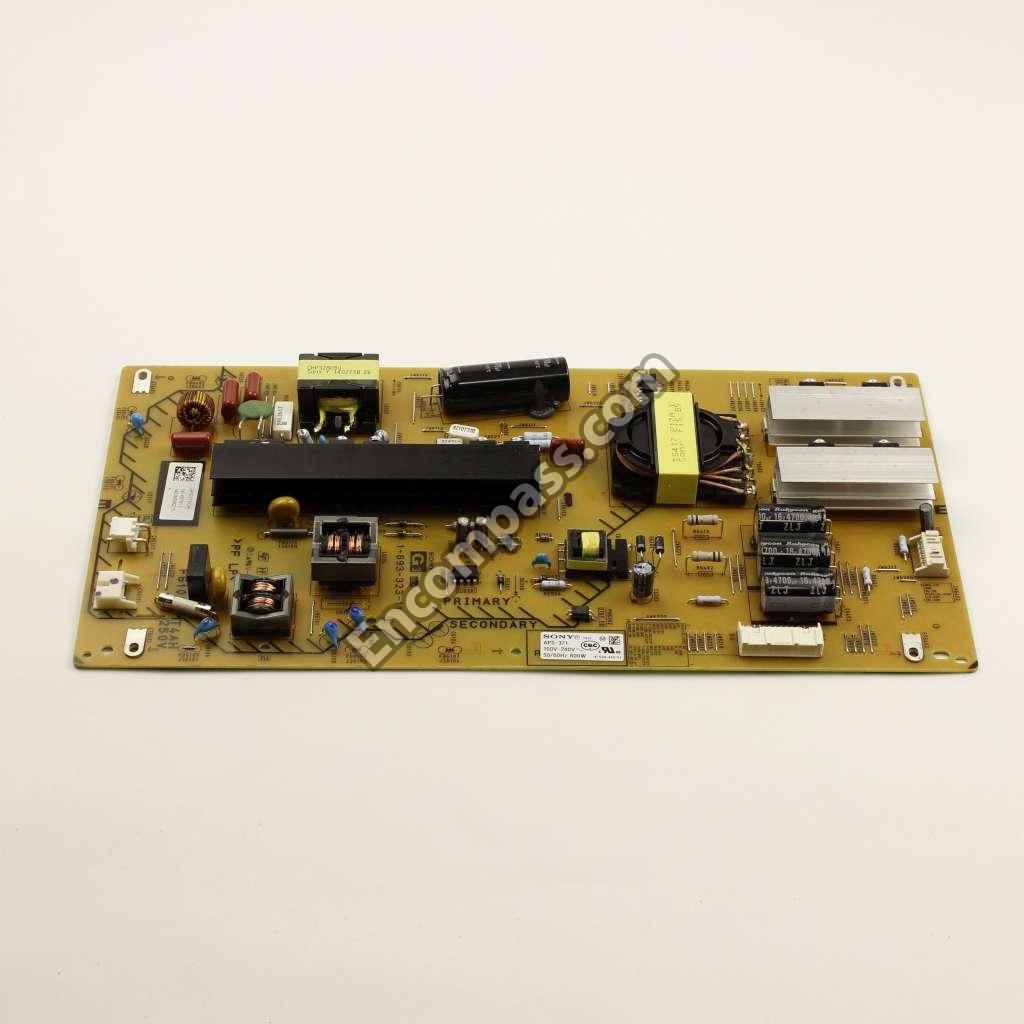

1-474-579-11 1-474-579-11 G3 BOARD, COMPLETE
1-474-581-11 1-474-581-11 G4A BOARD
1-910-109-31 1-910-109-31 HARNESS ASSEMBLY (BAXF-SU-SC)
1-910-109-32 1-910-109-32 HARNESS ASSEMBLY (G4-G3-LD-SPK-K1-BAXF)
4-447-962-01 4-447-962-01 HOLDER (HS)
4-487-101-01 4-487-101-01 HOLDER, HS WS
4-528-154-01 4-528-154-01 HOLDER, SIDE
A-1969-163-A A-1969-163-A HSC2 BOARD, MOUNTED
1-845-283-21 1-845-283-21 IR BLASTER
A-2031-746-A A-2031-746-A K1 BOARD, MOUNTED
4-533-830-21 4-533-830-21 LABEL MX ENERGY (CAN)
4-527-285-01 4-527-285-01 LABEL, REAR TERMINAL
4-529-325-01 4-529-325-01 LABEL, SIDE TERMINAL
1-858-976-11 1-858-976-11 LOUDSPEAKER (18MM)
A-2039-709-A A-2039-709-A MAIN BOARD - BAXF BOARD
4-533-566-31 4-533-566-31 MANUAL, INSTRUCTION
4-533-561-12 4-533-561-12 MANUAL, INSTRUCTION
1-458-793-11 1-458-793-11 MIC UNIT
1-492-758-12 1-492-758-12 ONE TOUCH REMOTE (RMF-YD003)
4-478-086-11 4-478-086-11 ORNAMENT, MFS (CAN)
4-478-087-01 4-478-087-01 ORNAMENT, SWF (CAN)
4-478-088-01 4-478-088-01 ORNAMENT, TW
1-848-278-11 1-848-278-11 PORT REPLICATOR UC
1-846-090-32 1-846-090-32 POWER SUPPLY CORD (FOR AC ADAPTOR)
4-478-053-02 4-478-053-02 REAR COVER CENTER
4-478-053-01 4-478-053-01 REAR COVER CENTER
4-478-057-02 4-478-057-02 REAR COVER LEFT
4-478-057-01 4-478-057-01 REAR COVER LEFT
4-478-059-02 4-478-059-02 REAR COVER RIGHT
4-478-059-01 4-478-059-01 REAR COVER RIGHT
1-492-766-11 1-492-766-11 REMOTE COMMANDER (RM-YD102)
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
2-580-608-01 2-580-608-01 SCREW- STAND TO LCD TV- M5X16
4-487-095-01 4-487-095-01 SHEET, INSULATION (G34)
4-487-105-01 4-487-105-01 SHEET, THERMAL (AYU2, A)
4-457-451-01 4-457-451-01 SHEET, THERMAL (BAF)
2-650-770-31 2-650-770-31 SLIDE, CLAMP
4-256-454-02 4-256-454-02 SPACER (G A)
1-858-974-31 1-858-974-31 SPEAKER BOX MFS (LEFT)
1-858-974-41 1-858-974-41 SPEAKER BOX MFS (RIGHT)
1-858-975-31 1-858-975-31 SPEAKER BOX SWF (LEFT)
1-858-975-41 1-858-975-41 SPEAKER BOX SWF (RIGHT)
4-478-117-02 4-478-117-02 STAND, RIGHT
3-674-673-22 3-674-673-22 STOPPER (A)
4-443-737-02 4-443-737-02 SUPPORT BELT KIT
1-798-510-11 1-798-510-11 SWITCH UNIT
4-480-410-01 4-480-410-01 TOP COVER
4-534-194-11 4-534-194-11 TRAY (3L CAN)
1-848-339-11 1-848-339-11 USB CABLE (MINIB TO MICROB)
1-458-865-11 1-458-865-11 WIRELESS LAN CARD
