Manufacturer
Sony
Model Number
XBR85X800CH
Description
85-inch Class Hd Tv
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BEZEL B ASSY (4L BNN) (LA1) |
|
|
BEZEL L ASSY (4L BNN) (LA1) |
|
|
BEZEL R ASSY (4L BNN) (LA1) |
|
|
BEZEL T ASSY (4L BNN) (LA1) |
|
|
CONNECTOR ASSY 30P (LA1) |
|
|
CONNECTOR ASSY 4P (SP) (LA1) |
|
|
COVER, BTM(PCH) (LA1) |
|
|
COVER, TOP(BNN) (LA1) |
|
|
FLEXIBLE FLAT CABLE 20P (LA1) |
|
|
FLEXIBLE FLAT CABLE 25P (LA1) |
|
|
FLEXIBLE FLAT CABLE 51P (LA1) |
|
|
FLEXIBLE FLAT CABLE 80P (LA1) |
|
|
GL03P-(POWER CBA) STATIC CONVERTER (TV) (LA1) |
|
|
HT1_4K_CT_85 MOUNT (LA1) |
|
|
HT1_4K_EV_85 MOUNT (LA1) |
|
|

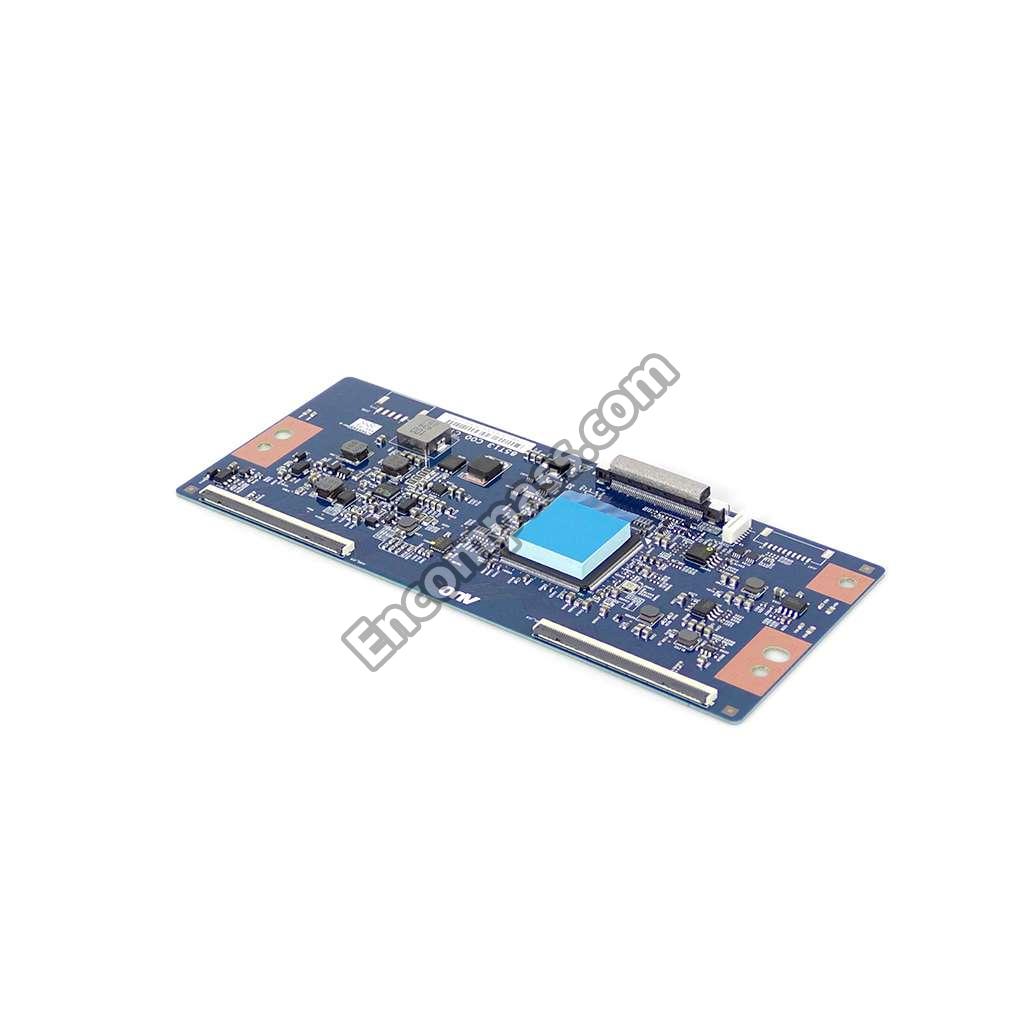

MOUNTED PWB E-T-CON (85) (LA1) |
|
|

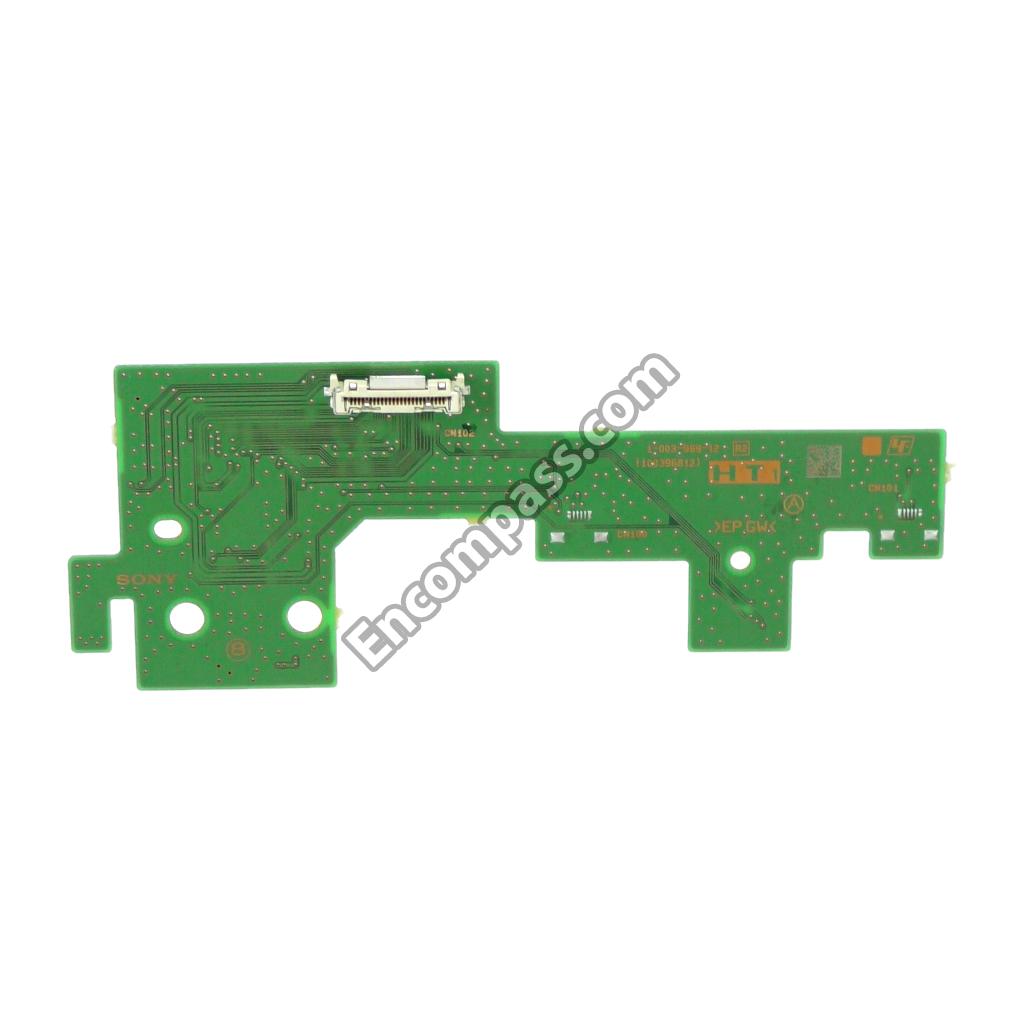

MOUNTED PWB LS BAR (4L) (LA1) |
|
|
P-MOD (YSAS085CNU02)(SERVICE) (LA1) |
|
|
REAR COVER (4L BNN) A (LA1) |
|
|
SCREW PSW M5X14 (LA1) |
|
|
SCREW, +F M2.5X2 (LA1) |
|
|
SCREW, CS M5X8.5 (LA1) |
|
|
SETUP GUIDE (LA1) |
|
|
SHEET, INSULATION(BNN 3L) (LA1) |
|
|
SP-BOX ASSY,FY20 W30XL-A (LA1) |
|
|
SP-BOX ASSY,FY20 W30XL-B (LA1) |
|
|

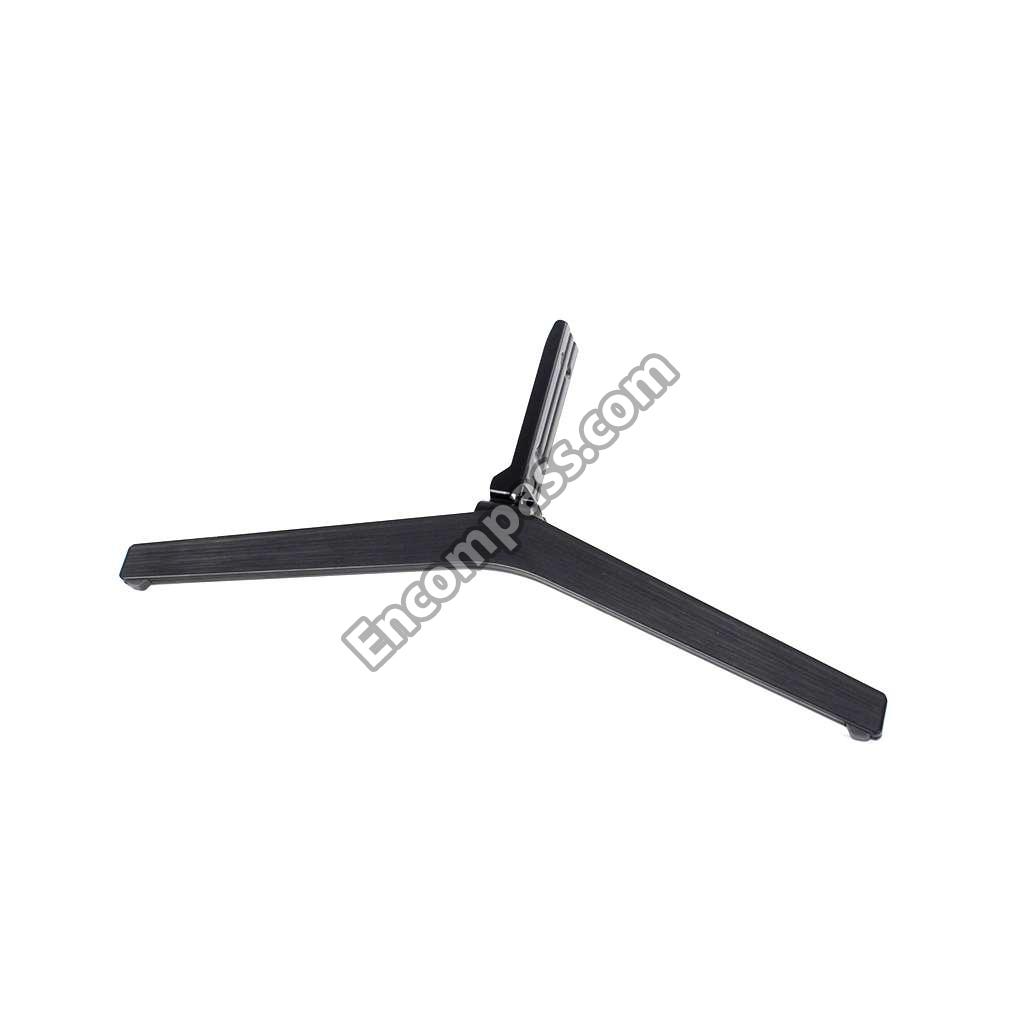

STAND, L (4L BNN) A (LA1) |
|
|

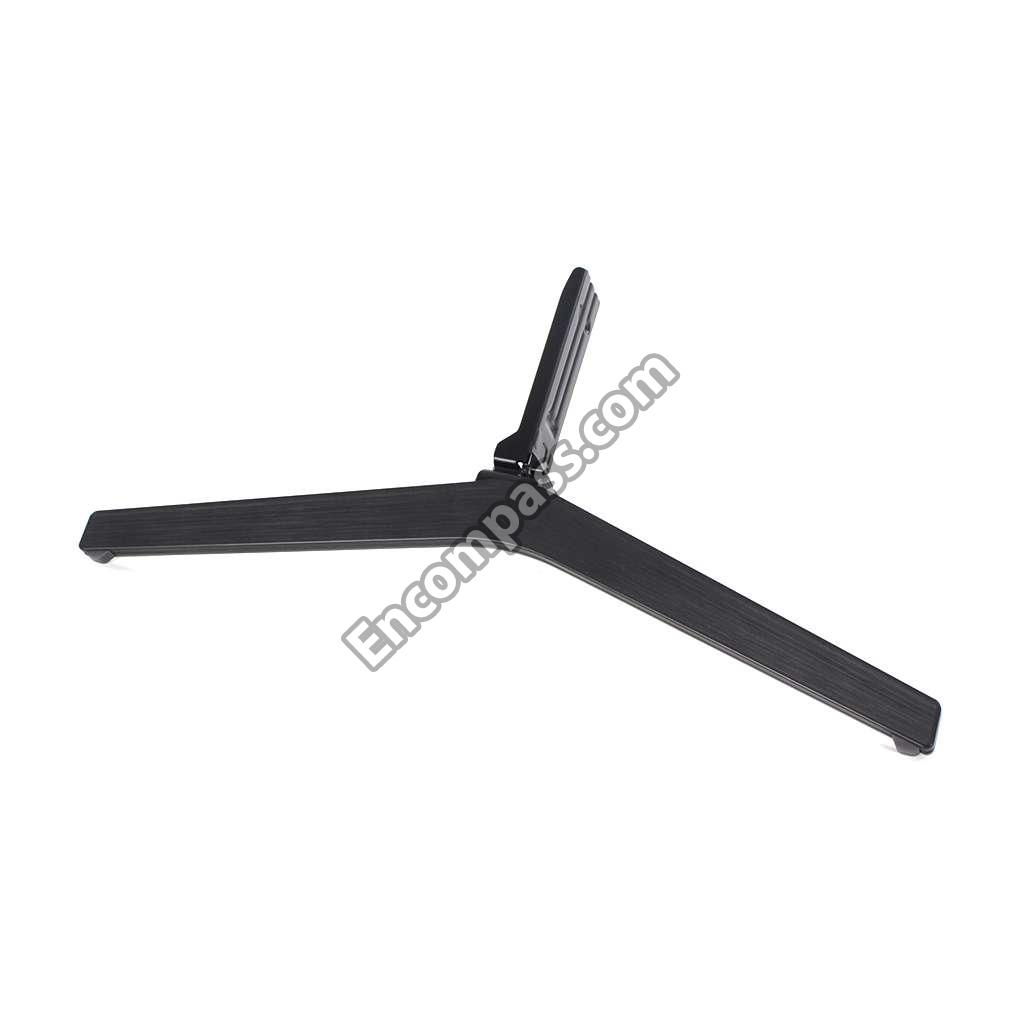

STAND, R (4L BNN) A (LA1) |
|
|
USER GUIDE 85 LA1 NB (LA1) |
