Sony

Model Number

XBR85X81CH

Description

85-inch Class 4k Hdr Led Tv

Interactive Exploded View

Parts List

Part Number Description
A-5015-318-A A-5015-318-A (MAIN CBA) COMPL_BNB_UCM (UC2)

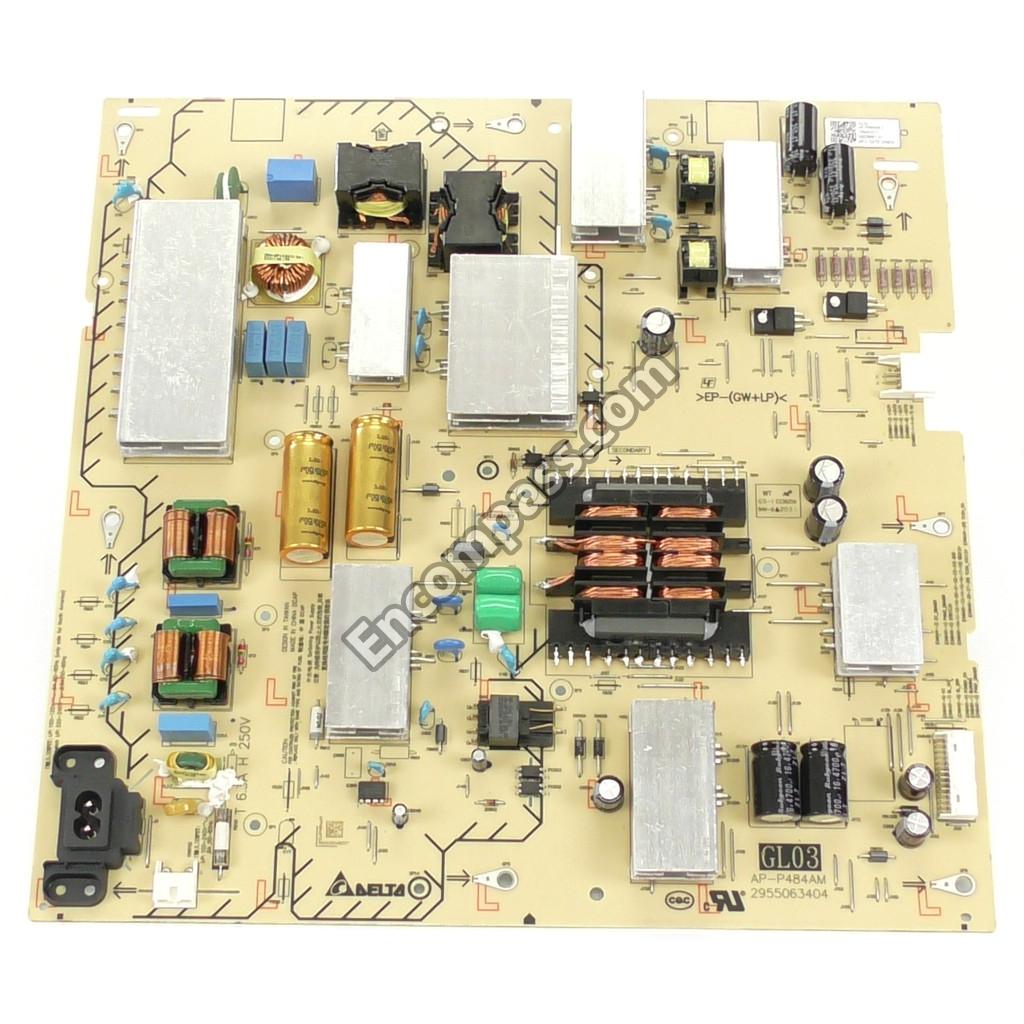

1-004-424-12 1-004-424-12 (POWER CBA) GL03-STATIC CONVERTER (TV) (UC2)

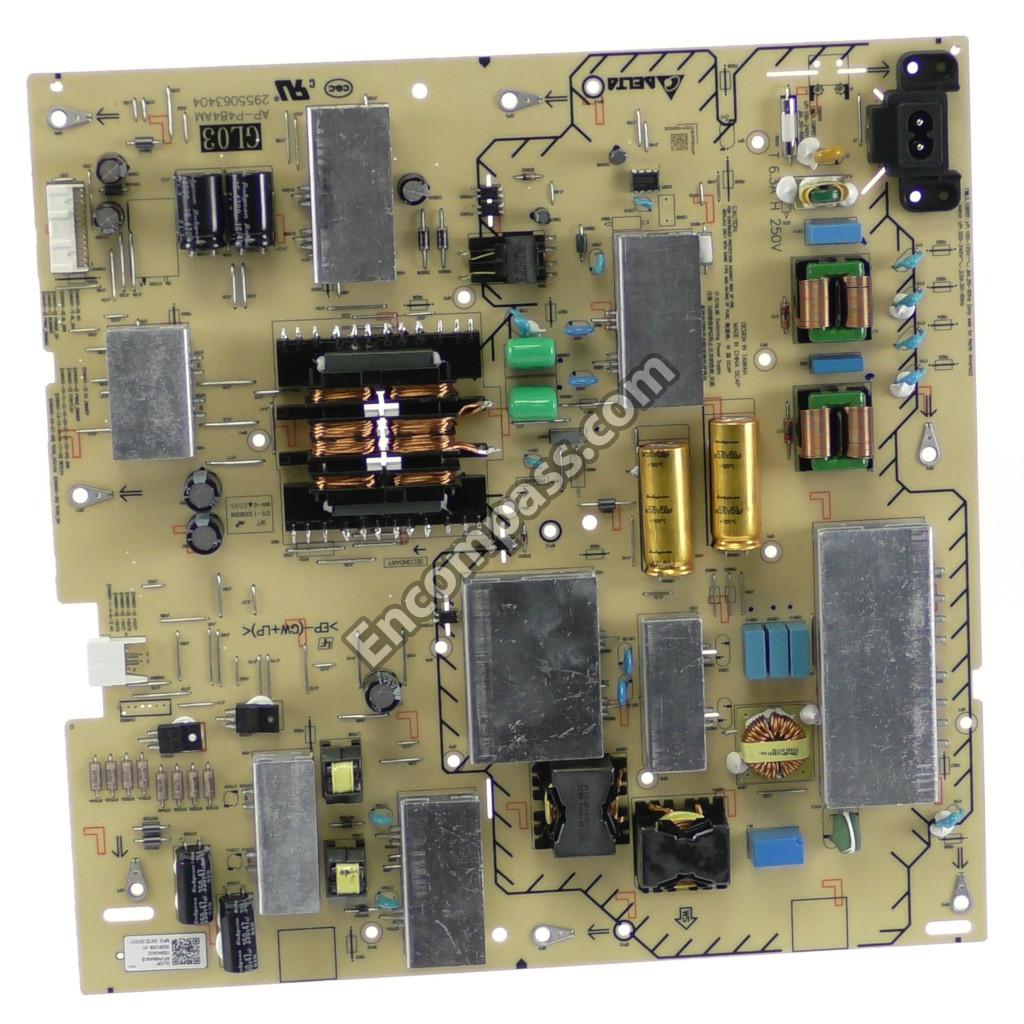

1-004-424-22 1-004-424-22 (POWER CBA) GL03P-STATIC CONVERTER (TV) (UC2)
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UC2)
5-013-162-11 5-013-162-11 BAG, CL ASSY (4L BNN) (UC2)
5-009-172-21 5-009-172-21 BEZEL B ASSY (4L BNN) (UC2) (PANEL PART)
5-009-168-22 5-009-168-22 BEZEL L ASSY (4L BNN) (UC2) (PANEL PART)
5-009-170-22 5-009-170-22 BEZEL R ASSY (4L BNN) (UC2) (PANEL PART)
5-009-166-22 5-009-166-22 BEZEL T ASSY (4L BNN) (UC2) (PANEL PART)
5-015-416-31 5-015-416-31 BRACKET, SIDE(BNN) A (UC2)
5-021-551-31 5-021-551-31 BRACKET, SIDE(BNN) A. (UC2)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UC2)
1-005-642-11 1-005-642-11 C7L AC POWER CODE SETS (US) (UC2)
1-006-518-11 1-006-518-11 CONNECTOR ASSY 30P (UC2)
1-006-440-12 1-006-440-12 CONNECTOR ASSY 4P (LS) (UC2) (PANEL PART)
1-006-517-11 1-006-517-11 CONNECTOR ASSY 4P (SP) (UC2)
5-009-262-11 5-009-262-11 COVER, BTM(PCH) (UC2)
5-009-259-12 5-009-259-12 COVER, TOP(BNN) (UC2)
5-009-702-01 5-009-702-01 DIFFUSER PLATE (4L) (UC2) (PANEL PART)
1-006-522-11 1-006-522-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-006-521-11 1-006-521-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-006-523-11 1-006-523-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-006-524-11 1-006-524-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-006-520-12 1-006-520-12 FLEXIBLE FLAT CABLE 51P (UC2)
1-006-519-11 1-006-519-11 FLEXIBLE FLAT CABLE 51P (UC2)
1-006-525-11 1-006-525-11 FLEXIBLE FLAT CABLE 80P (BM10 > BM11) (UC2) (PANEL PART)
1-006-526-11 1-006-526-11 FLEXIBLE FLAT CABLE 80P (BM11) (UC2) (PANEL PART)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UC2) (PANEL PART)
5-016-656-01 5-016-656-01 GASKET, B PLATE (PCH) (UC2)
A-5014-078-B A-5014-078-B HT1_4K_CT_85 MOUNT (UC2)
A-5014-079-B A-5014-079-B HT1_4K_EV_85 MOUNT (UC2)
5-011-567-01 5-011-567-01 LABEL, SIDE TERMINAL (BNN) (UC2)
5-009-264-11 5-009-264-11 LIGHT, GUIDE ILM(BNN) (UC2)
5-009-265-11 5-009-265-11 LIGHT, GUIDE OPT(BNN) (UC2)
1-007-130-12 1-007-130-12 LIQUID CRYSTAL ELEMENT(A85QVR) (UC2) (PANEL PART)
5-009-039-21 5-009-039-21 MIDDLE CHASSIS BL (4L BNN) A (UC2) (PANEL PART)
5-009-041-21 5-009-041-21 MIDDLE CHASSIS BR (4L BNN) A (UC2) (PANEL PART)
5-009-043-21 5-009-043-21 MIDDLE CHASSIS L (4L BNN) A (UC2) (PANEL PART)
5-009-045-21 5-009-045-21 MIDDLE CHASSIS R (4L BNN) A (UC2) (PANEL PART)
5-009-037-22 5-009-037-22 MIDDLE CHASSIS TL (4L BNN) A (UC2) (PANEL PART)
5-009-035-22 5-009-035-22 MIDDLE CHASSIS TR (4L BNN) A (UC2) (PANEL PART)
1-007-131-12 1-007-131-12 MOUNTED PWB E-T-CON (85) (UC2)
1-007-131-11 1-007-131-11 MOUNTED PWB E-T-CON (85) (UC2) (PANEL PART)
1-004-860-12 1-004-860-12 MOUNTED PWB LS BAR (4L) (UC2) (PANEL PART)
A-5014-099-A A-5014-099-A P-MOD (YSAF085CNU01) (UC2)
1-005-629-11 1-005-629-11 POWER-SUPPLY CORD SET (UC2)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UC2)
5-013-391-11 5-013-391-11 REAR COVER (4L BNN) A (UC2)
5-009-215-13 5-009-215-13 REAR COVER (4L BNN) A (UC2)
5-009-710-01 5-009-710-01 REF. POLARIZER ON PRISM (4L) (UC2) (PANEL PART)
5-022-711-01 5-022-711-01 REF. POLARIZER ON PRISM (4L) (UC2) (PANEL PART)
5-013-150-14 5-013-150-14 REFERENCE GUIDE (UC2)
5-023-919-01 5-023-919-01 REFLECTIVE SHEET (BNN 4L) (UC2) (PANEL PART)
5-009-707-01 5-009-707-01 REFLECTIVE SHEET (BNN 4L)_L (UC2) (PANEL PART)
5-009-926-01 5-009-926-01 REFLECTIVE SHEET (BNN 4L)_R (UC2) (PANEL PART)
1-493-552-22 1-493-552-22 REMOTE COMMANDER (RMF-TX500U) (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UC2) (PANEL PART)
5-013-152-12 5-013-152-12 SETUP GUIDE (UC2)
5-009-271-01 5-009-271-01 SHEET, INSULATION(BNN 3L) (UC2)
5-009-271-11 5-009-271-11 SHEET, INSULATION(BNN 3L) (UC2)
1-004-511-12 1-004-511-12 SPEAKER BOX ASSY (FY20 W30XL-A) (UC2)
1-004-511-22 1-004-511-22 SPEAKER BOX ASSY (FY20 W30XL-B) (UC2)
5-009-411-21 5-009-411-21 STAND, L (4L BNN) A (UC2)
5-009-416-21 5-009-416-21 STAND, R (4L BNN) A (UC2)
3-674-673-22 3-674-673-22 STOPPER (A) (UC2)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UC2) (PANEL PART)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (UC2) (PANEL PART)
5-009-999-02 5-009-999-02 TAPE CORNER (BNN) (UC2) (PANEL PART)
5-009-861-11 5-009-861-11 VESA SPACER A (COM) (UC2)
1-005-419-11 1-005-419-11 WLAN/BT MODULE(11AC) DHUR-SY63 (UC2)
