Model Image
Manufacturer

Sony

Model Number

XBR85X900H

Description

X900h 85-inch Class Hdr 4k Uhd Smart Led Tv

Interactive Exploded View

Parts List

Part Number Description
A-5014-266-A A-5014-266-A (MAIN CBA) BM5_UC COMPL (UC2)
1-006-109-21 1-006-109-21 (POWER CBA) G03P STATIC CONVERTER (TV) (UC2)
A-5012-965-A A-5012-965-A 20LD40A1 COMPL (UC2) (PANEL PART)
5-009-158-21 5-009-158-21 BEZEL B ASSY (4L APL) (NX BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-158-61 5-009-158-61 BEZEL B ASSY (4L APL) (NXB BLACK, BOTTOM) (UC2) (PANEL PART)
5-009-154-21 5-009-154-21 BEZEL L ASSY (4L APL) (NX BLACK, LEFT) (UC2) (PANEL PART)
5-009-154-61 5-009-154-61 BEZEL L ASSY (4L APL) (NXB BLACK, LEFT) (UC2) (PANEL PART)
5-009-156-21 5-009-156-21 BEZEL R ASSY (4L APL) (NX BLACK, RIGHT) (UC2) (PANEL PART)
5-009-156-61 5-009-156-61 BEZEL R ASSY (4L APL) (NXB BLACK, RIGHT) (UC2) (PANEL PART)
5-009-152-21 5-009-152-21 BEZEL T ASSY (4L APL) (NX BLACK, TOP) (UC2) (PANEL PART)
5-009-152-61 5-009-152-61 BEZEL T ASSY (4L APL) (NXB BLACK, TOP) (UC2) (PANEL PART)
5-013-759-11 5-013-759-11 CLAMPER, CABLE (4L APL) A (UC2)
1-007-223-11 1-007-223-11 CONNECTOR ASSY 15P (UC2)
1-007-222-11 1-007-222-11 CONNECTOR ASSY 28P (UC2)
1-007-224-11 1-007-224-11 CONNECTOR ASSY 4P (PZ) (UC2)
1-007-225-11 1-007-225-11 CONNECTOR ASSY 6P (SP) (UC2)
1-004-553-11 1-004-553-11 FFC (85) (UC2) (PANEL PART)
1-007-192-11 1-007-192-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-007-193-11 1-007-193-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-007-194-11 1-007-194-11 FLEXIBLE FLAT CABLE 51P (UC2)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
1-011-043-12 1-011-043-12 MOUNTED PWB E-T-CON(85) (UC2) (PANEL PART)

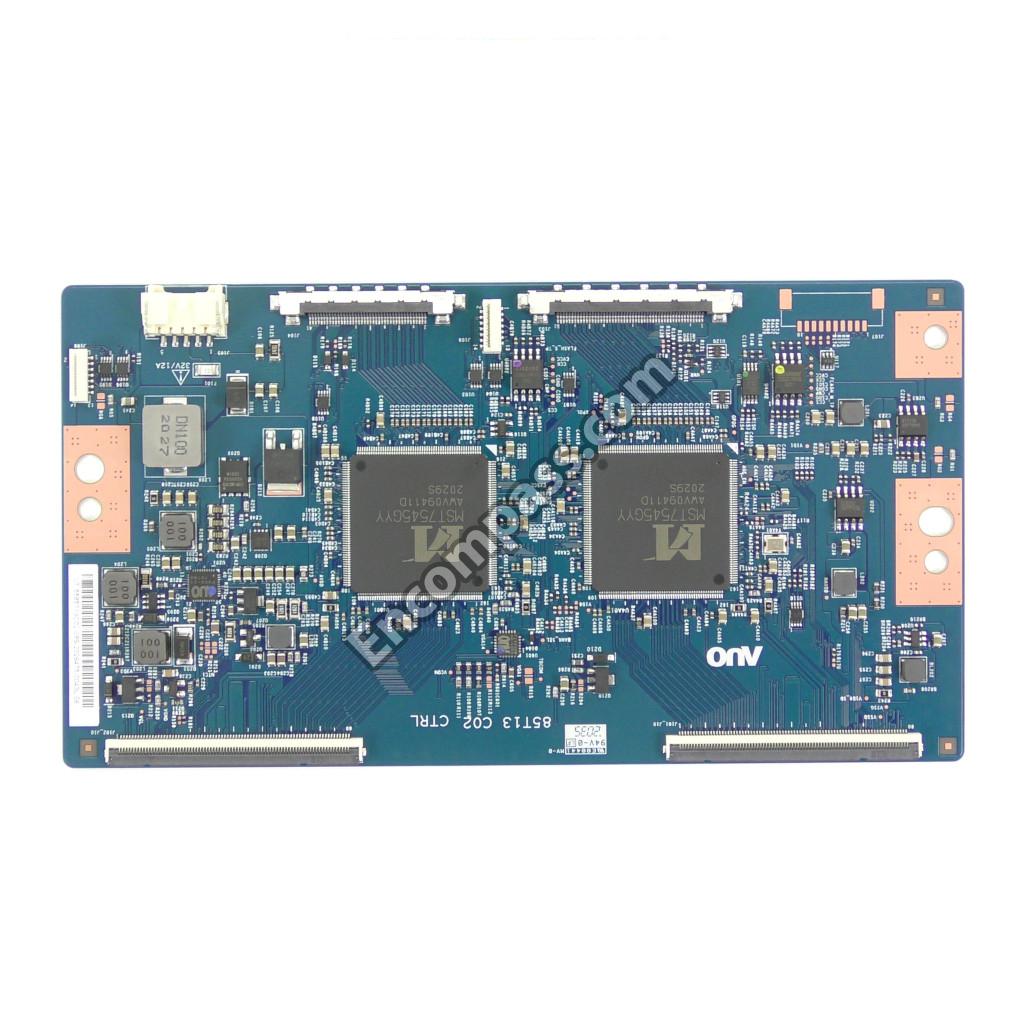

1-007-935-11 1-007-935-11 MOUNTED PWB E-T-CON(85) (UC2) (PANEL PART)
A-5016-535-A A-5016-535-A P-MOD (YDAS085DNU01) (UC2)
5-032-440-01 5-032-440-01 POLARIZER F/CF (66.C4V57.333) (UC2) (PANEL PART)
5-014-904-22 5-014-904-22 REAR COVER (4L APL) A
5-014-904-21 5-014-904-21 REAR COVER (4L APL) A (UC2)
5-009-852-01 5-009-852-01 SCREW, +F M2.5X2 (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (BLACK - FOR NX & NXB) (UC2) (PANEL PART)
4-579-926-01 4-579-926-01 SCREW, M3X3 (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-014-864-11 5-014-864-11 SETUP GUIDE (UC2)
4-699-975-02 4-699-975-02 SHEET,THERMAL(5567H) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
1-009-294-11 1-009-294-11 SOURCE DRIVER IC MT BOARD (46.S0966.320) (UC2) (PANEL PART)
1-012-387-11 1-012-387-11 SOURCE DRIVER IC MT BOARD (46.S0966.386) (UC2) (PANEL PART)
5-012-818-12 5-012-818-12 STAND, L(4L APL) A (UC2)
5-012-819-12 5-012-819-12 STAND, R(4L APL) A (UC2)
5-014-770-11 5-014-770-11 SUPPORTER PIN (COM) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (SAME AS NX_NXB 55_65) (UC2) (PANEL PART)
