Model Image
Manufacturer

Sony

Model Number

XBR85X950B

Description

85-inch X950b Flagship 4k Ultra Hd Tv

Interactive Exploded View

Parts List

Part Number Description

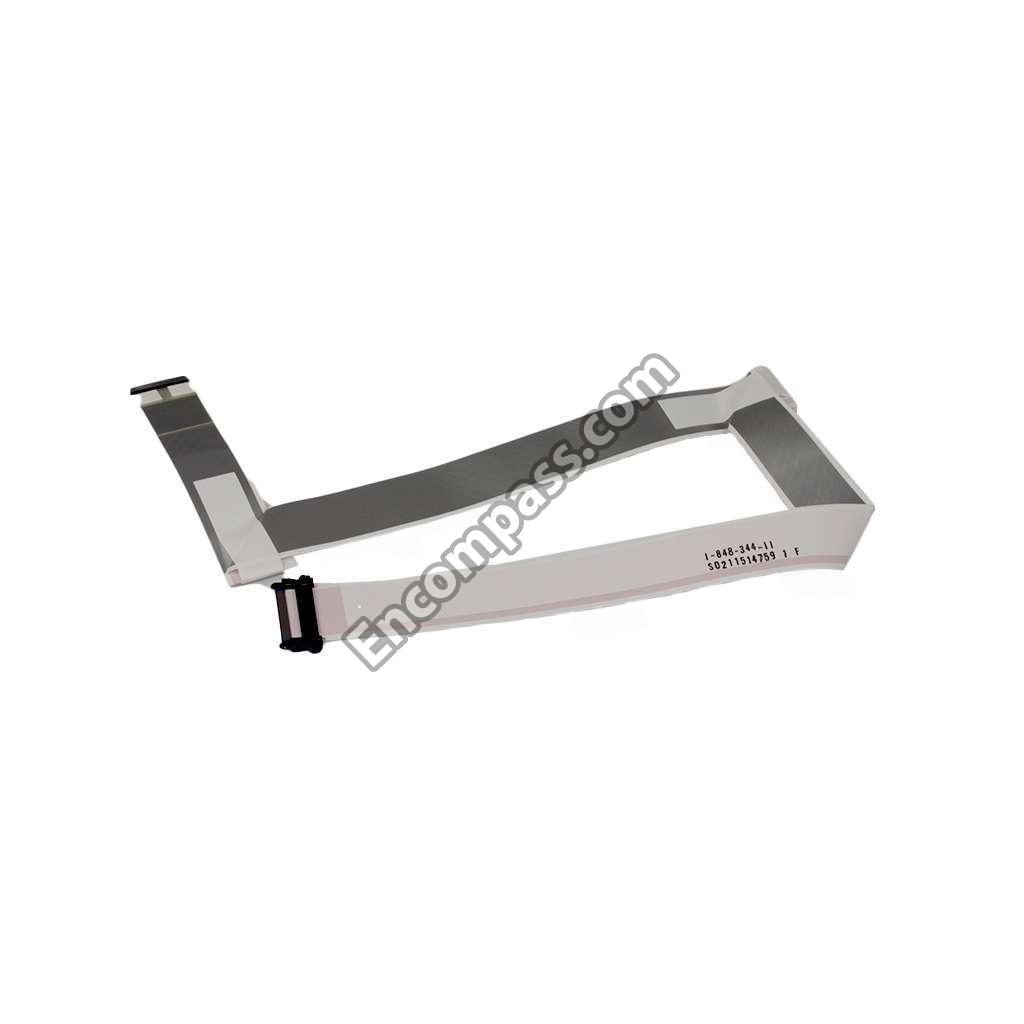

1-848-344-11 1-848-344-11 (LVDS) FLEXIBLE FLAT CABLE 41P
1-848-345-11 1-848-345-11 (LVDS) FLEXIBLE FLAT CABLE 51P
1-458-628-41 1-458-628-41 3D EYEWEAR TDG-BT500A (SVC)UCJ
1-492-687-11 1-492-687-11 AC ADAPTOR(PORT REPLICATOR)
AM4PTB2D AM4PTB2D BATTERY "AAA"
A-2044-830-A A-2044-830-A BAXF BOARD COMPLETE
4-486-589-01 4-486-589-01 BRACKETSC(MIA4L)
4-262-708-03 4-262-708-03 CLAMPER, CABLE
4-485-653-01 4-485-653-01 CLAMPER, CABLE (M)
1-910-109-35 1-910-109-35 CONNECTORASSY28P
1-910-109-38 1-910-109-38 CONNECTORASSY6P
1-910-109-39 1-910-109-39 FLEXIBLE FLAT CABLE 20P (BAXF
1-910-109-40 1-910-109-40 FLEXIBLEFLATCABLE30P
1-474-579-11 1-474-579-11 G3 BOARD COMPLETE
1-474-582-11 1-474-582-11 G5 BOARD COMPLETE
1-474-576-11 1-474-576-11 G6 BOARD COMPLETE
1-910-109-37 1-910-109-37 HARNESSASSY
1-910-109-36 1-910-109-36 HARNESSASSY(MAIN)
1-845-283-21 1-845-283-21 IR BLASTER

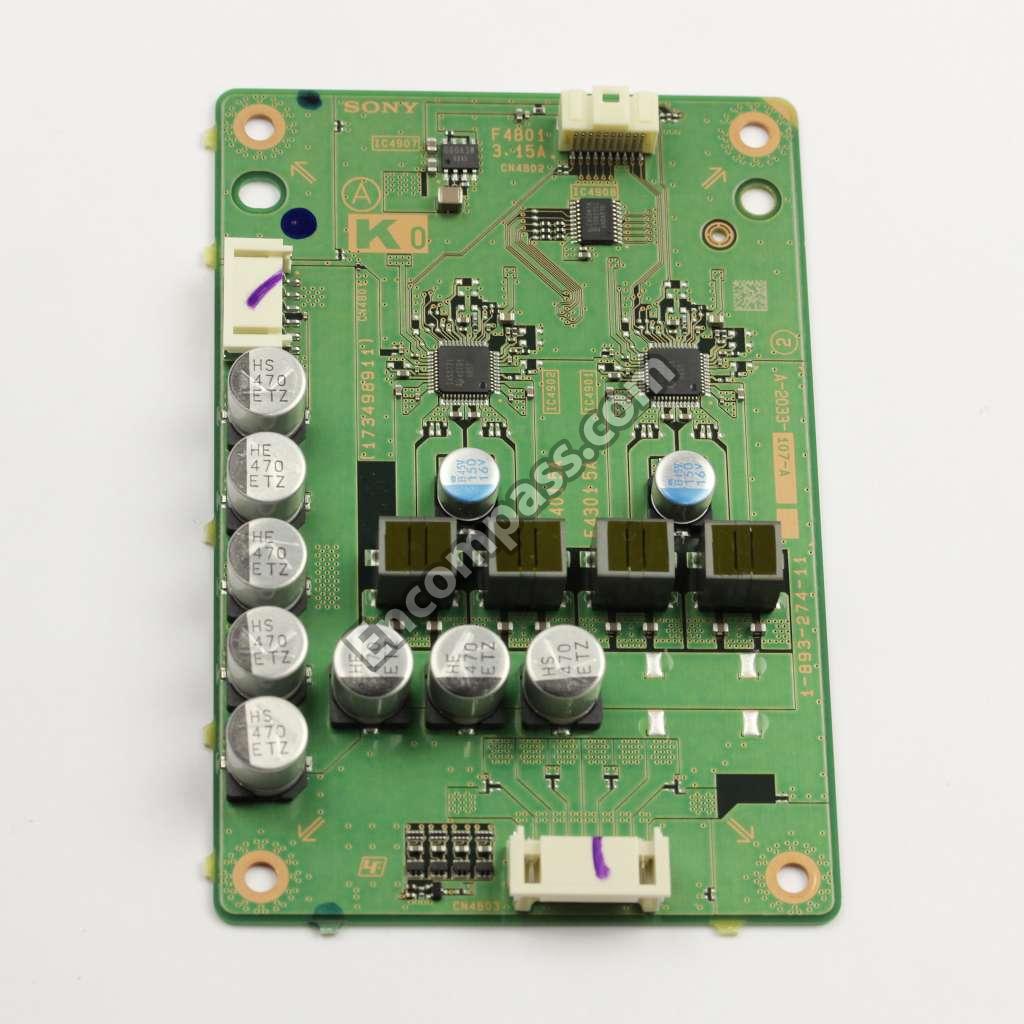

A-2033-107-A A-2033-107-A K0 BOARD, MOUNTED
1-492-758-12 1-492-758-12 ONE TCH REM CONTROL(RMF-YD003)
A-2068-179-A A-2068-179-A P-MOD(YD4S850DTN01)
1-848-278-11 1-848-278-11 PORT REPLICATOR

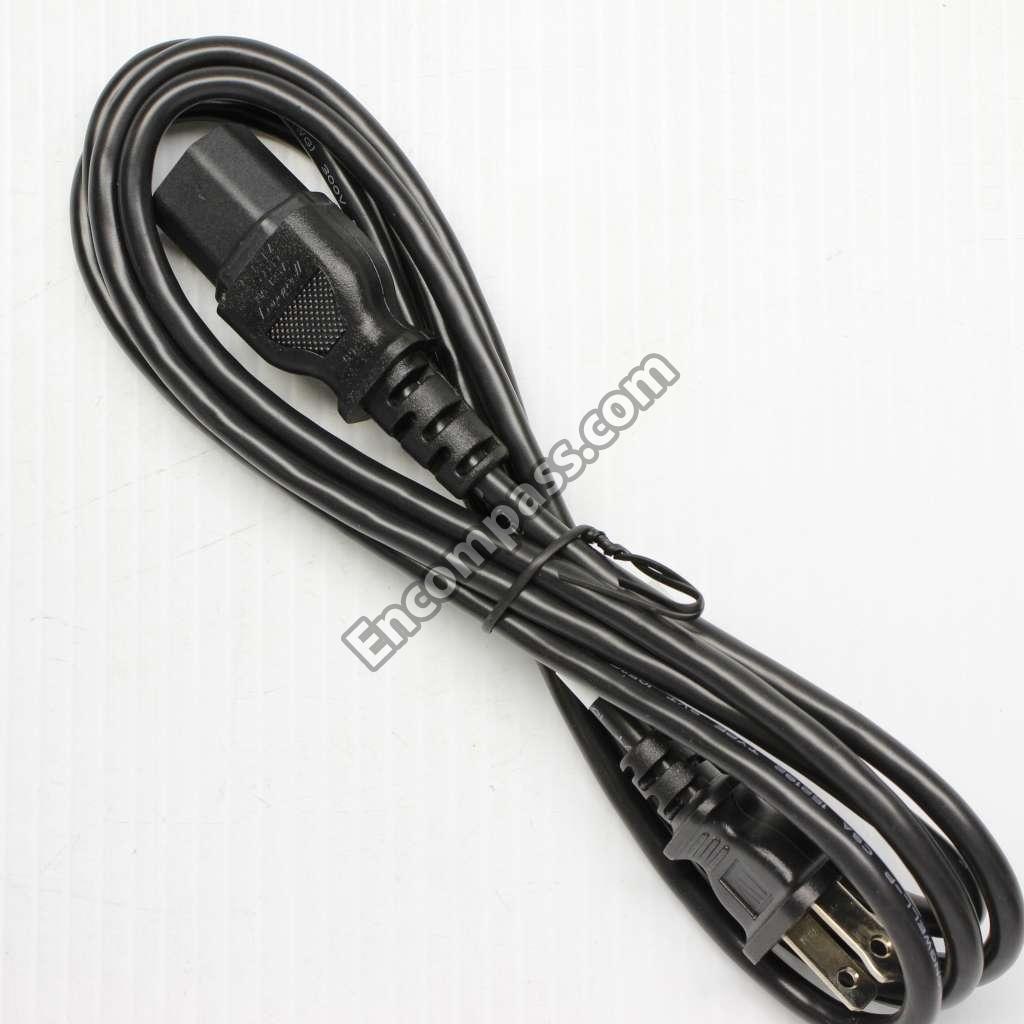

1-836-883-11 1-836-883-11 POWER-SUPPLY CORD
1-846-090-32 1-846-090-32 POWER-SUPPLY CORD SET
4-478-067-02 4-478-067-02 REAR COVER BOTTOM
4-478-065-02 4-478-065-02 REAR COVER CENTER
4-478-071-01 4-478-071-01 REAR COVER RIGHT
4-478-069-01 4-478-069-01 REARCOVER(4LMIA)LA
1-492-766-11 1-492-766-11 REMOTE COMMANDER (RM-YD102)
4-432-981-01 4-432-981-01 SCREW +FWH M4
4-159-298-21 4-159-298-21 SCREW +PSW M4X10
2-580-608-01 2-580-608-01 SCREW +PSW M5X16 SCREW WITH
2-990-421-41 2-990-421-41 SCREW, (+PSW) (M3X6)
4-487-096-01 4-487-096-01 SHEETINSULATION(G35)
4-487-097-01 4-487-097-01 SHEETINSULATION(G6)
1-859-005-11 1-859-005-11 SPEAKER BOX (LEFT)
1-859-005-21 1-859-005-21 SPEAKER BOX (RIGHT)
1-859-004-11 1-859-004-11 SPEAKER BOX (WOOFER)
4-536-325-01 4-536-325-01 STAND(4LFMIA)
4-486-553-01 4-486-553-01 STANDLEFT(4LTMIA)
4-486-556-01 4-486-556-01 STANDRIGHT(4LTMIA)
