Manufacturer
Sony
Model Number
XBR85X950H
Description
No description available
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
BEZEL B ASSY (4L BGO2) (UCM) (PANEL PART) |
|
|
BEZEL L ASSY (4L BGO2) (UCM) (PANEL PART) |
|
|
BEZEL R ASSY (4L BGO2) (UCM) (PANEL PART) |
|
|
BEZEL U ASSY (4L BGO2) (UCM) (PANEL PART) |
|
|
FLEXIBLE FLAT CABLE 41P (UCM) |
|
|
FLEXIBLE FLAT CABLE 51P (UCM) |
|
|

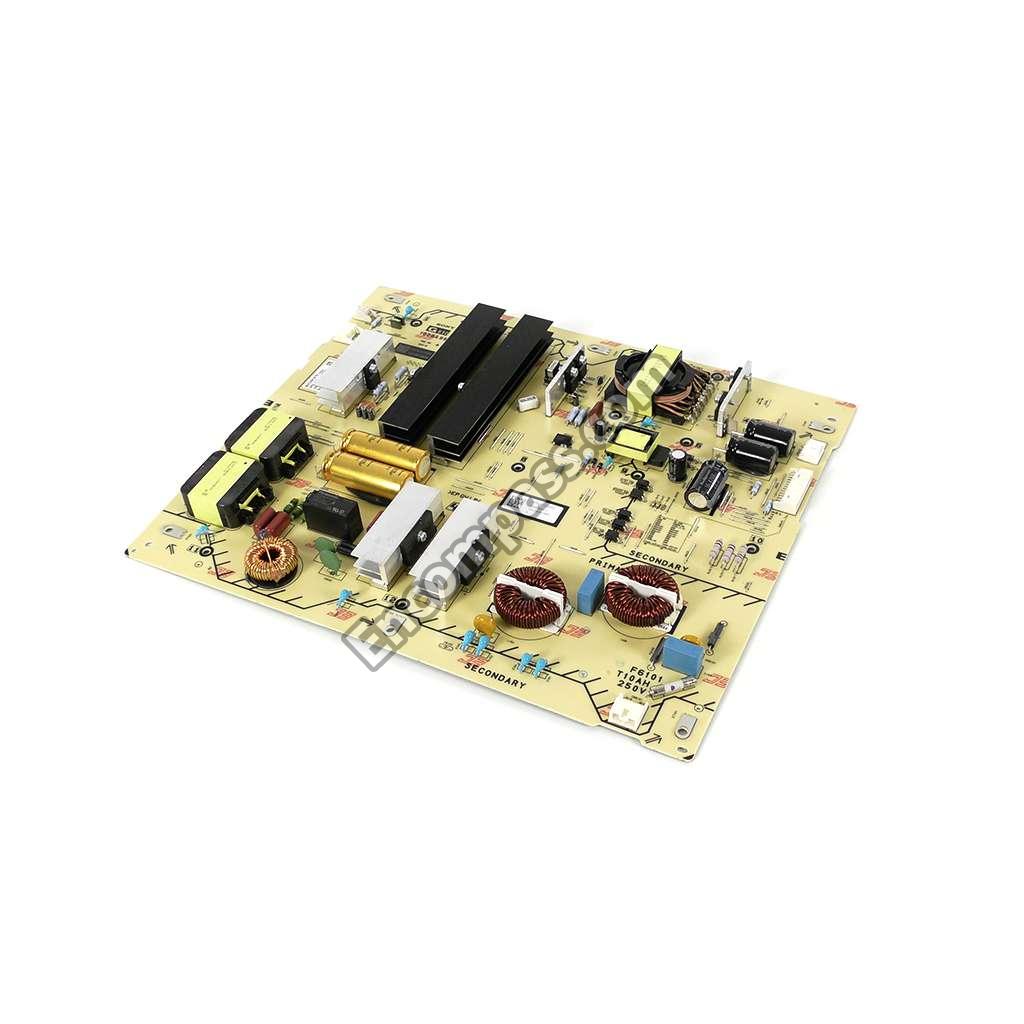

G810C(CH) - (POWER CBA) STATIC CONVERTER(T (UCM) |
|
|

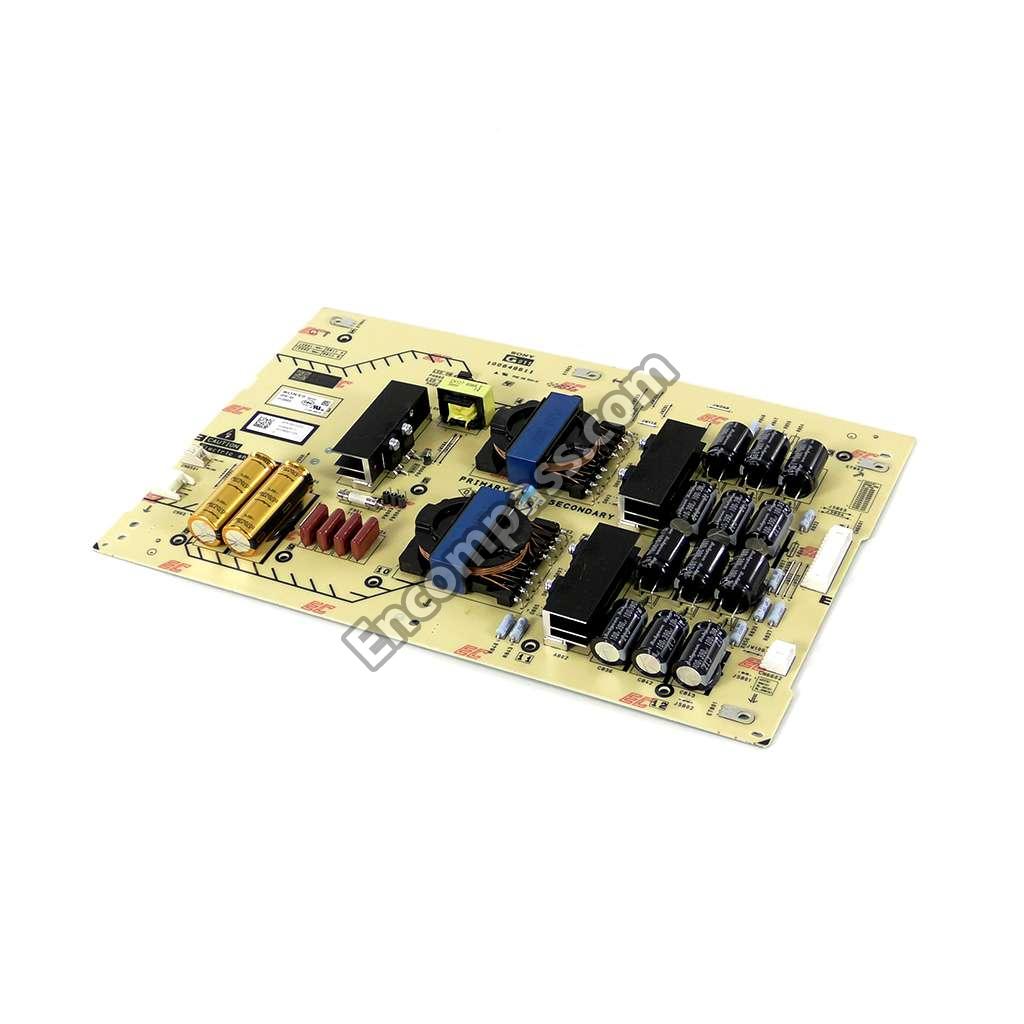

G811C(CH) - (POWER CBA) STATIC CONVERTER(T (UCM) |
|
|
GASKET SB (3L BGO) (UCM) (PANEL PART) |
|
|
GASKET TCON BT (3L BGO) (UCM) (PANEL PART) |
|
|
LABEL, SIDE TERMINAL (LMN) (UCM) |
|
|

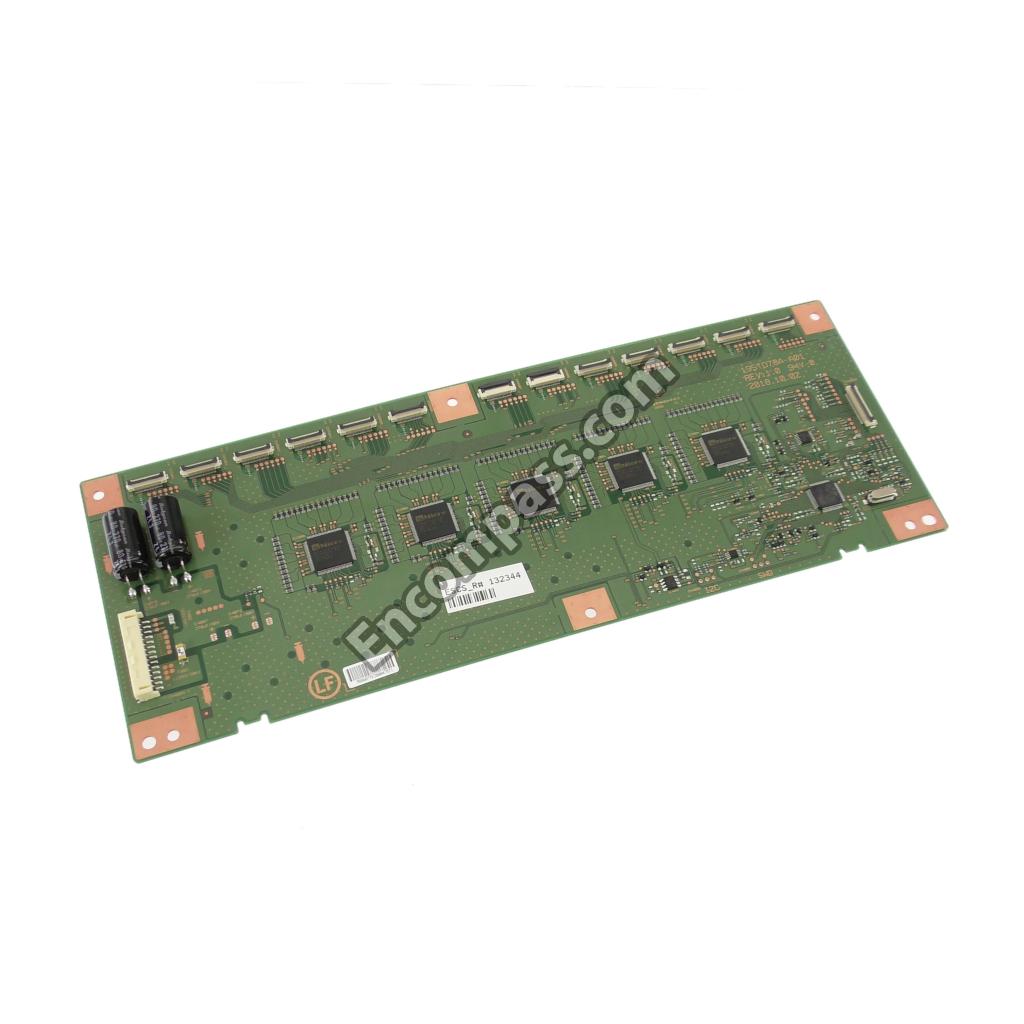

LD MT BOARD (55.85T10.D01) (UCM) (PANEL PART) |
|
|
MAIN BOARD COMPLETE |
|
|

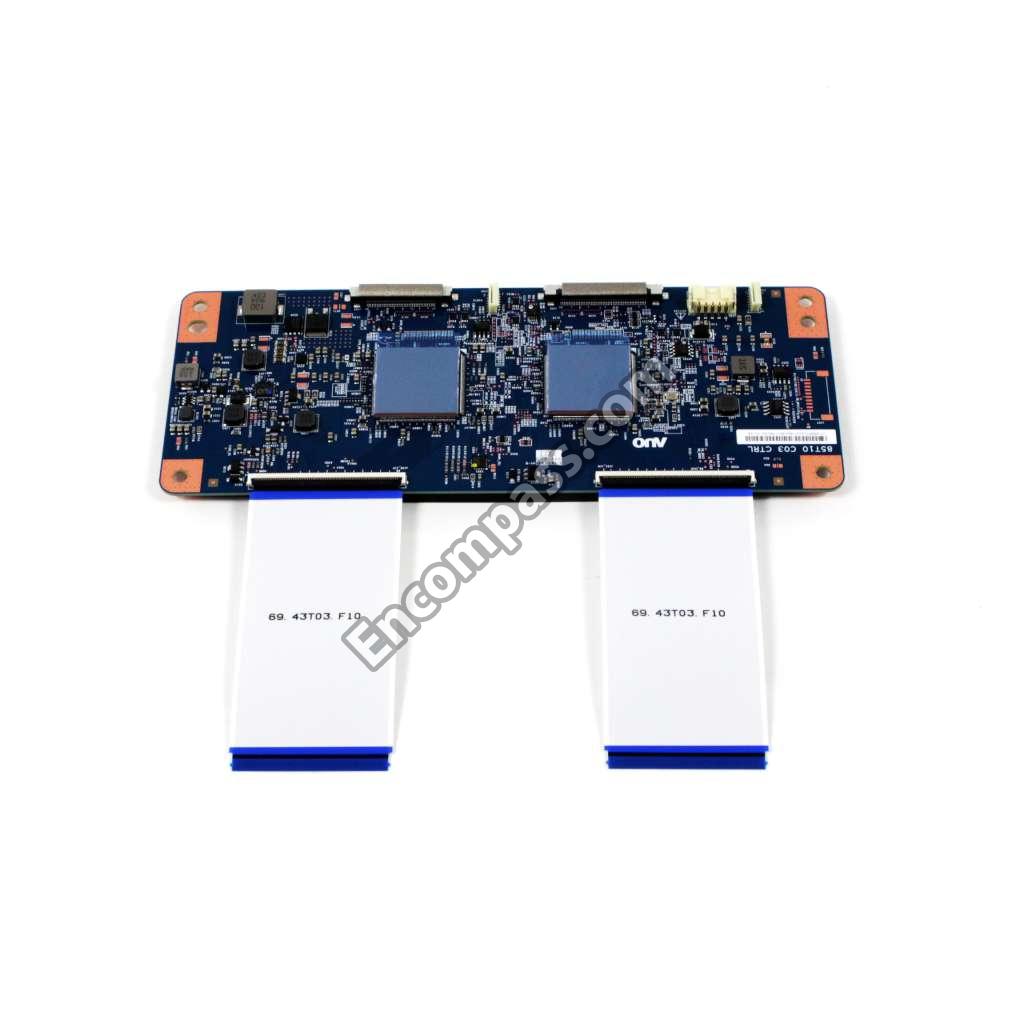

MOUNTED PWB E-T-CON(85) (UCM) (PANEL PART) |
|
|
P-MOD (YD9S085DTU01)(SERVICE) (UCM) |
|
|
SCREW, +PSW M3X6 (UCM) (PANEL PART) |
|
|
SCREW, M3X3 (UCM) (PANEL PART) |
|
|
SETUP GUIDE (UCM) |
|
|
SOURCE DRIVER IC MT BOARD (46.S0966.258) (UCM) (PANEL PART) |
|
|

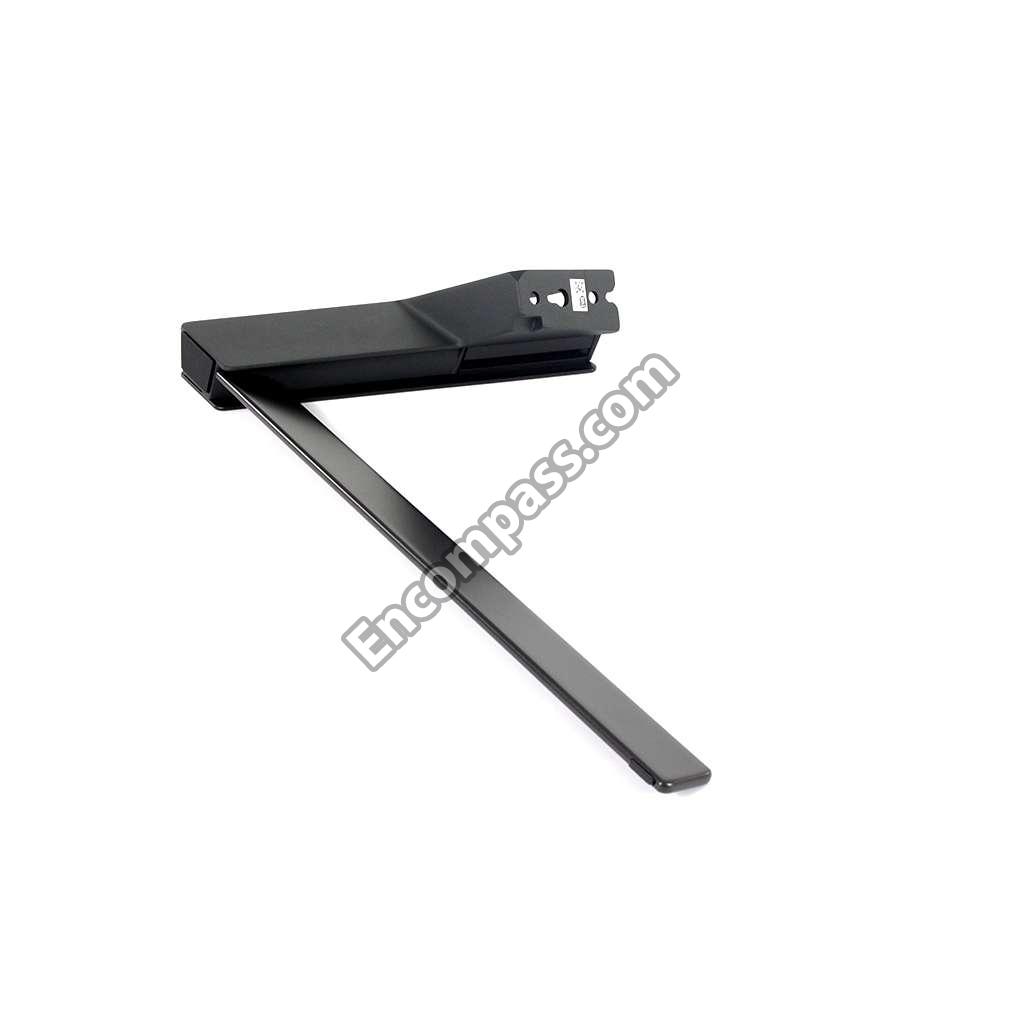

STAND, L (4L BGO2) A (UCM) |
|
|
STAND, R (4L BGO2) A (UCM) |
|
|
TAPE ADHESION (4L BGO) (UCM) (PANEL PART) |
