Model Image
Manufacturer

Sony

Model Number

XBR85Z8H

Description

Z8h 85" Class Hdr 8k Uhd Smart Led Tv

Interactive Exploded View

Parts List

Part Number Description

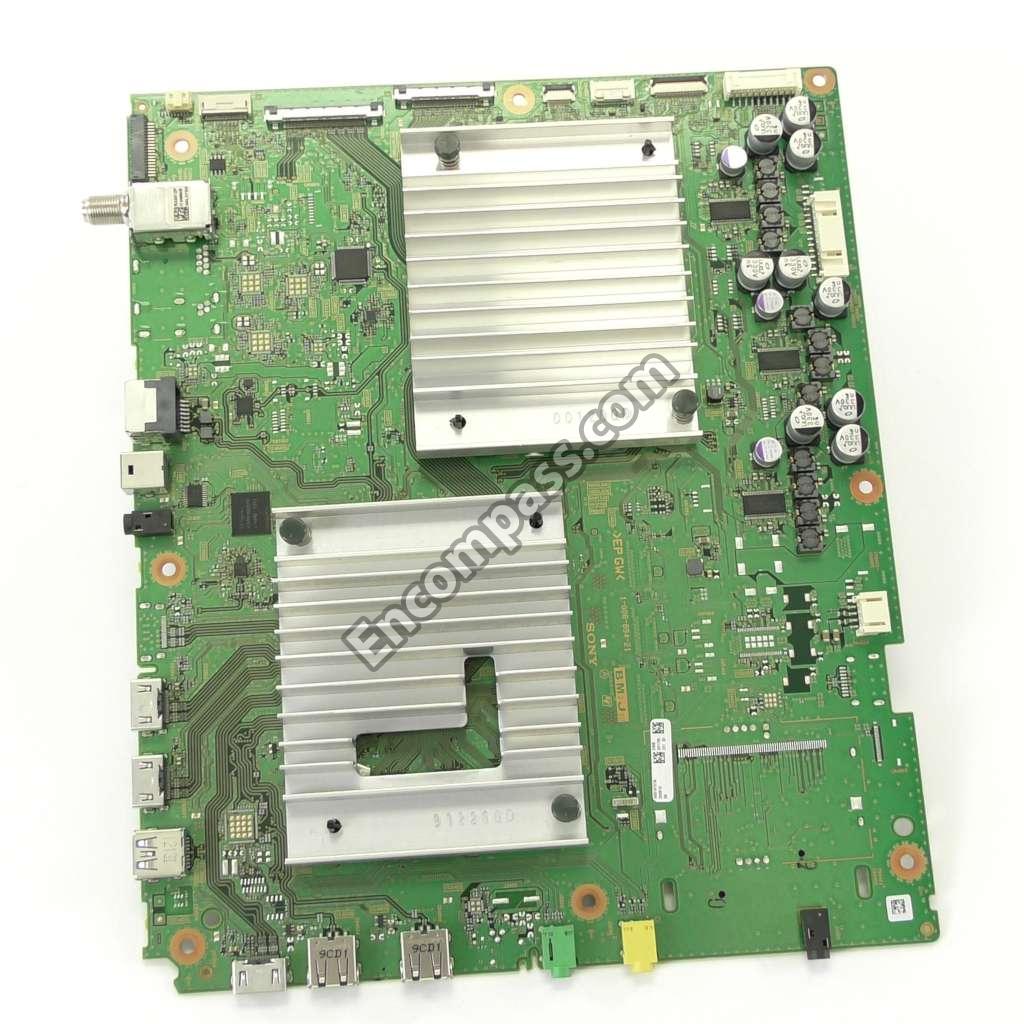

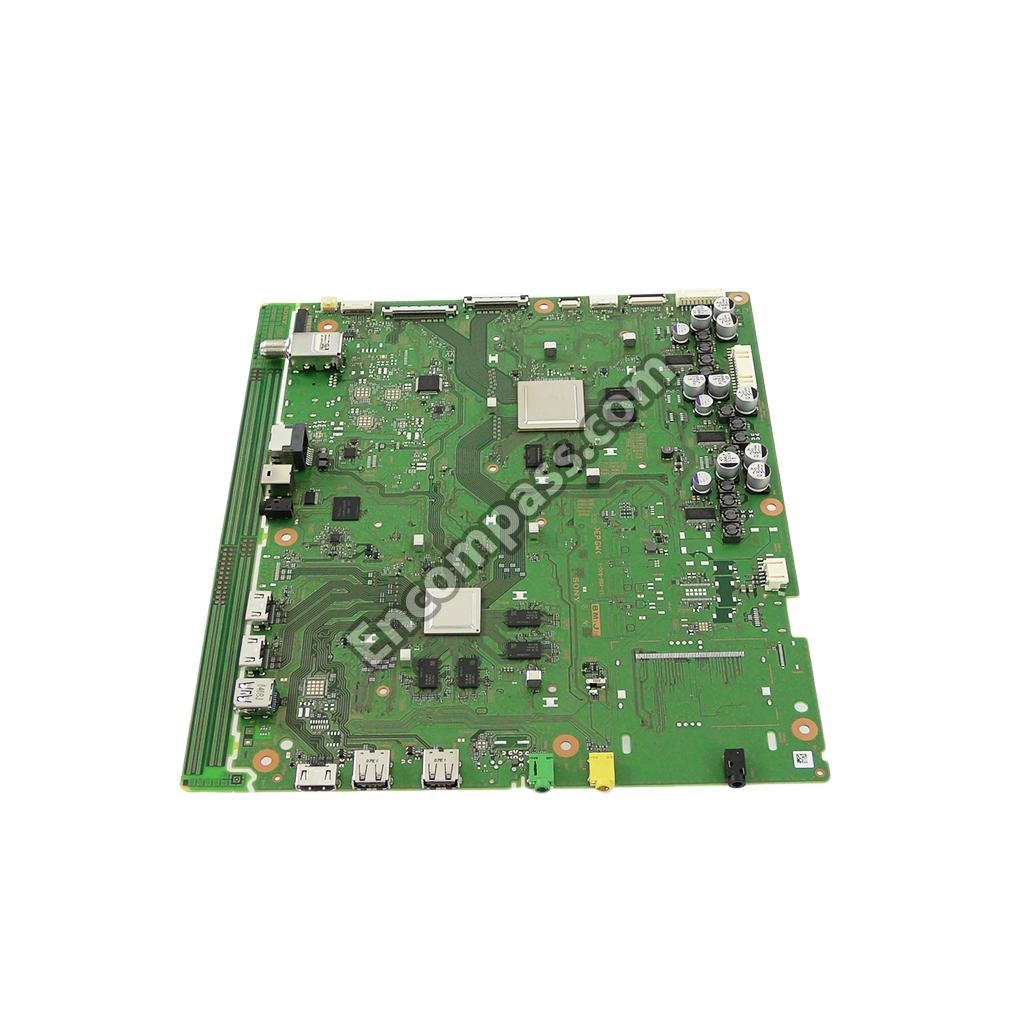

A-5014-137-A A-5014-137-A Sony (MAIN CBA) COMPL SVC BM3J20_UCMX_NE (UCM)
1-006-774-11 1-006-774-11 Sony (POWER CBA) G97C(CH) - STATIC CONVERTER(TV (UCM)
1-006-775-11 1-006-775-11 Sony (POWER CBA) G98C(CH) - STATIC CONVERTER(TV (UCM)
A-5012-963-A A-5012-963-A Sony 20LD288A1 COMPL (UCM) (PANEL PART)
5-010-712-02 5-010-712-02 Sony BEZEL BTM A (4L LMN) (UCM) (PANEL PART)
5-010-721-01 5-010-721-01 Sony BEZEL L A (4L LMN) (UCM) (PANEL PART)
5-010-723-01 5-010-723-01 Sony BEZEL R A (4L LMN) (UCM) (PANEL PART)
5-010-710-01 5-010-710-01 Sony BEZEL TOP A (4L LMN) (UCM) (PANEL PART)
5-009-779-11 5-009-779-11 Sony BOTTOM COVER (LMN) (UCM)
1-005-644-11 1-005-644-11 Sony C18 INLET ASSY 500 (UCM)
A-5014-378-A A-5014-378-A Sony COMPL SVC ONTJ_NE (UCM)
1-007-216-11 1-007-216-11 Sony CONNECTOR ASSY 20P (UCM)
1-007-212-11 1-007-212-11 Sony CONNECTOR ASSY 30P (PWR1) (UCM)
1-007-213-11 1-007-213-11 Sony CONNECTOR ASSY 30P (PWR2) (UCM)
1-007-207-11 1-007-207-11 Sony CONNECTOR ASSY 6P (KEY) (UCM)
1-007-214-11 1-007-214-11 Sony CONNECTOR ASSY 6P (PWR3) (UCM)
5-009-781-01 5-009-781-01 Sony COVER WP L (LMN) (UCM)
5-009-782-01 5-009-782-01 Sony COVER WP R (LMN) (UCM)
5-009-847-01 5-009-847-01 Sony COVER, BTM (LMN) (UCM)
5-009-792-01 5-009-792-01 Sony COVER, STAND(4L LMN) A (UCM)
5-009-848-01 5-009-848-01 Sony COVER, TOP(LMN) (UCM)
1-007-504-11 1-007-504-11 Sony FLEXIBLE FLAT CABLE 14P (UCM)
1-007-170-11 1-007-170-11 Sony FLEXIBLE FLAT CABLE 25P (UCM)
1-007-180-11 1-007-180-11 Sony FLEXIBLE FLAT CABLE 30P (UCM)

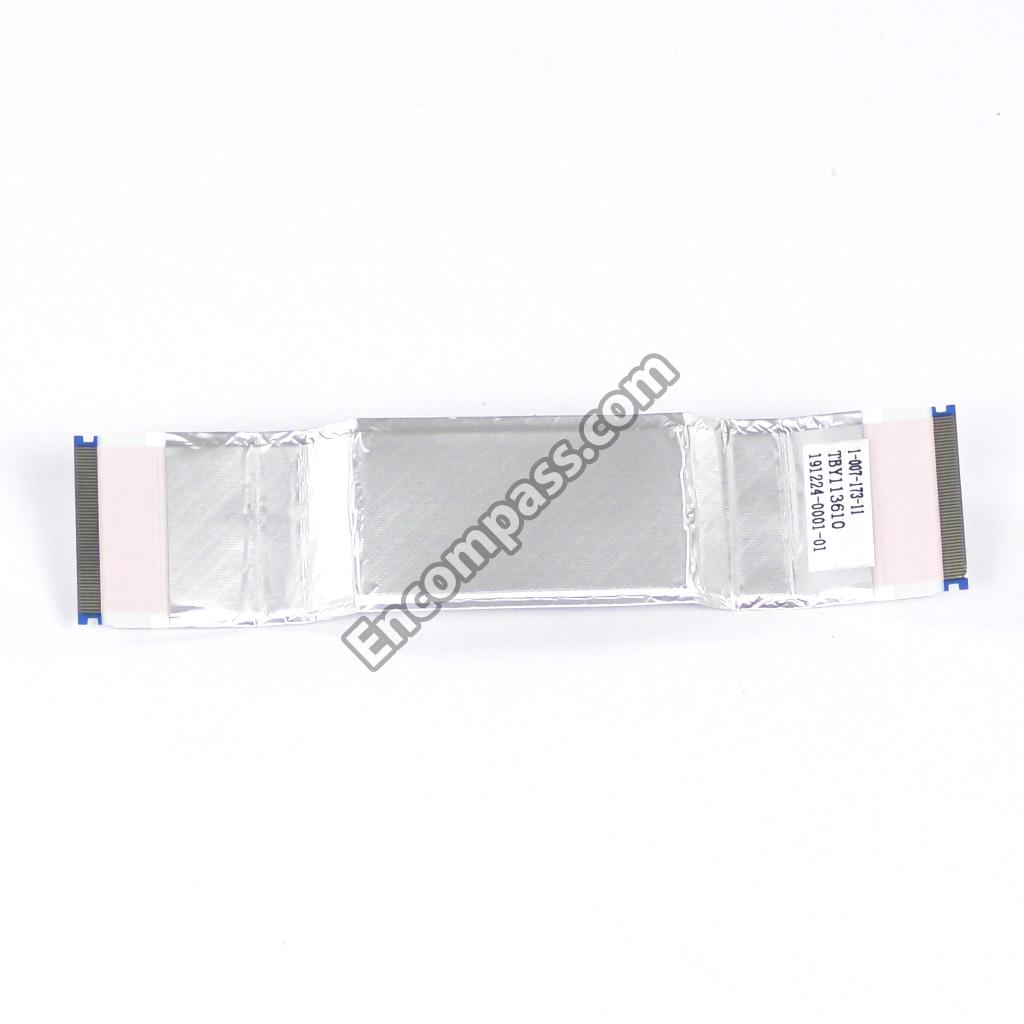

1-007-172-11 1-007-172-11 Sony FLEXIBLE FLAT CABLE 41P(B-ONT) (UCM)
1-007-181-11 1-007-181-11 Sony FLEXIBLE FLAT CABLE 51P (OT1) (UCM)
1-007-182-11 1-007-182-11 Sony FLEXIBLE FLAT CABLE 51P (OT2) (UCM)
1-007-183-11 1-007-183-11 Sony FLEXIBLE FLAT CABLE 51P (OT3) (UCM)
1-007-184-11 1-007-184-11 Sony FLEXIBLE FLAT CABLE 51P (OT4) (UCM)
1-007-173-11 1-007-173-11 Sony FLEXIBLE FLAT CABLE 51P(BONT) (UCM)
5-014-063-01 5-014-063-01 Sony GASKET, SPCB (LMN) (SAME AS NE 75) (UCM) (PANEL PART)
5-014-518-01 5-014-518-01 Sony GASKET, TCON BTM(4L LMN) (UCM) (PANEL PART)
1-007-215-11 1-007-215-11 Sony HARNESS ASSY (SP) (UCM)
5-008-307-01 5-008-307-01 Sony HOLDER SIDE SW(LMN) (UCM)
A-5011-916-B A-5011-916-B Sony HT1_8K_MIC_CT MOUNT (UCM)
5-012-813-01 5-012-813-01 Sony LABEL, HDMI (LMN) (UCM)
5-012-160-41 5-012-160-41 Sony LABEL, UNDER TERMINAL (BM3J) (UCM)

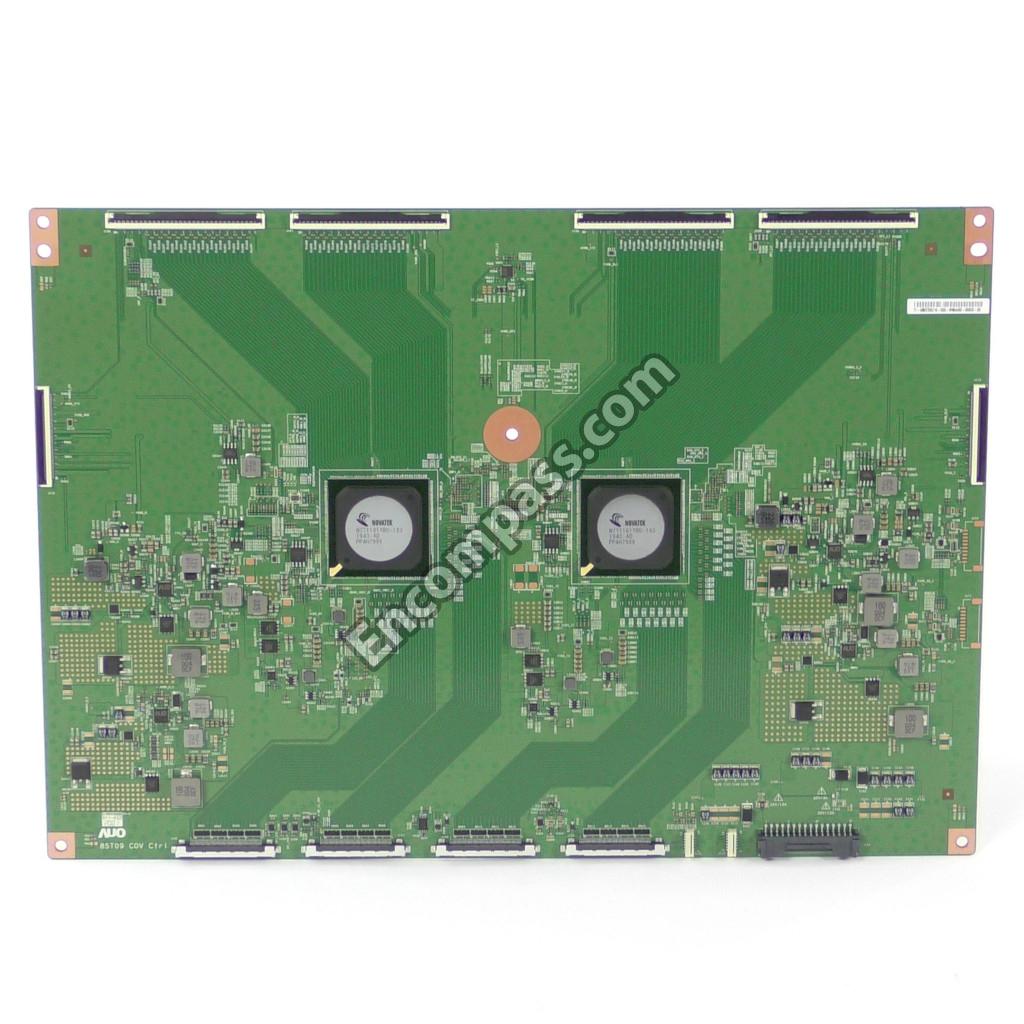

1-007-509-11 1-007-509-11 Sony MOUNTED PWB E-T-CON(85) (UCM) (PANEL PART)
5-014-608-01 5-014-608-01 Sony NECK COVER (LMN) (UCM)
5-009-849-01 5-009-849-01 Sony OP, INNER (LMN) (UCM)
A-5017-288-A A-5017-288-A Sony P-MOD (HDAS085DTU02)(SERVICE) (UCM)
5-011-552-01 5-011-552-01 Sony REAR COVER A (4L LMN) (UCM)
5-014-684-11 5-014-684-11 Sony REFERENCE GUIDE (UCM)
1-005-041-11 1-005-041-11 Sony REMOTE COMMANDER (RMF-TX611U) (UCM)
7-682-948-09 7-682-948-09 Sony SCREW +PSW 3X8 (SAME AS NE 75) (UCM) (PANEL PART)
4-731-435-01 4-731-435-01 Sony SCREW, +F M3X4.8 (SAME AS NE 75) (UCM) (PANEL PART)
4-731-432-01 4-731-432-01 Sony SCREW, +F M3X5.5 (SAME AS NE 75) (UCM) (PANEL PART)
2-580-600-01 2-580-600-01 Sony SCREW, +PSW M4X8 (SAME AS NE 75) (UCM) (PANEL PART)
4-726-549-02 4-726-549-02 Sony SCREW, M3X3 (SAME AS NE 75) (UCM) (PANEL PART)
5-014-687-11 5-014-687-11 Sony SETUP GUIDE (UCM)
4-738-393-01 4-738-393-01 Sony SHEET, THERMAL (SPN G A S) (SAME AS NE 75) (UCM) (PANEL PART)
5-018-006-01 5-018-006-01 Sony SHEET,THERMAL(LMN 4L LD)L (SAME AS NE 75) (UCM) (PANEL PART)
5-018-005-01 5-018-005-01 Sony SHEET,THERMAL(LMN 4L LD)S (SAME AS NE 75) (UCM) (PANEL PART)
5-014-472-01 5-014-472-01 Sony SLIDE, CLAMP(LMN) (UCM)
1-009-699-11 1-009-699-11 Sony SOURCE DRIVER IC MT BOARD (46.S1920.015, 27.5UM) (UCM) (PANEL PART)
1-009-698-11 1-009-698-11 Sony SOURCE DRIVER IC MT BOARD (46.S1920.017, 31.5UM) (UCM) (PANEL PART)
1-004-425-11 1-004-425-11 Sony SP ASSY, PZ229-WP (UCM)
1-006-086-11 1-006-086-11 Sony SPEAKER BOX (LEFT), D38-44-SLIT (UCM)
1-006-086-21 1-006-086-21 Sony SPEAKER BOX (RIGHT), D38-44-SLIT (UCM)
5-009-790-01 5-009-790-01 Sony STAND L(4L LMN) A (UCM)
5-009-791-01 5-009-791-01 Sony STAND R(4L LMN) A (UCM)
5-009-775-11 5-009-775-11 Sony TML COVER H ( LMN) (UCM)
5-009-780-11 5-009-780-11 Sony TML COVER S (LMN) (UCM)
5-009-774-11 5-009-774-11 Sony TML COVER V (LMN) (UCM)
