Model Image
Manufacturer

Sony

Model Number

XR42A90K

Description

4k Hdr Oled Tv With Smart Google Tv

Interactive Exploded View

Parts List

Part Number Description
4-745-608-01 4-745-608-01 AC COVER (AT)
4-535-064-62 4-535-064-62 ASSEMBLY,FALL LOCK,BELT LL
5-035-707-01 5-035-707-01 BAG, SCREW (ML LIO) A
1-400-331-11 1-400-331-11 BEAD, FERRITE
1-481-516-11 1-481-516-11 BEAD, FERRITE (1608)
1-481-996-21 1-481-996-21 BEADS, FERRITE (1005)
4-726-396-13 4-726-396-13 BRACKET UNDER (BM2A)
5-036-017-22 5-036-017-22 BRACKET, SIDE(SGT)
4-724-146-14 4-724-146-14 BRACKET, UNDER (BM2A)
5-023-713-01 5-023-713-01 BRACKET, VESA(3L LMN)
5-009-189-01 5-009-189-01 BRACKET, VESA(3L LMN)
5-009-258-22 5-009-258-22 BRACKET, WIFI(BNN)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN)
1-216-806-91 1-216-806-91 C-RES,U 56-1/16W J
1-118-361-11 1-118-361-11 CAP, CERAMIC 0.1MF X7R 1608
1-118-965-11 1-118-965-11 CAP, CERAMIC 1000PF X7R 3216
1-118-788-11 1-118-788-11 CAP, CERAMIC 100PF C0G 0603
1-116-998-11 1-116-998-11 CAP, CERAMIC 10MF 3216 25V
1-118-770-11 1-118-770-11 CAP, CERAMIC 15PF C0G 0603
1-122-190-11 1-122-190-11 CAP, CERAMIC 1MF X6S 0603
1-116-738-11 1-116-738-11 CAP, CERAMIC 1MF X6S 1005
1-116-714-11 1-116-714-11 CAP, CERAMIC 22MF X6S 2012
1-116-725-11 1-116-725-11 CAP, CERAMIC 4.7MF X6S 1608
1-118-781-11 1-118-781-11 CAP, CERAMIC 47PF C0G 0603
1-118-025-11 1-118-025-11 CAP,CERAMIC 0.00033MF X7R 0603
1-118-026-11 1-118-026-11 CAP,CERAMIC 0.00047MF X7R 0603
1-116-716-11 1-116-716-11 CAPACITOR,10MF X6S 2012 16V
1-120-218-11 1-120-218-11 CERAMIC CAP 1000PF X7R 0603
1-118-732-11 1-118-732-11 CERAMIC CAP0.22MF X7R 2012 50V
1-812-064-11 1-812-064-11 CHIP VARISTOR
1-460-681-11 1-460-681-11 CHOKE COIL 1UH
4-262-708-04 4-262-708-04 CLAMPER, CABLE
1-460-370-11 1-460-370-11 COIL, CHOKE 10UH (4018)
1-460-607-11 1-460-607-11 COIL, CHOKE 3.3UH
A-5044-985-A A-5044-985-A COMPL SVC BM5S22B_FL_UCMX
1-218-990-81 1-218-990-81 CONDUCTOR, CHIP (1005)
1-216-864-91 1-216-864-91 CONDUCTOR, CHIP(1608)
1-774-667-51 1-774-667-51 CONNECTOR, FFC/FPC 18P
1-839-696-22 1-839-696-22 CORD, POWER (WITH CONNECTOR)
5-036-863-31 5-036-863-31 COVER,BTM (SEP) A
5-035-448-11 5-035-448-11 COVER,TOP (SEP)
6-503-572-01 6-503-572-01 DI 1SS355VMTE-17
6-503-738-01 6-503-738-01 DI CES521
6-504-302-01 6-504-302-01 DI CUS10F30
6-503-587-01 6-503-587-01 DI EDZVT2R6.8B
6-504-004-01 6-504-004-01 DI MM5Z6V8T1G
6-503-997-01 6-503-997-01 DI RB521SM-40T2R
8-719-016-74 8-719-016-74 DIODE 1SS352
1-802-245-11 1-802-245-11 ESD SUPPRESSOR
1-844-187-11 1-844-187-11 ETHERNET CONNECTOR
1-400-834-21 1-400-834-21 FERRITE, EMI (SMD) (1005)

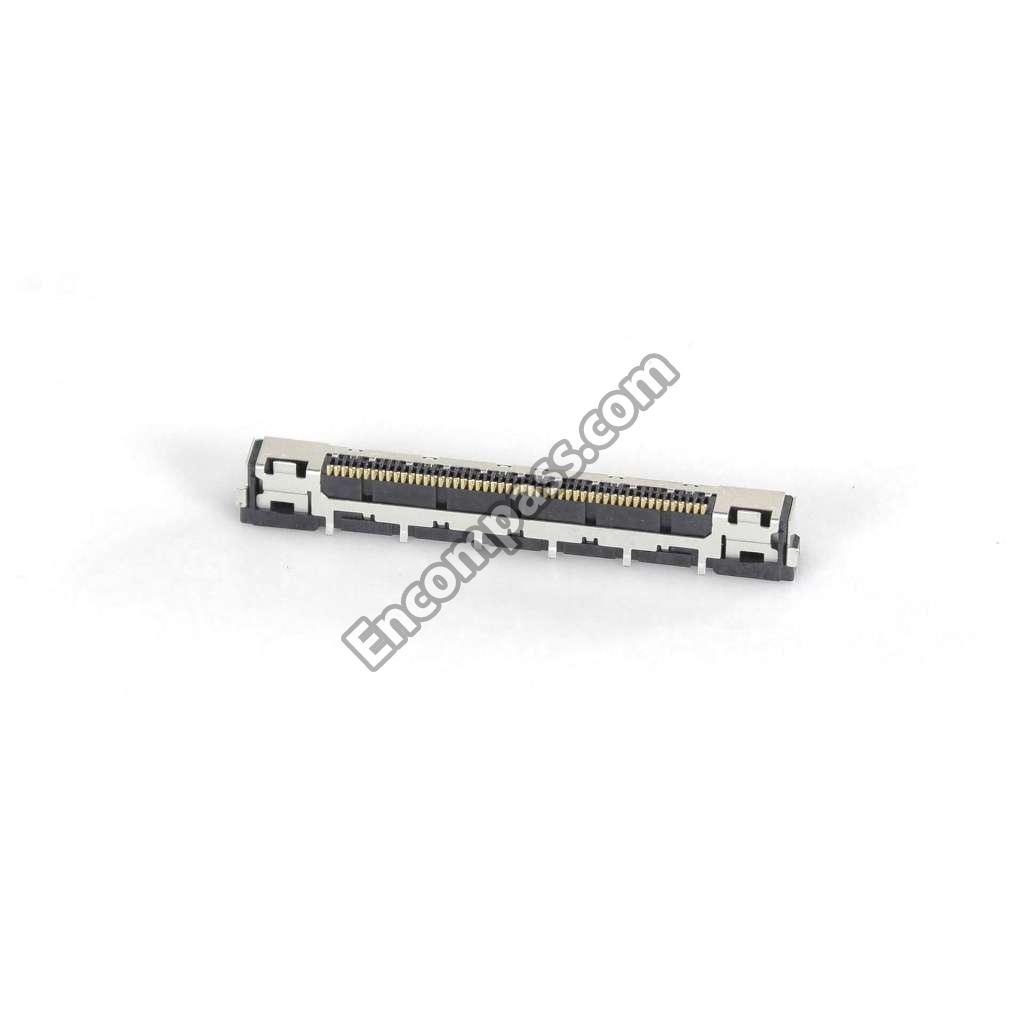

1-842-546-22 1-842-546-22 FFC/FPC CONNECTOR (NON ZIF)51P
A-5042-390-A A-5042-390-A FL_HY1_MIC_WW_EV_OS_PR MOUNT

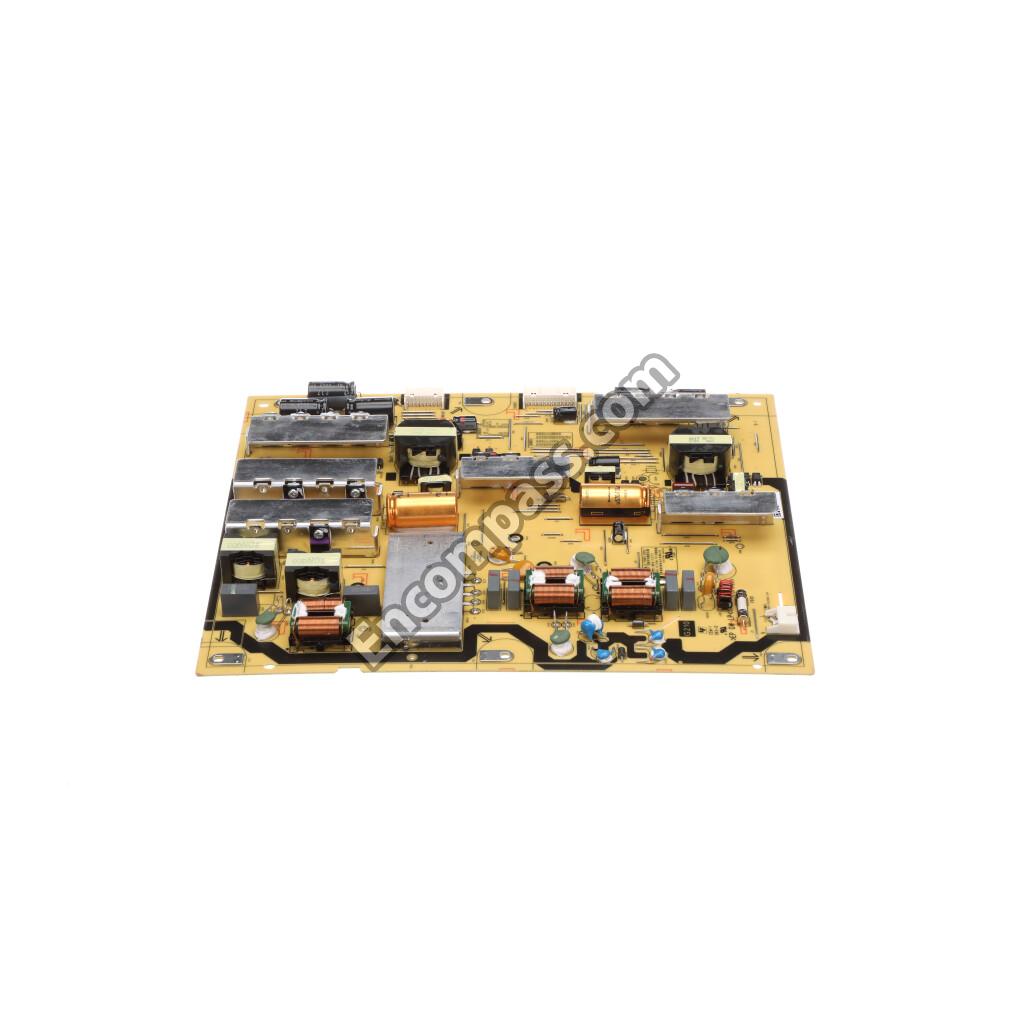

1-014-412-11 1-014-412-11 G210 - STATIC CONVERTER(TV)

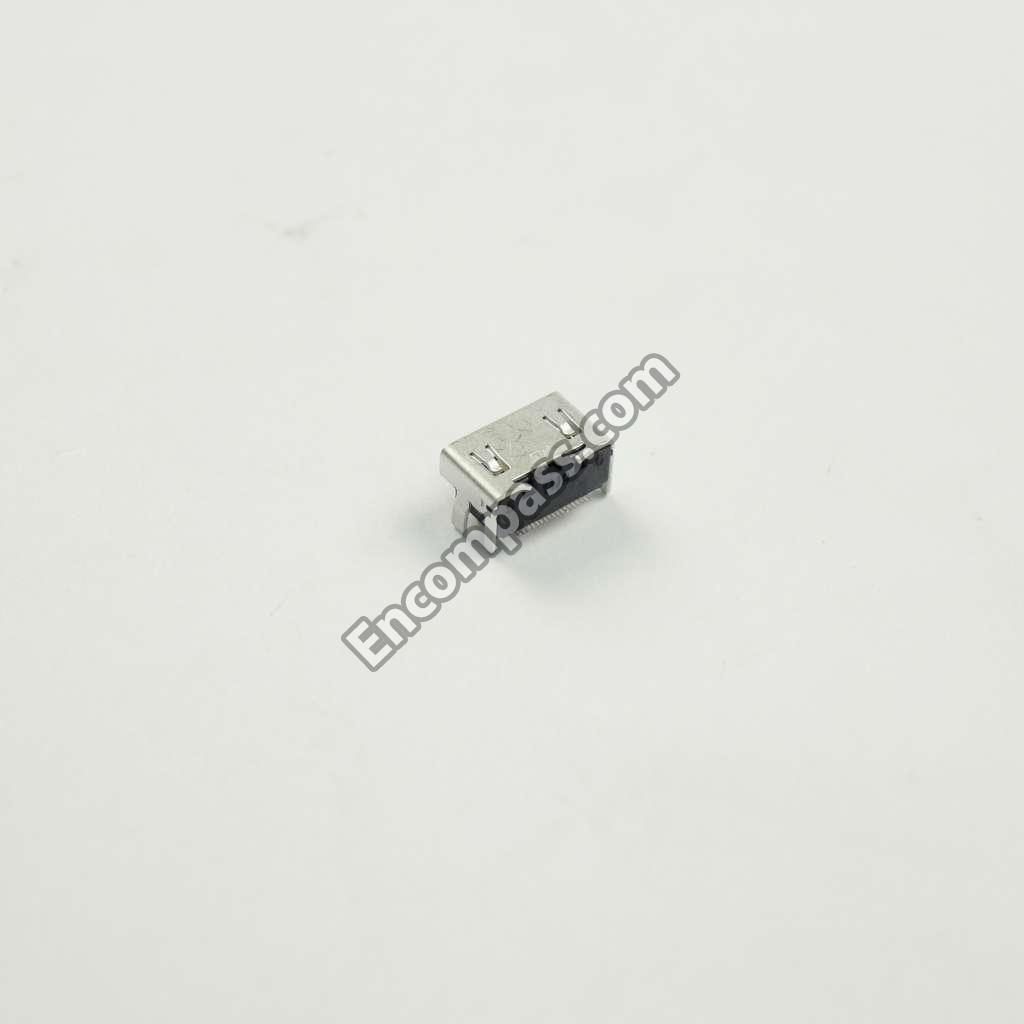

1-822-637-31 1-822-637-31 HDMI CONNECTOR
1-843-151-11 1-843-151-11 HEADER ASSEMBLY FOR PWB 20P
6-705-514-01 6-705-514-01 IC MAX3222IPWR
6-719-288-01 6-719-288-01 IC PST8628UL
6-723-719-01 6-723-719-01 IC RP114K331D-TRB
6-706-487-01 6-706-487-01 IC TC7SH08FU(T5RSOYJF)
6-706-489-01 6-706-489-01 IC TC7SH32FU(T5RSOYJF)
6-715-042-01 6-715-042-01 IC TC7SZ126FU,RSOYJ
6-718-194-01 6-718-194-01 IC TPA6138A2PWR
1-400-178-21 1-400-178-21 INDUCTOR, EMI FERRITE (1608)
4-599-952-01 4-599-952-01 JOINT, SCREW (PUC)
5-036-145-31 5-036-145-31 LABEL, SIDE TERMINAL (BM5S22)
5-036-141-01 5-036-141-01 LABEL, UNDER TERMINAL (BM5S22)
1-843-467-11 1-843-467-11 MINI JACK (RA)
1-842-576-12 1-842-576-12 MINI JACK (RA)
5-035-705-01 5-035-705-01 NECK STD (ML LIO) A
1-849-274-11 1-849-274-11 POWER-SUPPLY CORD (WITH CONN.)
1-697-376-11 1-697-376-11 PULSE TRANSFORMER
1-814-865-11 1-814-865-11 QUARTZ CRYSTAL UNIT (24MHZ)
5-039-051-11 5-039-051-11 REFERENCE GUIDE
1-013-685-23 1-013-685-23 REMOTE COMMANDER (RMF-TX900U)
1-218-981-91 1-218-981-91 RES, CHIP 220K
1-218-937-81 1-218-937-81 RES, CHIP 47 (1005)
1-250-523-11 1-250-523-11 RES, METAL FILM CHIP 15K(1005)
1-250-479-11 1-250-479-11 RES, METAL FILM CHIP 220(1005)
1-250-527-11 1-250-527-11 RES, METAL FILM CHIP 22K(1005)
1-250-480-11 1-250-480-11 RES, METAL FILM CHIP 240(1005)
1-250-529-11 1-250-529-11 RES, METAL FILM CHIP 27K(1005)
1-250-535-11 1-250-535-11 RES, METAL FILM CHIP 47K(1005)
1-250-489-11 1-250-489-11 RES, METAL FILM CHIP 560(1005)
1-250-467-11 1-250-467-11 RES, METAL FILM CHIP 68 (1005)
1-250-588-11 1-250-588-11 RES, METAL FILM CHIP 68 (1608)
1-250-539-11 1-250-539-11 RES, METAL FILM CHIP 68K(1005)
1-250-541-11 1-250-541-11 RES, METAL FILM CHIP 82K(1005)
1-257-609-21 1-257-609-21 RES, NETWORK 2.2 (1005X4)
1-234-370-11 1-234-370-11 RES, NETWORK 22X4 (1005)
1-257-548-21 1-257-548-21 RES, NETWORK 47K (1005X4)
1-257-551-21 1-257-551-21 RES, NETWORK 75 (1005X4)
1-250-499-11 1-250-499-11 RES,METAL FILM CHIP 1.5K(1005)
1-250-543-11 1-250-543-11 RES,METAL FILM CHIP 100K(1005)
1-250-507-11 1-250-507-11 RES,METAL FILM CHIP 3.3K(1005)
1-250-509-11 1-250-509-11 RES,METAL FILM CHIP 3.9K(1005)
1-250-511-11 1-250-511-11 RES,METAL FILM CHIP 4.7K(1005)
1-250-559-11 1-250-559-11 RES,METAL FILM CHIP 470K(1005)
1-208-869-11 1-208-869-11 RESISTOR CHIP 180 (1005)
1-218-985-11 1-218-985-11 RESISTOR CHIP 470K 1/16W(1005)
1-218-974-11 1-218-974-11 RESISTOR CHIP 56K 1/16W (1005)
1-218-954-11 1-218-954-11 RESISTOR, CHIP 1.2K 1/16W
1-218-955-11 1-218-955-11 RESISTOR, CHIP 1.5K
1-218-965-11 1-218-965-11 RESISTOR, CHIP 10K 1/16W
1-208-939-11 1-208-939-11 RESISTOR, CHIP 150K (1005)
1-218-953-11 1-218-953-11 RESISTOR, CHIP 1K 1/16W
1-244-161-11 1-244-161-11 RESISTOR, CHIP 2.2(1005)
1-218-933-81 1-218-933-81 RESISTOR, CHIP 22 1/16W
1-218-959-11 1-218-959-11 RESISTOR, CHIP 3.3K
1-218-947-11 1-218-947-11 RESISTOR, CHIP 330 1/16W
1-218-961-11 1-218-961-11 RESISTOR, CHIP 4.7K 1/16W
1-234-383-11 1-234-383-11 RESISTOR, NETWORK 470KX4(1005)
1-234-380-21 1-234-380-21 RESISTOR, NETWORK 47K (1005X4)
1-234-723-21 1-234-723-21 RESISTOR, NETWORK 75 (1005X4)
1-208-635-11 1-208-635-11 RESISTOR,CHIP 10 1/16W (1005)
1-218-941-81 1-218-941-81 RESISTOR,CHIP 100,1/16W (1005)
1-211-973-11 1-211-973-11 RESISTOR,CHIP 15 1/10W (1608)
1-218-943-11 1-218-943-11 RESISTOR,CHIP 150 1/16W
1-218-989-11 1-218-989-11 RESISTOR,CHIP 1M 1/16W (1005)
1-218-957-11 1-218-957-11 RESISTOR,CHIP 2.2K 1/16W(1005)
1-218-945-11 1-218-945-11 RESISTOR,CHIP 220 1/16W(1005)
1-218-969-11 1-218-969-11 RESISTOR,CHIP 22K 1/16W (1005)
1-218-971-11 1-218-971-11 RESISTOR,CHIP 33K 1/16W (1005)
1-218-949-11 1-218-949-11 RESISTOR,CHIP 470 1/16W
1-220-191-81 1-220-191-81 RESISTOR,CHIP 5.1K
1-211-989-11 1-211-989-11 RESISTOR,CHIP 68 1/10W (1608)
1-208-861-81 1-208-861-81 RESISTOR,CHIP 82 (1005)
1-240-703-11 1-240-703-11 RESISTOR.CHIP,4.7K (0603)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6
4-256-393-12 4-256-393-12 SCREW, +PSW M3X6 W12
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12
2-580-663-02 2-580-663-02 SCREW, WOOD 3.8X20
5-037-332-11 5-037-332-11 SETUP GUIDE
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL)
5-011-960-01 5-011-960-01 SHEET, THERMAL(LMN TCON)
4-699-975-02 4-699-975-02 SHEET,THERMAL(5567H)
7-600-040-44 7-600-040-44 SILICON COMPOUND 333CC GRY
2-650-770-21 2-650-770-21 SLIDE, CLAMP
1-005-555-32 1-005-555-32 SP-BOX ASSEMBLY,FY20 D40-WF-DRN
5-035-702-01 5-035-702-01 STAND ARM (ML LIO) A
5-035-696-01 5-035-696-01 STAND BASE (ML LIO) A
1-771-246-11 1-771-246-11 SWITCH, SLIDE
1-786-845-11 1-786-845-11 SWITCH, TACTILE
7-600-031-96 7-600-031-96 TAPE 3M1350FB-1 15MMX66M BLK
6-552-893-01 6-552-893-01 TR 2SAR523MT2L
6-552-354-01 6-552-354-01 TR DRC3144E0L
6-552-700-01 6-552-700-01 TR SSM3K15AMFV,L3SF
6-551-623-01 6-551-623-01 TRANSISTOR 2SA2154MFV(TL3SONY)
6-551-622-01 6-551-622-01 TRANSISTOR 2SC6026MFV(TL3SONY)
6-551-630-01 6-551-630-01 TRANSISTOR RN1102MFV(TL3SONY)
6-551-631-01 6-551-631-01 TRANSISTOR RN1104MFV(TL3SONY)
6-550-978-01 6-550-978-01 TRANSISTOR RN1902(T5RSONY,D,F)
6-550-001-01 6-550-001-01 TRANSISTOR UMH11NTN
1-843-576-11 1-843-576-11 USB CONNECTOR
1-842-667-12 1-842-667-12 USB CONNECTOR
1-802-090-21 1-802-090-21 VARISTOR, CHIP
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC)
1-005-419-34 1-005-419-34 WLAN/BT MODULE(11AC)FXC
1-005-419-32 1-005-419-32 WLAN/BT MODULE(11AC)FXC
