Model Image
Manufacturer

Sony

Model Number

XR55X90CK

Description

4k Hdr Full Array Led Tv With Smart Google Tv; Clu

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UC2)
1-005-642-12 1-005-642-12 7L AC POWER CODE SETS (US) (UC2)
5-034-166-01 5-034-166-01 BEZEL BT ASSY (L TGR) (UC2)
5-026-220-14 5-026-220-14 BEZEL TP ASSY (L RIS) (UC2)
5-039-955-11 5-039-955-11 BRACKET SIDE (BNN) A (UC2)
5-039-953-11 5-039-953-11 BRACKET SIDE (BNN) A (UC2)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UC2)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UC2)
A-5039-790-A A-5039-790-A COMPL 22LD48A1_FT (UC2)
A-5042-589-A A-5042-589-A COMPL 22LD48C1_FT (UC2)
1-007-098-11 1-007-098-11 CONNECTOR ASSY 15P (UC2)
1-014-494-11 1-014-494-11 CONNECTOR ASSY 28P (UC2)
1-007-097-12 1-007-097-12 CONNECTOR ASSY 4P (PZ) (UC2)
1-006-501-43 1-006-501-43 CONNECTOR ASSY 4P (SP) (UC2)
5-036-705-01 5-036-705-01 COVER, BTM(3L EPH) A (UC2)
5-023-069-23 5-023-069-23 COVER, TOP(COM) (UC2)
1-007-100-11 1-007-100-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-007-101-11 1-007-101-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-007-105-11 1-007-105-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-007-104-11 1-007-104-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-007-106-11 1-007-106-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-007-107-11 1-007-107-11 FLEXIBLE FLAT CABLE 30P (UC2)
1-007-108-12 1-007-108-12 FLEXIBLE FLAT CABLE 41P (UC2)
1-007-109-12 1-007-109-12 FLEXIBLE FLAT CABLE 41P (UC2)
1-007-110-12 1-007-110-12 FLEXIBLE FLAT CABLE 51P (UC2)
1-007-111-12 1-007-111-12 FLEXIBLE FLAT CABLE 51P (UC2)
A-5042-371-A A-5042-371-A FY22_HT2_MIC_WW_EV_PR MOUNT (UC2)
5-039-876-01 5-039-876-01 LABEL, SIDE TERMINAL HP (TGR) (UC2)
1-014-118-11 1-014-118-11 LIQUID CRYSTAL ELEMENT(C550D11 (UC2)
1-009-973-11 1-009-973-11 LOUDSPEAKER,FY21 14_17MM-TW (UC2)
A-5042-769-B A-5042-769-B MAIN CBA_COMPL_BM5STY_UC_FT (UC2)
1-014-119-11 1-014-119-11 MOUNTED PWB E-T-CON (55) (UC2)
1-013-670-11 1-013-670-11 MOUNTED PWB LS BAR (TGR L) (UC2)
A-5043-569-A A-5043-569-A P-MOD (YDCM055DCS11) (UC2)
1-013-618-11 1-013-618-11 POWER CBA_G21-STATIC CONVERTER (TV) (UC2)
1-013-618-31 1-013-618-31 POWER CBA_G21-STATIC CONVERTER (TV) (UC2)
1-013-618-21 1-013-618-21 POWER CBA_G21P-STATIC CONVERTER (TV) (UC2)
1-013-618-41 1-013-618-41 POWER CBA_G21P-STATIC CONVERTER (TV) (UC2)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UC2)
5-026-651-01 5-026-651-01 REAR COVER ASSY (L RIS) (UC2)
5-037-700-11 5-037-700-11 REFERENCE GUIDE (UC2)

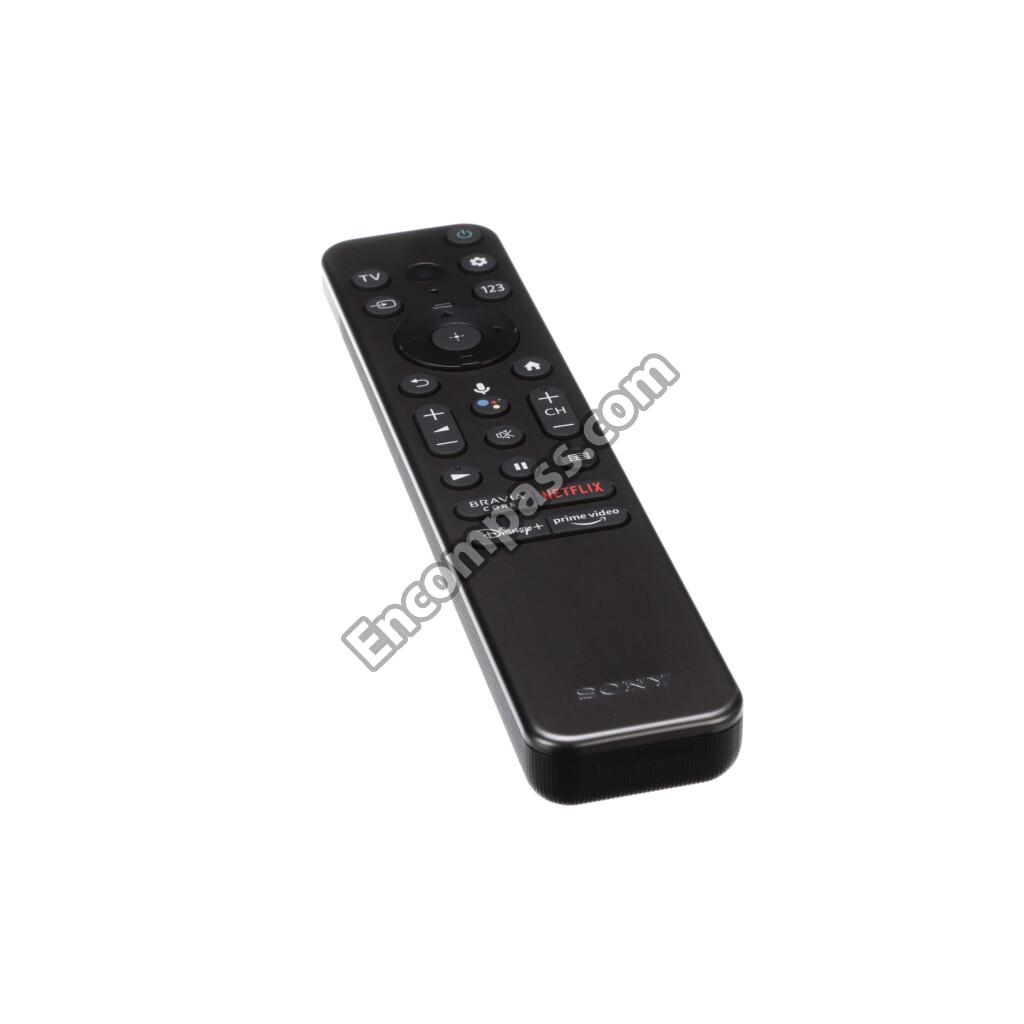

1-013-685-22 1-013-685-22 REMOTE COMMANDER (RMF-TX900U) (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2)
5-038-985-11 5-038-985-11 SETUP GUIDE (UC2)
5-027-740-02 5-027-740-02 SHEET, INSULATION (L PHN) A (UC2)
5-027-740-12 5-027-740-12 SHEET, INSULATION (L PHN) A (UC2)
4-457-451-12 4-457-451-12 SHEET, THERMAL(BAF) (UC2)
5-024-521-22 5-024-521-22 SLIDE SW (UC2)
1-013-470-11 1-013-470-11 SP-BOX ASSY,FY22 W30L DBR-A (UC2)
1-013-470-21 1-013-470-21 SP-BOX ASSY,FY22 W30L DBR-B (UC2)
5-034-614-01 5-034-614-01 STAND L (L TGR) A (UC2)
5-034-615-01 5-034-615-01 STAND R (L TGR) A (UC2)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UC2)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UC2)
