Model Image
Manufacturer

Sony

Model Number

XR55X90J

Description

55-inch Class Bravia Xr 4k Ultra Hd (hdr) Smart Tv

Interactive Exploded View

Parts List

Part Number Description
5-015-521-01 5-015-521-01 +PSW M6*16 W14 (UCM)
5-022-225-12 5-022-225-12 BAG, CL ASSY (2L LYX) (UCM)
5-023-134-11 5-023-134-11 BEZEL BT ASSY (L RIS) (UCM) (PANEL PART)
5-026-220-11 5-026-220-11 BEZEL TP ASSY (L RIS) (UCM)
5-023-363-12 5-023-363-12 BEZEL TP ASSY (L RIS) (UCM) (PANEL PART)
5-023-363-22 5-023-363-22 BEZEL TP ASSY (L RIS) (UCM) (PANEL PART)
5-015-416-31 5-015-416-31 BRACKET, SIDE(BNN) A (UCM)
5-021-551-31 5-021-551-31 BRACKET, SIDE(BNN) A. (UCM)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCM)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UCM)
1-005-642-12 1-005-642-12 C7L AC POWER CODE SETS (US) (UCM)
A-5026-318-A A-5026-318-A COMPL 21LD24B1_AR (UCM)
A-5026-319-A A-5026-319-A COMPL SVC 21LD24B1_AR (UCM) (PANEL PART)

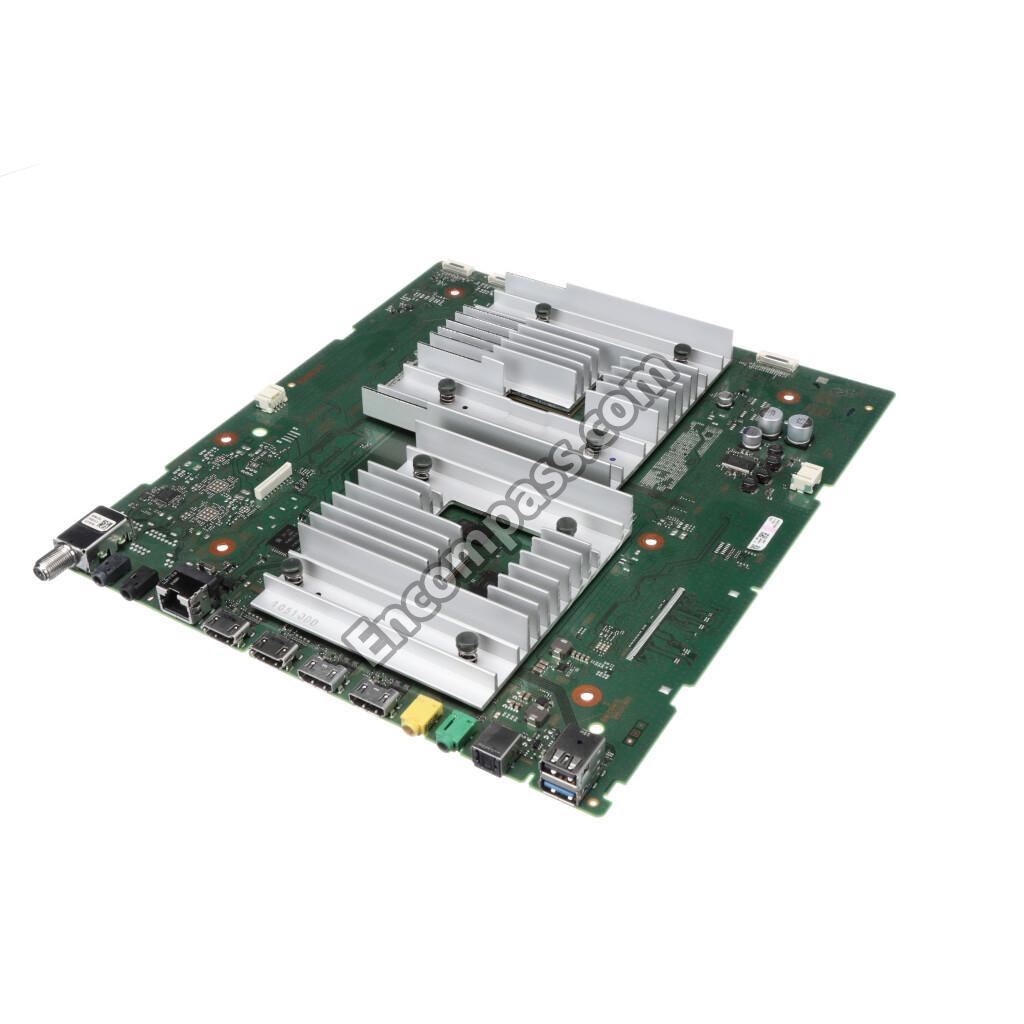

A-5027-263-A A-5027-263-A COMPL_BM5ST_UCM_AR (UCM)
1-017-739-11 1-017-739-11 CONNECTOR ASSEMBLY 28P (UCM) (PANEL PART)
1-007-098-11 1-007-098-11 CONNECTOR ASSY 15P (UCM)
1-011-289-11 1-011-289-11 CONNECTOR ASSY 28P (UCM)
1-007-097-12 1-007-097-12 CONNECTOR ASSY 4P (PZ) (UCM)
1-006-501-31 1-006-501-31 CONNECTOR ASSY 4P (SP) (UCM)
5-025-954-11 5-025-954-11 COVER, BTM(L RIS) A (UCM)
5-023-069-22 5-023-069-22 COVER, TOP(COM) (UCM)
5-024-516-21 5-024-516-21 COVER, TOP(COM) (UCM)
5-024-057-01 5-024-057-01 DIFFUSER PLATE (RIS L) (UCM) (PANEL PART)
1-010-099-11 1-010-099-11 FLEXIBLE FLAT CABLE 16P (LS-L) (UCM) (PANEL PART)
1-007-100-11 1-007-100-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-007-101-11 1-007-101-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-007-105-11 1-007-105-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-007-104-11 1-007-104-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-007-106-11 1-007-106-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-007-107-11 1-007-107-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-007-108-12 1-007-108-12 FLEXIBLE FLAT CABLE 41P (UCM)
1-007-109-12 1-007-109-12 FLEXIBLE FLAT CABLE 41P (UCM)
1-007-110-12 1-007-110-12 FLEXIBLE FLAT CABLE 51P (UCM)
1-007-111-12 1-007-111-12 FLEXIBLE FLAT CABLE 51P (UCM)
1-011-291-11 1-011-291-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
1-011-292-11 1-011-292-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)

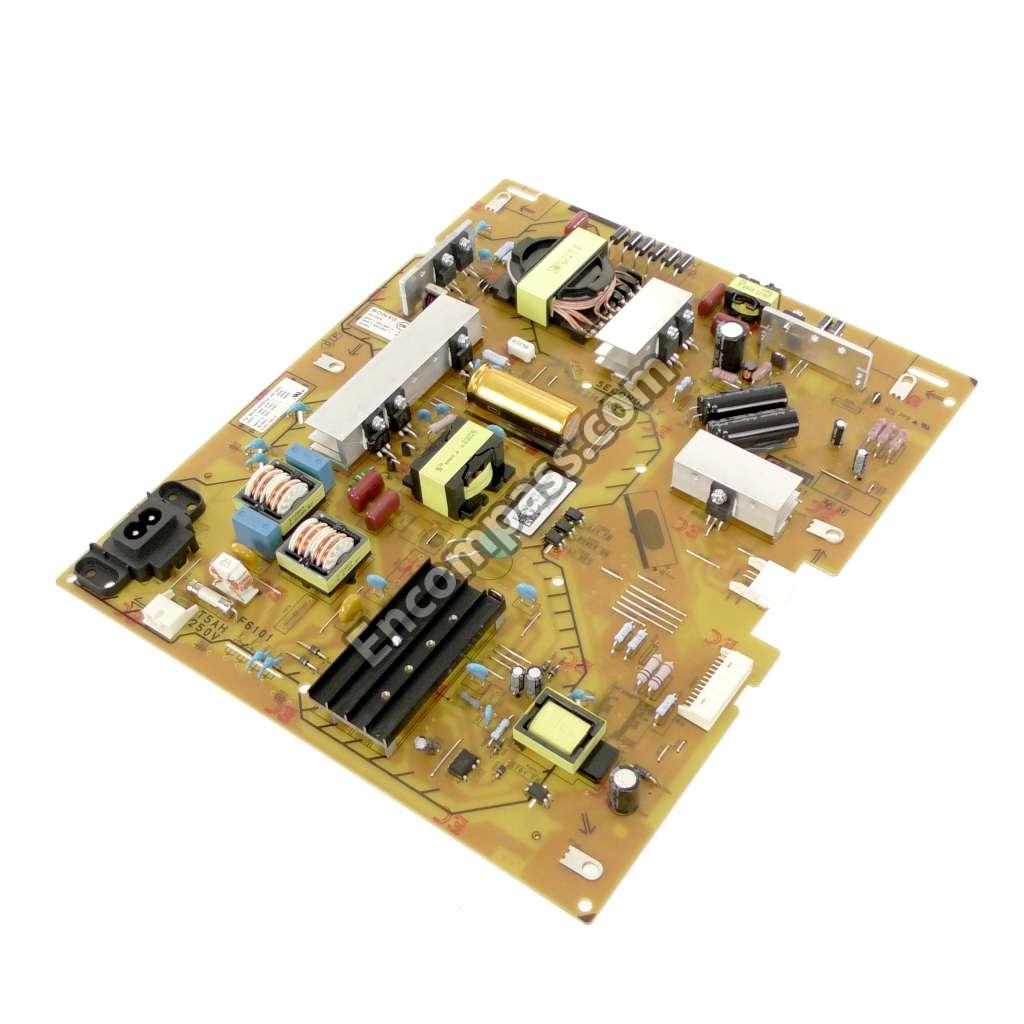

1-006-134-25 1-006-134-25 G04 - STATIC CONVERTER(TV) (UCM)

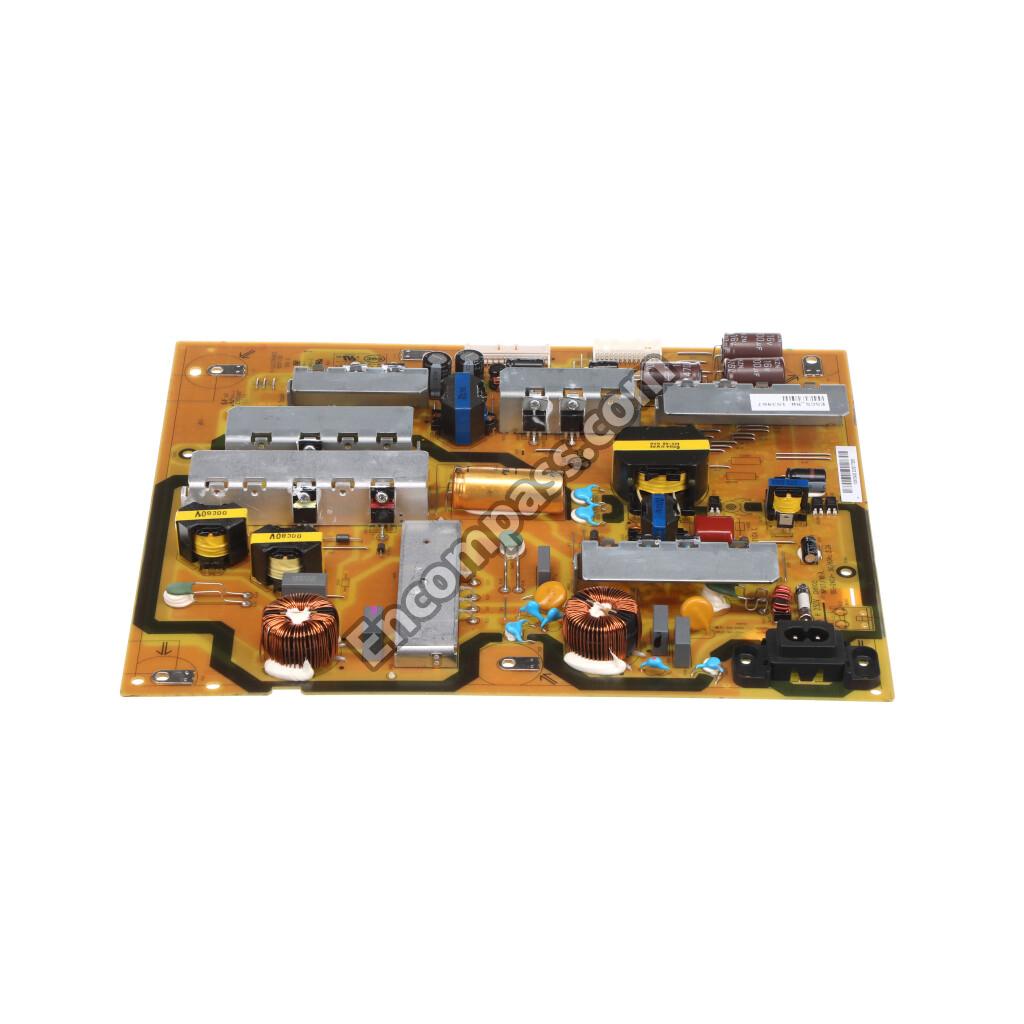

1-006-134-41 1-006-134-41 G04P - STATIC CONVERTER(TV) (UCM)
4-744-177-01 4-744-177-01 GASKET SB (3L BGO) (UCM) (PANEL PART)
5-011-453-01 5-011-453-01 GASKET, TCON CH (APL) (UCM) (PANEL PART)
A-5026-971-A A-5026-971-A HT2_WW_CT MOUNT (UCM)
A-5026-972-A A-5026-972-A HT2_WW_EV MOUNT (UCM)
5-024-894-01 5-024-894-01 LABEL, SIDE TERMINAL (RIS) (UCM)
1-011-255-31 1-011-255-31 LIQUID CRYSTAL ELEMENT(C550D11 (ST5461D11-3) (UCM) (PANEL PART)
1-014-118-11 1-014-118-11 LIQUID CRYSTAL ELEMENT(C550D11 (UCM) (PANEL PART)
1-011-255-11 1-011-255-11 LIQUID CRYSTAL ELEMENT(C550D11 (UCM) (PANEL PART)
1-009-973-11 1-009-973-11 LOUDSPEAKER,FY21 14_17MM-TW (UCM)
1-011-256-31 1-011-256-31 MOUNTED PWB E-T-CON (55) (342911009C0811) (UCM) (PANEL PART)
1-011-256-11 1-011-256-11 MOUNTED PWB E-T-CON (55) (UCM)
1-014-119-11 1-014-119-11 MOUNTED PWB E-T-CON (55) (UCM) (PANEL PART)
1-010-094-11 1-010-094-11 MOUNTED PWB LS BAR (RIS L) (UCM) (PANEL PART)
A-5027-783-A A-5027-783-A P-MOD (YDBM055DCS11) (UCM)
A-5029-016-A A-5029-016-A P-MOD(YDBM055DCS01)SVC (UCM)
5-033-415-01 5-033-415-01 POLARIZER F/CF (3130703W00000G) (UCM) (PANEL PART)
5-033-416-01 5-033-416-01 POLARIZER F/CF (313070JD000004) (UCM) (PANEL PART)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-026-651-21 5-026-651-21 REAR COVER ASSY (L RIS) (UCM)
5-024-058-01 5-024-058-01 REF. POLARIZER ON POP (RIS L) (UCM) (PANEL PART)
5-024-942-12 5-024-942-12 REFERENCE GUIDE (UCM)
5-024-678-01 5-024-678-01 REFLECTIVE SHEET (RIS L) (UCM) (PANEL PART)

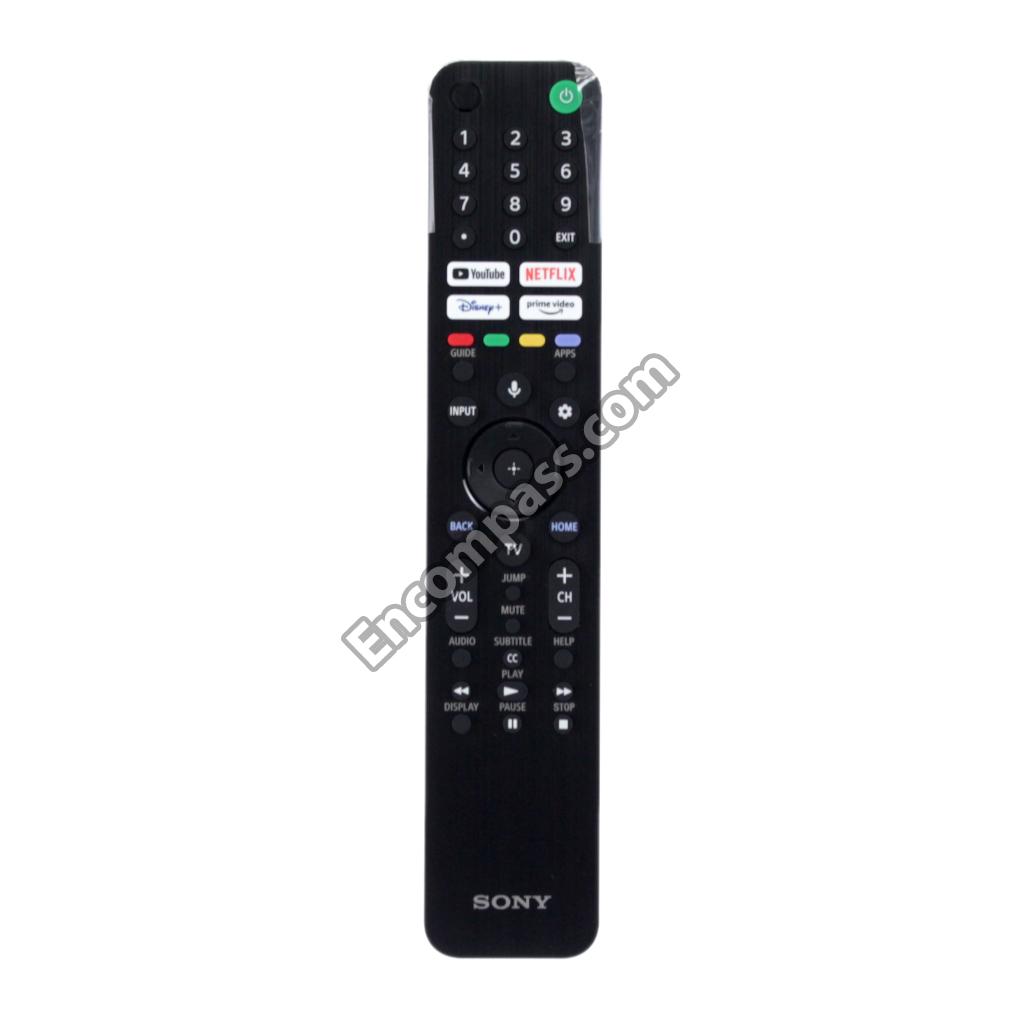

1-009-957-12 1-009-957-12 REMOTE COMMANDER (RMF-TX520U) (UCM)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
5-024-944-11 5-024-944-11 SETUP GUIDE (UCM)
5-027-740-01 5-027-740-01 SHEET, INSULATION (L PHN) A (UCM)
5-027-740-11 5-027-740-11 SHEET, INSULATION (L PHN) A (UCM)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCM) (PANEL PART)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL) (UCM) (PANEL PART)
4-457-451-11 4-457-451-11 SHEET, THERMAL(BAF) (UCM)
1-012-978-11 1-012-978-11 SOURCE DRIVER IC MT BOARD (330210000001CB) (UCM) (PANEL PART)
1-012-979-11 1-012-979-11 SOURCE DRIVER IC MT BOARD (330210000001FB) (UCM) (PANEL PART)
1-004-509-12 1-004-509-12 SPEAKER BOX ASSY (FY20 W30L-FA (UCM)
1-004-509-22 1-004-509-22 SPEAKER BOX ASSY (FY20 W30L-FB (UCM)
5-022-219-21 5-022-219-21 STAND, L (2L RIS) A (UCM)
5-022-220-21 5-022-220-21 STAND, R (2L RIS) A (UCM)
5-009-047-11 5-009-047-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
5-013-482-11 5-013-482-11 SUPPORTER PIN (COM) (UCM) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCM) (PANEL PART)
5-009-861-02 5-009-861-02 VESA SPACER A (COM) (UCM)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UCM)
1-005-419-12 1-005-419-12 WLAN/BT MODULE(11AC) DHUR-SY63 (UCM)
