Model Image
Manufacturer

Sony

Model Number

XR55X90L

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
A-5052-288-A A-5052-288-A (MAIN CBA) COMPL SVC 23LD80A2_TC (UCM) (PANEL PART)
5-044-828-01 5-044-828-01 BEZEL BT ASSY (L CBN) (UCM)
5-044-828-42 5-044-828-42 BEZEL BT ASSY (L CBN) (UCM) (PANEL PART)
5-044-828-02 5-044-828-02 BEZEL BT ASSY (L CBN) (UCM) (PANEL PART)
5-044-807-01 5-044-807-01 BEZEL TP ASSY (L CBN) (UCM)
5-044-807-02 5-044-807-02 BEZEL TP ASSY (L CBN) (UCM) (PANEL PART)
5-045-951-61 5-045-951-61 BRACKET SIDE (CBN) A (UCM)
5-009-258-12 5-009-258-12 BRACKET, WIFI(BNN) (UCM)
5-046-184-01 5-046-184-01 CLAMPER, CABLE L (COM 2) (UCM) (PANEL PART)
5-047-347-01 5-047-347-01 CLAMPER, CABLE S (COM 2) (UCM) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCM) (PANEL PART)
A-5052-287-A A-5052-287-A COMPL 23LD80A2_TC (UCM)
A-5056-903-A A-5056-903-A COMPL_BM5STY_TC_UCM (UCM)
1-017-523-11 1-017-523-11 CONNECTOR ASSY 15P (UCM)
1-017-526-11 1-017-526-11 CONNECTOR ASSY 28P (UCM)
1-017-521-11 1-017-521-11 CONNECTOR ASSY 4P (SP) (UCM)
1-017-525-11 1-017-525-11 CONNECTOR ASSY 4P (TWT) (UCM)
5-045-657-01 5-045-657-01 COVER, BTM (CBN) A (UCM)
5-045-290-21 5-045-290-21 COVER, TOP (CBN) (UCM)
5-045-890-01 5-045-890-01 DIFFUSER PLATE (CBN L) (UCM) (PANEL PART)
1-017-529-11 1-017-529-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-017-530-11 1-017-530-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-017-533-11 1-017-533-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-017-534-11 1-017-534-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-017-536-11 1-017-536-11 FLEXIBLE FLAT CABLE 51P (UCM)
1-011-291-11 1-011-291-11 FLEXIBLE FLAT CABLE 60P (UCM)
1-011-292-11 1-011-292-11 FLEXIBLE FLAT CABLE 60P (UCM) (PANEL PART)
A-5056-111-A A-5056-111-A FY23_HY1S_MIC_WW_EVSIOS MT (UCM)
1-017-060-21 1-017-060-21 G31BP-STATIC CONVERTER (TV) (UCM)
5-045-282-01 5-045-282-01 LD SHIELD (L COM) (UCM) (PANEL PART)
1-017-153-11 1-017-153-11 LIQUID CRYSTAL ELEMENT(C55D11) (UCM)
1-016-434-11 1-016-434-11 LOUDSPEAKER,FY23 14_17MM-TW (UCM)

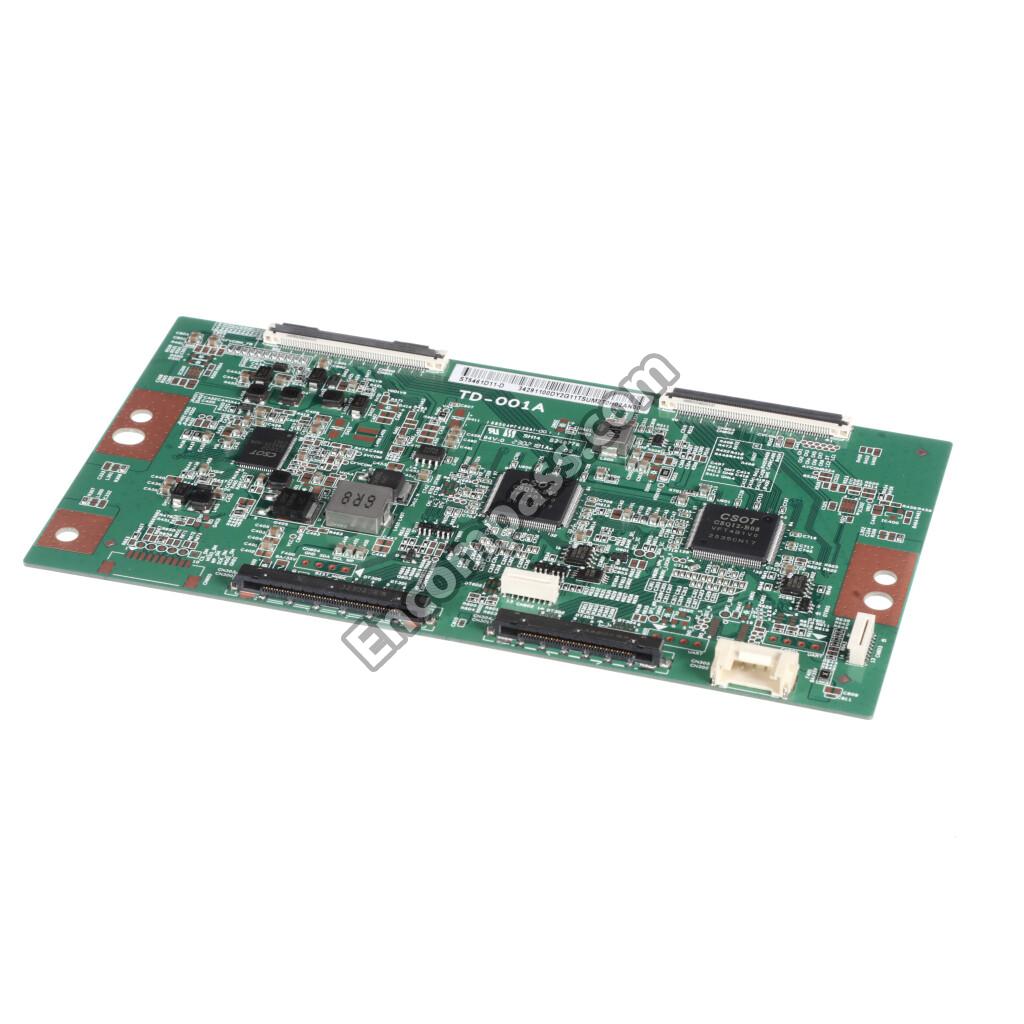

1-017-154-11 1-017-154-11 MOUNTED PWB E-T-CON (55) (UCM)
1-016-641-11 1-016-641-11 MOUNTED PWB LS BAR (CBN L) (UCM)
A-5055-333-A A-5055-333-A P-MOD (YDDM055DGS11) (UCM)
5-055-015-01 5-055-015-01 POLARIZER F/CF (3130900H00000G (SDI)) (UCM) (PANEL PART)
1-005-642-12 1-005-642-12 POWER-SUPPLY CORD SET (UCM)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-049-339-01 5-049-339-01 REAR COVER ASSY (L CBN) (UCM)
5-045-893-01 5-045-893-01 REF.POL.ON POP (CBN L) (UCM) (PANEL PART)
5-048-778-11 5-048-778-11 REFERENCE GUIDE (UCM)
5-045-855-01 5-045-855-01 REFLECTIVE SHEET (CBN L) (UCM) (PANEL PART)
1-015-400-21 1-015-400-21 RELAY BOARD (L)-64 (UCM) (PANEL PART)
1-015-400-11 1-015-400-11 RELAY BOARD (L)-64 (UCM) (PANEL PART)
1-016-940-21 1-016-940-21 REMOTE COMMANDER (RMF-TX810U) (UCM)
5-046-669-01 5-046-669-01 SCREW BAG A (COM2) (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
5-005-753-01 5-005-753-01 SCREW, M3X4 (UCM) (PANEL PART)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-048-781-11 5-048-781-11 SETUP GUIDE (UCM)
5-044-055-01 5-044-055-01 SHEET THERMAL(BM6SL M6L) (UCM)
5-050-917-11 5-050-917-11 SHEET, INSULATION (L CBN) A (UCM)
5-051-618-01 5-051-618-01 SHEET, THERMAL (CBN TCON) (UCM) (PANEL PART)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCM) (PANEL PART)
5-020-359-01 5-020-359-01 SHEET, THERMAL CSOT (APL) (UCM) (PANEL PART)
5-024-521-22 5-024-521-22 SLIDE SW (UCM)
1-019-153-11 1-019-153-11 SOURCE DRIVER IC MT BOARD (330210000001P7 (HISI)) (UCM) (PANEL PART)
1-016-432-11 1-016-432-11 SP-BOX ASSY,FY23 W22L-FA (UCM)
1-016-432-21 1-016-432-21 SP-BOX ASSY,FY23 W22L-FB (UCM)
5-044-425-01 5-044-425-01 STAND L (L CBN) A (UCM)
5-044-708-01 5-044-708-01 STAND R (L CBN) A (UCM)
5-049-710-01 5-049-710-01 SUPPORTER PIN (L COM 2) (UCM) (PANEL PART)
5-044-891-01 5-044-891-01 SUPPORTER PIN (L COM 2) (UCM) (PANEL PART)
5-045-959-01 5-045-959-01 TAPE, F-CELL SIDE (CBN) (UCM) (PANEL PART)
5-045-958-01 5-045-958-01 TAPE, F-CELL TOP LEFT (CBN) (UCM) (PANEL PART)
5-045-957-01 5-045-957-01 TAPE, F-CELL TOP RIGHT (CBN) (UCM) (PANEL PART)
5-046-666-01 5-046-666-01 VESA SPACER A (COM2) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
