Model Image
Manufacturer

Sony

Model Number

XR65A95K

Description

4k Hdr Oled Tv With Smart Google Tv

Interactive Exploded View

Parts List

Part Number Description
1-843-998-31 1-843-998-31 AC INLET (UCM)
1-843-998-12 1-843-998-12 AC INLET (UCM)
4-595-704-11 4-595-704-11 BAG,SCREW ASSY (FRE) (UCM)
5-034-188-01 5-034-188-01 BEZEL, AL BTM (2L DER)A (UCM)
5-032-685-01 5-032-685-01 BKT, CM (DER) (UCM)
5-036-017-21 5-036-017-21 BRACKET SIDE(SGT) (UCM)
5-036-018-21 5-036-018-21 BRACKET SIDE(SGT) (UCM)
4-726-396-13 4-726-396-13 BRACKET UNDER (BM2A) (UCM)
4-724-146-14 4-724-146-14 BRACKET UNDER(BM2A (UCM)
4-743-315-31 4-743-315-31 BRACKET, CNT SP (OCD) (UCM)
5-034-662-01 5-034-662-01 BRACKET, FOOT (DER) (UCM)
5-023-339-01 5-023-339-01 BRACKET,VESA(GMN) (UCM)
1-002-004-12 1-002-004-12 C18 AC INLET (UCM)
1-013-457-11 1-013-457-11 CAMERA MODULE (MAGNET) (UCM)
5-013-319-01 5-013-319-01 CATCHER (CRY) (UCM)
4-262-708-04 4-262-708-04 CLAMPER, CABLE (UCM)
1-014-901-11 1-014-901-11 CONNECTOR ASSY 10P (SP) (UCM)
1-014-899-11 1-014-899-11 CONNECTOR ASSY 20P (UCM)
1-014-898-11 1-014-898-11 CONNECTOR ASSY 30P (UCM)
1-972-625-11 1-972-625-11 CONNECTOR ASSY 4P (UCM)
5-034-210-01 5-034-210-01 COVER, AC (2L DER) (UCM)
5-034-738-01 5-034-738-01 COVER, CM CNCT (DER) (UCM)
5-034-208-01 5-034-208-01 COVER, SIDE (2L DER) (UCM)
5-034-192-01 5-034-192-01 COVER, STAND L (2L DER) (UCM)
5-034-193-01 5-034-193-01 COVER, STAND R (2L DER) (UCM)
5-034-206-01 5-034-206-01 COVER, UNDER (2L DER) (UCM)
5-032-668-02 5-032-668-02 COVER,BTM(DER) (UCM)
5-038-317-01 5-038-317-01 COVER,STAND HANDLE (DER) A (UCM)
5-035-509-01 5-035-509-01 COVER,STAND NECK(2L DER) A (UCM)
5-032-669-02 5-032-669-02 COVER,TOP(DER) (UCM)
5-040-315-01 5-040-315-01 CUSHION, CM (DER) (UCM)
5-007-447-01 5-007-447-01 CUSHION, CNT SP BK (3L PAN) (UCM)
5-038-231-01 5-038-231-01 CUSHION, VBO (DER) (UCM)
1-014-894-11 1-014-894-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-014-830-11 1-014-830-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-014-822-11 1-014-822-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-014-895-11 1-014-895-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-014-831-11 1-014-831-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-014-823-11 1-014-823-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-014-832-11 1-014-832-11 FLEXIBLE FLAT CABLE 25P(C) (UCM)
1-014-824-11 1-014-824-11 FLEXIBLE FLAT CABLE 25P(C) (UCM)
1-014-835-11 1-014-835-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-014-836-11 1-014-836-11 FLEXIBLE FLAT CABLE 51P (UCM)
A-5042-282-A A-5042-282-A HL3_WW_EV_YI_OS MOUNT (UCM)
5-000-203-01 5-000-203-01 LABEL, CENTER SP (OCD) (UCM)
5-036-145-01 5-036-145-01 LABEL, SIDE TERMINAL (BM5S22) (UCM)
5-036-141-01 5-036-141-01 LABEL, UNDER TERMINAL (BM5S22) (UCM)
1-013-459-11 1-013-459-11 MAGNET CONNECTOR MODULE (WW) (UCM)

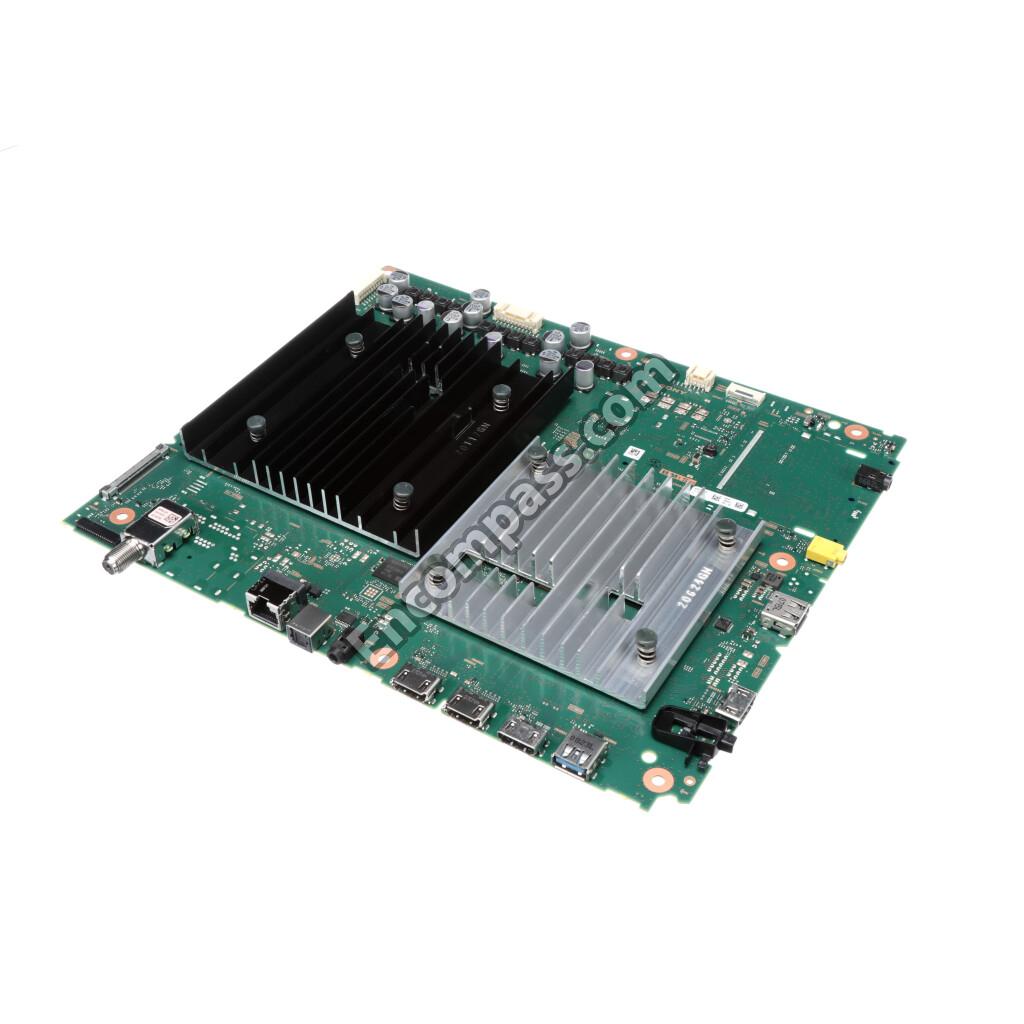

A-5041-915-A A-5041-915-A MAIN CBA_BM5S22_FD_UCMX COMPL (UCM)
5-034-586-01 5-034-586-01 NECK,STAND(DER) A (UCM)
1-014-027-11 1-014-027-11 OLED PANEL (S65FF1) (UCM)

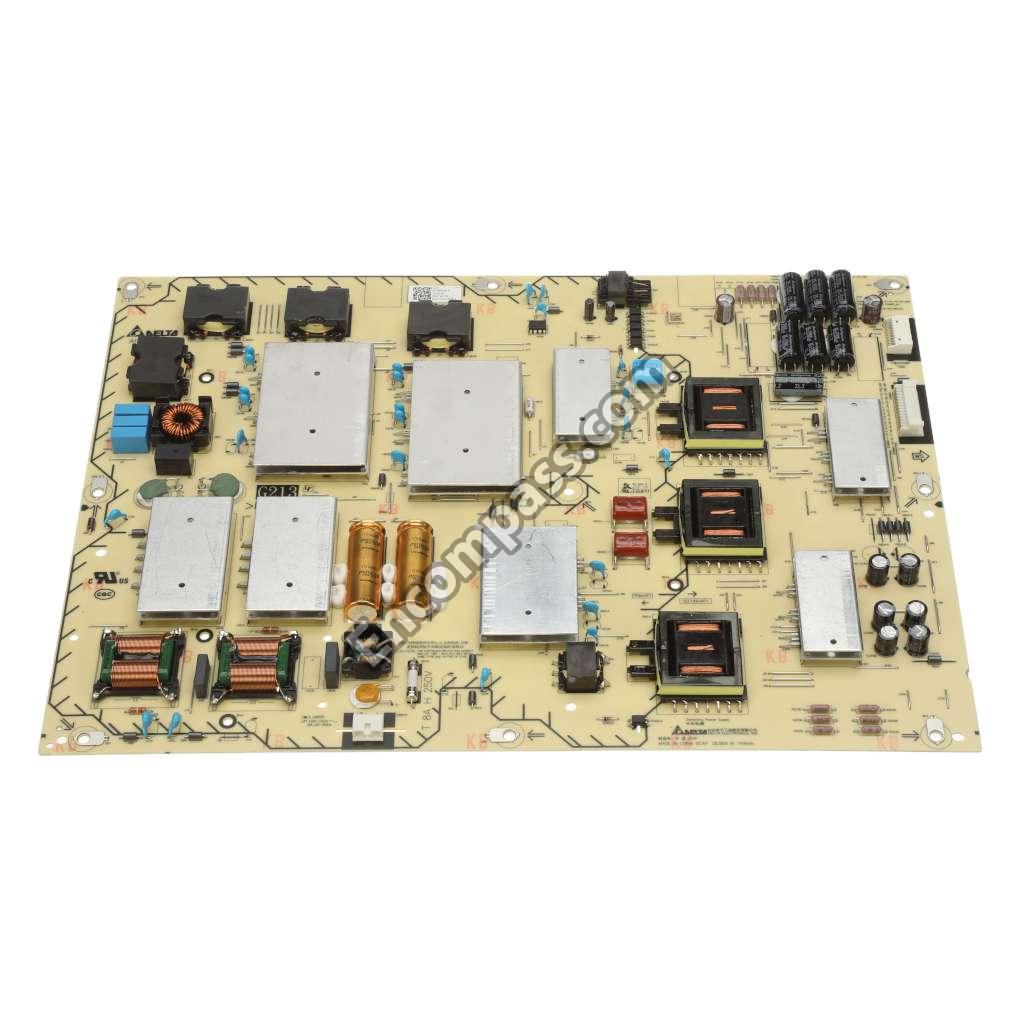

1-013-518-11 1-013-518-11 POWER CBA_G213 - STATIC CONVERTER(TV) (UCM)
1-836-883-12 1-836-883-12 POWER-SUPPLY CORD (UCM)
1-912-810-11 1-912-810-11 POWER-SUPPLY CORD SET(UC) (UCM)
1-001-686-11 1-001-686-11 PUSH TERMINAL (UCM)
5-034-184-01 5-034-184-01 REAR COVER (2L DER) A (UCM)
5-037-314-11 5-037-314-11 REFERENCE GUIDE (UCM)
1-013-685-21 1-013-685-21 REMOTE COMMANDER (RMF-TX900U) (UCM)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UCM)
4-595-704-01 4-595-704-01 SCREW, +PSW M5X14 (UCM)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-034-828-01 5-034-828-01 SCREW, STEP CM (UCM)
5-037-315-11 5-037-315-11 SETUP GUIDE (UCM)
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR) (UCM)
5-011-960-01 5-011-960-01 SHEET THERMAL(LMN TCON) (UCM)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UCM)
5-001-715-01 5-001-715-01 SHEET, THERMAL OS(PAN) (UCM)
5-033-429-01 5-033-429-01 SHT, INSULATION (DER 2L) A (UCM)
5-023-161-21 5-023-161-21 SILICON MIC(PHN) (UCM)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (UCM)
1-859-345-31 1-859-345-31 SPEAKER BOX ASSY(D30-SWF) (UCM)
5-034-561-01 5-034-561-01 STAND, BASE (2L DER) A (UCM)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
