Model Image
Manufacturer

Sony

Model Number

XR65X90L

Description

65-inch Class Full Array Led 4k Hdr Google Tv

Interactive Exploded View

Parts List

Part Number Description

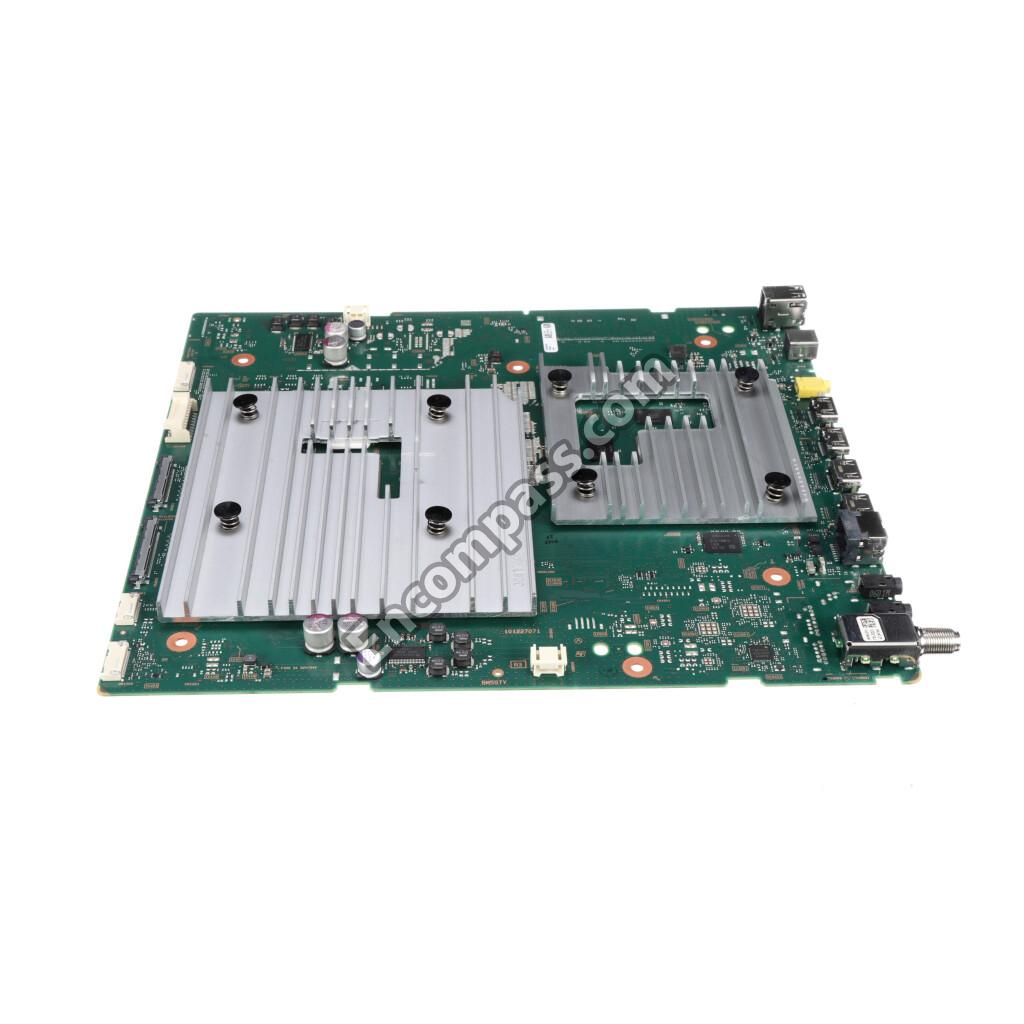

A-5052-295-A A-5052-295-A (MAIN CBA) COMPL SVC 23LD80A1_TC (UCM) (PANEL PART)
7-600-043-09 7-600-043-09 ADHESIVE (3220W) 55CC WHT (UCM) (PANEL PART)
5-044-830-01 5-044-830-01 BEZEL BT ASSY (2L CBN) (UCM)
5-044-830-42 5-044-830-42 BEZEL BT ASSY (2L CBN) (UCM) (PANEL PART)
5-044-830-02 5-044-830-02 BEZEL BT ASSY (2L CBN) (UCM) (PANEL PART)
5-044-811-01 5-044-811-01 BEZEL TP ASSY (2L CBN) (UCM)
5-044-811-02 5-044-811-02 BEZEL TP ASSY (2L CBN) (UCM) (PANEL PART)
5-045-951-61 5-045-951-61 BRACKET SIDE (CBN) A (UCM)
5-009-258-12 5-009-258-12 BRACKET, WIFI(BNN) (UCM)
5-046-184-01 5-046-184-01 CLAMPER, CABLE L (COM 2) (UCM) (PANEL PART)
5-047-347-01 5-047-347-01 CLAMPER, CABLE S (COM 2) (UCM) (PANEL PART)
5-009-031-02 5-009-031-02 CLAMPER,CABLE S(BNN) (UCM) (PANEL PART)
A-5052-294-A A-5052-294-A COMPL 23LD80A1_TC (UCM)
A-5056-903-A A-5056-903-A COMPL_BM5STY_TC_UCM (UCM)
1-017-523-11 1-017-523-11 CONNECTOR ASSY 15P (UCM)
1-017-526-11 1-017-526-11 CONNECTOR ASSY 28P (UCM)
1-017-538-11 1-017-538-11 CONNECTOR ASSY 4P (SP) (UCM)
1-017-540-11 1-017-540-11 CONNECTOR ASSY 4P (TWT) (UCM)
5-045-657-01 5-045-657-01 COVER, BTM (CBN) A (UCM)
5-045-290-21 5-045-290-21 COVER, TOP (CBN) (UCM)
5-045-891-01 5-045-891-01 DIFFUSER PLATE (CBN 2L) (UCM) (PANEL PART)
1-017-529-11 1-017-529-11 FLEXIBLE FLAT CABLE 20P (UCM)
1-017-530-11 1-017-530-11 FLEXIBLE FLAT CABLE 25P (UCM)
1-017-533-11 1-017-533-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-017-534-11 1-017-534-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-017-536-11 1-017-536-11 FLEXIBLE FLAT CABLE 51P (UCM)
1-017-271-11 1-017-271-11 FLEXIBLE FLAT CABLE 96P (UCM)
1-017-270-11 1-017-270-11 FLEXIBLE FLAT CABLE 96P (UCM) (PANEL PART)
A-5056-111-A A-5056-111-A FY23_HY1S_MIC_WW_EVSIOS MT (UCM)
1-017-061-21 1-017-061-21 G32P-STATIC CONVERTER (TV) (UCM)
5-045-282-01 5-045-282-01 LD SHIELD (L COM) (UCM) (PANEL PART)
1-017-155-11 1-017-155-11 LIQUID CRYSTAL ELEMENT(C65D07) (UCM)
1-016-434-11 1-016-434-11 LOUDSPEAKER,FY23 14_17MM-TW (UCM)

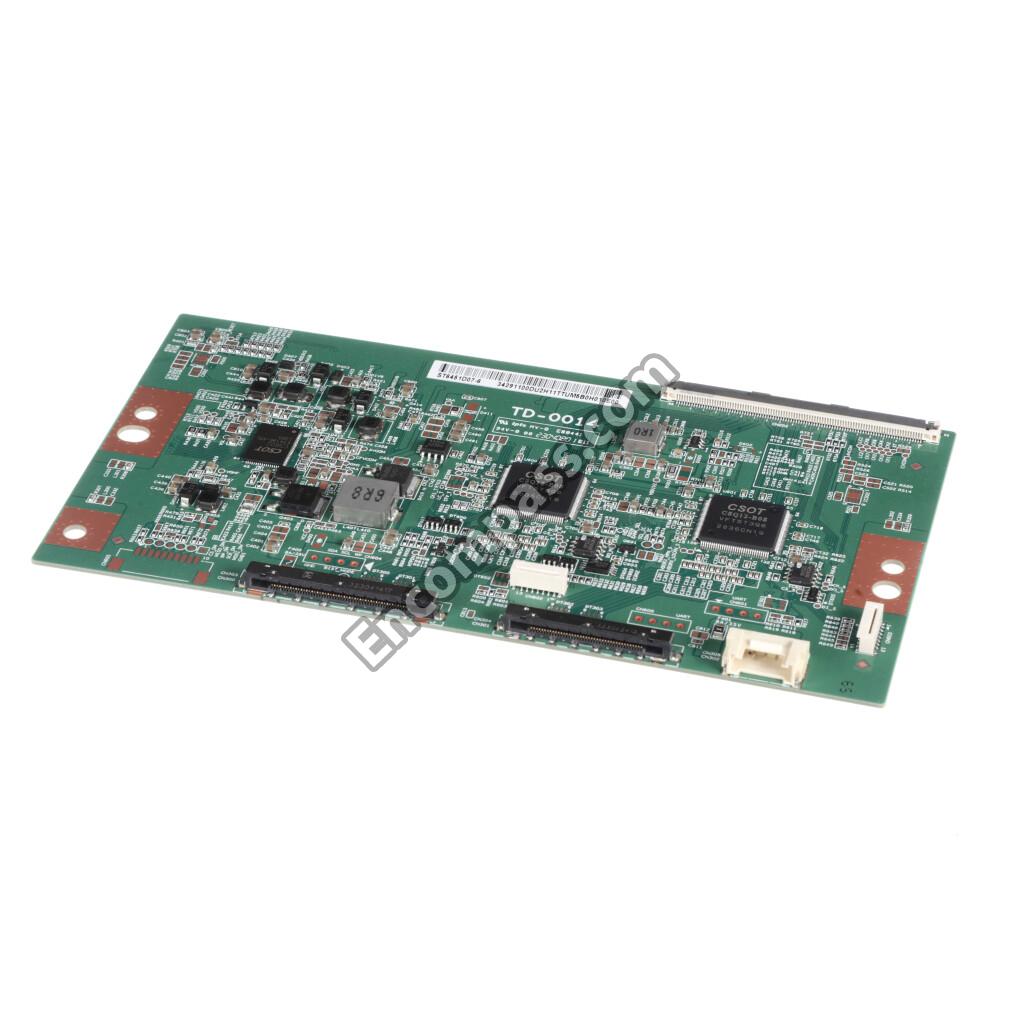

1-017-156-11 1-017-156-11 MOUNTED PWB E-T-CON (65) (UCM)
1-016-642-11 1-016-642-11 MOUNTED PWB LS BAR (CBN 2L) (UCM)
A-5055-331-A A-5055-331-A P-MOD (YDDM065DGS11) (UCM)
5-055-016-01 5-055-016-01 POLARIZER F/CF (3130907C(A)000004(Q)(CMMT)) (UCM) (PANEL PART)
1-005-642-12 1-005-642-12 POWER-SUPPLY CORD SET (UCM)
7-600-040-44 7-600-040-44 RADIATOR ADHESIVE (SV380C) (UCM)
5-049-345-01 5-049-345-01 REAR COVER ASSY (2L CBN) (UCM)
5-045-894-01 5-045-894-01 REF.POL.ON POP (CBN 2L) (UCM) (PANEL PART)
5-048-778-11 5-048-778-11 REFERENCE GUIDE (UCM)
5-045-856-01 5-045-856-01 REFLECTIVE SHEET (CBN 2L) (UCM) (PANEL PART)
1-015-399-21 1-015-399-21 RELAY BOARD (2L)-80 (UCM) (PANEL PART)
1-015-399-11 1-015-399-11 RELAY BOARD (2L)-80 (UCM) (PANEL PART)
1-016-940-21 1-016-940-21 REMOTE COMMANDER (RMF-TX810U) (UCM)
5-046-669-01 5-046-669-01 SCREW BAG A (COM2) (UCM)
4-690-738-01 4-690-738-01 SCREW, +LH M3X3 (PUC) (UCM) (PANEL PART)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM) (PANEL PART)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
5-005-753-01 5-005-753-01 SCREW, M3X4 (UCM) (PANEL PART)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-048-780-11 5-048-780-11 SETUP GUIDE (UCM)
5-044-055-01 5-044-055-01 SHEET THERMAL(BM6SL M6L) (UCM)
5-050-917-11 5-050-917-11 SHEET, INSULATION (L CBN) A (UCM)
5-027-341-01 5-027-341-01 SHEET, THERMAL (RIS) (UCM) (PANEL PART)
5-024-521-22 5-024-521-22 SLIDE SW (UCM)
1-019-058-11 1-019-058-11 SOURCE DRIVER IC MT BOARD (330210000001KD (HISI)) (UCM) (PANEL PART)
1-016-432-11 1-016-432-11 SP-BOX ASSY,FY23 W22L-FA (UCM)
1-016-432-21 1-016-432-21 SP-BOX ASSY,FY23 W22L-FB (UCM)
A-5056-057-A A-5056-057-A SPRO MODULE 23LS65_A (UCM) (PANEL PART)

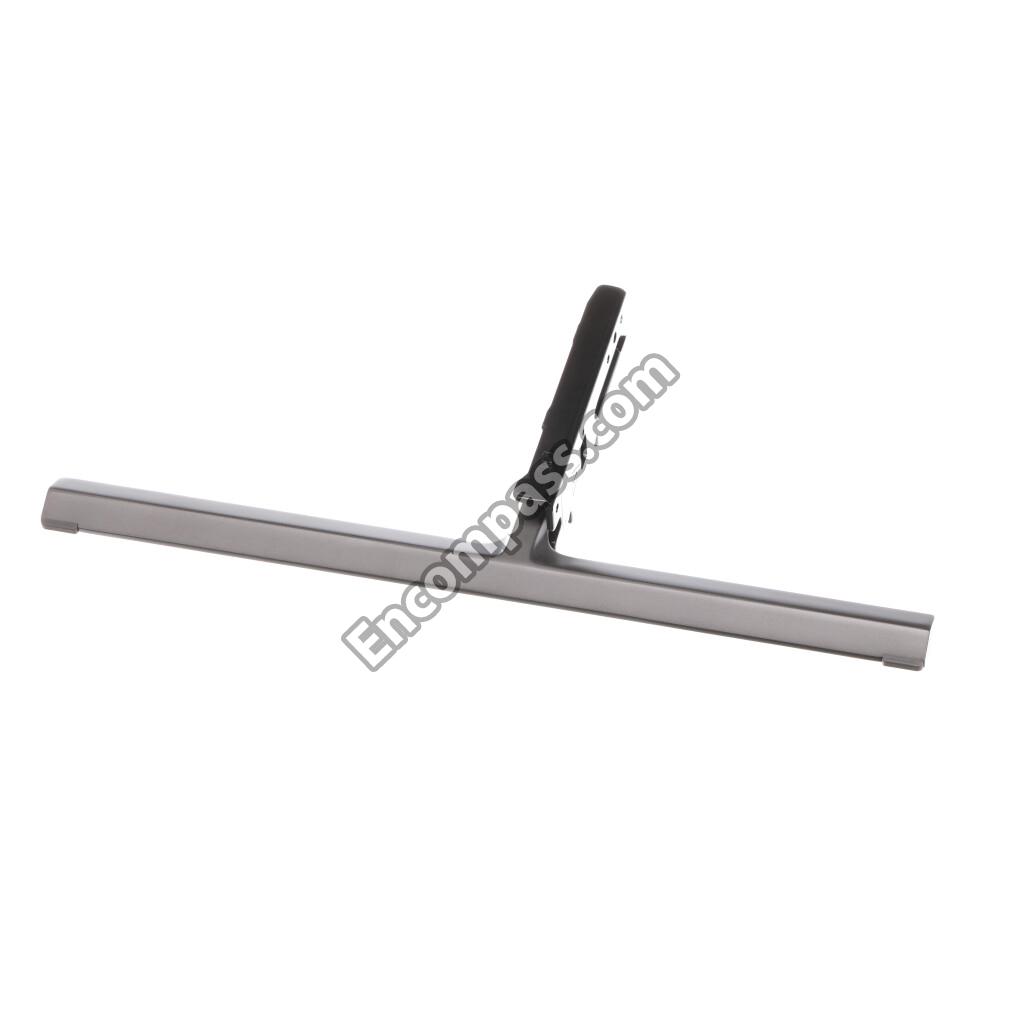

5-044-425-01 5-044-425-01 STAND L (L CBN) A (UCM)
5-044-708-01 5-044-708-01 STAND R (L CBN) A (UCM)
5-049-710-01 5-049-710-01 SUPPORTER PIN (L COM 2) (UCM) (PANEL PART)
5-044-891-01 5-044-891-01 SUPPORTER PIN (L COM 2) (UCM) (PANEL PART)
7-600-036-11 7-600-036-11 TAPE (1350FB-1) 30MMX66M BLK (UCM) (PANEL PART)
5-014-076-01 5-014-076-01 TAPE LIGHT LEAKAGE (UCM) (PANEL PART)
5-045-959-11 5-045-959-11 TAPE, F-CELL SIDE (CBN) (UCM) (PANEL PART)
5-045-958-11 5-045-958-11 TAPE, F-CELL TOP LEFT (CBN) (UCM) (PANEL PART)
5-045-957-11 5-045-957-11 TAPE, F-CELL TOP RIGHT (CBN) (UCM) (PANEL PART)
5-046-666-01 5-046-666-01 VESA SPACER A (COM2) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
