Model Image
Manufacturer

Sony

Model Number

XR65X95K

Description

4k Hdr Mini Led Tv With Smart Google Tv

Interactive Exploded View

Parts List

Part Number Description
A-5041-953-A A-5041-953-A 22LD432A1 COMPL (UCM) (PANEL PART)

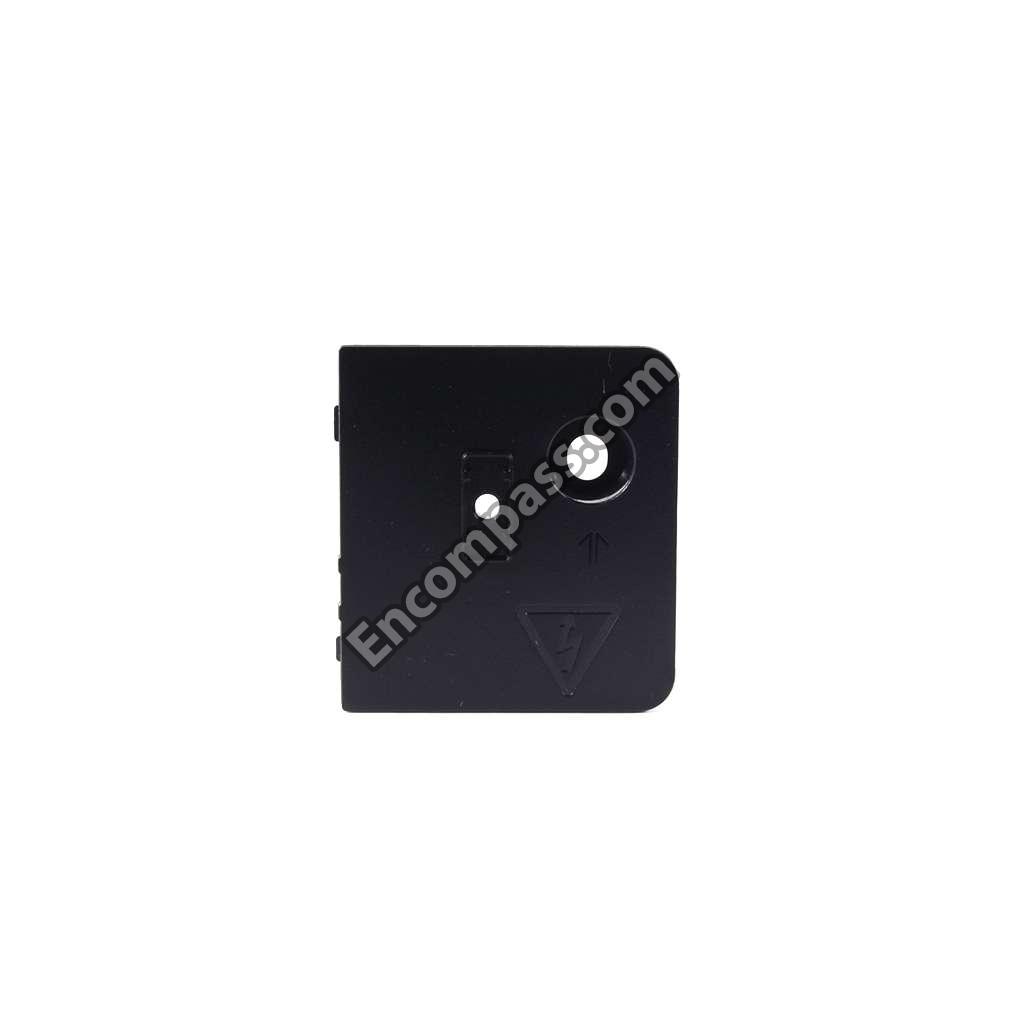

4-745-608-01 4-745-608-01 AC COVER (AT) (UCM)
4-462-871-03 4-462-871-03 BAG, SCREW A (CCT) (UCM)
5-033-202-02 5-033-202-02 BEZEL BTM (2L MKY) A (UCM) (PANEL PART)
5-036-017-21 5-036-017-21 BRACKET SIDE(SGT) (UCM)
5-036-018-21 5-036-018-21 BRACKET SIDE(SGT) (UCM)
4-726-396-13 4-726-396-13 BRACKET UNDER (BM2A) (UCM)
4-724-146-14 4-724-146-14 BRACKET UNDER(BM2A (UCM)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UCM)
5-023-339-01 5-023-339-01 BRACKET,VESA(GMN) (UCM)
5-033-838-21 5-033-838-21 CELL TAPE SIDE (MKY) (UCM) (PANEL PART)
5-033-836-21 5-033-836-21 CELL TAPE TL (MKY) (UCM) (PANEL PART)
5-033-837-21 5-033-837-21 CELL TAPE TR (MKY) (UCM) (PANEL PART)

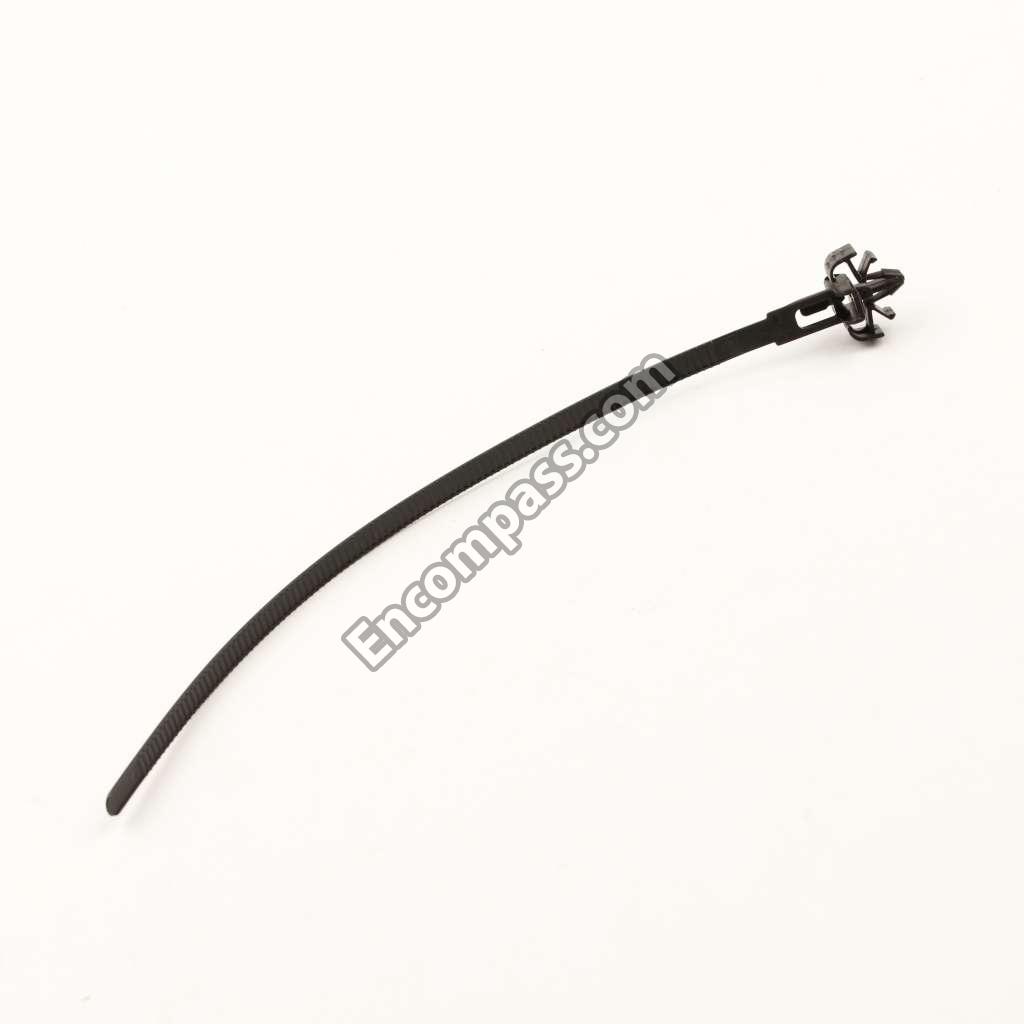

4-262-708-04 4-262-708-04 CLAMPER, CABLE (UCM)
1-014-907-11 1-014-907-11 CONNECTOR ASSY 12P (SP) (UCM)
1-014-906-11 1-014-906-11 CONNECTOR ASSY 28P (UCM)
5-035-743-01 5-035-743-01 COVER TML H (2L MKY) A (UCM)
5-035-742-01 5-035-742-01 COVER TML V (2L MKY) A (UCM)
5-025-143-21 5-025-143-21 COVER, SHEET TAB (GMN) (UCM) (PANEL PART)
5-032-670-01 5-032-670-01 COVER,BTM(MKY) (UCM)
5-032-671-01 5-032-671-01 COVER,TOP(MKY) (UCM)
5-028-044-01 5-028-044-01 CUSHION SB (GMN) (UCM) (PANEL PART)
5-039-515-01 5-039-515-01 CUSHION, VBO (MKY) (UCM)
4-745-335-01 4-745-335-01 FLAT CLAMP(FFC) (UCM)
1-014-856-11 1-014-856-11 FLEXIBLE FLAT CABLE 20P/25P (UCM)
1-014-847-11 1-014-847-11 FLEXIBLE FLAT CABLE 20P/25P (UCM)
1-014-849-11 1-014-849-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-014-857-11 1-014-857-11 FLEXIBLE FLAT CABLE 30P (UCM)
1-014-850-11 1-014-850-11 FLEXIBLE FLAT CABLE 41P (UCM)
1-014-851-11 1-014-851-11 FLEXIBLE FLAT CABLE 51P (UCM)
5-028-206-01 5-028-206-01 GASKET TCON (GMN) (UCM) (PANEL PART)
5-025-614-01 5-025-614-01 GASKET, SB(GMN) (UCM) (PANEL PART)
5-032-673-01 5-032-673-01 GUIDE,LIGHT ILM(MKY) (UCM)
5-032-675-01 5-032-675-01 GUIDE,LIGHT LED(MKY) (UCM)
5-032-674-01 5-032-674-01 GUIDE,LIGHT OPT(MKY) (UCM)
5-032-676-01 5-032-676-01 GUIDE,LIGHT RGB(MKY) (UCM)
A-5042-262-A A-5042-262-A HR3_WW_RA_YI_OS MOUNT (UCM)
5-036-145-01 5-036-145-01 LABEL, SIDE TERMINAL (BM5S22) (UCM)
5-036-141-01 5-036-141-01 LABEL, UNDER TERMINAL (BM5S22) (UCM)
1-013-499-11 1-013-499-11 LIQUID CRYSTAL ELEMENT(C65D03) (UCM) (PANEL PART)
1-013-275-11 1-013-275-11 LOUDSPEAKER, FY22 TW16-19MM (UCM)

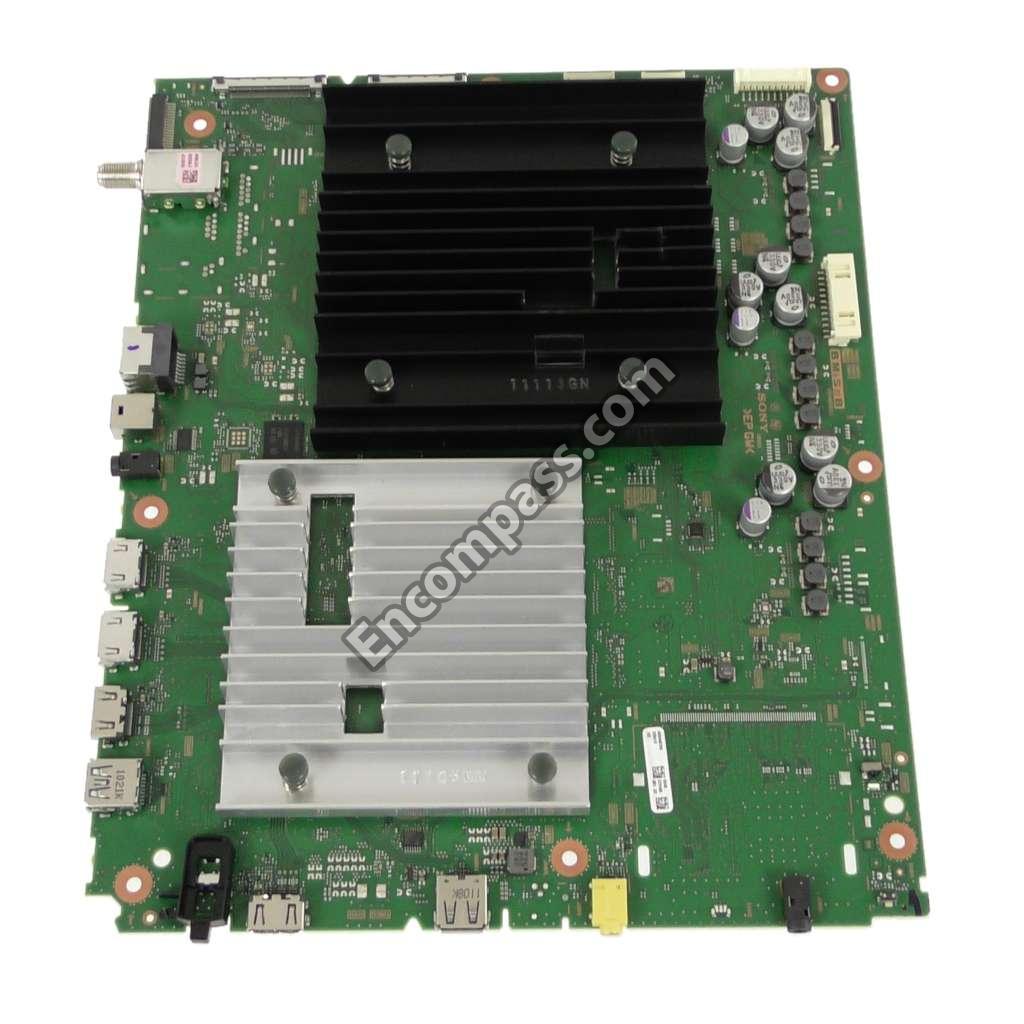

A-5044-976-A A-5044-976-A MAIN CBA_BM5S22B_FM_UCMX COMPL (UCM)

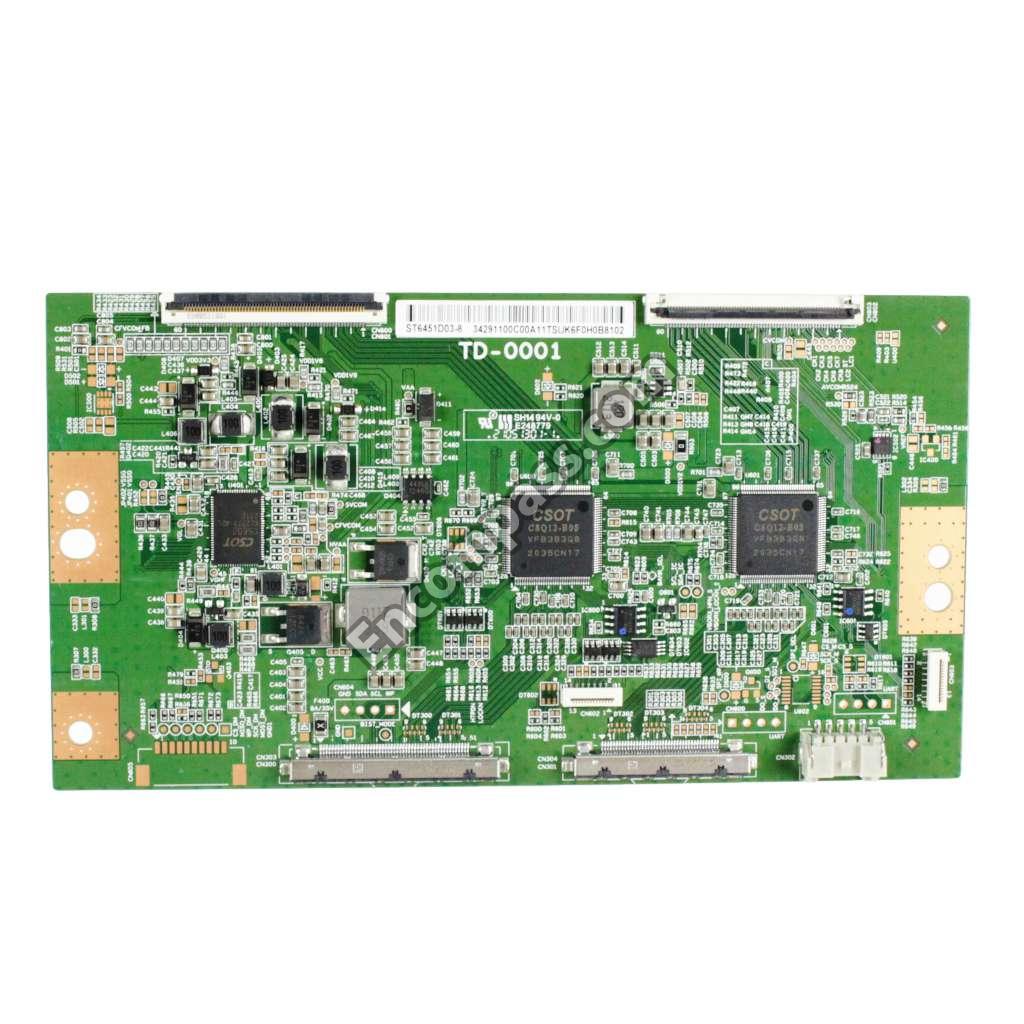

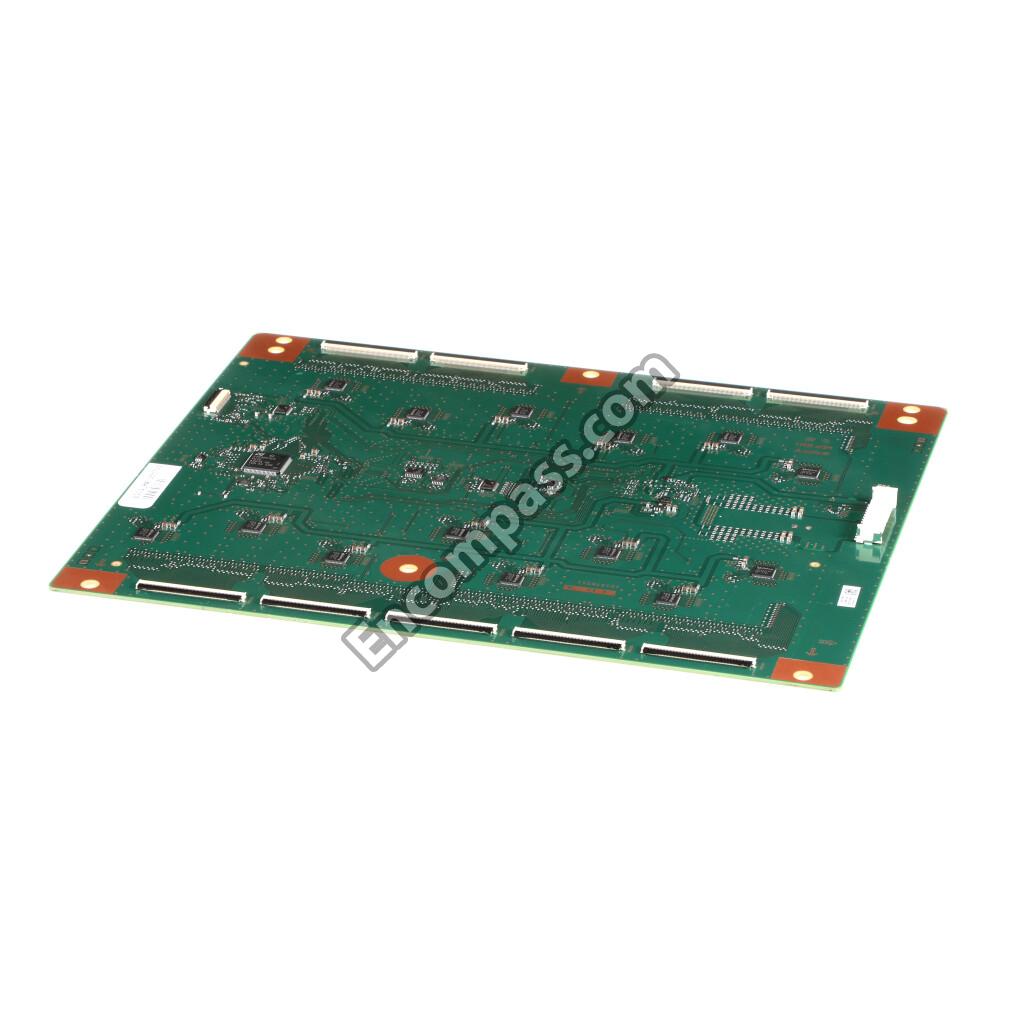

1-013-500-11 1-013-500-11 MOUNTED PWB E-T-CON (65) (UCM) (PANEL PART)
5-032-672-01 5-032-672-01 OP,INNER(MKY) (UCM)
A-5042-990-A A-5042-990-A P-MOD(YDCS065MES02) (UCM)

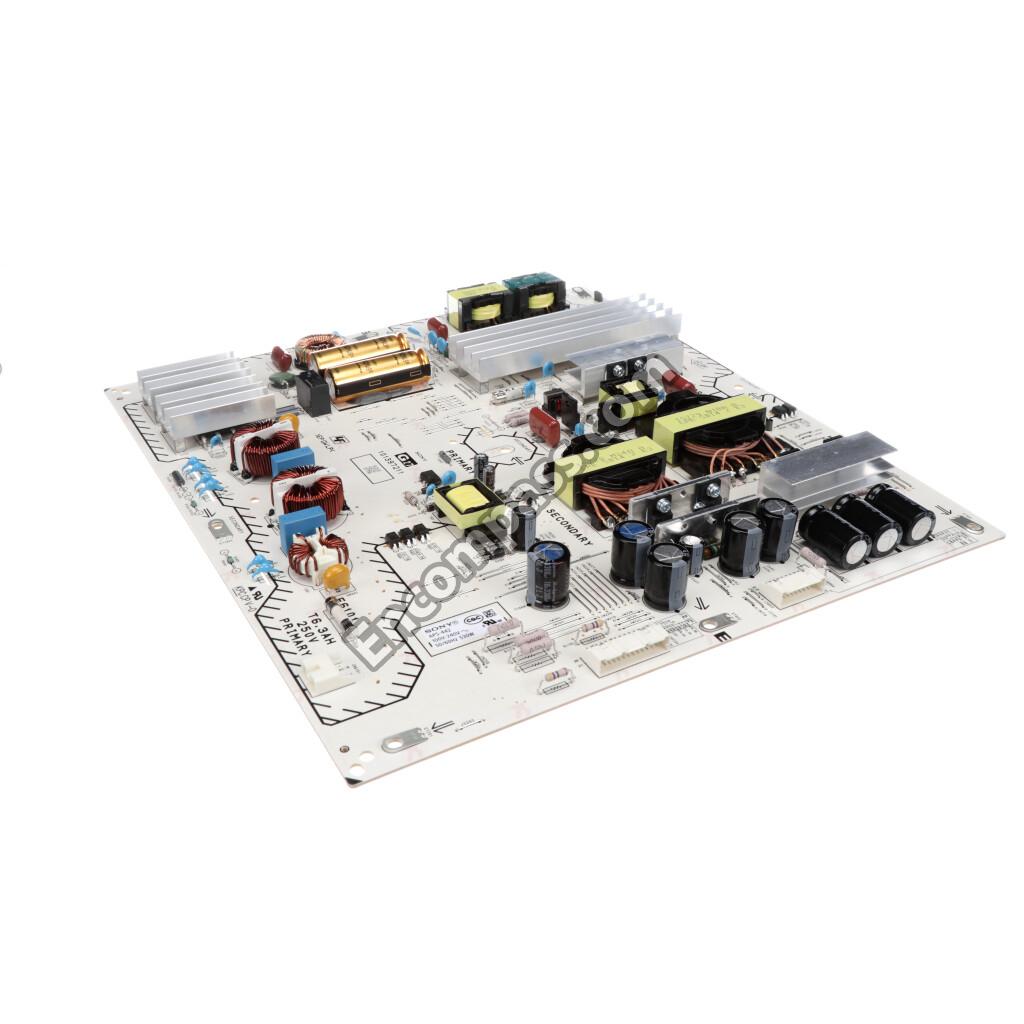

1-013-590-11 1-013-590-11 POWER CBA_G27 - STATIC CONVERTER(TV) (UCM)
1-839-696-22 1-839-696-22 POWER-SUPPLY CORD (WITH CONN.) (UCM)
1-849-274-11 1-849-274-11 POWER-SUPPLY CORD (WITH CONN.) (UCM)
5-033-691-01 5-033-691-01 REAR COVER (2L MKY) A (UCM)
5-038-398-11 5-038-398-11 REFERENCE GUIDE (UCM)

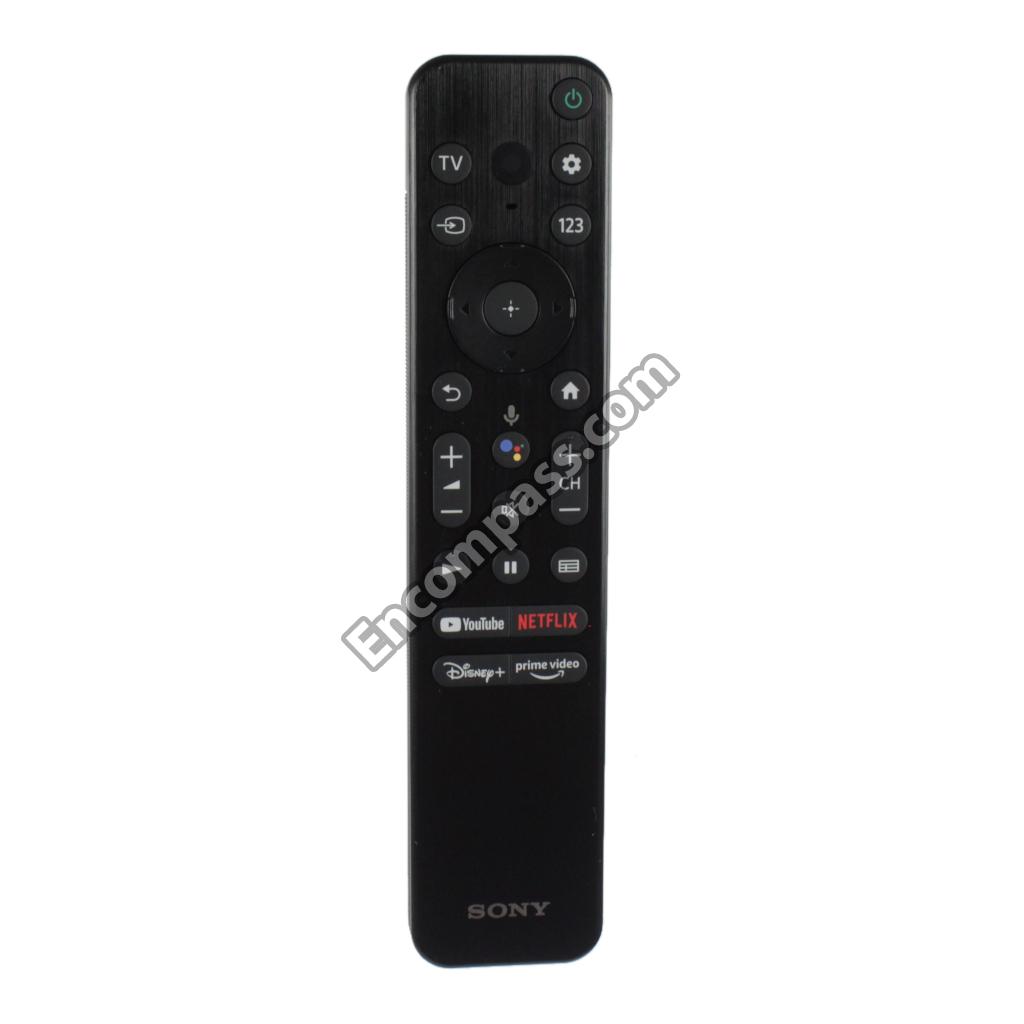

1-013-691-22 1-013-691-22 REMOTE COMMANDER (RMF-TX800U) (UCM)

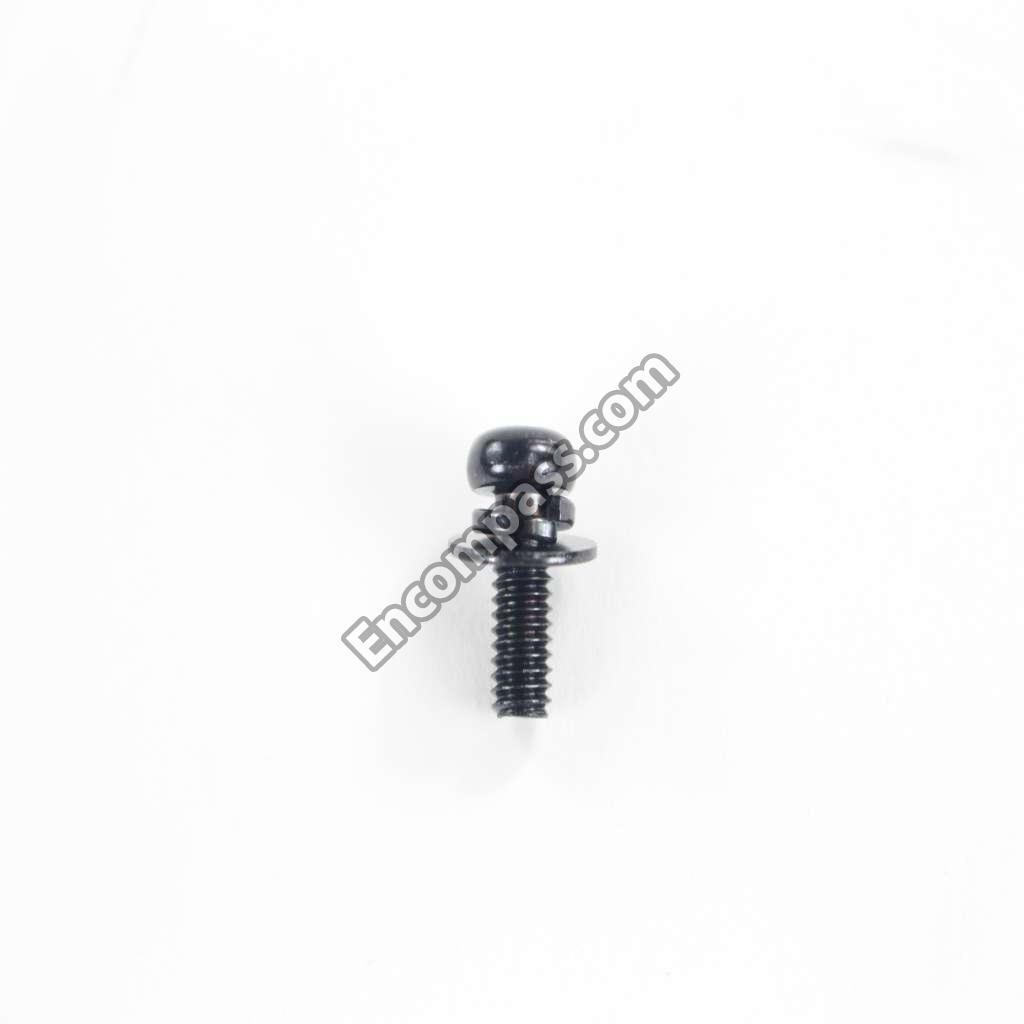

4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UCM)

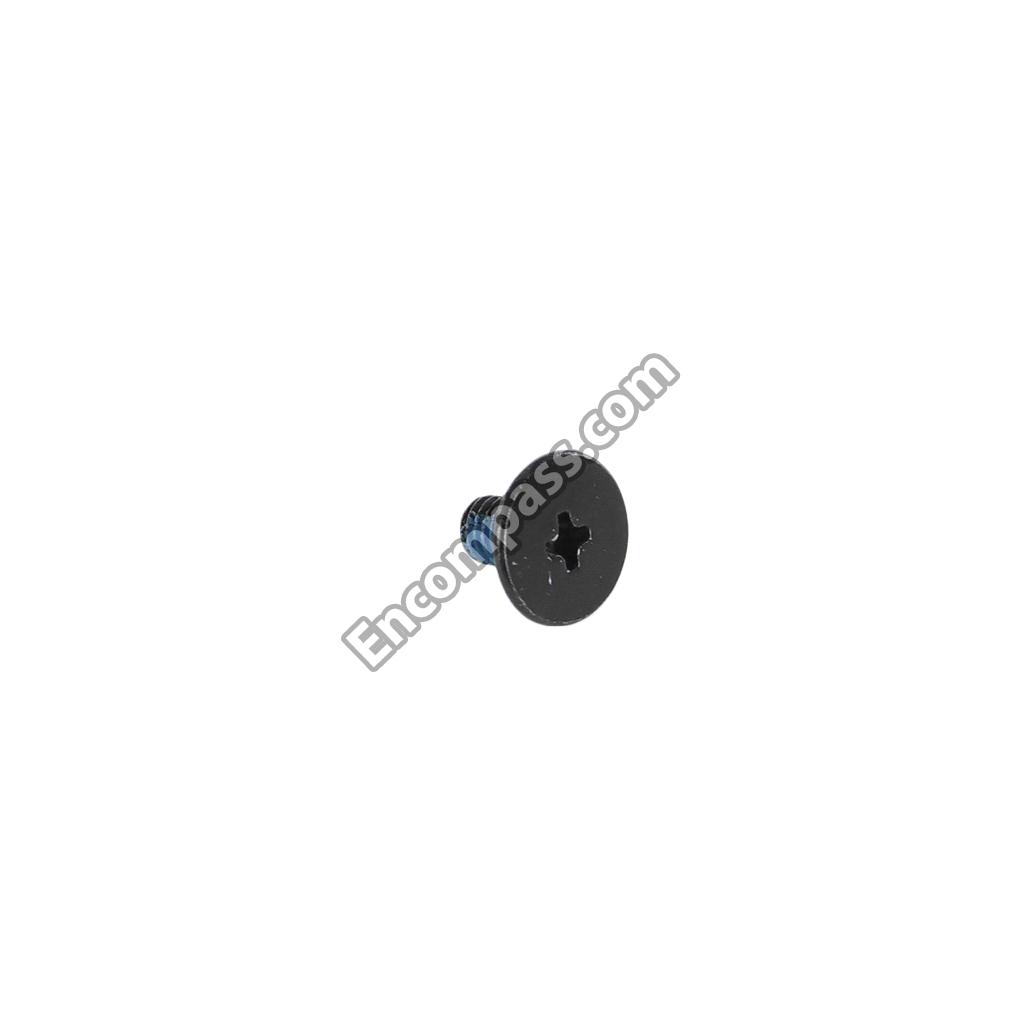

4-731-435-01 4-731-435-01 SCREW, +F M3X4.8 (UCM) (PANEL PART)

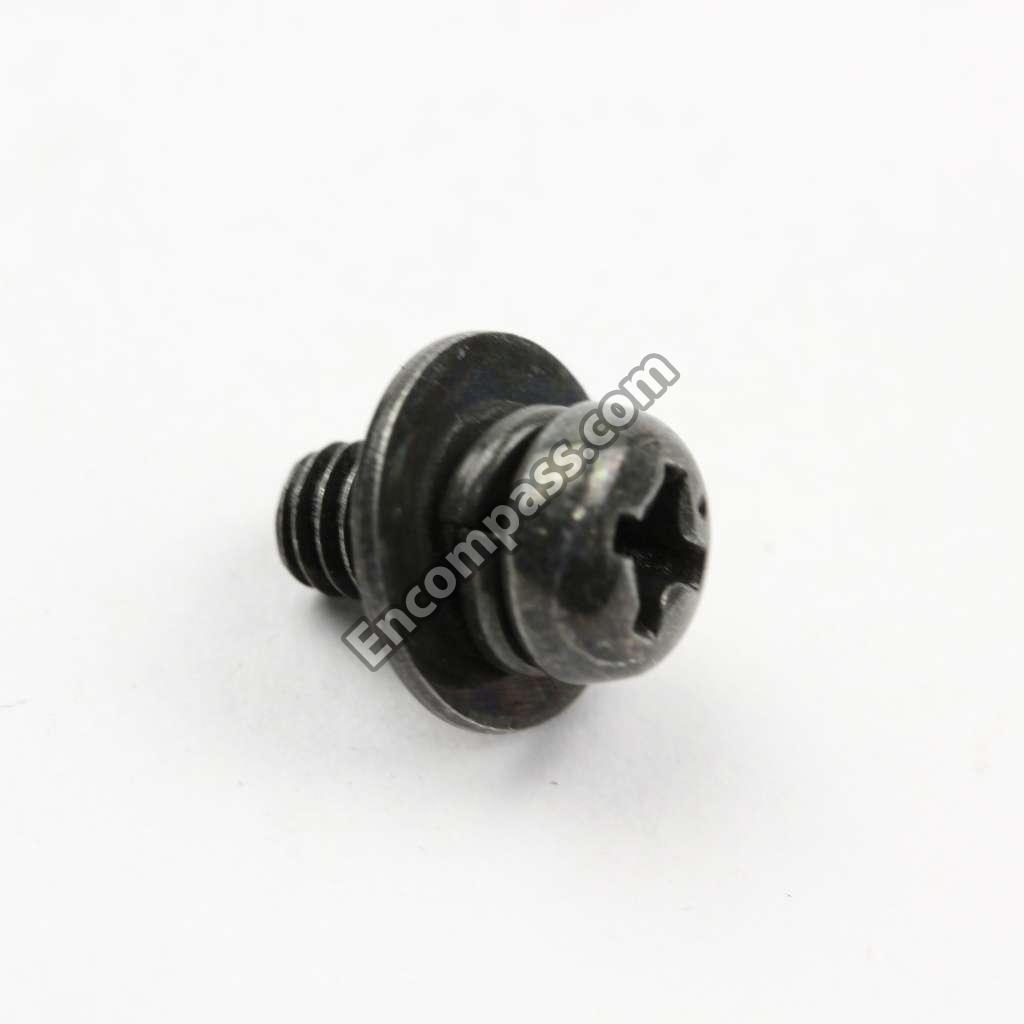

4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UCM)
2-580-600-01 2-580-600-01 SCREW, +PSW M4X8 (UCM)
4-726-549-01 4-726-549-01 SCREW, M3X3 (UCM) (PANEL PART)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UCM)
5-038-399-11 5-038-399-11 SETUP GUIDE (UCM)
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR) (UCM)
5-011-960-01 5-011-960-01 SHEET THERMAL(LMN TCON) (UCM)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UCM)
5-026-767-01 5-026-767-01 SHEET, THERMAL T-CON(3L GMN) (UCM) (PANEL PART)

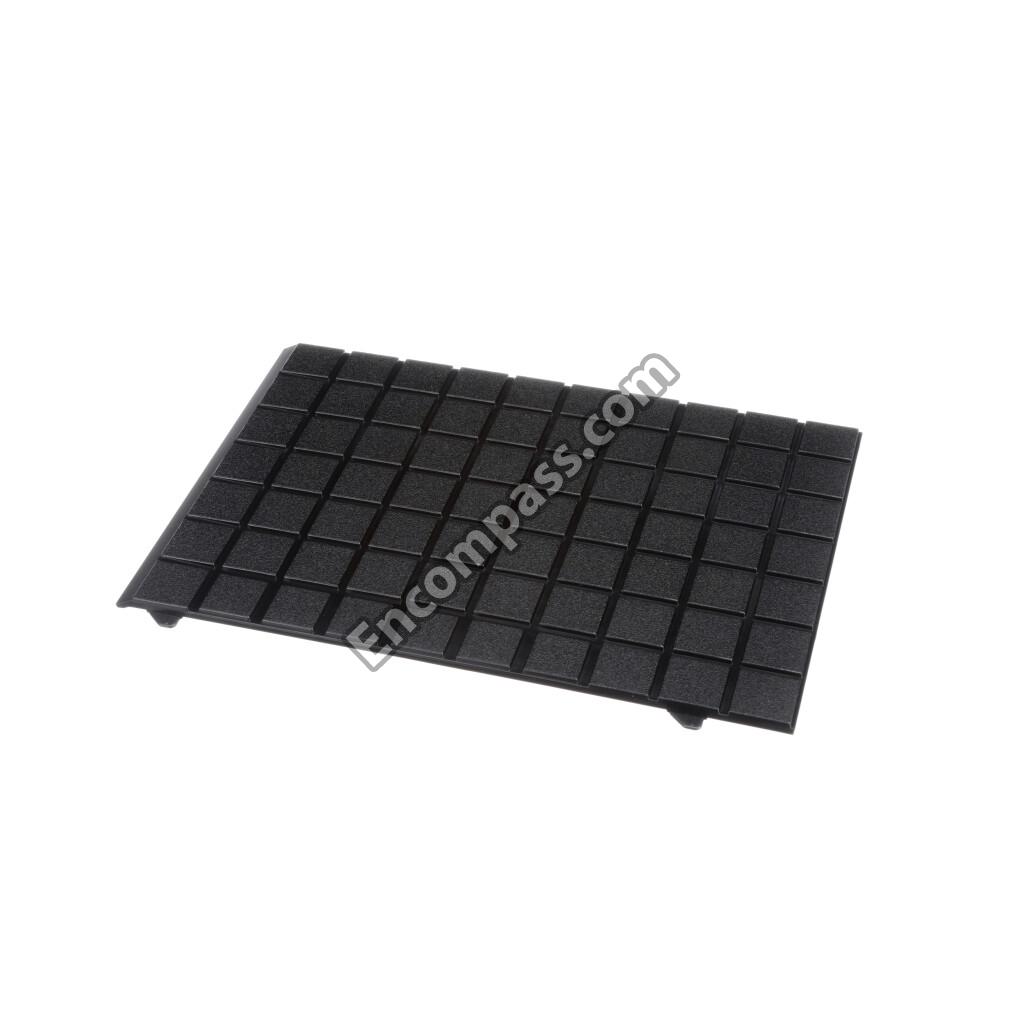

5-028-173-01 5-028-173-01 SHEET,THERMAL CONDUCTIVE (GMN) (UCM) (PANEL PART)
5-035-899-01 5-035-899-01 SHT, INSULATION (2L MKY) (UCM)
5-032-677-01 5-032-677-01 SILICON,MIC(MKY) (UCM)
2-650-770-31 2-650-770-31 SLIDE, CLAMP (UCM)
1-013-276-11 1-013-276-11 SP-BOX ASSY, FY22 D35 SLTI(L) (UCM)
1-013-276-21 1-013-276-21 SP-BOX ASSY, FY22 D35 SLTI(R) (UCM)

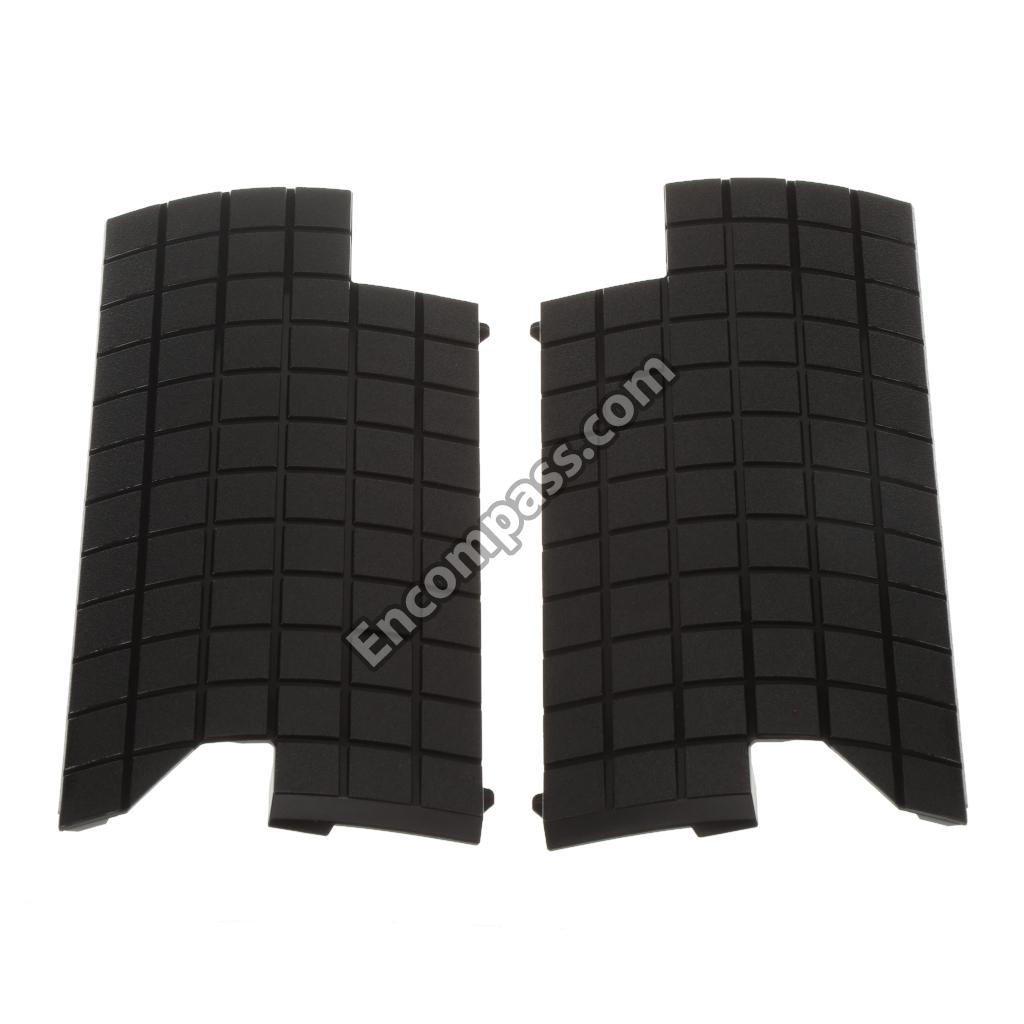

5-035-745-01 5-035-745-01 STAND COVER CL (2L MKY) A (UCM)
5-035-746-01 5-035-746-01 STAND COVER CR (2L MKY) A (UCM)
5-035-744-01 5-035-744-01 STAND COVER LR (2L MKY) A (UCM)

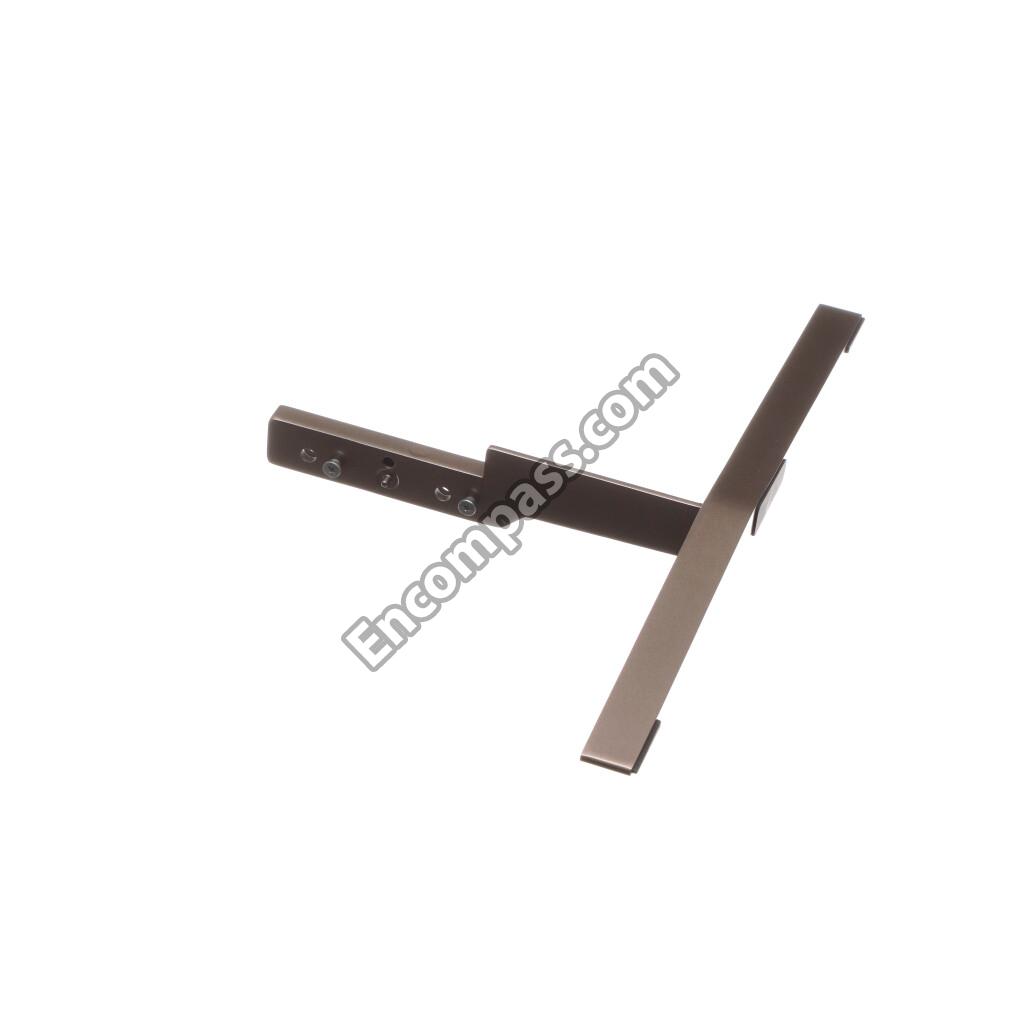

5-034-692-01 5-034-692-01 STAND L (2L MKY) A (UCM)
5-034-693-01 5-034-693-01 STAND R (2L MKY) A (UCM)
5-037-659-01 5-037-659-01 TAPE LL REAR BTM (MKY) (UCM) (PANEL PART)
5-041-912-11 5-041-912-11 TAPE, FFC (LS) (UCM) (PANEL PART)
1-005-419-32 1-005-419-32 WLAN/BT MODULE (11AC) (UCM)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UCM)
