Model Image
Manufacturer

Sony

Model Number

XR77A80CJ

Description

77-inch Bravia 2021 Tv

Interactive Exploded View

Parts List

Part Number Description

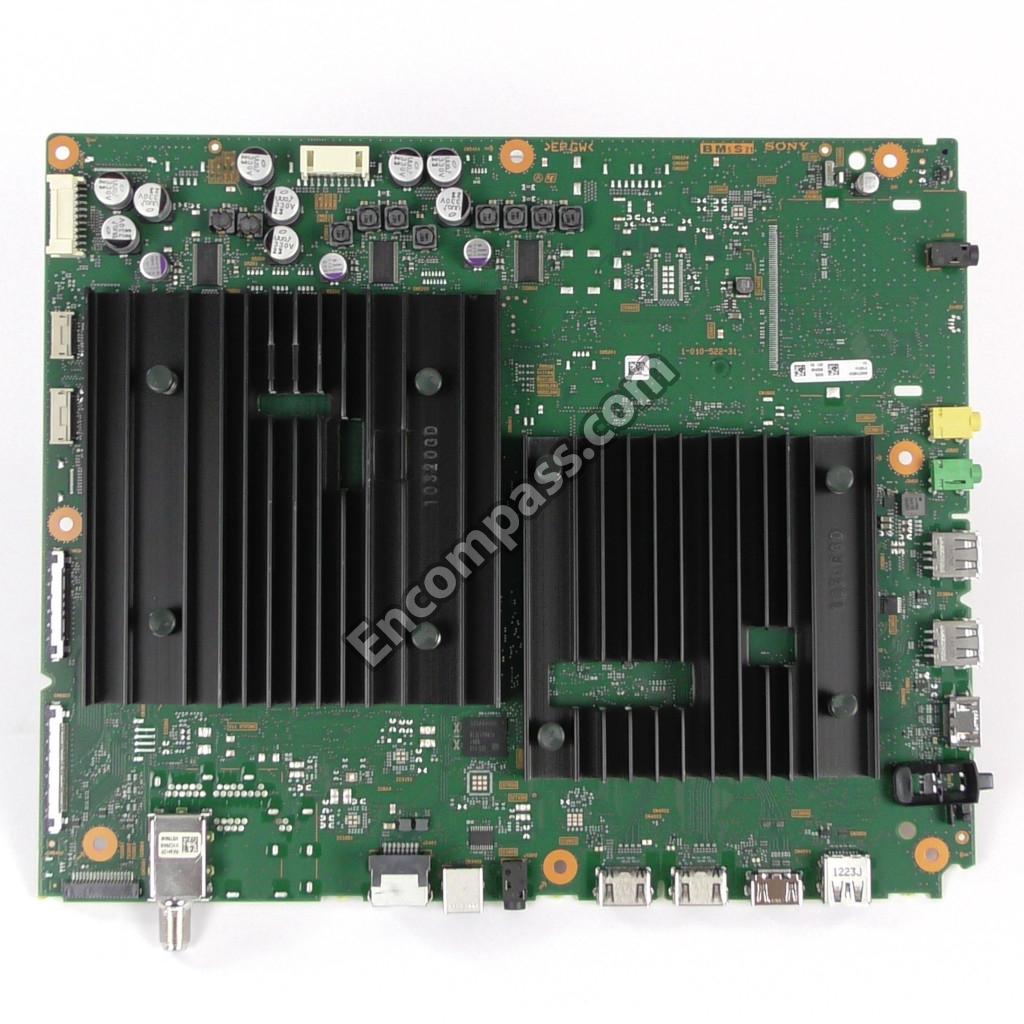

A-5027-462-A A-5027-462-A (MAIN CBA) BM5S21_AT77_UCMX_DERI COMPL (UC2)
1-010-551-11 1-010-551-11 (POWER CBA) G12 - STATIC CONVERTER(TV) (UC2)
5-022-003-41 5-022-003-41 BRACKET SIDE(TUR) (UC2)
5-023-336-41 5-023-336-41 BRACKET SIDE(TUR) (UC2)
4-726-396-13 4-726-396-13 BRACKET UNDER (BM2A) (UC2)
4-724-146-13 4-724-146-13 BRACKET UNDER(BM2A (UC2)
5-027-035-01 5-027-035-01 BRACKET VENT (TUR) A (UC2)
5-027-036-01 5-027-036-01 BRACKET VENT (TUR) A (UC2)
5-021-856-01 5-021-856-01 BRACKET, AC INLET (C18) (UC2)
5-023-743-01 5-023-743-01 BRACKET, AC INLET (C18) (UC2)
5-009-189-01 5-009-189-01 BRACKET, VESA(3L LMN) (UC2)
5-023-713-01 5-023-713-01 BRACKET, VESA(3L LMN) (UC2)
5-009-258-11 5-009-258-11 BRACKET, WIFI(BNN) (UC2)
5-009-258-21 5-009-258-21 BRACKET, WIFI(BNN) (UC2)
4-262-708-03 4-262-708-03 CLAMPER, CABLE (UC2)
1-010-580-11 1-010-580-11 CONNECTOR ASSY 20P (UC2)
1-010-582-11 1-010-582-11 CONNECTOR ASSY 30P (UC2)
1-010-581-11 1-010-581-11 CONNECTOR ASSY 8P (UC2)
1-011-659-11 1-011-659-11 CORE, FERRITE (UC2)
5-023-528-01 5-023-528-01 COVER HOOK (TUR) (UC2)

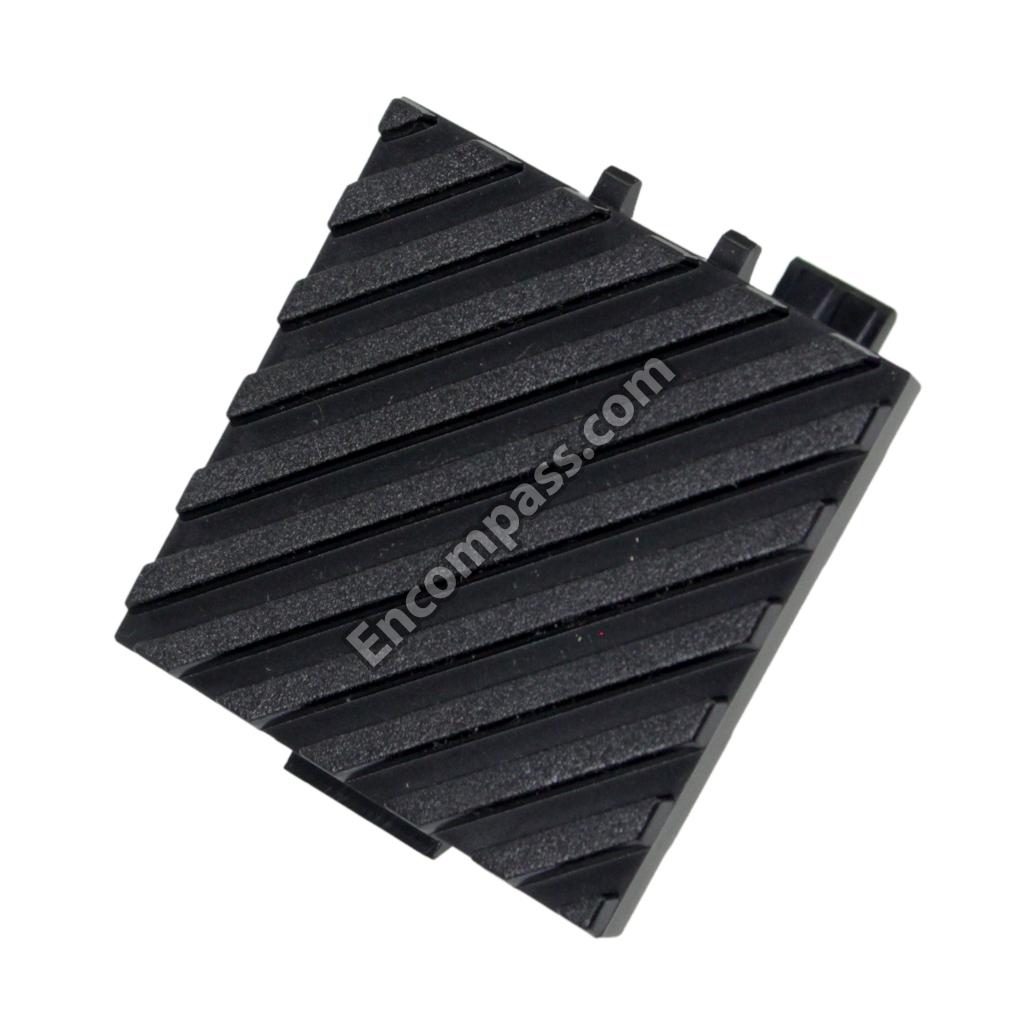

5-026-740-01 5-026-740-01 COVER HOOK (TUR) (UC2)
5-023-809-11 5-023-809-11 COVER,BTM(TUR) (UC2)
5-022-025-11 5-022-025-11 COVER,BTM(TUR) (UC2)
5-025-864-01 5-025-864-01 CUSHION 1525A (UC2)
4-535-308-21 4-535-308-21 CUSHION 825C (UC2)
5-027-886-01 5-027-886-01 CUSHION FFC (TUR 3L) (UC2)
1-010-637-11 1-010-637-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-010-638-11 1-010-638-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-010-639-11 1-010-639-11 FLEXIBLE FLAT CABLE 25P (UC2)

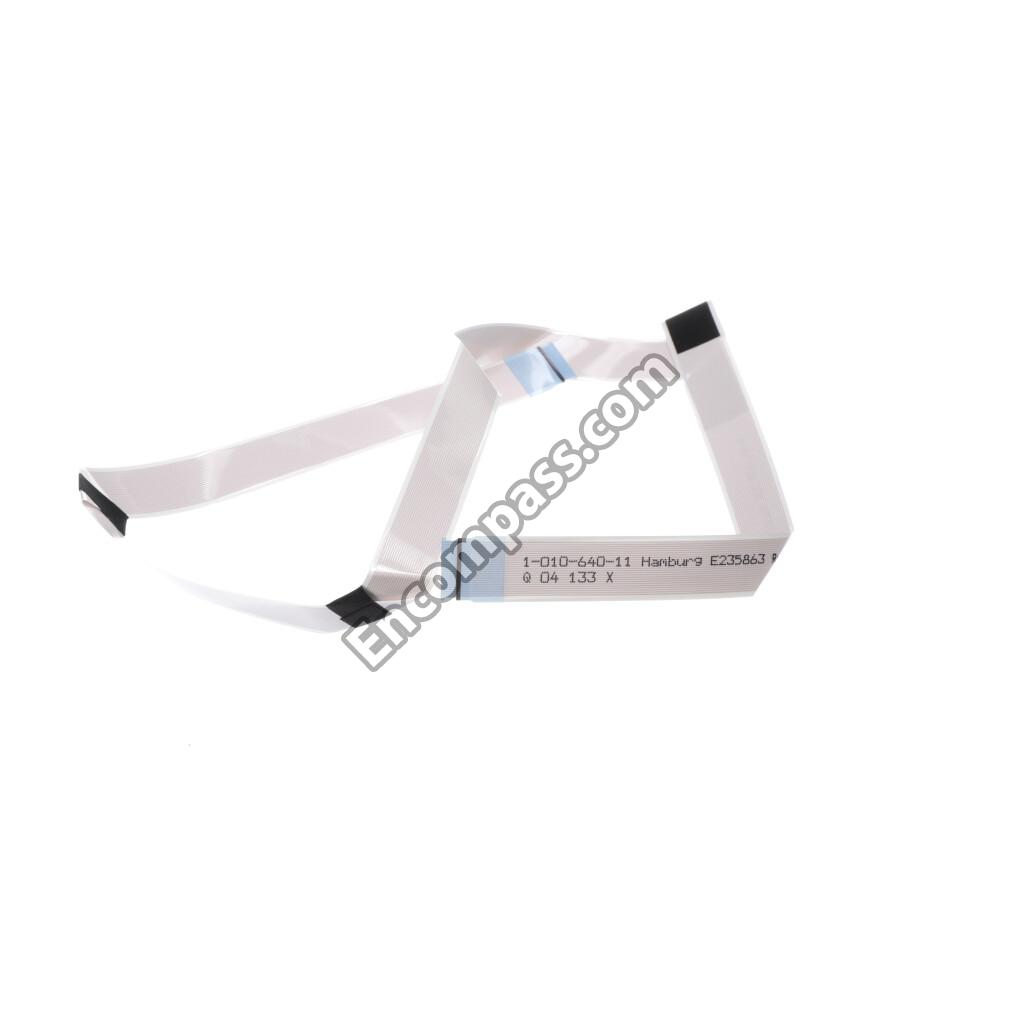

1-010-640-11 1-010-640-11 FLEXIBLE FLAT CABLE 25P (UC2)

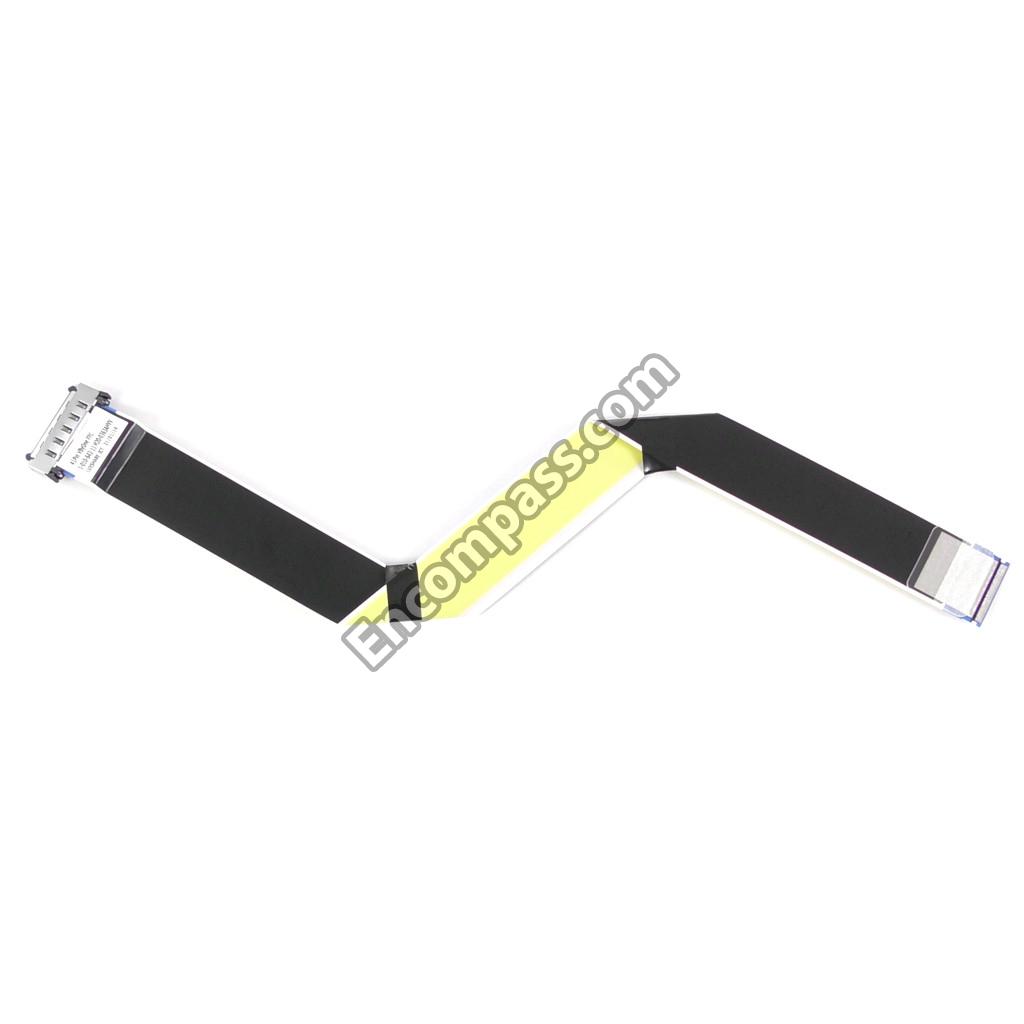

1-010-642-11 1-010-642-11 FLEXIBLE FLAT CABLE 41P (UC2)
1-010-644-11 1-010-644-11 FLEXIBLE FLAT CABLE 51P (UC2)

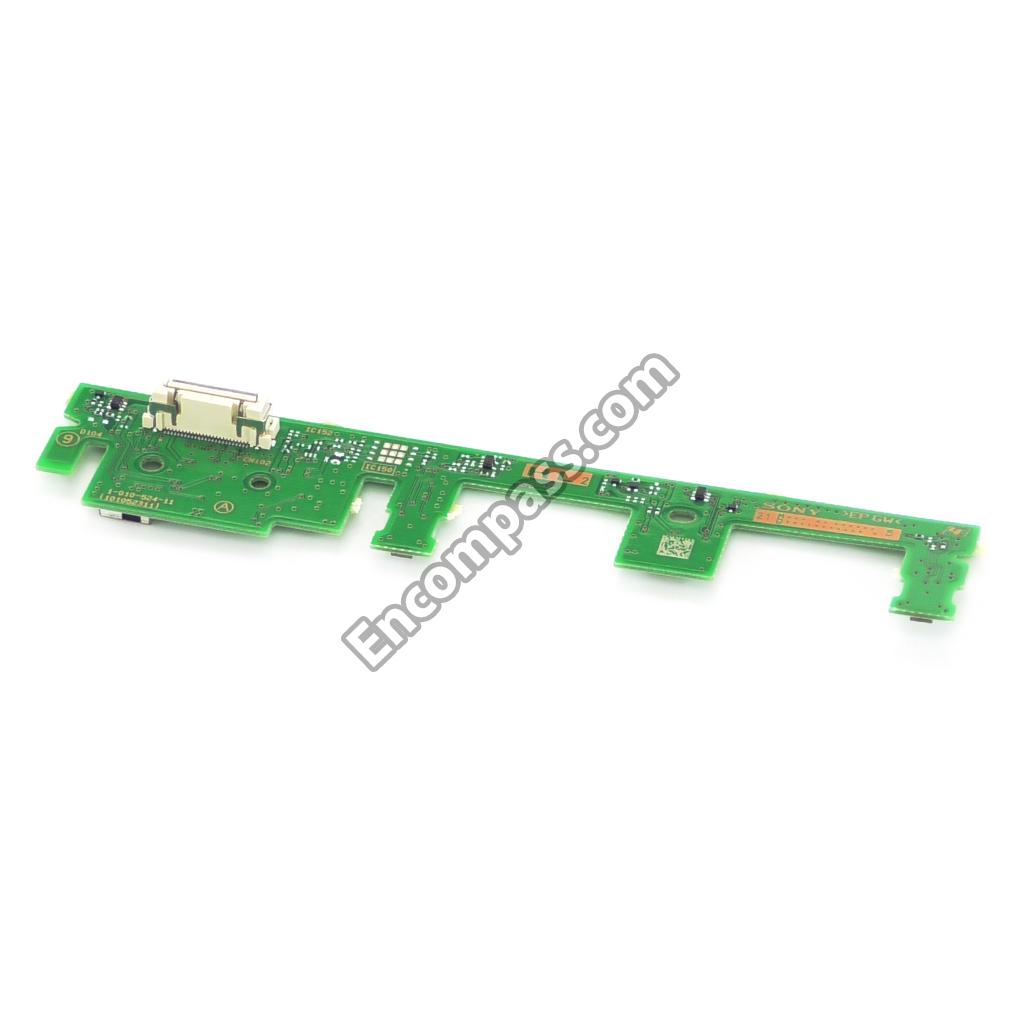

A-5026-355-A A-5026-355-A HL2_MIC_WW_CT MOUNT (UC2)
5-024-392-01 5-024-392-01 LABEL, SIDE TERMINAL (BM5S21) (UC2)
5-023-597-01 5-023-597-01 LABEL, UNDER TERMINAL (BM5S21) (UC2)
5-024-518-21 5-024-518-21 LIGHT GUIDE ILM (COM) (UC2)
5-023-066-21 5-023-066-21 LIGHT GUIDE ILM (COM) (UC2)
5-024-519-21 5-024-519-21 LIGHT GUIDE LED (COM) (UC2)
5-023-067-21 5-023-067-21 LIGHT GUIDE LED (COM) (UC2)
5-024-517-21 5-024-517-21 LIGHT GUIDE OPT (COM) (UC2)
5-023-065-21 5-023-065-21 LIGHT GUIDE OPT (COM) (UC2)
1-011-883-11 1-011-883-11 OLED PANEL(L77APA1) (UC2)
5-028-143-01 5-028-143-01 OUBLE SIDE TAPE FOR FC S (UC2)
1-836-883-12 1-836-883-12 POWER-SUPPLY CORD (UC2)
1-912-810-11 1-912-810-11 POWER-SUPPLY CORD SET(UC) (UC2)
5-024-846-01 5-024-846-01 REAR COVER (3L TUR) A (UC2)
5-026-348-11 5-026-348-11 REFERENCE GUIDE (UC2)
1-009-952-11 1-009-952-11 REMOTE COMMANDER (RMF-TX520U) (UC2)
7-682-948-09 7-682-948-09 SCREW +PSW 3X8 (UC2)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2)
5-026-350-11 5-026-350-11 SETUP GUIDE (UC2)
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR) (UC2)
5-011-960-01 5-011-960-01 SHEET THERMAL(LMN TCON) (UC2)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UC2)
5-023-831-11 5-023-831-11 SHT, INSULATION (TUR 3L) A (UC2)
5-027-173-21 5-027-173-21 SILICON MIC(PHN) (UC2)
5-023-161-21 5-023-161-21 SILICON MIC(PHN) (UC2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (UC2)

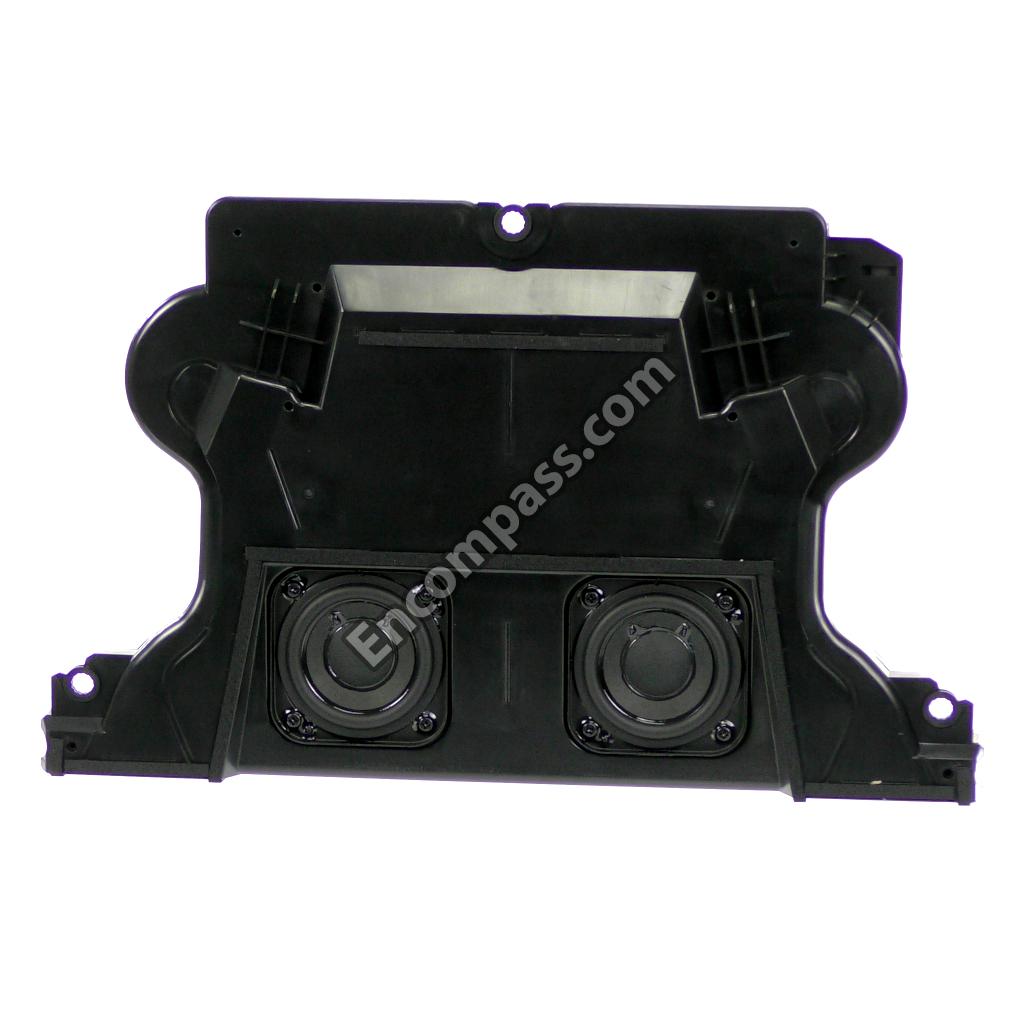

1-009-854-11 1-009-854-11 SP BOX ASSY, FY21 D40 SWF (UC2)
5-026-741-01 5-026-741-01 SPACER TOP L (TUR) (UC2)
5-023-537-01 5-023-537-01 SPACER TOP L(TUR) (UC2)
5-026-742-01 5-026-742-01 SPACER TOP R (TUR) (UC2)
5-023-538-01 5-023-538-01 SPACER TOP R(TUR) (UC2)
5-014-769-01 5-014-769-01 SPACER(26) WF +C (UC2)

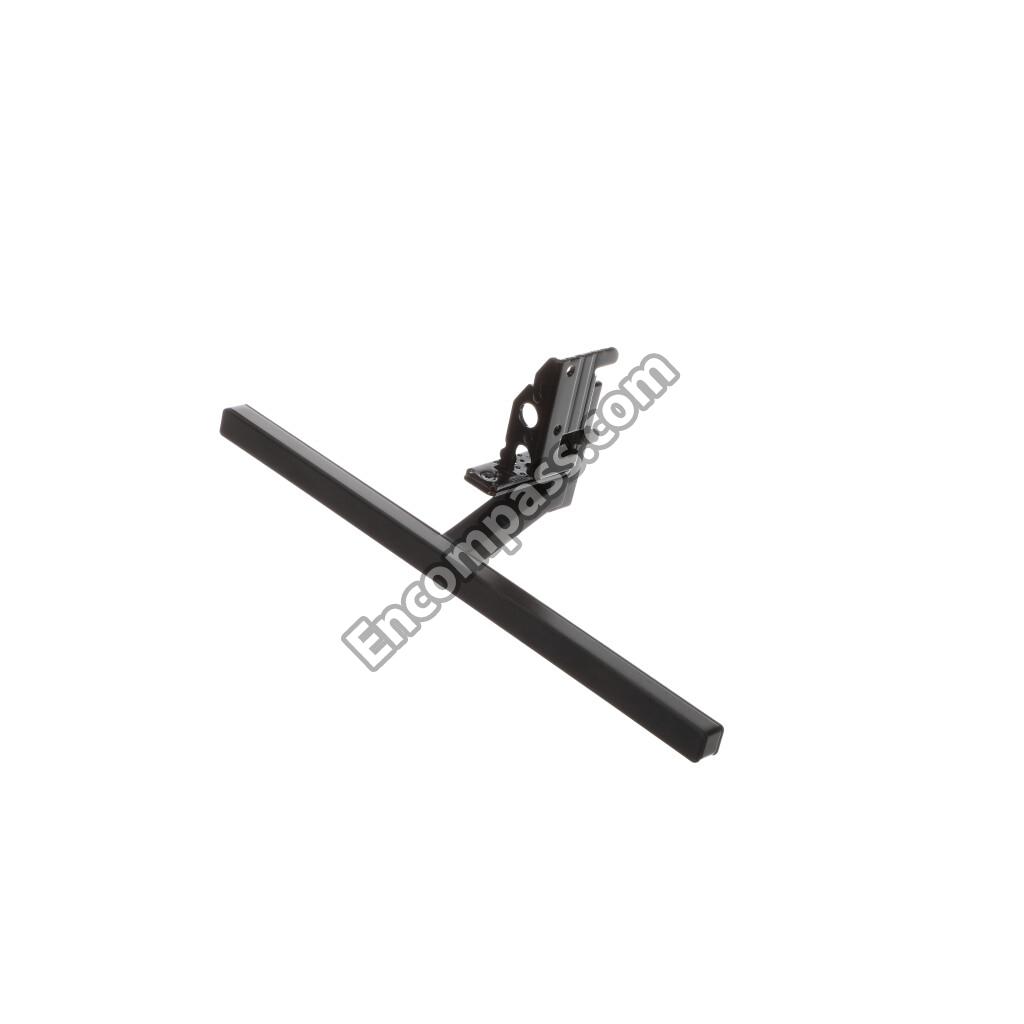

5-023-429-01 5-023-429-01 STAND, BASE (L) (3L TUR) A (UC2)

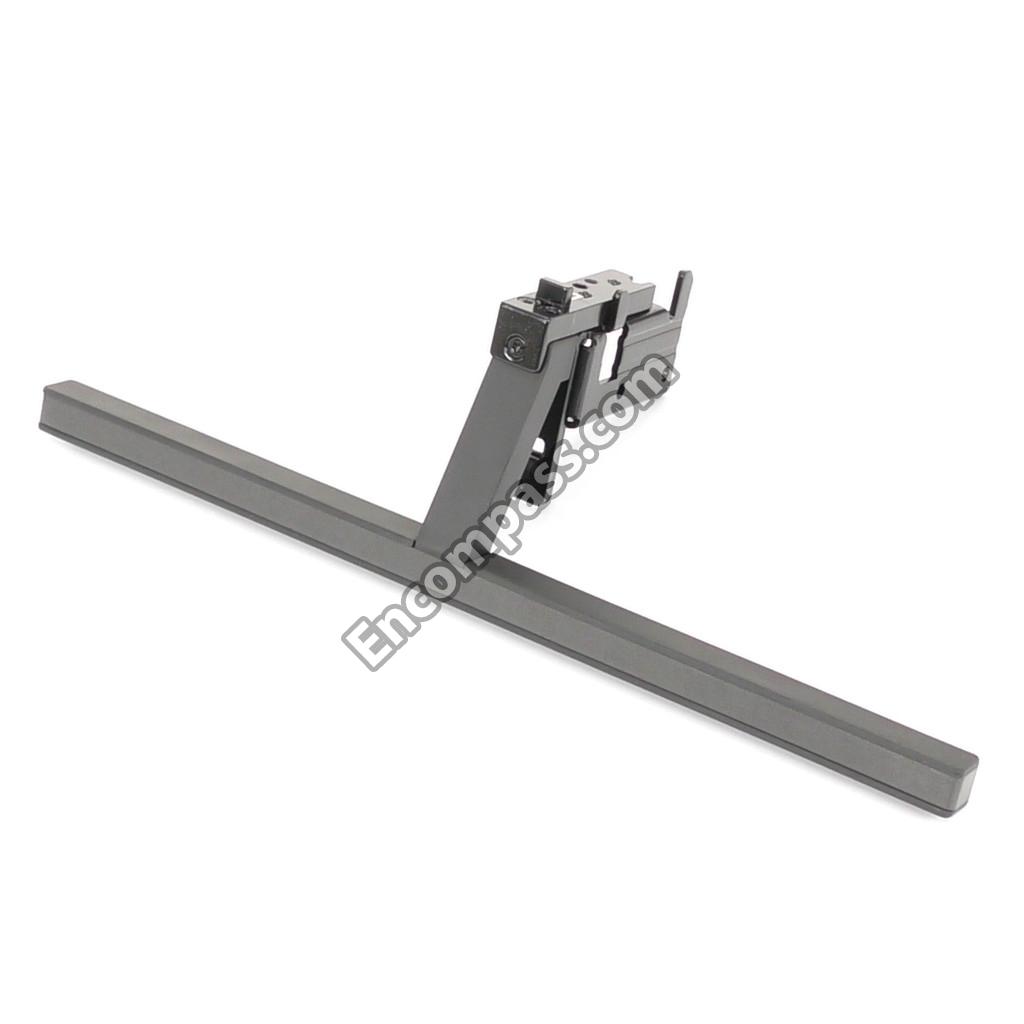

5-023-430-01 5-023-430-01 STAND, BASE (R) (3L TUR) A (UC2)
1-005-419-31 1-005-419-31 WLAN/BT MODULE (11AC) (UC2)
1-005-419-11 1-005-419-11 WLAN/BT MODULE(11AC) DHUR-SY63 (UC2)
