Model Image
Manufacturer

Sony

Model Number

XR83A80CL

Description

83-inch Bravia Display

Interactive Exploded View

Parts List

Part Number Description

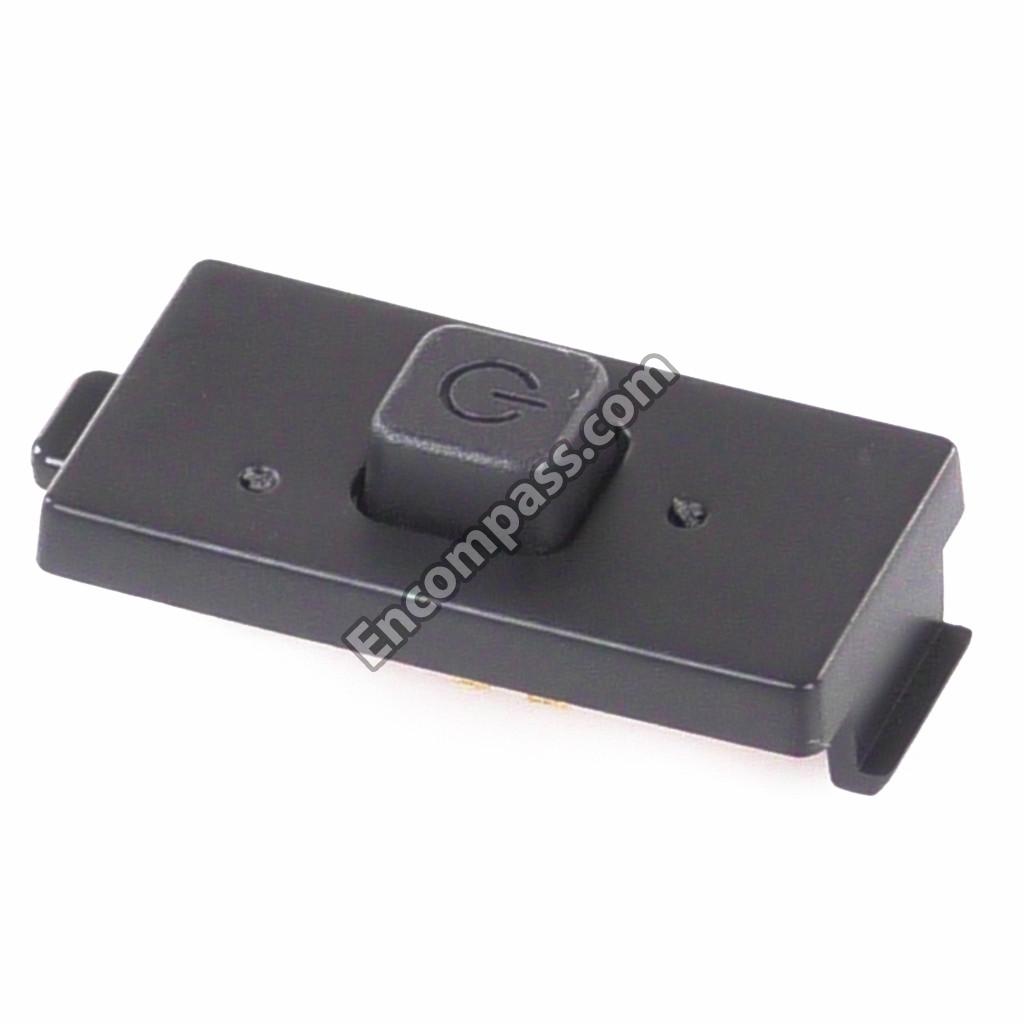

1-004-496-11 1-004-496-11 1 KEY SWITCH UNIT (UC2)
5-031-024-01 5-031-024-01 AL TAPE(SGT 4L) (UC2)

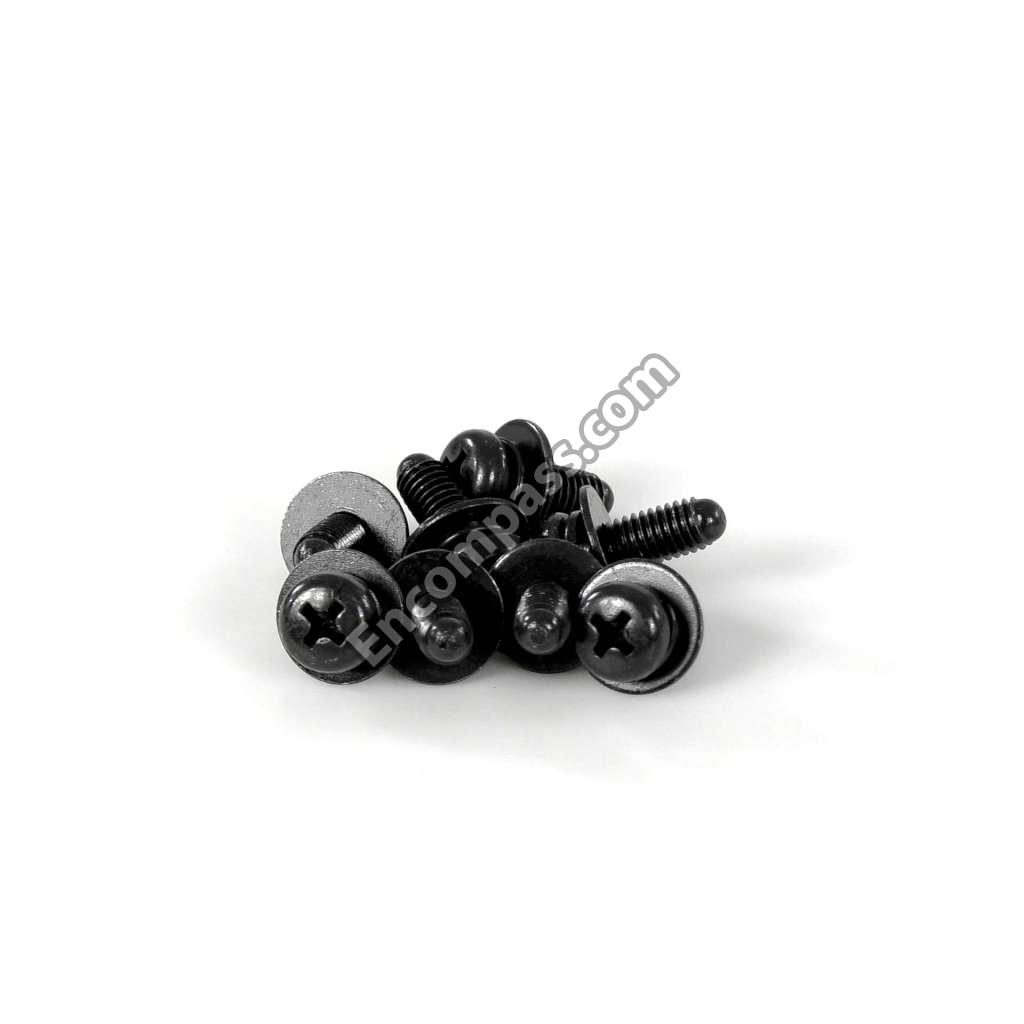

4-595-704-11 4-595-704-11 BAG, SCREW ASSY (M5L14) (UC2)
A-5055-870-A A-5055-870-A BM5S21_FS2_83_UCMX COMPL (UC2)
4-743-315-01 4-743-315-01 BRACKET CENT SP (OCD) (UC2)
4-724-146-14 4-724-146-14 BRACKET UNDER(BM2A (UC2)
5-036-017-71 5-036-017-71 BRACKET, SIDE(SGT) (UC2)
5-023-713-01 5-023-713-01 BRACKET, VESA(3L LMN) (UC2)
5-009-258-12 5-009-258-12 BRACKET, WIFI(BNN) (UC2)
1-001-348-12 1-001-348-12 C24 AC INLET ASSY (UC2)
4-262-708-04 4-262-708-04 CLAMPER, CABLE (UC2)
1-010-574-11 1-010-574-11 CONNECTOR ASSY 10P (UC2)
1-010-573-11 1-010-573-11 CONNECTOR ASSY 14P (UC2)
1-010-571-11 1-010-571-11 CONNECTOR ASSY 20P (UC2)
1-010-572-11 1-010-572-11 CONNECTOR ASSY 28P (UC2)
1-010-576-11 1-010-576-11 CONNECTOR ASSY 2P (UC2)
1-010-570-11 1-010-570-11 CONNECTOR ASSY 3P (UC2)
1-972-625-11 1-972-625-11 CONNECTOR ASSY 4P (UC2)
1-011-659-11 1-011-659-11 CORE, FERRITE (UC2)

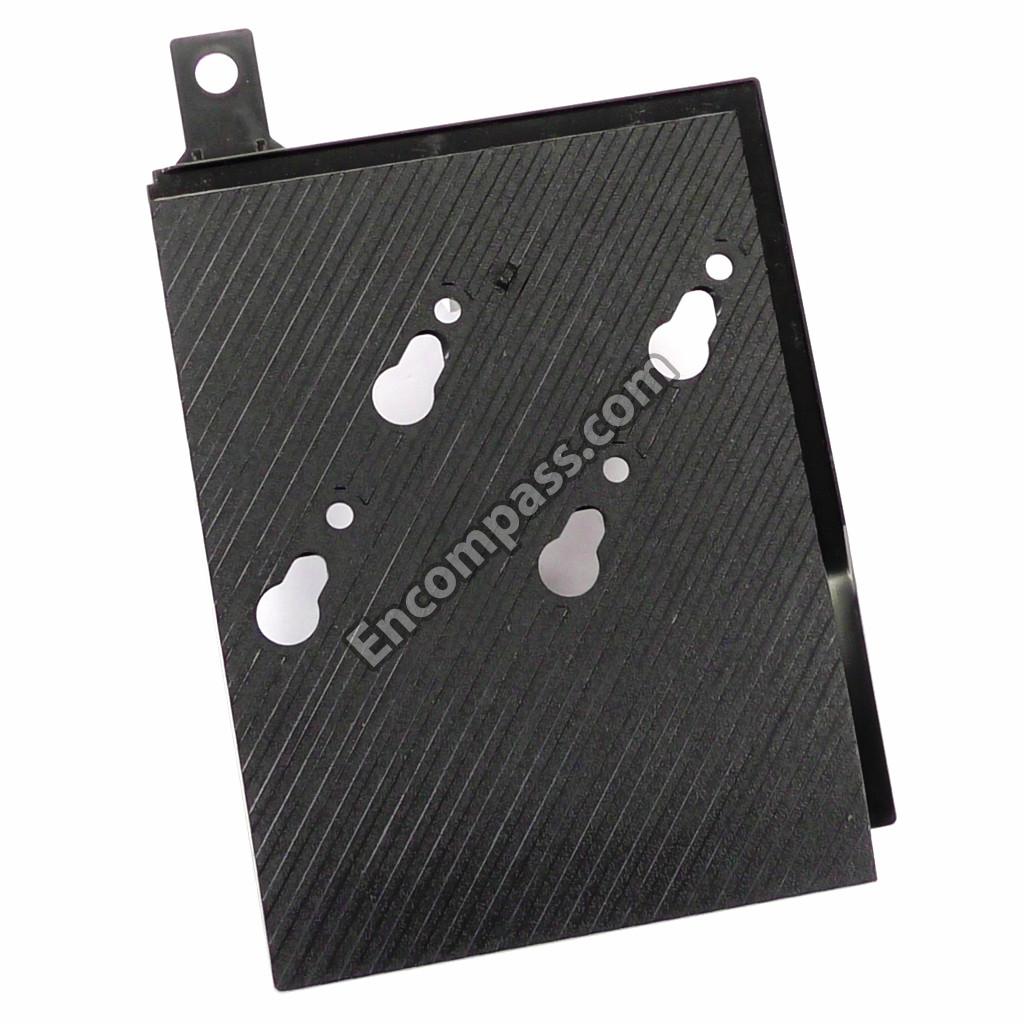

5-023-211-11 5-023-211-11 COVER, AC (4L SGT) (UC2)
5-023-209-11 5-023-209-11 COVER, SIDE (4L SGT) (UC2)

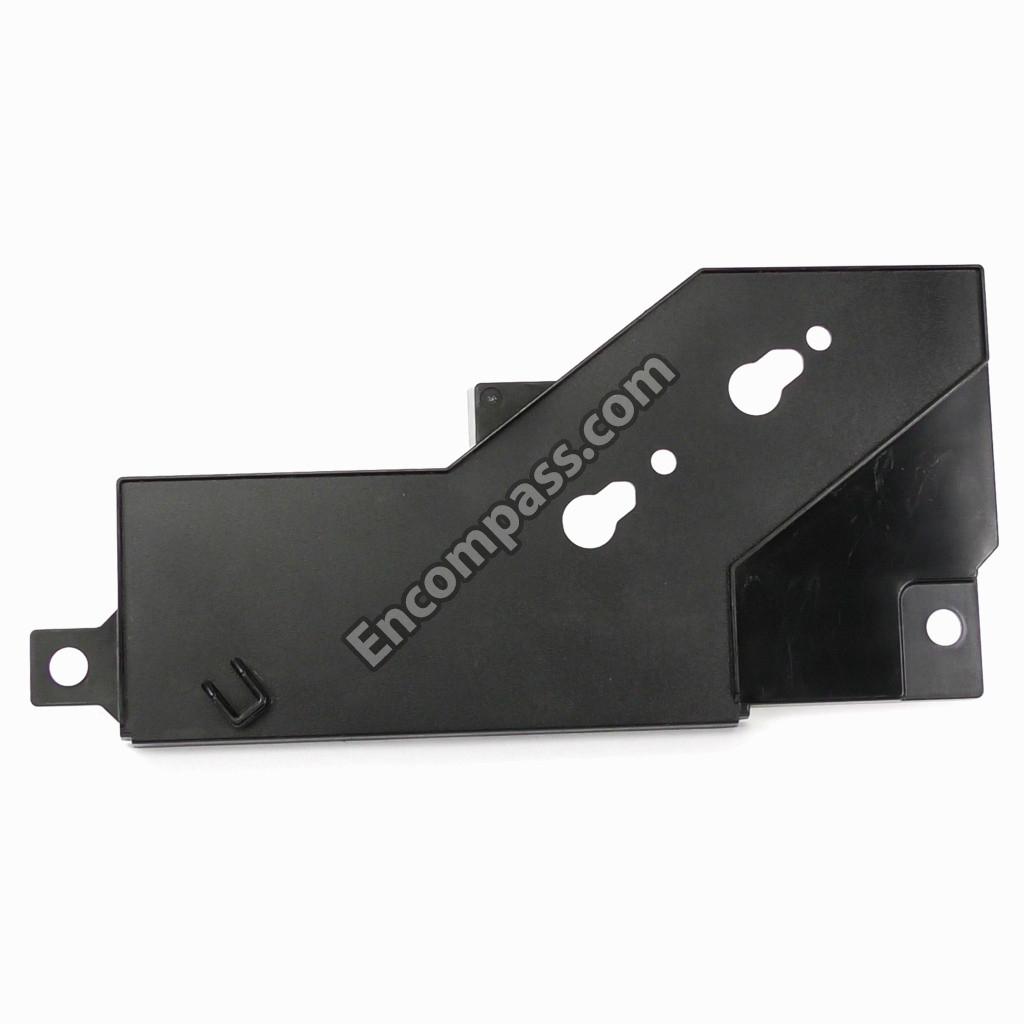

5-023-219-11 5-023-219-11 COVER, STAND L IN (4L SGT) (UC2)
5-023-221-11 5-023-221-11 COVER, STAND L OUT (4L SGT) (UC2)

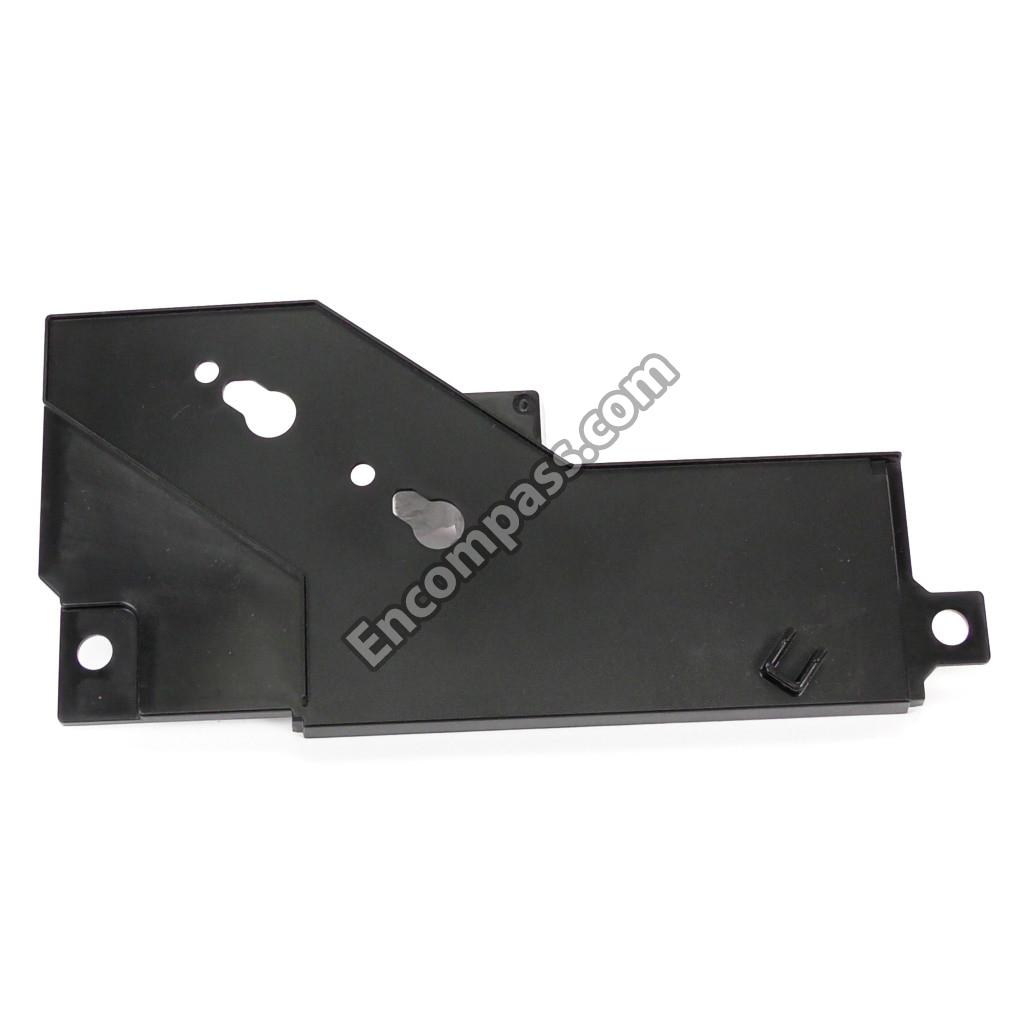

5-023-220-11 5-023-220-11 COVER, STAND R IN (4L SGT) (UC2)
5-023-222-11 5-023-222-11 COVER, STAND R OUT (4L SGT) (UC2)

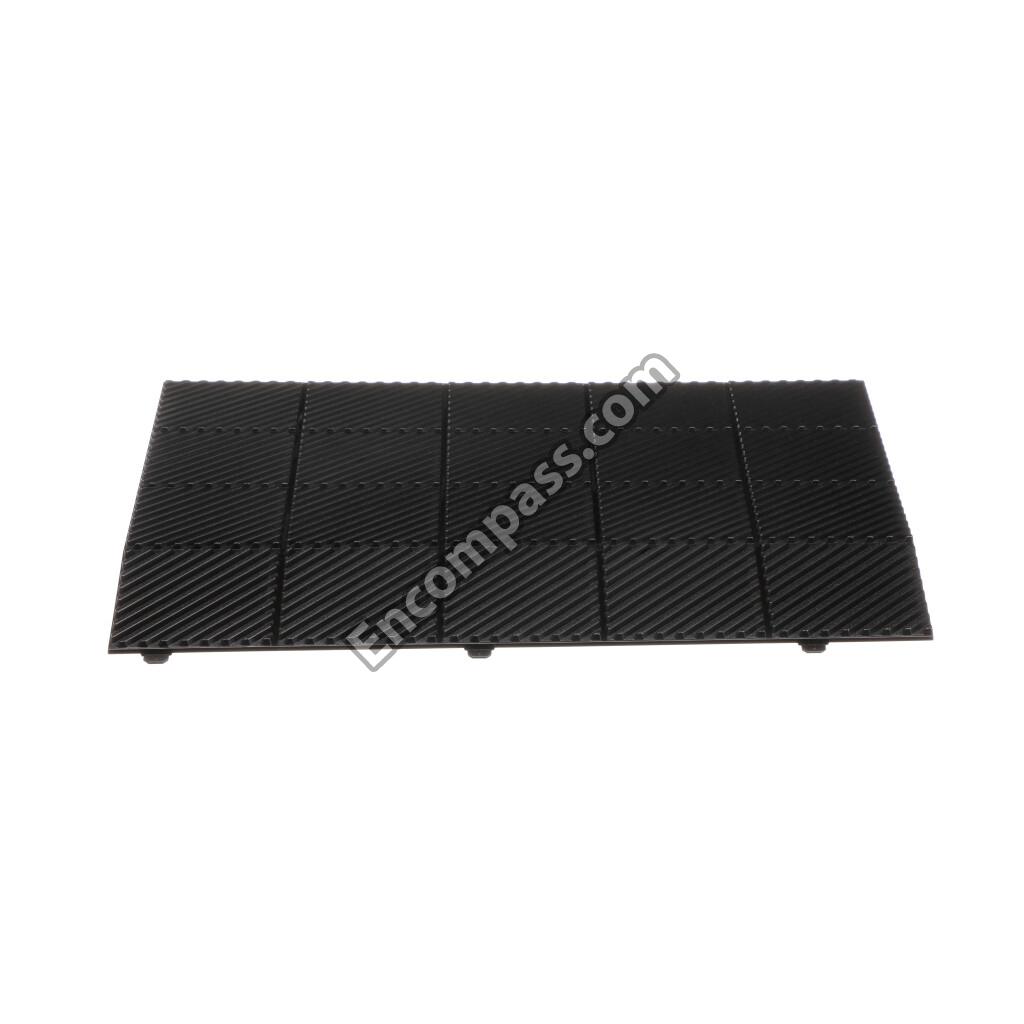

5-023-210-11 5-023-210-11 COVER, UNDER (4L SGT) (UC2)
5-022-025-11 5-022-025-11 COVER,BTM(TUR) (UC2)
5-025-864-01 5-025-864-01 CUSHION 1525A (UC2)
5-007-447-01 5-007-447-01 CUSHION, CNT SP BK (3L PAN) (UC2)

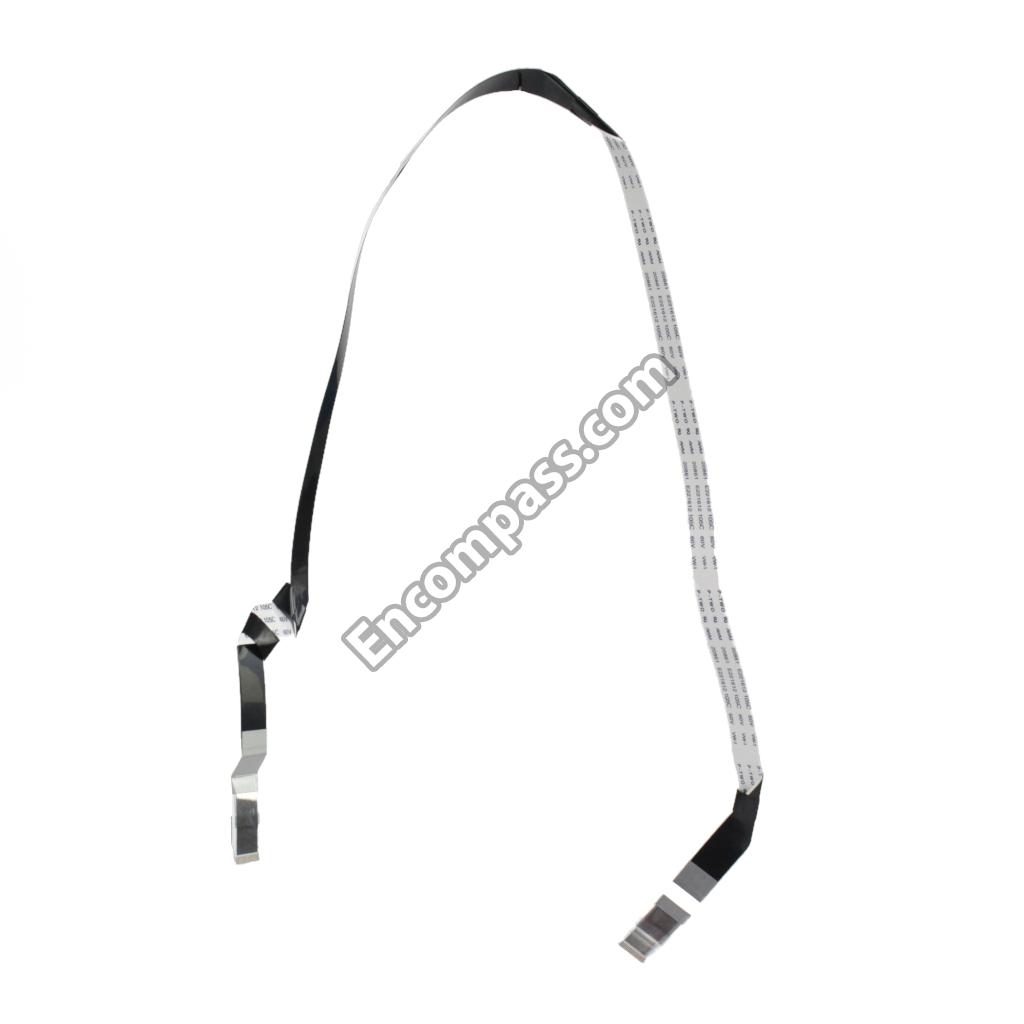

1-010-621-11 1-010-621-11 FLEXIBLE FLAT CABLE 20P (UC2)
1-010-623-11 1-010-623-11 FLEXIBLE FLAT CABLE 25P (UC2)
1-010-625-11 1-010-625-11 FLEXIBLE FLAT CABLE 41P (UC2)

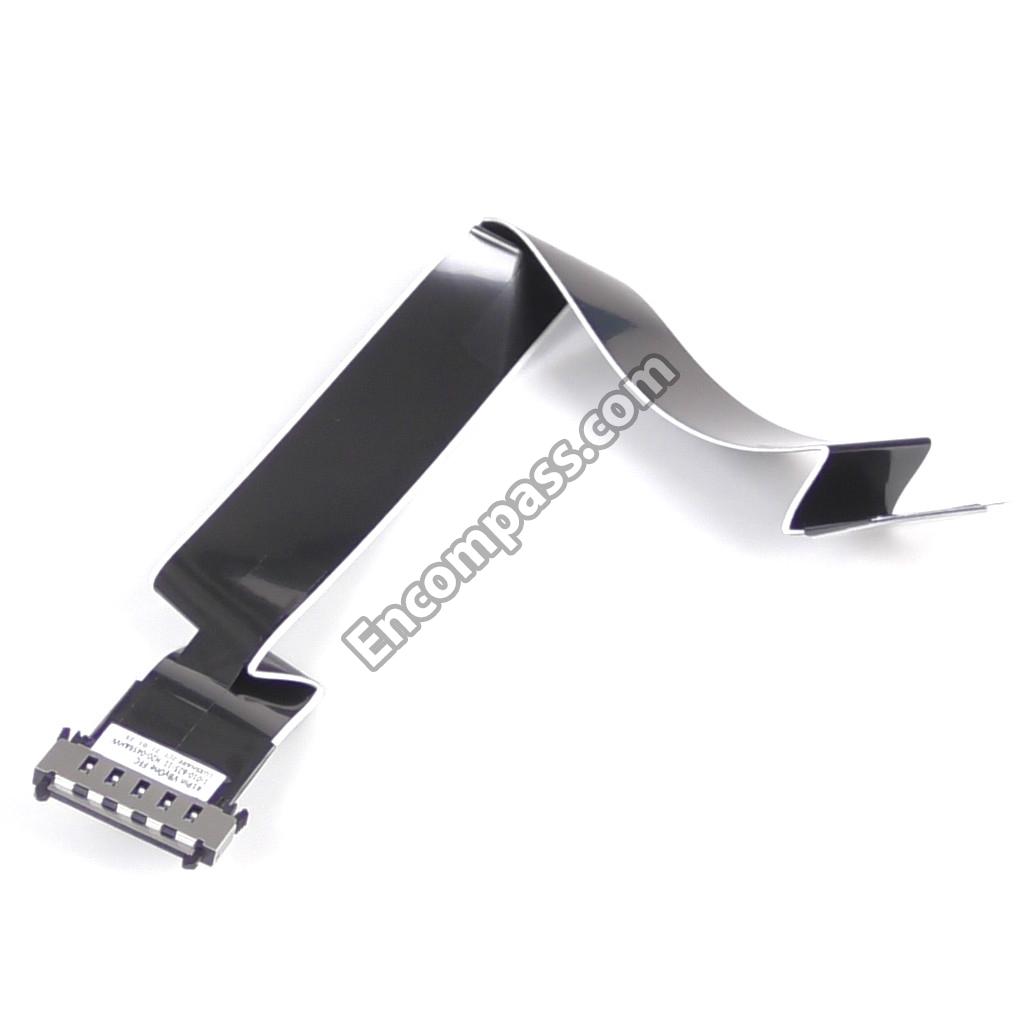

1-010-626-11 1-010-626-11 FLEXIBLE FLAT CABLE 51P (UC2)

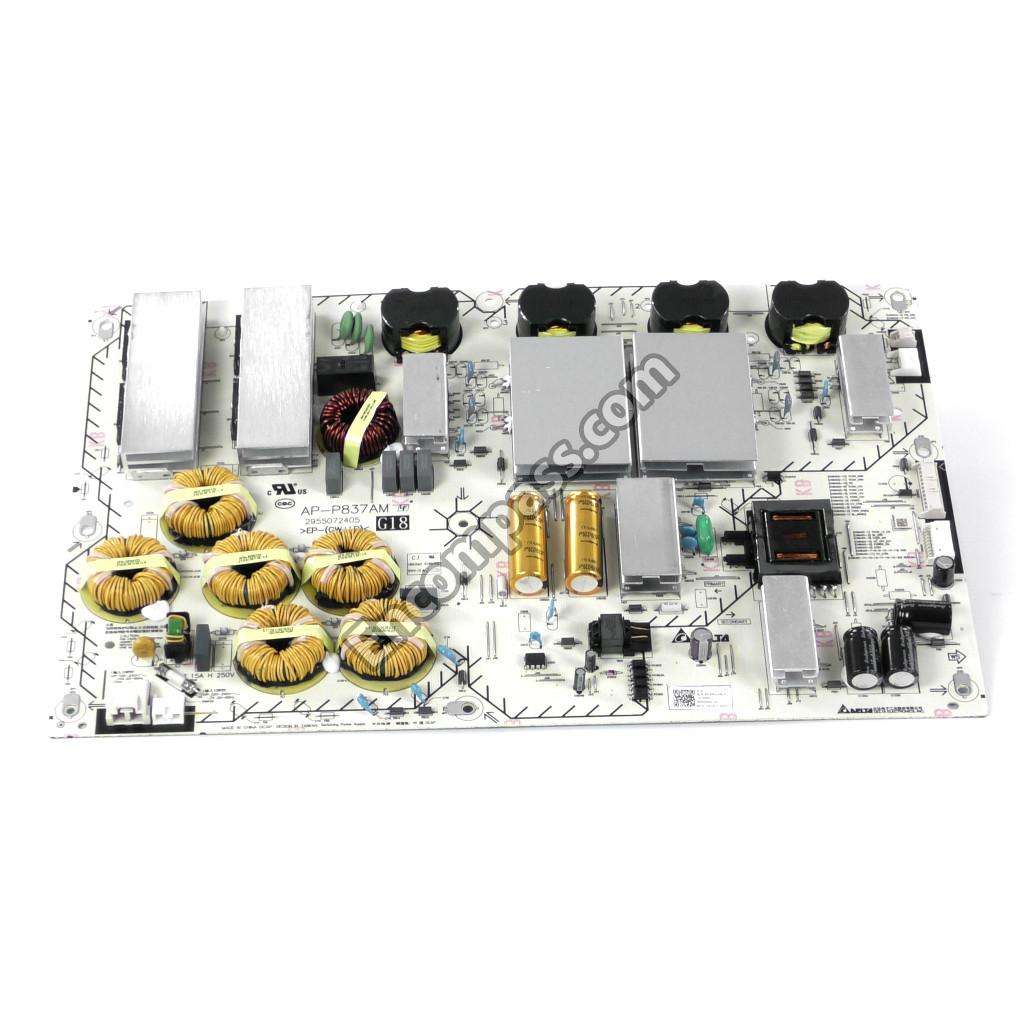

1-010-553-11 1-010-553-11 G18 - STATIC CONVERTER(TV) (UC2)

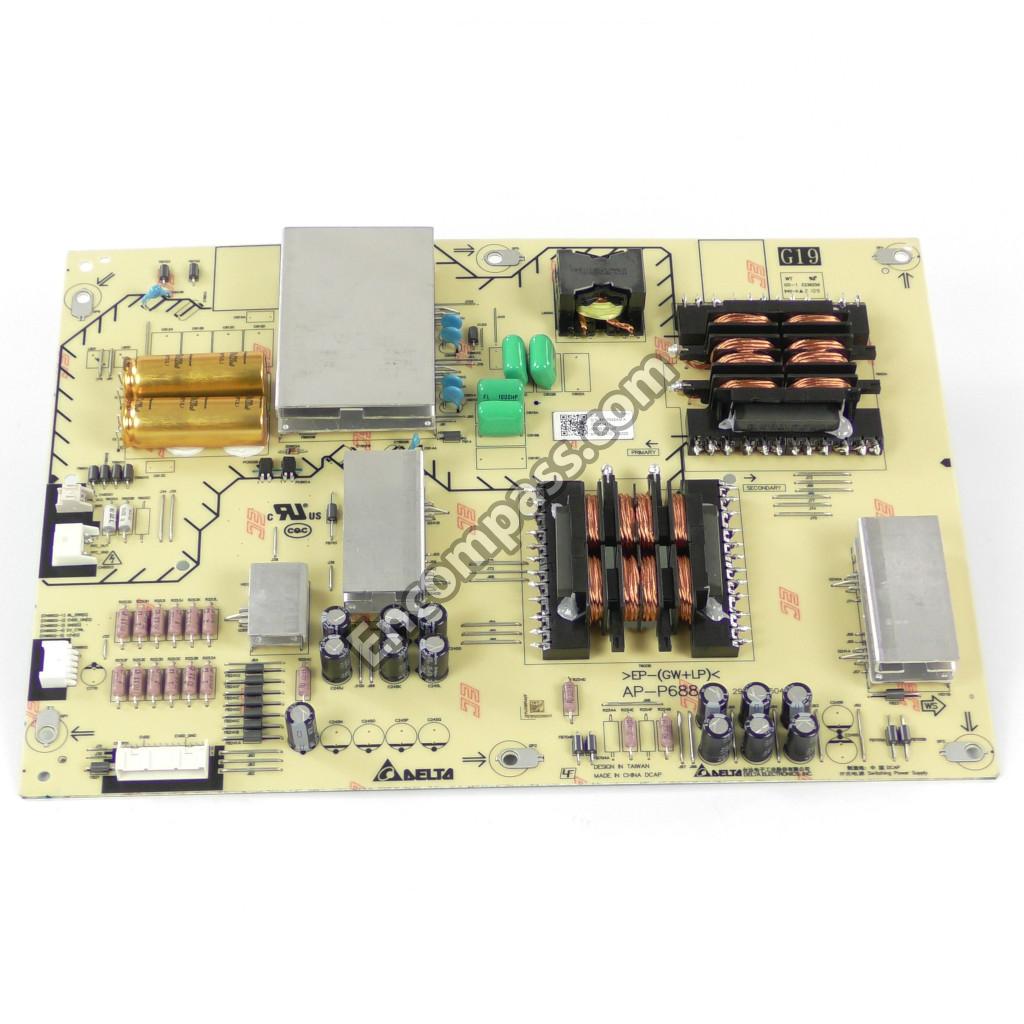

1-010-554-11 1-010-554-11 G19 - STATIC CONVERTER(TV) (UC2)
A-5055-896-A A-5055-896-A HL2B_RGB_MIC_WW MOUNT (UC2)
5-008-307-01 5-008-307-01 HOLDER SIDE SW(LMN) (UC2)
5-000-203-01 5-000-203-01 LABEL, CENTER SP (OCD) (UC2)
5-049-096-01 5-049-096-01 LABEL, SIDE TERMINAL(BM5S,6S) (UC2)
5-049-098-01 5-049-098-01 LABEL, UNDER TERMINAL(BM5S,6S) (UC2)
5-023-066-21 5-023-066-21 LIGHT GUIDE ILM (COM) (UC2)
5-023-067-21 5-023-067-21 LIGHT GUIDE LED (COM) (UC2)
5-023-065-21 5-023-065-21 LIGHT GUIDE OPT (COM) (UC2)
5-023-349-21 5-023-349-21 LIGHT,GUIDE RGB(SGT) (UC2)
5-024-918-11 5-024-918-11 NECK COVER B ASSY (4L SGT) (UC2)
1-011-756-12 1-011-756-12 OLED PANEL(L83APB1) (UC2)
5-028-143-01 5-028-143-01 OUBLE SIDE TAPE FOR FC S (UC2)
1-001-686-11 1-001-686-11 PUSH TERMINAL (UC2)
5-025-669-01 5-025-669-01 REAR COVER (4L SGT) A (UC2)
5-048-119-11 5-048-119-11 REFERENCE GUIDE (UC2)
1-016-949-21 1-016-949-21 REMOTE COMMANDER (RMF-TX910U) (UC2)
7-682-948-09 7-682-948-09 SCREW +PSW 3X8 (UC2)
4-579-926-01 4-579-926-01 SCREW M3X3.0 STEP (UC2)
4-472-518-11 4-472-518-11 SCREW, +PSW M3X6 (UC2)
2-580-592-01 2-580-592-01 SCREW, +PSW M3X8 (UC2)
4-268-126-02 4-268-126-02 SCREW, ORNAMENTAL M6X12 (UC2)
5-023-557-01 5-023-557-01 SHEET THERMAL(BM5S21 DDR) (UC2)
5-011-960-01 5-011-960-01 SHEET THERMAL(LMN TCON) (UC2)
4-699-975-02 4-699-975-02 SHEET, THERMAL (5567H) (UC2)
5-023-772-01 5-023-772-01 SHT, INSULATION(SGT 4L)L A (UC2)
5-023-773-01 5-023-773-01 SHT, INSULATION(SGT 4L)M A (UC2)
5-023-161-21 5-023-161-21 SILICON MIC(PHN) (UC2)
2-650-770-21 2-650-770-21 SLIDE, CLAMP (UC2)
2-650-770-41 2-650-770-41 SLIDE, CLAMP (UC2)
1-009-853-11 1-009-853-11 SP BOX ASSY, FY21 D38 SWF (UC2)
5-014-769-01 5-014-769-01 SPACER(26) WF +C (UC2)
5-024-903-11 5-024-903-11 STAND, L (4L SGT) A (UC2)
5-024-904-11 5-024-904-11 STAND, R (4L SGT) A (UC2)
1-001-346-11 1-001-346-11 US C23 (UC2)
1-005-419-13 1-005-419-13 WLAN/BT MODULE(11AC) (UC2)
